ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0638 / T0759
1. Unscrew the two bolt nuts (D), remove the two rubber pads (E) and the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the
preinstalled headless screws if necessary.
Note: Make sure that two headless screws are lined up horizontally to make the fixture level.
T
W
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.

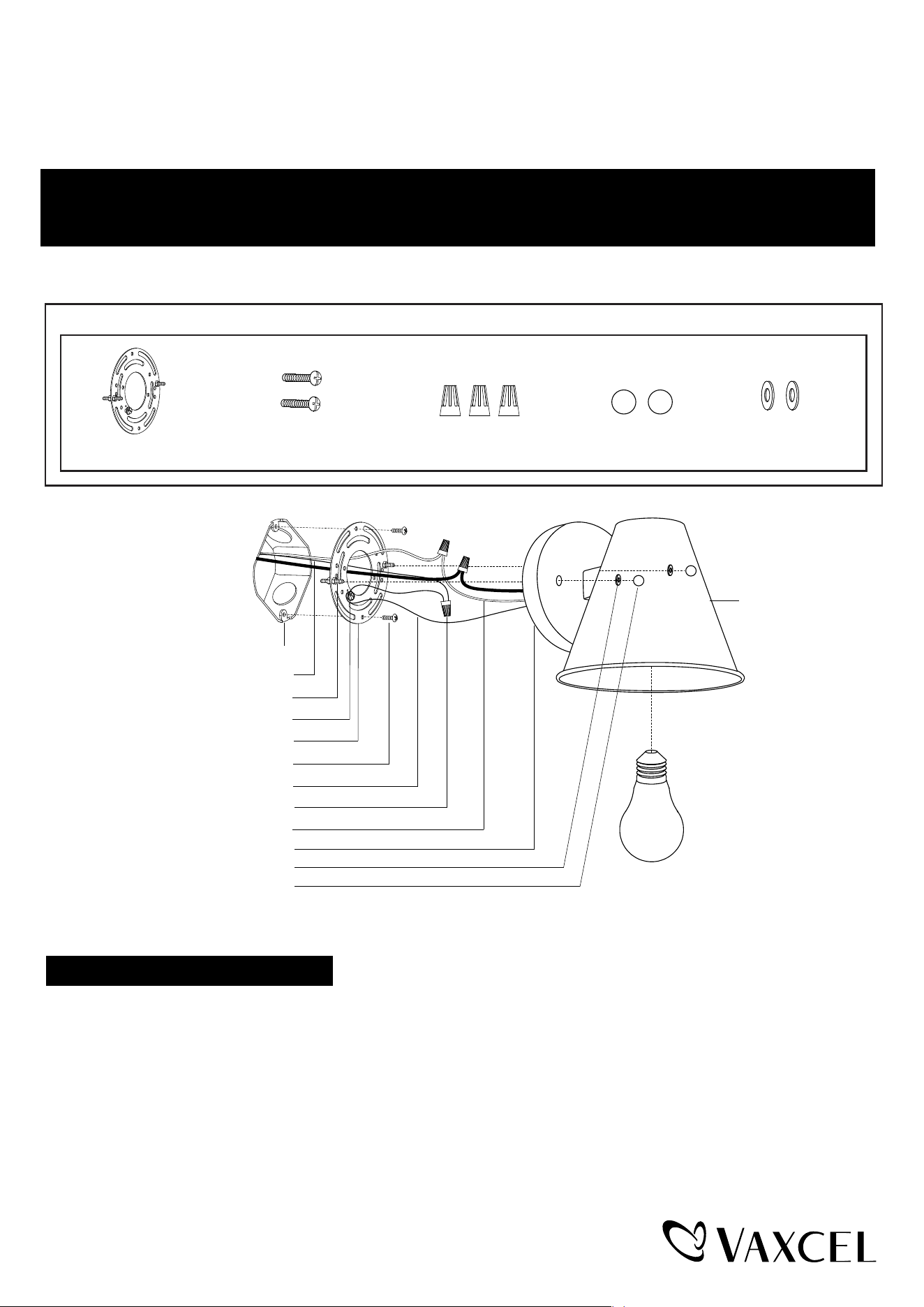

Hardware Package (included):
Mounting Screw (B) Wire Connector (C) Bolt Nut (D) Rubber Pad (E)Mounting Plate Unit (A)
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Headless Screw
Mounting Plate Unit (A)
Fixture Wire
Backplate
Rubber Pad (E)
Bolt Nut (D)
Fixture Ground Wire
Max. 60W Type A Bulb
Fixture
(not included)
Turn off the power at fuse or circuit box.
Installation Steps
Page 1 / 2
240312
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with green ground screw, then depending
on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Install the bulb (not included). See relamping label at socket area or packaging for maximum wattage allowed.
5. Attach the backplate of the fixture to the mounting plate unit (A) by aligning and inserting the two headless screws
into set holes on backplate, then secure it with two rubber pads (E) and two bolt nuts (D).
Note: With silicone caulk compound, caulk completely around where the backplate meets with the wall
surface to prevent water from seeping into the outlet box.
Turn on the power at fuse or circuit box.

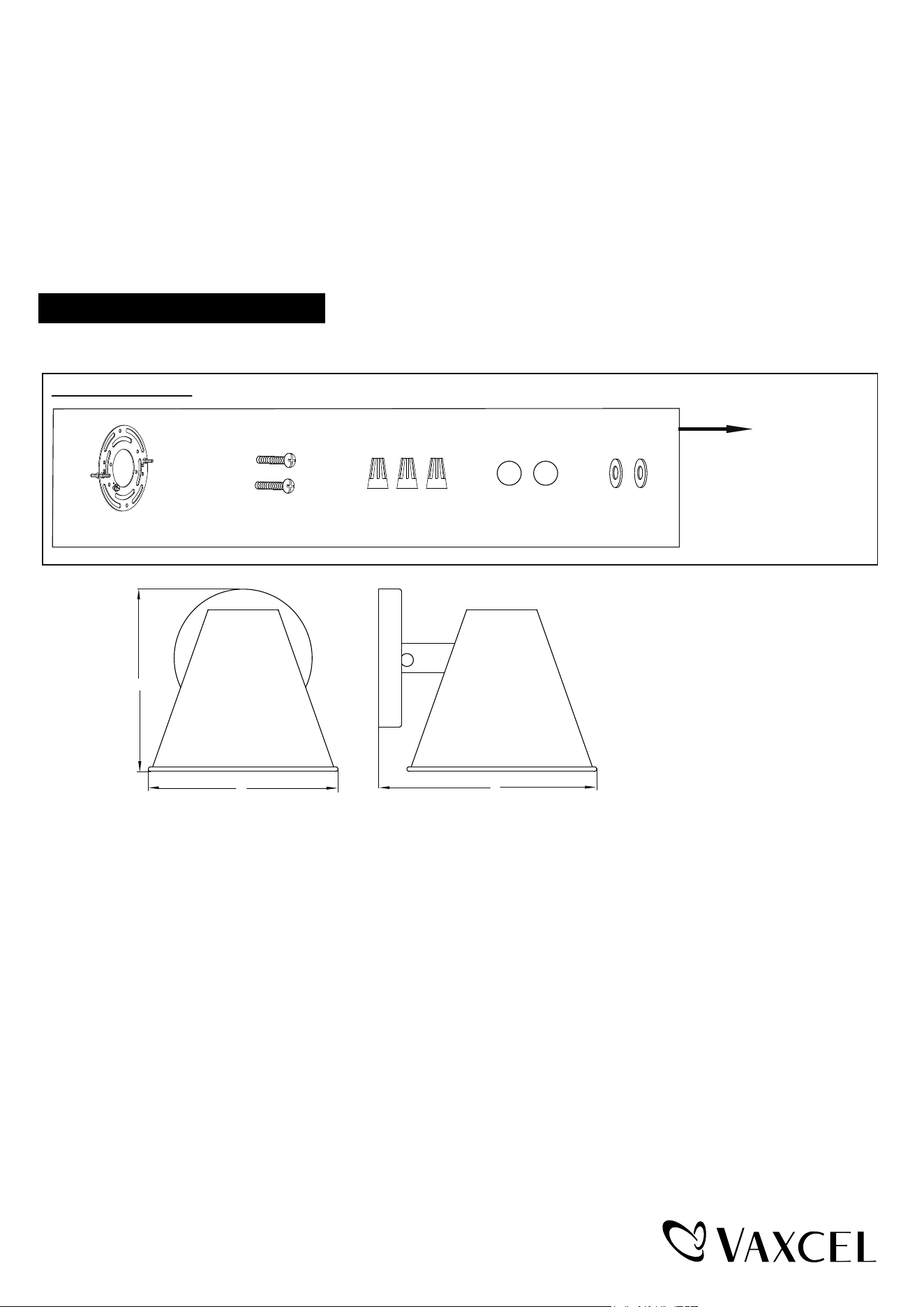

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
6495MM (1 SET) for T0638 T0759
Mounting Screw (B) Wire Connector (C) Bolt Nut (D) Rubber Pad (E)Mounting Plate Unit (A)
B
A
C
T0638
A: 6-1/4"
B: 6-1/2"
C: 7-1/4"
T0759
A: 8"
B: 8-1/2"
C: 9-1/4"
Page 2 / 2
240312
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
