ASSEMBLY AND INSTALLATION
INSTRUCTIONS
161008
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
T0316
Lock Nut (E)
Mounting Screw (B)
Wire Nut (F)
Ball Nut (G) Rubber Pad (H)
Cross Bar (A)
Green Grounding
Screw (C)
Headless
Screw (D)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

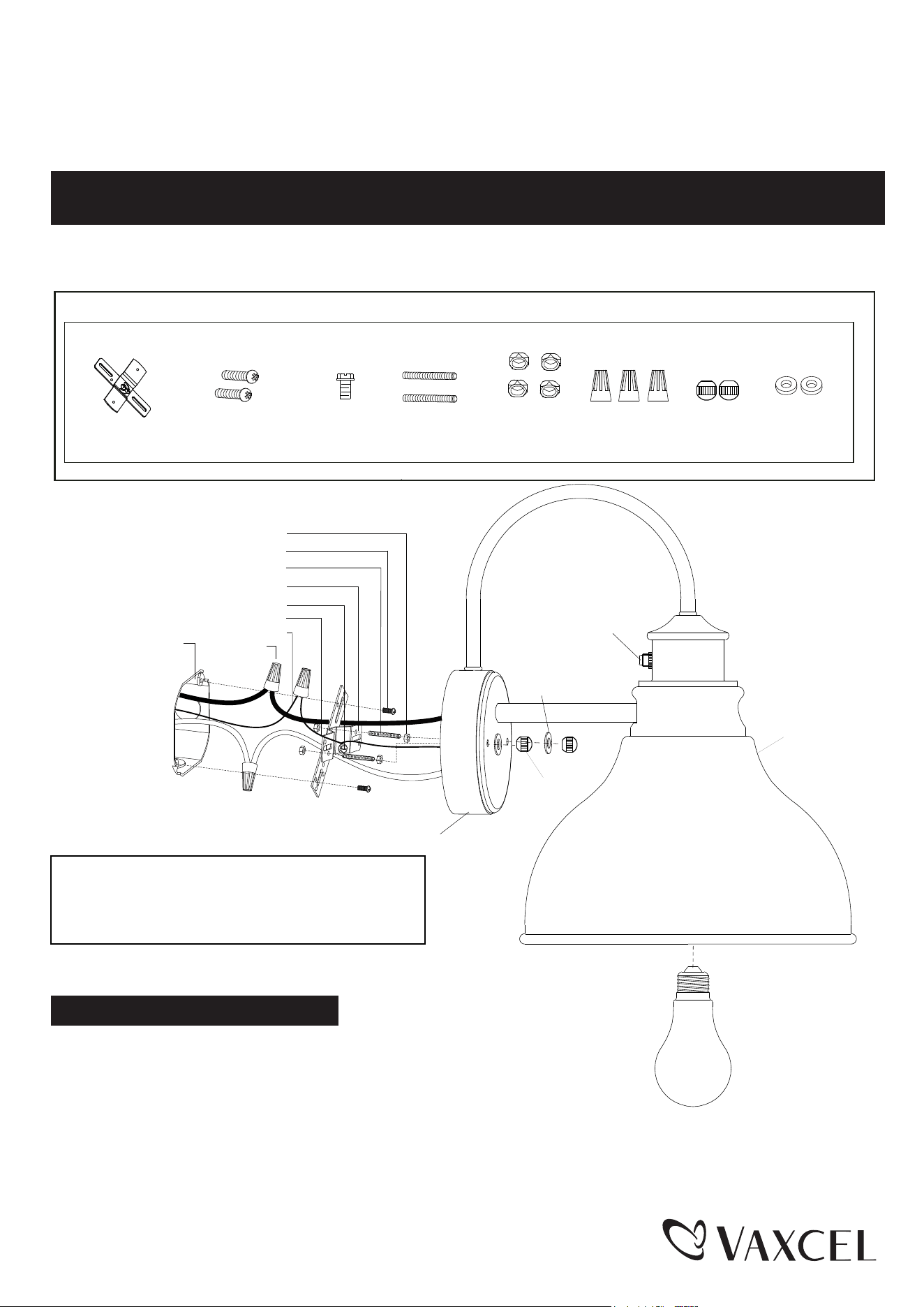

Hardware Package (included):
Green Grounding Screw (C)
Outlet Box
Wire Nut (F)
Headless Screw (D)
Cross Bar (A)
Lock Nut
(E)
Back Plate
Ball Nut (G)
Fixture Body
Rubber Pad (H)
Photocell
House Grounding Wire
Fixture Grounding Wire
Mounting Screw (B)
IMPORTANT:
The sensor has an excellent photocell function
to enable the light to turn on at dusk and off at
dawn automatically.
Turn off the power at fuse or circuit box
Installation Steps
Bulb Type A
Max. 100W
(not included)
1.
Thread two headless screws through the cross bar, and then secure
them with two lock nuts. Adjust the length of the headless screws
if necessary.
Note: Make sure that the headless screws are lined up horizontally to
make the fixture level.
2. Attach the cross bar to the outlet box by using two mounting screws.
161008

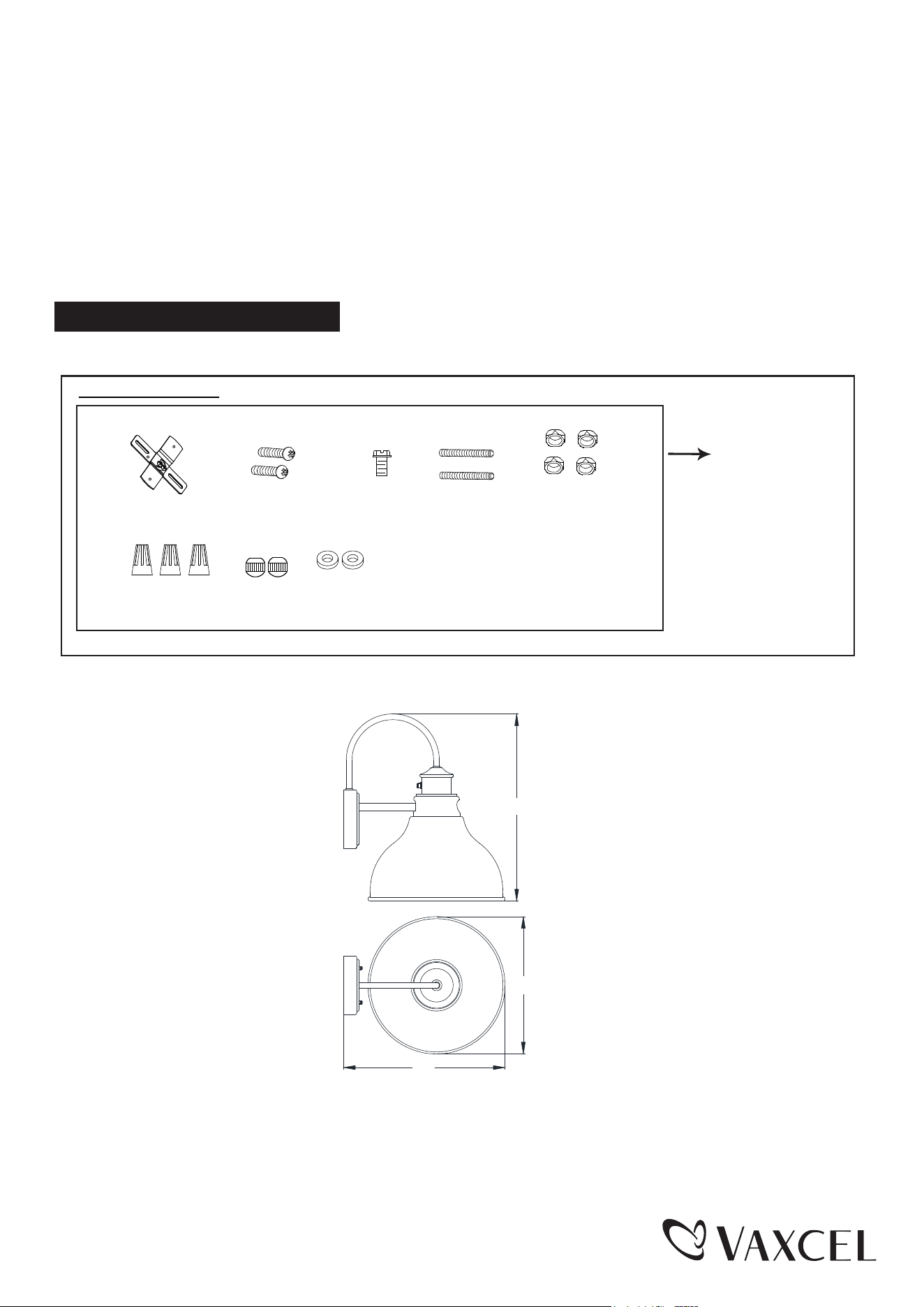

Assembly Kit
5634MM (1SET)
The following parts are available for re-order if damaged or missing.
Spare Parts List:
A: 9”
B: 13”
C: 11”
A
B
C
Turn on the power at fuse or circuit box
Lock Nut (E)
Mounting Screw (B)
Wire Nut (F)
Ball Nut (G) Rubber Pad (H)
Cross Bar (A)
Green Grounding
Screw (C)
Headless
Screw (D)
3. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follows:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar with the green
grounding screw, and then connect it to the house grounding wire with the wire nut.
Carefully put the wires back into the outlet box.
4. Attach the fixture body to the cross bar by inserting headless screws into holes on back plate, and then secure it
with two rubber pads and two ball nuts.
NOTE:With silicone caulking compound, caulk completely around where the back plate meets with the
wall surface to prevent water from seeping into the outlet box.
5. Install a bulb (not included). Check relamping label at socket area or packaging for maximum allowed wattage.
