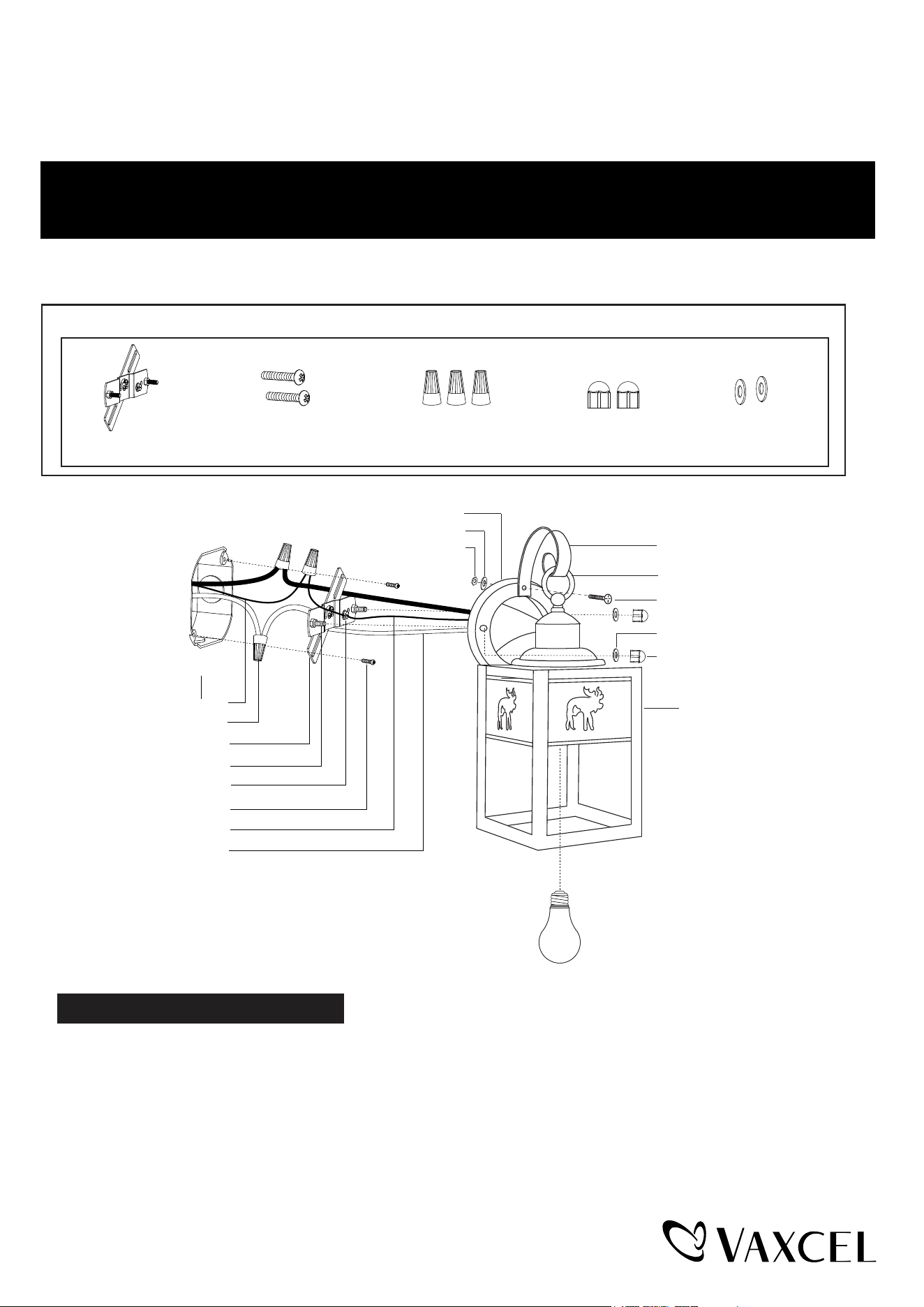

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Bolt Nut (D) Mounting Screw (B) Wire Connector (C)Crossbar Unit (A)
Rubber Pad (E)
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (
included
):
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the two bolt nuts (D). Remove the two rubber pads (E) and the crossbar unit (A) from the backplate.
2. Attach the crossbar unit (A) to the outlet box using two mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
3. Hook the iron to the loop, and then attach the iron to the back plate by using the set screw and the lock nut.
OW24963 / OW35653 / OW35053 / OW33553
Page 1 / 2
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Fixture Mounting Screw
Green Ground Screw
Crossbar Unit (A)
Fixture Wire
Fixture Ground Wire
Max. 60W Type A Bulb
(not included)
Bolt Nut (D)
Rubber Pad (E)
Fixture
Lock Nut
Backplate
Set Screw
Loop
Washer
Iron
231020
4. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the crossbar unit (A) with the green ground screw, then depending on
local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
5. Attach the fixture to the crossbar unit (A) by inserting headless screws into set holes on backplate, then secure it with
two rubber pads (E) and two bolt nuts (D).
NOTE: With silicone caulking compound,caulk complete around the backplate meets with the wall surface to
prevent water from seeping into the outlet box.
6. Install a bulb (not included). See relamping label at socket area or packaging for maximum wattage allowed.
Turn on the power at fuse or circuit box
The following parts are available for reorder if damaged or missing.
Page 2 / 2
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.

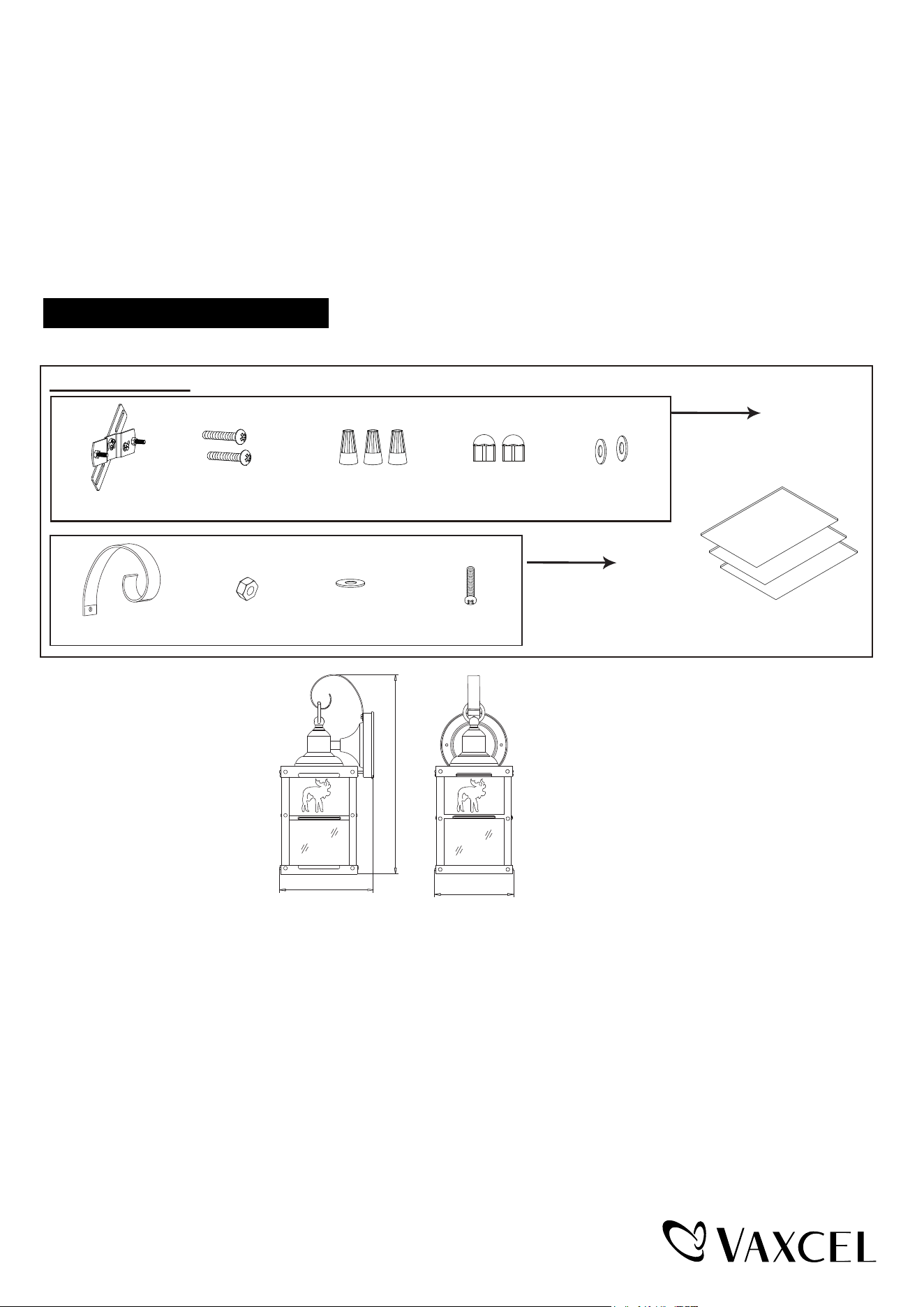

Spare Parts List:
Bolt Nut (D) Mounting Screw (B) Wire Connector (C)Crossbar Unit (A)
Rubber Pad (E)
Assembly Kit
5187MM (1 SET)
Assembly Kit
5188AA (1 SET)
Set Screw
Curved Arm
Lock Nut
Washer
Seeded Glass
9651S
C
A
B
A: 6"
B: 13"
C: 5"
