1. Thread two screws (B) through the mounting plate (A),
then secure them with two lock nuts (I). Adjust
the length of the screws if necessary.
2. Attach the mounting plate (A) to the outlet box with two
mounting screws (C).
3. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (D)
as follows:
• Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from
the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the
mounting plate (A) with green ground screw, then
depending on local code, connect it to the house
ground wire with the wire connector (D).
Carefully put all of the wires back into the outlet box.
4. Attach the ceiling pan to the mounting plate (A) by inserting
the two screws (B), then secure it with the bolt nuts (E).
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
CC55414BBZ

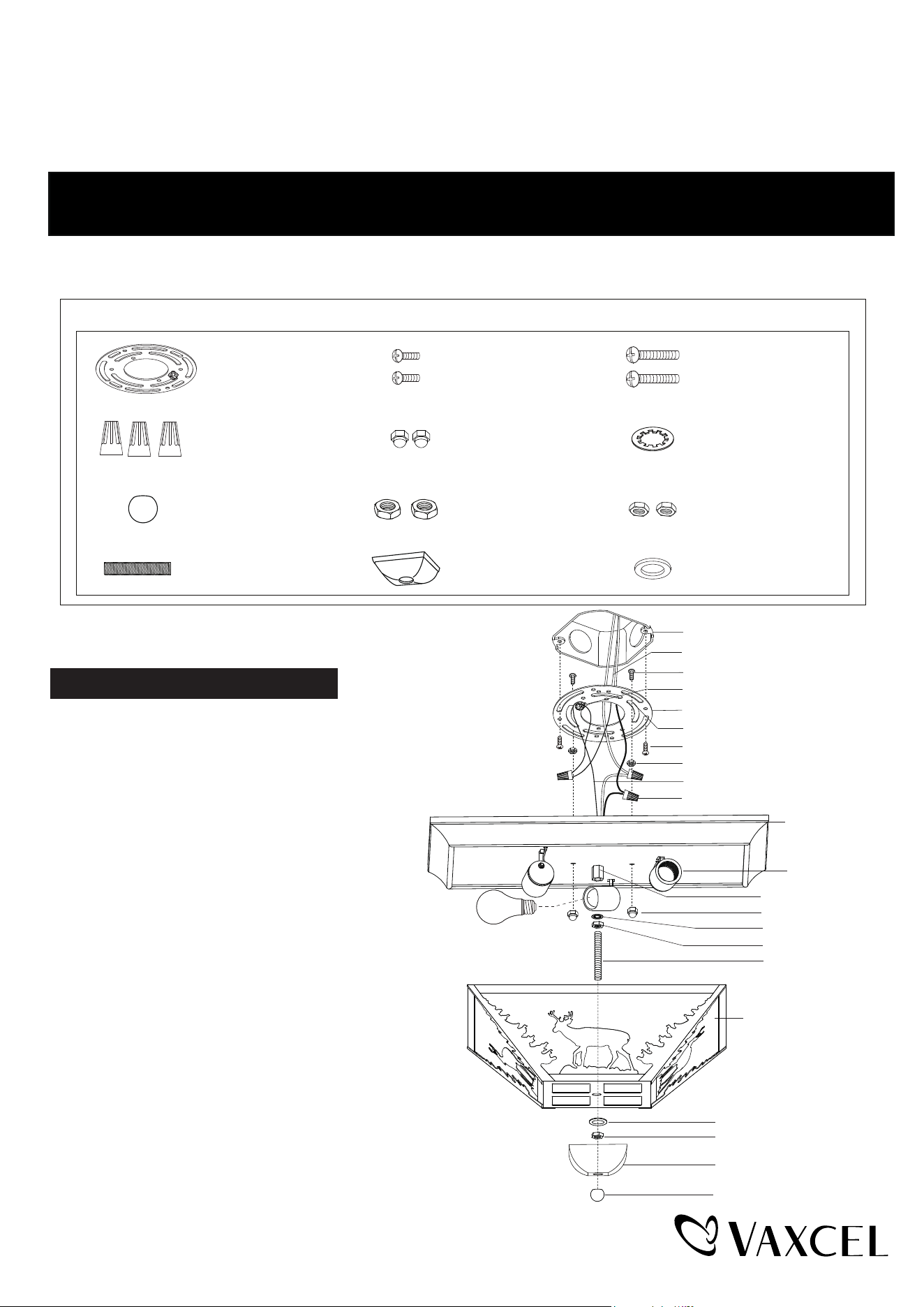

Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT
Ceiling Pan
Socket
Coupling
Hex Nut (H)
Threaded Pipe (J)
Frame
Cap (K)
Finial (G)
Max.60W Type A Bulb
(not included)
Washer (F)
Bolt Nut (E)
Hex Nut (H)
Metal Pad (L)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Screw (B) Mounting Screw (C)
Washer (F)
Hex Nut (H)
Threaded Pipe (J) Cap (K) Metal Pad (L)
Mounting Plate (A)
Wire Connector (D)
Finial (G) Lock Nut (I)
Bolt Nut (E)
Turn off the power at fuse or circuit box.
Page 1 / 2
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (D)
Mounting Plate (A)
Green Ground Screw
Mounting Screw (C)
Lock Nut (I)
Outlet Box
Screw (B)
230906
5. Install 3 x 60W max. medium base bulbs (not included). See relamping label at socket area or packaging
for maximum wattage allowed.
6. Attach the threaded pipe (J) into the coupling of the ceiling pan and secure the washer (F) and hex nut (H).
7. Attach the frame to the ceiling pan and allow the threaded pipe (J) through the frame, then secure it with metal
pad (L) and hex nut (H). Tighten the cap (K) onto the threaded pipe (J) by finial (G).
Turn on the power at fuse or circuit box.

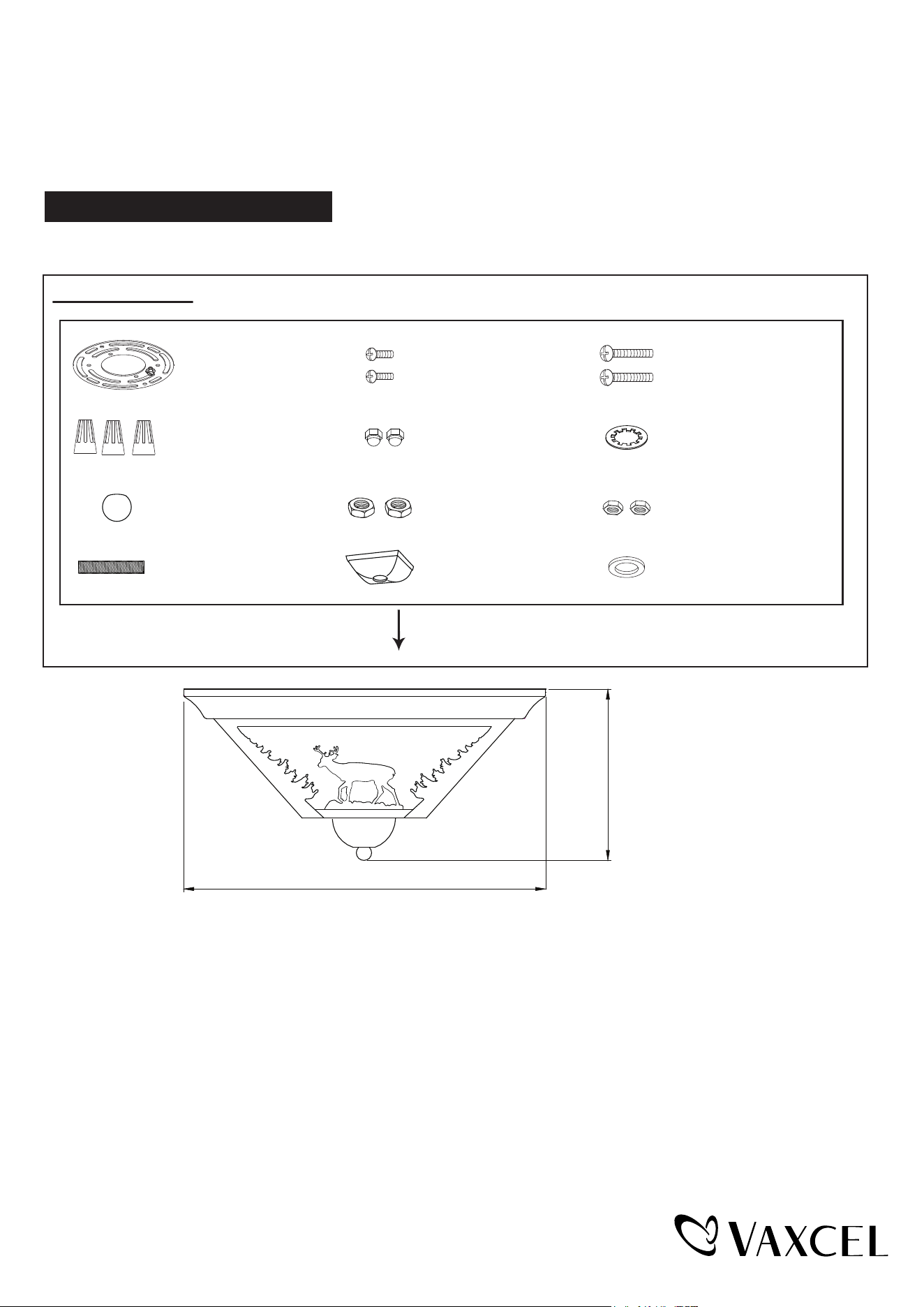

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
4170MM (1 SET)
Screw (B) Mounting Screw (C)
Washer (F)
Hex Nut (H)
Threaded Pipe (J) Cap (K) Metal Pad (L)
Mounting Plate (A)
Wire Connector (D)
Finial (G) Lock Nut (I)
Bolt Nut (E)
A: 14"
B: 7"
A
B
Page 2 / 2
230906
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
