ASSEMBLY AND INSTALLATION
INSTRUCTIONS
C0262
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (included):
Mounting Screw (B) Wire Connector (C) Finial (D）Mounting Strap Unit (A)
Turn off the power at fuse or circuit box.

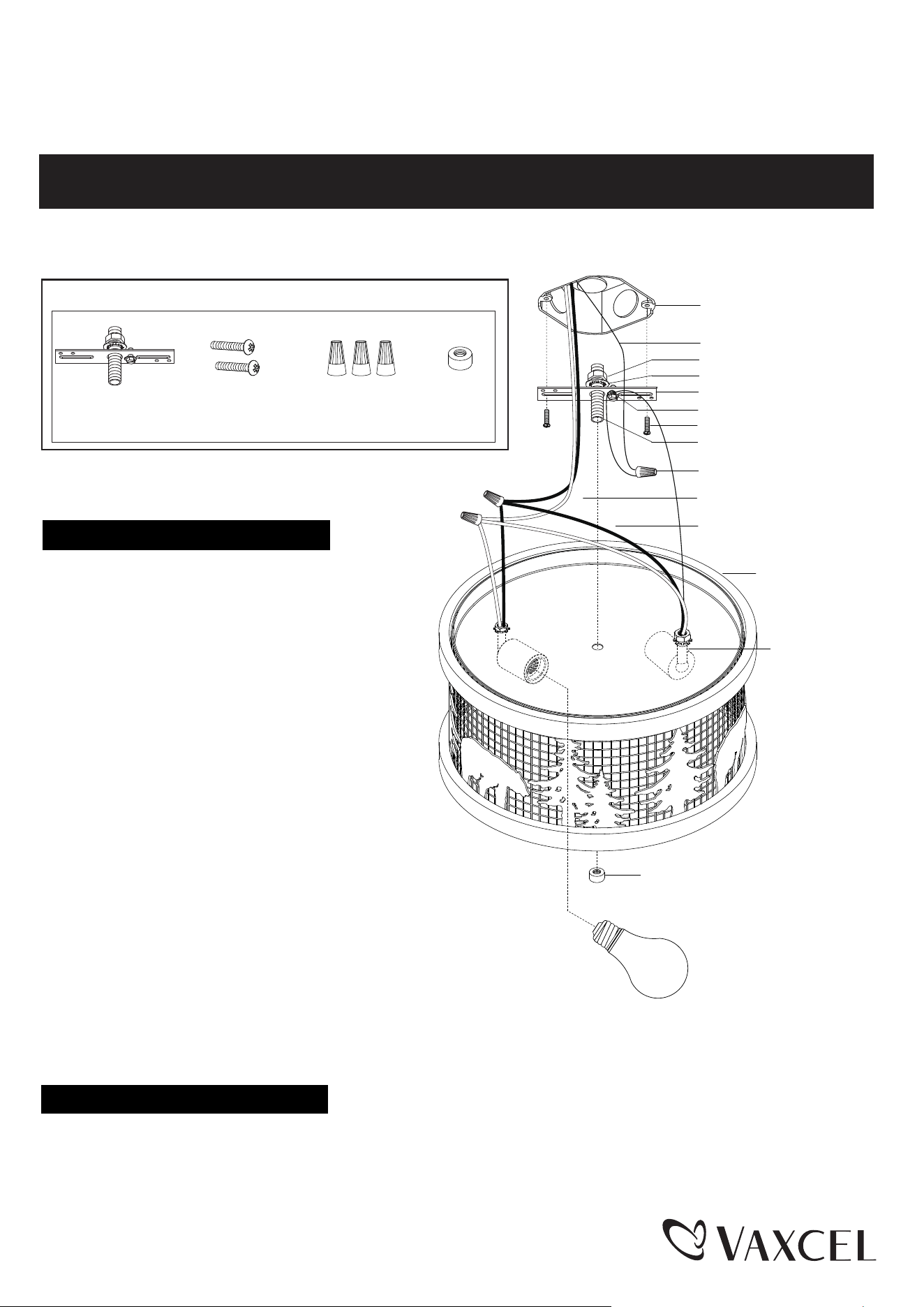

Installation Steps
1. Attach the mounting strap unit (A) to the
outlet box by using two mounting screws (B).
2. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C)
as follows:
• Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from
the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the
mounting strap unit (A) with the green ground screw.
Then, depending on local code, connect it to the house
ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
3. Remove the finial (D) from the mounting strap unit (A).
4. Attach the ceiling pan to the mounting strap unit (A) by
inserting threaded pipe into the center hole the ceiling
pan and secure it with the finial (D).
NOTE: Depth of threaded pipe may need to be
adjusted to properly fit the finial.
6. Install 2 x 60W max. medium base bulbs (not included). Check
relamping label at socket area or packaging for maximum wattage allowed.
Turn on the power at fuse or circuit box.
Mounting Screw (B)
Green Ground Screw
Wire Connector (C)
House Ground Wire
Fixture Ground Wire
Outlet Box
Fixture Wire
Threaded Pipe
Mounting Strap Unit (A)
Hex Nut
Washer
Ceiling Pan
Socket
Finial (D)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Max.60W Type A Bulb
(not included)
230518
Page 1 / 2
The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
6475MM (1 SET)
230518
Mounting Screw (B) Wire Connector (C) Finial (D）Mounting Strap Unit (A)
A
B

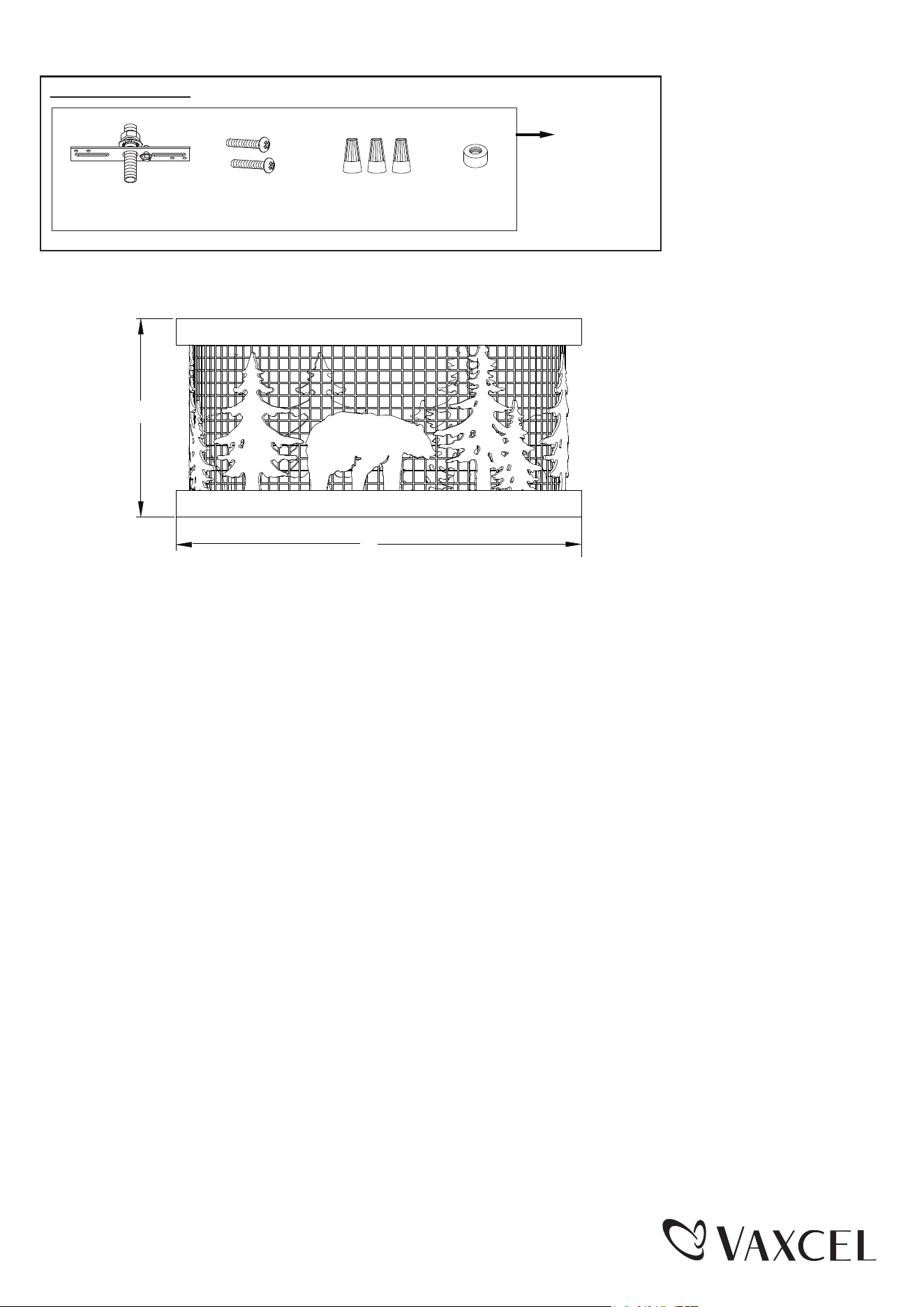

A: 5-7/8"
B: 12"
1 Year Warranty
