ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
C0263
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box

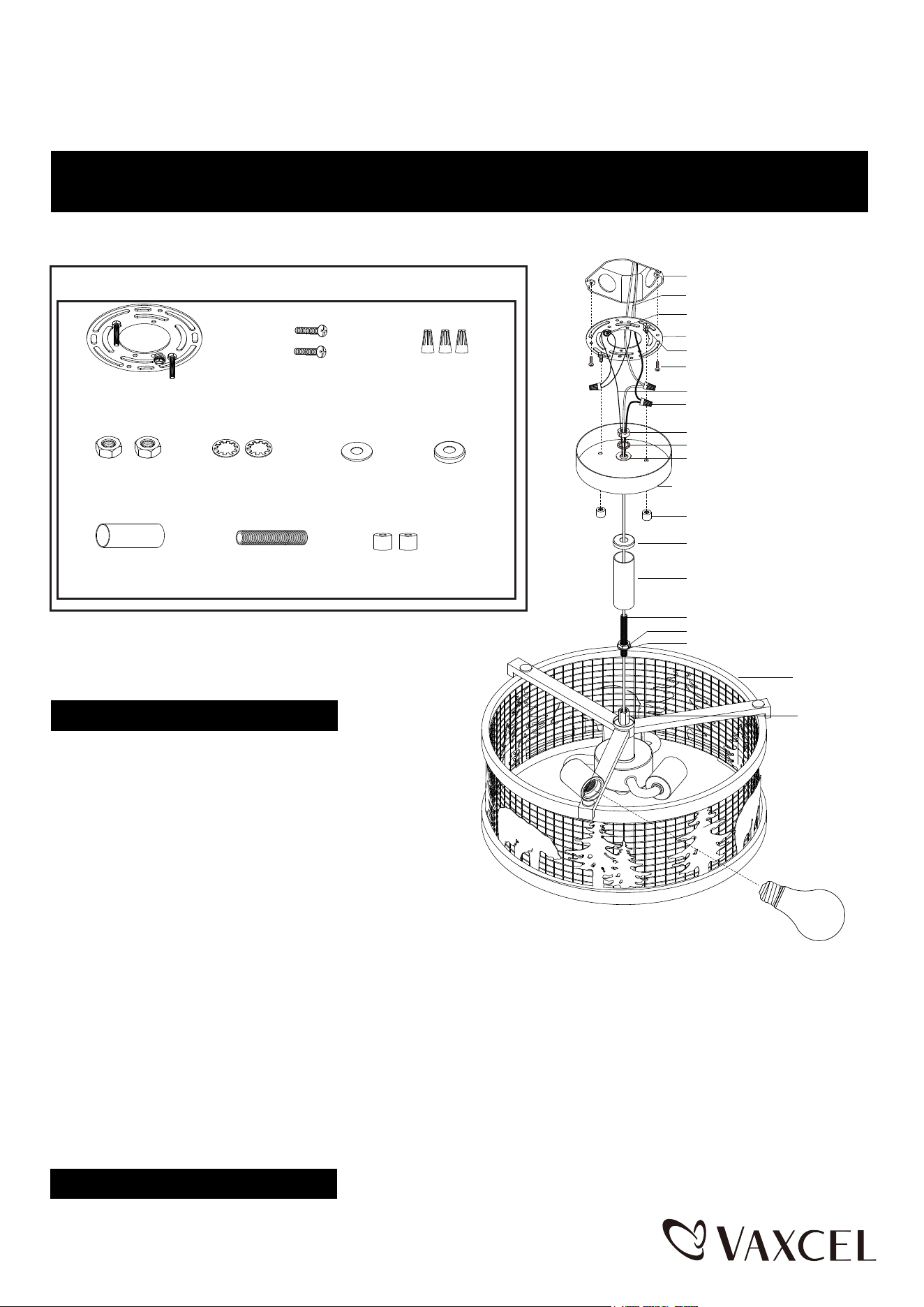

Installation Steps
1
. Attach the mounting plate unit (A) to the outlet box by
using two mounting screws (B).
2. Thread the fixture wires from the fixture through the
threaded pipe (I), then secure the threaded pipe (I)
onto the fixture using the lock washer (E) and hex nut (D).
Thread the fixture wires from the fixture through the tube (H),
tube cap (G), canopy, metal pad (F) ,lock washer (E) and hex
nut (D) in sequence, then secure them using the hex nut (D).
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the power source to the black wire from the fixture.
---Connect the neutral wire (white insulation) from the power source to the white wire from the fixture.
---Attach the fixture ground wire (bare wire) to the mounting plate with the green ground screw,
or connect to the source ground wire if available.
Carefully put the wires back into the outlet box.
4. Attach the canopy to the mounting strap unit (A) and secure it with two bolt nuts (J) .
5.
Install 3 x 60W Max. medium base bulbs (not included).
Check relamping label at socket area or packaging for maximum wattage allowed.
230717
Page 1 / 2
Wire Connector (C)Mounting Screw (B)
Mounting plate Unit (A)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Canopy
Bolt Nut (J)
Hex Nut (D)
Lock Washer (E)
Metal Pad (F)
Tube Cap (G)
Tube (H)
Fixture
Coupling
Threaded Pipe (I)
Hex Nut (D)
Outlet Box
Lock Washer (E)
Max. 60W Type A Bulb
(not included)
Bolt Nut (J)
Metal Pad (F) Tube Cap
(G)
Hex Nut (D) Lock Washer (E)
Tube (H) Threaded Pipe (I)
230717
Page 2 / 2

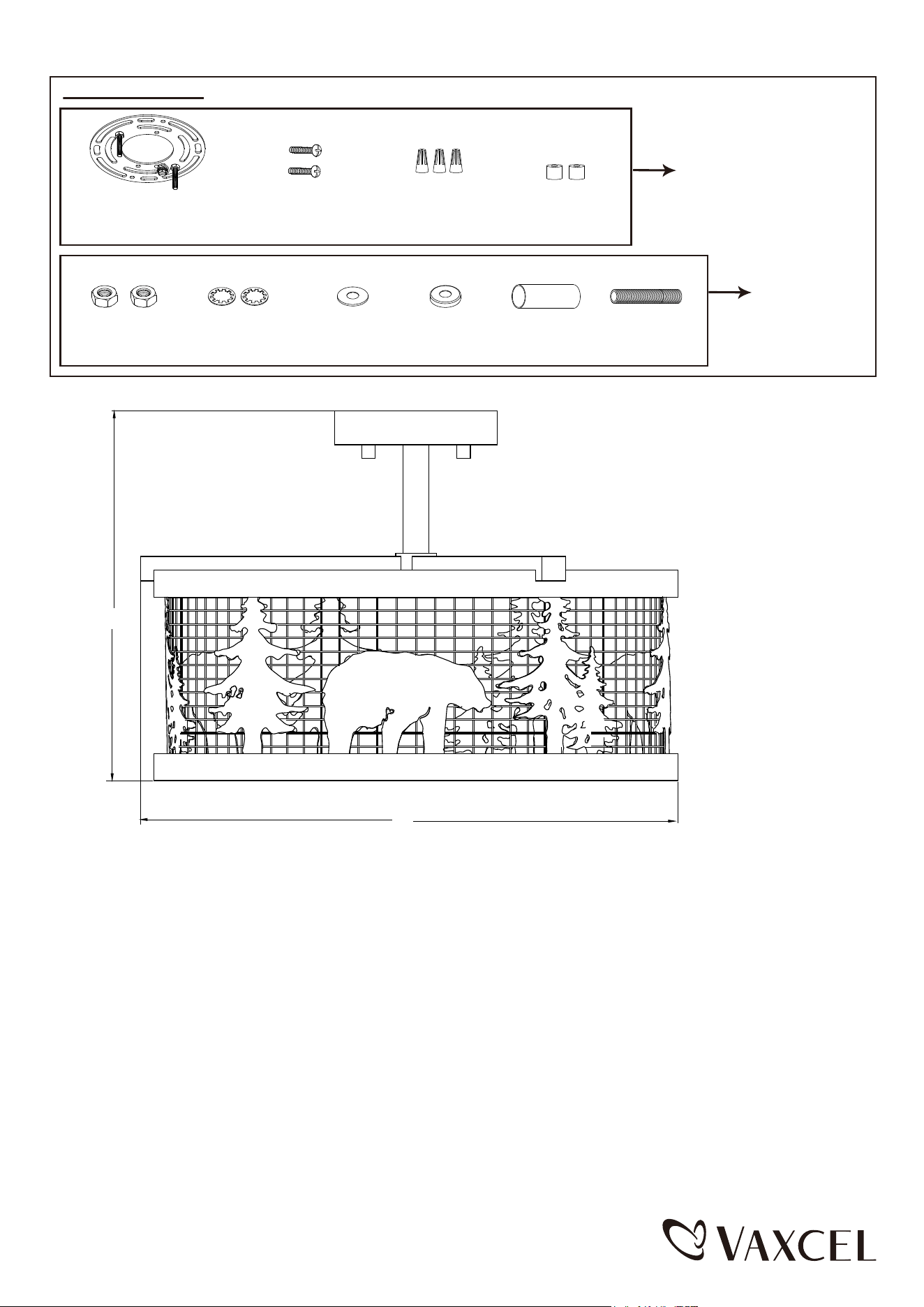

The following parts are available for re-order if damaged or missing.
Spare Parts List:
Mounting Hardware
6476MM (1SET)
Mounting Hardware
6477MM (1SET)
Wire Connector (C)Mounting Screw (B)
Bolt Nut (J)
Mounting plate Unit (A)
Metal Pad (F) Tube Cap
(G)
Hex Nut (D) Lock Washer (E) Tube (H) Threaded Pipe (I)
A
B
A: 10-5/8"
B: 16"
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
