ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.

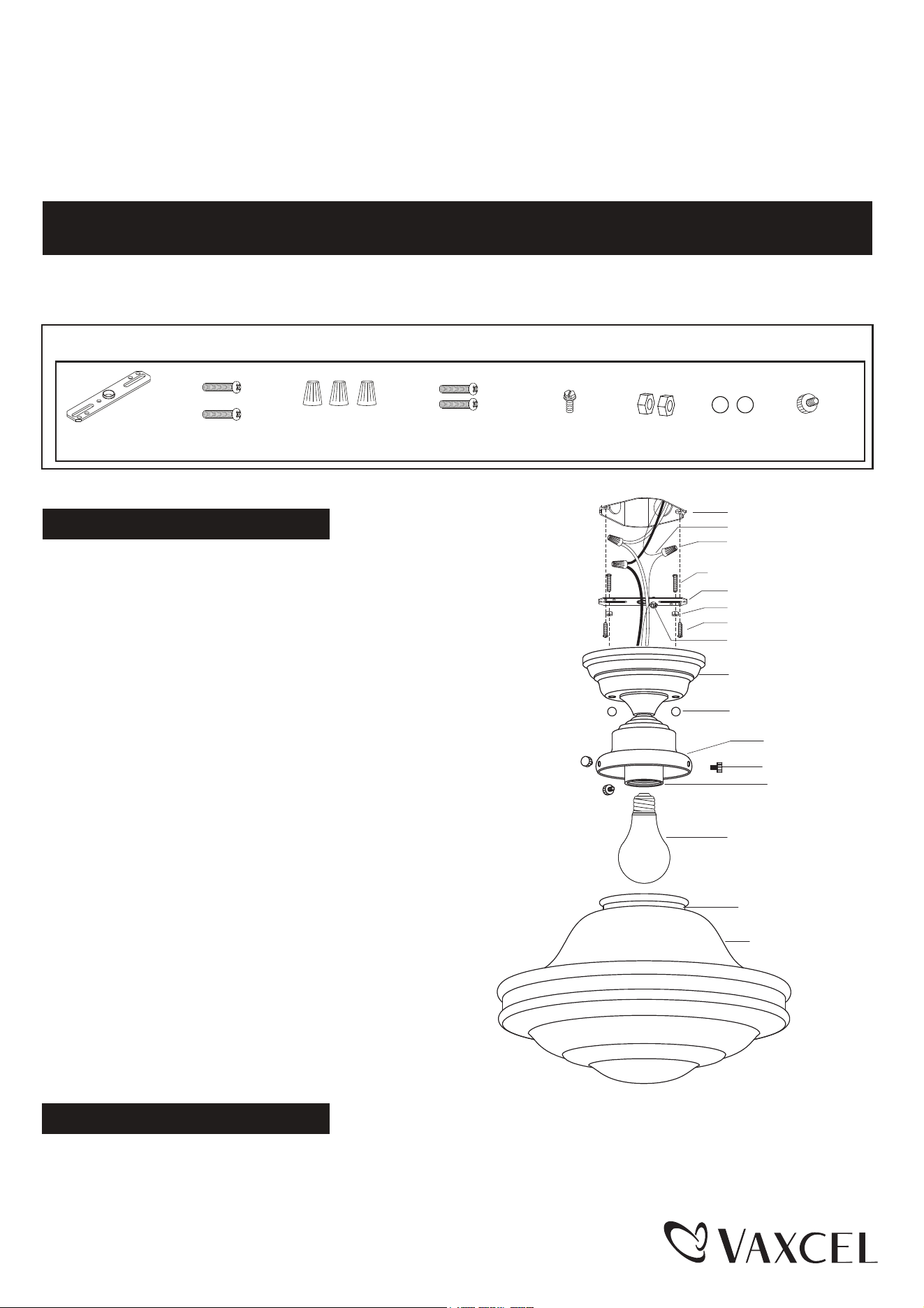

Fixture Canopy
Outlet Box
House Ground Wire
Wire Connector (C)
Mounting Strap (A)
Green Ground
Screw (E)
Lock Nut (F)
Mounting Screw (B)
Fixture Mounting Screw(D)
Socket Base
Glass Shade
Set Screw (H)
Bolt Nut (G)
Glass Bracket
Notch
C0176 / C0177 / C0178 / C0197
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Mounting Strap (A)
Fixture Mounting
Screw (D)
Wire
Connector
(C)
Installation Steps
Lock Nut (F)
Bolt Nut (G)
Green Ground
Screw (E)
Mounting Screw (B)
1. Thread two fixture mounting screws (D) through the mounting
strap (A) , and then secure with two lock nuts (F). Adjust the
length of the fixture mounting screws (D) if necessary.
2. Attach the mounting strap (A) to the outlet box by using two
mounting screws (B).
3. Pull out the source wires from the outlet box. Make wire
connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture to
the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture
to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting
strap (A) with the green ground screw (E). Then connect it
to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
4. Attach the fixture canopy to the mounting strap (A) by inserting
the fixture mounting screws (D), and then secure it with two bolt
nuts (G).
5. Install 1 x 60W Max medium base bulb (not included) to the
socket. See relamping label at socket area or packaging for
maximum wattage allowed.
6. Attach the glass shade to the glass bracket by threading
set screws onto the glass notches. (Do not over tighten.)
Turn on the power at fuse or circuit box
Max. 60W Medium Base bulb
(not included)
Page 1 / 2
Set Screw (H)
230403

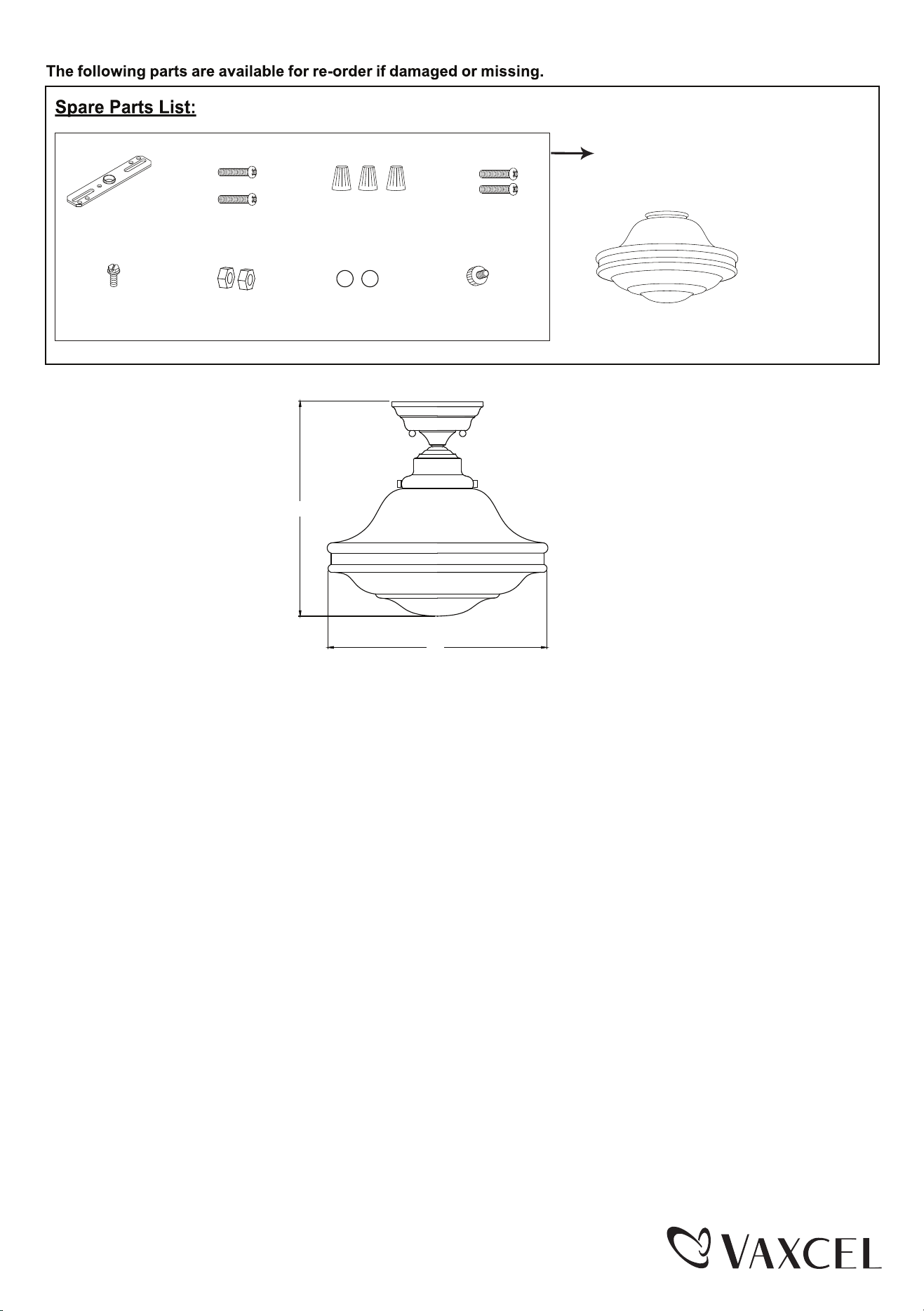

Assembly Kit
5773MM (1 SET) for C0177 / C0178
6008MM (1 SET) for C0176 / C0197
Mounting Strap (A)
Fixture Mounting
Screw (D)
Wire
Connector
(C)
Lock Nut (F)
Bolt Nut (G)
Green Ground
Screw (E)
Mounting Screw (B)
Set Screw (H)
Glass Shade
9919MG for C0176 / C0178
9920MG for C0177 / C0197
A
B
A: 11-3/4"
B: 12"
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
