Hardware Package (
included
):
Mounting Screw (B) Wire Connector (C) Bolt Nut (D)
Mounting Plate Unit (A)
W
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0492 / W0493
Page 1 / 2
Turn off the power at fuse or circuit box
Installation Steps

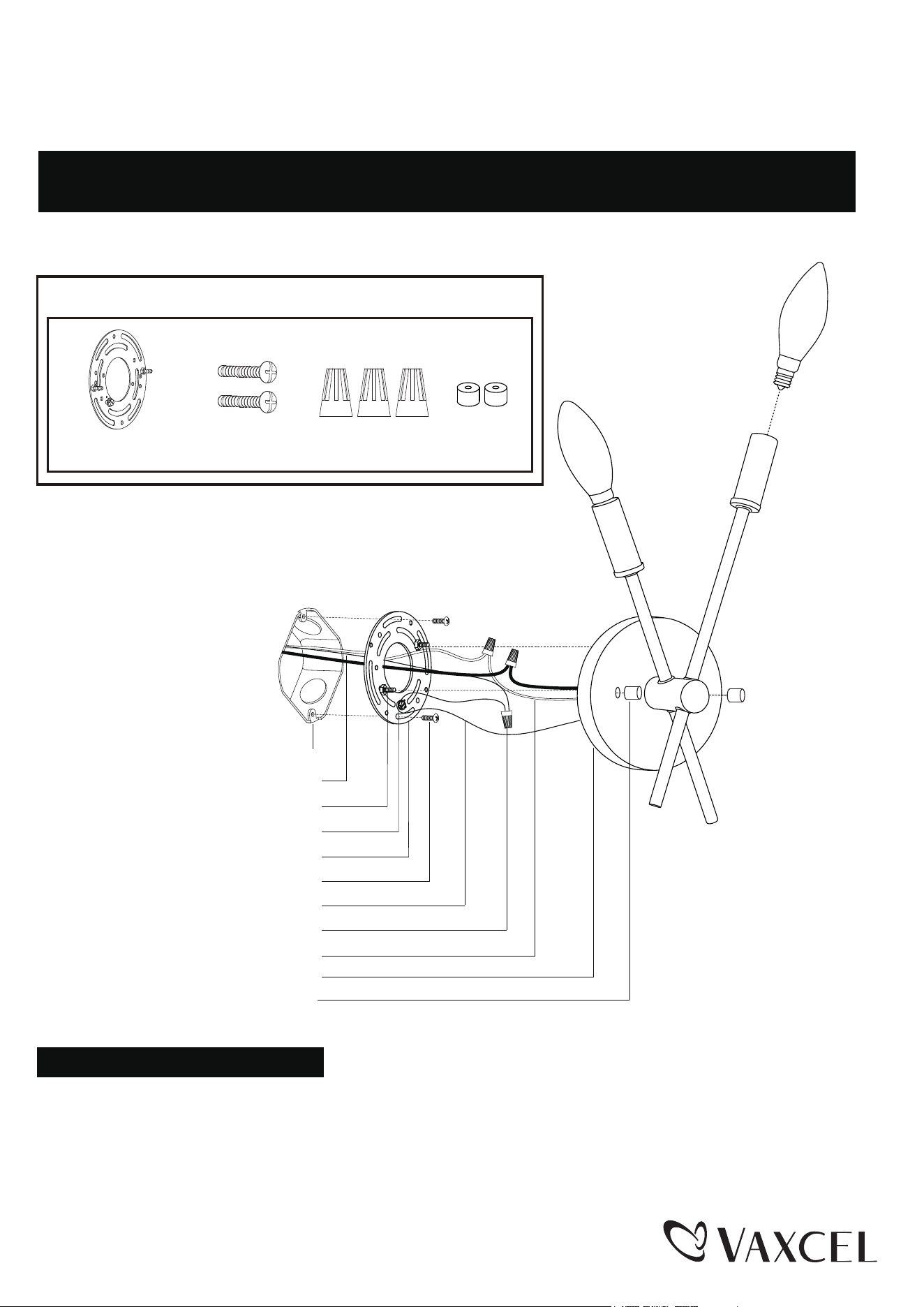

1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.
2. Attach mounting plate unit (A) to the outlet box using two mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Mounting Plate Unit (A)
Fixture Wire
Backplate
Fixture Ground Wire
Fixture Mounting Screw
Bolt Nut (D)
Max. 40W
Candelabra Bulb
(not included)
240725
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw, then
connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the backplate to the mounting plate unit (A) by aligning and inserting the two fixture mounting screws
from the mounting plate unit (A) into the open holes on the backplate, then secure it with the two bolt nuts (D).
5. Install 2 x 40W Max. Candelabra base bulbs (not included).
See relamping label at socket area or packaging for maximum wattage allowed.
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
240725

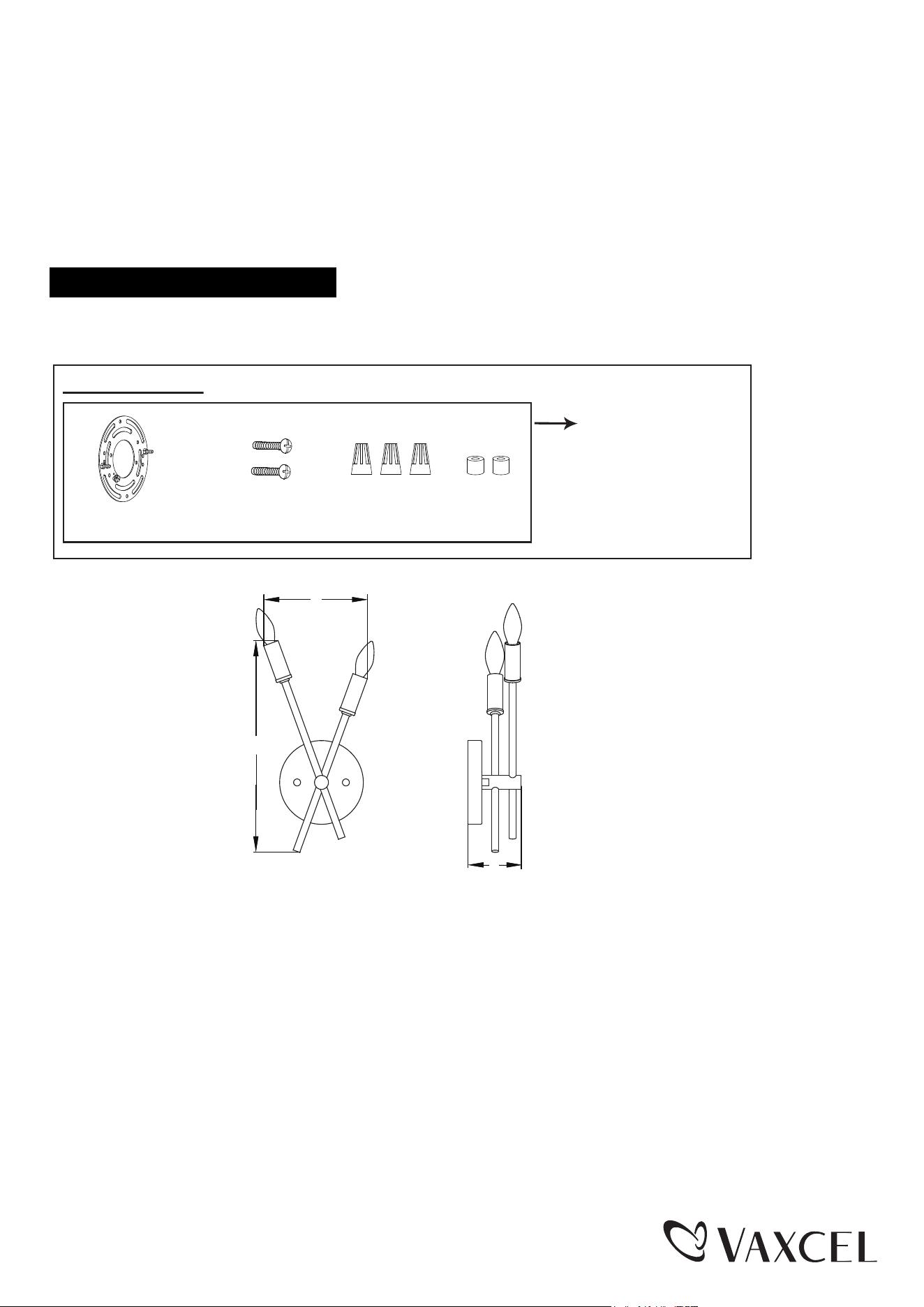

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
6937MM (1 SET) for W0492
6938MM (1 SET) for W0493
Mounting Screw (B) Wire Connector (C)Mounting Plate Unit (A)
Bolt Nut (D)
A: 12"
B: 5-3/4"
C: 3"
B
A
C
