Page 1 / 5
240826

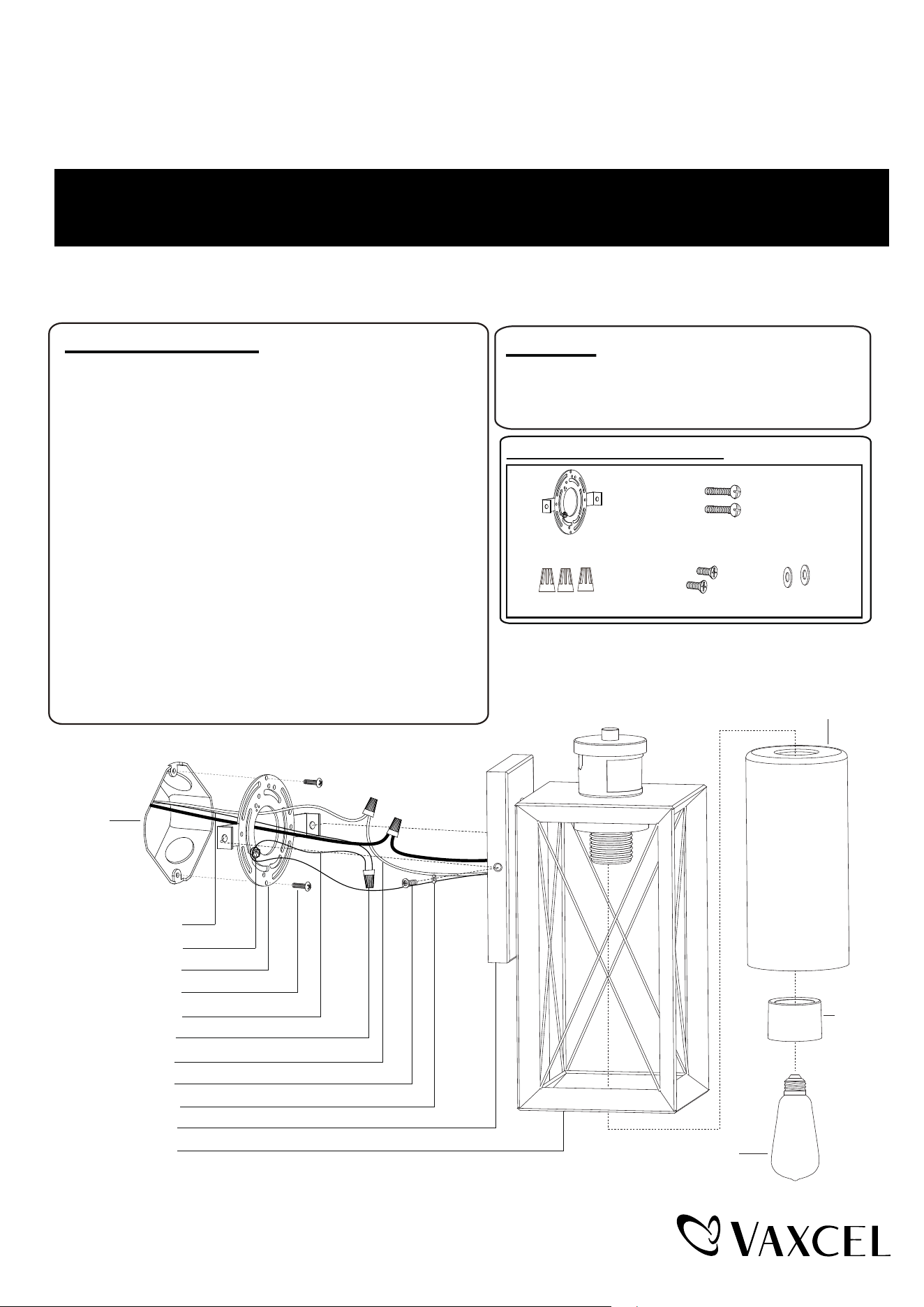

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO SHUT OFF
T0762
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
Hardware Package (included):
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
Fixture Ground Wire
Wire Connector (C)
Mounting Plate Unit (A)
House Ground Wire
Green Ground Screw
Outlet Box
Fixture Wire
Set Screw (D)
Mounting Screw (B)
Rubber Pad (E)
Backplate
Fixture
Max. 60W Vintage Bulb
(not included)
Socket
Ring
Glass Shade
Maximum Wattage: 60W Bulb
Working Temperature: - 22°F~113°F
1. Read all instructions carefully before installation and
operation.
2. If you are not familiar with state and local electrical codes,
it is recommended that you consult with a qualified
electrician.
3. Before installation, shut off power at the main fuse or
circuit breaker box. Be aware that simply turning off the
wall switch is not sufficient to prevent an electrical shock.
4. This fixture requires a 120V AC, 60 Hz power source.
5. Do not attempt to take the lantern apart; there are no
serviceable parts inside.
6. To avoid sensor damage by lightning or electrical surge,
make sure the ground wire is securely connected.
7. For general safety and to avoid any possible damage to
the sensor, be sure the power is switched "off" before
replacing the bulb.
8. Compatible with most LED dimmable bulbs.
Important to Know
Features
1. Energy saving fixture.
2. When in manual override mode, use wall switch
to keep the light ON till dawn.
Mounting Screw (B)
Wire Connector (C)
Rubber Pad (E)
Mounting Plate Unit (A)
Set screw (D)
Page 2 / 5
240826
Installation steps
Turn off the power at fuse or circuit box.
Turn on the power at fuse or circuit box.
1. Unscrew the two set screws (D), remove the two rubber pads (E) and the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).
Note: Make sure that two set holes are lined up horizontally to make the fixture level
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw, then
connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the backplate of the fixture to the mounting plate unit (A) by aligning holes, secure the two set screws (D)
and two rubber pads (E) from the side hole of the backplate into the hole of the mounting plate unit (A).
Note: With silicone caulk compound, caulk completely around where the backplate meets with the
wall surface to prevent water from seeping into the outlet box.
5. Attach the glass shade to the socket, then secure it with the socket ring.
6. Install a bulb (not included). See relamping label at socket area or packaging for maximum wattage allowed.

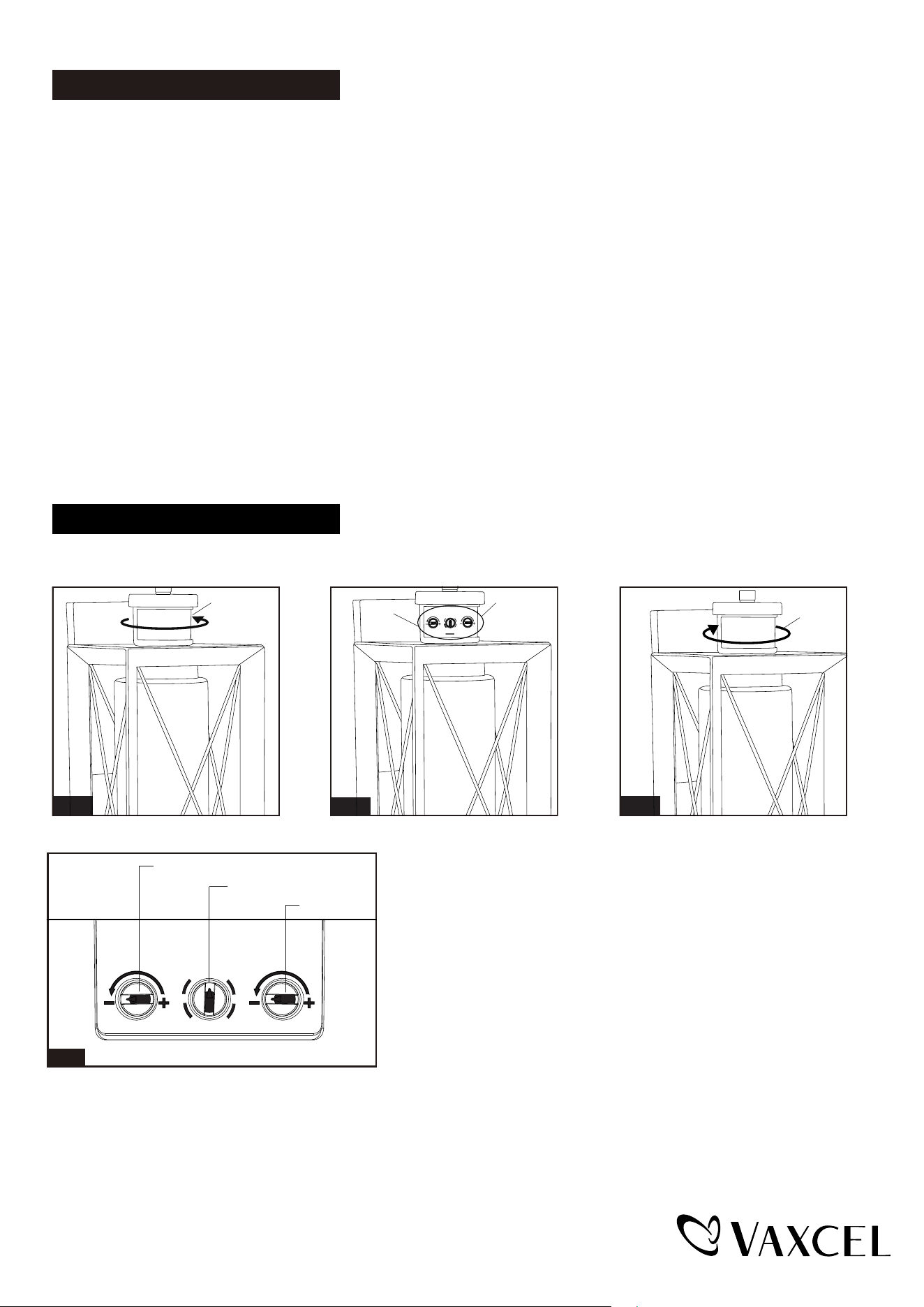

The Position of Control Panel
Fig.1
Sensor
Fig.3
Sensor
Fig.2
Time
Mode
Sens
Test
PC
Auto
Off
Step 1: Rotate the sensor clockwise or counter-clockwise
at maximum 90 degree to access the adjustable
knobs. (See Fig.1)
Step 2: Adjust time and sensitivity, choose the mode you
want by turning the knob. (See Fig.2 and Fig.A).
Step 3: Restore the sensor to original position by rotating
to the opposite direction. (See Fig.3)
"Time" Knob
"Mode" Knob
"Sens" Knob
Fig.A
Time
Mode
Sens
Test
PC
Auto
Off
View
Fig.A
Adjustable
Knob
Page 3 / 5
240826
Function and Operation
MODES OF OPERATION
Choose a mode by turning the rotary knob. The light will turn on immediately when power is applied. Wait for 30
seconds to allow the sensor to warm up.
1. Test MODE (daytime and nighttime operation)
● The light will turn on when motion is detected, and stay on as long as the motion continues. The light will turn to
low-level brightness (30%) after 5 seconds when motion is no longer detected.
2. Off MODE (nightime operation only)
● At dusk, the light stays off and will turn to high-level brightness (full brightness) when motion is detected, and stay
on as long as the motion continues. When the motion stops, the light will stay on for the predetermined time set
(5~180 seconds), then the light will turn off.
3. Auto MODE (nighttime operation only)
● At dusk, the light turns on to low-level brightness (30%). When motion is detected the light will turn to high-level
brightness (full brightness) and stays on as long as the motion continues. When the motion stops, the light will
remain on for the predetermined time set (5~180 seconds) and then turns to low-level brightness (30%)
● The light will turn off automatically at dawn.
4. PC MODE (nighttime operation only)
● The light will turn on automatically at dusk and turn off at dawn.
Auto Mode
Off Mode
Manual
Override

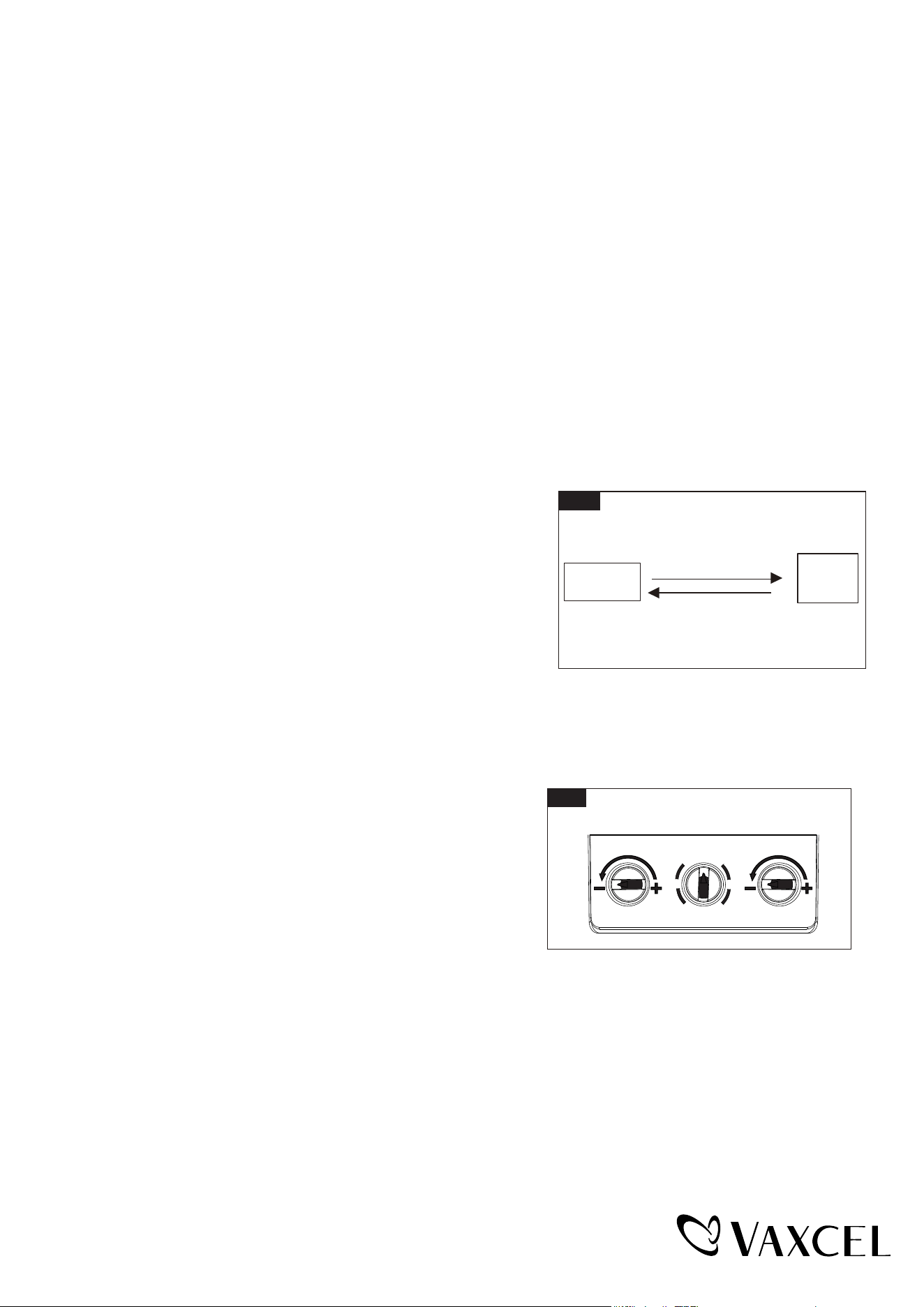

Manual Override Operation Diagram
Turn wall switch OFF-ON
in 0.5~3 Seconds
Turn wall switch OFF-ON
in 0.5~3 Seconds
Fig. 4
5. Manual Override MODE (nighttime operation only)
● To shift to the manual override mode, set the switch to "Auto" or
"Off" mode. Turn the wall switch "OFF" and "ON" within 3 seconds.
The light will remain on until dawn. To restore to the "Auto" or "Off"
mode, turn the wall switch "OFF" and "ON" within 3 seconds.
(See Fig.4)
● The light will last for one night only and turn off automatically at
dawn.
Note: 1. Always keep the wall switch in the "ON" position
(including daytime).
2. Please notice the warm up time is 30 seconds, any
operations are invalid during this time.
Customization Options
Shut-off Delay
Fig. 5
(View from back of sensor lens)
1. The Shut-off delay is the length of time that the light will stay on
after motion stops.
2. The Shut-off delay can be adjusted by using the "Time" knob when
the knob is set in "Off" or "Auto" mode. (See Fig.5)
3. The range of shut-off delay is 5 seconds to 3 minutes.
4. Rotate the knob clockwise for increasing the shut-off delay.
5. Rotate the knob counterclockwise for decreasing the shut-off delay.
Time
Mode
Sens
Test
PC
Auto
Off
Page 4 / 5
240826
NOTE:

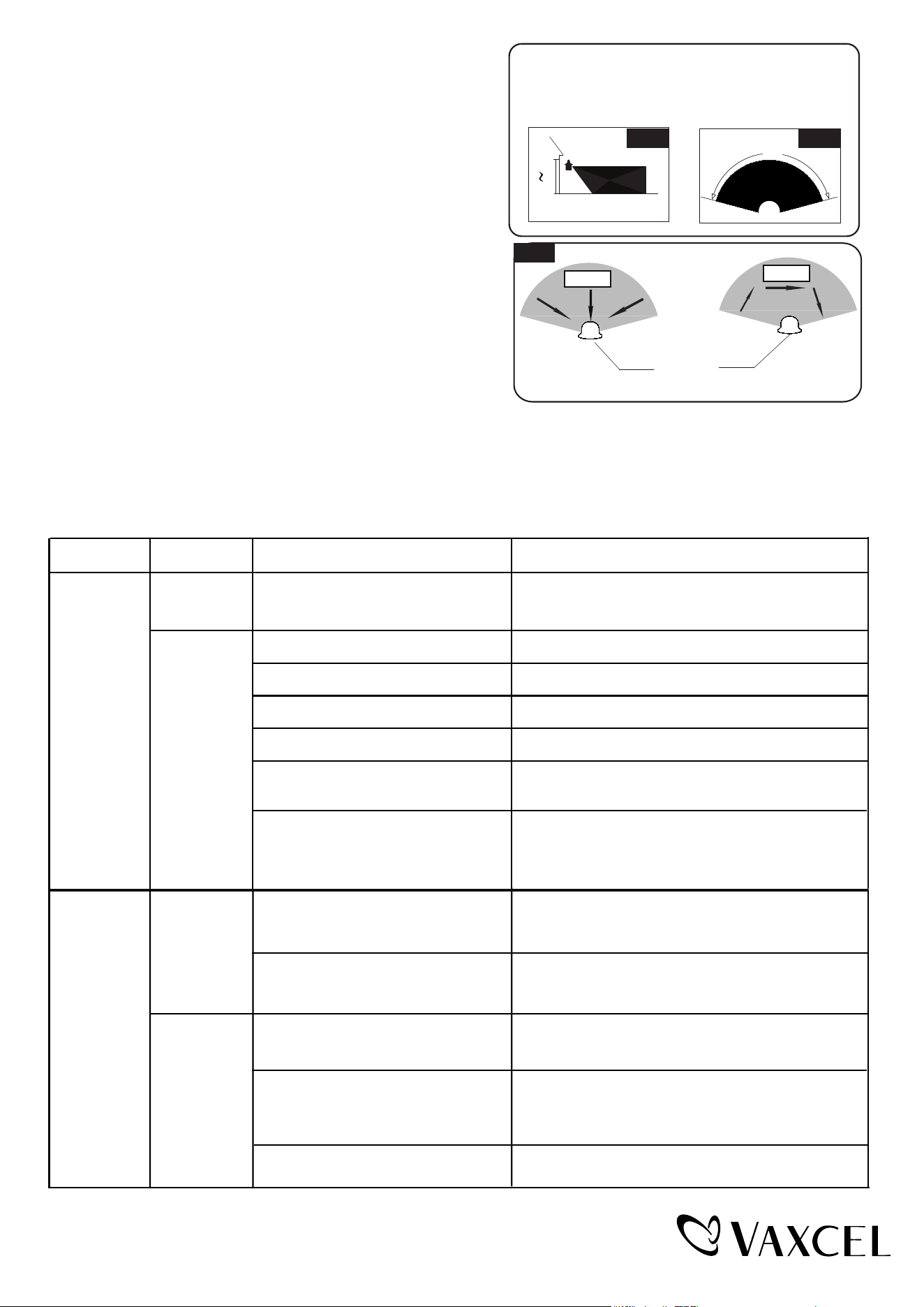

1. The sensitivity of the motion sensor will increase as the
environmental temperature gets colder. For best performance,
gently clean the lens with a soft cloth every 1 or 2 months to
ensure maximum sensitivity.
2.
When installed at a height of 6.5 feet, at 77 degrees Fahrenheit,
the light will provide a maximum detection distance of 30 feet
and detection range of 150 degrees. (See Fig.6,Fig.7)
3. The sensor will be more sensitive to motion across its
detection path than motion directly towards it. (See Fig.8)
4. To reduce possible nuisances, do not mount the fixture
near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflecting object or
other light source.
Sensitivity of Motion Sensor
1. The sensitivity can be adjusted from 5 to 30 feet by using the
"Sens" knob. (See Fig.5).
2. Turn the knob clockwise for increased sensitivity.
3. Turn the knob counterclockwise for decreased sensitivity.
Where you install your light is important:
Be sure the light is mounted straight on the wall;
otherwise, the detection distance may be limited.
5`
6`
10`
30`
Fig.6
Fig. 7
Least sensitivity
Most sensitivity
Sensor
Fig. 8
Motion
Motion
150˚
TROUBLESHOOTING
Refer to following information to solve your problems.
Set the rotary knob in the test mode for testing.
Night
If the light
isn’t on
SYMPTOM
DAY/NIGHT
POSSIBLE CAUSE
SOLUTION
Day
Rotary knob is not set in the test
mode.
Wall switch or circuit breaker is off. Turn on wall switch or circuit breaker.
Test the light bulb on normal working light fixture.
Tighten the light bulb.
Check wire connections.
Relocate fixture away from western facing wall.
Eliminate or turn off other light source, block other
light source from shining onto sensor, or relocate
fixture.
Light bulb may be burned out.
Light bulb is loose.
Incorrect or loose wire connections.
Too much sunlight is shining onto
sensor in the early evening.
Too much light is shining onto
sensor due to another light source,
such as a street lamp or other light
fixture.
The fixture may be installed in
shaded area.
Only need to relocate fixture.
No corrective action needed.
On cloudy or overcast days, the light
may stay on longer than anticipated.
Still on the manual override mode. Turn off the light, then turn it on after 5 seconds.
False triggering caused by a heat
source, such as a heater, dryer vent,
or heated swimming pool.
Eliminate heat source or relocate fixture.
The knob is not set in any mode.
Rotate it again to the mode you want.
Day
Night
If the light
stays on
240826
Page 5 / 5
5 Year Limited Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of shipment.
In addition:
● Any product with an integrated motion sensor or dusk-to-dawn photocell is supported by a 5-year warranty for the
functionality of the product.
● Any product with integrated LED modules is covered by a 5-year warranty on the LED functionality.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction manual;
usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered normal for
the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.

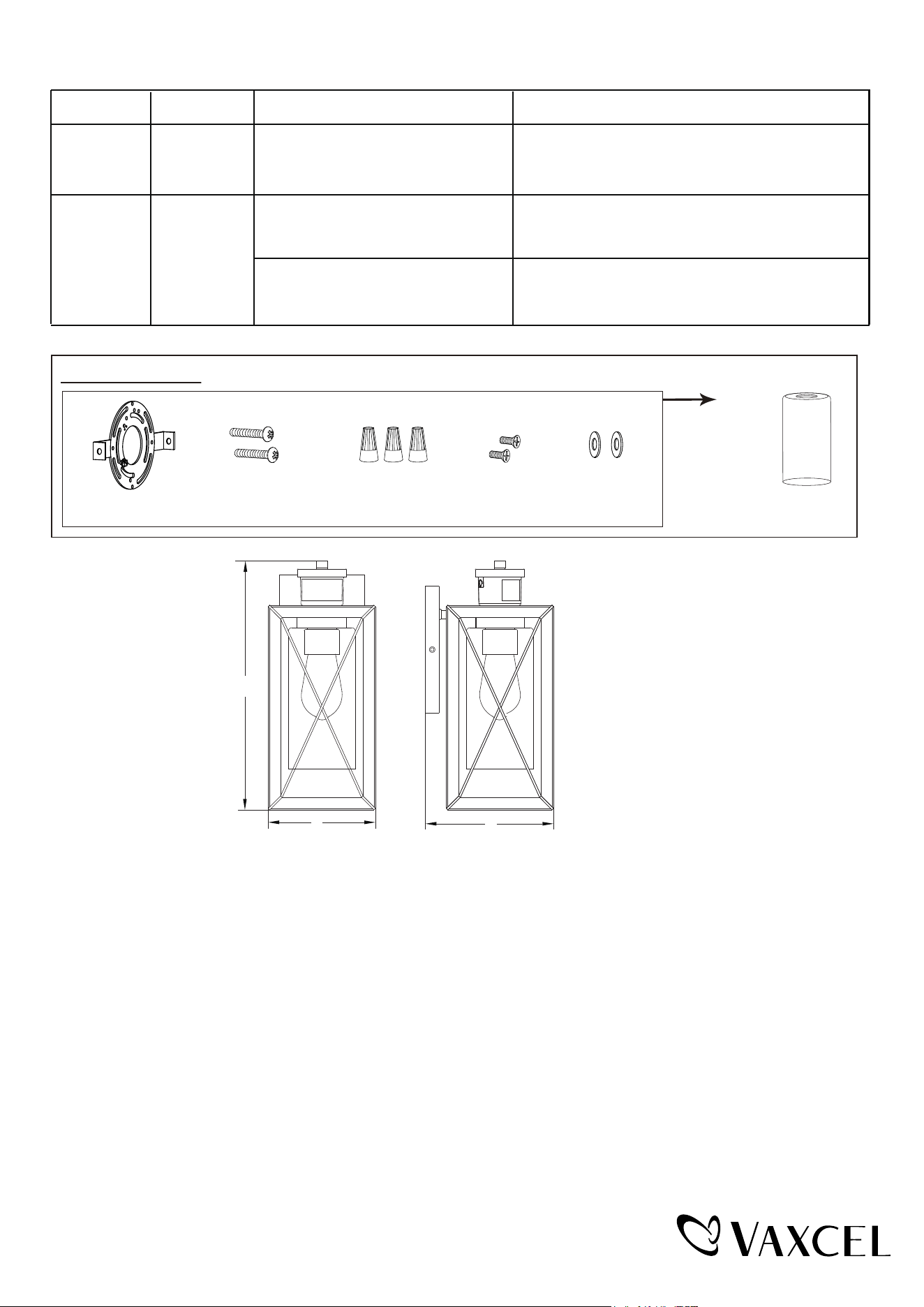

Spare Parts List:
Assembly Kit
6925MM (1 SET)
10327CG
Glass Shade
The following parts are available for reorder if damaged or missing.
Mounting Screw (B) Wire Connector (C) Set Screw (D)Mounting Plate Unit (A)
Rubber Pad (E)
The light
comes on for
no apparent
reason
If the light
is blinking
Night
Night
False triggering caused by a heat
source, such as a heater, dryer vent,
or heated swimming pool.
Eliminate heat source or relocate fixture.
SYMPTOM
DAY/NIGHT
POSSIBLE CAUSE
SOLUTION
Passing cars and reflective objects
interfere with the sensor.
Relocate fixture.
Street or sidewalk traffic is triggering
motion sensor.
Adjust the "Sens" knob to reduce the sensitivity.
TROUBLESHOOTING (continued)
B
A
C
A: 14"
B: 6"
C: 7"
