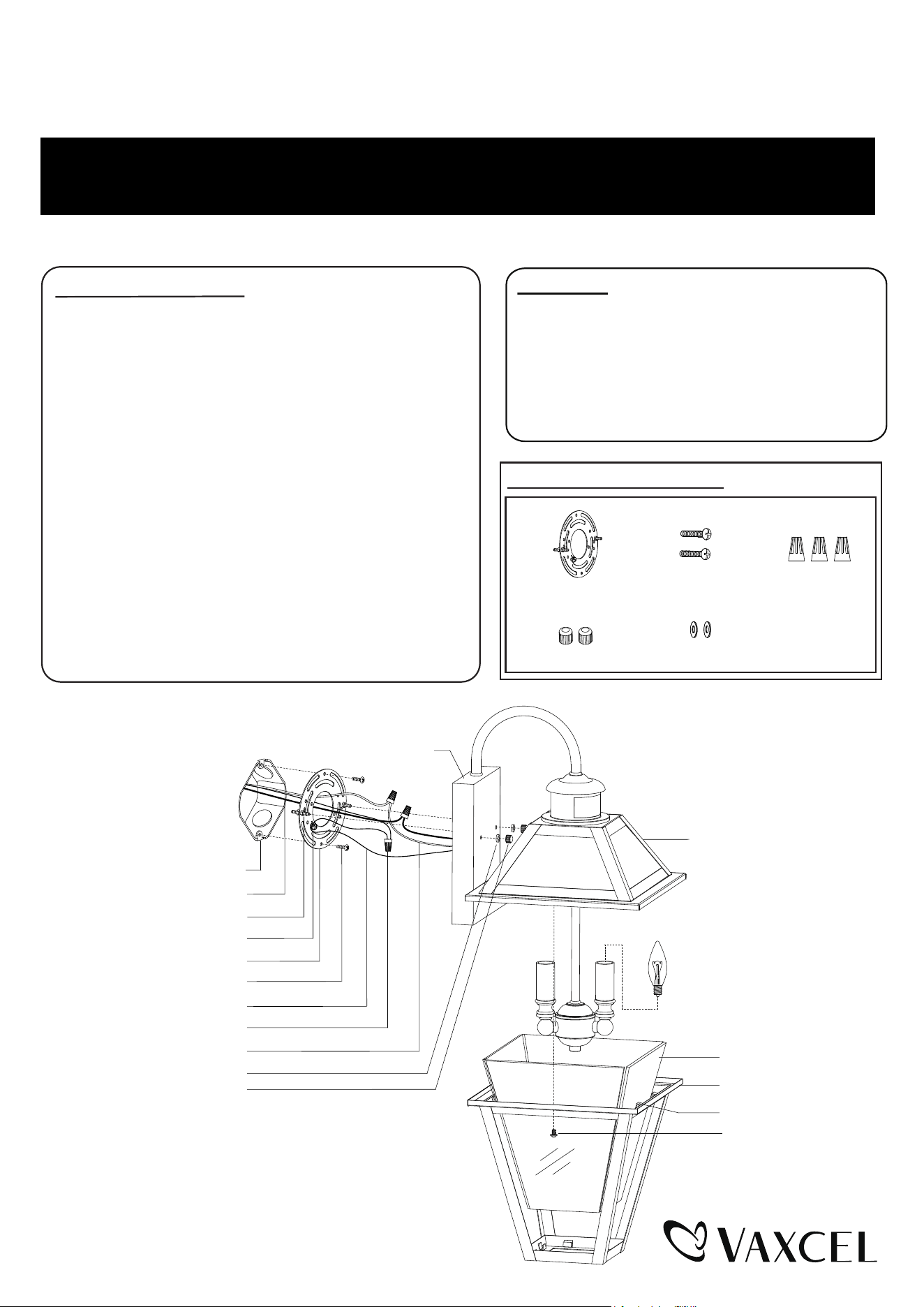

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0597
Important to Know
1. Read all instructions carefully before installation and
operation.
2. If you are not familiar with state and local electrical codes,
it is recommended that you consult with a qualified
electrician.
3. Before installation, shut off power at the main fuse or
circuit breaker box. Be aware that simply turning off the
wall switch is not sufficient to prevent an electrical shock.
4. This fixture requires a 120V AC, 60 Hz power source.
5. Do not attempt to take the lantern apart; there are no
serviceable parts inside.
6. To avoid sensor damage by lightning or electrical surge,
make sure the grounding wire is securely connected.
7. For general safety and to avoid any possible damage to
the sensor, be sure the power is switched "off" before
replacing the bulb.
Maximum Wattage: 2~25W Incandescen Bulb
Work Temperature: -4ºF ~ 104ºF
Hardware Package (included):
W
Mounting Screw (B) Wire Connector (C)
Bolt Nut (D) Rubber Pad (E)
Mounting Plate Unit (A)
Max. 25W type B Bulb
(not included)
W
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ
AND SAVE THESE INSTRUCTIONS.
Page 1 / 5
Glass Panel
Metal Frame
Clip
Fixture
Backplate
Wire Connector (C)
House Grounding Wire
Outlet Box
Mounting Screw (B)
Green Grounding Screw
Headless Screw
Mounting Plate Unit (A)
Fixture Wire
Rubber Pad (E)
Ball Nut (D)
Fixture Grounding Wire
Set Screw
8. Compatible with most LED dimmable bulb.
Features
1. Energy saving fixture.
2. Use dim-to-full brightness where dim-illumination
is preferred, such as your front entrance. Use
off-to-full brightness where off/on illumination is
preferred, such as your backyard.
3. When in manual override mode, use wall switch
to keep the light ON till dawn.
240703
Installation Steps
Turn off the power at fuse or circuit box.
Turn on the power at fuse or circuit box.
1. Unscrew the two bolt nuts (D), remove the two rubber pads (E) and the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the
preinstalled headless screws if necessary.
Note: Make sure that two headless screws are lined up horizontally to make the fixture level.
3. Loosen the two set screws to remove metal frame from fixture.
4. Take a glass panel and gently slide it into the metal frame in place, secure it by pressing two clips on top side of the
metal frame and two clips on the bottom of the metal frame. Repeat with the other glass panels.
5. Install the bulbs (not included). See relamping label at socket area or packaging for maximum wattage allowed.
6. Attach the metal frame back to the fixture by aligning holes, secure them with the two set screws.
7. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
• Attach the fixture grounding wire (usually green with the insulation or bare wire) to the mounting plate unit (A)
with the green grounding screw. Then, depending on local code, connect it to the house grounding wire with
the wire connector (C).
Carefully put all of the wires back into the outlet box.
8. Attach the backplate of the fixture to the mounting plate unit (A) by inserting headless screws into set holes on the
backplate, then secure it with two rubber pads (E) and two bolt nuts (D).
Note: With silicone caulking compound, caulk completely around where the backplate meets with the wall
surface to prevent water from seeping into the outlet box.
Page 2 / 5

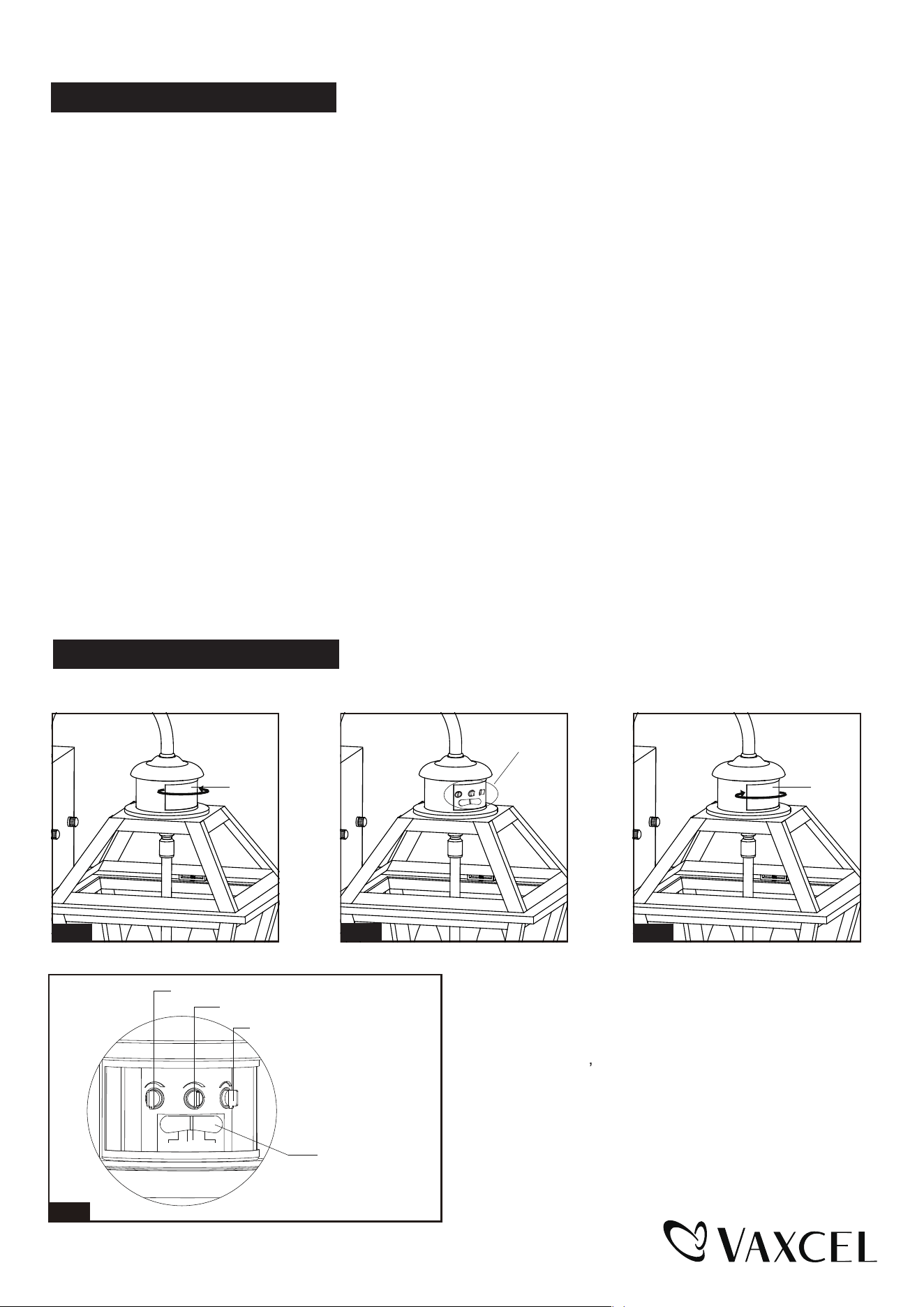

The Position of Control Panel
Step 1: Rotate the sensor lens from left side to right side
to show the adjustable knobs and slide switch.
(See Fig.1)
Step 2: Adjust time
by knobs and choose the mode you want by
slide switch. (See Fig.2 and Fig A).
Step 3: Restore the sensor lens to original position.
(See Fig.3)
low level brightness and sensitivity
Sensor
Lens
Fig.1
Sensor
Lens
Fig.3
Fig.2
View Fig.A
“Time” Knob
“Sens” Knob
Slide Switch
“Low Level” Knob
Time Low Level
Sens
Fig.A
Test
3H
6H
0
240703
CUSTOMIZATION OPTIONS:
Shut-off Delay
The Shut-off delay is the length of time the light will stay at high-level brightness after motion has ceased to be detected.
This Shut-off delay can be set when operation is in 3, 6 or 0 Mode by using the “TIME” knob located on the left side of
the panel at the back of the sensor lens (See Fig.5) . To increase the shut-off delay, turn the knob clockwise. To
decrease shut off delay, turn the knob counterclockwise. The delay may be adjusted from a minimum of 5 seconds to
a maximum of 3 minutes. The light will stay on as long as motion is detected continuously and will automatically turn
to low-level brightness when no more motion is detected after the delay time has passed.
Sensitivity of Motion Sensor
The sensitivity of the motion sensor can be adjusted by using the “Sens” knob located on the right side of the panel at
the back of sensor lens (See Fig.5. To increase sensitivity, turn the knob clockwise. To decrease sensitivity, turn the
knob counterclockwise. The sensitivity may be adjusted from a minimum of 5 feet to a maximum of 40 feet.
Manual
Override
Mode
Manual Override Operation Diagram
Turn wall switch OFF-ON
in 3 Seconds
Turn wall switch OFF-ON
in 3 Seconds again
Fig.4
“3H Mode”
“6H Mode”
“0 Mode”
Fig.5
On the back of the sensor
Time Low Level
Sens
Test
3H
6H
0
4. 0 MODE (nighttime operation only)
● The light will turn to low level brightness (0%~50% brightness) at dusk. The light will turn to high-level brightness
(100% brightness) when motion is detected, and stay on as long as the motion is continuing. When motion is no
longer detected, the light will remain on for the predetermined time you set (5~180 seconds), and then revert to
low level brightness you set.
● Light will turn off automatically at dawn, and return to 0 H mode at dusk.
5. Manual Override MODE (nighttime operation only; on at dusk, off at dawn)
● In 3, 6 or 0 mode, to shift to manual override mode, turn off the wall switch in 3 seconds and then turn it on again,
the light will turn to high-level brightness at dusk, and turn off automatically at dawn. To return to the previous
settings, turn off the wall switch in 3 seconds and then turn it on again. (See Fig.4 Fig.5)
● The lights will turn off automatically at dawn.
Function and Operation
MODES OF OPERATION
Choose a mode by sliding the switch on the back of the sensor. When power is first applied, the light will turn on
immediately. Wait for 100 seconds to allow the sensor to warm up.
1. TEST MODE (daytime and nighttime operation)
● The light will turn to low-level brightness (0%~50% brightness). The light will turn to high-level brightness (100%
brightness) when motion is detected, and stay on as long as the motion is continuing. The light will revert to
low-level brightness about 5 seconds after motion is no longer detected.
2. 3H MODE (nighttime operation only)
● At dusk, the light will turn to high-level brightness (100% brightness). The light will turn to low-level brightness (0%
~50% brightness) automatically after 3 hours. The light will turn to high-level brightness (100% brightness) when
motion is detected, and stay on as long as the motion is continuing. When motion is no longer detected, the light
will remain on for the predetermined time you set (5~180 seconds), and then revert to low-level brightness you set.
● Light will turn off automatically at dawn, and return to 3 H mode at dusk.
3. 6H MODE (nighttime operation only)
● At dusk, the light will turn to high-level brightness (100% brightness). The light will turn to low-level brightness (0%
~50% brightness) automatically after 6 hours. The light will turn to high-level brightness (100% brightness) when
motion is detected, and stay on as long as the motion is continuing. When motion is no longer detected, the light
will remain on for the predetermined time you set (5~180 seconds), and then revert to low-level brightness you set.
● Light will turn off automatically at dawn, and return to 6 H mode at dusk.
Page 3 / 5
240703
----In Test Mode, the light stays on full brightness after 5 seconds:
1. If during daytime, make sure the slide switch is at the TEST position.
2. Whether the motion is detected at all time.
---In 3H or 6H Mode, the light is still on full brightness,even though it has been 3 hours or 6 hours
after dusk, respectively:
1. Make sure no motion could be picked up by the sensor.
2. Make sure that mode entry is not in manual override.
---After performing 3H or 6H Mode, the light stays on full brightness after 3 minutes:
1. Make sure there is no movement that could be picked up by the sensor.
2. Adjust the time knob counterclockwise to reduce the delay shut-off time.
----In 3H or 6H Mode, the light turns off completely, instead of low level brightness, after 3 minutes:
1. Make sure the bulb you installed is a candelabra base bulb or LED dimmable bulb.
2. Make sure the bulb is not burned out.
3. Make sure the low level is not at the 0% position.
-- The light blinks:
1. Make sure the light is not mounted near a barbecue, air conditioner or other heat source.
2. Adjust the sensitivity knob counterclockwise to avoid unnecessary triggering like a passing car or
reflecting objects.
3. Make sure the bulb is candelabra base bulb or LED dimmable bulb.

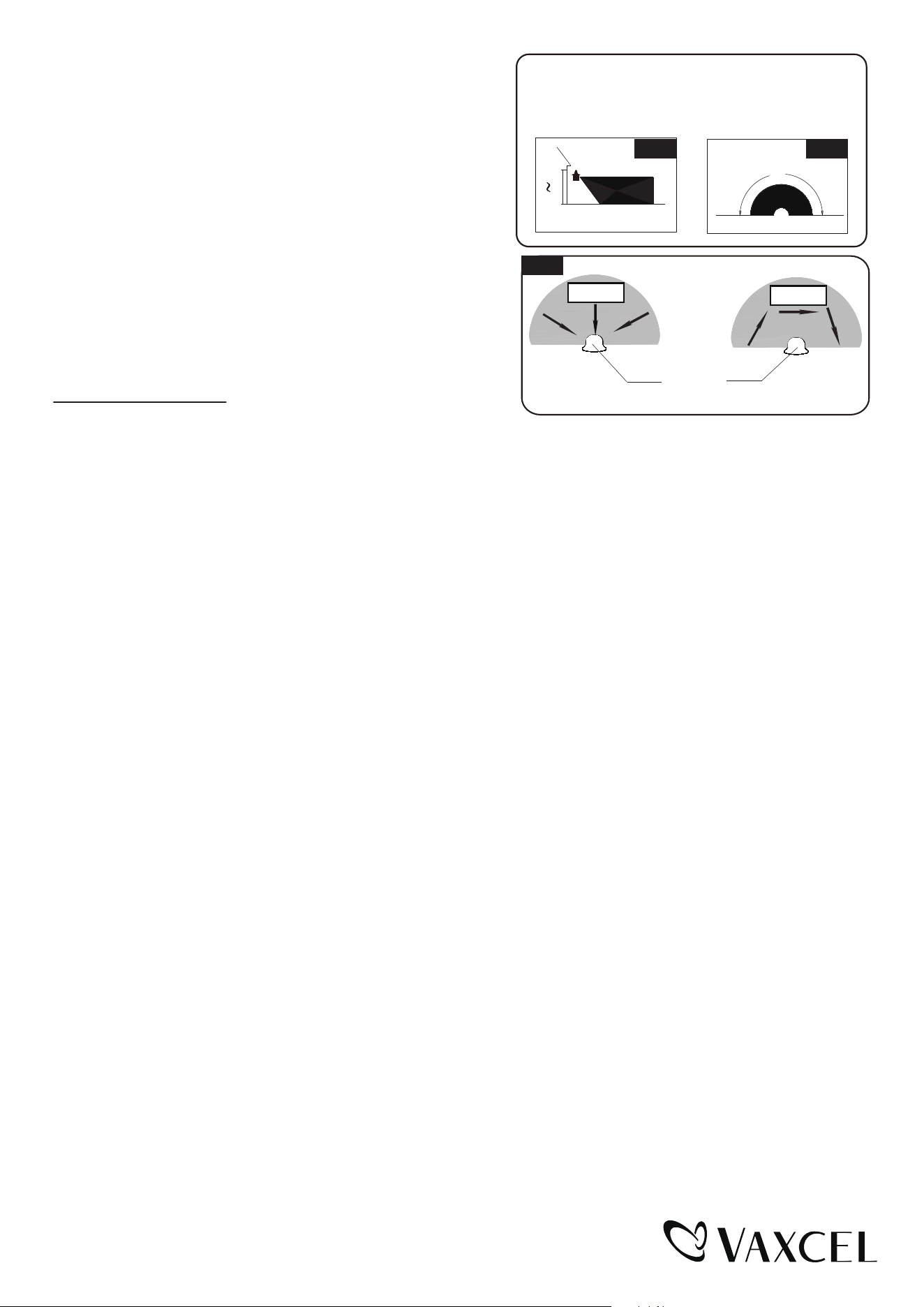

NOTE:
1. The sensitivity of the motion sensor will increase as the
environmental temperature gets cooler. For best performance,
gently clean the lens with a soft cloth every 1 or 2 months to
assure maximum sensitivity.
2. For best performance, install fixture at least 6 feet above
the ground. At such a height, the fixture will provide a
detection distance of up to 40 feet at 77 degrees
fahrenheit. (See Fig.6)
3. The sensor detects across a detection range of 180 degrees
(See Fig.7)
4. The sensor will be more sensitive to motion across its
detection path than motion directly towards it. (See Fig.8)
5. To reduce possible nuisances, do not mount the fixture
near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflecting object or
5`
6`
10`
40`
Where you install your lantern is important:
Be sure the light is mounted straight on the wall;
otherwise, the detection distance may be limited.
Fig.6 Fig. 7
180˚
Motion
Least sensitivity
Most sensitivity
Sensor
Fig.8
Motion
---The light does not come on at all:
1. Make sure the wall switch and circuit breaker are on.
2. Make sure the wiring is correct.
3. Make sure the bulb is not burned out.
4. Cover the sensor with your palm to verify that the
ambient light level is not too high.
Troubleshooting
Page 4 / 5
240703

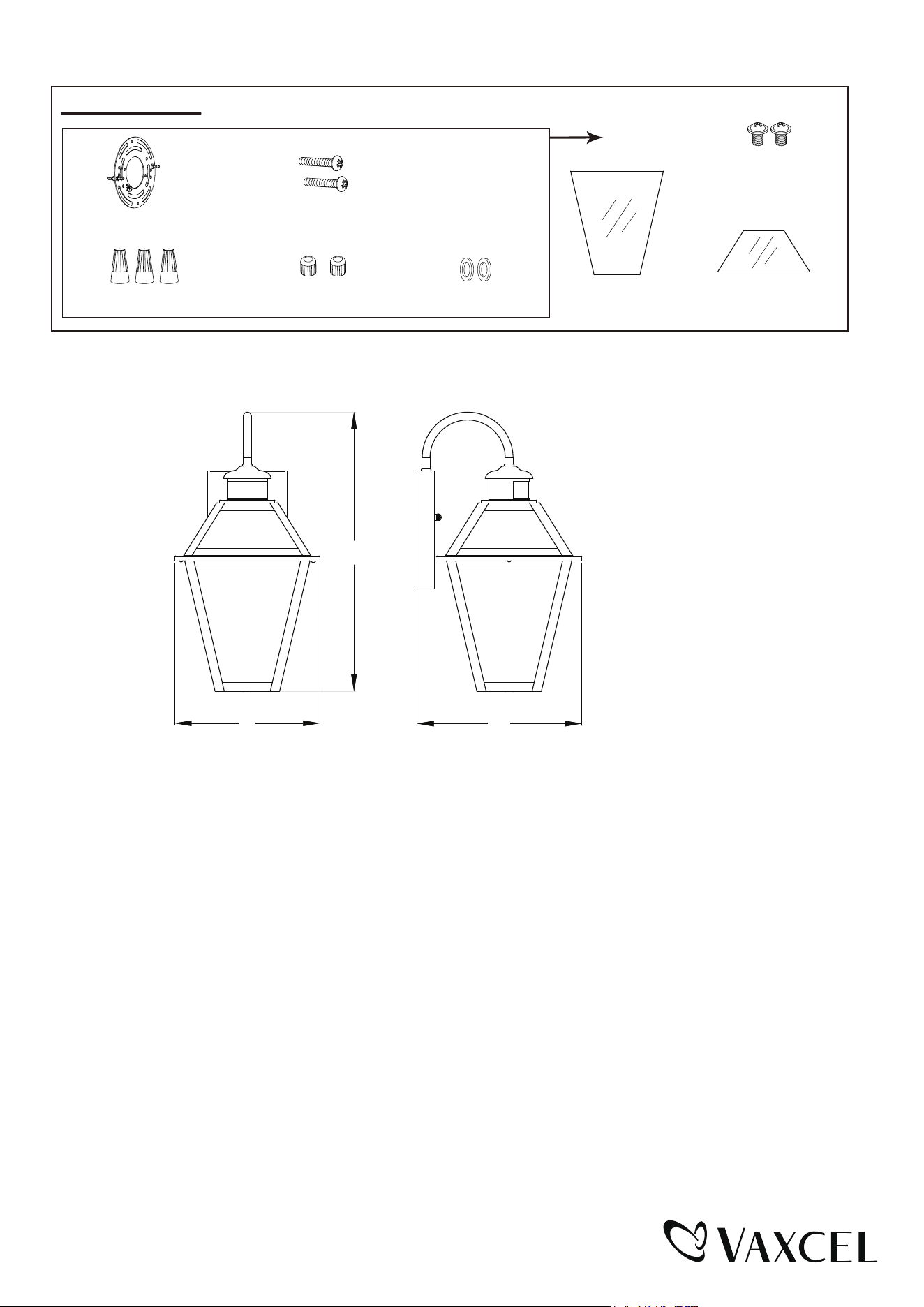

Spare Parts List:
Assembly Kit
6350MM (1 SET)
Mounting Screw (B)
Wire Connector (C) Rubber Pad (D)
Mounting Plate Unit (A)
Rubber Pad (E)
The following parts are available for re-order if damaged or missing.
Page 5 / 5
Set Screw
5423MM
Glass Panel
X4
10247CG
Glass Panel
X4
10246CG
A: 17-1/4"
B: 8-1/2"
C: 9-1/2"
B
A
C
5 Year Limited Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of shipment.
In addition:
● Any product with an integrated motion sensor or dusk-to-dawn photocell is supported by a 5-year warranty for the
functionality of the product.
● Any product with integrated LED modules is covered by a 5-year warranty on the LED functionality.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction manual;
usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered normal for
the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
