1. Attach the mounting strap unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the
preinstalled threaded pipe if necessary.
2. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with the green ground screw.
Then, depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read And Save This Instruction.
OW21861
W
ARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

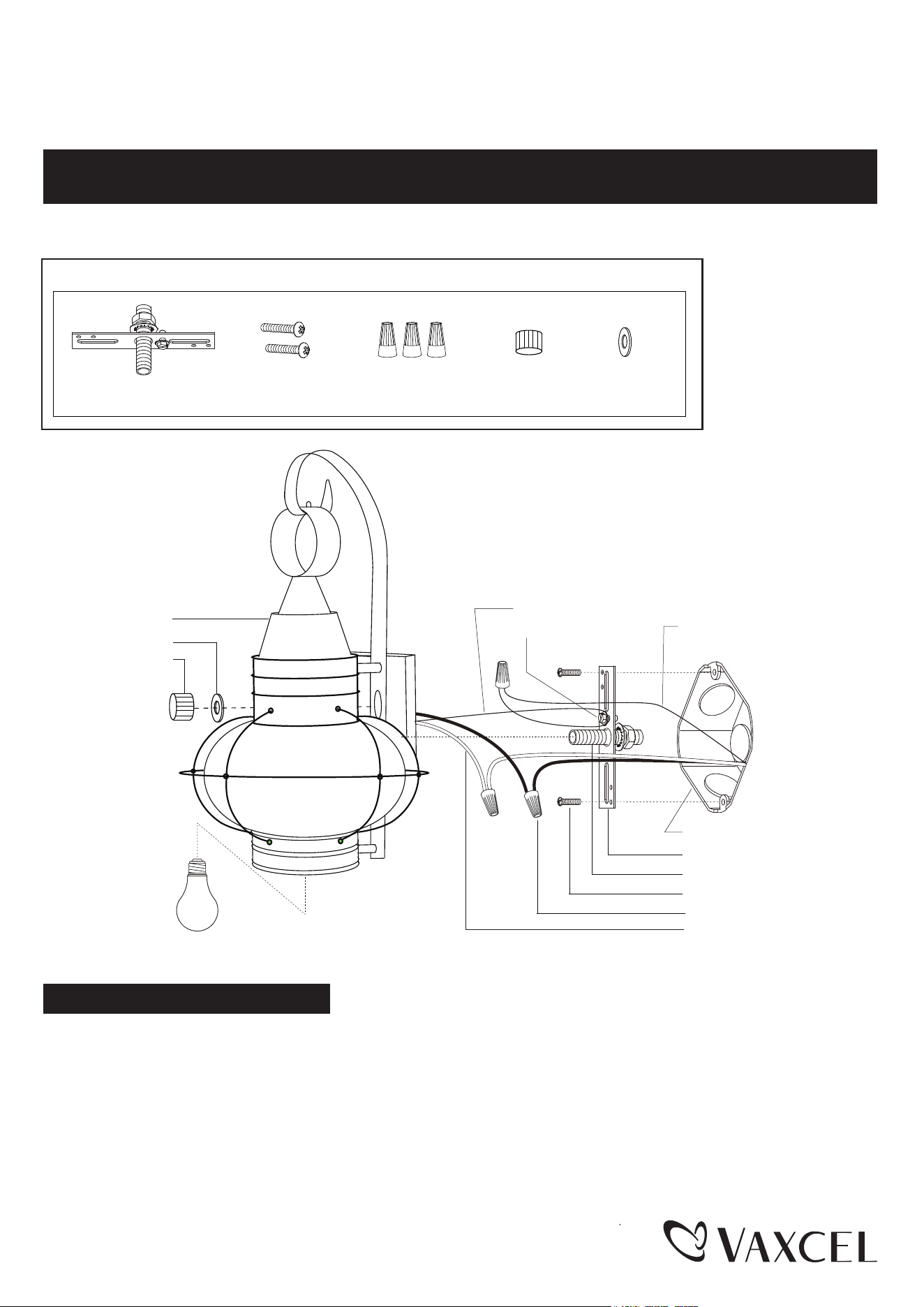

Hardware Package (included):
Turn off the power at fuse or circuit box.
Mounting Screw (B)
Fixture Wire
Mounting Strap Unit (A)
Wire Connector (C)
Fixture Ground Wire
Green Ground Screw
Outlet Box
House Ground Wire
Threaded pipe
Mounting Screw (B)
Wire Connector (C) End Cap (D)
Mounting Strap Unit (A)
Page 1 / 2
Fixture
End Cap (D)
Rubber Pad (E)
Max. 60W Type A Bulb
(not included)
Rubber Pad (E)
230410
The following parts are available for reorder if damaged or missing.
Spare Parts List:
Mounting Hardware
6674MM (1SET) for OW21861BBZ
6693MM (1SET) for OW21861TB
6694MM (1SET) for OW21861BN
3. Attach the backplate of the fixture to the mounting strap unit (A) by inserting the threaded pipe, then secure it with
the rubber pad (E) and end cap (D).
CAUTION: With silicone caulking compound, caulk completely around where the back plate meets with
the wall surface to prevent water from seeping into the outlet box.
4. Install 1 x 60W Max. medium base bulb (not included).Check relamping label at socket area or packaging for
maximum wattage allowed.
Turn on the power at fuse or circuit box.
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
230410

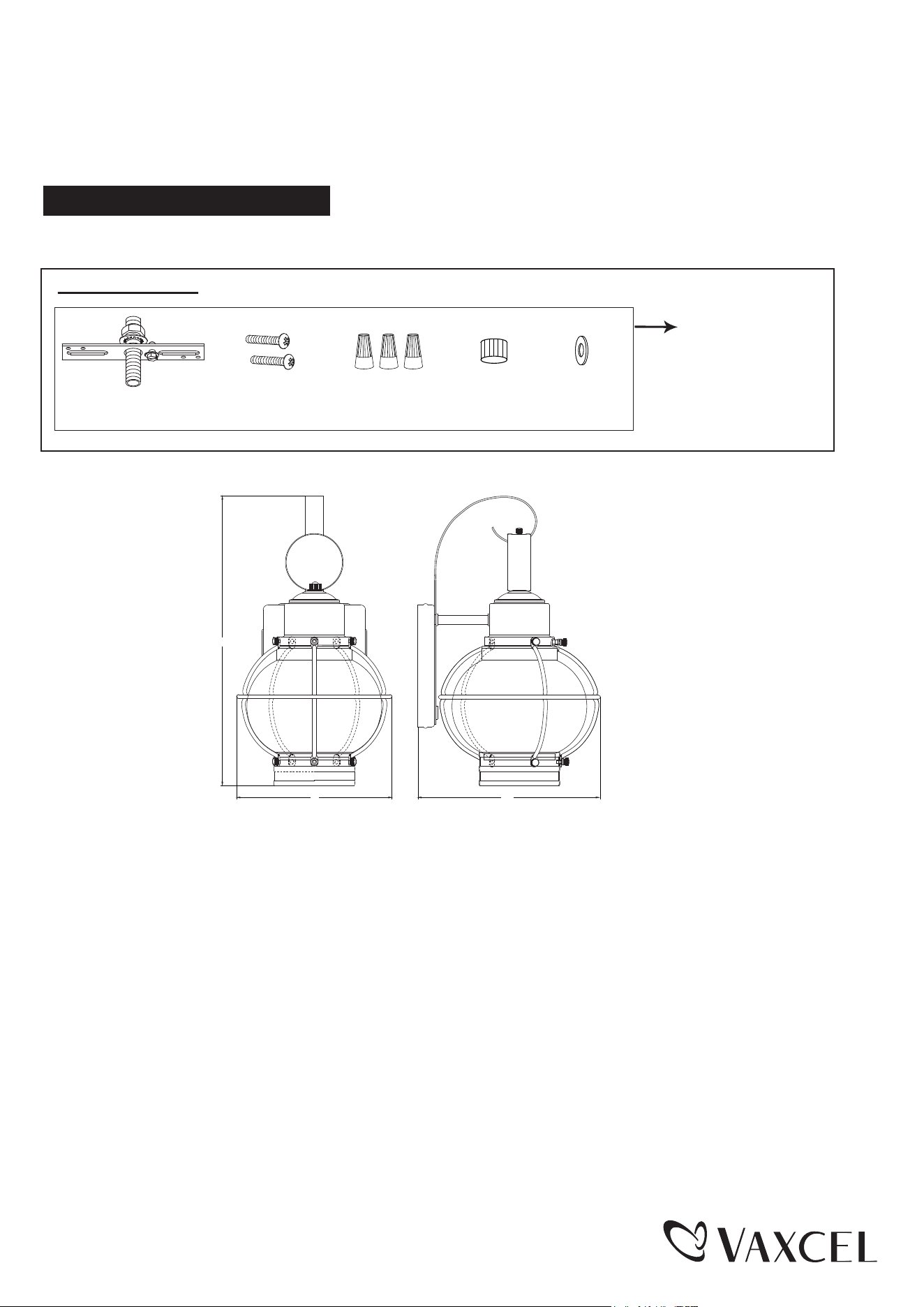

Mounting Screw (B) Wire Connector (C)Mounting Strap Unit (A)
End Cap (D)
A: 12"
B: 6-1/2"
C: 7-1/4"
A
B
C
Rubber Pad (E)
