Page 1 / 3
230509
W
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Hardware Package (included):
Mounting Screw (B) Wire Connector (C) Bolt Nut (D)
Rubber Pad (E)
Crossbar Unit (A)
T0369 / T0372 / T0484 / T0488
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.

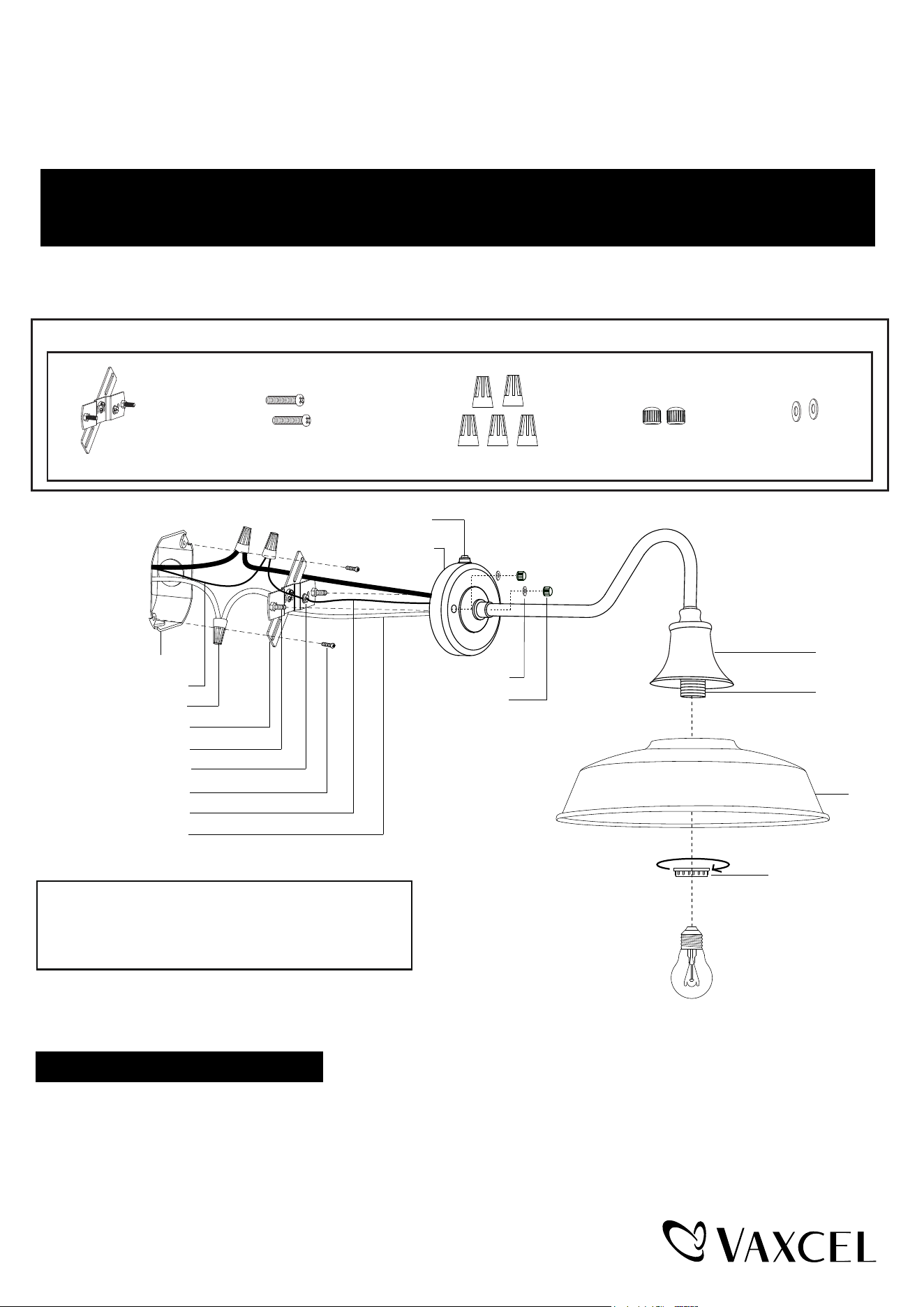

Installation steps
Turn off the power at fuse or circuit box.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
1. Attach the crossbar unit (A) to the outlet box by using two mounting screws (B).
Adjust the length of the preinstalled fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.
IMPORTANT:
The sensor has an excellent photocell function
to enable the light to turn on at dusk and off at
dawn automatically.
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Fixture Mounting Screw
Crossbar Unit (A)
Fixture Wire
Fixture Ground Wire
Backplate
Photocell
Bolt Nut (D)
Rubber Pad (E)
Max. 60W Type A Bulb
(not included)
Fixture
Socket
Shade
Socket Ring
Page 2 / 3
230509
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
• Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar (A) with the green
grounding screw (D). Then, depending on local code connect it to the house grounding wire with the wire
connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the backplate of the fixture to the cross bar (A) by aligning and inserting the two headless screws (E) from
the cross bar (A) into the open holes on the backplate, then place the two rubber pads (H) over the exposed
headless screws (E) before screwing the two bolt nuts (G).
Note: With silicone caulking compound, caulk completely around where the backplate meets with the wall
surface to prevent water from seeping into the outlet box.
5. Attach shade to fixture, then secure it with socket ring.
6. Install bulb (not included). Check relamping label at socket area or packaging for maximum wattage allowed .
Turn on the power at fuse or circuit box.
Turn on the power at fuse or circuit box.
2. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the crossbar unit (A) with the green ground screw, then
depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
3. Attach the backplate of the fixture to the crossbar unit (A) by inserting fixture mounting screws into open holes on the
backplate, then secure it with two rubber pads (E) and two bolt nuts (D).
Note: With silicone caulk compound, caulk completely around where the backplate meets with the wall
surface to prevent water from seeping into the outlet box.
4. Attach the shade to the socket, then secure it with the socket ring.
5. Install the bulb (not included). Check relamping label at socket area or packaging for maximum wattage allowed.

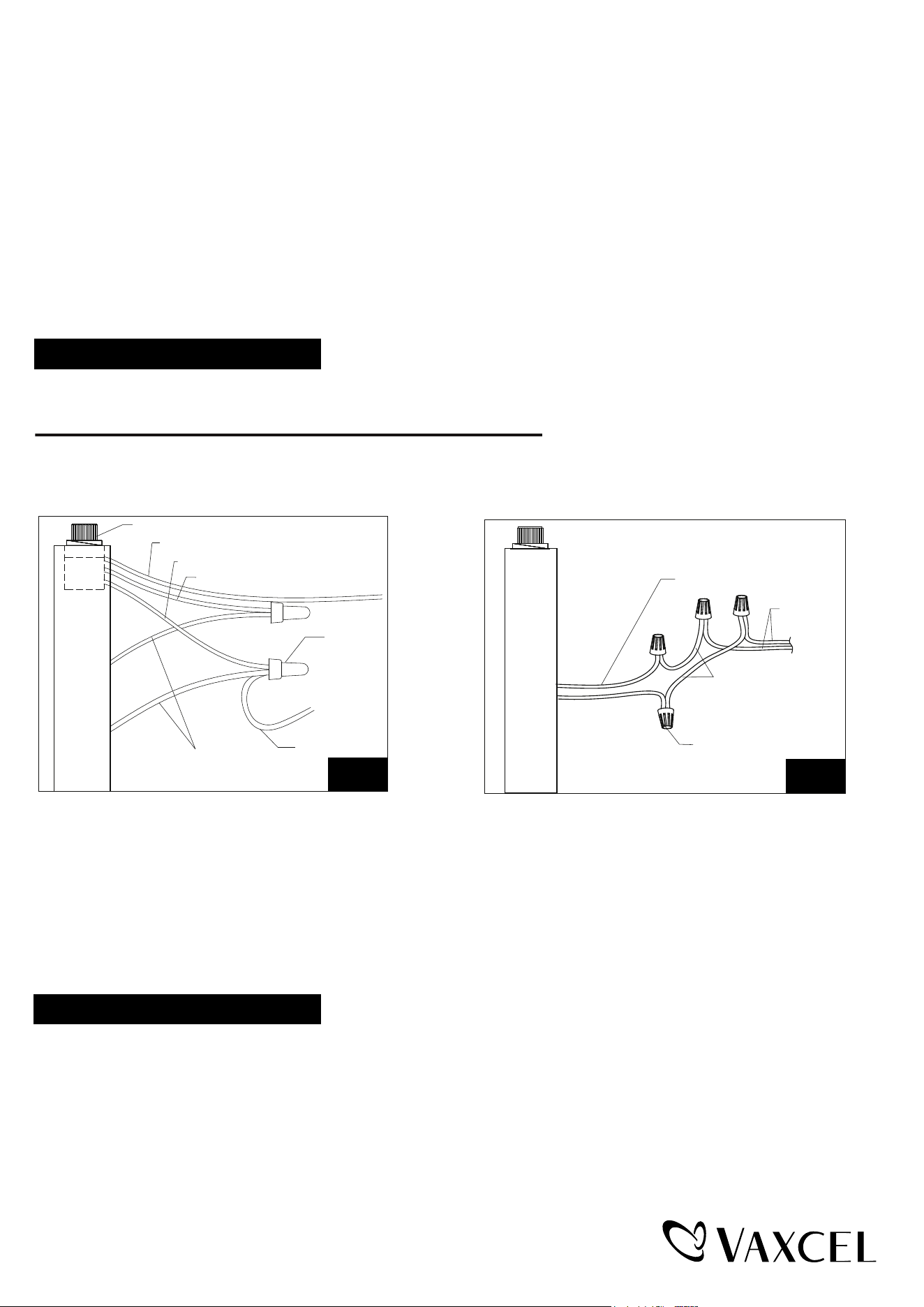

1. Turn off the power at the fuse or circuit box before starting installation.
2. Loosen the wire connectors connected with the wires from photocell. (See Fig.1)
Note: Do not remove the photocell to prevent water from seeping into the outlet box.
3. Take a white pigtail and black pigtail and make wire connections using wire connectors (C): (See Fig.2)
a. The black wire from the fixture to one end of the black pigtail.
b. The white wire from the fixture to one end of the white pigtail.
c. The other end of the black pigtail to the black wire from the power source.
d. The other end of the white pigtail to the white wire from the power source.
Put all wires back into the backplate of the fixture.
Photocell
White Wire From Photocell
Wire Connector
Wires From Fixture
Wires From Fixture
Wires From
Main Power
Wire Connector (C)
White Pigtail
Pigtail
Red Wire From Photocell
Black Wire From Photocell
Fig.
1
Fig
.2
Optional Installation: Disconnect Dusk-to-Dawn Photocell
IMPORTANT:
Compatible with dimmer when photocell is disconnected.
* Requires dimmable bulb and compatible dimmer switch.
Page 3 / 3
230509

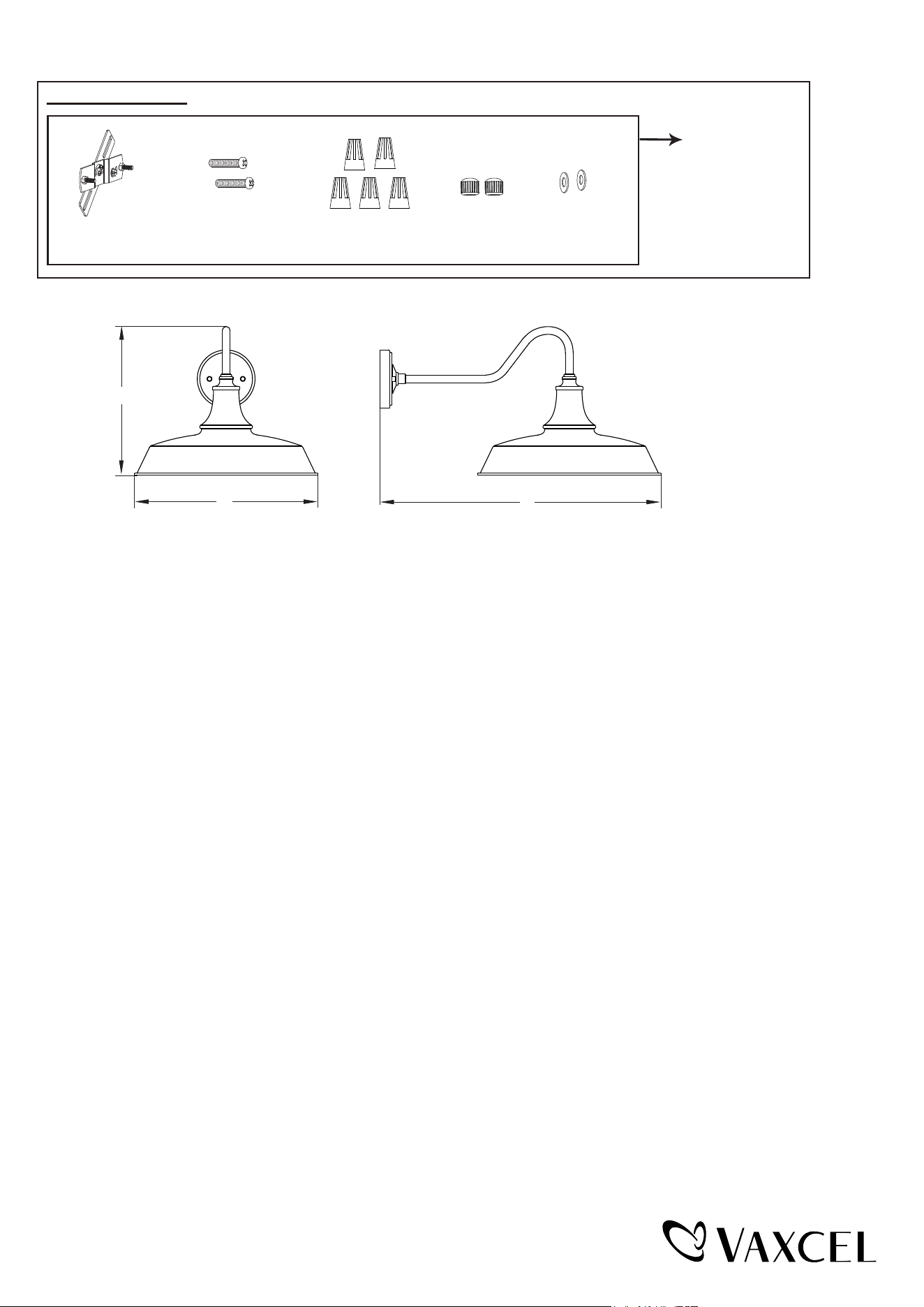

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Mounting Hardware
5786MM (1SET) for T0369
5787MM (1SET) for T0372
5987MM (1SET) for T0484
5988MM (1SET) for T0488
B
A
C
A: 12-1/4″
B: 15″
C: 23″
Mounting Screw (B) Wire Connector (C) Bolt Nut (D)
Rubber Pad (E)
Crossbar Unit (A)
5 Year Limited Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of shipment.
In addition:
● Any product with an integrated motion sensor or dusk-to-dawn photocell is supported by a 5-year warranty for the
functionality of the product.
● Any product with integrated LED modules is covered by a 5-year warranty on the LED functionality.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction manual;
usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered normal for
the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
