ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0120
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
160628
Mounting Strap (A)
Decorative Cover (J)
Pine Cone (K)1pc
Small Pine Cone (L)3pcs Pine Needle (M)3pcs
Washer (F)
Threaded Pipe (G)
Green Grounding (C)
Long Screw (D)
Mounting Screw (B)
Wire Nut (E)
Hex Nut (I)
Fig.1
Long Screw (D)
Key Hole Slot
Installation Steps
Outlet Box
House Grounding Wire
Wire Nut (E)
Long Screw (D)
Ceiling Pan
Coupling
Small Pine Cone (L)
Pine Needle (M)
Hex Nut (I)
Threaded Pipe (G)
Glass Shade
Washer (F)
Socket
Metal Pad (H)
Hex Nut (I)
Decorative Cover (J)
Pine Cone (K)
Mounting Strap (A)
Green Grounding Screw (C)
Mounting Screw (B)
Metal Pad (H)

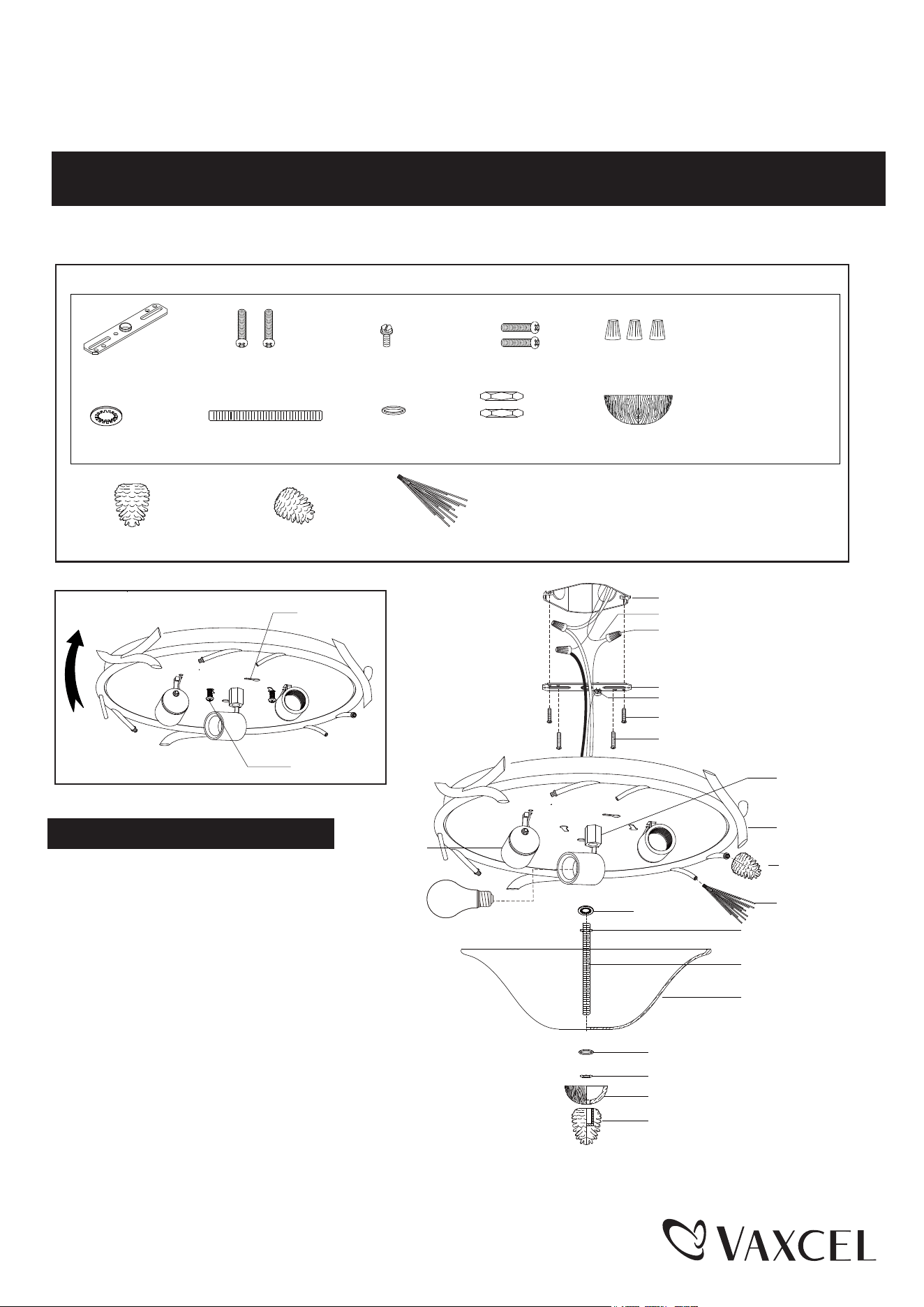

1. Attach the two long screws to the holes on the
mounting strap. Thread them in part way: 2 to
3 turns only.
2. Attach the mounting strap to the outlet box
using two mounting screws.
3. Pull out the source wires from the outlet box.
Make wire connections using wire nuts as
follows:
---Connect the hot wire (usually black insulation) from
the power source to the black wire from the fixture.
---Connect the neutral wire (usually white insulation) from
the power source to the white wire from the fixture.
---Attach the fixture grounding wire (usually green insulation
or bare wire) to the mounting strap with the green grounding
screw, or connect to the source grounding wire if available.
Carefully put the wires back into the outlet box.
Bulb Type A Max.40W
(not included)
160628
Turn on the power at fuse or circuit box
Mounting Strap (A)
Decorative Cover (J)
Pine Cone (K)
5095PC
Small Pine Cone (L)
5091PC
Pine Needle (M)
5089PN
Washer (F)
Threaded Pipe (G)
Green Grounding (C)
Long Screw (D)
Mounting Screw (B)
Wire Nut (E)
Hex Nut (I)
Metal Pad (H)

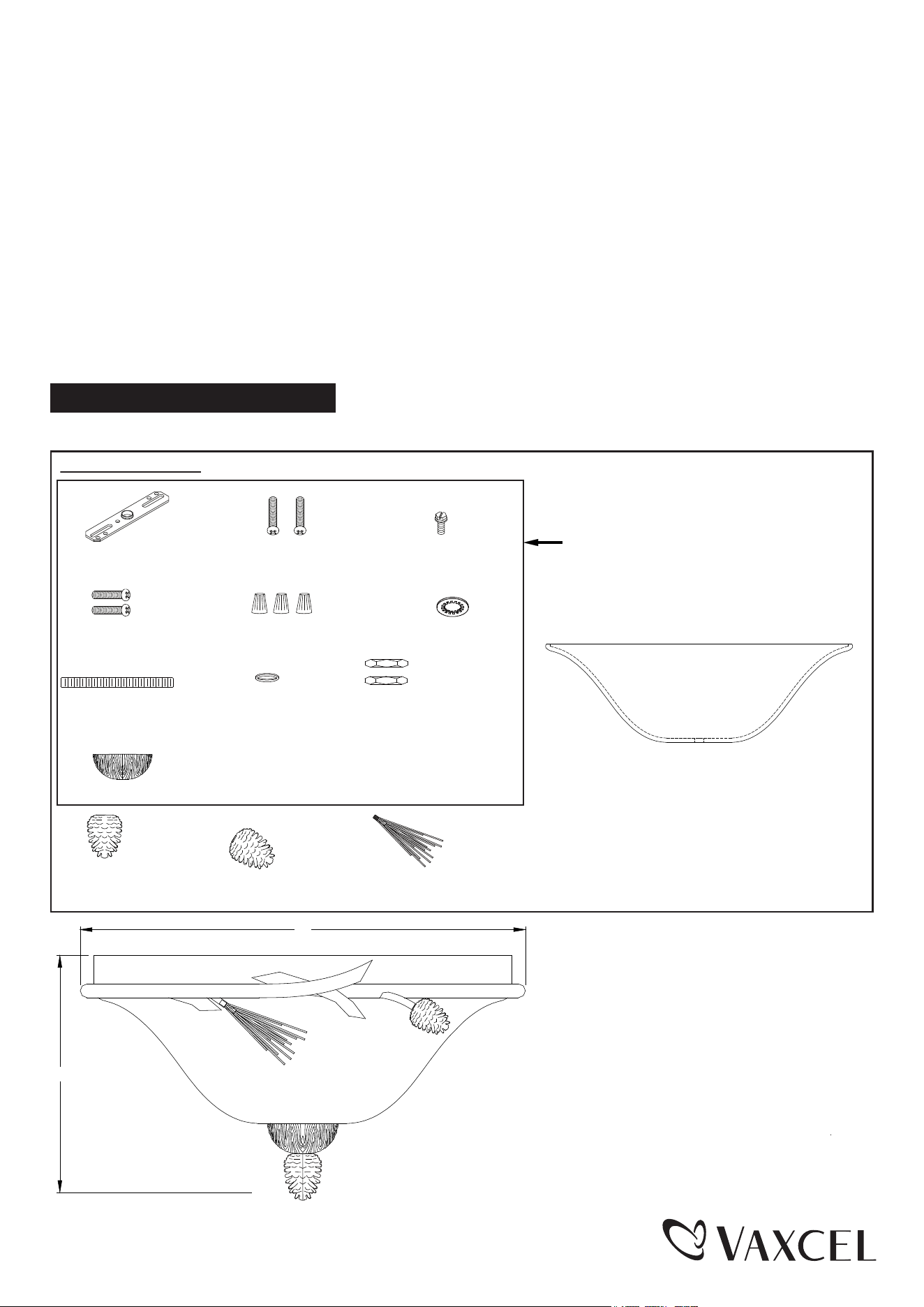

A: 15-1/2"
B: 9"
4. Attach the ceiling pan to the mounting strap by inserting two long screw heads into the key holes. Rotate the ceiling
pan until it is locked into place, and then tighten the long screws to secure it. (See Fig.1)
5. Install three bulbs (not included). Check relamping label at socket area or packaging for maximum allowed wattage.
6. Secure the small pine cones and the pine needles onto the ceiling pan as shown in the diagram.
7. Thread the thread pipe with hex nut end into the coupling of the ceiling pan, and then tighten it with the hex nut and
the washer.
NOTE:Depth of threaded pipe may need to be adjusted to properly fit glass shade, decorative
cover and small pine cone.
8. Attach the glass shade to the fixture by inserting the threaded pipe, and then secure it with a metal pad and hex nut.
9. Attach the decorative cover onto the threaded pipe and secure it by using the pine cone.
The following parts are available for re-order if damaged or missing.
Spare Parts List:
Assembly Kit
5572MM(1 SET)
Glass Shade
9822CC
