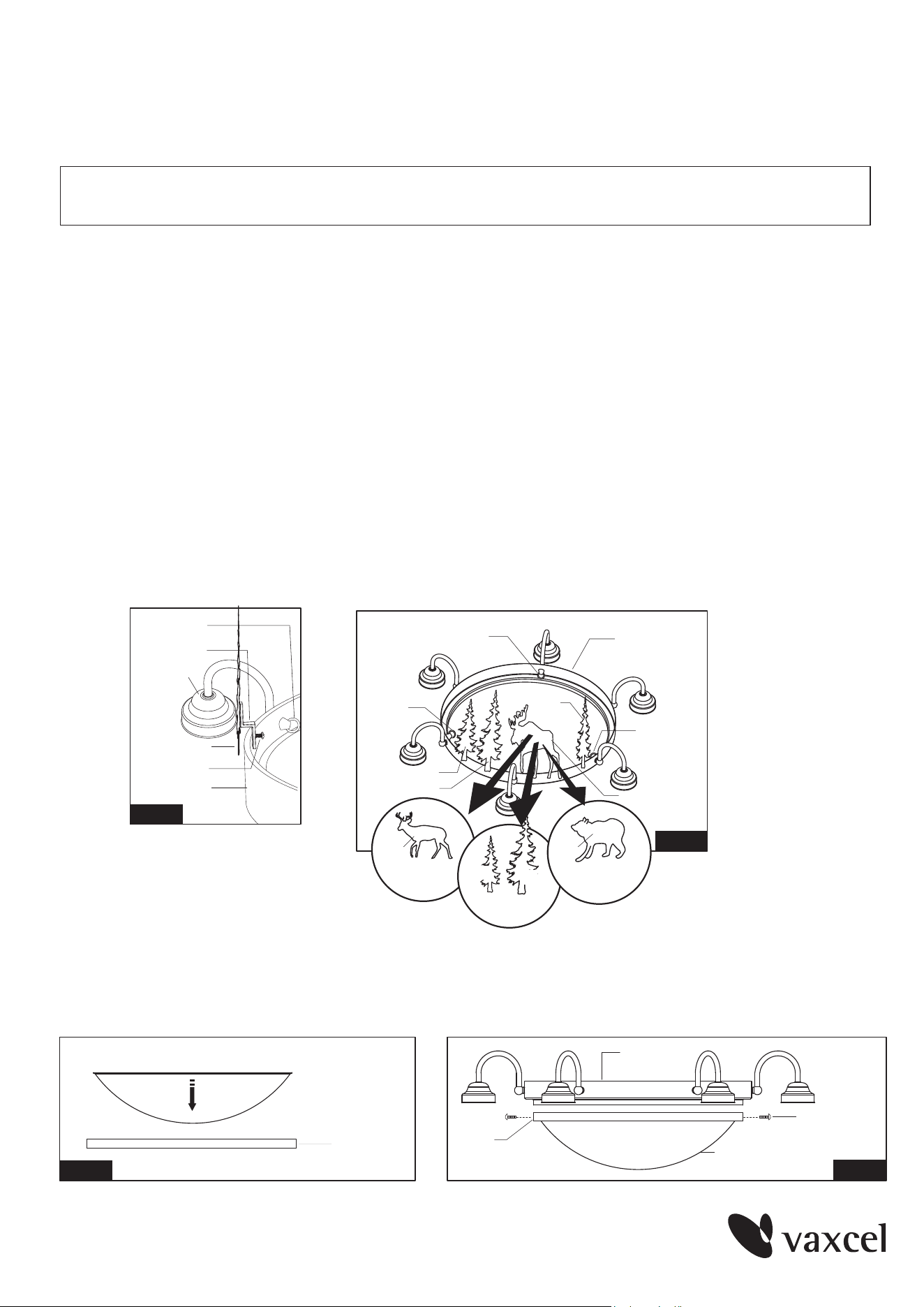

Assembling the center glass shade:
Fixing the silhouette:
1. Attach the center glass shade downward to the pan carefully. (See Fig.3)
2. Attach the assembled pan upward to the metal ring, make the hole on the metal ring and the hole on
the pan overlap, and then secure with the set screws. (See Fig.4)
1. Take out the silhouettes from the package carefully. Loosen the set screws, but do not unscrew the
set screws to prevent them lost.
2. Insert the silhouette(P-C) to the metal ring, and then fix it toward to the metal ring with the set screw.
(See Fig.1)
3. Do the same way for fixing the silhouettes(P-B, P-E and P-C) in counterclockwise between two
loops-3 in order.
4. Repeat Steps 2~3 to finish other silhouettes fixing.
a. The loops-3 divide the silhouettes fixing into three equal divisions. (See Fig.2)
b. Please according to Fig.2 shown to fix all the silhouettes whichever you fix first.
5. You can install the silhouettes which marked P-R (for CH55406) or marked P-S (for CH55706) or
marked P-C & P-B (for CH55506) to the location of silhouettes which marked P-E (for CH55606)
shown in Figure 2 to replace them.
Page 1
Fig.1
Set Screw
Clip
Loop-3
Metal Ring
P-C
Metal Ring
Holder Set-1
Loop-3
Loop-3
Loop-3
P-C
P-C
P-B
P-E
Fig.2
Center Glass Shade
Center Glass Shade
Set Screw
Pan
Pan
Metal Ring
Fig.4
Fig.3
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
CH55406 / CH55506 / CH55606 / CH55706
110319
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.

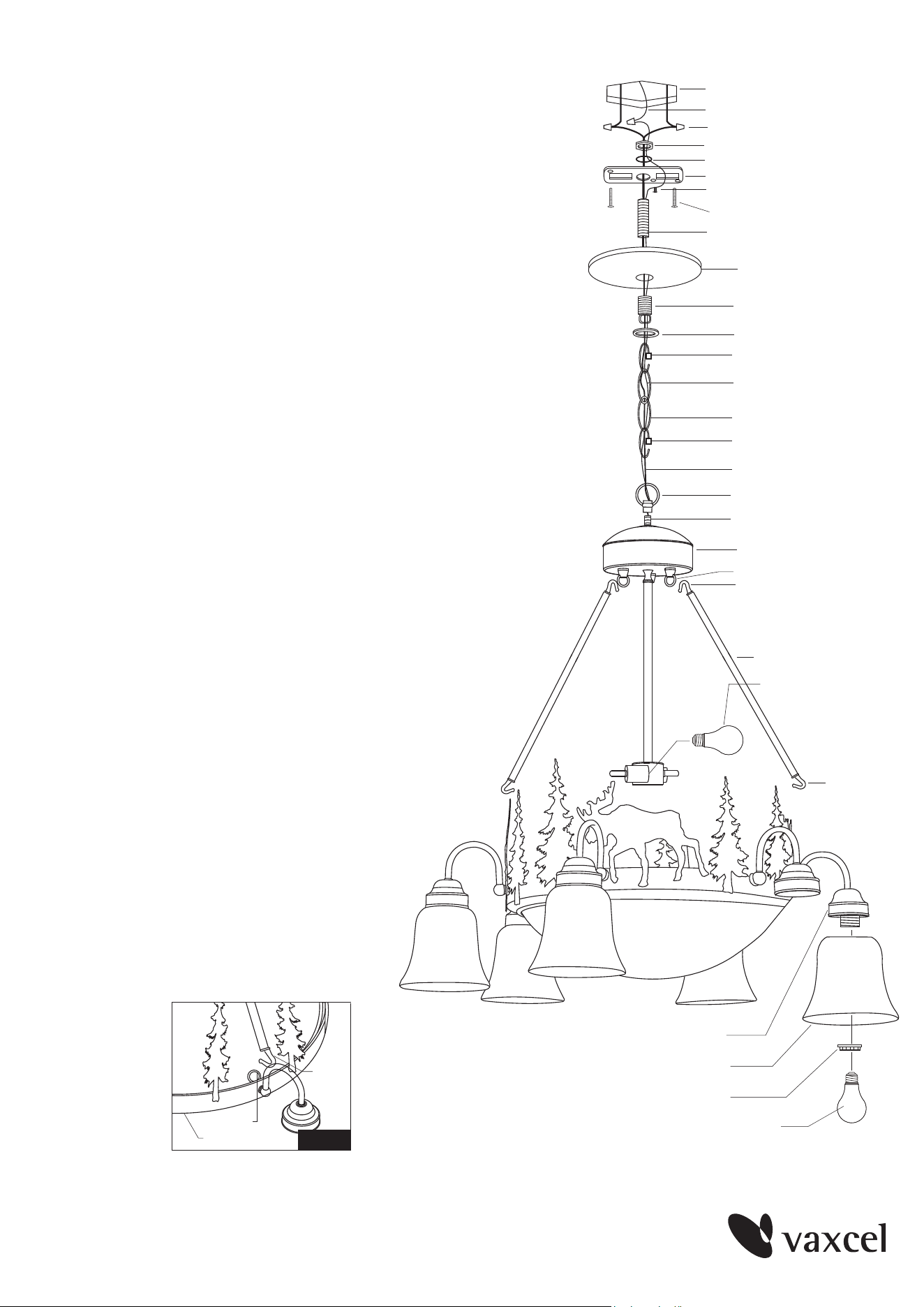

Parts for
CH55406
Parts for
CH55506
Parts for
CH55706
P-S
P-R
P-B
P-C
Fixture Wire
Chain
Mounting Screw
Nipple-1
Fixture Grounding Wire
Collar
Top Loop
Canopy-1
Mounting Strap
Green Grounding Screw
Hex Nut
Wire Nut
Washer
Outlet Box
House Grounding Wire
Loop Lock
Loop Lock
Loop-1
Nipple-2
Fixture
Suspension Rod
Hook
Side Glass Shade
Socket Ring
Glass Holder
Hook
Loop-2
Install the other parts:
1. Attach the nipple-1 to the mounting strap, and then
secure it with a washer and a hex nut.
2. Attach the mounting strap to the outlet box by using
two mounting screws.
3. Secure the loop-1 to the nipple-2 of the fixture tightly.
4. Choose the certain length of the chain you need, and
then weave the fixture wire and the grounding wire
through the chain. Then connect one end of the chain
with the loop by using the loop lock.
5. Secure the top loop to the nipple-1 tightly.
6. Thread the fixture wire and fixture grounding wire through
the collar, top loop, canopy-1, nipple-1 and mounting
strap in order.
7. Connect the other end of the chain with the top loop by
using the loop lock.
8. Pull out the outlet wires and house grounding wire from the
outlet box. Make wire connections using the wire nuts:
---The smooth wire (marked) from the fixture to the black
wire from the power source.
---The ridged wire (unmarked) from the fixture to the white
wire from the power source.
---Attach the fixture grounding wire to the mounting strap
with the green grounding screw. Then connect it to the
house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
9. Attach the canopy-1 to the mounting strap by inserting the
top loop, and then secure it with the collar.
10. Hook one end of the suspension rods to the loops-2, and
then hook the other end of the suspension rods to the
loops-3. (See Fig.5)
Note: Make sure all the three suspension rods
hook tightly each loops-2 and loops-3 one
by one.
11. Attach the side glass shades upward to the glass
holders, and then secure them with socket rings.
12. Install bulbs (not included). See relamping
label at socket area or packaging for
maximum allowed wattage.
13. Turn on the power at the main fuse or
circuit breaker box.
Hook
Metal Ring
Loop-3
Fig.5
Page 2
110319
Bulb Type A Max.100W
(not included)
Bulb Type A Max.100W
(not included)
