WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS

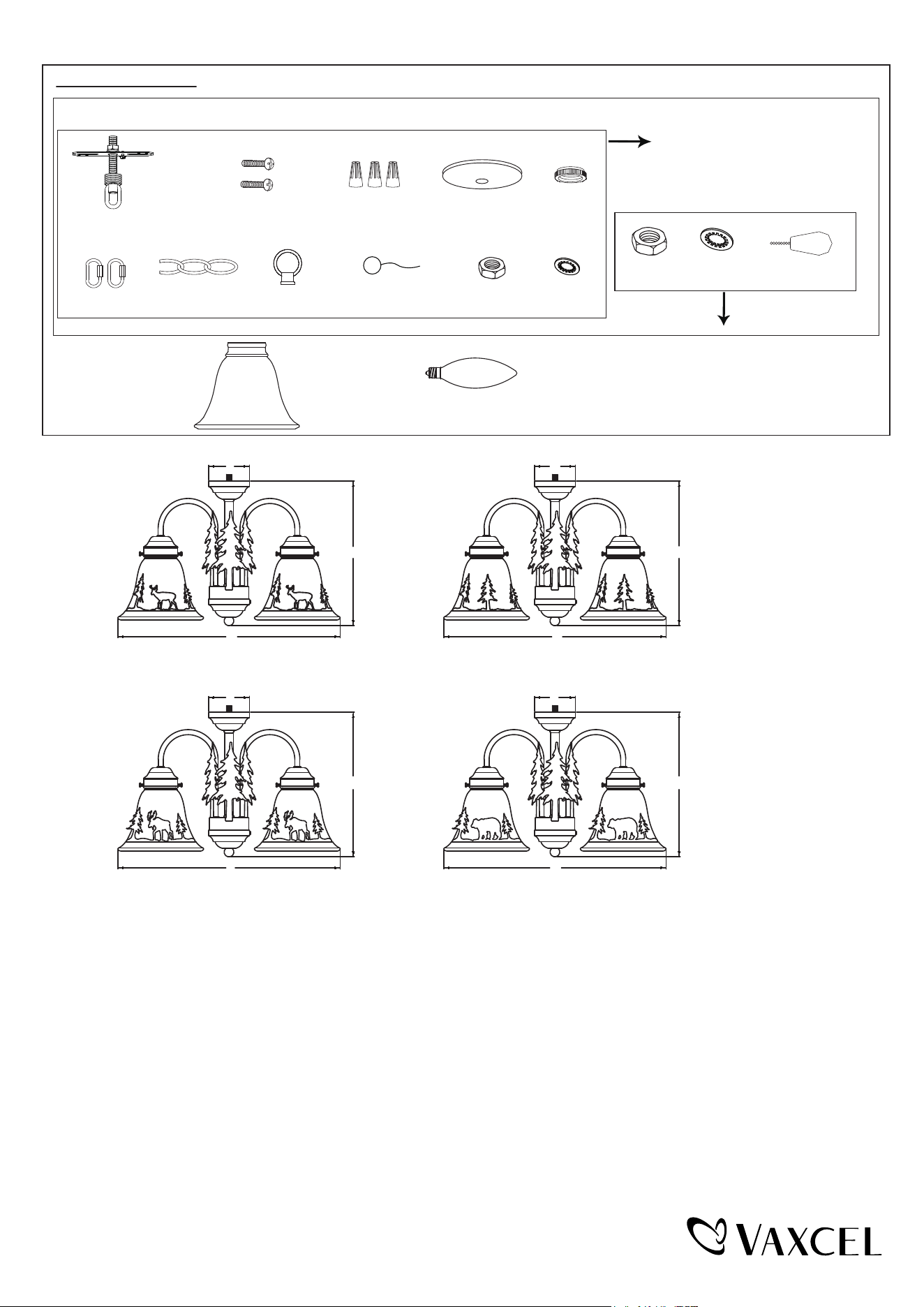

LK55416 & LK55516 & LK55616 & LK55716

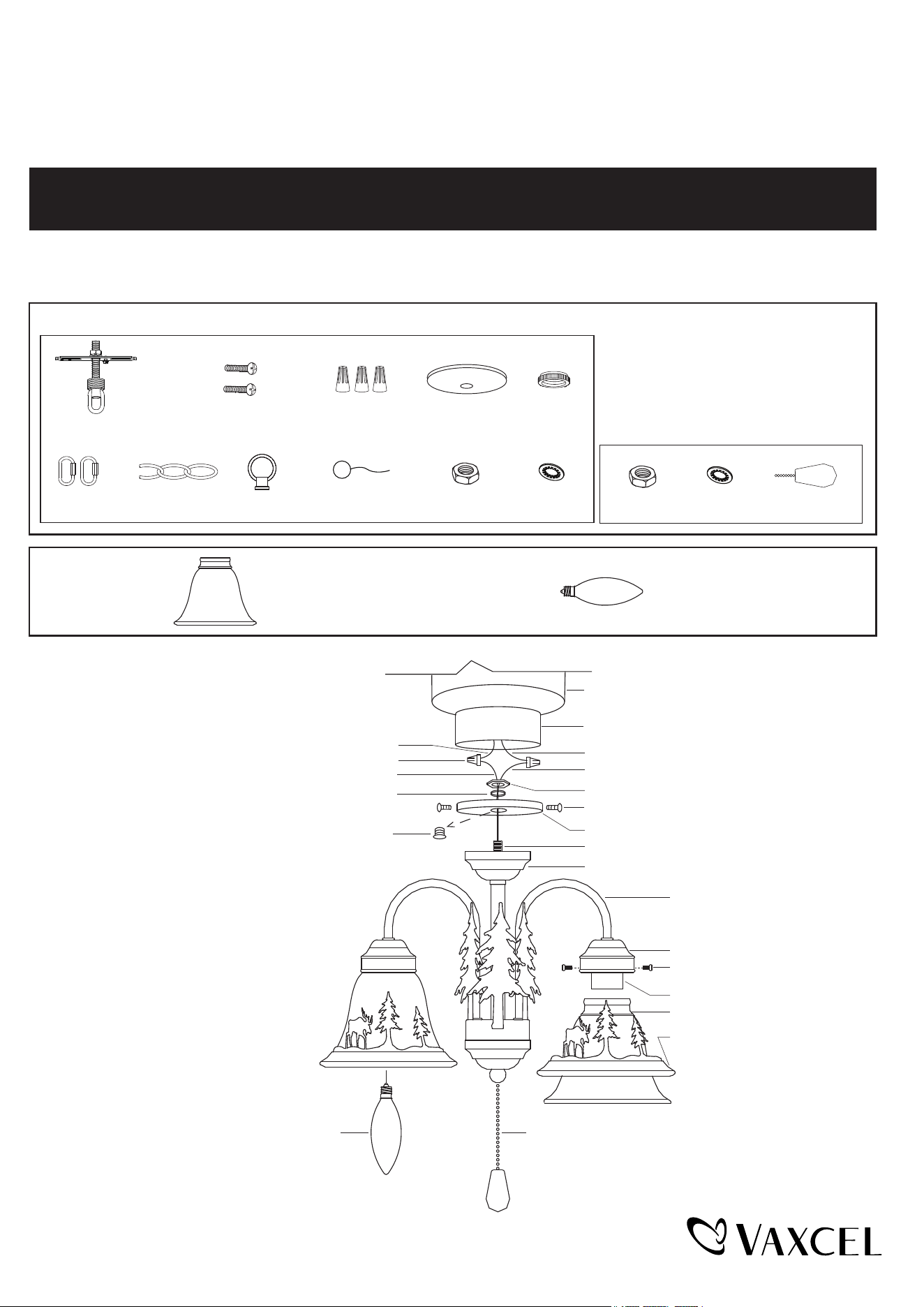

Hardware Package (included): For Chandelier
Hardware Package (included):
For Light Kit
Center Plug
Smooth Wire
Wire Connector (C)
Black or Blue Wire
Ridge
Hex Nut (L)
d Wire
White Wire
Switch Box
Motor
Threaded Pipe (-a)
Switch Box Cover
Switch Box Screw
Fixture
Arm
Glass Holder
Glass Shade
Decoration
Wood Bead (N)
Sock
Set Screw
et
Candelabra Base 4W LED Bulb
(included)
Washer (M)
Mounting Strap Unit (A) Wire Connector (C) Collar (E)Mounting Screw (B) Canopy (D)
Quick Link (F)
Chain (G) Loop (H)
Fixture Ground Wire (I)
Washer (K)Hex Nut (J)
Washer (M)
Hex Nut (L)
Glass Shade
X3
LED
X3
Page 1 / 3
Wood Bead (N)
231103
Thread Pipe (-a)

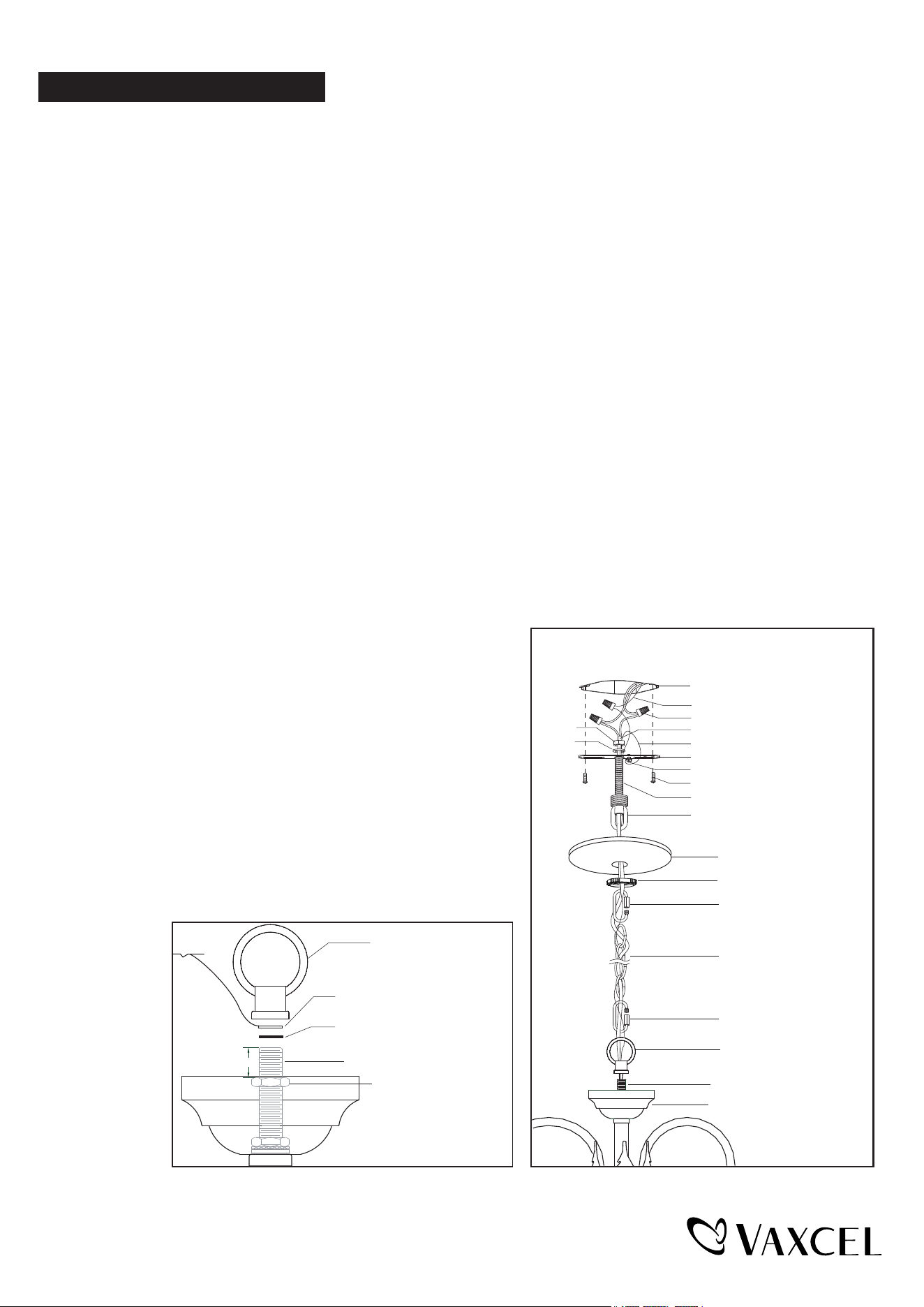

Fig.1
1/2"
Fixture Mounting Screw (I)
Washer (K)
Hex Nute (J)
Fig.2
Mounting Parts for Mini Chandelier
Thread Pipe (-a)
Fixture
Outlet Box
Housing Ground Wire
Wire Connector (C)
Fixture Wire
Fixture Ground Wire
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Threaded Pipe
Hex Nut
Washer
Top Loop
Collar (E)
Canopy (D)
Quick Link (F)
Quick Link (F)
Loop (H)
Chain (G)
For Light Kit:
1. Remove the switch box cover from the switch box of the fan by loosing the three switch box screws.
2. Unscrew the center plug from the switch box cover and discard it.
3. Attach threaded pipe (-a) of the light kit to the switch box cover, then secure it with a washer (M) and hex nut (L).
4. Pull out the wires from the switch box.
Make wire connections using the wire connectors (C):
--- The smooth (marked) wire from the fixture to the black (or blue) wire from the switch box.
--- The ridged (unmarked) wire from the fixture to the white wire from the switch box.
Carefully put the wires back into the switch box.
5. Attach the switch box cover back to the switch box using the three switch box screws.
6. Carefully place the decorations onto the glass shades. Then attach the glass shades to the glass holders and secure
them with the set screws.
7. Install bulbs (included). See relamping label at socket area or packaging for maximum allowed wattage.
8. Turn on the power at the main fuse or circuit breaker box. (You can control the light with the pull chain.)
Turn off the power at fuse or circuit box.
Installation Steps
Page 2 / 3
Loop (H)
For Mini Chandelier: (See Fig. 1 & Fig. 2)
1. Attach the mounting strap unit (A) to the ceiling box by using two mounting screws (B).
Note: The depth of the threaded pipe on the mounting strap unit may need to be adjusted to properly fit the
2. Adjust the hex nut (J) on thread pipe (-a) to make a length of 1/2" from the top of thread pipe (-a) to the top of
the hex nut (J). (See Fig.1)
3. Attach the washer (K) and the ground pad to the hex nut (J) on thread pipe (-a), then secure them with the loop (H).
4. - Determine length of chain (G) needed to achieve desired fixture height. (To remove excess chain section, use
pliers to bend link open.)
- Weave the fixture wires and fixture ground wire through the chain (G), collar (E) and the canopy (D).
- Connect the chain (G) to the loop (H) and the top loop on the mounting strap unit (A) using the two quick links (F).
- Thread the fixture wires and fixture ground wire through the center
of the mounting strap unit (A).
5. Put out the outlet wires and the houese ground wire from the outlet
box. Make wire connections using the wire connectors (C).
--- The smooth wire (marked) from the fixture to the black wire
from power source.
---The ridged wire(unmarked) from fixture to the white wire
from power source.
---Attach the fixture ground wire (I) to the mounting strap unit (A)
with the green ground screw, then connect it to the house ground
wire with the wire connector (C).
Carefully Put the wires back into the ceiling box.
6. Attach the canopy (D) to the mounting strap unit (A) by inserting the
top loop, then secure it with the collar (E).
7. Repeat the steps 6~8 for Light Kit.
231103
The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
4172MM (1 SET)
Glass Shade
938316
LED 8096LD
LK55716BBZ-C
LK55516BBZ-C
C
B
A
LK55616BBZ-C
C
A
B
A
B
A: 15-1/2"
B: 10-1/2"
C: 3"
A: 15-1/2"
B: 10-1/2"
C: 3"
LK55416BBZ-C
C
A: 15-1/2"
B: 10-1/2"
C: 3"
A: 15-1/2"
B: 10-1/2"
C: 3"
B
C
A
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 3 / 3
