Mounting Screw (B) Wire Connector (C)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0156 / W0303
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Bolt Nut (D)
Socket Fixer (E)
1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.
2.
Attach the
mounting plate unit (A)
to the outlet box by using two mounting screws
(B)
.
3. Pull out the source wires from the outlet box. Make wire connections using wire
connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from
the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire
from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with
the green ground screw, then connect it to the house ground wire with the
wire connector (C).
Carefully put all of the wires back into the outlet box.

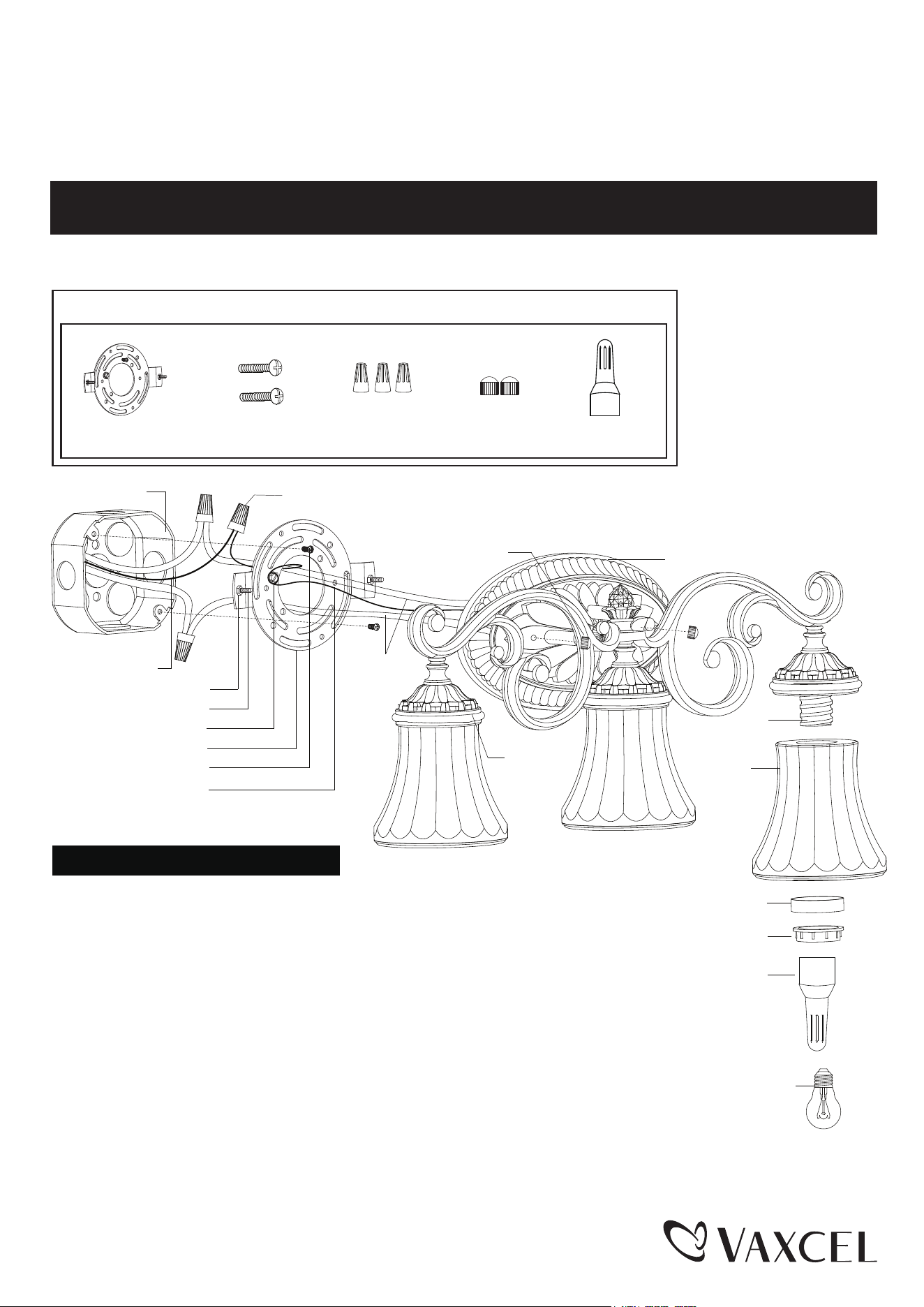

4. Attach the backplate of the fixture to the mounting plate unit (A) by aligning and inserting the two fixture
mounting screws into set holes on backplate, then secure it with two bolt nuts (D).
Mounting Plate Unit (A)
Backplate
Glass bracket
Socket Ring
Socket Fixer (E)
Socket
Glass Shade
Bolt Nut (D)
Spacer
Max. 100W Medium Base bulb
(not included)
Outlet Box
Wire Connector (C)
Green Ground Screw
Headless Screw
Mounting Plate Unit (A)
Mounting Screw (B)
Lock Nut
Fixture Ground Wire
House Ground Wire
Fixture Wire
Page 1 / 2
Turn off the power at fuse or circuit box.
Installation Steps
231221
Turn on the power at fuse or circuit box.
5. Attach the glass shades onto the glass brackets and secure them with the spacers and socket rings, using supplied
socket fixer (E).
6. Install 3 x 100W Max. medium base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.

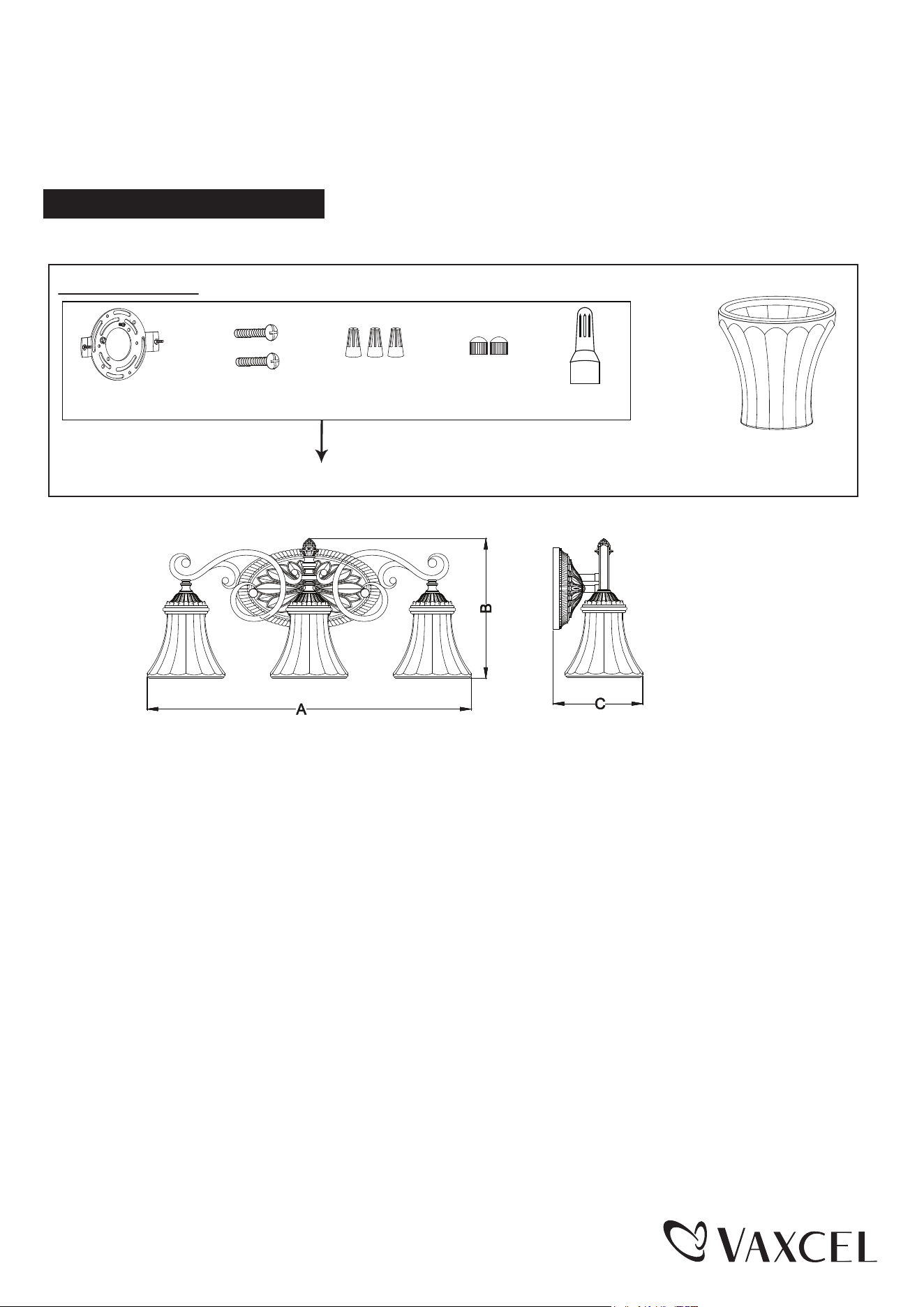

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
5290MM (1 SET) for W0156
5955MM (1 SET) for W0303
Glass Shade
9700AB for W0156
10014EW for W0303
A: 23″
B: 10-1/2″
C: 6-1/2″
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
231221
Mounting Screw (B) Wire Connector (C)
Bolt Nut (D)Mounting Plate Unit (A)
Socket Fixer (E)
