ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0304
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

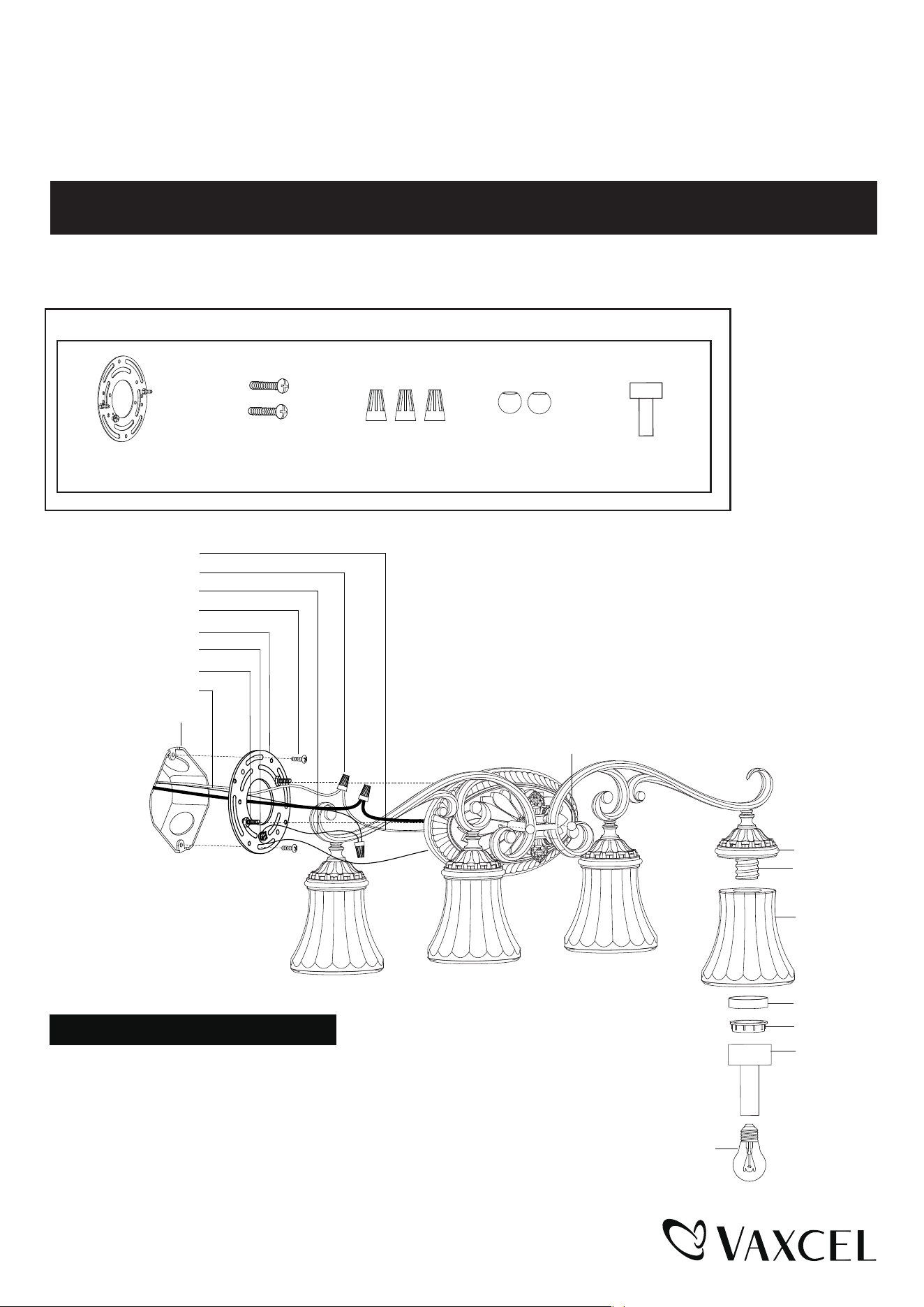

Glass bracket
Socket Ring
Socket Fixer (E)
Max. 100W Type A Bulb
(not included)
Socket
Glass Shade
Spacer
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Mounting Plate Unit (A)
Fixture Wire
Fixture Ground Wire
Fixture Mounting Screw
Bolt Nut (D)
Hardware Package (included):
Mounting Screw (B) Wire Connector (C) Bolt Nut (D) Socket Fixer (E)Mounting Plate Unit (A)
1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).
Adjust the length of the preinstalled fixture mounting screws if necessary.
Note: Make sure that two fixture mounting screws are lined up
horizontally to make the fixture level.
Turn off the power at fuse or circuit box.
Installation Steps
231012
Page 1 / 2
Turn on the power at fuse or circuit box.

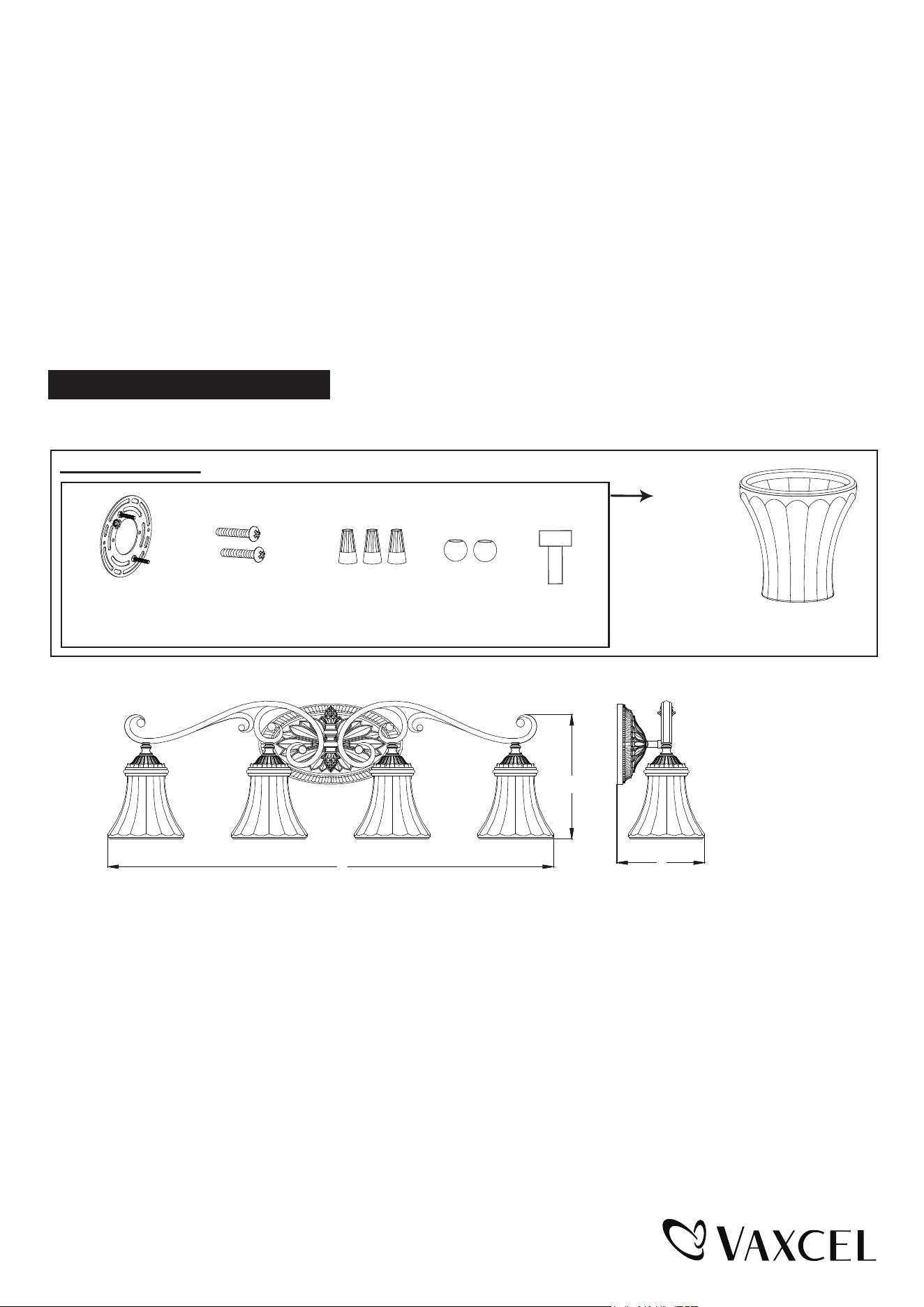

Glass Shade
10014EW
A: 33-1/2″
B: 10-1/2″
C: 6-1/2″
A
B
C
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw, then connect it
to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the backplate of the fixture to the mounting plate unit (A) by aligning and inserting the two fixture mounting
screws into set holes on backplate, then secure it with two bolt nuts (D).
5. Attach the glass shades onto the glass brackets and secure them with the spacers and socket rings, using supplied
socket fixer (E).
6. Install 4 x 100W Max. medium base bulbs (not included). See relamping label at socket area or packaging for maximum
wattage allowed.
The following parts are available for reorder if damaged or missing.
Spare Parts List:
Mounting Plate Unit (A) Wire Connector (C)Mounting Screw (B)
Bolt Nut (D) Socket Fixer (E)
Mounting Hardware
5955MM (1 SET)
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
