ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0491
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):

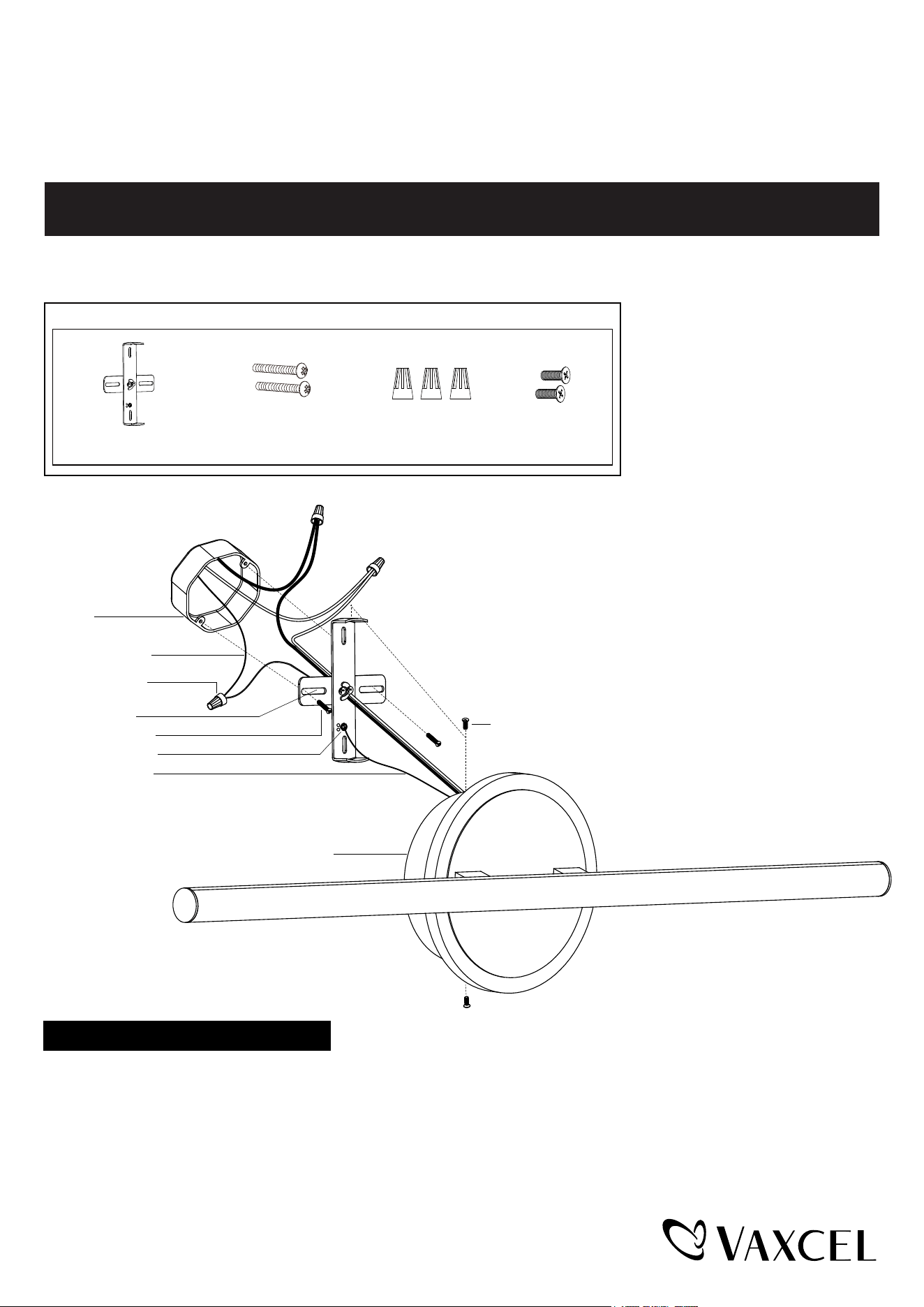

1. Remove the crossbar unit (A) from the backplate by disassemblying the set screws (D).
2.
Attach the
crossbar unit (A)
to the outlet box using two mounting screws (B).
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Screw (B)Crossbar Unit (A) Wire Connector (C) Set Screw (D)
Page 1 / 3
240806
Outlet Box
Green Ground Screw
Fixture Ground Wire
Crossbar Unit (A)
Mounting Screw (B)
House Ground Wire
Wire Connector (C)
Set Screw (D)
Backplate
Spare Parts List:
Assembly Kit
6908MM (1 SET)
The following parts are available for reorder if damaged or missing.
Page 2 / 3
240806
3. Pull out the source wires from the outlet box, make wire connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the
crossbar unit (A)
with the green ground screw ,
then connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
4. Attach the backplate to the
crossbar unit (A)
by aligning holes, then secure two set screws (D) from the holes of the
backplate into the open holes of the
crossbar unit (A)
.
Turn on the power at fuse or circuit box.
Note: Dimming range: 100% full illumination to 10% of full illumination.
This fixture is dimmable with a forward phase electronic dimmer. Dimmers tested to be compatible
with this fixture are the Lutron: TGCL-153PH, MACL-153MH, SCL-153P, DVWCL-153PH.
If you are unfamiliar with electrical installations, it is recommended you have a qualified electrician
for your installations.
Mounting Screw (B) Wire Connector (C) Set Screw (D)Crossbar Unit (A)

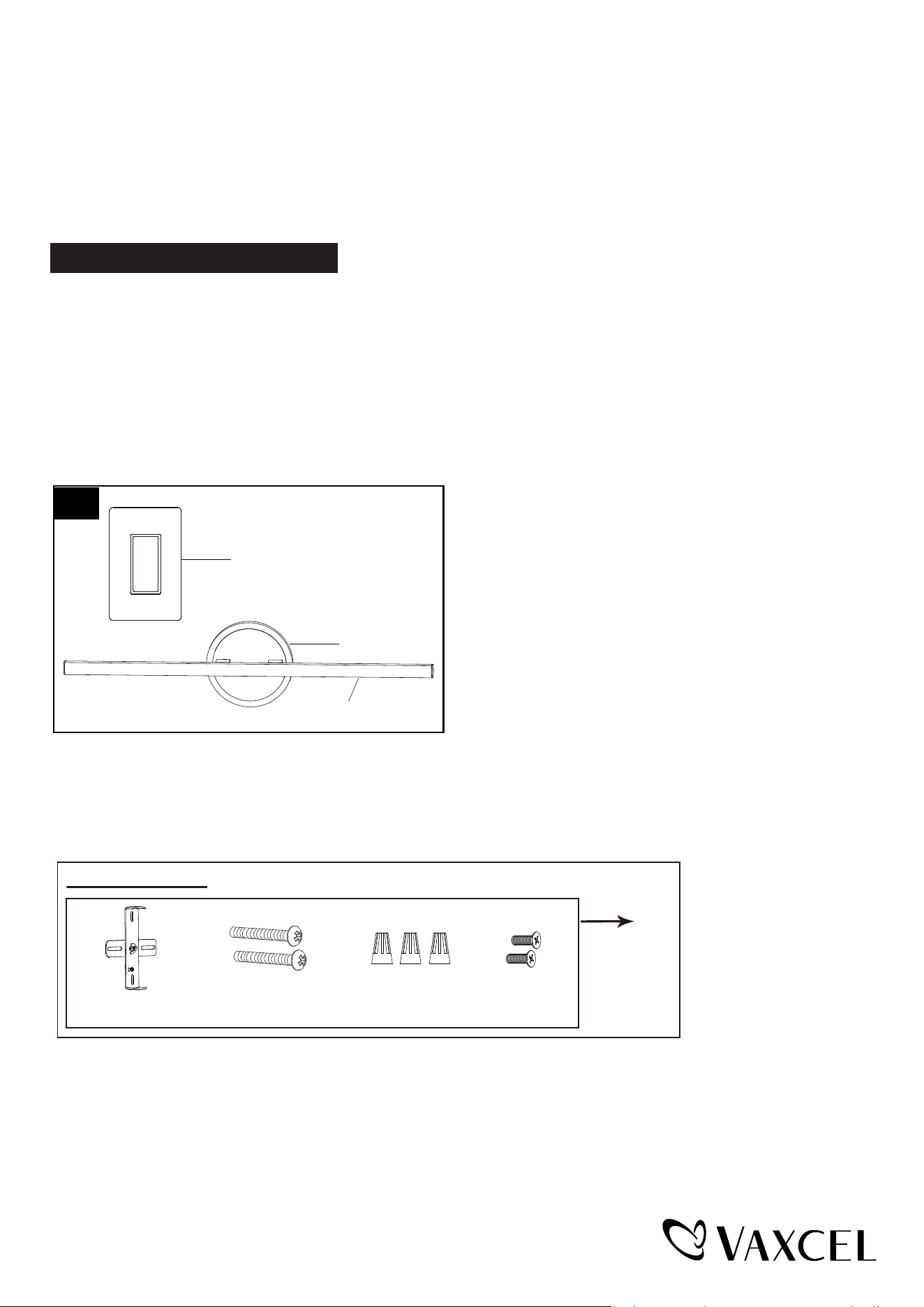

1. To turn on the main light mode, switch on the wall switch.
2. To change to dual light mode, turn on the main light, then
switch the wall switch off, then back on again quickly.
3. To change to night light mode, turn on the all light, then
switch the wall switch off, then back on again quickly.
4. When more than one fixture is installed under the same
switch control and in different light mode, switch the
wall switch off then back on again for 7 times within 10
seconds, they will be reset to night light mode.
1
Wall Switch
Night Light
Main Light
Three light modes can be selected: main light mode - dual light mode - night light mode
(Dual light mode: The main and night light are on at the same �me.)
5. The light has memory function
When the light turns off for more than 7 seconds, the memory function will initiate and keeps the same setting when
the light turns back on.
240806
Page 3 / 3
5 Year Limited Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of shipment.
In addition:
● Any product with an integrated motion sensor or dusk-to-dawn photocell is supported by a 5-year warranty for the
functionality of the product.
● Any product with integrated LED modules is covered by a 5-year warranty on the LED functionality.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction manual;
usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered normal for
the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
A
B
C
A: 5-1/2"
B: 23-3/4"
C: 3"
