Page 1 / 2
230509
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0033
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
1. Attach mounting plate unit (A) to outlet box using two mounting screws (B).
2
. Pull out the source wires from the outlet box. Make wire connections using wire connectors
(C)
as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting
plate unit (A)
with the green ground screw, then connect it
to the house ground wire with a wire connector
(C)
.
Carefully put the wires back into the outlet box.
3. Attach the backplate to the mounting plate
unit (A)
by inserting the headless screws, then secure it with two
bolt nuts
(D)
.
4. Attach the glass shades onto the glass holders, secure them with the spacer and socket rings, using supplied socket
fixter (E).
5. Install 2 x 100W Max. medium base bulbs (not included). See relamping label at socket area or packaging for maximum
wattage allowed.
Turn off the power at fuse or circuit box.
Turn on the power at fuse or circuit box.

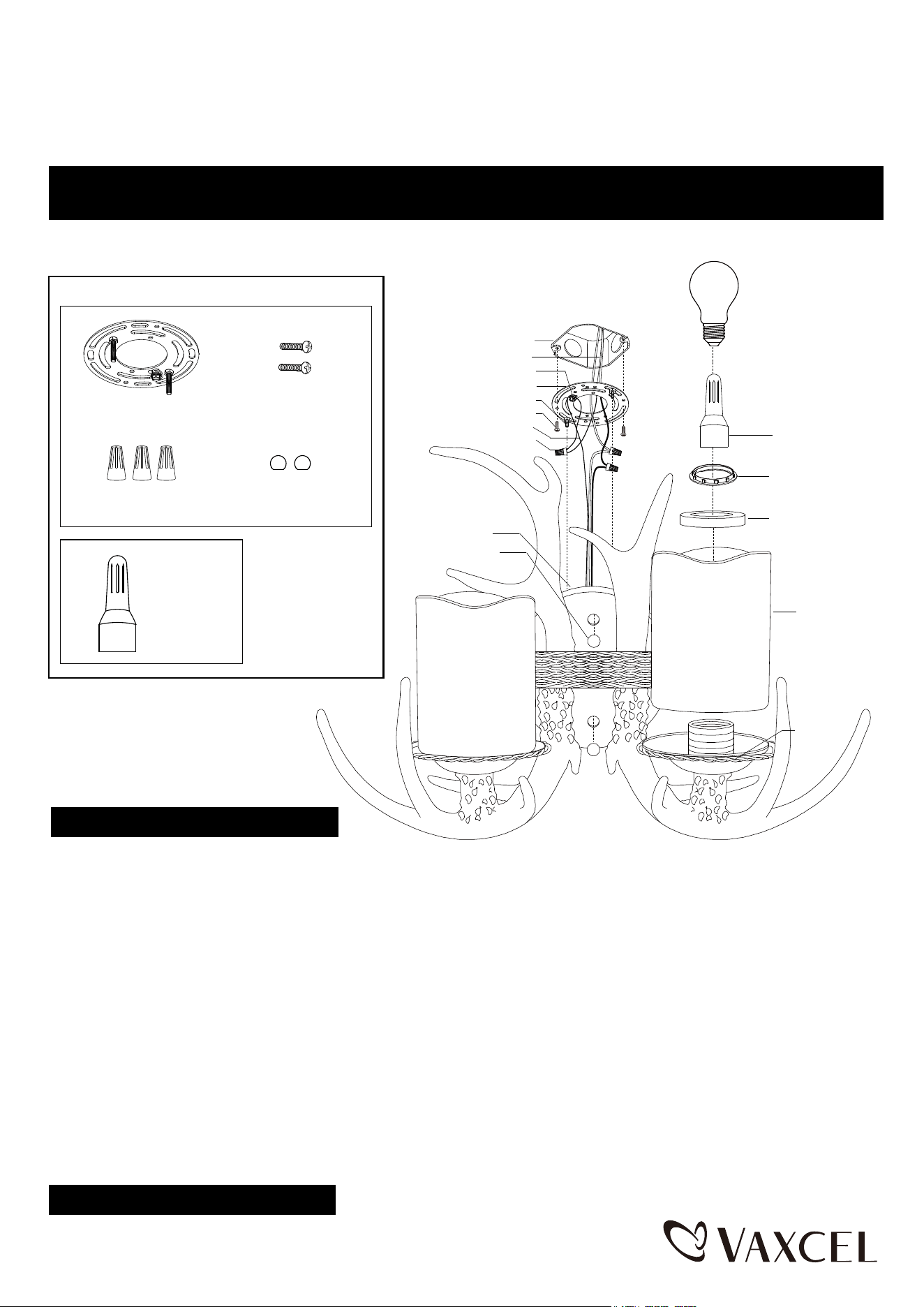

Installation Steps
Glass Holder
Glass Shade
House Ground Wire
Fixture Ground Wire
Headless Screw
Wire Connector (C)
Bolt Nut (D)
Backplate
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Socket Ring
Socket Fixer (E)
Spacer
Max. 100W Medium
Base Bulb (not included)
Socket Fixer (E)
Wire Connector (C) Bolt Nut (D)
Mounting Screw (B)Mounting Plate Unit (A)
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
230509

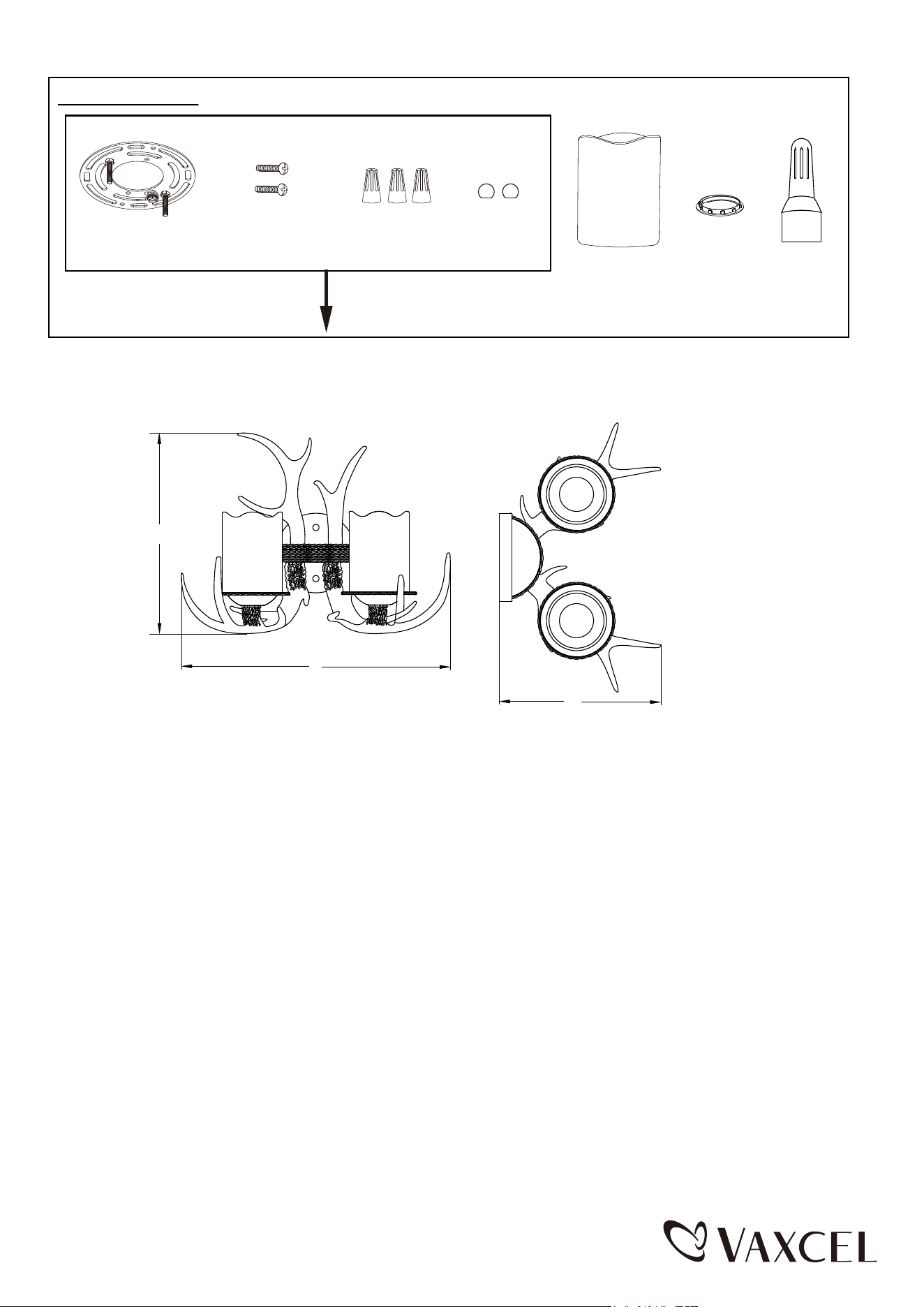

Spare Parts List:
Assembly Kit
4465MM (1 SET)
The following parts are available for reorder if damaged or missing.
Wire Connector (C)
Glass Shade
Bolt Nut (D)
Mounting Screw (B)Mounting Plate Unit (A)
9316CR
Socket Ring
4465KK 6247MM
B
C
A
A: 12-1/2"
B: 16-3/4"
C: 10"
Socket Fixer
