ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0148

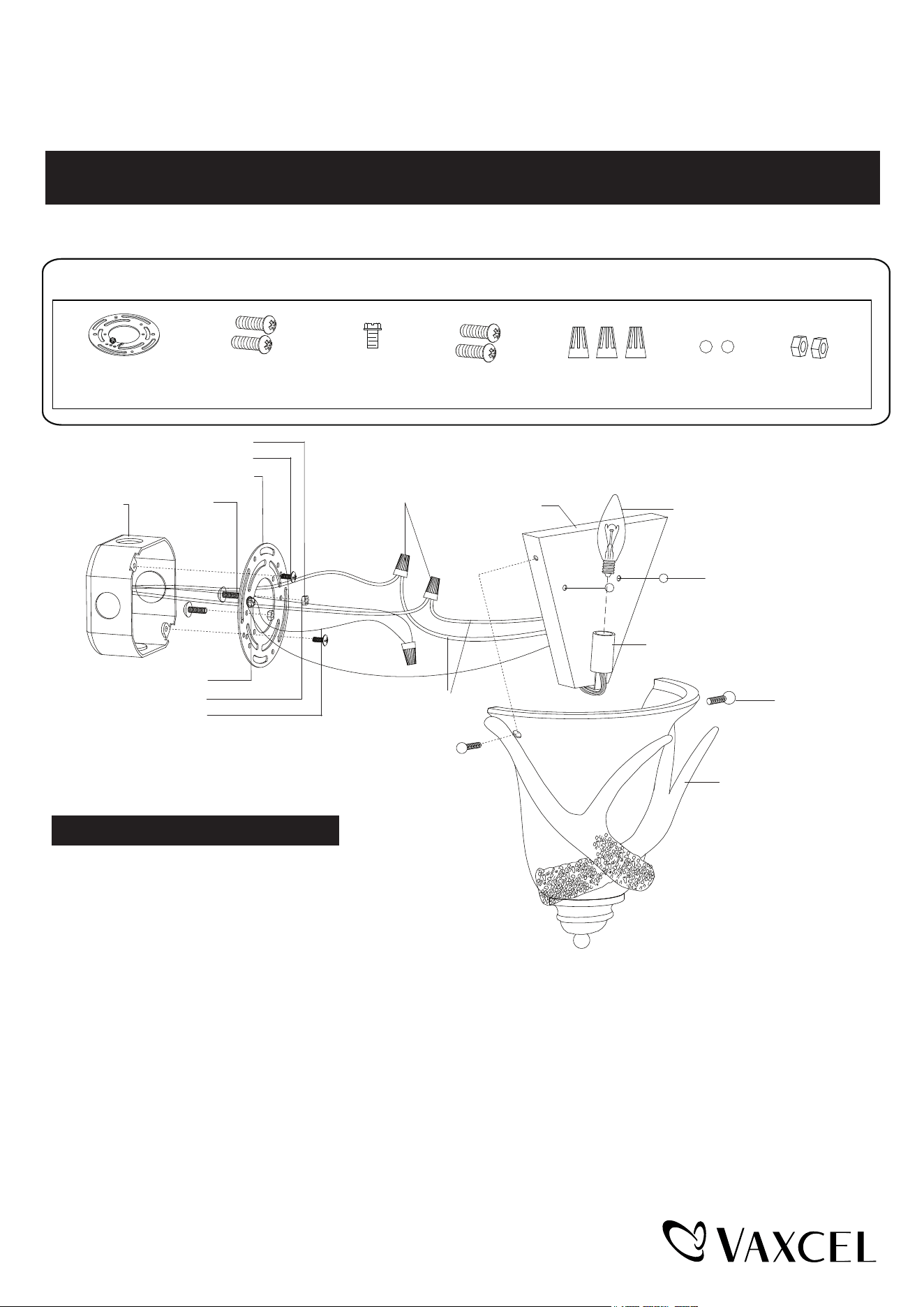

1. Thread two fixture mounting screws (D) through the mounting
plate (A), then secure them with two lock nuts (G). Adjust the
length of the fixture mounting screws (D) if necessary.
Note: Make sure that the fixture mounting screws are lined
up horizontally, to ensure that the fixture will be level.
2. Attach the mounting plate (A) to the outlet box by using two mounting screws (B).
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (E) as follows:
---Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate (A) with the green ground screw, then connect it to
the house grounding wire with the wire connector (E).
Carefully put the wires back into the outlet box.
4. Attach the backplate to the mounting plate (A) by inserting two fixture mounting screws (D), then secure it with two
bolt nuts (F).
Mounting Screw (B) Wire Connector (E)Mounting Plate (A) Bolt Nut (F) Lock Nut (G)
Fixture Mounting
Screw (D)
Max. 60W Type B Bulb
(not included)
Glass Shade Assembly
Bolt Nut (F)
Bolt Nut Kit
Socket
Mounting Screw (B)
Mounting Plate (A)
Green Ground Screw (C)
Wire Connector (E)
House Ground Wire
Fixture Ground Wire
Fixture Mounting
Screw(D)
Lock Nut (G)
Outlet Box
Fixture Wire
Backplate
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Green Ground
Screw (C)
Turn off the power at fuse or circuit box.
Installation Steps
Page 1 / 2
230518

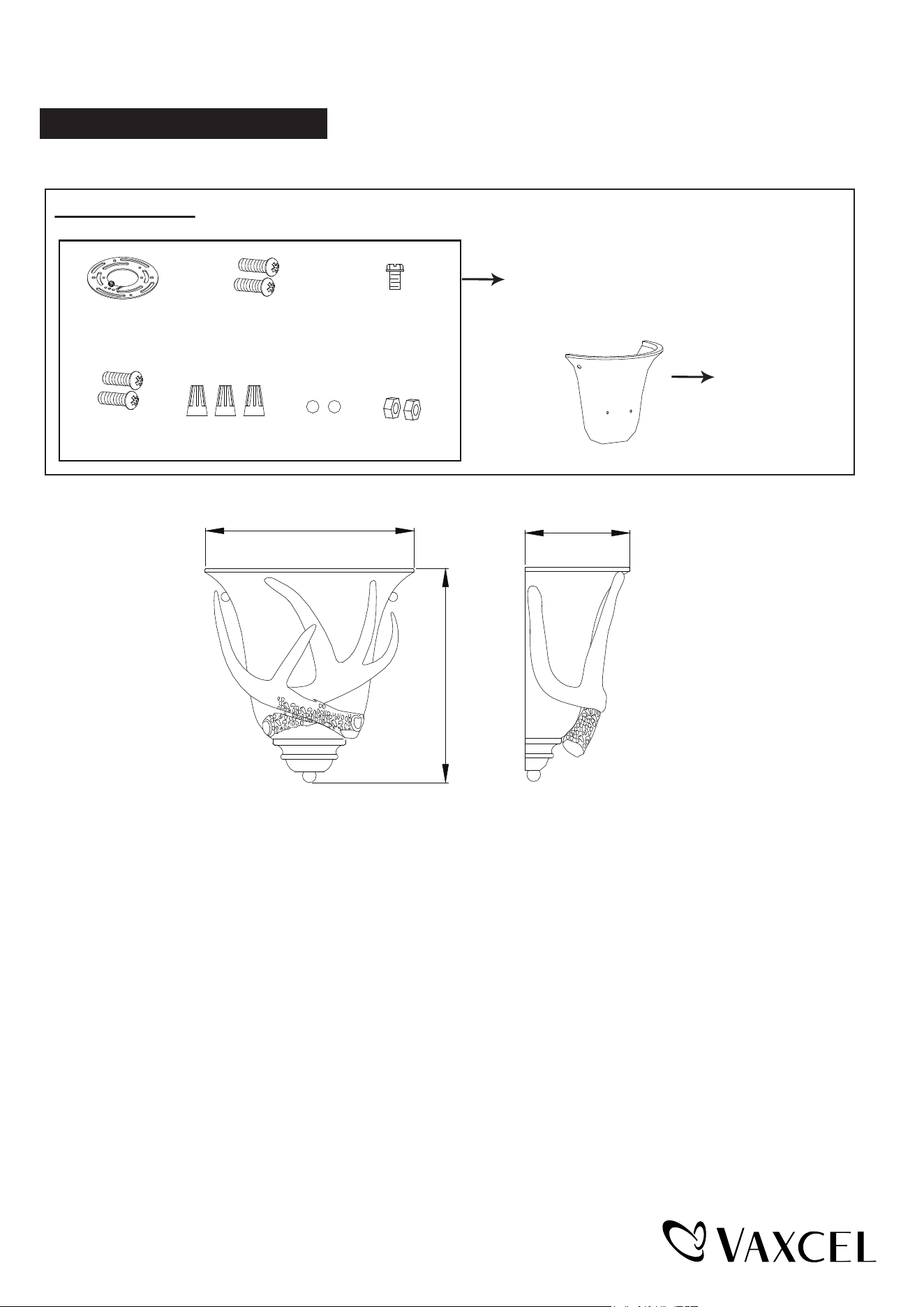

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
5267MM (1 SET)
Glass Shade
9693CR
Mounting Screw (B)
Wire Connector (E)
Mounting Plate (A)
Bolt Nut (F)
Lock Nut (G)
Fixture Mounting
Screw (D)
Green Ground
Screw (C)
Turn on the power at fuse or circuit box.
5. Install bulb (not included). See relamping label at socket area or packaging for maximum wattage allowed .
6. Attach the glass shade assembly to backplate, secure it with bolt nut kits.
A: 9"
B: 10"
C: 5-1/2"
A
B
C
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
