ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
W0170 / W0171 / W0190 / W0307 / W0453
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Page 1 / 2

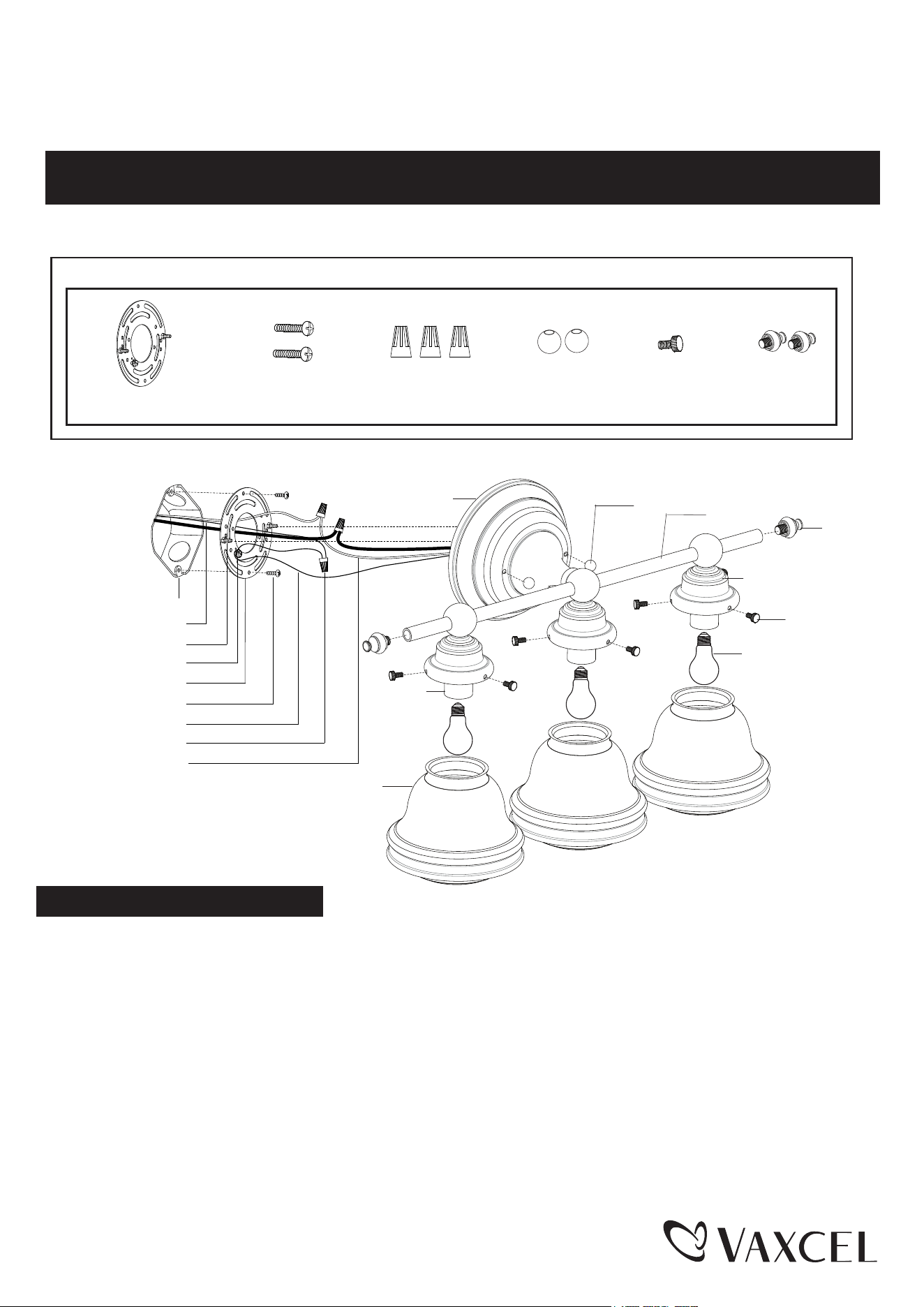

Hardware Package (included):
Mounting Screw (B) Wire Connector (C) Bolt Nut (D)Mounting Plate Unit (A)
Finial (F)
Set Screw (E)
Glass Shade
Bolt Nut (D)
Socket
Set Screw (E)
Glass Holder
Finial (F)
Tube
Max. 60W Medium
Base bulb
(not included)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Fixture Mounting Screw
Mounting Plate Unit (A)
Fixture Wire
Backplate
Fixture Ground Wire
Wire Connector (C)
1. Unscrew two bolt nuts (D), and then remove the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the
preinstalled fixture mounting screws if necessary.
Note: Make sure that two fixture mounting screws are lined up horizontally to make the fixture level.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follow:
---Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw, and
then connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
4. Attach the backplate to the mounting plate unit (A) by inserting two fixture mounting screws, and then secure it
with two bolt nuts (D).
Turn off the power at fuse or circuit box.
Installation Steps
231116

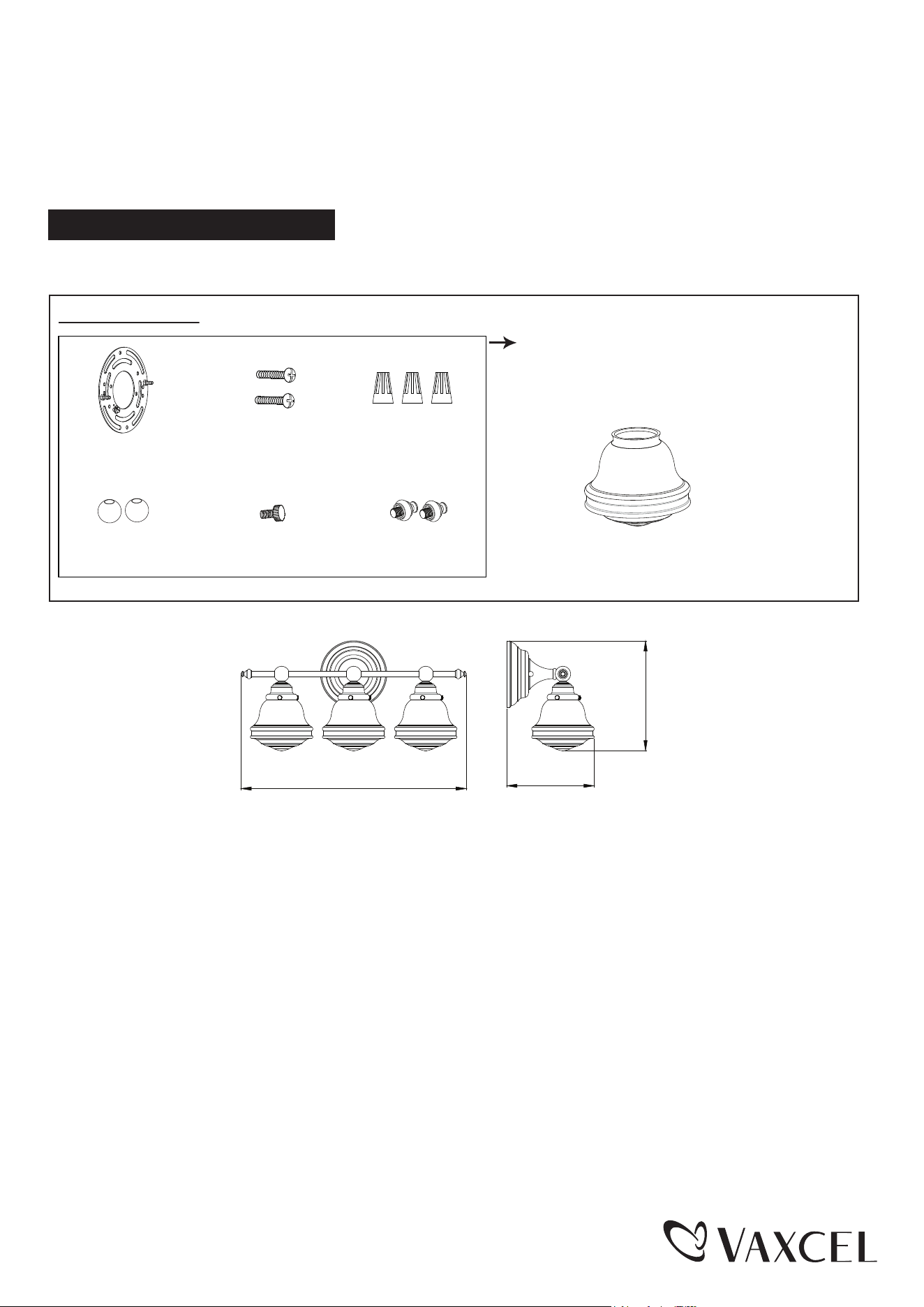

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
5235MM (1 SET) for W0170 / W0190
5236MM (1 SET) for W0171 / W0307
6773MM (1 SET) for W0453
Glass Shade
9680MI for W0170 / W0171 / W0453
9681CS for W0190 / W0307
A: 24"
B: 10"
C: 7"
A
B
C
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
231116
5. Install 3 x 60W Max. medium base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
6. Loose three set screws (E) and then attach the glass shade to the glass holder, finally secure it with three set
screws (E). Repeat for the other two glass shades. (Don′t over tighten.)
7. Screw two finials (F) to two sides of tube tightly.
Turn on the power at fuse or circuit box.
Mounting Screw (B) Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Finial (F)
Set Screw (E)
