ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Page 1 / 2
231123

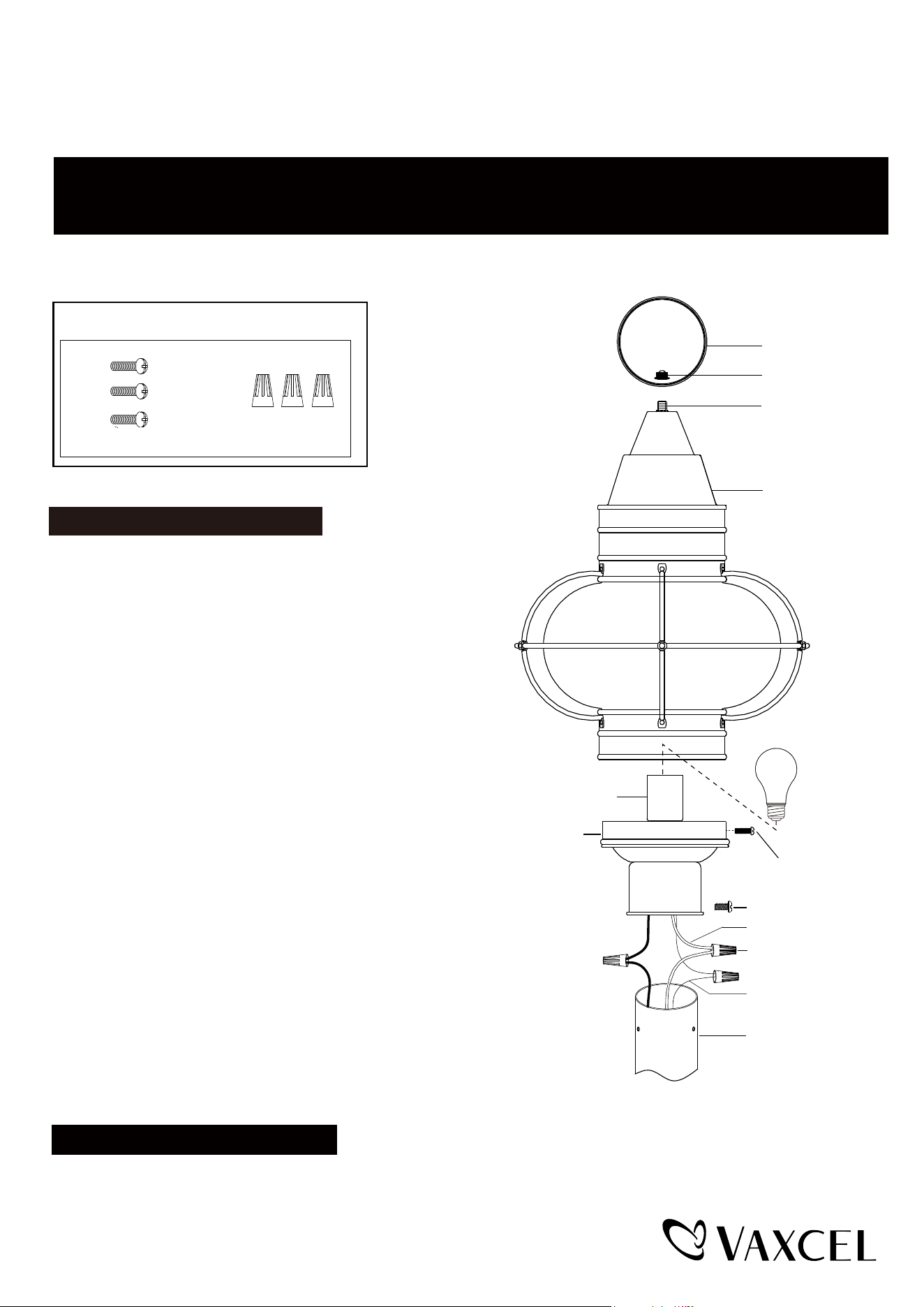

1. Attach the ring onto the top of the frame by inserting
the theaded pipe, then secure it with the cap.
2. Unscrew the screws to remove the frame away from
the fitter.
3. Install a bulb (not included). See relamping label at
socket area or packaging for maximum wattage allowed.
4. Restore the frame back to the fitter, then secure it with
screws.
5. Pull out the source wires from the post. Make wire
connections using wire connectors (B) as follows:
• Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from
the fixture to the white wire from the power source.
• Connect the ground wire (bare wire) from the
fixture to the ground wire from the post.
Carefully put all of the wires back into the post.
6. Place the fitter on the top of the post, and then secure it
with fitter screws (A).
NOTE: With silicone caulk compound, caulk completely
around where the fitter meets with the post surface to
prevent water from seeping into the post.
Fitter Screw (A)
Screw
Socket
Fitter
Ring
Cap
Theaded Pipe
Frame
Max. 100W Type A Bulb
(not included)
OP21835
Turn off the power at fuse or circuit
box.
Installation Steps
Wire Connector (B)
Fitter Screw (A)
Hardware Package (included):
W
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
W
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Ground Wire
Fixture Wire
Wire Connector (B)
Post
Turn on the power at fuse or circuit box
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
231123

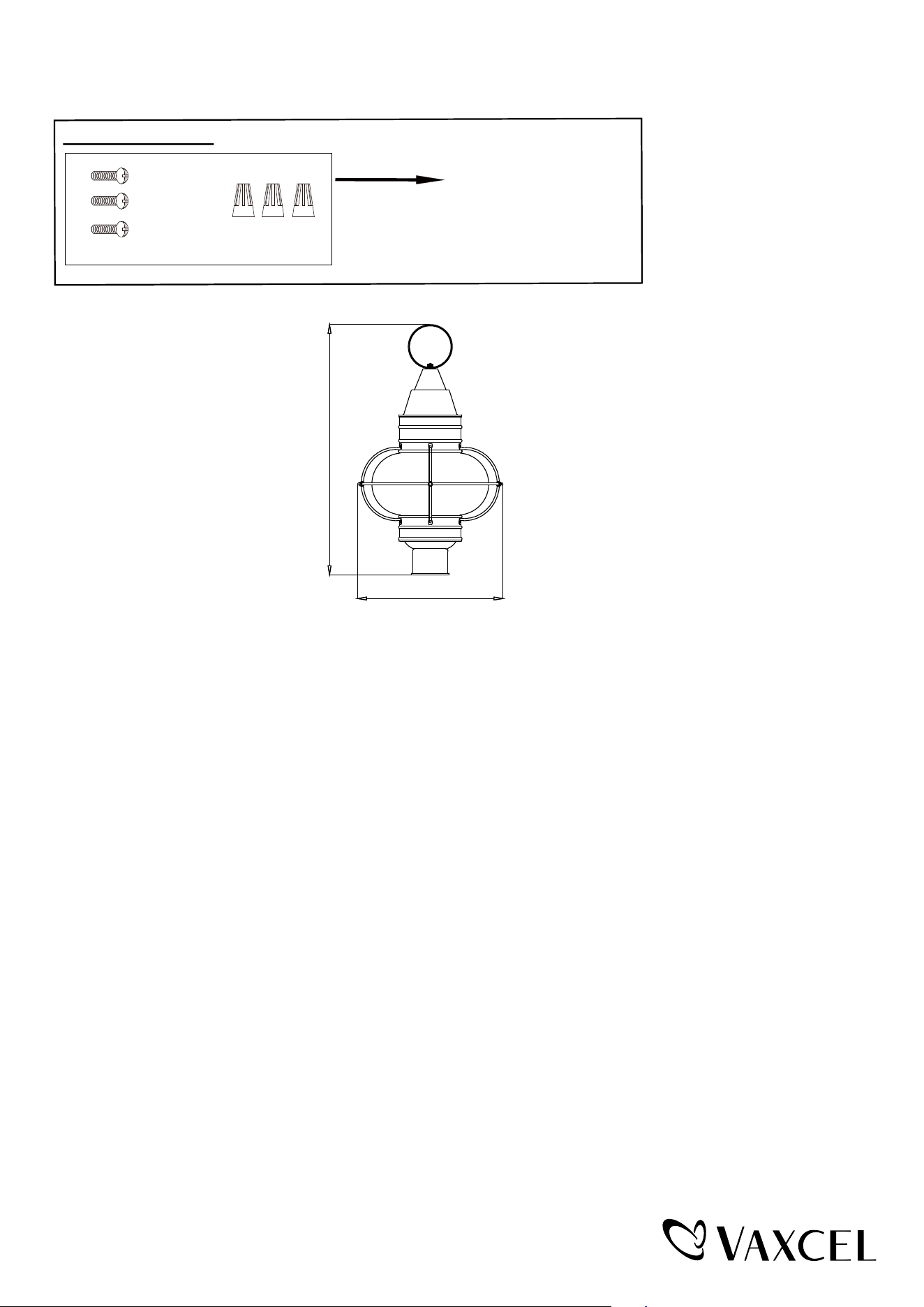

A: 13"
B: 22-1/2"
A
B
The following parts are available for reorder if damaged or missing.
Spare Parts List:
Mounting Hardware
6822MM (1 SET) for OP21835TB / OP21835BBZ
6823MM (1 SET) for OP21835BN
Wire Connector (B)Fitter Screw (A)
