OUTDOOR
POST LIGHT

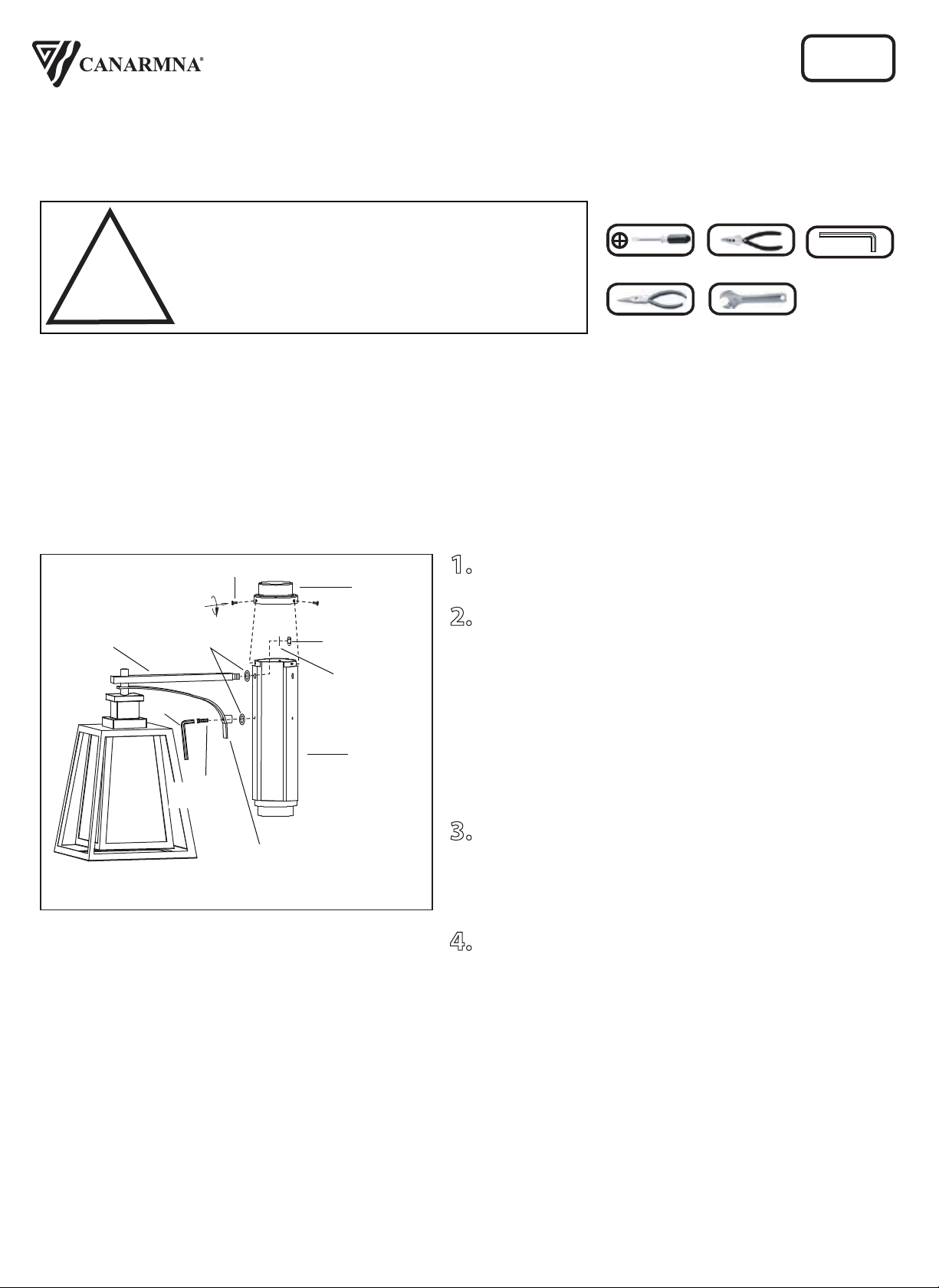

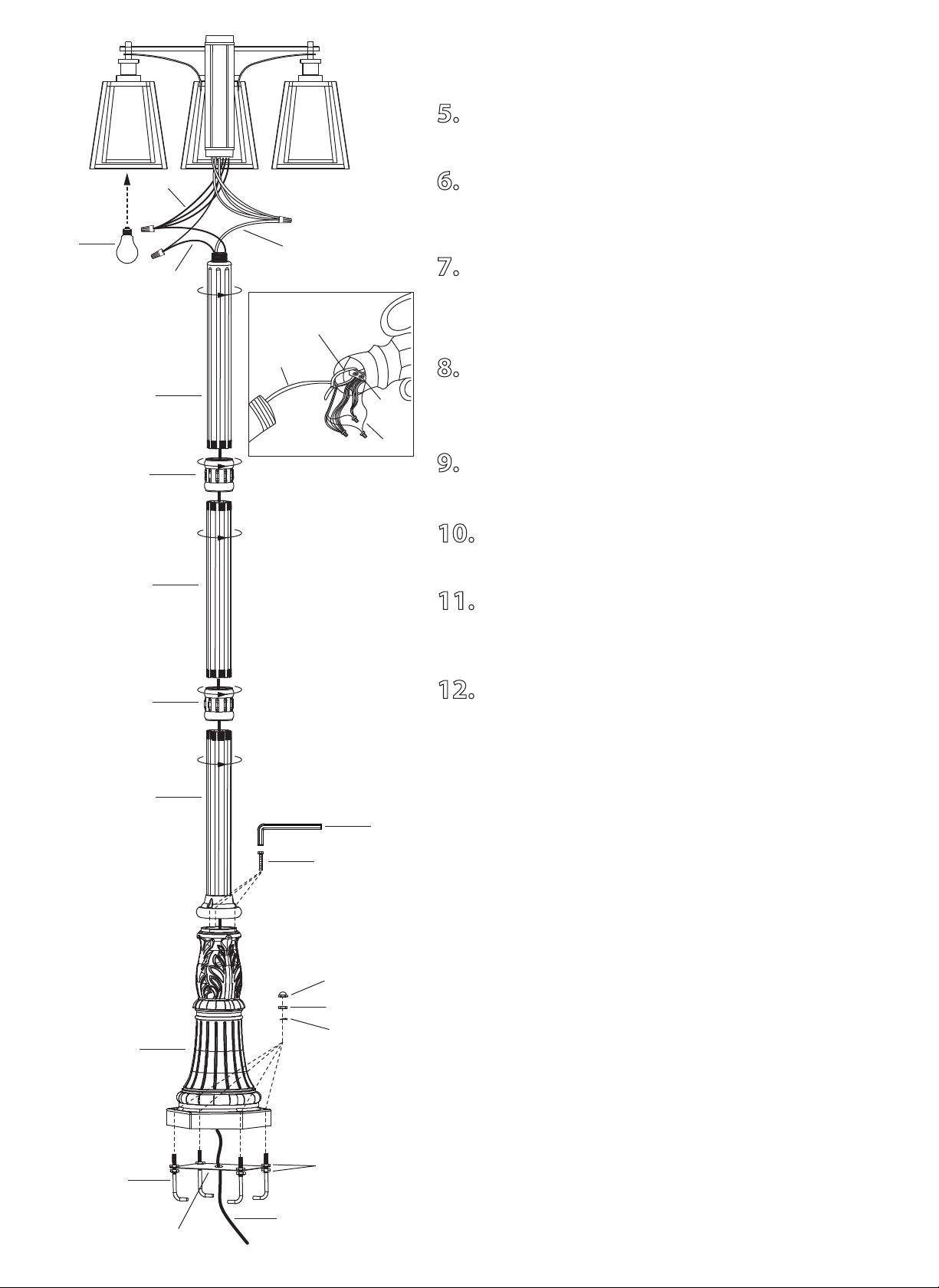

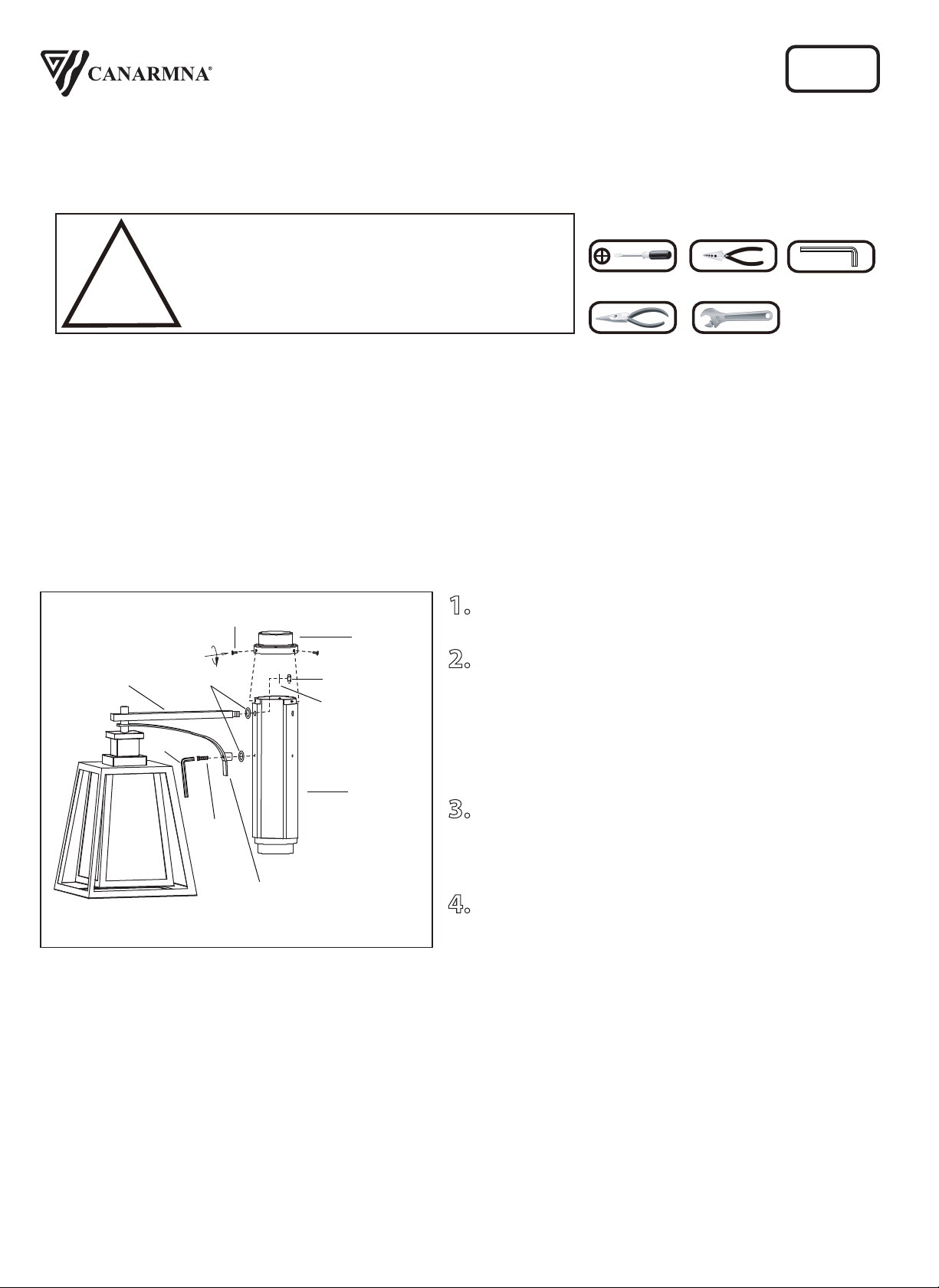

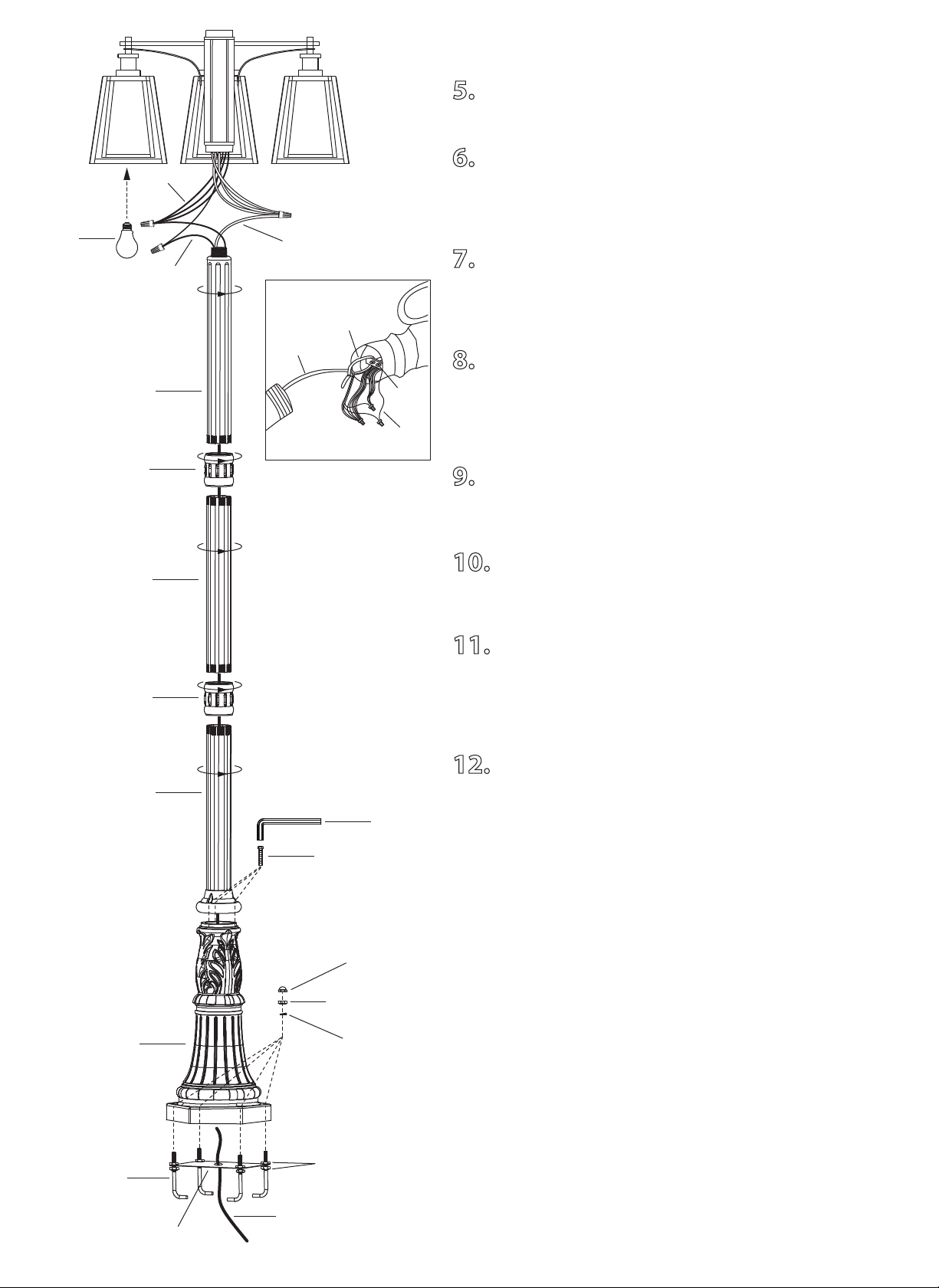

1. Pour cement base for the lamp.
2. Place anchor bolts into the cement with the base plate sitting on
top of the cement holding the bolts in proper position. Make sure the
anchor bolts are above the cement sufficiently to clear through the
base when assembled. Make sure the power supply passes through
the center hole of the base plate. (Note: make sure the surface of the
cement is level). After the cement is cured, proceed with the next step.
3. Assmble the three arms to the center post using the rubber
gasket, hex nut and lock washer for each of the top arm. Also, tighten
the hexagon screw with rubber washer on each of the bottom arm
with the allen key (not provided).
4. Secure the top cap with the 3 screws.
IOL482
12/19
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION
CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
1-2
INSTALLATION:
SAFETY PRECAUTIONS:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
TOOLS AND MATERIALS REQUIRED:
Questions or Concerns Contact At The Following Phone Numbers Before Returning Product To The Store:
Center
Post
Top Cap
Top Arm
Bottom
Arm
Lock
washer
Hex Nut
Screw
Rubber
Gasket
Allen key
Hexagon
Screw
Allen key
