ASSEMBLY AND INSTALLATION
INSTRUCTIONS
OW21881BBZ / OW21881TB
Hardware Package (included):
Mounting Screw (B) Wire Connector (C) End Cap (D)Mounting Strap Unit (A)
Rubber Pad (E)
L SHOCK, BE SURE TO SHUT OFF
TALLING OR SERVICING THIS FIXTURE.

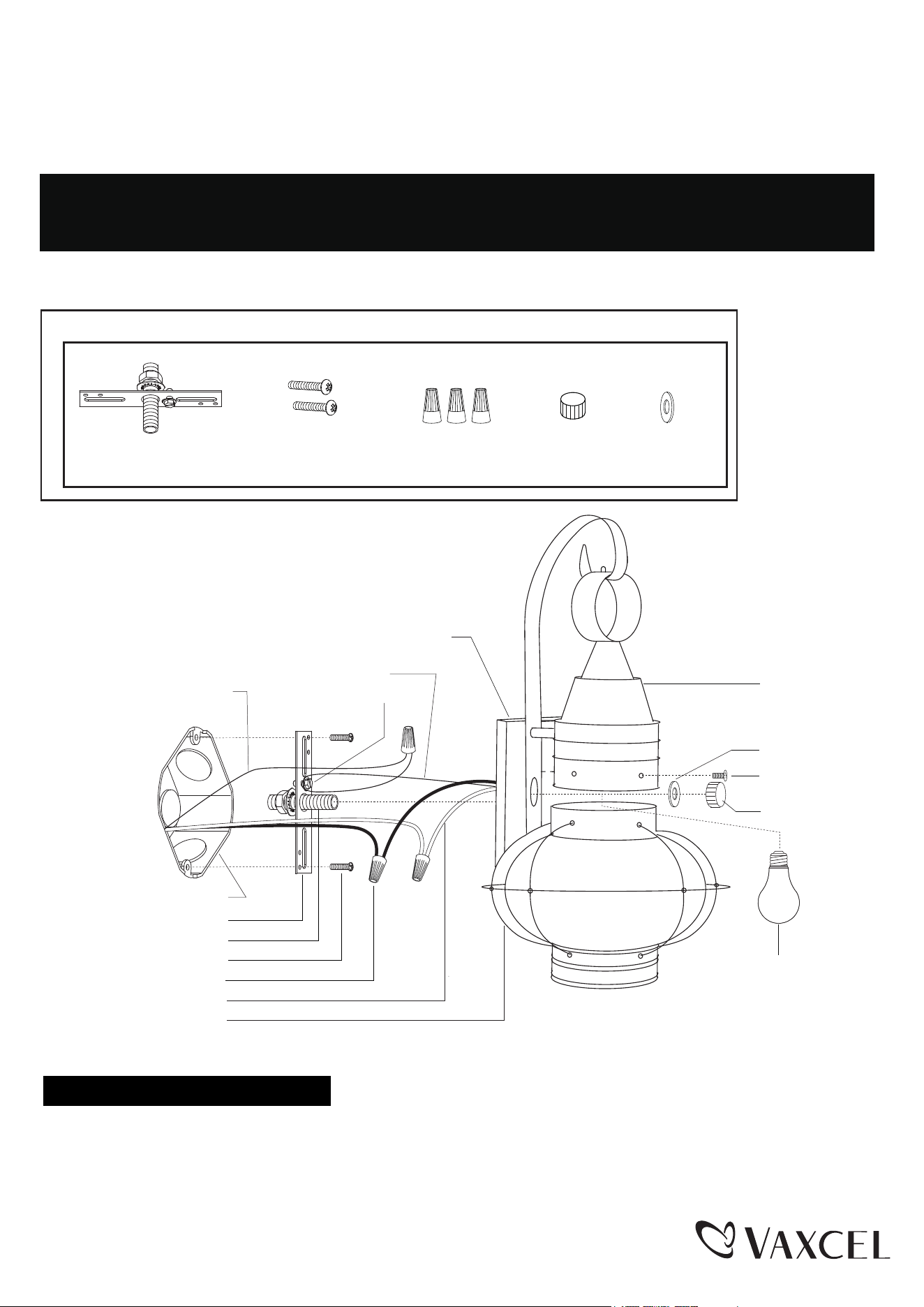

Backplate
Mounting Screw (B)
Fixture Wire
Mounting Strap Unit (A)
Wire Connector (C)
Fixture Ground Wire
Green Ground Screw
Outlet Box
House Ground Wire
Threaded pipe
Frame
Fixture
Set Screw
Rubber Pad (E)
End Cap (D)
Max. 60W Type A Bulb
(not included)
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the end cap (D) and remove the rubber pad (E) from mounting strap unit (A).
2. Attach the mounting strap unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the
preinstalled threaded pipe if necessary.
Page 1 / 2
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
230627
Turn on the power at fuse or circuit box.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
• Attach the fixture grounding wire (usually green with the insulation or bare wire) to the mounting strap unit (A)
with the green grounding screw. Then, depending on local code, connect it to the house grounding wire with
the wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the backplate of the fixture to the mounting strap unit (A) by inserting the threaded pipe, then secure it with
the rubber pad (E) and the end cap (D).
Note: With silicone caulking compound, caulk completely around where the backplate meets with the wall
surface to prevent water from seeping into the outlet box.
5. Unscrew the set screws to separate the frame from the fixture.
6. Install the bulb (not included). See relamping label at socket area or packaging for maximum wattage allowed.
7. Restore the frame back to the fixture by using the set screws.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
• Attach the fixture grounding wire (usually green with the insulation or bare wire) to the mounting strap unit (A)
with the green grounding screw. Then, depending on local code, connect it to the house grounding wire with
the wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the backplate of the fixture to the mounting strap unit (A) by inserting the threaded pipe, then secure it with
the rubber pad (E) and end cap (D).
Note: With silicone caulking compound, caulk completely around where the backplate meets with the wall
surface to prevent water from seeping into the outlet box.
5. Install the bulb (not included). See relamping label at socket area or packaging for maximum wattage allowed.

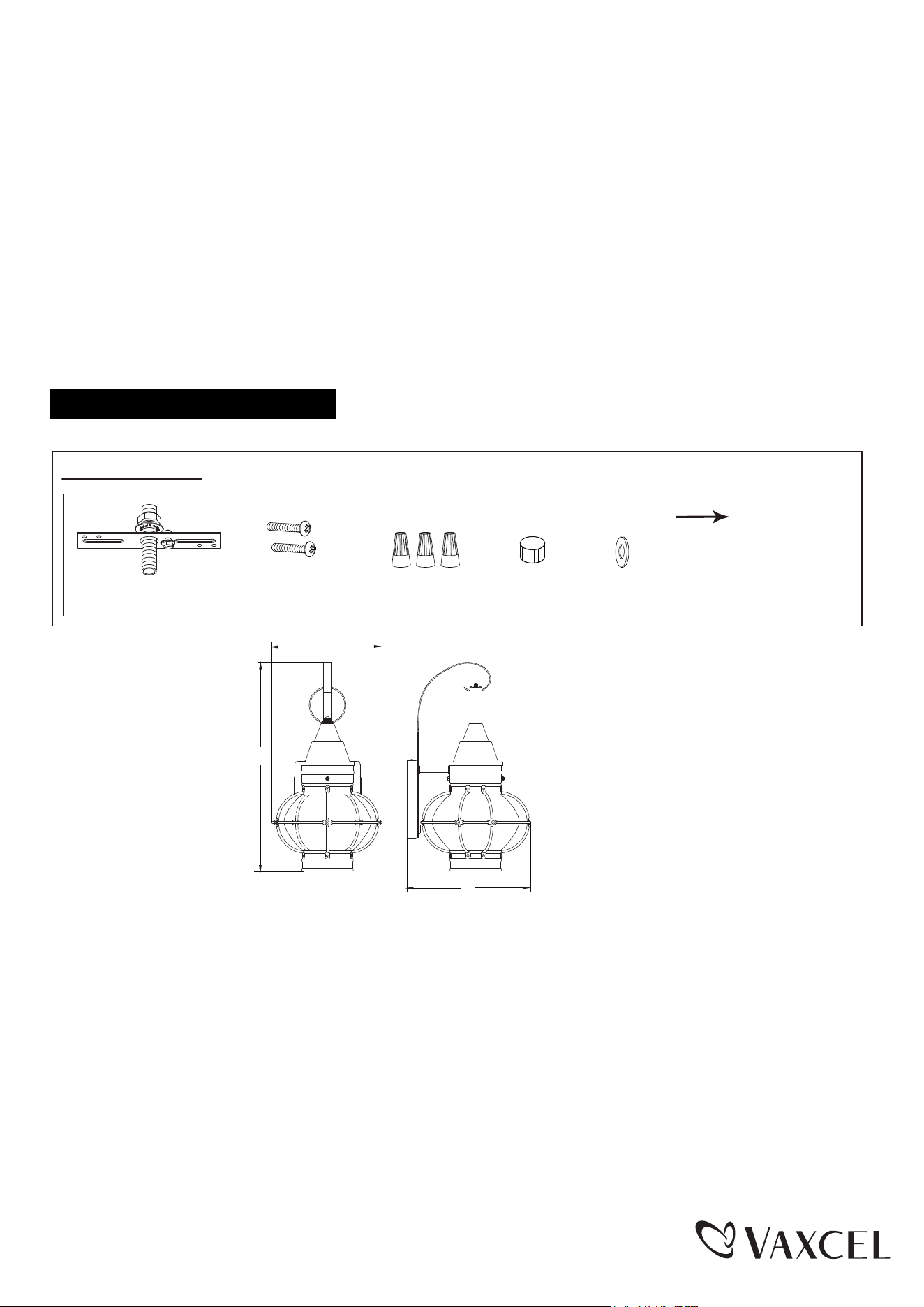

Spare Parts List:
Assembly Kit
6729MM (1 SET) for OW21881BBZ
6730MM (1 SET) for OW21881TB
Mounting Screw (B) Wire Connector (C) End Cap (D)Mounting Strap Unit (A)
The following parts are available for reorder if damaged or missing.
A
B
C
A: 14"
B: 8"
C: 8-1/2"
Page 2 / 2
