Introduction
The BG-EXT-H70P HDMI Extender transmits high-definition video, audio, and IR
control signals over a single CAT6 cable, providing zero-delay, uncompressed
long-distance transmission between the transmitter and receiver. It supports
transmission distances of up to 230 ft (70 m) for 1080p resolution and 131 ft (40 m)
for 4K@30Hz resolution.
The extender features an HDMI loop output for cascading to additional extenders,
supporting resolutions up to 4K@30Hz. It also includes an EDID copy function,
allowing users to select between local and remote EDID. Supported audio formats
include PCM 7.1, Dolby True HD, and DTS HD.
This product is ideal for multimedia conference rooms, educational environments,
and large-screen display applications.
Features
● Compliant with HDCP 1.4 and DVI 1.0 standards
● Supports video resolutions up to 4K@30Hz (YUV 4:4:4), as specified in HDMI 1.4
● Transmission distance over a single CAT6/5e cable:
- Up to 230ft (70m) for 1080p and 131ft (40m) for 4K30 using CAT6
- Up to 197ft (60m) for 1080p and 115ft (35m) for 4K30 using CAT5e
● EDID copy support from the receiver’s display or the HDMI loop-out display
● Cascading supported via an additional HDMI loop-out port
● One-way PoC (Power over Cable) functionality from transmitter to receiver
● One-way IR signal transmission for remote control pass-through
● Compact, space-saving design for flexible and easy installation
Packing List
● 1 × HDMI Transmitter
● 1 × HDMI Receiver
● 1 × IR Blaster Cable (1.5 meters)
● 1 × IR Receiver Cable (1.5 meters)
● 1 × 12V/1A DC Power Adapter
● 1 × User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXT-H70P PRODUCT MANUAL
Specifications
Technical
HDMI
Compliance
HDMI 1.4
HDCP
Compliance
HDCP 1.4
Video
Bandwidth
10.2Gbps
Video Resolution
Up to 4K@30Hz
Audio Support
Up to 7.1CH HD audio
Input TMDS
Signal
3.3 volts
Input DDC
Signal
5.0 volts/P-P
ESD Protection
IEC 61000-4-2:±8kV (Air-gap discharge),±4kV (Contact discharge)
Connection
Transmitter
Input: 1 x IN [HDMI Type A, 19-pin female]
Output: 1 x OUT [HDMI Type A, 19-pin female]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x CAT OUT [RJ45, 8-pin female]
Receiver
Input: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x CAT IN [RJ45, 8-pin female]
Output: 1 x OUT [HDMI Type A, 19-pin female]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
3.1in x 2.7in x 0.65in / 79.5mm [W] x 69mm [D] x 16.5mm [H]
Weight
Transmitter: 0.29lb [132g], Receiver: 0.29lb [130g]
Power Supply
12V/1A DC
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXT-H70P PRODUCT MANUAL
Power
Consumption
Transmitter: 1.86W, Receiver: 0.87W
Operating
Temperature
32 - 104°F / 0 - 40°C
Storage
Temperature
-4 - 140°F / -20 - 60°C
Operating
Humidity
20% - 80% RH (no condensation)
Storage
Humidity
10% - 90% RH (no condensation)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXT-H70P PRODUCT MANUAL
Operation Controls and Functions

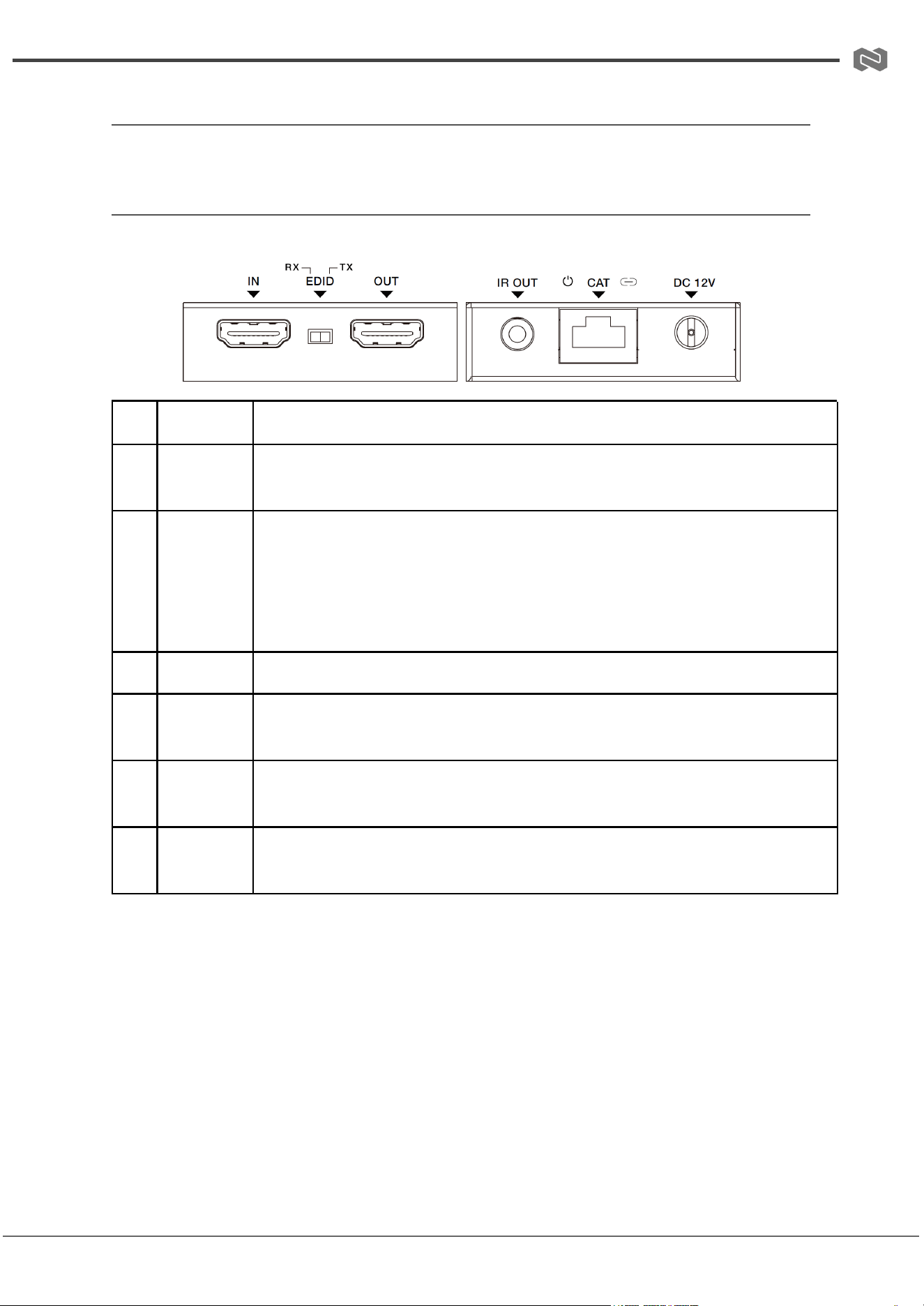

Transmitter Panel
No.
Name
Function Description
1
IN Port
HDMI input port. Connect to an HDMI source device such as a DVD player
or set-top box.
2
EDID DIP
Switch
Used to select the EDID source:
• Switch right – the extender copies the HDMI loop-out display’s EDID to
the source device.
• Switch left – the extender copies the receiver display’s EDID to the
source device.
3
OUT Port
HDMI loop-out port. Connect to an HDMI display device such as an HDTV.
4
IR OUT
Port
Connect to the IR blaster cable. Transmits IR signals received from the IR
IN port on the receiver.
5
Power
LED
Illuminates when the transmitter is powered on.
6
CAT Port
CAT output port. Connect to the receiver’s CAT input port using a
CAT5E/6 cable.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-EXT-H70P PRODUCT MANUAL
Receiver Panel
No.
Name
Function Description
1
OUT port
HDMI signal output port. Connect to an HDMI display device such as
an HDTV.
2
IR IN port
Connect to an IR receiver cable. The IR signal will be transmitted to
the IR OUT port on the transmitter.
3
Power LED
Illuminates when the receiver is powered on.
4
CAT port
CAT input port. Connect to the CAT output port of the transmitter
using a CAT5E/6 cable.
5
Digital Signal
Indicator
Indicates HDMI signal and HDCP status:
• On: HDMI signal with HDCP
• Flashing: HDMI signal without HDCP
• Off: No HDMI signal
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-EXT-H70P PRODUCT MANUAL

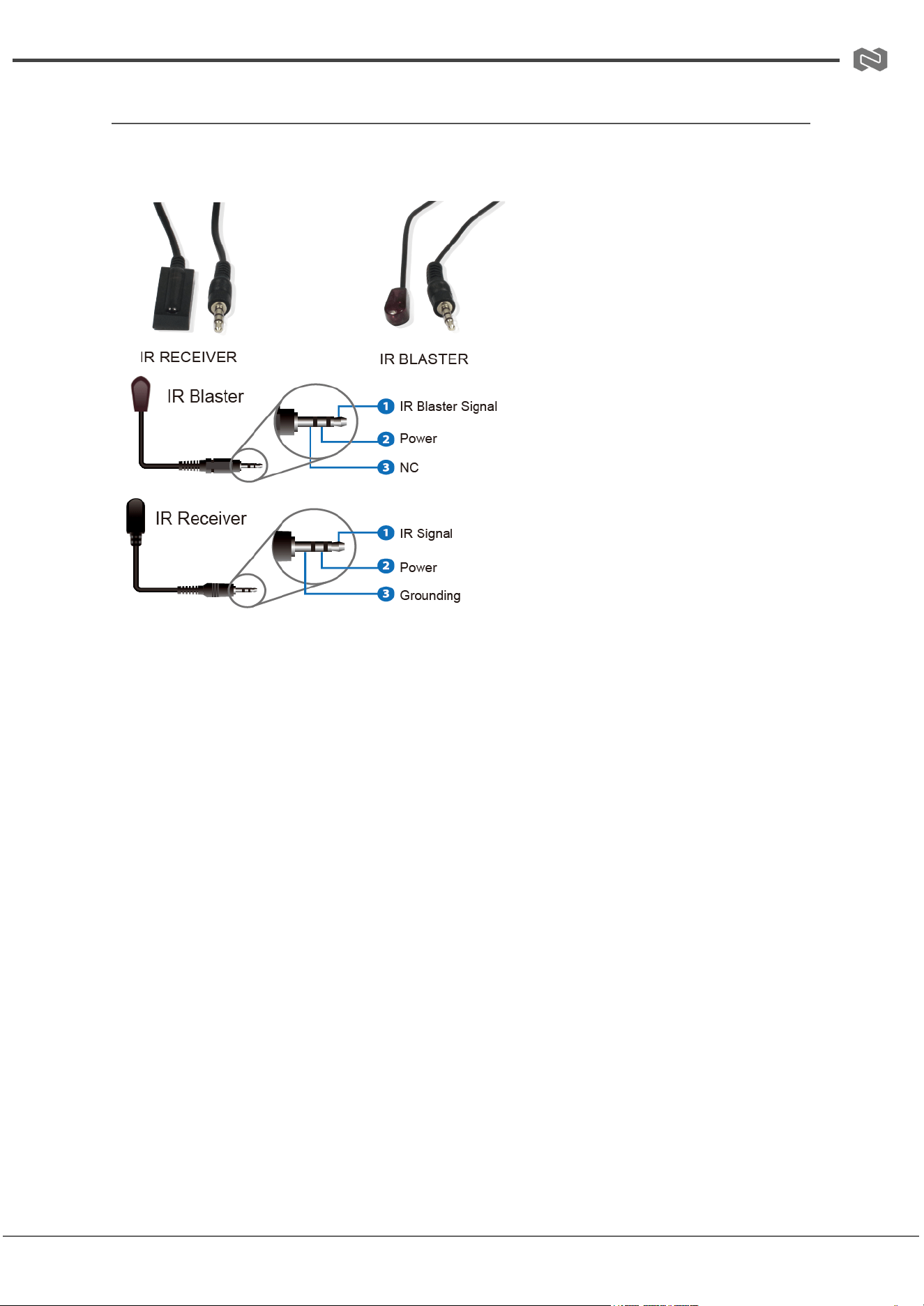

IR Pin Definition
The definitions of the IR Receiver and Blaster pins are as follows:
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXT-H70P PRODUCT MANUAL

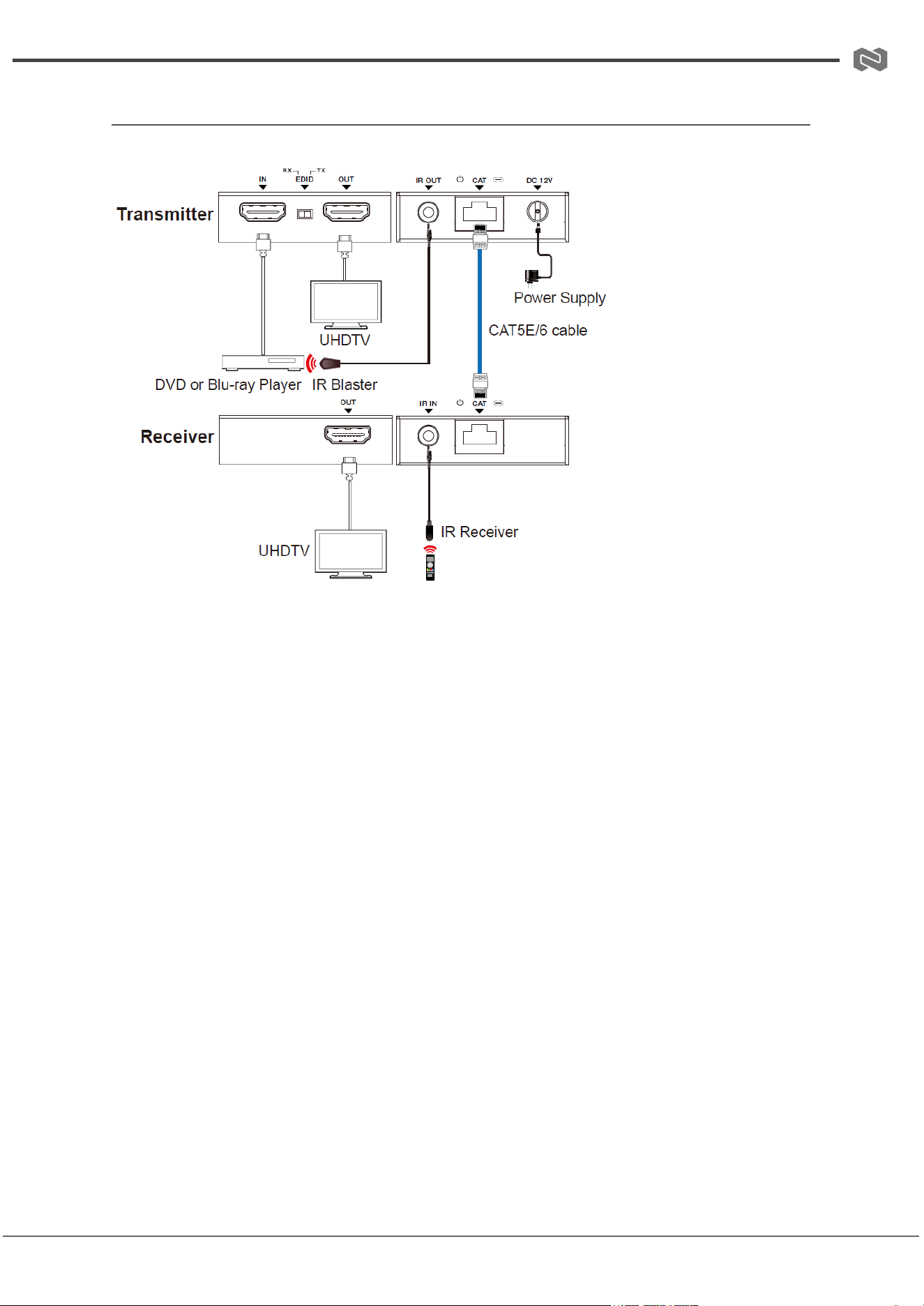

Connection Diagram
