BG-AMP150WD
Dante-Enabled Class D Amplifier with 2x75W Stereo/150W Bridged
Output/Built-In DSP
User Manual
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-AMP150WD PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Surge protection device recommended 4
Caution - UTP Connectors 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 8
Front Panel 8
Front Panel 9
Dante Web GUI User Guide 10
RS-232 Control Command 15
Connection Diagram 21
Troubleshooting 22
Tech Support 23
Limited Product Warranty Terms 23
Mission Statement 24
Copyright 24
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Surge protection device recommended
This product contains sensitive electrical components that electrical spikes, surges, electric
shocks, lightning strikes, etc may damage. Use of surge protection systems is highly
recommended to protect and extend the life of your equipment.
Caution - UTP Connectors

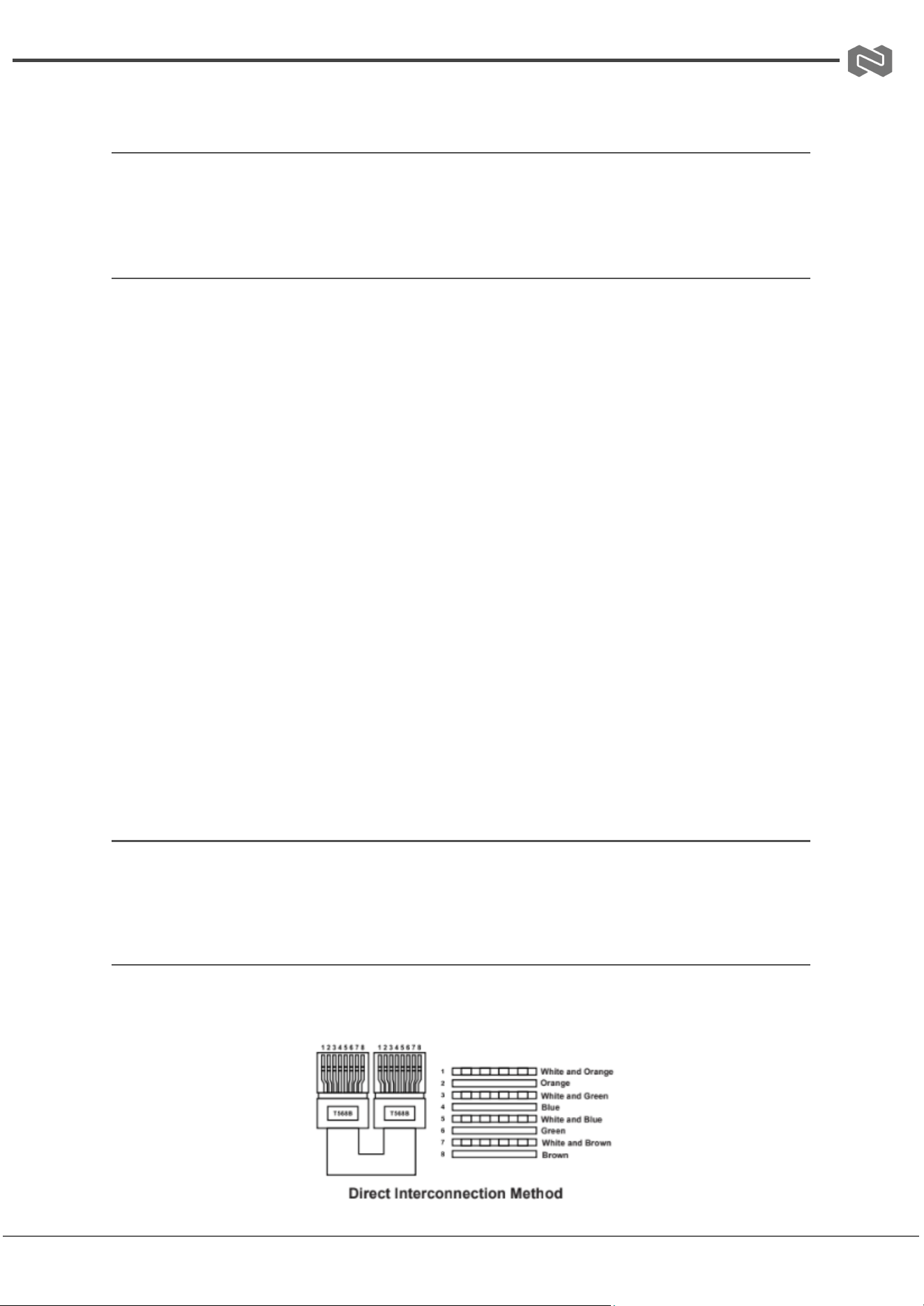

The product requires the use of UTP connectors. Please connect in direct interconnection
method and do not cross-connect.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Introduction
The BG-AMP150WD is a two-channel amplifier utilizing class D amplifier
technology. It is capable of powering low impedance (4Ω/8Ω) stereo systems with a
maximum power of 2 x 75 watts. When bridged to a constant voltage (100V and
70V), it delivers a maximum output power of 150 watts. The amplifier includes Dante
2-channel digital inputs and outputs, as well as balanced or unbalanced line-level
analog inputs and outputs.
Control options for this amplifier include RS-232, LAN, and Web GUI. It also
features built-in DSP, auto-standby, and exceptional durability. This makes it ideal
for a wide range of AV installations.
Features
● Dante 2CH digital audio, balanced or unbalanced line-level analog inputs
● Dante 2CH digital audio, balanced or unbalanced line-level analog, and AMP
outputs
● Built-in audio DSP processor
● Switching between Lo-Z and Hi-Z can be achieved to adapt to various types of
speaker
installation.
- In Lo-Z output mode, single-channel 150 Watt or two-channel 2 x 75 Watt
4Ω/8Ω can be selected.
- In Hi-Z output mode, single-channel 150 Watt with 70V/100V can be
selected.
● Independent input gain, output EQ, and volume control
● 48KHz sampling rate, 24bit independent A/D and D/A converters
● 5-12V trigger input
● Auto standby
● Flexible control via RS-232, LAN, and Web GUI
● Half rack design/one rack design
Packing List
● 1 x 150W Class D Amplifier
● 3 x 5pin-3.81mm Phoenix Connector (male)
● 2 x 4pin-5.08mm Phoenix Connector (male)
● 6 x Mounting Ear
● 24 x Machine Screw
● 1 x AC (100-240V) Multinational Power Cord
(1.5 meters)
● 1 x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Specifications
Technical
Input
1x Dante Network audio input
1x LINE balanced stereo 0dBu/10kΩ input
Output
1x Dante Network audio output
1x Stereo or constant voltage 70V/100V speaker output
1x LINE balanced stereo output
Input Sensitivity
Full [email protected] (0dBu)
Output Power
DC power supply: 2x 75W@4Ω/8Ω; 1x 150W@8Ω;
1x 150W@70V/100V
Maximum Voltage Gain
27 - 30dB SE/39 - 42dB BTL
Amplifier Type
Class D
Frequency Response
20Hz - 20kHz @ ±3dB
Signal-to-Noise Ratio
87dB, 20Hz - 10kHz
THD+N
THD+N (1KHz@1W) 0.04%
Control
RS-232, Web GUI
Audio Format
LINE IN [Analog audio, Balanced 2CH, Max input level
2VRMS]
LINE OUT [Analog audio, Balanced 2CH, Max output level
2VRMS]
DANTE [Digital audio 2x2 in/out, PCM 2CH 44.1K-96KHz
16/24Bit]
AMP OUT [Analog audio, Balanced 2CH, Max output level
24.5VRMS]
70V/100V AMP OUT [Analog audio, Unbalanced 1CH, Max
output level 70V/100VRMS]
ESD Protection
Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection
Input:
1x LINE IN [5pin-3.81mm Phoenix Connector]
1x DANTE [RJ45 connector]
Output:
1x LINE OUT [5pin-3.81mm Phoenix Connector]
1x 4/8Ω AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking
phoenix, 5.08mm]
1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking
phoenix, 5.08mm]
Control:
1x RS-232/TRG [5pin-3.81mm phoenix connector] [TRG:
5-12V trigger input to turn on/off the amplifier]
1x LAN [RJ45 connector]
Mechanical
Housing
Front panel: Aluminum; Rear case: Metal Enclosure
Color
Black
Dimensions
240mm [W]×210mm [D]×44mm [H]
Weight
1.88Kg
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Power Supply
DC Input: AC100 - 240V 50/60Hz
Power Consumption
240W (Max)
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20%~90% RH (non-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Operation Controls and Functions
Front Panel

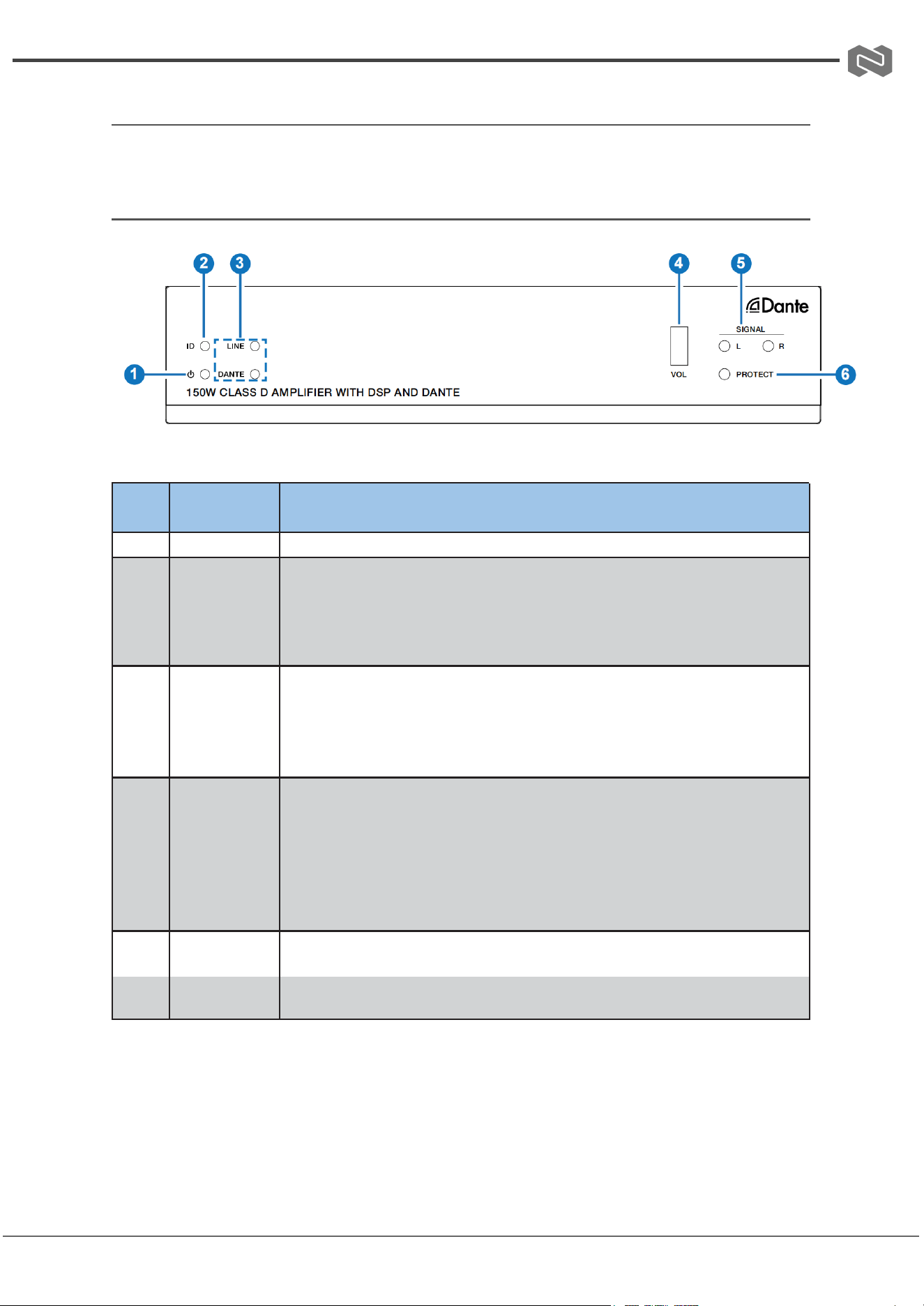

No.
Name
Function Description
1
Power LED
When the product is powered on, the red power LED is on.
2
ID (show
me) LED
This LED indicates the presence of the product. It can be controlled
through Web GUI or API commands. For example, when selecting
the “On” option for “DANTE Identification” on the System page
of the Web GUI, the ID (show me) LED on the front panel will flash,
so that you can find the corresponding machine in the system.
3
LINE/DANT
E LED
Input signal source indicators. When the DANTE or LINE IN port is
selected as the signal input channel, the corresponding green
LINE/DANTE LED is on.
Note: The DANTE port is the signal input channel by default.
4
VOL LED
The main audio volume of the system is displayed in five green
segments, with each segment corresponding to 20% of the volume.
50% of the main audio volume is displayed by default after system
initialization.
Note: The audio volume can be controlled through Web GUI or API
command.
5
SIGNAL
L/R LEDs
Left and right channel signal indicators of the stereo audio. When
there is a stereo audio signal, the LEDs will be on.
6
PROTECT
LED
When the machine is protected by overtemperature, overcurrent, or
overvoltage, the PROTECT LED is on.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Front Panel
No.
Name
Function Description

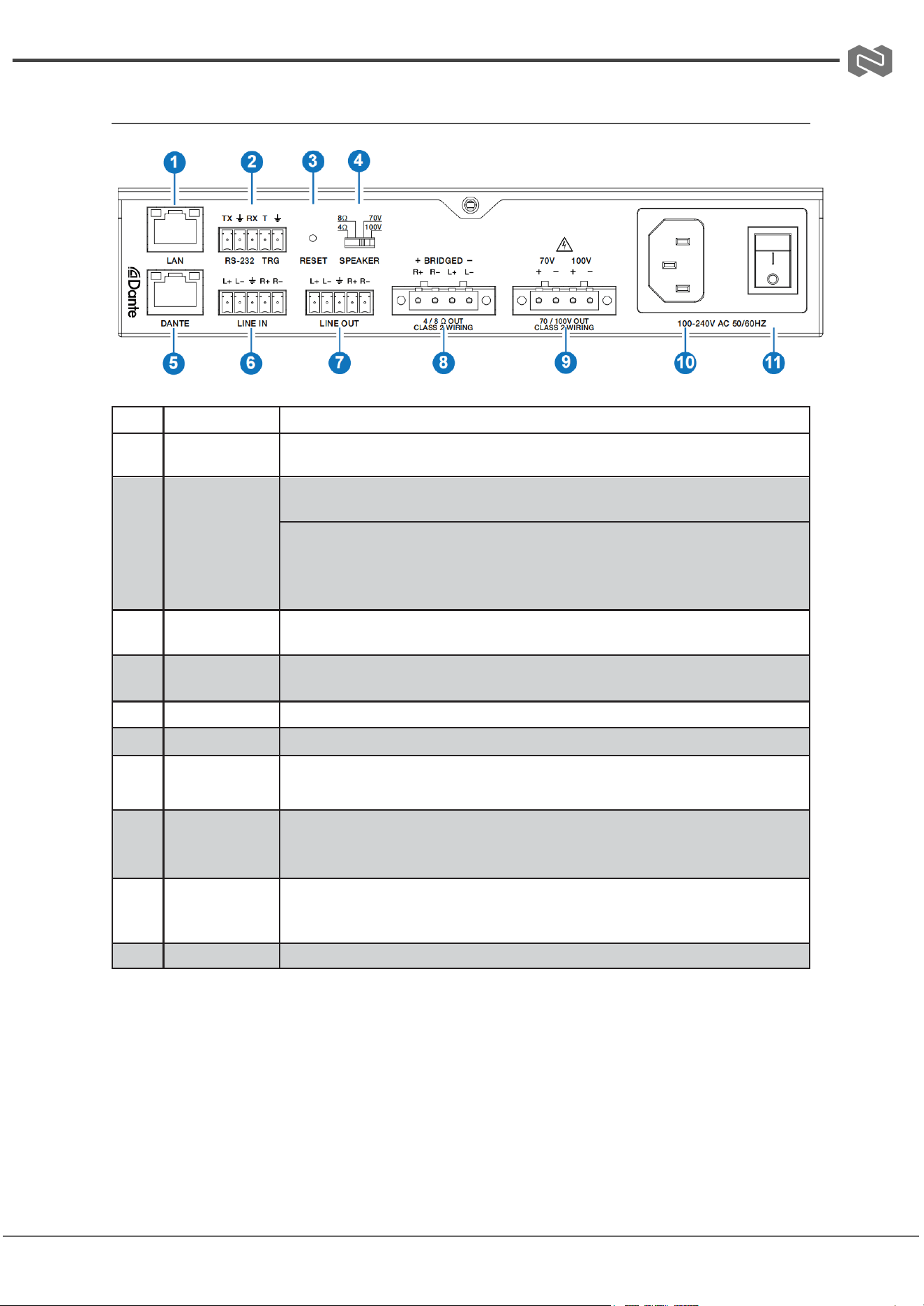

1
LAN port
Connect to a PC for Web access. The default IP address is
192.168.0.200.
2
RS-232/TRG
port

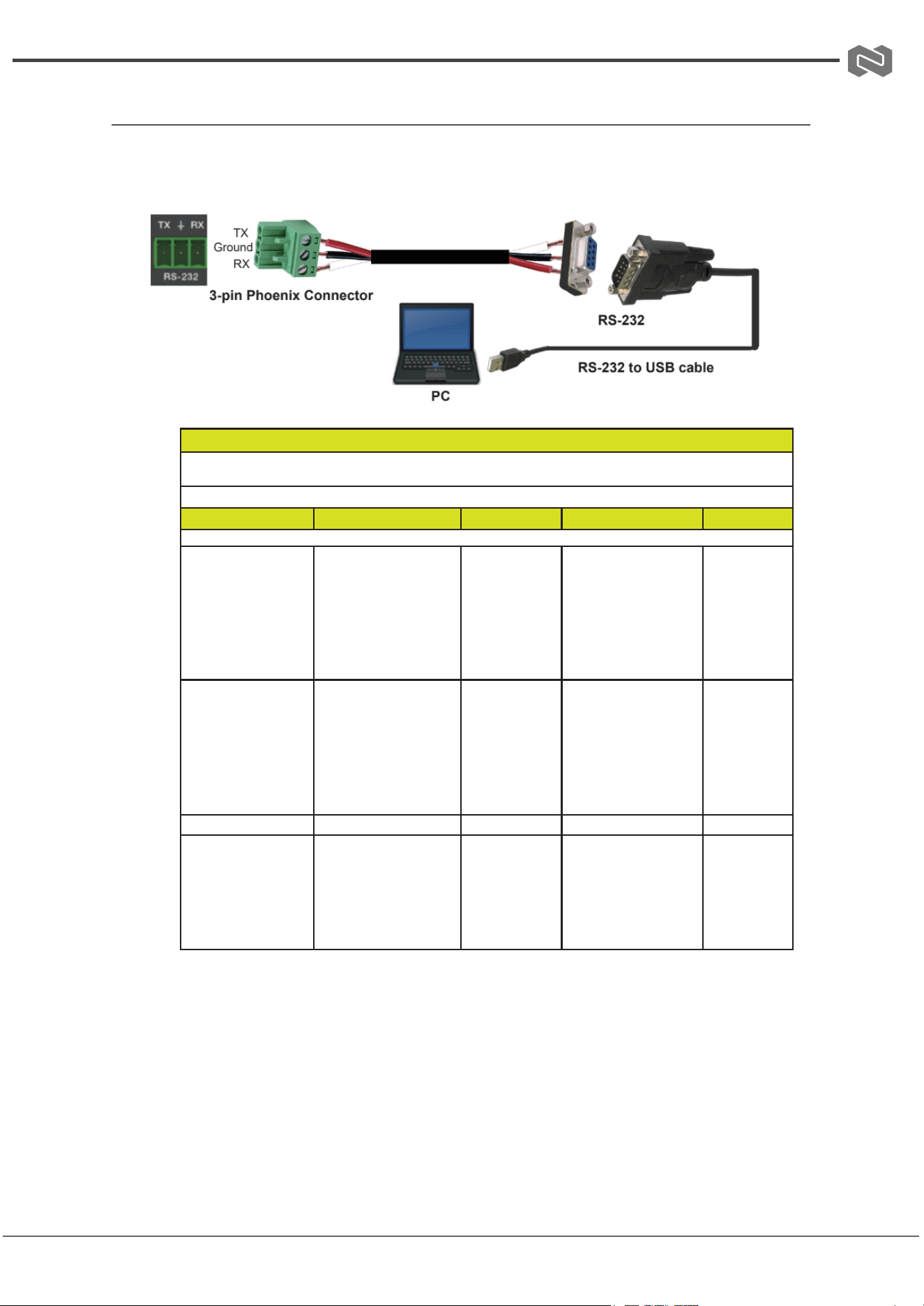

RS-232: Serial control port, used for RS-232 signal pass-through or
controlling this product via RS-232 commands.
TRG: T trigger signal input port, effective at a high level. When this
port is connected to a 5V/12V trigger voltage, the amplifier will be
mute. After the trigger is disconnected, the amplifier can output
audio normally.
3
RESET button
Press and hold this button for 5 seconds to restore to factory
default settings.
4
SPEAKER
switch
Speaker high-low resistance switch, used to switch among Lo-Z
(4Ω/8Ω), Hi-70V, and Hi-100V.
5
DANTE port
Dante audio input and output port, using dynamic IP by default.
6
LINE IN port
Balanced stereo audio input port, with a Max input level of 2Vrms.
7
LINE OUT
port
Balanced stereo audio output port, with a Max output level of
2Vrms.
8
4/8Ω OUT
port
4/8Ω speaker output port. When this port is connected to a 4/8Ω
speaker and the SPEAKER switch is dialed to 4/8Ω, the audio will be
output from this port normally.
9
70/100V OUT
port
70/100V speaker output port. When this port is connected to a 70/
100V speaker and the SPEAKER switch is dialed to 70/100V, the
audio will be output from this port normally.
10
Power port
100-240V AC 50/60Hz power input port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Dante Web GUI User Guide
There is a built-in Dante Web GUI for the amplifier. To operate it, follow these steps:
1. Connect the amplifier and your PC to the same Ethernet switch using two network
cables.

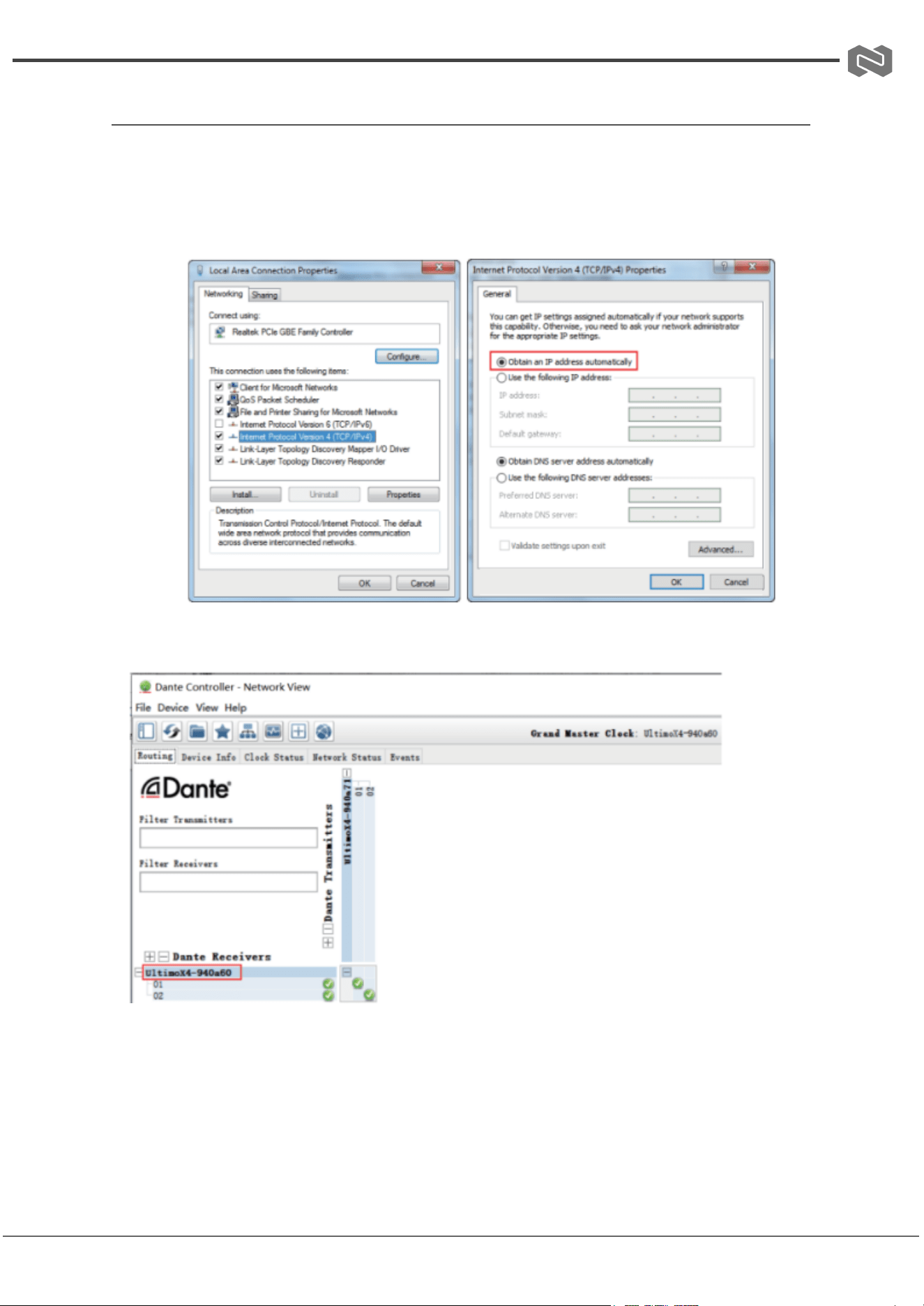

2. Set your PC's network connection to "Obtain an IP address automatically."

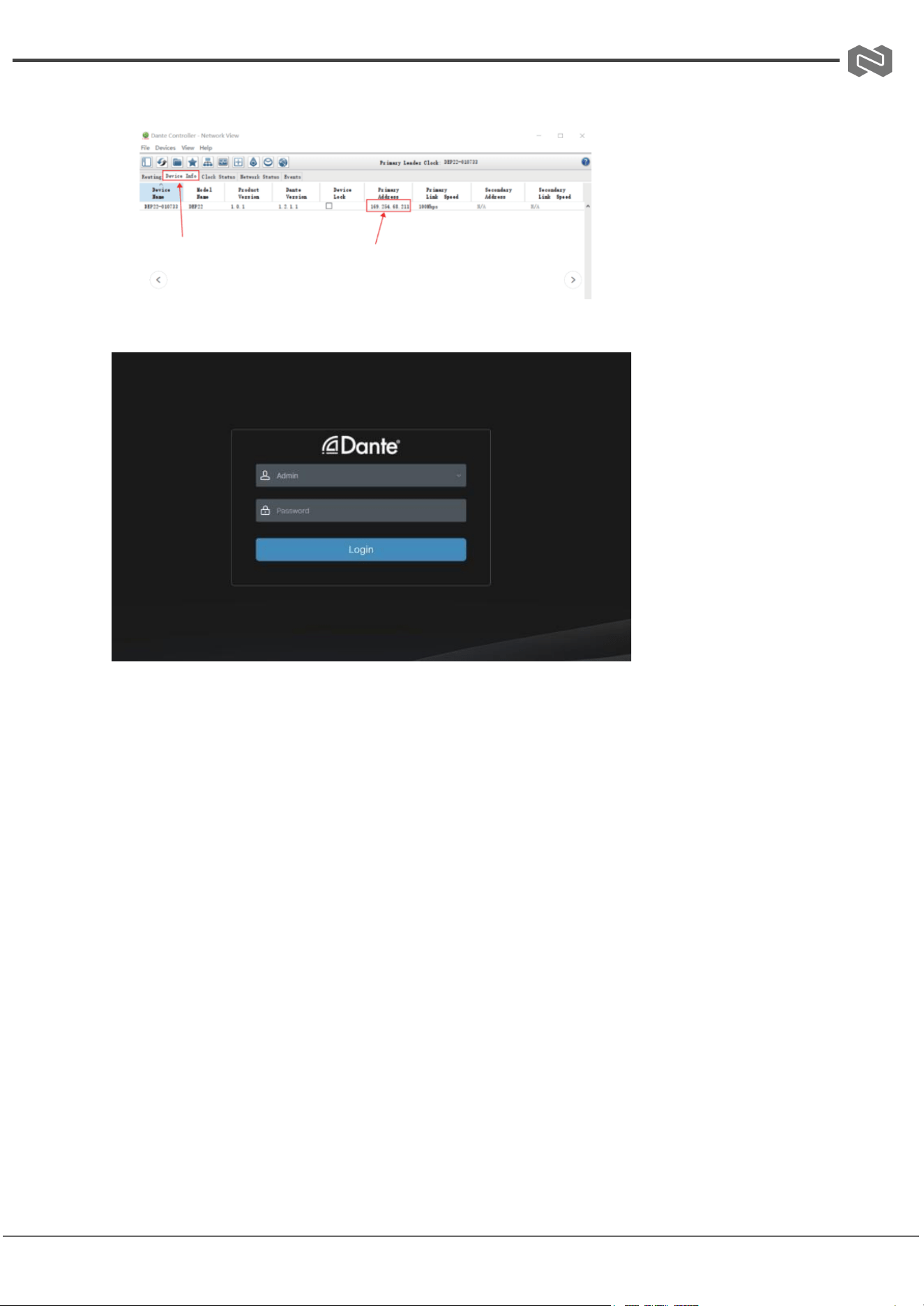

3. Open the Dante Controller software on your PC, and locate the Dante device on the
Routing page, as shown in the figure below.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-AMP150WD PRODUCT MANUAL
4. Click on the Device Info tab to check the IP address of the Dante device.
5. Enter the IP address of the Dante device into your PC's browser to access the login
interface of the Dante Web GUI.
6. Select the default username "Admin" and enter the password "1234". Click the "Login"
button to access the Information page of the Dante Web GUI.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-AMP150WD PRODUCT MANUAL

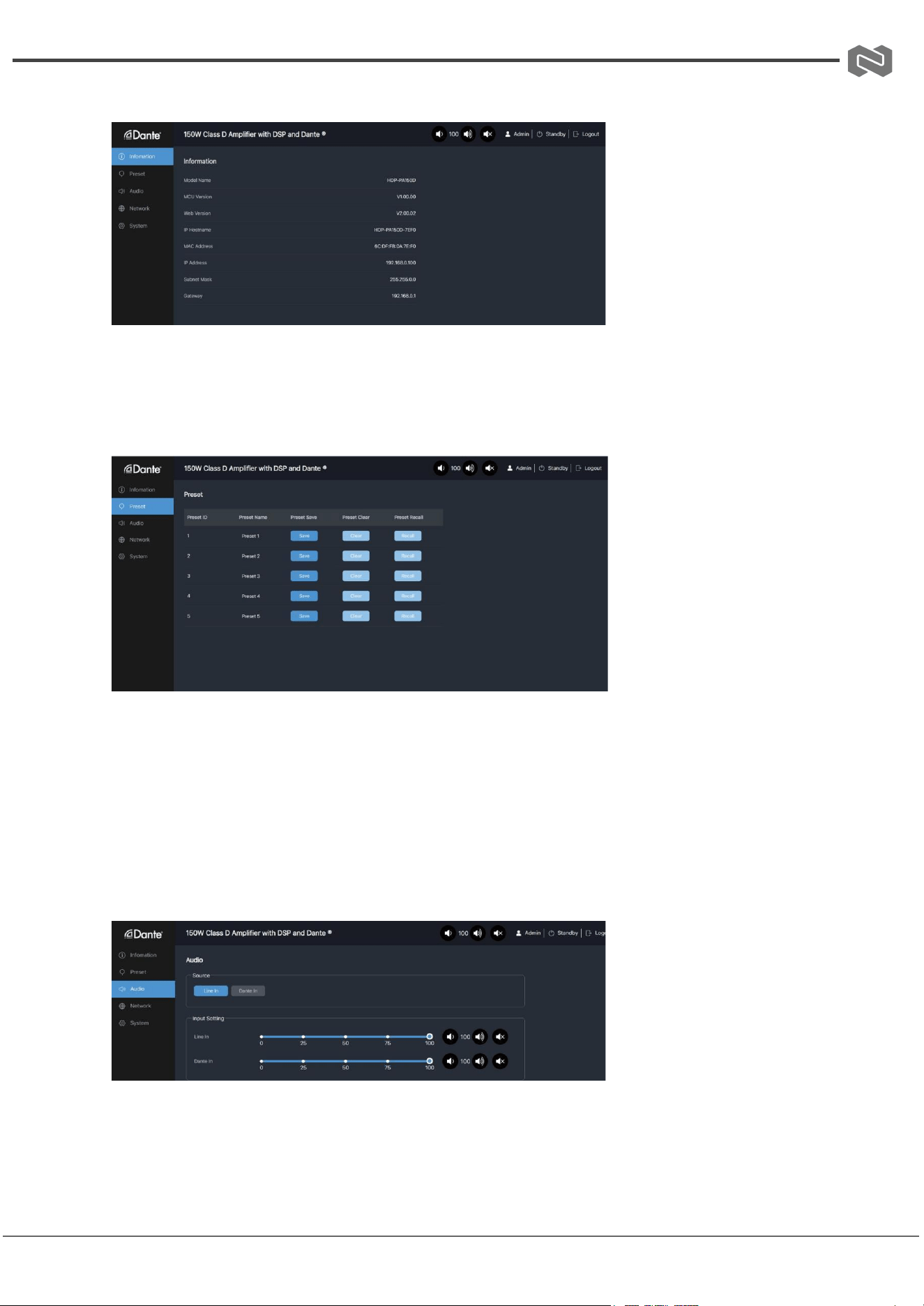

Information Page
The Information page displays basic details such as model name, software version, and IP
information.
Preset Page
You can configure up to 5 preset scenes on this page:
1. Preset Name: Enter a name for the preset scene (Chinese characters are not supported).
2. Preset Save: Save the current scene.
3. Preset Clear: Clear the saved scene.
4. Preset Recall: Recall a saved scene.
Audio Page
Source Select
1. Line In: Select the LINE IN port as the audio input channel.
2. Dante In: Select the DANTE port as the audio input channel.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-AMP150WD PRODUCT MANUAL

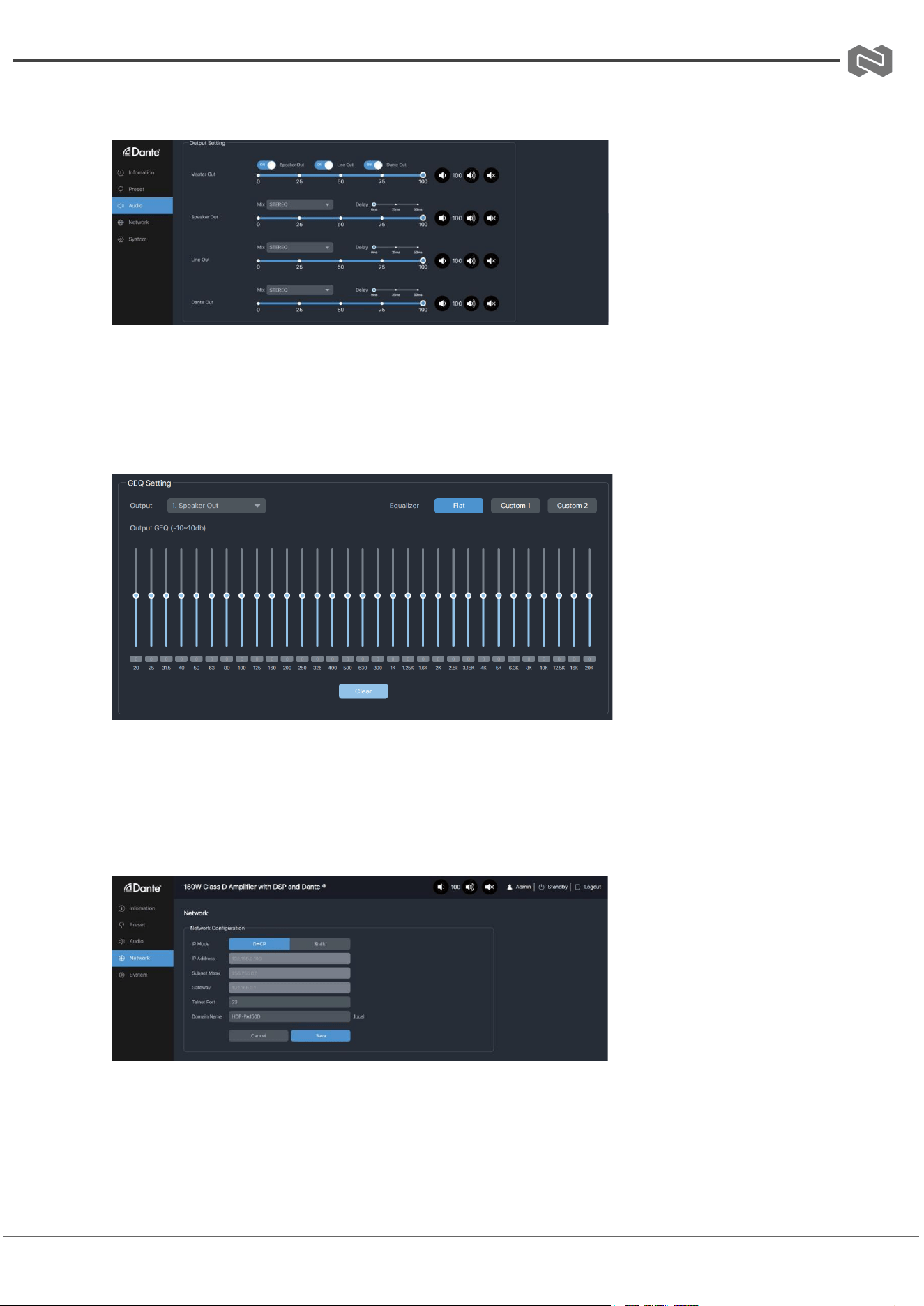

Input Setting
Adjust output volume and mute/unmute settings for Line In and Dante In separately.
Output Setting
1. Master Out: Adjust output volume and mute/unmute settings for Speaker Out, Line Out,
and Dante Out individually or collectively.
2. Speaker Out/Line Out/Dante Out: Select the output channel and configure delay,
volume adjustments, and mute/unmute settings.
GEQ Setting
1. Output: Select the output channel.
2. Equalizer: Set the equalizer settings, including Flat, Custom1, and Custom2.
Network Page
Network Configuration
Configure IP Mode (DHCP/Static), IP Address, Subnet Mask, Gateway, Telnet Port, and
Domain Name.
Note: Use the domain name "HDP-PA150D.local" to access the Web GUI.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-AMP150WD PRODUCT MANUAL

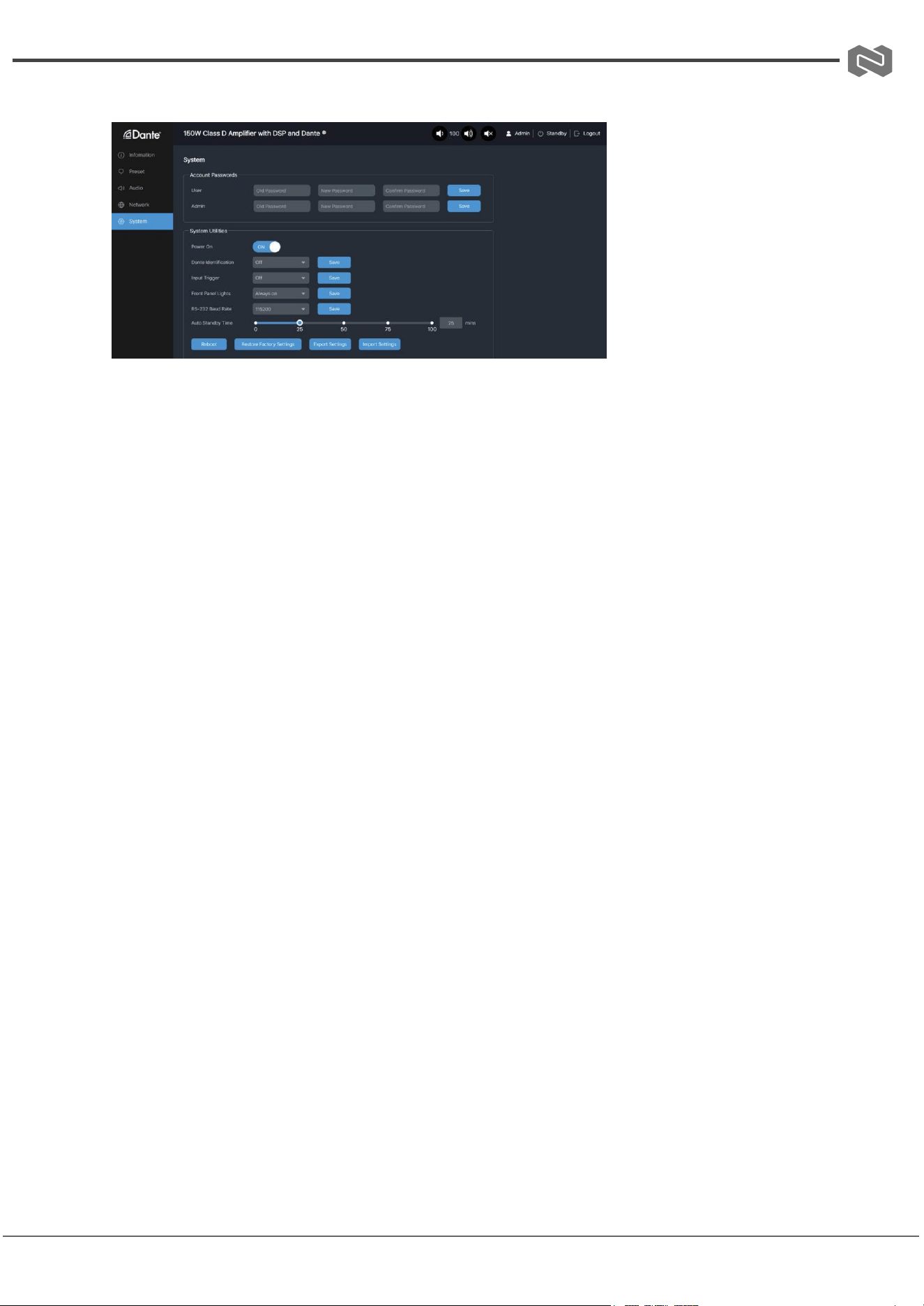

System Page
Account Passwords
Modify login passwords for User and Admin.
System Utilities
1. Power On: Turn the amplifier on/off.
2. Dante Identification: Set the display status of the ID LED.
3. Input Trigger: Set the input trigger mode.
4. Front Panel Lights: Set the display status of the VOL LED.
5. RS-232 Baud Rate: Set the RS-232 baud rate.
6. Auto Standby Time: Adjust the auto standby time.
7. Reboot: Reboot the amplifier.
8. Restore Factory Settings: Reset the amplifier to factory settings.
9. Export Settings: Export configuration files.
10. Import Settings: Import configuration files.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-AMP150WD PRODUCT MANUAL
RS-232 Control Command
The product also supports RS-232 command control. To connect, use a 3-pin Phoenix
connector cable to link the product's RS-232 port to a PC, utilizing an RS-232 to USB
cable. The connection method is as follows:
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
ASCII Command
Serial port protocol: Baud rate: 115200 (default), Data bits: 8bit, Stop bits:1, Parity bit: none TCP/IP
protocol port: 8000
x - Parameter 1, y - Parameter 2
Command Code
Function Description
Example
Feedback
Default Setting
System Setting
help
Get the list of all commands
help
===================
Help Info
MCU 1.1.0 Web 1.1.0
help
Get the list of all
commands r
type
Get device model
r fw version
Get Firmware version
......................
===================
List all API
commands
?
Get the list of all commands
?
===================
Help Info
MCU 1.1.0 Web 1.1.0
help
Get the list of all
commands r
type
Get device model
r fw version
Get Firmware version
......................
===================
List all API
commands
r type
Get device model
r type
HDP-PA150D
r status
Get device current status
r status
Get the unit all status:
power, FAN, audio
source, in/out volume,
mute, mix, delay time,
L-Inverter, R-Inverter,
Amplifier mode, EQ, trigger,
standby time, baud rate,
network status
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
Command Code
Function Description
Example
Feedback
Default Setting
r fw version
Get Firmware version
r fw version
MCU 1.1.0 Web 1.1.0
s power on
Power on the device
s power on
Power on
System Initializing...
Initialization Finished!
MCU 1.1.0 Web 1.1.0
s power off
Power off the device
s power off
Power off
r power
Get current power state
r power
power on /power off
s reboot
Reboot the device
s reboot
Reboot…
System Initializing...
Initialization Finished!
MCU 1.1.0 Web 1.1.0
s reset
Reset system settings to
default (Should type "Yes" to
confirm, "No" to discard)
s reset
Sure to Reset System
Settings To Default?
Type "Yes" after next
prompt to confirm…
s reset all
Reset system and network
settings to default (Should type
"Yes" to confirm, "No" to
discard)
s reset all
Sure to Reset System
and Network Settings To
Default? Type "Yes"
after next prompt to
confirm…
s auto stb x
Set system auto standby time
x=0: auto standby off
x=[1-120]: auto standby time
(mins)
s auto stb 10
Set auto standby time:
10mins
10
r auto stb
Get system auto standby time
r auto stb
Auto standby time:
10mins
s lcd on/off/15/30/
60
Set volume LCD always on or
auto turn off in power on state
or turn on 15s/30s/60s
s lcd
on s
lcd off
s lcd on 15
Set LCD light always
on Set LCD light
always off Set LCD
light on 15s
on
r lcd
Get volume LCD on/off status
r lcd
LCD light always on
s idled on/off/15/ 30/60
Set ID LED on or auto turn off
in power on state or turn on
15s/ 30s/60s
s idled on
s idled on 15
Set ID LED light always
on
Set ID LED light on 15s
off
r idled
Get id LED on/off status
r idled
ID LCD light always on
s trigger on/off x
Set trigger on/off with
trigger level:x
x=0: Low Level (0V) Mute Output
x=1: High Level (5-12V) Mute
Output
s trigger on
1 s trigger
off
Set trigger on with
high level
Set trigger off
off
r trigger
Get trigger on/off status
r trigger
Trigger on with high level
s rsb x
Set serial port baud rate to
xbps
x=(115200,57600,38400,19200
, 9600,4800)
s rsb 115200
Set baud rate to 115200
115200
r rsb
Get serial port baud rate
r rsb
Baud rate 115200
s fan x on/off
Set fan:x auto turn on or always
off
x=[0-2] 0:All, 1:Fan1, 2:Fan2
s fan 0 on
Set all fan on
on
r fan
Get fan status
r fan
All fan on
Input Setting
s input x
Set input source to x
x=[1-2] 1:Line, 2:Dante
s input 1
Set input: Line
r input
Get current input source
r input
Input: Line
s input x vol y
Set input:x volume to y
x=[0-2] 0:All, 1:Line, 2:Dante
y=[0-100] volume value
s input 1 vol 50
Set input line volume: 50
50
r input x vol
Get input:x volume value
x=[0-2] 0:All, 1:Line, 2:Dante
r input 1 vol
Input line volume: 50
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 17
Command Code
Function Description
Example
Feedback
Default Setting
s input x vol+
Increase input:x volume
x=[0-2] 0:All, 1:Line, 2:Dante
s input 1 vol+
Increase input line
volume: 52
s input x vol-
Decrease input:x volume
x=[0-2] 0:All, 1:Line, 2:Dante
s input 1 vol-
Decrease input line
volume: 50
s input x mute
on/off
Set input:x mute on/off
x=[0-2] 0:All, 1:Line, 2:Dante
s input 1 mute on
Set input line mute on
r input x mute
Get input:x mute on/off
x=[0-2] 0:All, 1:Line, 2:Dante
r input 1 mute
Input line mute on
Output Setting
s master member
x y z
Set master output member
(x/y/z=0-1)
x=0: Exclude Speaker
Out x=1: Include Speaker
Out y=0: Exclude Line
Out y=1: Include Line Out
z=0: Exclude Dante Out
z=1: Include Dante Out
s master member
1 1 1
Set master member:
1 1 1
1 1 1
r master member
Get master output member
r master member
Master member: 1 1 1
s master vol x s vol
x
Set master output volume to
x x=[0-100] volume value
s master vol 50
s vol 50
Set master volume: 50
50
r master vol r vol
Get master output volume
r master vol
r vol
Master volume: 50
s master vol+ s
vol+
Increase master output volume
s master
vol+ s vol+
Increase master volume:
52
s master vol- s
vol-
Decrease master output volume
s master
vol- s vol-
Decrease master volume:
50
s master mute on/off s
mute on/off
Set master output mute on/of
s master mute
on s mute on
Set master mute on
0
r master mute r
mute
Get master output mute on/off
status
r master
mute r mute
Master mute on
s output x vol y
Set output:x volume to y
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
y=[0-100] volume value
s output 1 vol 50
Set output speaker
volume: 50
50
r output x vol
Get output:x volume value
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
r output 1 vol
Output speaker volume:
50
s output x vol+
Increase output:x volume
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
s output 1 vol+
Increase output speaker
volume: 52
s output x vol-
Decrease output:x volume
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
s output 1 vol-
Decrease output speaker
volume: 50
s output x mute
on/off
Set output:x mute on/off
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
s output 1 mute on
Set output speaker
mute on
r output x mute
Get output:x mute on/off
status x=[0-3] 0:All, 1:Speaker,
2:Line, 3:Dante
r output 1 mute
Output speaker mute on
s output x mix y
Set output:x mix:y
x=[0-3] 0:All, 1:Speaker,
2:Line, 3:Dante
y=[1-4] 1:Stereo, 2:Left, 3:Right,
4:Left and Right
s output 1 mix 1
Set output speaker mix:
Stereo
Stereo
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 18
Command Code
Function Description
Example
Feedback
Default Setting
r output x mix
Get output:x mix mode
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
r output 1 mix
Output speaker mix:
Stereo
s output x delay y
Set output:x delay:y
x=[0-3] 0:All, 1:Speaker,
2:Line, 3:Dante
y=[0-50]: Delay Time,
Millisecond
s output 1 delay
50
Set output speaker
delay:
50ms
0
r output x delay
Get output:x delay value
x=[0-3] 0:All, 1:Speaker,
2:Line, 3:Dante
r output 1 delay
Output speaker delay:
50ms
s output x eq y
val z
Set output:x GEQ index:y
to value:z
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
y=[1-31]: EQ index
z=[0-20]: EQ value(dB)
s output 1 eq 1 val
10
Set output speaker GEQ
index 1: 20dB
10
r output x eq y val
Get output:x GEQ index:y
value x=[0-3] 0:All, 1:Speaker,
2:Line, 3:Dante
y=[1-31]: EQ index
r output 1 eq 1 val
Output speaker GEQ
index 1: 20dB
s output x eq
preset y
Set output:x GEQ to preset:y
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
y=[1-3] 1:Flat, 2:Custom1,
3:Custom2
s output 1
eq preset 1
Set output speaker
GEQ: Flat
1
r output x eq preset
Get output:x GEQ preset
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
r output 1
eq preset
Output speaker GEQ:
Flat
s output x eq clear
Set output:x GEQ clear
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
s output 1 eq clear
Set output speaker GEQ
clear
Preset Setting
s preset save x
Save the current unit’s settings
to
the specified preset:x
All settings except network
setting. x=[1-5]: Preset 1 - Preset
5
s preset save 1
Save to preset 1
s preset recall x
Recall a specified preset:x into
unit All settings except network
setting. x=[1-5]: Preset 1 - Preset
5
s preset recall 1
Recall preset 1
s preset clear x
Clear a specified preset:x
All settings except network
setting. x=[1-5]: Preset 1 - Preset
5
s preset clear 1
Clear preset 1
s preset x name y
Set preset:x name to y
x=[1-5]: Preset 1 - Preset
5 y: Preset name, max 16
characters
s preset 1 name
MeetingRoom 1
Set preset 1 name:
MeetingRoom 1
r preset x name
Get preset:x name
x=[1-5]: Preset 1 - Preset 5
r preset 1 name
Preset 1 name:
MeetingRoom 1
Network Setting
r ipconfig
Get the Current IP Configuration
r ipconfig
IP Mode: DHCP
IP: 192.168.62.106
Subnet Mask:
255.255.255.0
Gateway: 192.168.62.1
TCP/IP port: 8000
MAC:
6C:DF:FB:0C:B3:8E
(Static: 169.254.100.200
255.255.0.0
169.254.100.1)
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 19
Command Code
Function Description
Example
Feedback
Default Setting
r mac addr
Get network MAC address
r mac addr
MAC:
6C:DF:FB:0C:B3:8E
s ip mode x
Set network IP mode to static IP
or DHCP
x=[0-1]
0.Static, 1.DHCP
s ip mode 0
IP mode: Static
(Please use "s net
reboot!" command or
repower device to apply
new config!)
1
r ip mode
Get network IP mode
r ip mode
IP mode: DHCP
s ip addr xxx.xxx.
xxx.xxx
Set network IP address
s ip addr
192.168.1.100
IP address:
192.168.0.100 (Please
use "s net reboot!"
command or repower
device to apply new
config!)
DHCP on, Device
can't config static
address, set DHCP off
first.
r ip addr
Get network IP address
r ip addr
IP: 192.168.0.100
s subnet
xxx.xxx.xxx.xxx
Set network subnet mask
s subnet
255.255.255.0
Subnet Mask:
255.255.255.
0
(Please use "s net
reboot!" command or
repower device to
apply new config!)
DHCP on, Device can't
config subnet mask,
set DHCP off first.
r subnet
Get network subnet mask
r subnet
Subnet Mask:
255.255.255.
0
s gateway
xxx.xxx.xxx.xxx
Set network gateway
s gateway
192.168.1.1
Gateway: 192.168.1.1
(Please use "s net
reboot!" command or
repower device to
apply new config!)
DHCP on, Device can't
config gateway, set
DHCP off first.
r gateway
Get network gateway
r gateway
Gateway: 192.168.1.1
s tcp/ip port x
Set network TCP/IP
port (x=1~65535)
s tcp/ip port 8000
TCP/IP port: 8000
8000
r tcp/ip port
Get network TCP/IP port
r tcp/ip port
TCP/IP port: 8000
s telnet port x
Set network telnet port
(x=1~65535)
s telnet port 23
Telnet port: 23
23
r telnet port
Get network telnet port
r telnet port
Telnet port: 23
s net reboot
Reboot network modules
s net reboot
Search for IP, Please
wait ...!
IP Mode: DHCP
IP:
192.168.62.106
Subnet Mask:
255.255.255.
0
Gateway: 192.168.62.1
TCP/IP port: 8000
Telnet port: 23
MAC:
6C:DF:FB:0C:B3:8E
(Static: 169.254.100.200
255.255.0.0
169.254.100.1)
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 20
Command Code
Function Description
Example
Feedback
Default Setting
Password Setting
s admin password
x
Set admin login password
(x=[16 characters max])
s admin password
1234
admin password: 1234
1234
r admin password
Get admin login password
r admin password
admin password: 1234
s user password x
Set user login password
(x=[16 characters max])
s user password
1234
user password: 1234
1234
r user password
Get user login password
r user password
user password: 1234
BZBGEAR BG-AMP150WD PRODUCT MANUAL

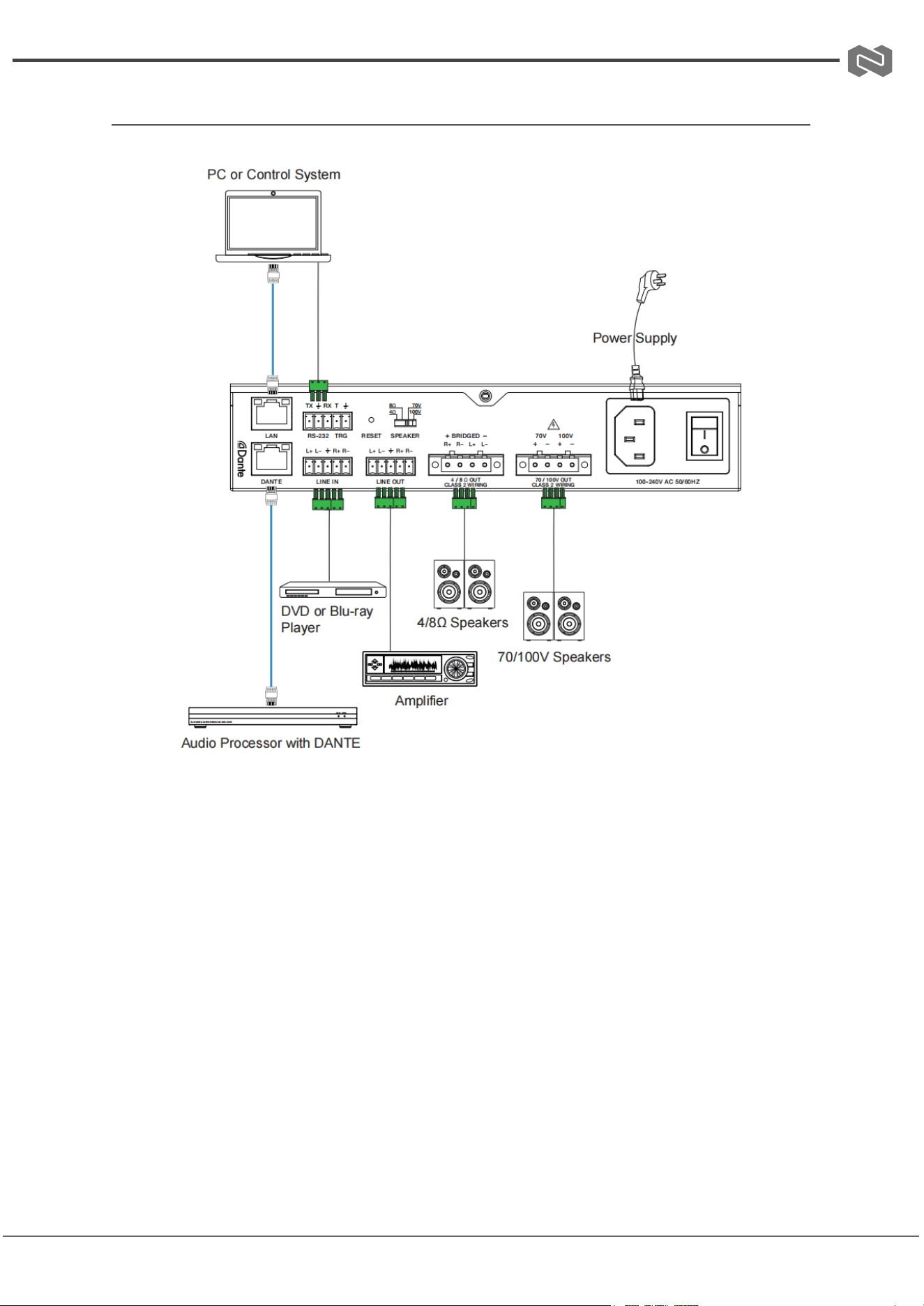

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 21
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 22
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 23
BZBGEAR BG-AMP150WD PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specifications and information in this manual are for reference only and are subject to
change without notice.
All rights reserved. No reproducing is allowed without acknowledgment.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 24
