BG-UHD-DA2X8
2X8 4K 18Gbps UHD HDMI Splitter/Distribution Amplifier
with Downscaling/Audio Extraction and CEC Control
User Manual
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
EDID Management 9
Video Resolution Down-scaling 10
Firmware Upgrade 11
Application Example 11
Troubleshooting and Maintenance 12
Tech Support 13
Limited Product Warranty Terms 13
Mission Statement 14
Copyright 14
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precautions
● Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
● Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to
persons.
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● Do not dismantle the housing or modify the module. It may result in electrical shock or
burn.
● Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
● Do not put any heavy items on the extension cable in case of extrusion.
● Install the device in a place with fine ventilation to avoid damage caused by overheating.
● Do not twist or pull by force ends of the optical cable. It can cause malfunction.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Unplug this device during lightning storms.
● Do not use liquid or aerosol cleaners to clean this unit. Clean only with a soft dry
microfiber cloth.
● Always unplug the power to the device before cleaning.
● If an object or liquid falls or spills on to the housing, unplug the module immediately.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacturer.
● Product specifications may be subject to technical upgrades without further notice.
● Unplug the power cord when left unused for a long period of time.
● Information on disposal for scrapped devices: do not burn or mix with general household
waste, please treat them as normal electrical wastes.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
Introduction
The BG-UHD-DA2X8 is an HDMI 2.0 2x8 splitter that can distribute either of the two HDMI
inputs to eight outputs. The splitter supports HDMI video resolutions up to 4K@60Hz 4:4:4,
1080p 3D, and multichannel audio formats. In addition to passing EDID information from the
display, there are multiple built-in EDID settings that can be selected by the 4-pin DIP
switches on the rear panel.
The splitter can extract HDMI digital audio to stereo analog L/R and Toslink S/PDIF audio
outputs to provide audio sources for existing audio systems. Built-in CEC technology is able
to turn on/off displays and adjust volume using the control buttons on the front panel if the
device is supported.
Features
● HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4.
● HDMI inputs HDCP 2.2 and outputs HDCP 1.4 compliant.
● Video resolution down-scaling: the 4K input can be automatically downscaled to
1080p to support legacy displays.
● 18Gbps high bandwidth.
● RCA (L/R) jack and Toslink connector for audio extraction.
● Advanced EDID management: multiple preset and user defined.
● Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
● CEC control to turn on/off displays and adjust volume for supported devices.
● Provides LEDs to indicate the current operating status and to assist troubleshooting
and installation.
● Firmware upgradable via the Micro-USB port.
Packing List
● 1x HDMI 2.0 2x8 Splitter
● 2x Mounting Ears with 4 Screws
● 4x Plastic Cushions
● 1x Power Adapter (12V DC 1A)
● 1x User Manual
● 1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
Specifications
Video Input
Input
(2) HDMI
Input Connector
(2) Female type-A HDMI
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard
2.0
HDCP Version
2.2
CEC
Supported
Video Output
Output
(8) HDMI
Output Connector
(8) Female type-A HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard
2.0
CEC
Supported
Audio
De-embedded Output
(1) AUDIO OUT;
(1) SPDIF OUT
Output Connector
(1) RCA (L/R) jack;
(1) Toslink connector
HDMI Audio Format
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus,
DTS:X, and DTS-HD® Master Audio pass-through
Stereo Analog L/R Audio Format
PCM
Toslink Digital Audio Format
PCM, Dolby Digital, DTS, DTS-HD
Frequency Response
20Hz - 20KHz, ±3dB
Max Output Level
2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal
consumer line level signal
THD+N
<0.05% (-80 dB),
20Hz - 20KHz bandwidth,
1KHz sine at 0dBFS level (or max level)
SNR
>80dB, 20Hz ~ 20KHz bandwidth
Crosstalk Isolation
>70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation
< 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation
<± 0.5 dB 20Hz ~ 20KHz
Output Load Capability
1k ohm and higher (supports 10x paralleled 10k ohm loads)
Stereo Channel Separation
>70dB@1kHz
Control
Control Part
(5) Control buttons,
(1) EDID 3-pin DIP switch,
(1) EDID 4-pin DIP switch,
(1) Micro-USB port
General
Bandwidth
18Gbps
Operation Temperature
14°F ~ 131°F / -10°C ~ +55°C
Storage Temperature
-13°F ~ 158°F / -25°C ~ +70°C
Relative Humility
10%-90%
Power Supply
Input:100V~240V AC;
Output: 12V DC 1A
Power Consumption
12W(Max)
Dimension (W*H*D)
12.6” x 0.8" x 3.9”
[324mm x 20mm x 100mm]
Net Weight
About 2lbs [900g]
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
Operation Controls and Functions

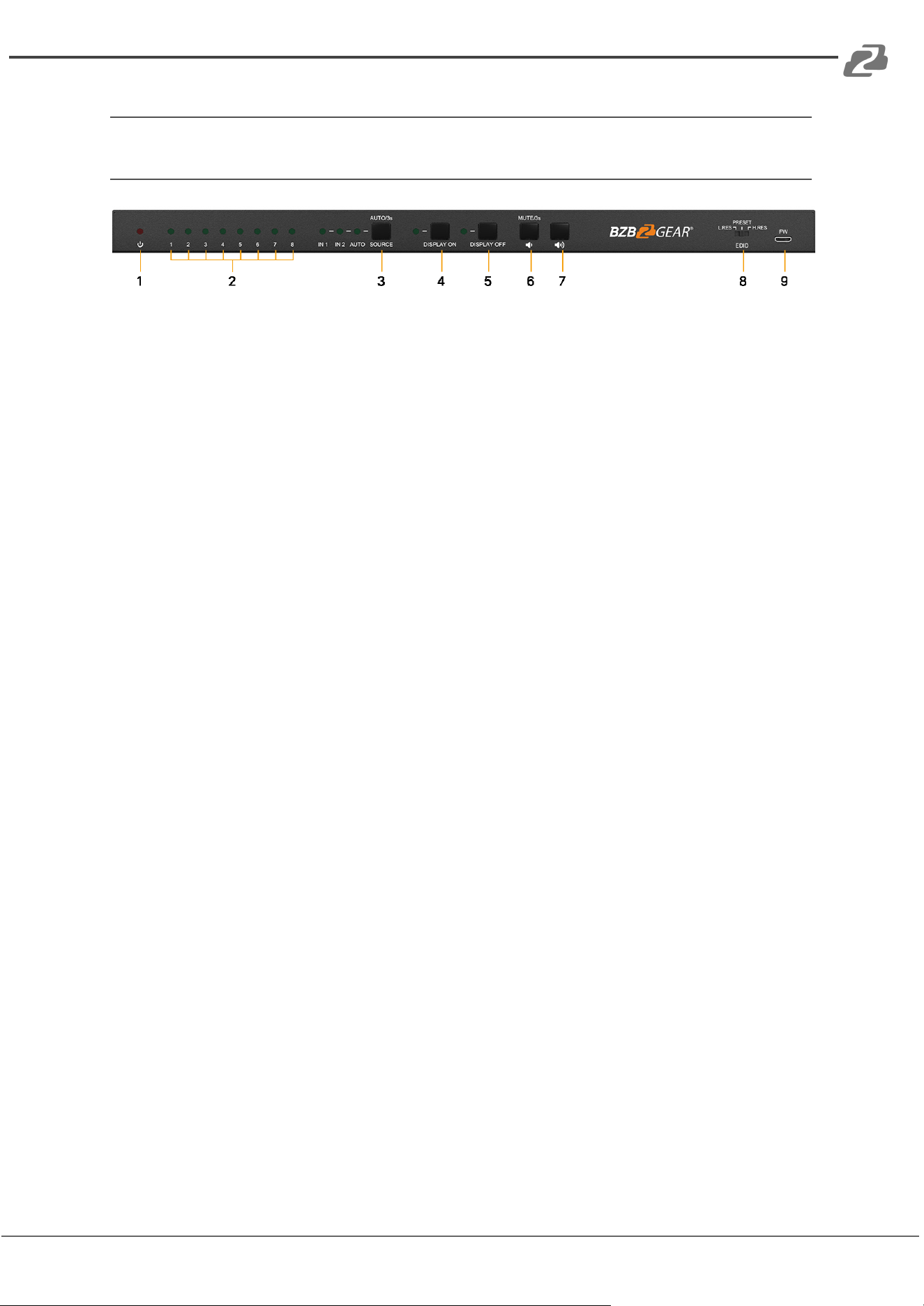

Front Panel
1. POWER LED: The LED illuminates red when power is connected.
2. OUTPUT LEDs: The LED illuminates green when there is an HDMI output on the
corresponding channel.
3. SOURCE Button and LEDs:
● Press the button to switch to the next source device and then the
corresponding input LED will illuminate green.
● Press and hold the button for at least three seconds to enable automatic
switching mode. The splitter will automatically select the first available active
source device starting at HDMI input 1.
➢ Upon detecting that a new source device is connected, the splitter will
automatically select the new one. When an active source device is
removed, the splitter will switch to the next one.
➢ Once restarted, the splitter will resume the last switching mode.
● Press and hold the button for at least three seconds again to exit the
automatic switching mode, and the current selected channel will not change.
4. DISPLAY ON Button and LED: Press the button to turn on compatible displays. The
LED blinks green when pressed.
5. DISPLAY OFF Button and LED: Press the button to turn off compatible displays.
The LED blinks green when pressed.
6. VOLUME DOWN/MUTE Button: Press the button to decrease the volume of
compatible displays. Press and hold this button for at least three seconds to mute
the displays.
7. VOLUME UP Button: Press the button to increase the volume of compatible
displays or exit mute mode if the displays are already muted.
8. EDID: 3-pin DIP Switch for the Extended Display Identification Data (EDID) value
setting. Please refer to the EDID Management section for more details.
9. FW: Micro-USB port for firmware upgrades.
Note: Only displays which support CEC can be controlled by DISPLAY ON, DISPLAY OFF,
VOLUME UP and VOLUME DOWN buttons. CEC displays may not be fully compatible.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL

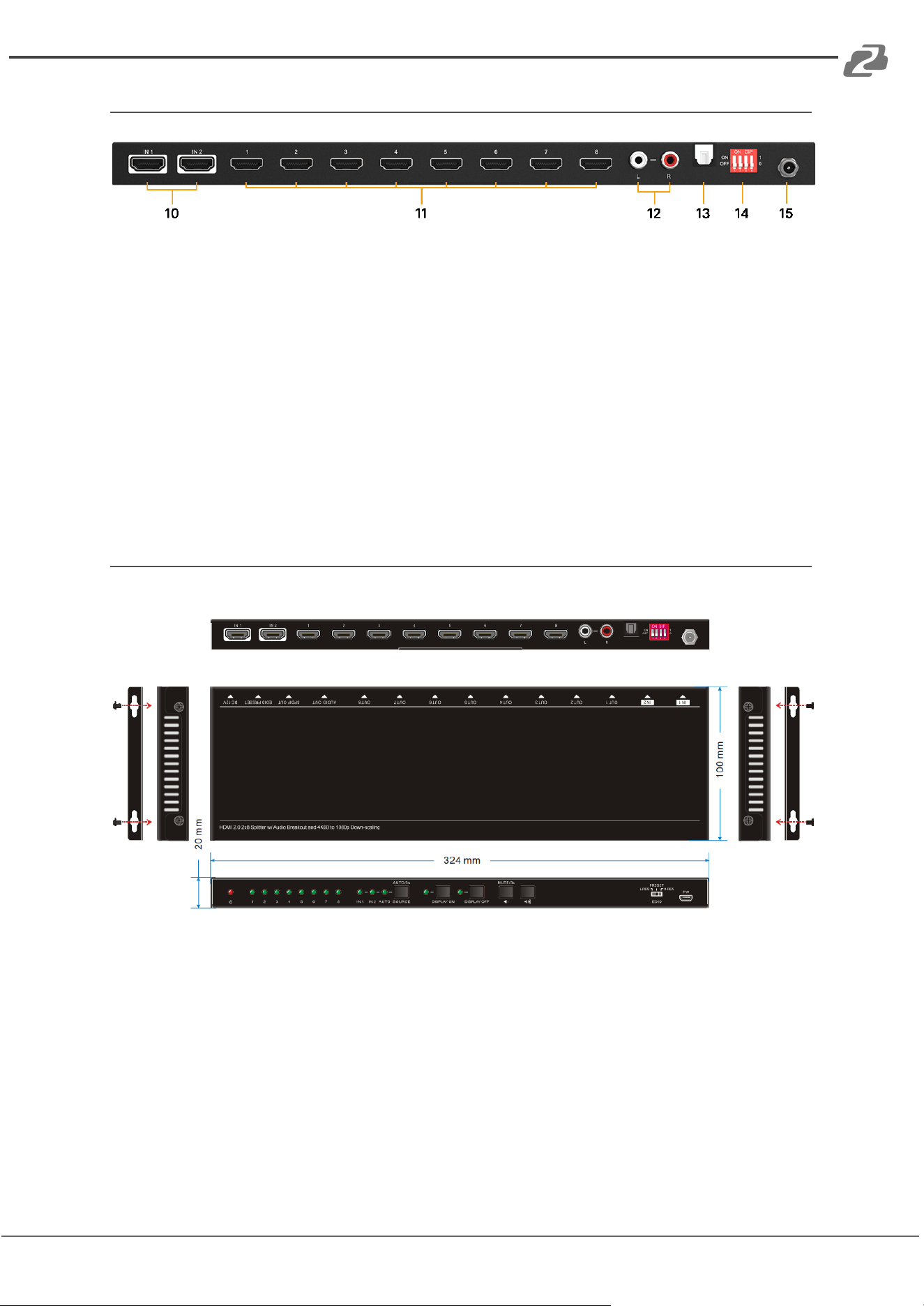

Rear Panel
10. INPUTS: Two type-A female HDMI input ports to connect HDMI sources.
11. OUTPUTS: Eight type-A female HDMI output ports to connect HDMI displays.
12. AUDIO OUT: RCA jack for stereo analog audio output.
13. SPDIF OUT: Toslink connector for digital audio output.
14. EDID: 4-pin DIP switch for EDID setting. Please refer to the EDID Management for
more details.
15. DC 12V: DC barrel port to connect an AC power adapter.
Panel Drawing
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
EDID Management
The Extended Display Identification Data (EDID) is used by the source device to match its
video resolution with the connected display. By default, the source device obtains its EDID
from the first connected display. Since displays with different capabilities can be connected
to the splitter, the 3-pin DIP switch on the front panel and the 4-pin DIP switch on the rear
panel can be used in combination to set the EDID to a fixed value to ensure compatibility of
video resolutions.

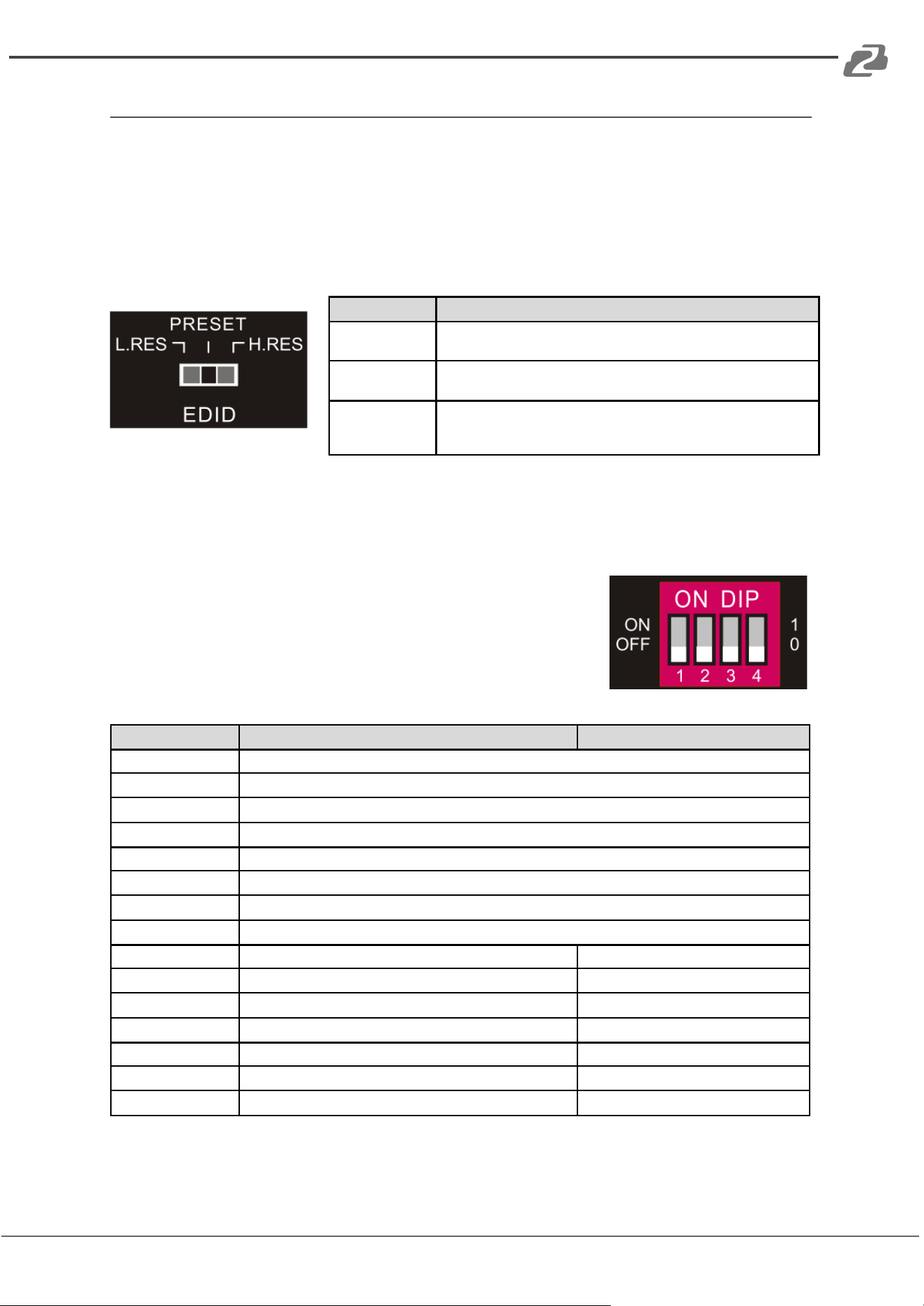

Switch Status
Description
L.RES
The splitter reads all EDID information from all connected displays,
and choose the one with lowest resolution passing to the source.
PRESET
In this mode, the 4-pin DIP switch on the rear panel can be used to
select predefined EDID and customize a specific EDID as needed.
H.RES
The splitter reads all EDID information from all connected displays
and chooses the one with the highest resolution passing to the
source.
● Predefined EDID setting
When the 3-pin DIP switch on the front panel is in PRESET mode, the 4-pin DIP switch on
the rear panel can be used to set the EDID to a built-in fixed value. Use the following table to
determine the settings for the 4-pin DIP switch for specific
video resolution and audio capabilities.
When in the lower position, the switch represents “0”, while in
the up position, it represents “1”.
Switch Status
Video Resolution
Audio Format
0000
Obtains EDID from the display connected to the HDMI output port 1.
0001
Obtains EDID from the display connected to the HDMI output port 2.
0010
Obtains EDID from the display connected to the HDMI output port 3.
0011
Obtains EDID from the display connected to the HDMI output port 4.
0100
Obtains EDID from the display connected to the HDMI output port 5.
0101
Obtains EDID from the display connected to the HDMI output port 6.
0110
Obtains EDID from the display connected to the HDMI output port 7.
0111
Obtains EDID from the display connected to the HDMI output port 8.
1000
720P
LPCM
1001
1080P
LPCM
1010
1080P
DTS/Dolby
1011
3840x2160@30Hz
LPCM
1100
3840x2160@30Hz
DTS/Dolby
1101
3840x2160@60Hz
LPCM
1110
3840x2160@60Hz
DTS/Dolby
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
● User defined EDID setting
If not using the built-in EDID, specific EDID settings can be customized by following the
operation process below.
1. Rename the user defined EDID according to the following format.
EC_xx_xxxx_xxx.bin
● EC: Represents EDID.
● xx: Represents EDID ID. It is “15”.
● xxxx: Represents the video parameter.
● xxx: Represents the audio format.
Example: EC_11_720P_LPCM.bin
2. Power on the splitter and connect it to the PC with a USB cable. The PC will
automatically detect a U-disk named “BOOTDISK”.
3. Double-click to open the U-disk, a file named of “READY.TXT” will be showed.
4. Copy the user defined EDID (ex EC_11_720P_LPCM.bin) to the “BOOTDISK” U-disk.
5. Reopen the U-disk to check the filename “READY.TXT” whether automatically
becomes “SUCCESS.TXT”, if yes, the user defined EDID was imported into the
splitter and saved as its corresponding EDID ID successfully.
6. Remove the USB cable, and then reboot the splitter.
7. The new EDID now can be invoked via the 4-pin DIP switch directly. The EDID ID and
its corresponding switch status is shown in the below list.
Video Resolution Downscaling
The BG-UHD-DA2X8 supports video resolution downscaling. This means a 4K input can be
automatically degraded to 1080P output for compatibility with 1080P displays. Compatibility
is shown in the chart below:
Input
Output
#
Resolution
Refresh
Color Space
Downscale
1080P Specs
1
3840x2160
60
4:4:4
Support
1080P@60Hz 4:4:4
2
3840x2160
30
4:4:4
Support
1080P@30Hz 4:4:4
3
3840x2160
24
4:04:04
Support
1080P@24Hz 4:4:4
4
3840x2160
60
4:02:00
Support
1080P@60Hz 4:2:0
5
3840x2160
30
4:02:00
Support
1080P@30Hz 4:2:0
6
3840x2160
24
4:02:00
Support
1080P@24Hz 4:2:0
7
3840x2160
60
4:02:02
Support
1080P@60Hz 4:4:4
8
3840x2160
30
4:02:02
Support
1080P@30Hz 4:4:4
9
3840x2160
24
4:02:02
Support
1080P@24Hz 4:4:4
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
Firmware Upgrade
Please follow the steps below to upgrade the firmware via the Micro-USB port:
1. Connect the splitter to the PC with a USB cable.
2. Power on the splitter, and then the PC will automatically detect a U-disk named
“BOOTDISK”.
3. Double-click to open the U-disk, a file named of “READY.TXT” will be showed.
4. Directly copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk.
5. Reopen the U-disk to check the filename “READY.TXT” whether automatically
becomes “SUCCESS.TXT”, if yes, the firmware was upgraded successfully,
otherwise, the firmware upgrade is fail, the name of upgrade file (.bin) should be
confirm again, and then follow the above steps to upgrade again.
6. Remove the USB cable after firmware upgrade.

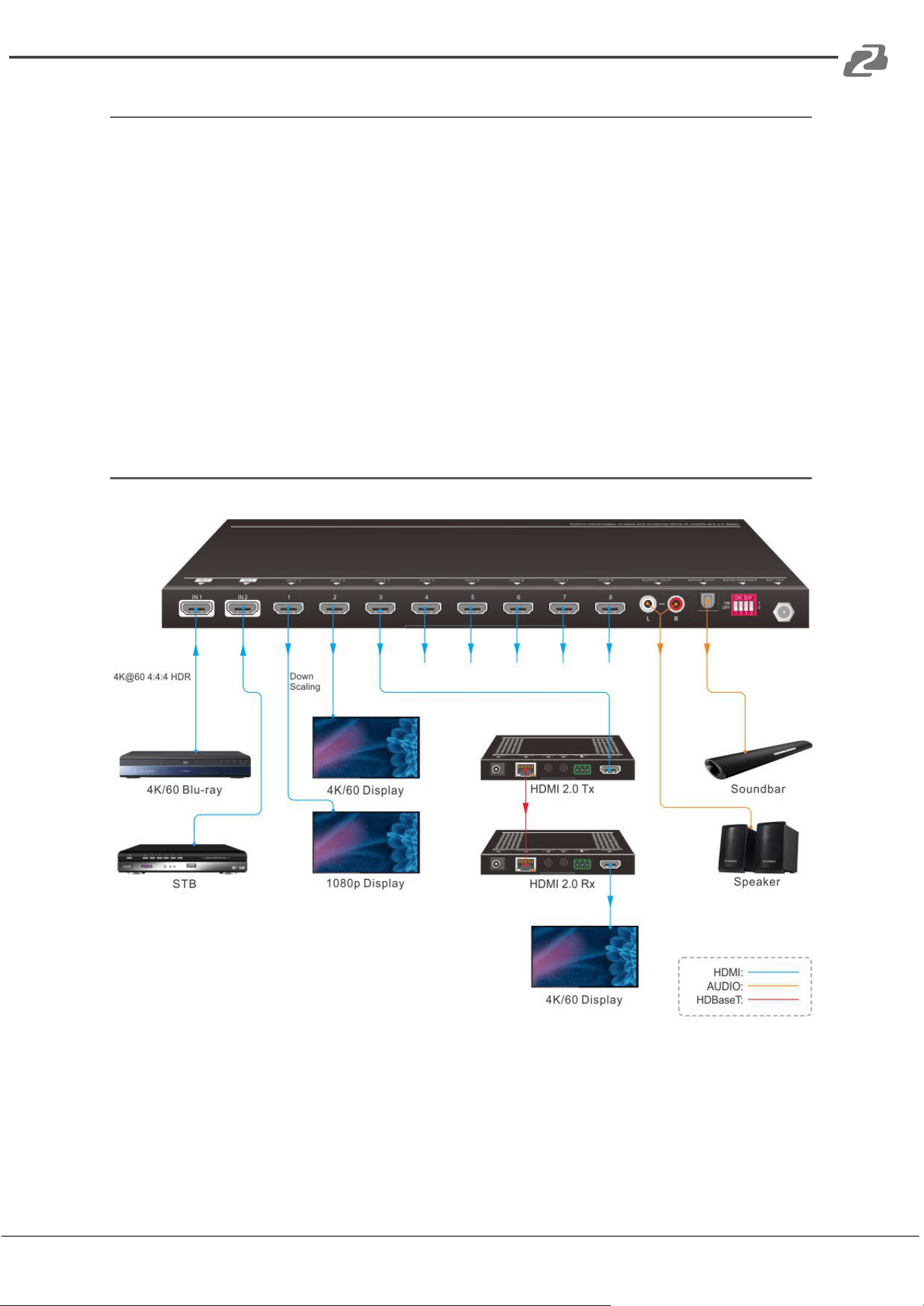

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
Troubleshooting and Maintenance
Problem
Potential Causes
Solutions
Color loss or no video signal output in
HDMI display.
The connecting cables may not be
connected correctly or may be broken.
Check whether the cables are
connected correctly and in working
condition.
No Signal
The display is not compatible with the
present output resolution.
Make sure the resolution of the
display(s) is compatible with the present
resolution.
No HDMI signal output in the splitter
while local HDMI input is in normal
working state.
The connecting cables may not be
connected correctly or it may be broken.
Check whether the cables are
connected correctly and in working
condition.
Splash screen in output devices.
Poor quality of the connecting cable.
Change for another cable of good
quality.
Static becomes stronger when
connecting the video connectors.
Bad grounding.
Check the grounding and make sure it is
connected well.
Note: If your problem still remains after following the above troubleshooting steps, please
contact your local dealer or distributor for further assistance.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-UHD-DA2X8 PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming
solutions. We pride ourselves on unparalleled customer support and services. Our team
offers system design consultation, and highly reviewed technical support for all the products
in our catalog. BZBGEAR delivers quality products designed with users in mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
