BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 7
Menu Introduction 9
Remote Control 10
Application Example 13
Tech Support 14
Limited Product Warranty Terms 14
Mission Statement 14
Copyright 14
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Disconnect power cord by connector only. Do not pull on the cable portion.
● Do not place or drop heavy or sharp-edged objects on the power cord. A damaged cord
can cause fire or electrical shock hazards. Regularly check power cord for excessive
wear or damage to avoid possible fire / electrical hazards.
● Ensure the unit is always properly grounded to prevent electrical shock hazard.
● Do not operate units in hazardous or potentially explosive atmospheres. Doing so could
result in fire, explosion, or other dangerous results.
● Handle with care to avoid shocks in transit. Shocks may cause malfunction. When you
need to transport the unit, use the original packing materials, or alternate adequate
packing.
● Turn off the unit if an abnormality or malfunction occurs. Disconnect everything before
moving the unit.
Note: due to constant efforts to improve products and product features, specifications may
change without notice.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
Introduction
The BG-UHD-SCVEA is a multi-format 4K UHD scaler and converter. This unit is designed
to scale and convert multiple analog and digital formats (HDMI/DP/VGA/CVBS/YPbPr) to
support HDMI devices. This HDMI 1.4/DP1.1 compliant device supports output resolutions
up to 4K2K@30 4:4:4 with video bandwidth speeds up 10.2Gbps.
Embed analog audio to the HDMI output via the 3.5mm stereo input. Operate and adjust
advanced settings including resolution outputs via the front panel push buttons, IR remote,
or the provided control software.
With its versatile array of inputs, the BG-UHD-SCVEA is the perfect solution for users
looking to convert legacy media formats for use in a modern A/V system.
Features
● Input HDMI1.4 /DP1.1/ VGA/CVBS/YPbPr
● IR remote control
● Button control
● Remote control via Micro-USB
● OSD control interface
● Input maximum pixel rate : 165MHz
● Output resolution up to 4K@30 4:4:4
● Multiple VESA resolutions supported
● Deinterlacing and other video enhancement features
● Over & under scanning adjustable
● Video H/V mirror
● Active video area adjustment
● Stable and independent output signal quality
● USB firmware upgradable for expanding compatibility
● Wall-mountable housing designed for easy installation
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
Packing List
● 1x BG-UHD-SCVEA
● 1x 12V/2A power supply unit
● 1x IR Remote control
● 1x User Manual
● 1х Quick Start Guide
● 1x Installation software CD
Technical Specifications
Technical
Role of usage
HDMI/DP/VGA/CVBS/YPbPr to HDMI Converter
HDMI standards
HDMI 1.4
Input Video
Maximum Pixel Rate
165MHz
Output Video bandwidth
10.2Gbps
Output Video support
up to 4K2K@30 4:4:4
Audio support
PCM 2 (32KHz - 192KHz Fs sample rate)
ESD protection
[1] Human body model ±19kV [air-gap discharge] & ±12kV [contact discharge)
[2] Core chipset ±2kV
PCB stack-up
4-layer board [impedance control -differential 100Ω; single 50Ω)
Firmware update
Feasible via USB Port
CEC Channel
N/A
Input
1x HDMI
1x VGA
1x DP
1x RCA
1x YPbPr
1x stereo (for VGA)
Output
1x HDMI
HOMI connector
Type A [19-pin female)
USB connector
Micro USB
Mechanical
Housing
Metal enclosure
Dimensions [L x D x H)
Model
144 x 113 x 30mm (5.6" x 4.4" x 1" )
Package
264 x 170 x 77mm (10.3" x 6.7" x 3")
Carton
430 x 358 x 291mm (1'4" x 1'2" x 11.5")
Weight
Model
264g (9.3 oz)
Package
724g (1.6 lbs)
Fixedness
Wall-mounting case with screws
Power supply
12V 2A DC
Power consumption
6 Watts (max)
Operation temperature
0~40°C (32-104°F)
Storage temperature
-20~60°C (-4-140°F)
Relative humidity
20-90% RH (no condensation)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
Operation Controls and Functions

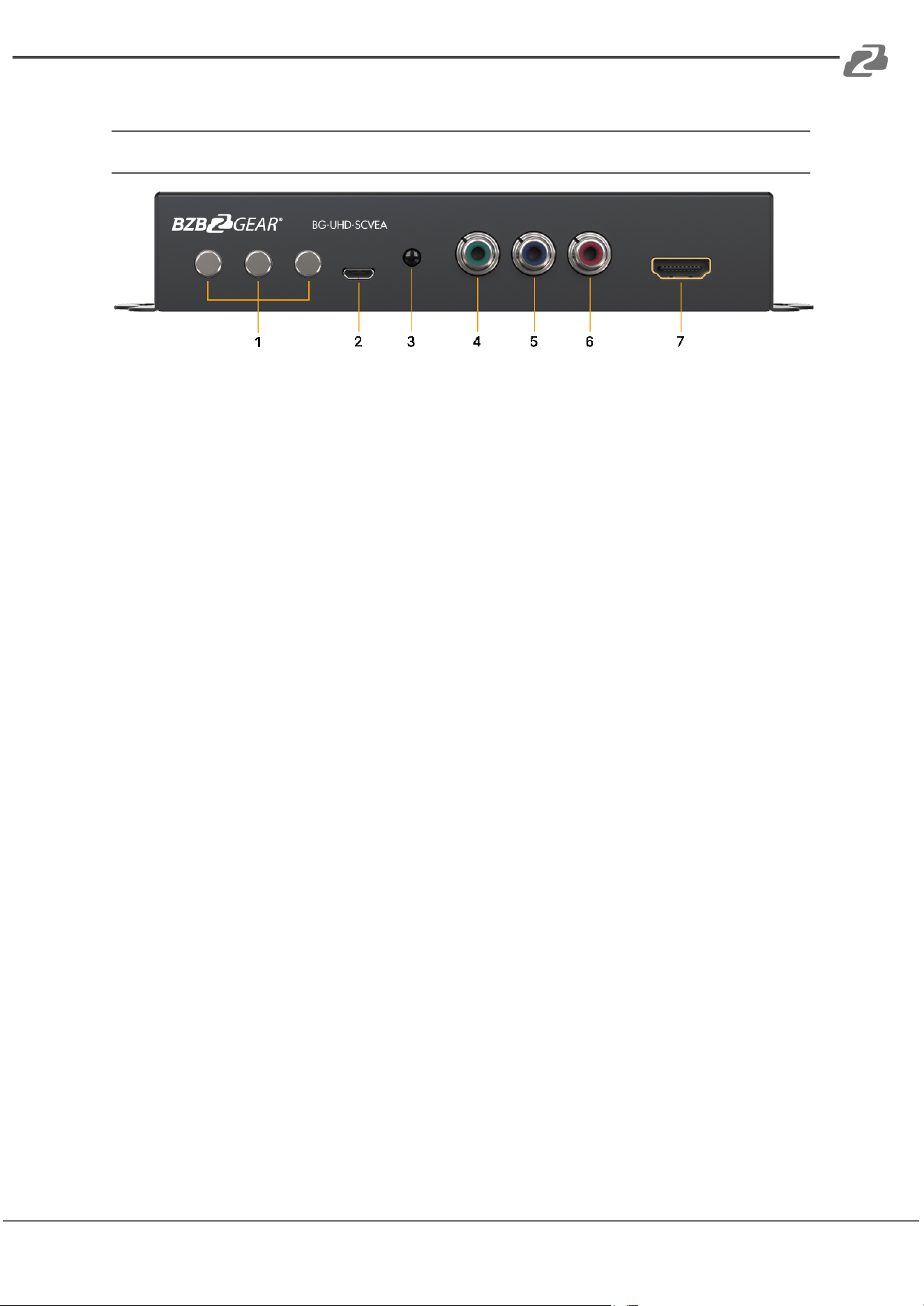

Front panel
1. PUSH BUTTON:
● [LEFT]: Down Button.
● [MID]: Up Button.
● [RIGHT]: Menu/Enter Button.
2. Micro USB: Micro-USB port for control port.
3. IR SENSOR: IR sensor for receiving the IR commands from IR remote.
4. COMPONENT - Y INPUT
5. COMPONENT - Pb INPUT
6. COMPONENT - Pr INPUT
7. HDMI OUTPUT: Connect to a HDMI display.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL

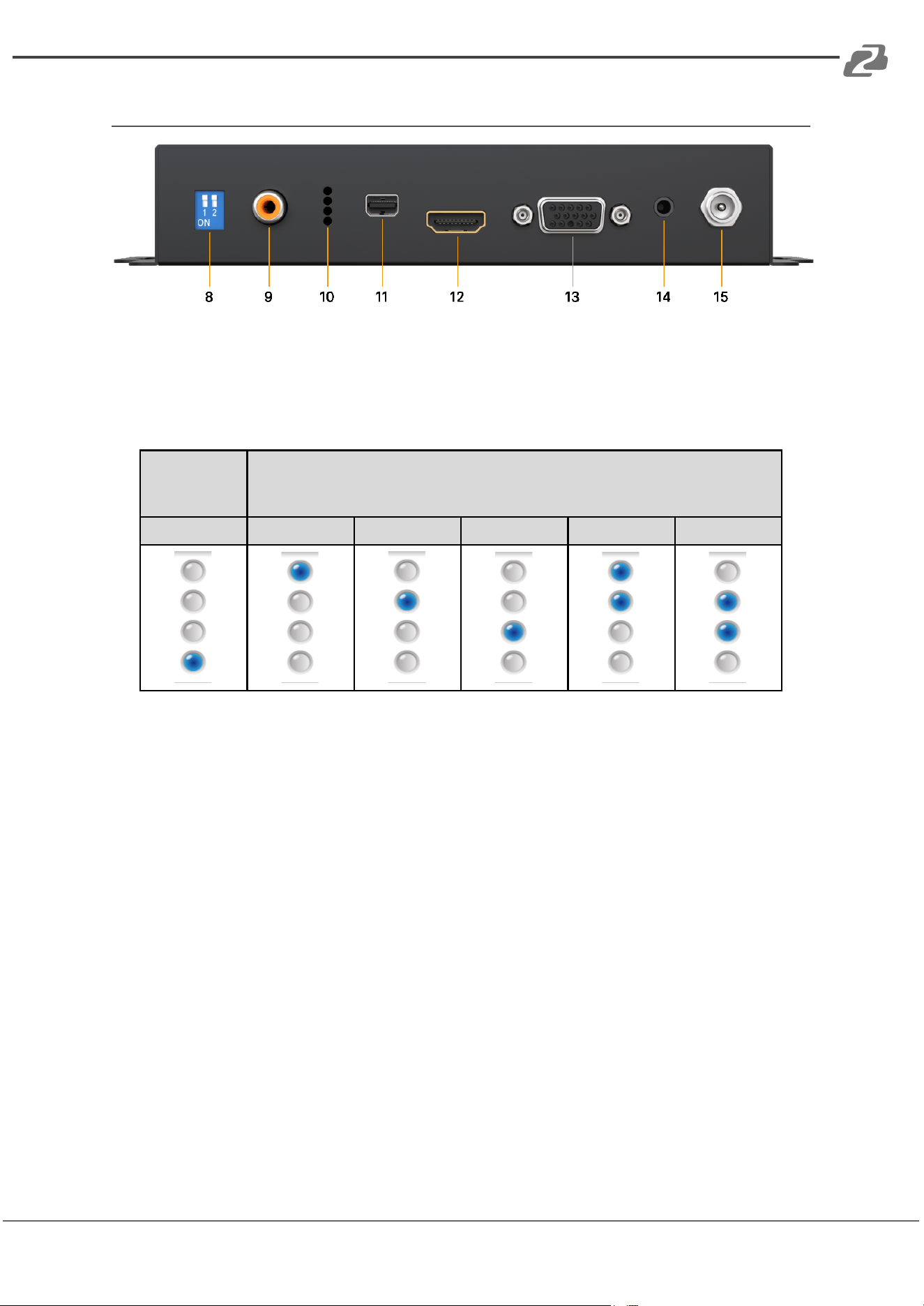

Rear panel
8. DIP SWITCH: For firmware updates.
9. CVBS INPUT: Connect to a RCA source.
10. LED INDICATOR: Indicates power and selected input (see below):
Power
Indicator
LED
Signal Indicator LED
Power
DisplayPort
VGA
HDMI
YPbPr
CVBS
11. DP INPUT: Connect to a DP source.
12. HDMI INPUT: Connect to a HDMI source.
13. VGA INPUT: Connect to a VGA source.
14. STEREO AUDIO INPUT (VGA): Connect to analog stereo audio source.
15. +12V DC: Interlocking power jack for 12V DC power supply unit.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
Menu Introduction
1.Output Setup
Output Format
Test Pattern
Disable, White, Cross, Hatch, Color, Gray, Windows,
H-Ramp, W-HRamp, W-VRamp, Diagonal
Audio Mute
Off, On
Input Type
HDMI, VGA, DP, YPbPr, CVBS
Return
2.Image
Contrast
0-255 of Contrast Level
Brightness
0-255 of Brightness Level
Saturation
0-255 of Saturation Level
Hue
0-255 of Hue Level
Gamma Adjust
Off, 1.1, 1.3, 0.7, 0.9
Color Tone
Off, Green, Skin
Edge Enhance
Off, Max, Mid, Min
Sharpness
0-64 of Sharpness Level
Return
3.Adjustment
Under/Over Scan
-50%~50% of Scan Level
Aspect Ratio
Stretch, 16:9, 4:3
H-Mirror
Off, On
V-Mirror
Off, On
H-Shift
-100-100 of H-Shift Level
V-Shift
-50-50 of V-Shift Level
Return
4. System
Input Format
F/W Version
Factory Reset
Return
5. Exit
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
Remote Control

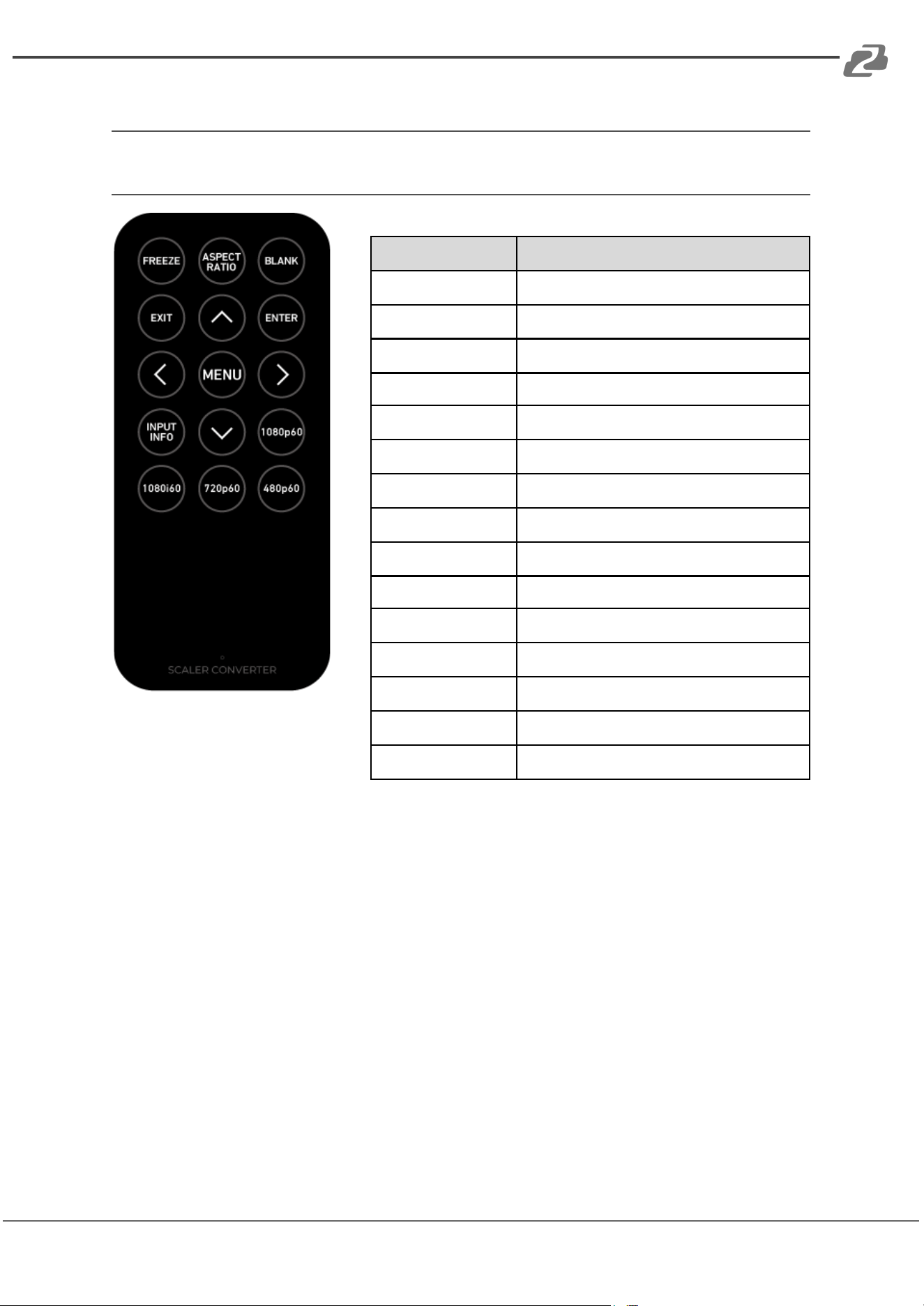

Description of keys IR Remote Control
Button
Function
FREEZE
Freeze video
ASPECT RATIO
Aspect ratio change
BLANK
Blank video
EXIT
Exit OSD
ENTER
Enter key
UP
Up key
LEFT
Left key
RIGHT
Right key
DOWN
Down key
MENU
Menu on
INPUT INFO
Source resolution information
1080p60
Select 1080p60 output resolution
1080i60
Select 1080i60 output resolution
720p60
Select 720p60 output resolution
480p60
Select 480p60 output resolution
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
IR Remote Control through Micro-USB port

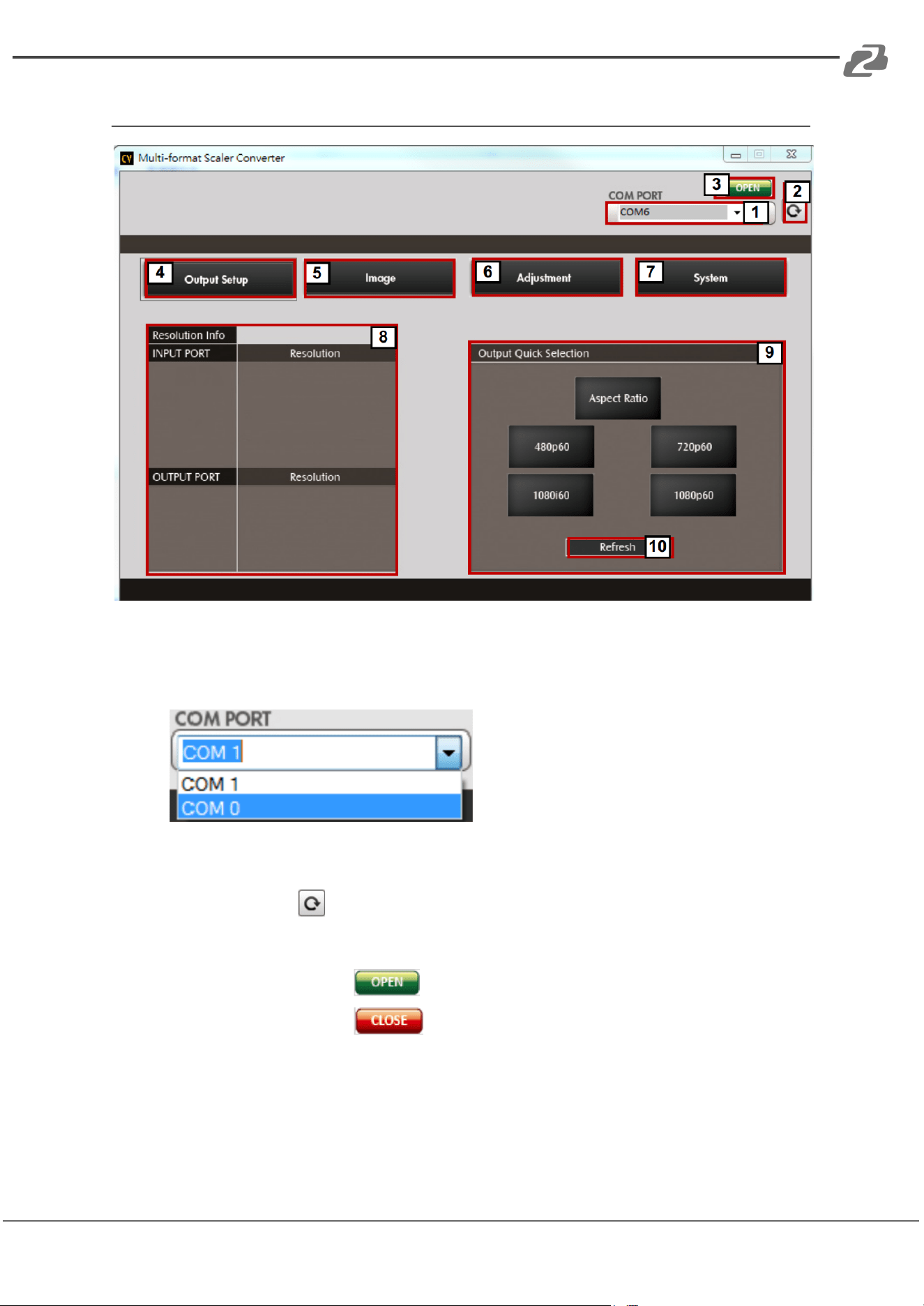

1. COM Port Selection
Select the COM PORT the unit is connected to on the computer
2. COM Port Detection Button
Click this button to auto detect the COM PORT
3. Connect/Disconnect Button
● Click this button to connect
● Click this button to disconnect
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL

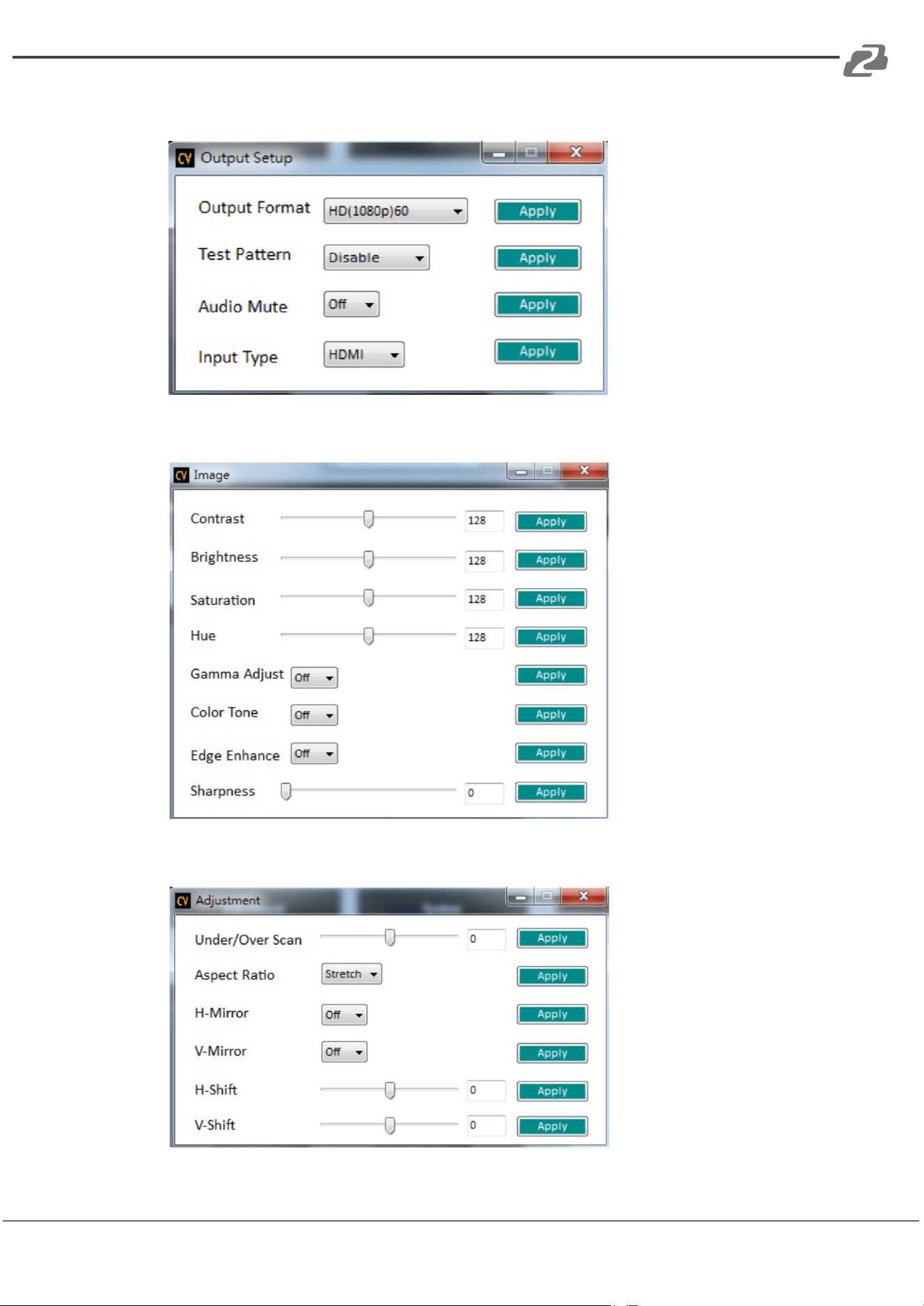

4. Output Setup Button
5. Image Button
6. Adjustment Button
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
7. System Button
● Input Format: To view the current input resolution
● F/W Version Information
● Factory Reset Button
8. Input / Output Port and Resolution Info
To display the information about the I/O Port and the applied Resolution
9. Output Quick Selection Button
Common functions for quick setting
10. Refresh Input / Output Resolution Info Button
To refresh the status of the converter

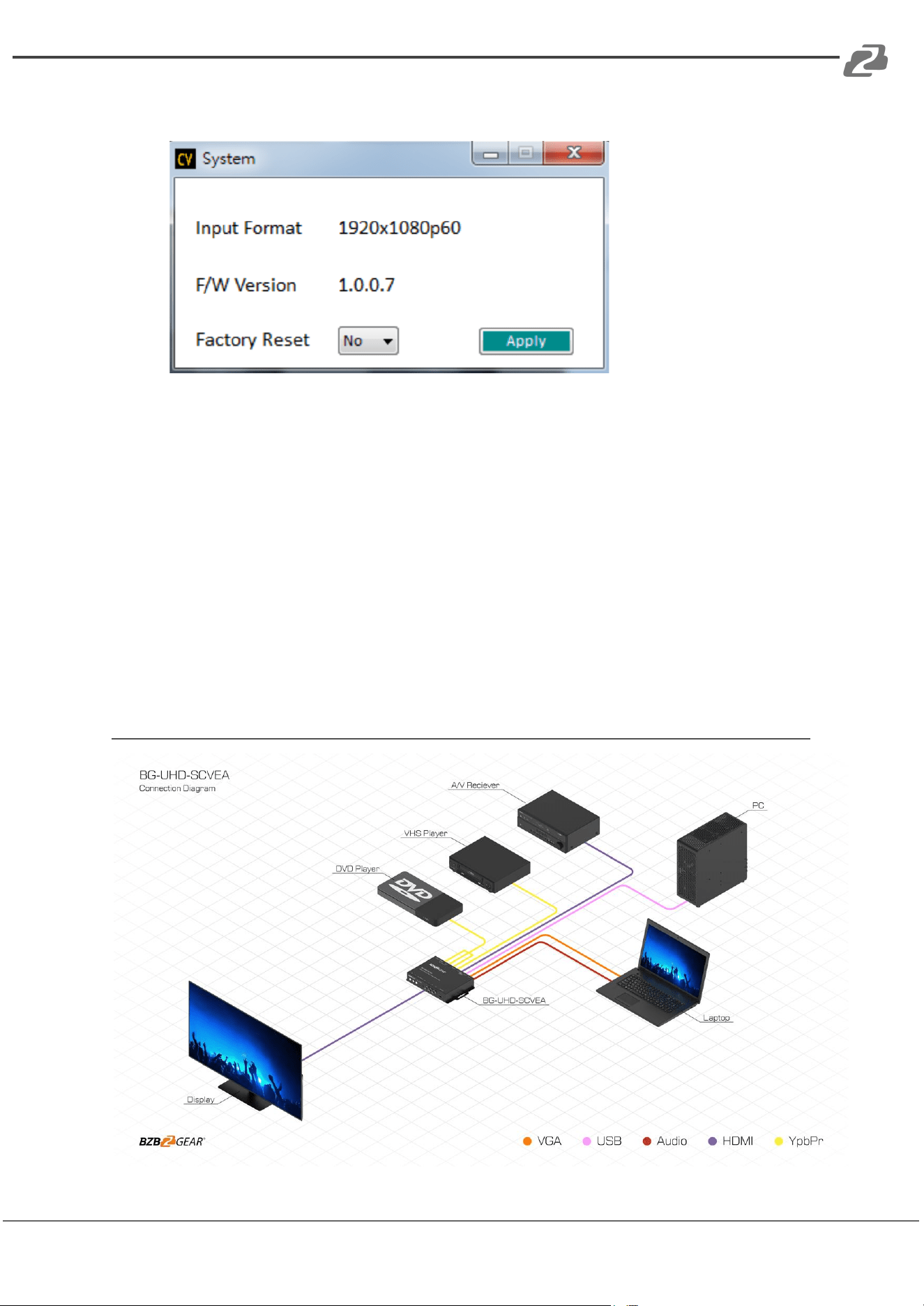

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-UHD-SCVEA PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
