BG-UM88-150L-KIT
8X8 4K 18Gpbs UHD HDMI/HDBaseT Matrix Switcher with 2-Way
IR/Advance EDID/Downscaling/IP and RS-232 Control
User Manual
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 8
HDBaseT Receiver Panel 10
IR Remote 11

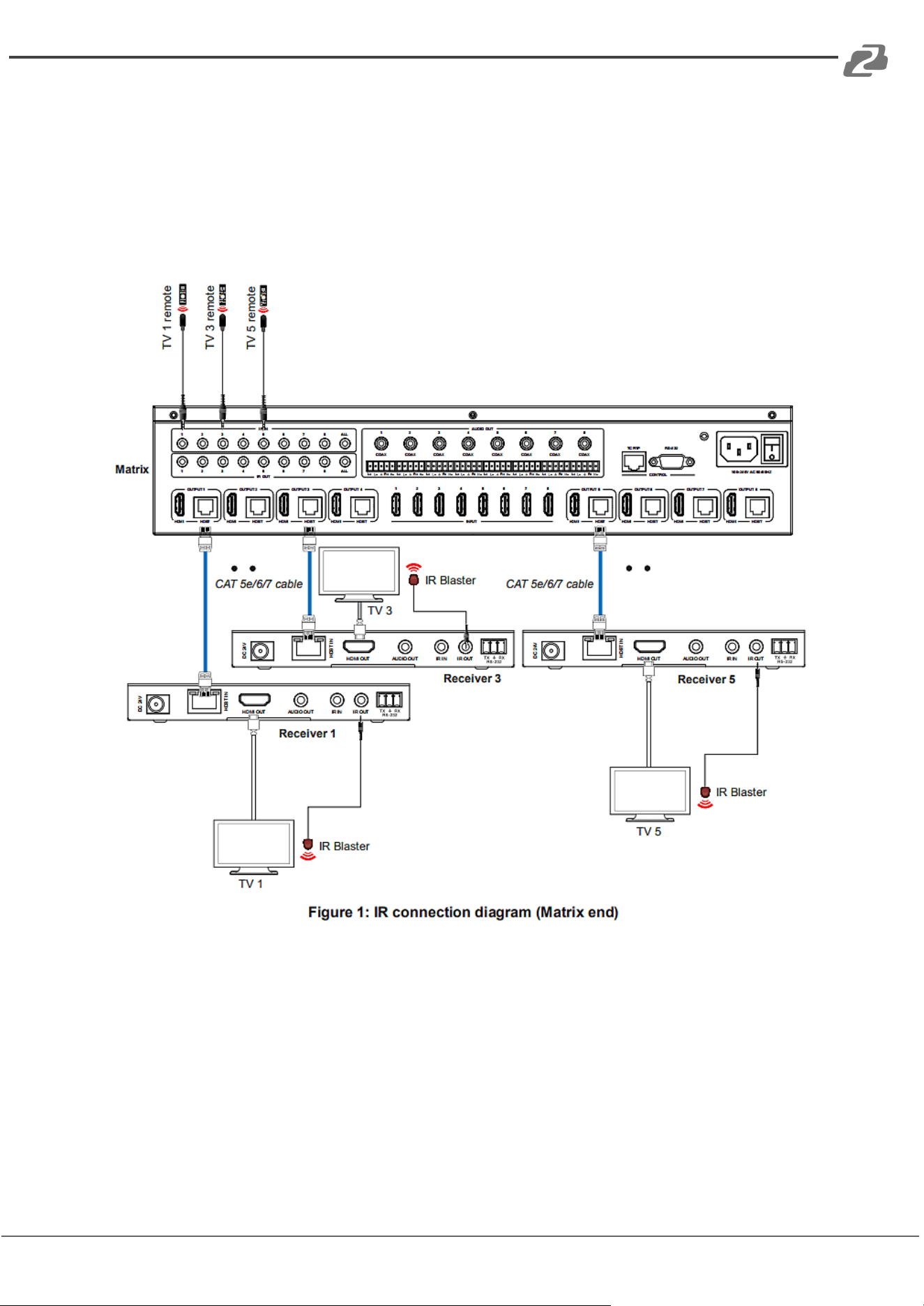

IR Control System 11

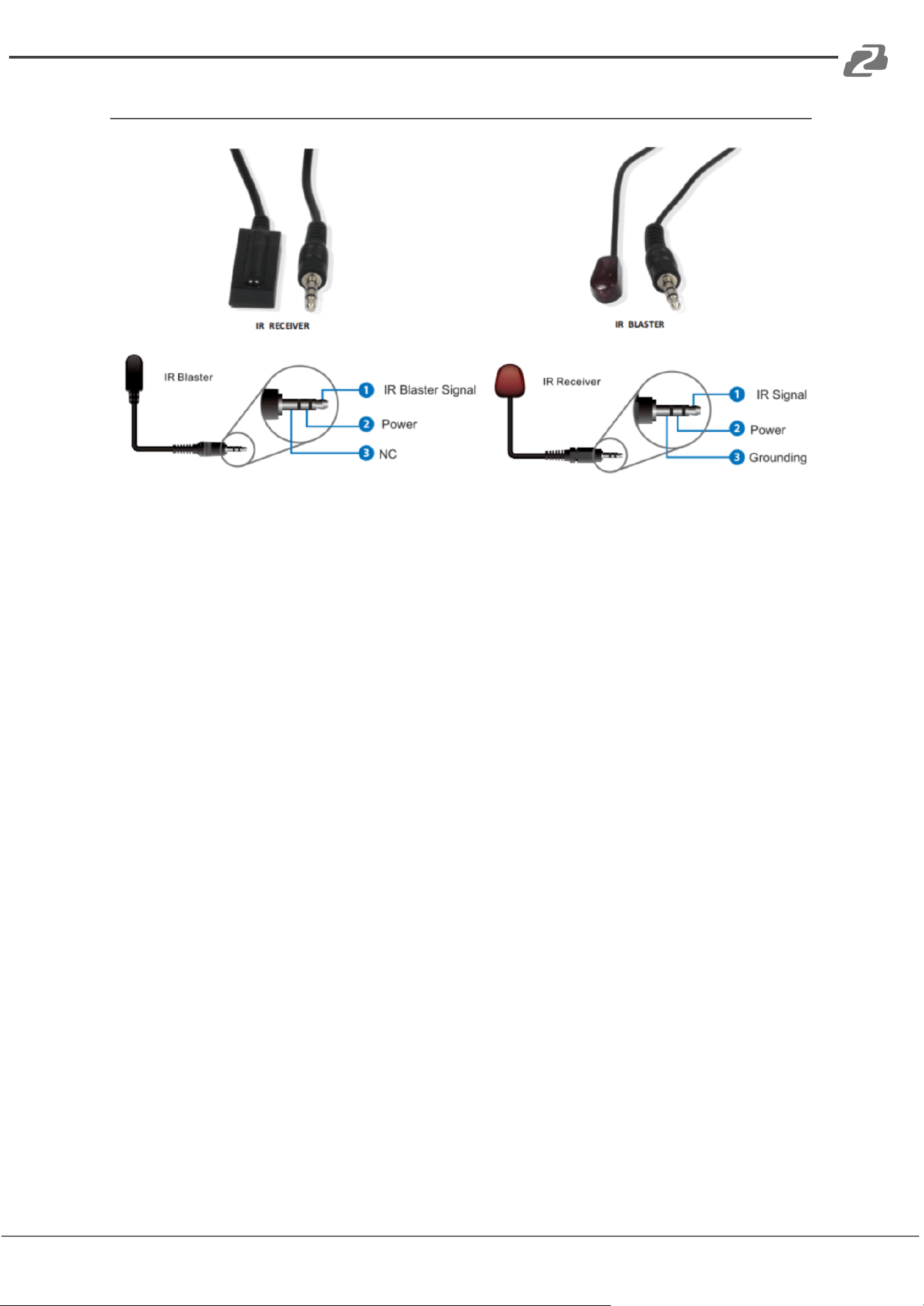

IR Cable Pin Assignment 14

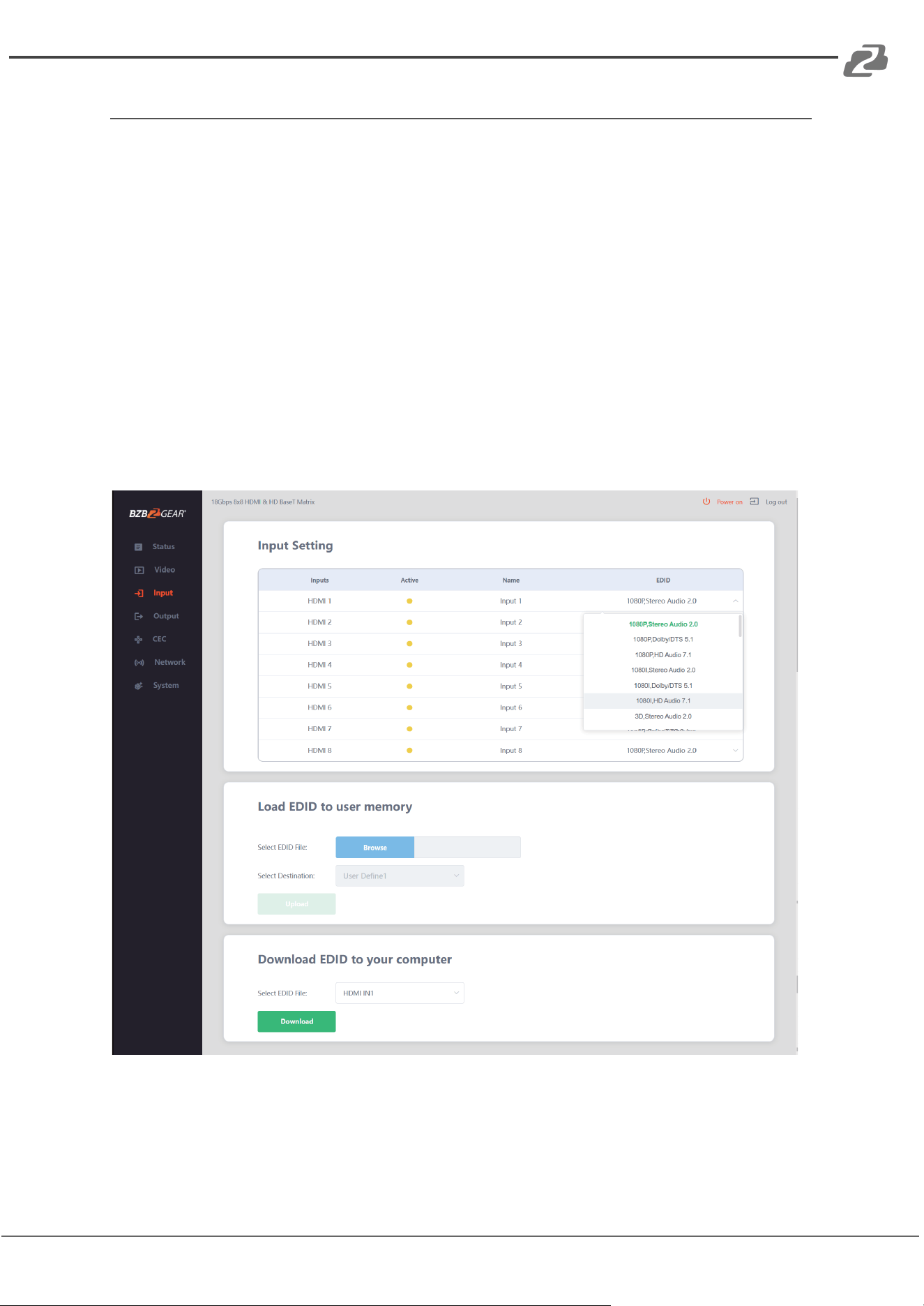

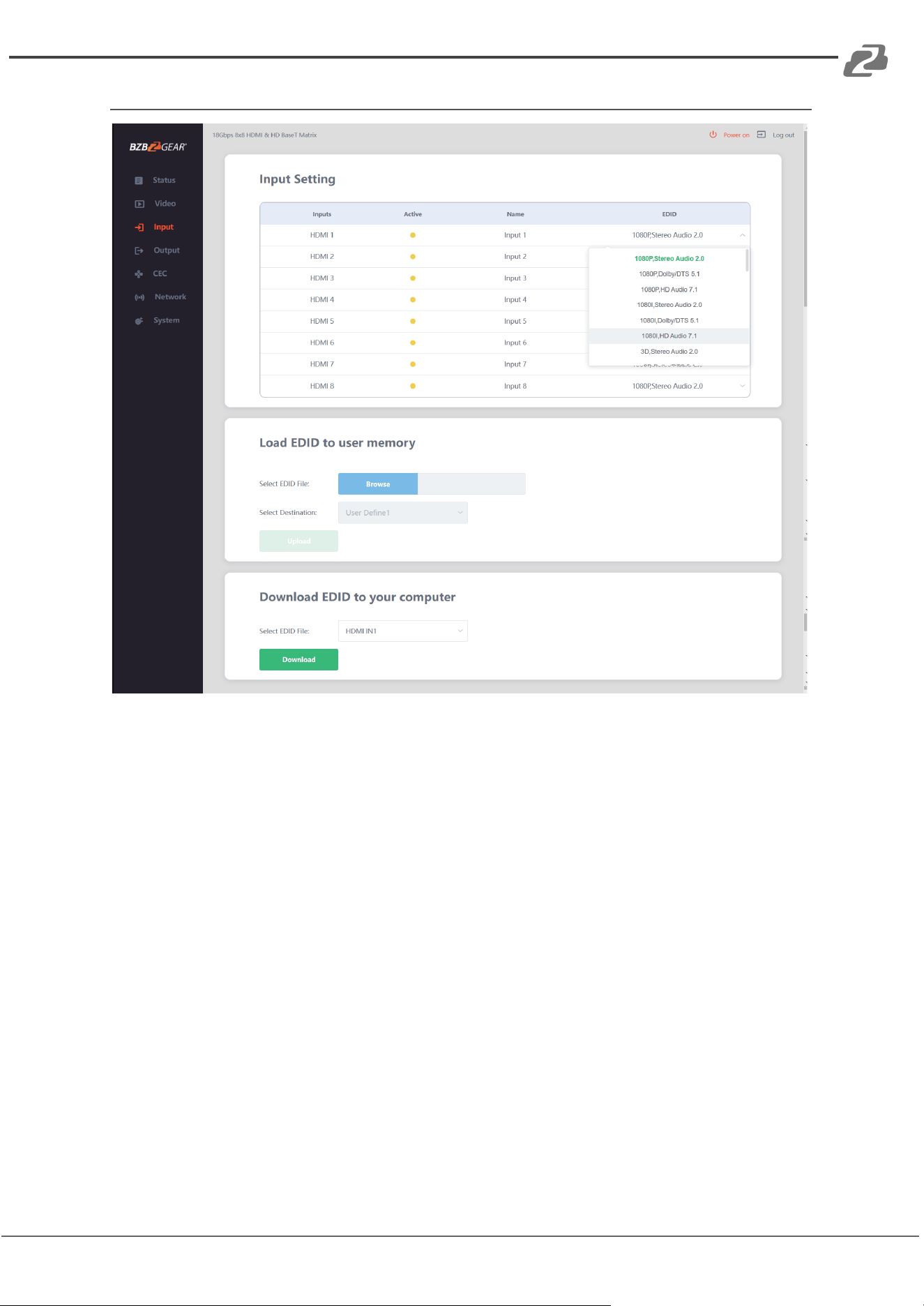

EDID Management 15

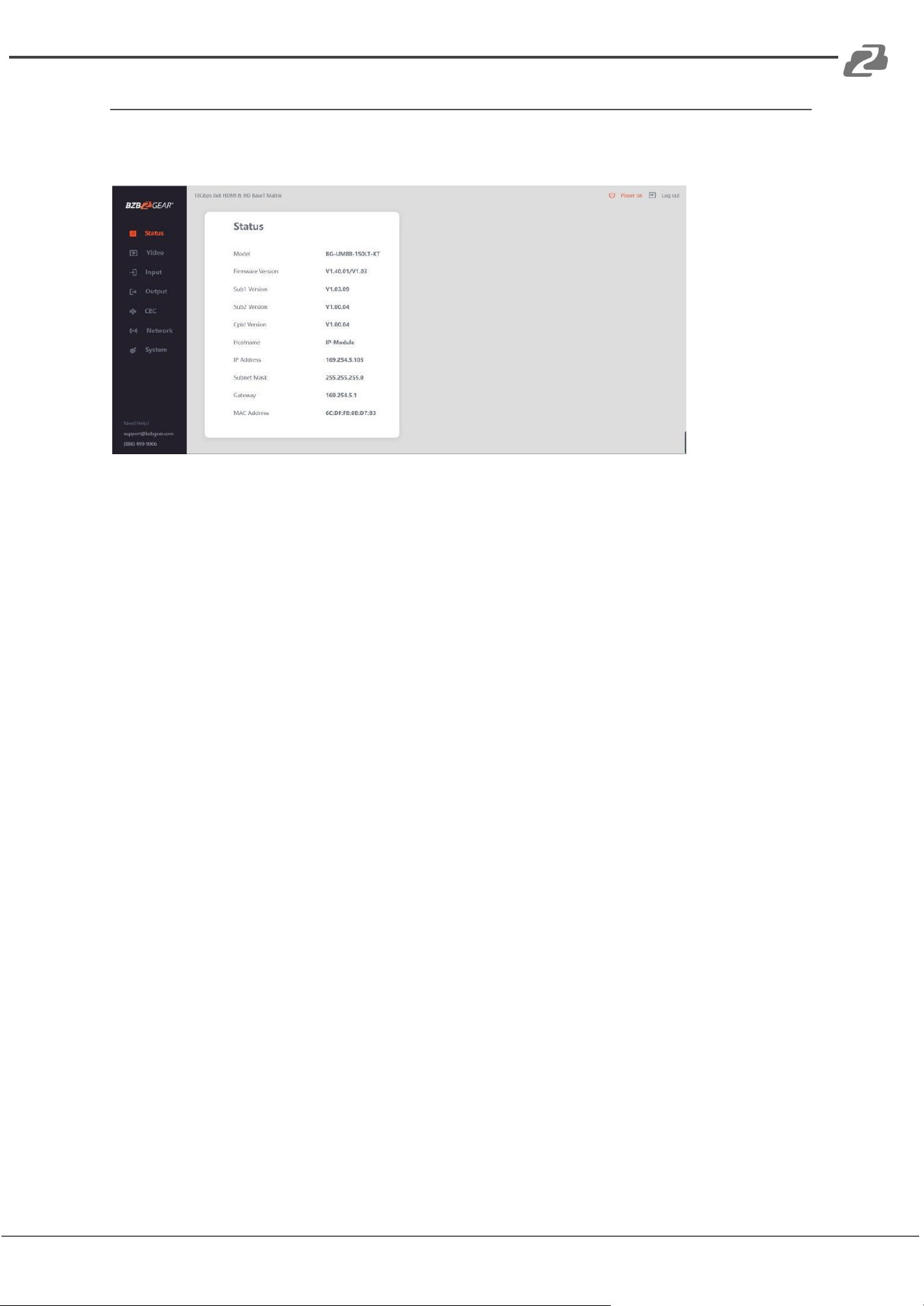

Web GUI User Guide 17

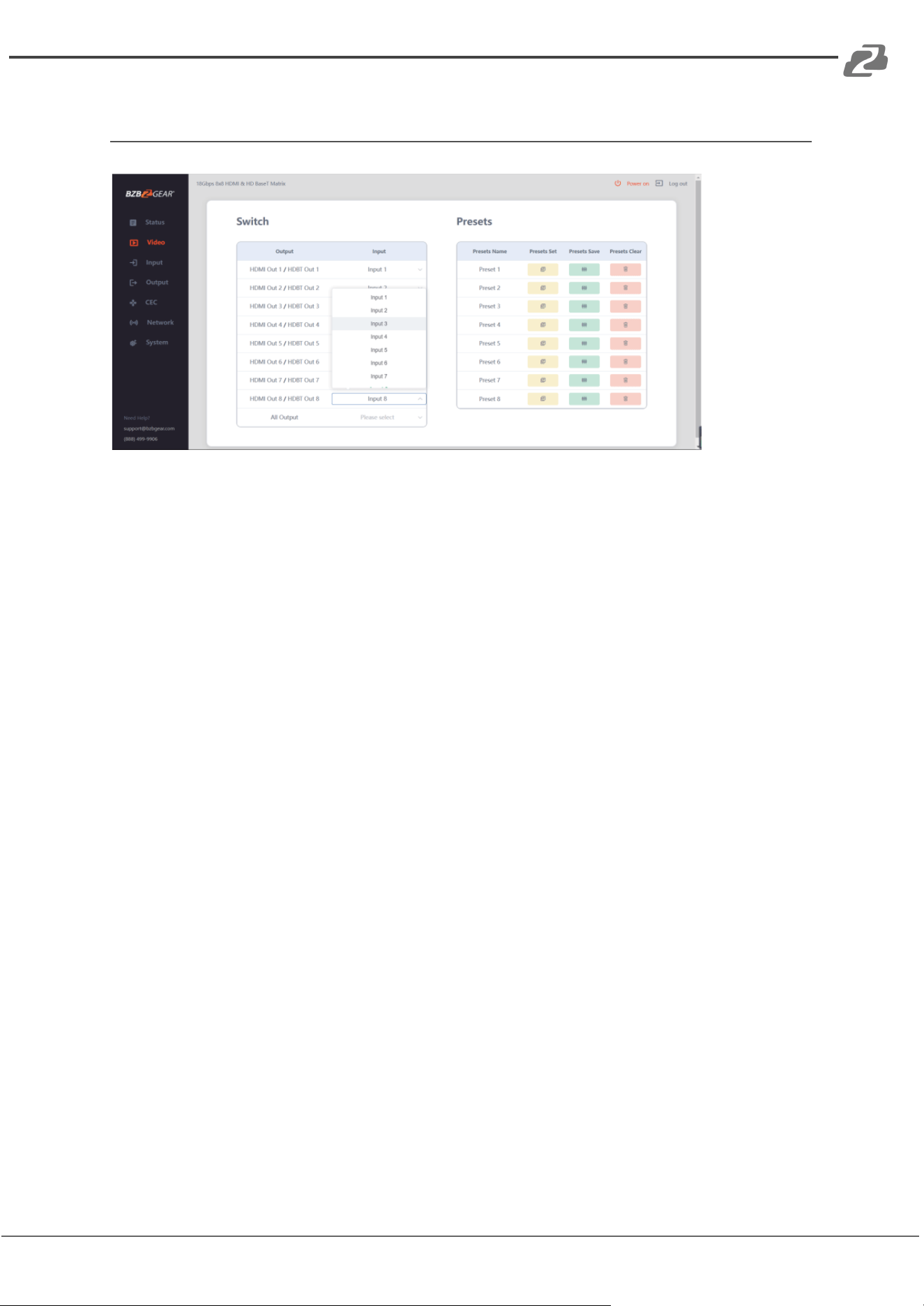

Video Page 21
RS-232 Control Commands 28

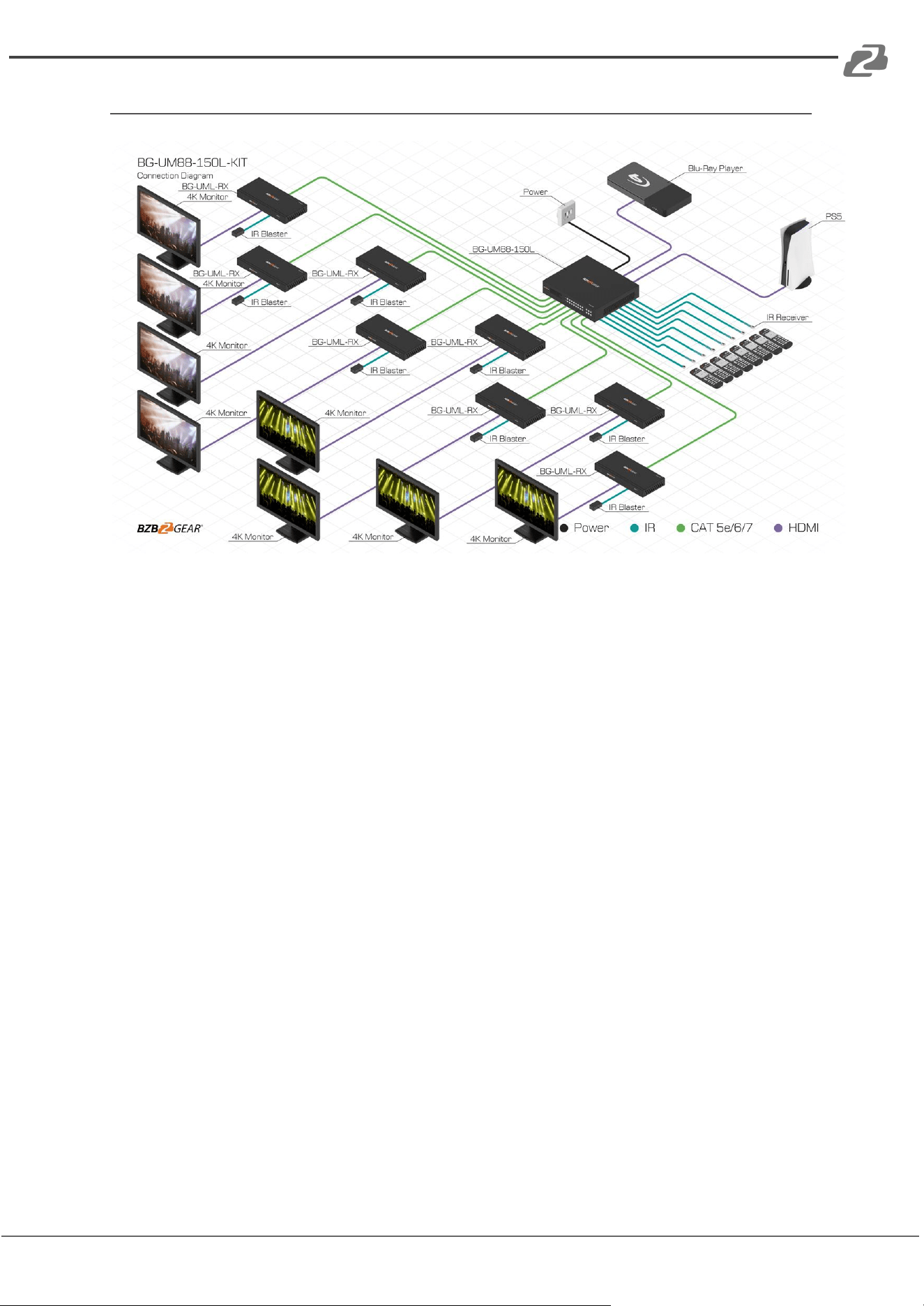

Application Example 33
Tech Support 34
Limited Product Warranty Terms 35
Mission Statement 35
Copyright 36
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● Unplug this device during lightning storms
● Clean only with a soft dry microfiber cloth.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacture
● Product specifications may be subject to technical upgrades without further notice
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Introduction
The BG-UM88-150L-KIT is an 18Gbps 8x8 HDBaseT Matrix that can connect 8 HDMI
sources to 16 displays. It features 8 HDMI outputs, and each HDMI output is mirrored to
provide an HDBaseT output which runs simultaneously. The HDBaseT output can extend
video transmission distances up to 492ft or 150m via a single CAT 5e/6/7 cable at a
resolution up to 4K@60Hz 4:4:4. Audio can be extracted via balanced LR analog (5-pin
phoenix) and digital coaxial audio. Further, each HDMI output independently supports 4K to
1080p downscaling in order to support legacy displays.
The BG-UM88-150L-KIT also supports bi-directional IR matrixing. The matrix has
one-to-one control at the transmitter but the IR signal follows the HDMI video channel at the
HDBaseT receiver end.
The BG-UM88-150L-KIT can be controlled via an intuitive set of front panel buttons and
built-in OLED screen. It also supports control via an included IR remote, RS-232, LAN, and
Web GUI.
Features
● HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
● Video resolution up to 4K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports
● 8 HDMI inputs and 8 HDMI & HDBaseT mirrored outputs
● All outputs transmit at 18Gbps for lossless uncompressed video bandwidth
● Support 4K->1080P Downscaling for each output port
● HDR, HDR10, HDR10+, Dolby Vision, HLG supported
● HDBaseT outputs can extend video transmission distance up to 492ft / 150m for
1080p and 394ft / 120m for 4K via a single Cat 5e/6/7 cable
● HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD
Master Audio)
● IR matrixing
● Audio extraction is supported via analog and coax ports
● Advanced EDID management and CEC control
● 24V PoC on all HDBaseT ports
● 1U rack mounted design with front panel OLED display and control
● Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Packing List
● 1 x 18Gbps 8x8 HDBaseT(150M) Matrix
● 8 x HDBaseT Receiver
● 1 x Matrix IR Remote
● 1 x 100~240V AC 50/60Hz Power cable
● 1 x RS-232 serial cable (1.5 meters,
male to female head)
● 8 x 3-pin Phoenix Connectors & 8 x 5-pin
Phoenix Connectors
● 9 x IR Blaster cable (1.5 meters)
● 9 x IR Receiver cable (1.5 meters)
● 18 x Mounting Ear (Matrix and Receiver)
● 1x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.x
Video Bandwidth
18Gbps
Video Resolution
Up to 4K@50/60Hz (4:4:4)
Color Space
RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth
8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K@60Hz YUV4:4:4)
8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0）
HDR
HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD
Master,
DTS HD-HRA, DTS-X
Coax Audio Formats
PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Balanced
Audio Formats
PCM2.0CH
Vmax
2Vrms
SNR
＞90dB
THD+N Ratio
＜0.1%（V_max） 0.001%~0.01%（V_best）
Crosstalk
＞80dB
Frequency Response
20Hz~20kHz ±0.5dB
ESD Protection
Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection
Matrix
Inputs: 8 x HDMI Type A [19-pin female]
Outputs: 8 x HDMI Type A [19-pin female]
8 × HDBaseT port [RJ45]
8 × Coaxial audio [RCA]
8 × balanced analog audio [5-pin Phoenix connector]
Controls: 9 x IR IN [3.5mm Stereo Mini-jack]
9 x IR OUT [3.5mm Stereo Mini-jack]
1 × TCP/IP [RJ45]
1 × RS-232 [D-Sub 9]
HDBaseT Receiver
Input: 1 x HDBT IN [RJ45, 8-pin female]
Outputs: 1 x HDMI Type A [19-pin female]
1 x AUDIO OUT [3.5mm Stereo Mini-jack]
Controls: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3-pin Phoenix connector]
1 x SERVICE [Mini-USB, Update port]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
Matrix: 440mm (W) × 374mm (D) × 88.6mm (H)
Receiver: 140mm (W) x 65mm (W) x 18mm (W)
Weight
Matrix: 6.54Kg, Receiver: 155g
Power Supply
AC 100 - 240V 50/60Hz
Power Consumption
125W (Max)
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
Resolution / Distance
4K60 - Feet / Meters
CAT5e/6/7
492ft / 150M
Resolution / Cable length
4K60 -
Feet / Meters
4K30 -
Feet / Meters
1080P60 -
Feet / Meters
HDMI IN / OUT
16ft / 5M
32ft / 10M
50ft / 15M
The use of “Premium High-Speed HDMI” cable is highly recommended.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Operation Controls and Functions
Matrix Panel

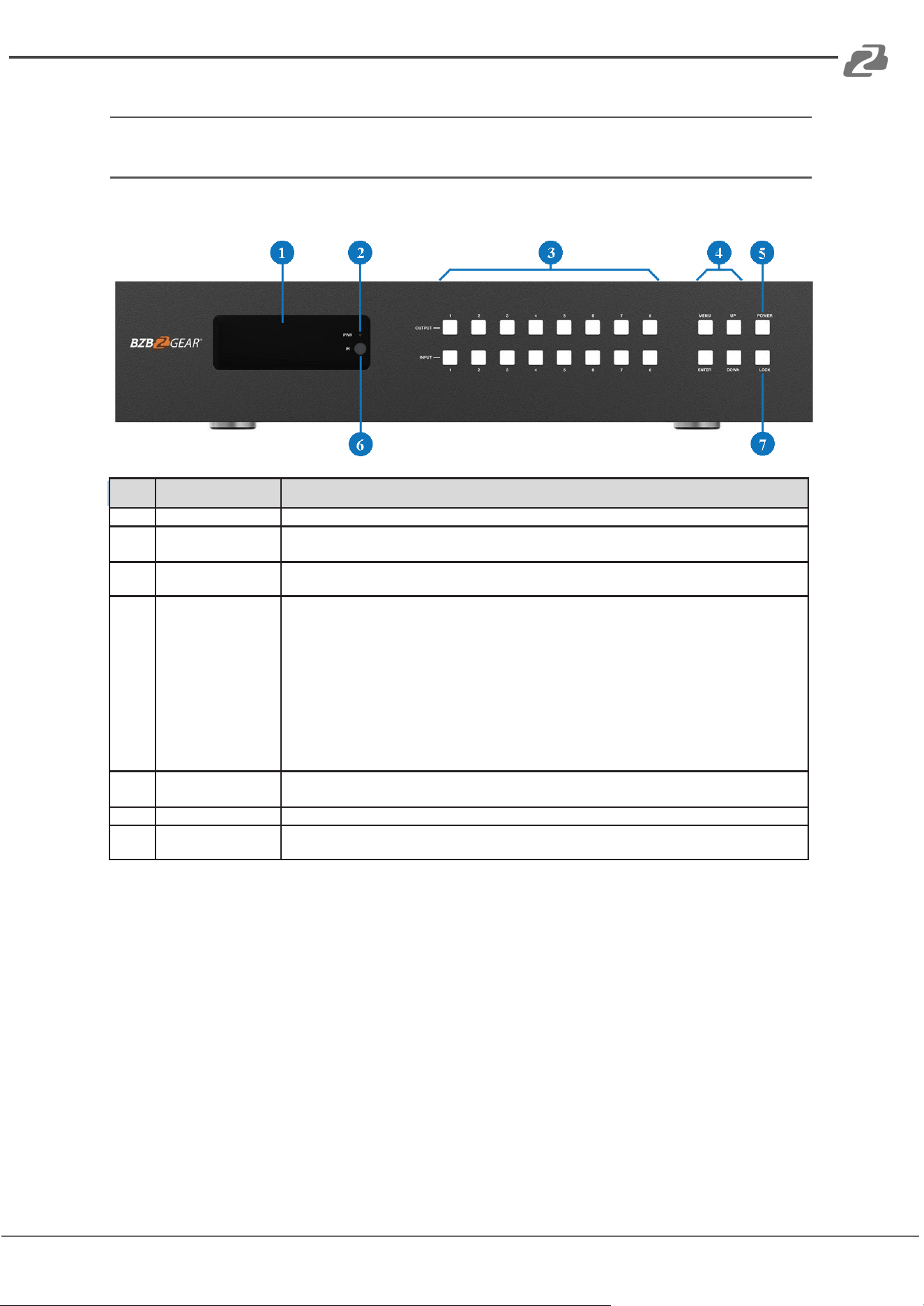

Front Panel
NO.
Name
Function Description
1
OLED screen
Display matrix switching status, input / output port, EDID, Baud rate, and IP Address.
2
Power LED
The LED will illuminate green when the product is working normally and red when the product
is in standby.
3
OUTPUT / INPUT
Press an output button (1~8) first and then press an input button (1~8) to select the
corresponding input source for the output port.
4
MENU / ENTER /
UP /DOWN
1. EDID settings: On the initial OLED display screen, press the “MENU” button once to open
the “Select EDID” interface. Press the “UP/DOWN” buttons to select the required EDID and
press the “ENTER” button to enter the “Copy to Input:” interface. Press the “UP/DOWN”
buttons to select the input port you wish to set and press “ENTER” button to confirm.
2. Baud rate settings: On the initial OLED display screen press the “MENU” button twice to
enter the “SELECT BAUD” interface. Press the “UP/DOWN” buttons to select the required
Baud rate and finally press the “ENTER” button to confirm the settings.
3. IP Address Check: On the initial OLED display screen, press the “MENU” button three
times to enter the IP interface and check the current IP address, then press “UP/DOWN”
button to switch DHCP ON/OFF, finally press the “ENTER” button to confirm the setting.
Pressing the “MENU” button again will return to the initial OLED display status.
5
POWER button
Press and hold the POWER button for 3 seconds to enter the standby mode, then press the
button again to wake up the device.
6
IR Window
IR receiver window, it only receives the IR remote signal from this product.
7
LOCK button
Press the LOCK button to lock front panel buttons (Except the power button); Press the
button again to unlock.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL

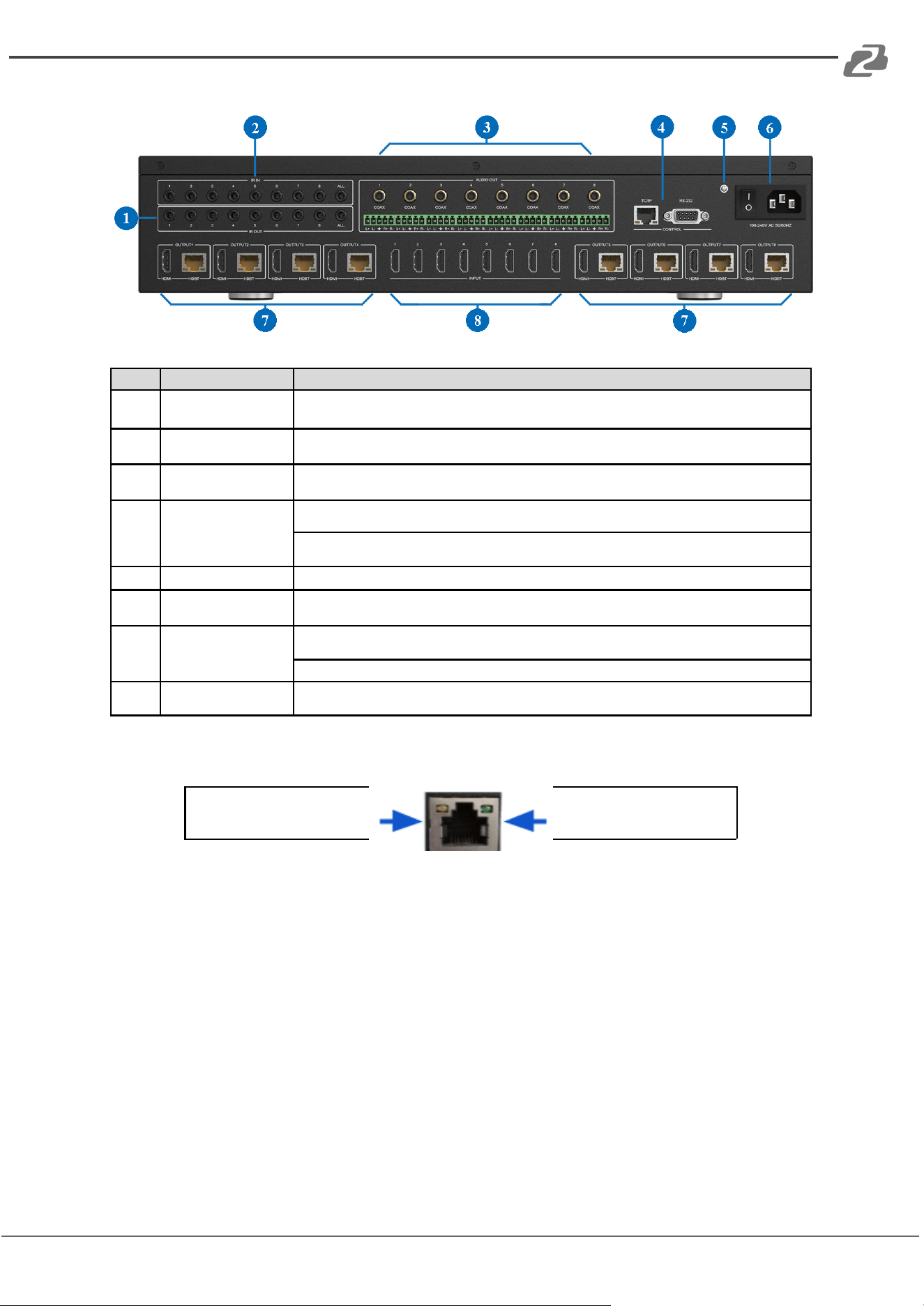

Rear Panel
No.
Name
Function Description
1
IR OUT (1-8/ ALL)
ports
Connect to the IR blaster cable, the IR emit signal is from the “IR IN” port of the HDBaseT
Receiver.
2
IR IN (1-8/ALL) ports
Connected to the IR receiver cable, the IR receive signal will emit to the “IR OUT” port of the
HDBaseT Receiver.
3
AUDIO OUT (1-8) ports
8 groups of coaxial and balanced analog audio mirrored output ports. AUDIO OUT (1-8)
follows the video output of OUTPUT (1-8) ports.
4
CONTROL ports
TCP/IP: The link port for TCP/IP control. Connect to an active Ethernet link with an RJ45
cable.
RS-232: Command control port. Connect to a PC or control system with a D-Sub 9-pin cable
to control the Matrix.
5
GND
Connect the housing to the ground.
6
POWER input
Power port: Connect to 100~240V AC 50/60Hz power cable.
Power switch: Press the switch to turn on/off the power.
7
OUTPUT (1-8) ports
HDMI output ports, connect to HDMI display devices such as a TV or monitor with an HDMI
cable.
HDBT mirrored output ports, connect to HDBaseT Receiver via CAT cable.
8
INPUT (1-8) ports
HDMI input ports, connect to HDMI source devices such as a Bluray/media player with an
HDMI cable.
Data Signal
Indicator Lamp
Connection Signal
Indicator Lamp
● Solid: HDMI signal with HDCP.
● Flashing: HDMI signal without HDCP.
● Dark: No HDMI signal.
● Solid: Matrix and HDBaseT Receiver
are in good connection status.
● Flashing: Matrix and HDBaseT
Receiver are in poor connection status.
● Dark: Matrix and HDBaseT Receiver
are not connected.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL

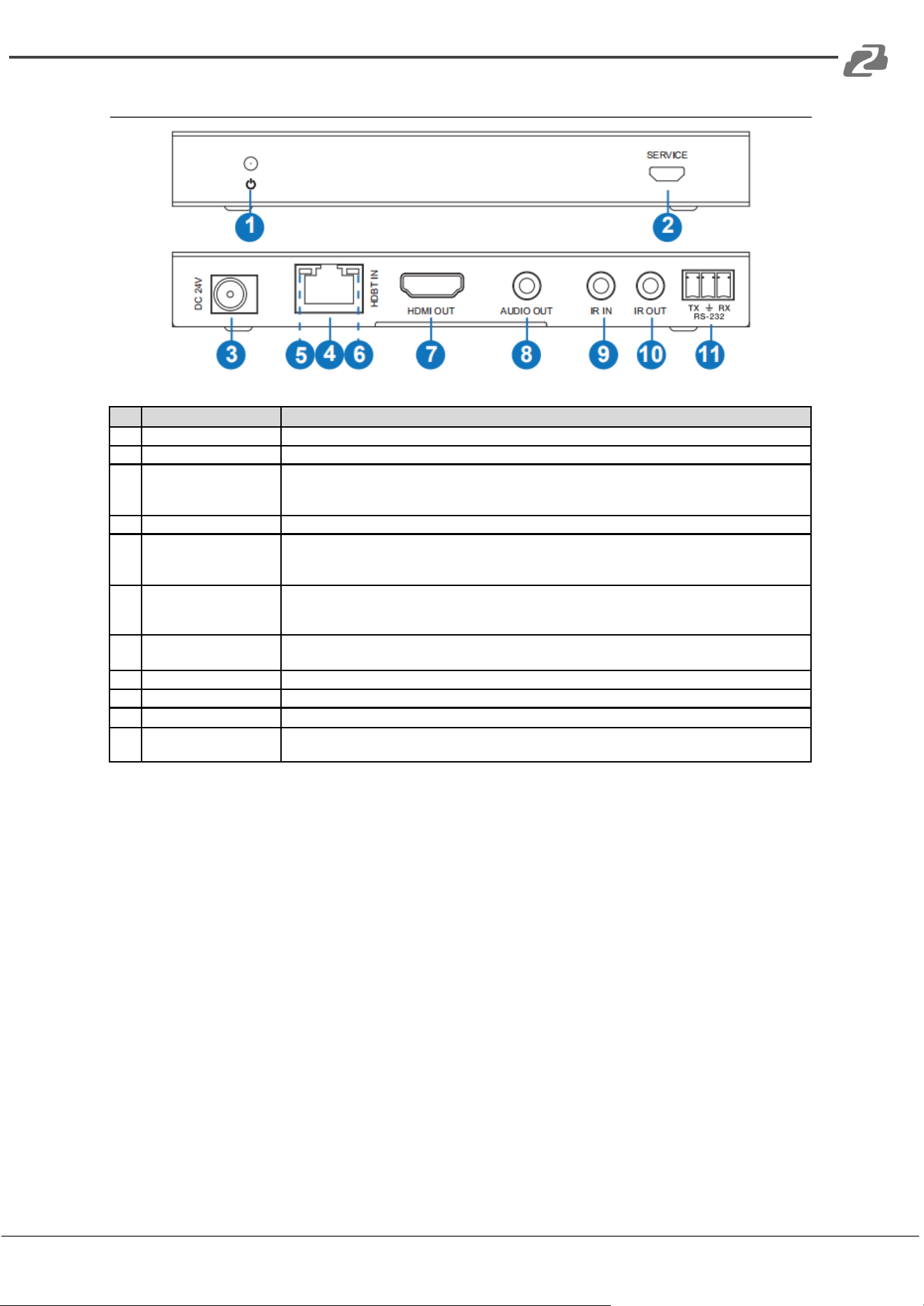

HDBaseT Receiver Panel
No.
Name
Function Description
1
Power LED
Red LED will be on when the receiver is powered on.
2
SERVICE port
Firmware update port.
3
DC 24V
DC 24V/1A power supply input port.
Note: The Matrix supports power over cable (PoC), which means that the receiving unit does
not need a power supply.
4
HDBT IN
RJ45 connector for connecting the HDBT OUTPUT port of Matrix with a CAT cable.
5
Connection Signal
Indicator lamp
▪ Solid: Matrix and Receiver are in good connection status.
▪ Flashing: Matrix and Receiver are in poor connection status.
▪ Dark: Matrix and Receiver are not connected.
6
Data Signal Indicator
▪ Solid: HDMI signal with HDCP.
▪ Flashing: HDMI signal without HDCP.
▪ Dark: No HDMI signal.
7
HDMI OUT
HDMI output port, connect to HDMI display device such as TV or monitor with HDMI
cable.
8
AUDIO OUT
Analog audio output port. The audio is extracted from the HDMI signal.
9
IR IN
Connect to the IR receiver cable, the IR receive signal will emit to the “IR OUT” on the Matrix.
10
IR OUT
Connect to IR blaster cable and the IR emit signal will be from the “IR IN” port of the Matrix.
11
RS-232
Connect to a PC or control system with a 3-pin phoenix connector cable to transmit
command between the Matrix and HDBaseT Receiver.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL

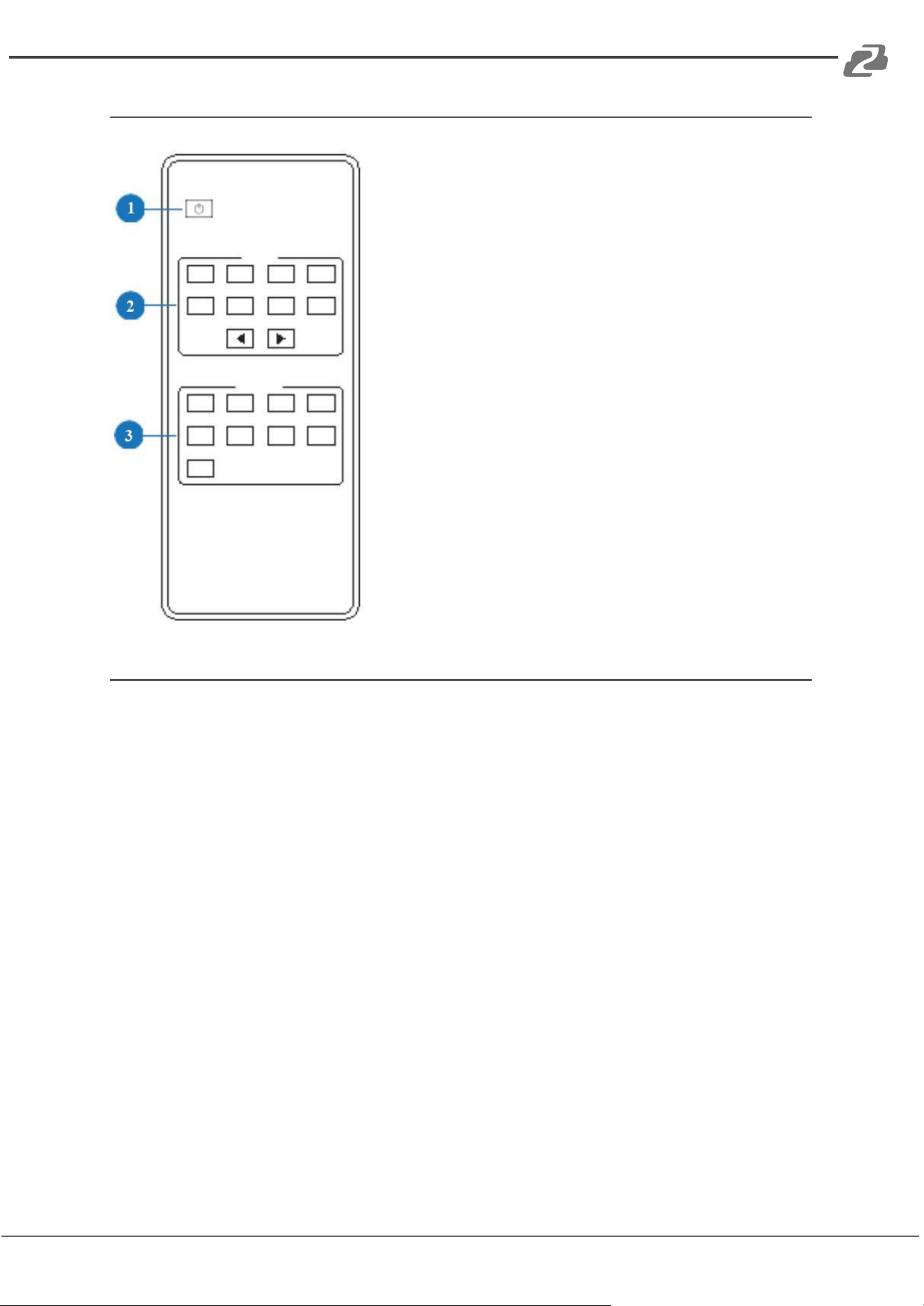

IR Remote
1. Power on or Standby: Power on the Matrix or set it
to standby mode.
2. Input: 1/2/3/4/5/6/7/8: Select input source button.
◀ ▶ : Select the last or next input source button.
3. Output: 1/2/3/4/5/6/7/8 button: Select output
source button.
All: Select all outputs to play one source
simultaneously. For example, when you press the
“All” button and then press input the “1” button, the
input “1” source will output to all display devices.
Operation instruction: First press an output button and
then press an input button to select the corresponding
input source.
IR Control System
This unit supports bi-directional IR control. When Matrix is connected to an HDBaseT
Receiver through Cat 5e/6/7 cable, you can control a remote display device (receiver end) or
input source device (Matrix end) through IR signal transmission. Note: the IR signal
transmission method is different from Matrix (local) to HDBaseT Receiver (remote) and from
HDBaseT Receiver (remote) to Matrix (local).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
At the Matrix end (Local end): the IR signal is one-to-one transmission. For example, the IR
IN 1 port signal of the Matrix will emit to IR OUT port of the HDBaseT Receiver 1, and the
IR IN 3 port signal of the Matrix will emit to IR OUT port of the HDBaseT Receiver 3. It
doesn’t follow the video switch to change. IR IN ALL port signal of the Matrix will emit to all
IR OUT ports of HDBaseT receivers simultaneously. Please see the following connection
diagram.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL

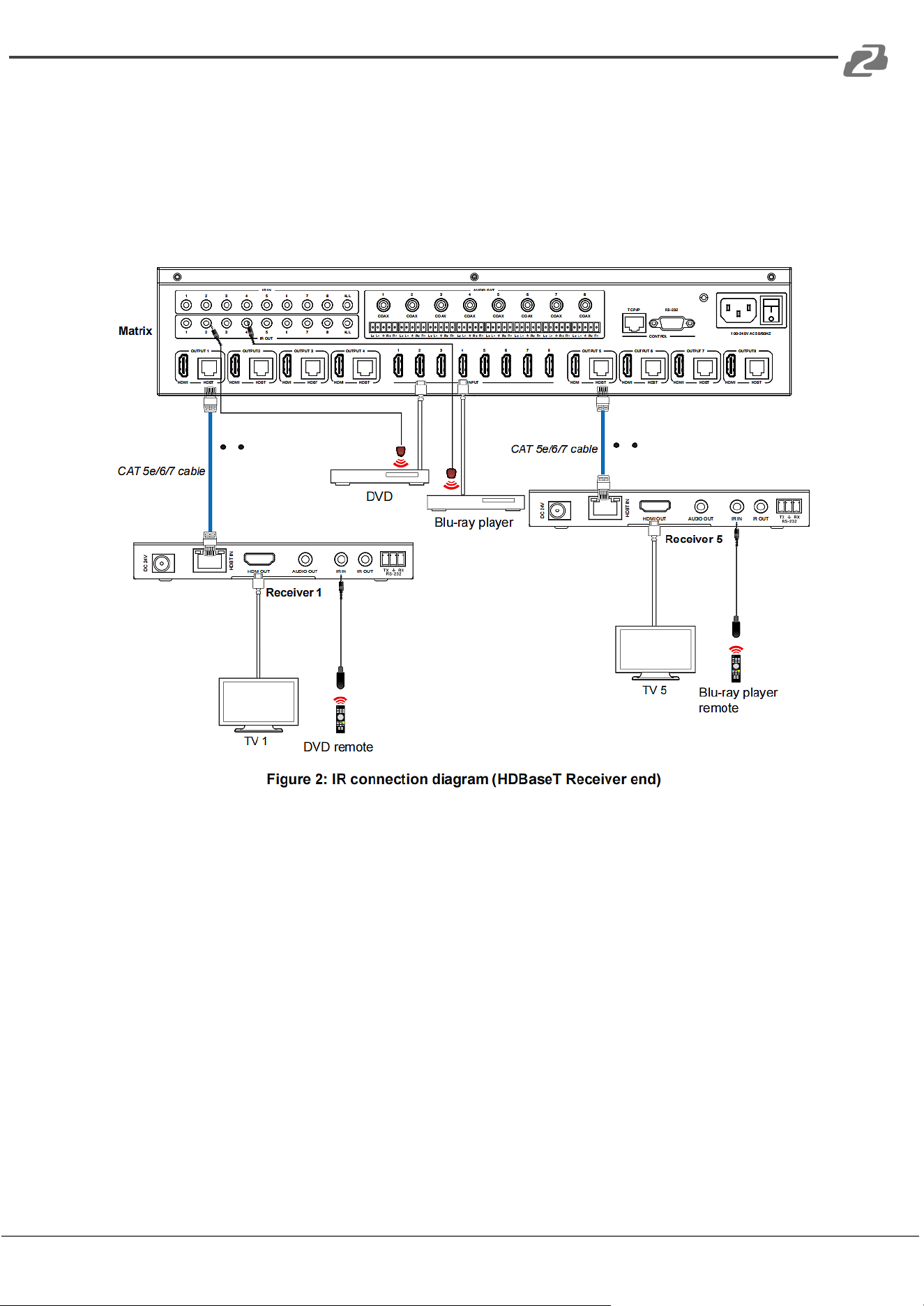

At HDBaseT receiver (Remote end): IR signal follows the video switch and changes. For
example, the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2, so
the IR input signal of the HDBaseT Receiver 1 will emit to the IR OUT 2 port of the Matrix.
The HDMI output signal on the HDBaseT Receiver 5 is from the HDMI INPUT 4. Then, the IR
input signal of the HDBaseT Receiver 5 will emit to IR OUT 4 port of the Matrix etc. Any
HDBaseT Receiver’s IR IN signal can output from the IR OUT ALL port of the Matrix and the
IR OUT ALL signal of the Matrix depends on your IR remote source device. Please see the
following connection diagram.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
IR Cable Pin Assignment
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
EDID Management
This Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes and 16 copy
EDID modes. You can select defined EDID mode or copy EDID mode to input port through
the on-panel buttons, RS-232 control, or Web GUI.
On-panel button operation: On the initial OLED display screen, press the “MENU” button
to enter the EDID setting interface. Next, press the “UP/DOWN” buttons to select the
required EDID, and press the “ENTER” button to enter the “Copy to Input:” interface. Then
press the “UP/DOWN” buttons to select the input port you need to set, and press the
“ENTER” button again to confirm this operation.
RS-232 control operation: Connect the Matrix to PC with a serial cable, then open a Serial
Command tool on PC to send ASCII command’s EDID in x from z!” to set EDID. For details,
please refer to “EDID Setting” in the ASCII command list section in this manual.
Web GUI Operation: Please check the EDID management in the “Input page” of Web GUI
User Guide section of this manual.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
EDID Settings:
EDID Mode
EDID Description
1
1080p, Stereo Audio 2.0
2
1080p, Dolby/DTS 5.1
3
1080p, HD Audio 7.1
4
1080i, Stereo Audio 2.0
5
1080i, Dolby/DTS 5.1
6
1080i, HD Audio 7.1
7
3D, Stereo Audio 2.0
8
3D, Dolby/DTS 5.1
9
3D, HD Audio 7.1
10
4K2K30_444, Stereo Audio 2.0
11
4K2K30_444, Dolby/DTS 5.1
12
4K2K30_444, HD Audio 7.1
13
4K2K60_420, Stereo Audio 2.0
14
4K2K60_420, Dolby/DTS 5.1
15
4K2K60_420, HD Audio 7.1
16
4K2K60_444, Stereo Audio 2.0
17
4K2K60_444, Dolby/DTS 5.1
18
4K2K60_444, HD Audio 7.1
19
4K2K60, Stereo Audio 2.0 HDR
20
4K2K60, Dolby/DTS 5.1 HDR
21
4K2K60, HD Audio 7.1HDR
22
User define1
23
User define2
24~31
Copy from HDMI OUTPUT 1~8
32~39
Copy from HDBT OUTPUT 1~8
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Web GUI User Guide
The Matrix can be controlled through a web interface and its operation is shown below.
Step 1: Find the current IP Address. The default IP address is 192.168.1.100.
1. Find the IP address via the panel buttons. On the initial OLED display, press the
“MENU” button to enter the IP interface, then press the “UP/DOWN” button to check
the current IP address.
2. Find the IP address via RS-232 control. Send the command “ r ipconfig!” through an
ASCII Command tool, the following information will then populate:
IP: 192.168.62.100 in the above figure is the IP Address of the Matrix (the IP address is
variable if its mode is set to DHCP).
For the details of ASCII control, please refer to the ASCII section of this manual.
Step 2: Connect the matrix LAN port directly to your PC using an ethernet cable.
Step 3: On the PC, go to Control Panel> Network and Internet> Network Connections>
Right click on Local Area Connections and select “Properties”.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 17
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL

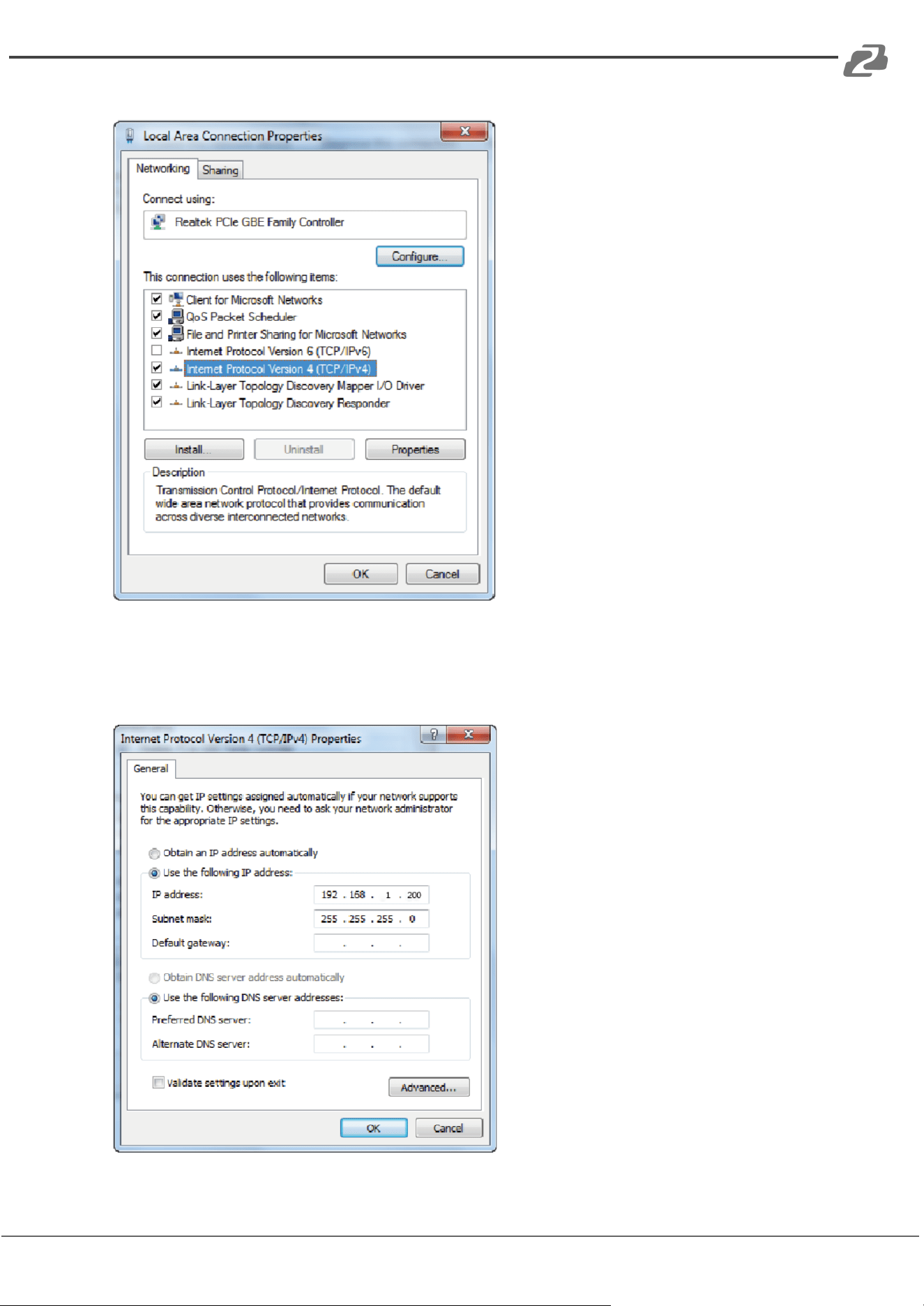

Step 4: Double click “Internet Protocol Version 4 (TCP/IPv4)”
Step 5: Select “Use the following IP address” input a non-conflicting IP address that
matches the scheme of your matrix (default 192.168.1.#). In the example below
192.168.1.200 is used as the IP address, 255.255.255.0 as the Subnet mask, and then click
on “OK.”
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 18
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Note: The IP address of the computer and matrix should be in the same network segment. If
the matrix's IP address is 192.168.10.100, the computer's IP should be 192.168.10.X where
X is 1~255 except 100.
Step 6: Input the current IP address of the Matrix into the PC's browser to access the Web
interface.
After entering the Web GUI page, there will be a Login page, as shown below:
Select the Username from the list and enter the password. The default passwords are:
Username
User
Admin
Password
user
admin
After entering the password, click the “LOGIN” button and the following Status page will
appear.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 19
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Status Page
The Status page provides basic information about the product such as model, installed
firmware version, and the network information of the device.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 20
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Video Page
You can do the following operations on the Video page:
1. Output: The current device’s OUTPUT port. You can select a signal source for it.
2. Input: You can click the drop-down menu to select signal source for the
corresponding OUTPUT port.
3. Presets Name: You can name the current scene with a maximum length of 12
characters.
4. Presets Set: You can restore the settings of a previously saved matrix preset.
5. Presets Save: You can save an audio-video matrix switching configuration.
6. Presets Clear: You can clear the saved audio-video matrix configuration.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 21
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Input Page
You can do the following operations on the Input page:
1. Inputs: Input channel of the device.
2. Active: It indicates whether the channel is connected to a signal source.
3. Name: You can modify the input channel name by entering up to 12 characters..
4. EDID: You can set the current channel’s EDID. The specific operation is as follows:
Set EDID for the User
Click the “Browse” button, then select the bin file. If you select the wrong EDID file, there will
be a prompt “invalid EDID file.”
Next, select “User 1” or “User 2” and then click “Upload”. After successfully uploading, it
will prompt “Upload Success!”
Download the EDID File to your computer
Click the drop-down box of “Select EDID File” to select the input whose EDID information
you wish to save. Then click “Download” to download the corresponding EDID file.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 22
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL

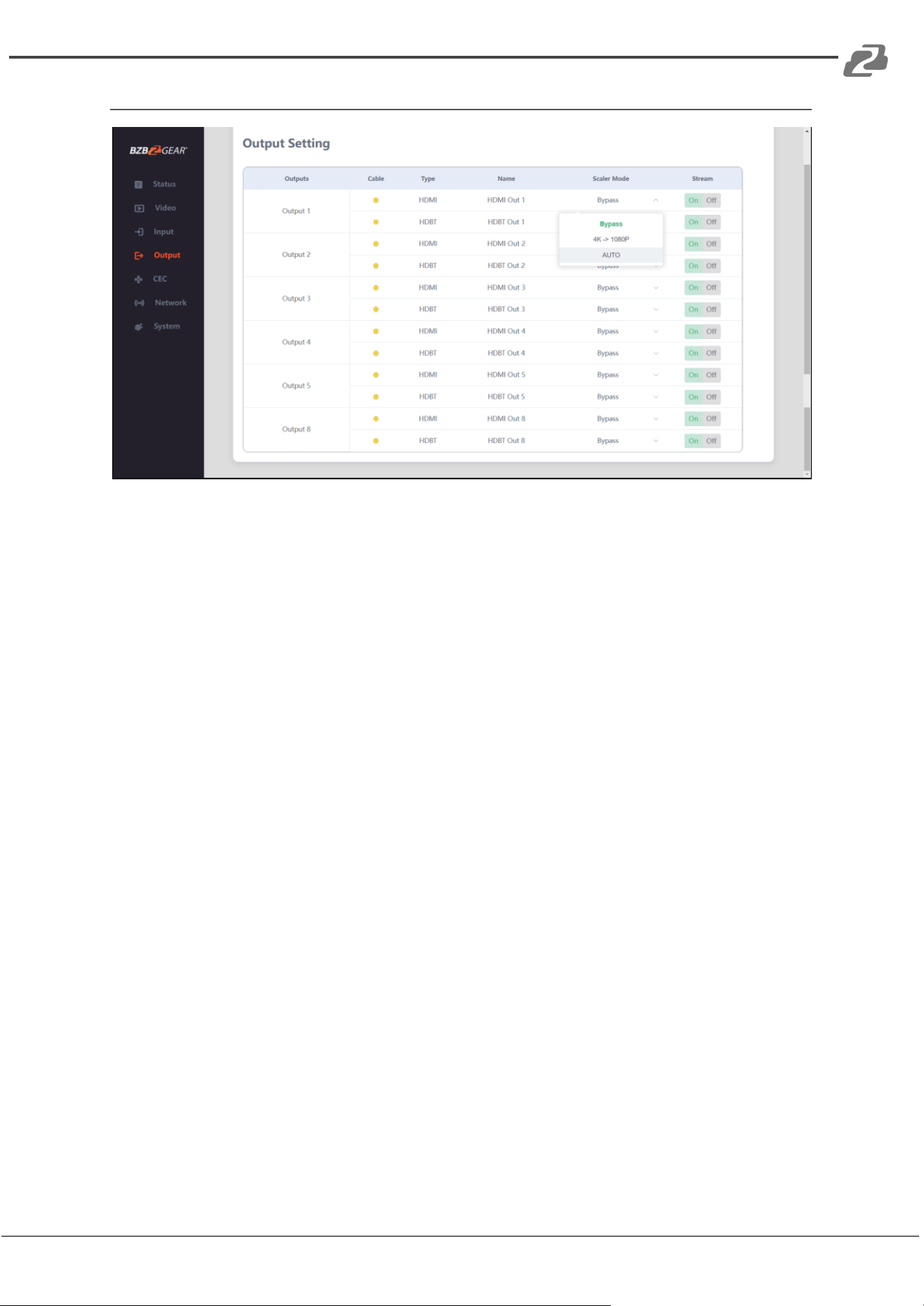

Output Page
You can do the following operations on the Output page:
1. Outputs: Output channel of the device.
2. Name: The current output channel’s name. You can modify it by entering up to 12
characters.
3. Type: The current output channel’s type (HDMI or HDBT).
4. Cable: It indicates the connection status of output ports. When the output port is
connected to the display, it shows green, otherwise, it shows yellow.
5. Scaler Mode: Set the selected output resolution to either Bypass, downscale from
4K to 1080p or auto and have the matrix attempt to choose the best option.
6. Stream: Turn on/off the output stream
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 23
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL

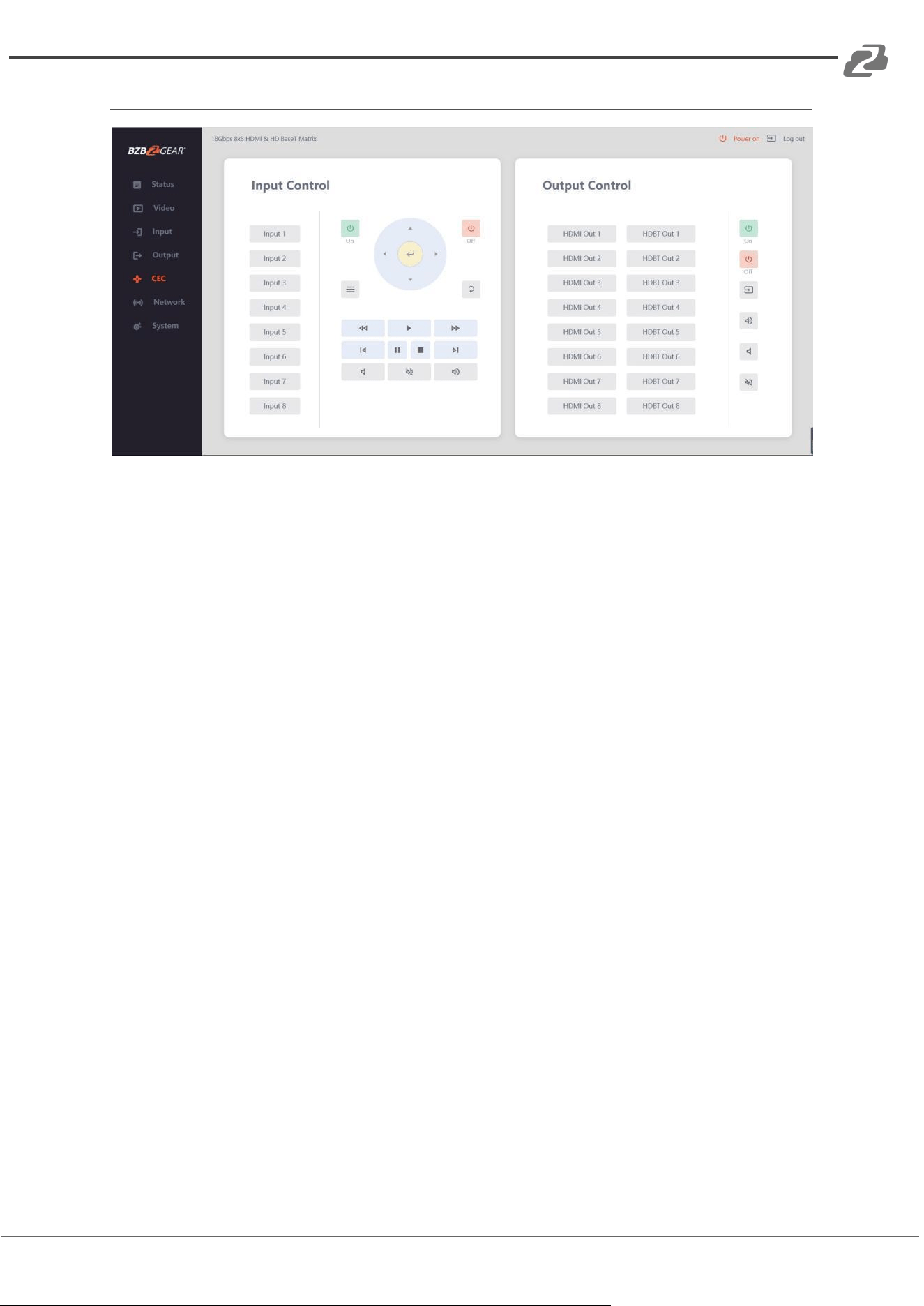

CEC Page
1. Input Control: You can control the operation of each input source by pressing the
icons on the page. You can control multiple inputs simultaneously..
2. Output Control: You can control the operation of each display, such as power
on/off, volume +/-, active source switching. You can control multiple outputs
simultaneously.
Note: Not every device will be compatible with CEC commands or have the ability to use
each feature.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 24
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL

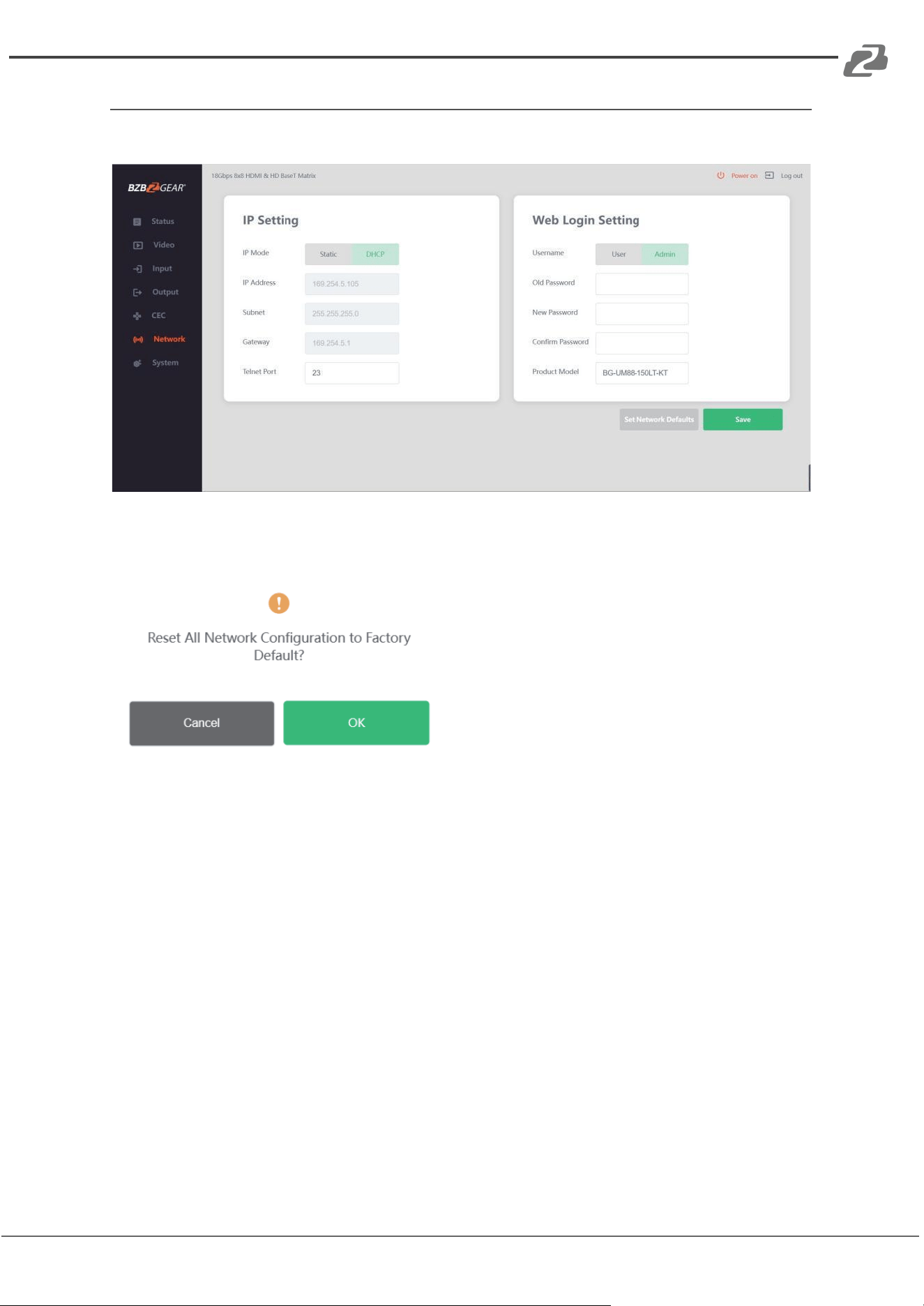

Network Page
Set the Default Network
Click “Set Network Defaults” button and there will be a prompt, as shown in the following
figure:
Click “OK” and the matrix will automatically search for the default IP.
After the search is completed, it will switch to the login page with the default network
settings.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 25
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL

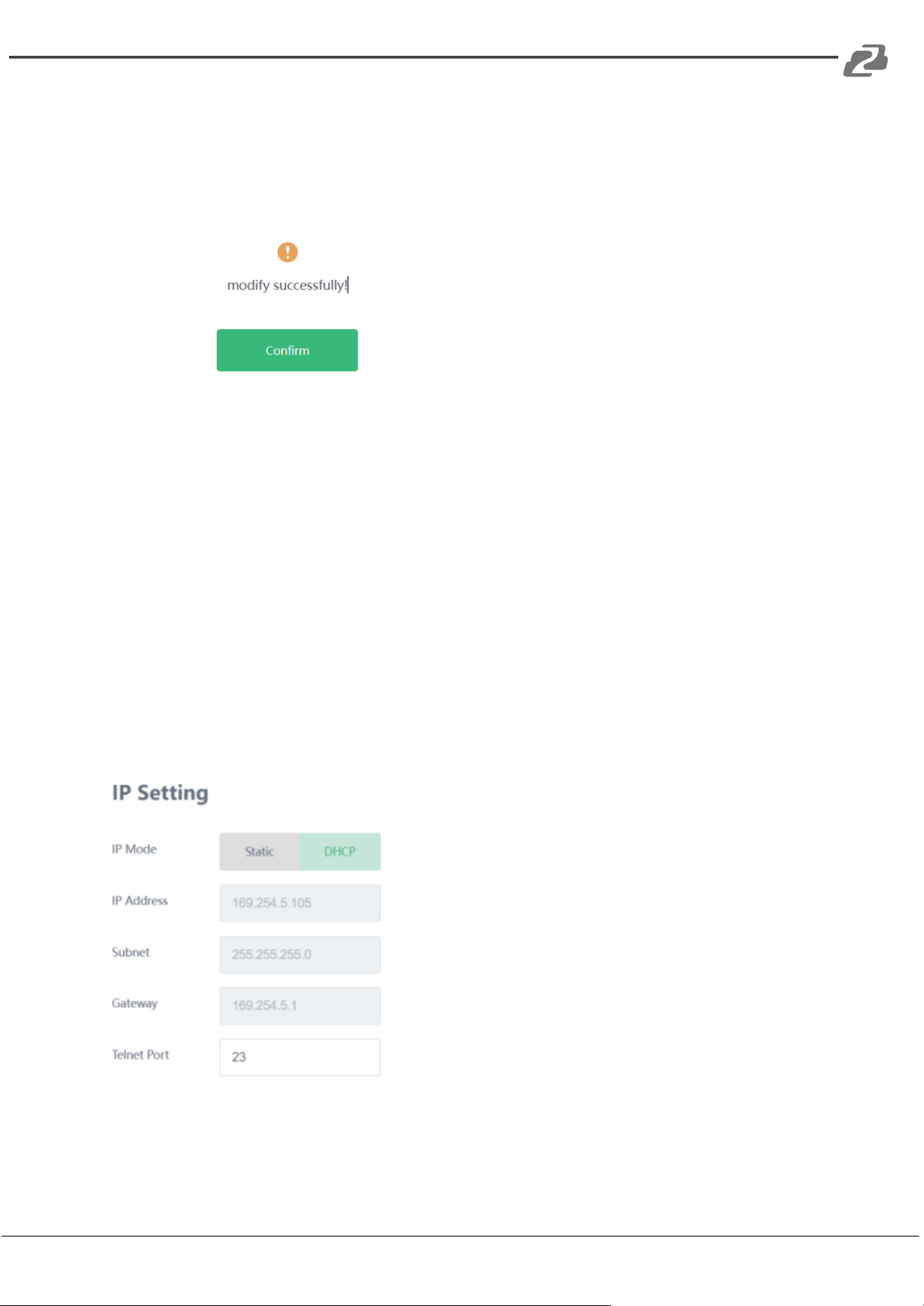

Modify User Password
Click the “User” button, enter the correct Old Password, a New Password, Confirm the New
Password, and then click “Save”. After successful modification, there will be a prompt, as
shown in the following figure:
Rules for changing passwords:
1. The password field cannot be empty.
2. The new password cannot be the same as the old password.
3. The new password and confirm password must be the same.
Modify Network Setting
If the Mode is set to “Static” modify the IP Mode/IP Address/Gateway/Subnet Mask/Telnet
Port as required and then click “Save” to save the settings. The matrix will switch to the
corresponding IP Address. If the Mode is “DHCP”, it will automatically search and switch to
the IP Address assigned by the router/network.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 26
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL

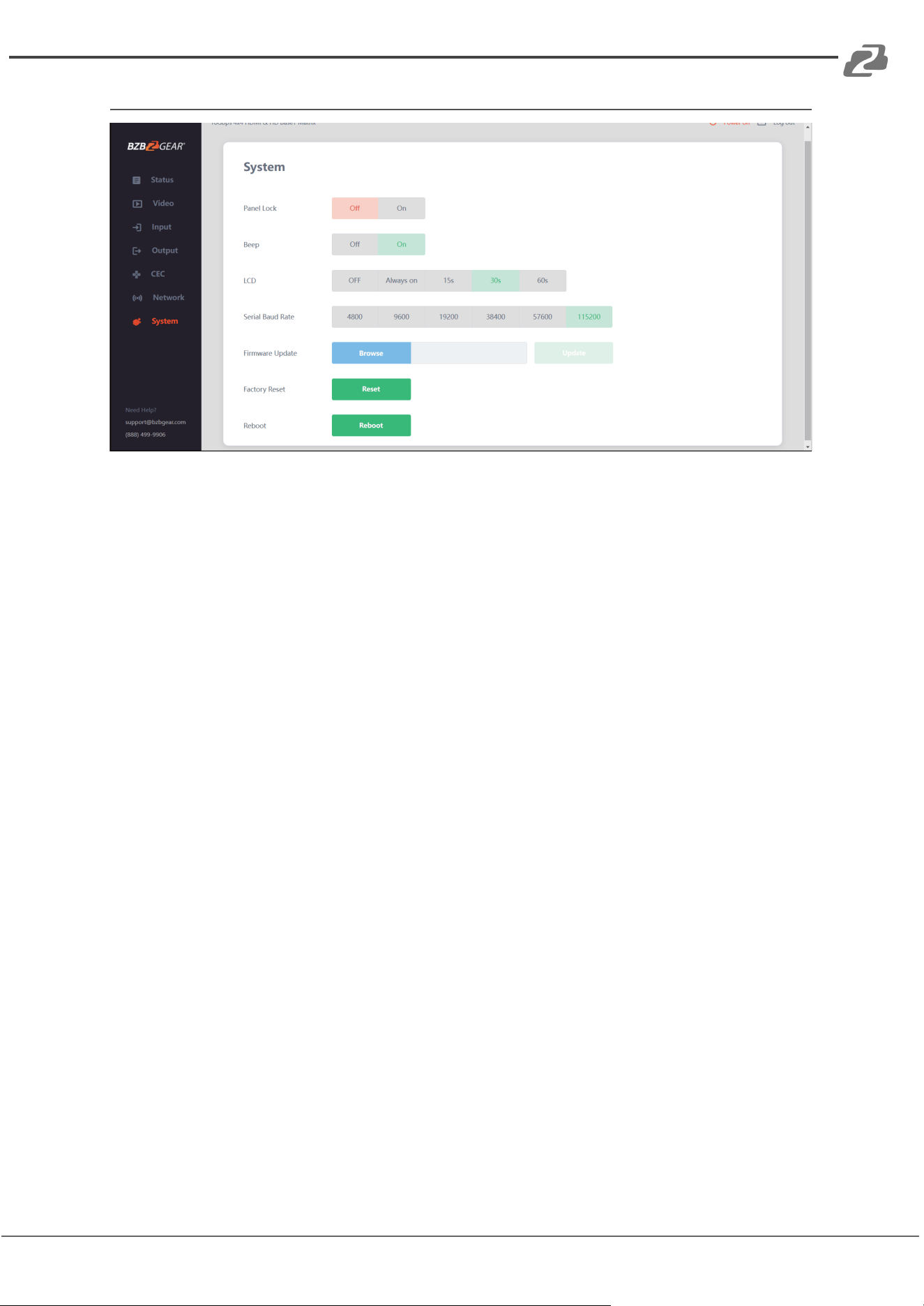

System Page
1. Panel Lock: Click to lock/unlock panel buttons. “On” indicates that panel buttons
are unavailable; “Off” indicates panel buttons are available.
2. Beep: Click to turn on/off the settings change confirmation beep.
3. LCD: You can turn on/off the LCD, and set the active display time (15s/30s/60s).
4. Serial Baud Rate: Click the value to set the Serial Baud Rate.
5. Firmware Update: Click “Browse” to select the update file and then click “Update”
to complete a firmware update.
6. Factory Reset: You can reset the machine to factory defaults by clicking “Reset”.
7. Reboot: You can reboot the machine by clicking “Reboot”.
Note: After a reset/reboot, the matrix will switch to the login page.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 27
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
RS-232 Control Commands
The product supports RS-232 control. You will need a serial cable with RS-232 male head
and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the
RS-232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable
is connected to a PC. The connection method is as follows:
RS232
Open a Serial Command tool on a PC such as Access Port or DockLite to send ASCII
commands to control the Matrix. The ASCII command list is shown below.
ASCII Command
Serial port protocol. Baud rate: 115200, Data bits: 8bit, Stop bits:1, Check bit: 0
x - Parameter 1
y - Parameter 2
! - Delimiter
Command Code
Function Description
Example
Feedback
Default
Setting
Power
s power z!
Power on/off the device,z=0~1 (z=0
power off, z=1 power on)
s power 1!
Power on
System Initializing... Initialization
Finished! FW version x.xx.xx
power on
r power!
Get current power state
r power!
power on/power off
s reboot!
Reboot the device
s reboot!
Reboot...
System Initializing... Initialization
Finished! FW version x.xx.xx
System Setup
help!
List all commands
help!
r type!
Get device model
r type!
HDP-MXB88H150
r status!
Get device current status
r status!
Get the unit all status: power,
beep, lock, in/ out connection,
video/ audio crosspoint, edid,
scaler,hdcp, network status
r fw version!
Get Firmware version
r fw version!
MCU BOOT:Vx.xx.xx MCU APP
:Vx.xx.xx SUB1 APP :Vx.xx.xx
SUB2 APP :Vx.xx.xx CPLD APP
:Vx.xx.xx WEB GUI :Vx.xx
r link in x!
Get the connection status of the x input
port，x=0~8(0=all)
r link in 1!
hdmi input 1: connect
r link out y!
Get the connection status of the y
output port，y=0~8(0=all)
r link out 1!
hdmi output 1: connect hdbt
output 1: connect
s reset!
Reset to factory defaults
s reset!
Reset to factory defaults System
Initializing...
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 28
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Command Code
Function Description
Example
Feedback
Default
Setting
Initialization Finished! FW version
x.xx.xx
s beep z!
Enable/Disable buzzer function,
z=0~1(z=0 beep off, z=1 beep on)
s beep 1!
beep on
beep off
beep on
r beep!
Get buzzer state
r beep!
beep on / beep off
s lock z!
Lock/Unlock front panel button, z=0~1
(z=0 lock off,z=1 lock on)
s lock 1!
panel button lock on panel
button lock off
panel button
lock off
r lock!
Get panel button lock state
r lock!
panel button lock on/off
s lcd on time z!
Set LCD screen remain on time, z=0~4
(0:off, 1:always on, 2:15s, 3:30s, 4:60s)
s lcd on time 1!
lcd always on
lcd on 30
seconds
r lcd mode!
Get the backlight status of lcd screen
r lcd mode!
lcd always on
s save preset z!
Save switch state between all output
port and the input port to preset z,
z=1~8
s save preset 1!
save to preset 1
s recall preset z!
Call saved preset z scenarios, z=1~8
s recall preset 1!
recall from preset 1
s clear preset z!
Clear stored preset z scenarios, z=1~8
s clear preset 1!
clear preset 1
r preset z!
Get preset z information, z=1~8
r preset 1!
video/audio crosspoint
s logo1
****************!
Set the logo name displayed on the first
line of LCD screen, the
max character is 16
s logo1 Matrix
Swtich!
logo1:Matrix Swtich
s baud rate xxx!
Set the serial port baud rate of RS02
module, z=(115200,57600,
38400,19200,9600,4800)
s baud rate
115200!
Baudrate:115200
115200
r baud rate!
Get the serial port baud rate of RS02
module
r baud rate!
Baudrate:115200
s id z!
Set the control ID of the product,
z=000~999
s id 888!
id 888
0
Output Setting
s in x av out y!
Set input x to output y， x=1~8，
y=0~8(0=all)
s in 1 av out 2!
input 1 -> output 2
ptp
r av out y!
Get output y signal status y=0~8(0=all)
r av out 0!
input 1 -> output 1
input 2 -> output 2
……
input 8 -> output 8
s hdmi y stream z!
Set hdmi output y stream on/off,
y=0~8(0=all) z=0~1(0:disable,1:enable)
s hdmi 1 stream 1!
s hdmi 0 stream 1!
enable hdmi output 1
stream
disable hdmi output 1 stream
enable hdmi all outputs stream
disable hdmi all outputs
stream
enable
r hdmi y stream!
Get hdmi output y stream status,
y=0~8(0=all)
r hdmi 1 stream!
enable hdmi output 1 stream
s hdbt y stream z!
Set hdbt output y stream on/off,
y=0~8(0=all) z=0~1(0:disable,1:enable)
s hdbt 1 stream 1!
s hdbt 0 stream 1!
enable hdbt output 1 stream
disable hdbt output 1 stream
enable hdbt all outputs stream
disable hdbt all outputs
stream
enable
r hdbt y stream!
Get hdbt output y stream status,
y=0~8(0=all)
r hdbt 1 stream!
enable hdbt output 1 stream
s hdmi y scaler z!
Set hdmi output y port output scaler
mode，y=0~8(0=all),
z=1~3(1=bypass,2=4k->1080p, 3=Auto)
s hdmi 1 scaler 1!
s hdmi 0 scaler 1!
hdmi output 1 set to bypass
mode
hdmi all outputs set to bypass
mode
hdmi all
outputs set
to bypass
mode
r hdmi y scaler!
Get hdmi output y port output mode
y=0~8(0=all)
r hdmi 1 scaler!
hdmi output 1 set to bypass
mode
s hdbt y scaler z!
Set hdbt output y port output scaler
mode，y=0~8(0=all),
z=1~3(1=bypass,2=4k->1080p, 3=Auto)
s hdbt 1 scaler 1!
s hdbt 0 scaler 1!
hdbt output 1 set to bypass
mode
hdbt all outputs set to bypass
mode
hdbt all
outputs set
to bypass
mode
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 29
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Command Code
Function Description
Example
Feedback
Default
Setting
r hdbt y scaler !
Get hdbt output y port output mode
y=0~8(0=all)
r hdbt 1 scaler !
hdbt output 1 set to bypass
mode
EDID Setting
s edid in x from z!
Set input x EDID from default EDID z,
x=0~8(0=all),z=1~39
1, 1080p,Stereo Audio 2.0
2, 1080p,Dolby/DTS 5.1
3, 1080p,HD Audio 7.1
4, 1080i,Stereo Audio 2.0
5, 1080i,Dolby/DTS 5.1
6, 1080i,HD Audio 7.1
7, 3D,Stereo Audio 2.0
8, 3D,Dolby/DTS 5.1
9, 3D,HD Audio 7.1
10, 4K2K30_444,Stereo Audio 2.0
11, 4K2K30_444,Dolby/DTS 5.1
12, 4K2K30_444,HD Audio 7.1
13, 4K2K60_420,Stereo Audio 2.0
14, 4K2K60_420,Dolby/DTS 5.1
15, 4K2K60_420,HD Audio 7.1
16, 4K2K60_444,Stereo Audio 2.0
17, 4K2K60_444,Dolby/DTS 5.1
18, 4K2K60_444,HD Audio 7.1
19, 4K2K60_444,Stereo Audio 2.0 HDR
20, 4K2K60_444,Dolby/DTS 5.1 HDR
21, 4K2K60_444,HD Audio 7.1 HDR
22, User define1
23, User define2
24~31, copy from hdmi output 1~8
32~39, copy from hdbt output 1~8
s edid in 1 from 1!
s edid in 0 from 1!
input 1 EDID:1080p,
Stereo Audio 2.0
all inputs EDID:1080p, Stereo
Audio 2.0
1080p,
Stereo
Audio 2.0
r edid in x!
Get EDID status of the input x，
x=0~8(0=all input)
r edid in 0!
input1 EDID: 4K2K60_
444,Stereo Audio 2.0 input2
EDID: 4K2K60_ 444,Stereo Audio
2.0
……
input8 EDID: 4K2K60_
444,Stereo Audio 2.0
r edid data hdmi y!
Get the EDID data of the hdmi output y
port，y=1~8
r edid data hdmi 1!
EDID: 00 FF FF FF FF
FF FF 00 ………
r edid data hdbt y!
Get the EDID data of the hdbt output y
port，y=1~8
r edid data hdbt 1!
EDID: 00 FF FF FF FF
FF FF 00 ………
CEC Setting
s cec in x on!
set input x power on by CEC,
x=0~8(0=all input)
s cec in 1 on!
input 1 power on
s cec in x off!
set input x power off by CEC,
x=0~8(0=all input)
s cec in 1 off!
input 1 power off
s cec in x menu!
set input x open menu by CEC,
x=0~8(0=all input)
s cec in 1 menu!
input 1 open menu
s cec in x play!
set input x play by CEC,
x=0~8(0=all input)
s cec in 1 play!
input 1 play operation
s cec in x pause!
set input x pause by CEC, x=0~8(0=all
input)
s cec in 1 pause!
iInput 1 pause operation
s cec in x stop!
set input x stop by CEC, x=0~8(0=all
input)
s cec in 1 stop!
input 1 stop operation
s cec in x rew!
set input x rewind by CEC, x=0~8(0=all
input)
s cec in 1 rew!
input 1 rewind operation
s cec in x mute!
set input x volume mute by CEC,
x=0~8(0=all input)
s cec in 1 mute!
input 1 volume mute
s cec in x vol-!
set input x volume down by CEC,
x=0~8(0=all input)
s cec in 1 vol-!
input 1 volume down
s cec in x vol+!
set input x volume up by CEC,
x=0~8(0=all input)
s cec in 1 vol+!
input 1 volume up
s cec in x ff!
set input x fast forward by CEC,
x=0~8(0=all input)
s cec in 1 ff!
input 1 fast forward operation
s cec in x previous!
set input x previous by CEC,
x=0~8(0=all input)
s cec in 1 previous!
input 1 previous operation
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 30
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Command Code
Function Description
Example
Feedback
Default
Setting
s cec in x next!
set input x next by CEC, x=0~8(0=all
input)
s cec in 1 next!
input 1 next operation
s cec hdmi out y
on!
set hdmi output y power on by CEC,
y=0~8(0=all hdmi output)
s cec hdmi out 1
on!
hdmi output 1 power on
s cec hdbt out y
on!
set hdbt output y power on by CEC,
y=0~8(0=all hdbt output)
s cec hdbt out 1
on!
hdbt output 1 power on
s cec hdmi out y
off!
set hdmi output y power off by CEC,
y=0~8(0=all hdmi output)
s cec hdmi out 1
off!
hdmi output 1 power off
s cec hdbt out y
off!
set hdbt output y power off by CEC,
y=0~8(0=all hdbt output)
s cec hdbt out 1
off!
hdbt output 1 power off
s cec hdmi out y
mute!
set hdmi output y volume mute by CEC,
y=0~8(0=all hdmi output)
s cec hdmi out 1
mute!
hdmi output 1 volume mute
s cec hdbt out y
mute!
set hdbt output y volume mute by CEC,
y=0~8(0=all hdbt output)
s cec hdbt out 1
mute!
hdbt output 1 volume mute
s cec hdmi out y
vol-!
set hdmi output y volume down by
CEC, y=0~8(0=all hdmi output)
s cec hdmi out 1
vol-!
hdmi output 1 volume down
s cec hdbt out y
vol-!
set hdbt output y volume down by CEC,
y=0~8(0=all hdbt output)
s cec hdbt out 1
vol-!
hdbt output 1 volume down
s cec hdmi out y
vol+!
set hdmi output y volume up by CEC,
y=0~8(0=all hdmi output)
s cec hdmi out 1
vol+!
hdmi output 1 volume up
s cec hdbt out y
vol+!
set hdbt output y volume up by CEC,
y=0~8(0=all hdbt output)
s cec hdbt out 1
vol+!
hdbt output 1 volume up
s cec hdmi out y
active!
set hdmi output y active source by
CEC, y=0~8(0=all hdmi output)
s cec hdmi out 1
active!
hdmi output 1 active source
s cec hdbt out y
active!
set hdbt output y active source by CEC,
y=0~8(0=all hdbt output)
s cec hdbt out 1
active!
hdbt output 1 active source
Network Setting
r ipconfig!
Get the Current IP Configuration
r ipconfig!
IP Mode: Static IP: 192.168.1.72
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1 TCP/IP
port=8000 Telnet port=10
Mac address:
00:1C:91:03:80:01
r mac addr!
Get network MAC address
r mac addr!
Mac address:
00:1C:91:03:80:01
s ip mode z!
Set network IP mode to static IP or
DHCP,
z=0~1 (z=0 Static, z=1 DHCP )
s ip mode 0!
Set IP mode:Static (Please use "s
net reboot!" command or
repower device to apply new
config!)
r ip mode!
Get network IP mode
r ip mode!
IP Mode: Static
s ip addr
xxx.xxx.xxx.xxx!
Set network IP address
s ip addr
192.168.1.100!
Set IP address: 192.168.1.100
(Please
use "s net reboot!" command or
repower device to apply new
config!)
DHCP on, Device can't config
static address, set DHCP off first.
r ip addr!
Get network IP address
r ip addr!
IP:192.168.1.100
s subnet
xxx.xxx.xxx.xxx!
Set network subnet mask
s subnet
255.255.255.0!
Set subnet Mask
address:255.255.255.0 (Please
use "s net reboot!" command or
repower device to apply new
config!) DHCP on, Device can't
config subnet mask, set DHCP
off first.
r subnet!
Get network subnet mask
r subnet!
Subnet Mask:
255.255.255.0
s gateway
xxx.xxx.xxx.xxx!
Set network gateway
s gateway
192.168.1.1!
Set gateway: 192.168.1.1
Please use "s net reboot!"
command or repower device to
apply new config!
DHCP on, Device can't config
gateway, set DHCP off first.
r gateway!
Get network gateway
r gateway!
Gateway:192.168.1.1
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 31
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Command Code
Function Description
Example
Feedback
Default
Setting
s tcp/ip port x!
Set network TCP/IP port (x=1~65535)
s tcp/ip port 8000!
Set TCP/IP port:8000
r tcp/ip port!
Get network TCP/IP port
r tcp/ip port!
TCP/IP port:8000
s telnet port x!
Set network telnet port
(x=1~65535)
s telnet port 23!
Set Telnet port:23
r telnet port!
Get network telnet port
r telnet port!
Telnet port:23
s net reboot!
Reboot network modules
s net reboot!
Network reboot…
IP Mode: Static IP: 192.168.1.72
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1 TCP/IP
port=8000 Telnet port=10
Mac address:
00:1C:91:03:80:01
s uart x datalen y!
Set the data length of x hdbt uart,
x=0-8, y=1-2, 1:8bit 2:7bit
s uart 1 datalen 1!
hdbt uart1 data len is 8bit
s uart x baudrate y!
Set the baudrate of x hdbt uart , x=0-8,
y=1-8, 1: 115200(Default) 2: 57600 3:
56000 4:38400
5:19200 6:14400 7:9600 8:4800
s uart 1
baudrate 1!
hdbt uart1 baudrate is 115200
s uart x parity y!
Set the Parity of x hdbt uart, x=0-8,
y=1-3,
1:none 2:odd 3:even
s uart x parity 1!
hdbt uart1 parity is none
s uart x type z
senddata y end!
Send data y from x hdbt uart, z=0 ascii,
z=1 hex ,x=0-8
s uart 1 type 0
senddata abcdefg
end!
hdbt uart1 data: abcdefg
r uart status x!
Get the Status of x hdbt uart , x=0-8
r uart status 1!
hdbt uart1 baudrate 9600,datalen
8bit, parity none
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 32
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 33
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 34
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming
solutions. We pride ourselves on unparalleled customer support and services. Our team
offers system design consultation, and highly reviewed technical support for all the products
in our catalog. BZBGEAR delivers quality products designed with users in mind.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 35
BZBGEAR BG-UM88-150L-KIT PRODUCT MANUAL
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 36
