Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-3GSH PRODUCT MANUAL
Introduction
The BG-3GSH converts SD-SDI, HD-SDI, and 3G-SDI signals to the more widely used
HDMI interface. The unit is capable of a high bit rate of 2.970 Gbit/s and signal transmission
without any loss ensuring a crystal clear 1080p@60 image for HDMI displays. For
professionals this means that it is now easier to distribute and extend your 3G-SDI signal
using long range SDI cables while giving you the ability to display your work on consumer
grade HDMI displays using the BG-3GSH.
Features
● Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
● Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
● Conversion from SMPTE 425M Level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
Packing List
● 1 x 3G-SDI to HDMI Converter
● 1 x 5V DC Power Supply
● 1 x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-3GSH PRODUCT MANUAL
Specifications
Input Port
1 x BNC (SDI/HD-SDI/3G-SDI)
Output Port
1 x HDMI
SDI Transmission Rates
2.970 Gbit/s and 2.970/1.001 Gbit/s
Input and Output Resolutions
480i, 576i, 720p@50/59.94,60,1080i @50/59.94/60
[email protected]/24/25/29.97/30/50/59.94/60
Power Supply
DC 5V -12V
ESD Protection Human Body
Model
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions
80mm x 41mm x 25 mm (3.2 in x 1.6 in x 0.9 in)
Weight
150g (5.3 oz)
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20 ~ 90% RH (Non-condensing)
Power Consumption
5W
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-3GSH PRODUCT MANUAL
Connection and Operation

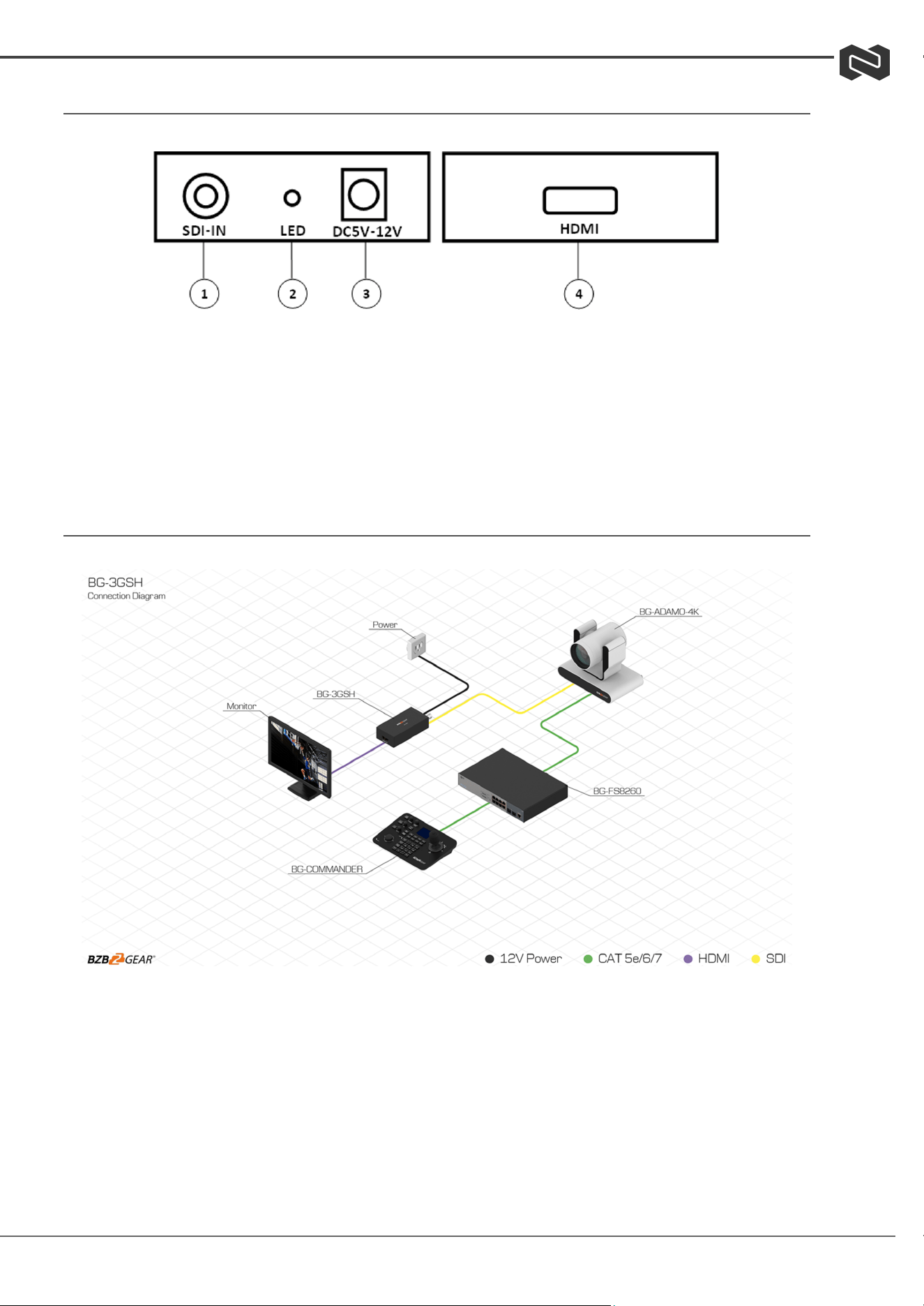

1. SDI IN: Connect to a SDI source
2. Power LED: LED is illuminated RED when the device is connected to power.
3. DC IN: Power port for the included 5V DC power supply.
4. HDMI OUT: Connect to HDMI display or device.
Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-3GSH PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips
regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base)
with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or
explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,
configuring, and other helpful how-to videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought on or
after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products bought on
or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
