BG-H3GS
Mini HDMI to 3G-SDI Converter
User Manual
BZBGEAR BG-H3GS PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-H3GS PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Connection and Operation 7
Application Example 7
Tech Support 8
Limited Product Warranty Terms 8
Mission Statement 8
Copyright 8
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-H3GS PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-H3GS PRODUCT MANUAL
Introduction
The BG-H3GS allows HDMI signals to be shown on SDI displays while ensuring a high bit
rate of 2.970 Gbit/s to provide a high-resolution signal without any loss. For professionals
this means that it is now easier to convert your high-definition HDMI signal with audio to
SDI for long distance transmissions and display your work on SDI displays.
The BG-H3GS supports multiple input resolutions such as 480i, 720p, 1080i, and up to
1080p60. A 1080p60 HDMI signal will convert to 3G-SDI for transmission up to 100m
(328ft). For even longer range transmissions 480i will convert to SD-SDI and can be
transmitted up to 300m (984ft).
Features
● Converts an HDMI source to be shown on an SDI display.
● SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s,
1.485/1.001 Gbit/s and 270 Mb/s.
● HDMI Input Resolutions: [email protected], 576i, 720p@50/59.94/60, 1080i@50/59.94/60,
[email protected]/24/25/29.97/30/50/59.94/60.
● Converts HDMI signal to SDI: 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of
270 Mbit/s 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or
1.485/1.001 Gbit/s) 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970
Gbit/s and 2.970/1.001 Gbit/s)
● Supports SDI output distance up to 100m/328ft (3G-SDI), 200m/656ft (HD-SDI), or
300m/984ft (SD-SDI)
Packing List
● 1 x HDMI to SDI Converter
● 1 x 5V1A DC Power Supply Adaptor
● 1 x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-H3GS PRODUCT MANUAL
Specifications
Input Port
1 x HDMI
Output Port
1 x BNC (SDI/HD-SDI/3G-SDI)
SDI Transmission Rates
2.970 Gbit/s and 2.970/1.001 Gbit/s
Input and Output Resolutions
480i, 576i, 720p@50/59.94,60,1080i @50/59.94/60
[email protected]/24/25/29.97/30/50/59.94/60
Power Supply
DC 5V -12V
ESD Protection Human Body
Model
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions
80mm x 41mm x 25 mm (3.2 in x 1.6 in x 0.9 in)
Weight
150g (5.3 oz)
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20 ~ 90% RH (Non-condensing)
Power Consumption
5W
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-H3GS PRODUCT MANUAL

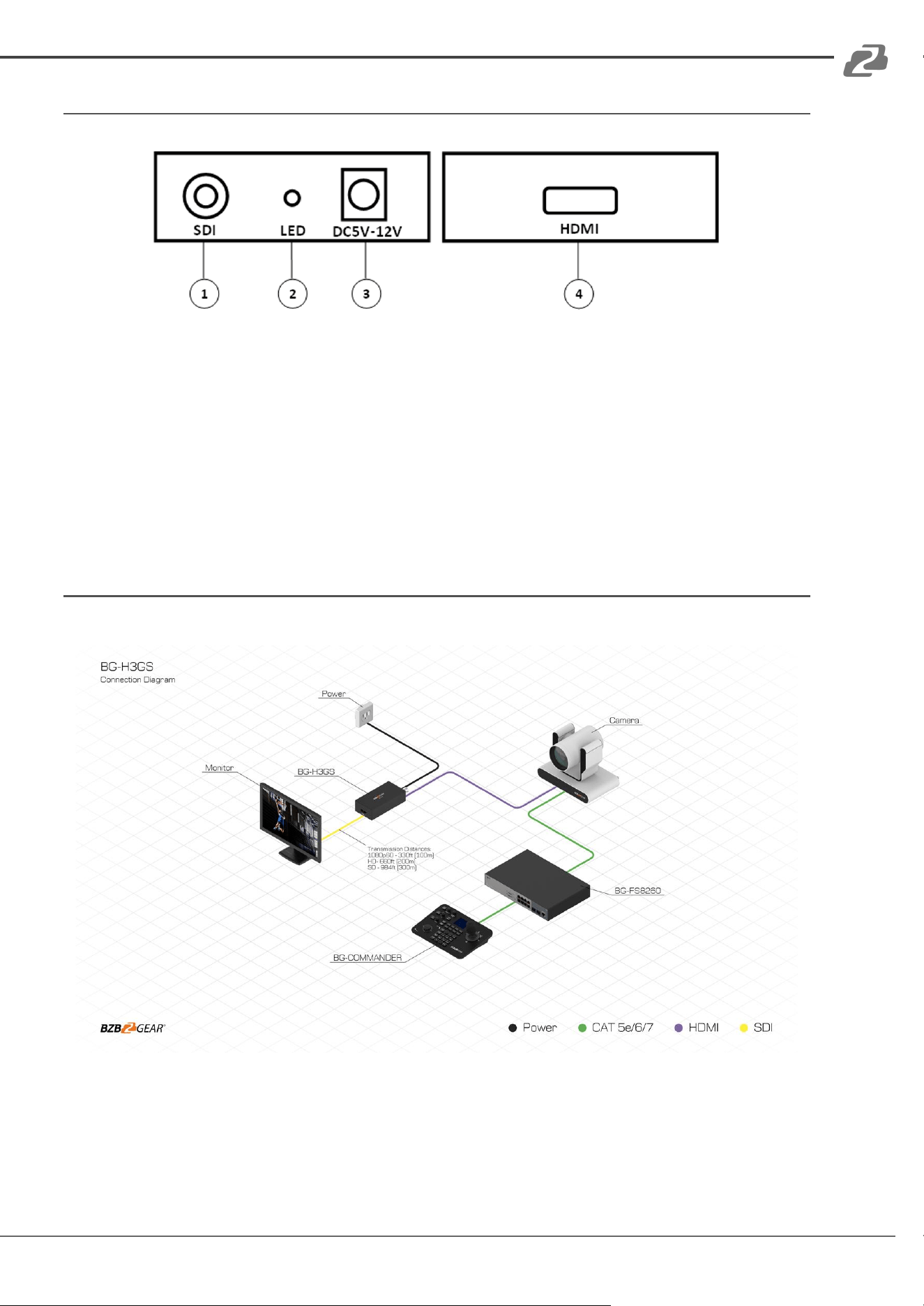

Connection and Operation
