BG-4KBHS
12G/6G/3G/HD-SDI & HDMI 2.0 Bi-Directional Converter
with Audio Embedding and Extraction
User Manual
BZBGEAR BG-4KBHS PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-4KBHS PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 9
Connection Diagram 10
Troubleshooting 11
Tech Support 12
Limited Product Warranty Terms 12
Mission Statement 13
Copyright 14
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-4KBHS PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-4KBHS PRODUCT MANUAL
Introduction
The BG-4KBHS is a professional 12G/6G/3G/HD-SDI and HDMI 2.0 bi-directional
converter with integrated audio embedding and extraction, designed for seamless
real-time conversion between HDMI and SDI formats. Supporting full digital
conversion, it ensures zero signal loss for both video and audio, while providing up
to 8 audio channels, including 7.1 and 5.1 surround sound configurations.
Equipped with a low-jitter SDI output and high-quality analog stereo embedder and
extractor, the BG-4KBHS offers versatile integration for both professional SDI
workflows and consumer HDMI devices. With broad support for HD and UHD
formats up to 4K60 and automatic 12G/6G/3G/HD-SDI detection, it provides a
reliable solution for professional video environments that demand high-fidelity signal
conversion and flexible audio management.
Features
● Supported HD & UHD Formats:
- 720p: 50, 59.94, 60 Hz
- 1080i: 50, 59.94, 60 Hz
- 1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
- 4K2K: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
● High Bit Rate Support: Handles SDI bit rates of 270 Mbps up to 11.88 Gbps,
including fractional rates for broadcast compatibility.
● Auto SDI Detection: Automatically detects and switches between 12G, 6G, 3G, and
HD-SDI signals.
● HDMI Support: Fully compatible with HDMI 2.0 and lower versions for flexible
source integration.
● Audio Channel Support: Supports up to 8 audio channels, including 7.1 and 5.1
surround sound.
● Analog Stereo Embedder & Extractor: Provides high-quality analog audio
embedding and extraction for flexible audio routing.
● Low-Jitter SDI Output: Ensures stable and reliable SDI signal transmission for
professional video workflows.
● Real-Time Bi-Directional Conversion: Converts HDMI to SDI and SDI to HDMI
without latency or quality loss.
● Video & Audio Integrity: Maintains uncompressed, lossless digital video and audio
throughout the conversion process.
● Multi-Format Compatibility: Compatible with professional SDI equipment and
consumer HDMI devices for versatile workflow integration.
● Compact & Rack-Mountable Design: Optimized for studio and field applications
requiring space-efficient hardware.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-4KBHS PRODUCT MANUAL
Packing List
● 1x BG-4KBHS
● 1x 5V DC Adapter
● 1x Product Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-4KBHS PRODUCT MANUAL
Specifications
Technical Specifications
SDI Standards
12G / 6G / 3G / HD-SDI
HDMI Standards
HDMI 2.0
Auto SDI
Detection
12G / 6G / 3G / HD-SDI (Auto)
Video Bandwidth
SDI: 11.88 Gbps, 11.88/1.001 Gbps
HDMI: Up to 18 Gbps
Video Support
12G-SDI: 4K2K @50/59.94/60Hz
6G-SDI: 4K2K @23.98/24, 25, 29.97, 30Hz
3G-SDI: 1080p @50/59.94/60Hz
HD-SDI: 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p
@23.98/24/25/29.97/30Hz
HDMI: Up to 4K2K @60Hz
Input Signal
1 × SDI 1 × HDMI 1 × Audio
Output Signal
2 × HDMI 1 × SDI 1 × Audio
Output
Impedance (SDI)
75Ω
Synchronization
Mode
Internal or External
Eye Pattern
Characteristics
12G-SDI: Timing jitter: 0.29 UI, Alignment jitter: 0.13 UI
6G-SDI: Timing jitter: 0.18 UI, Alignment jitter: 0.06 UI
3G-SDI: Timing jitter: 0.09 UI, Alignment jitter: 0.03 UI
Cable
Equalization
12G-SDI: up to 70m
6G-SDI: up to 100m
3G-SDI: up to 190m
HD-SDI: up to 300m
Audio Support
Analog Audio: 2-channel HDMI: Surround Sound (up to 7.1ch)
PCB Stack-up
6-layer board (Impedance control: differential 100Ω; single 50Ω)
Connections
Input
1 × BNC (SDI) 1 × HDMI 1 × Audio Jack
Output
2 × HDMI 1 × BNC (SDI) 1 × Audio Jack
BNC Connector
75Ω inter-locked socket
HDMI Connector
Type A (19-pin female)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-4KBHS PRODUCT MANUAL
Mechanical Specifications
Housing
Metal enclosure
Power Supply
+5V DC
Operating
Temperature
32 ~ 104°F / 0 ~ 40°C
Storage
Temperature
-4 ~ 140°F / -20 ~ 60°C
Relative Humidity
20 ~ 90% RH (no condensation)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-4KBHS PRODUCT MANUAL
Operation Controls and Functions

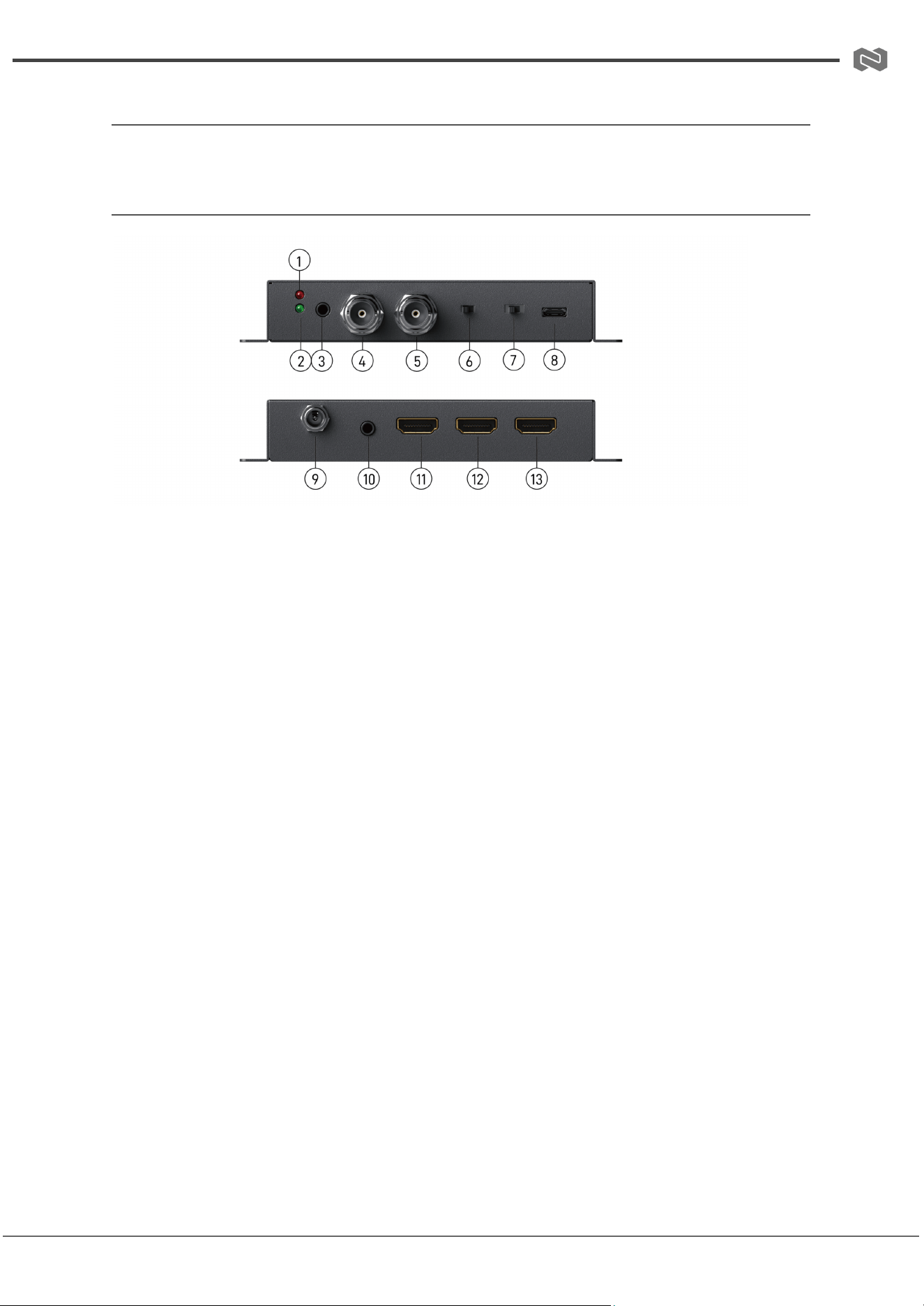

Front and Rear Panel
1. Power LED: Indicates device power status.
2. Signal LED: Indicates active video signal detection.
3. Stereo Audio Output: Extracts stereo audio from SDI or HDMI input.
4. SDI IN: Accepts 12G/6G/3G/HD-SDI video input.
5. SDI OUT: Outputs 12G/6G/3G/HD-SDI video.
6. Mode Slide Switch:
a. Right: Convert HDMI → SDI
b. Left: Convert SDI → HDMI
7. Audio/Firmware Slide Switch:
a. Right: F/W update mode
b. Mid: Use HDMI input audio as SDI audio source
c. Left: Use stereo audio input as SDI audio source
8. USB-C Port: For firmware updates.
9. DC Power Input (+5V): Connect to a 5V DC power supply.
10. Stereo Audio Input: Embeds stereo audio into SDI output.
11. HDMI Loop Out: Pass-through connection for HDMI display monitoring.
12. HDMI IN: Connects to an HDMI source (HDMI male-to-male cable).
13. HDMI OUT: Connects to an HDMI display (HDMI male-to-male cable).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-4KBHS PRODUCT MANUAL

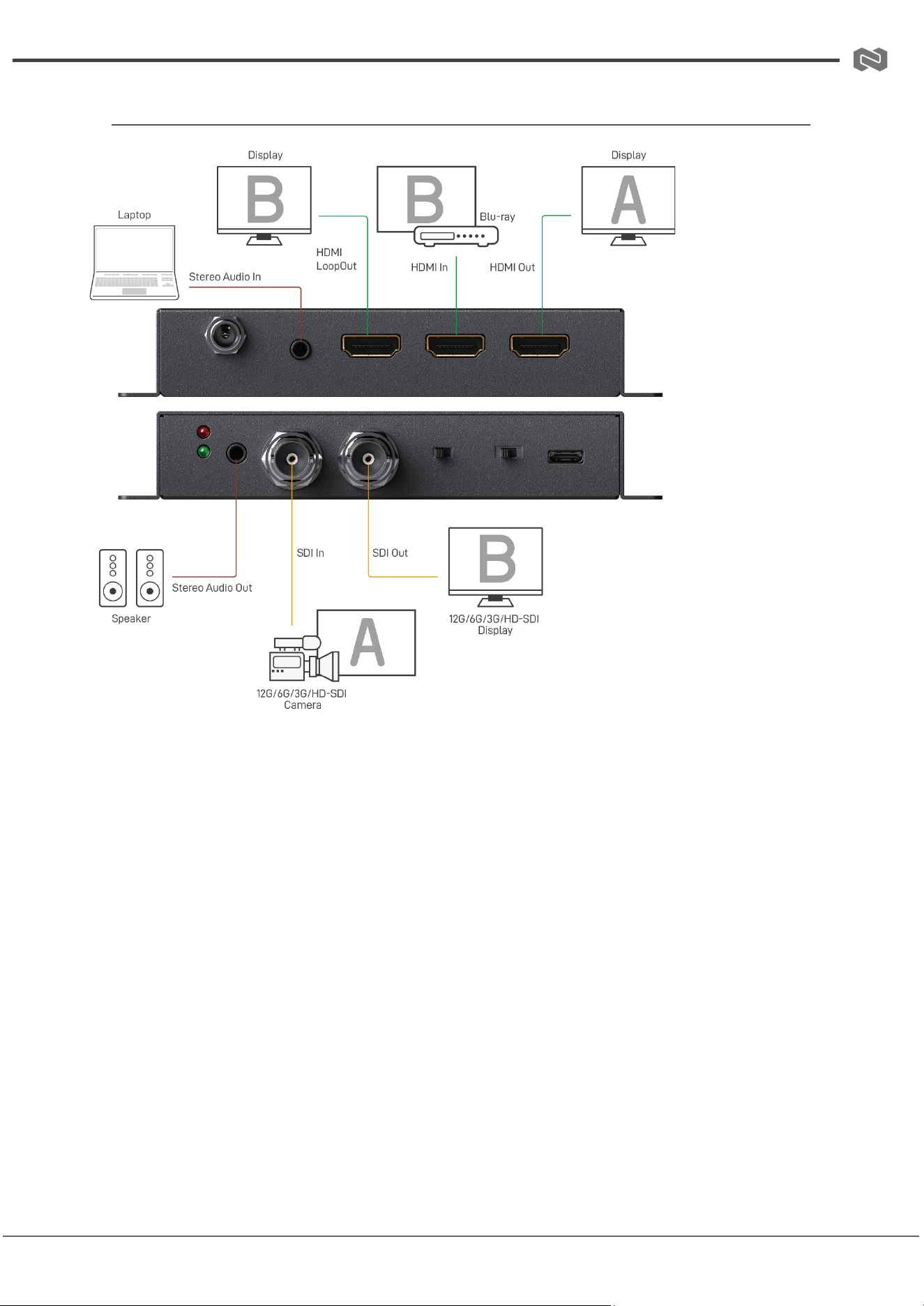

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-4KBHS PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-4KBHS PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
