BG-8K-AE
8K HDMI 2.1 eARC Audio Adapter with Dolby Atmos,
HDMI/Analog/SPDIF Outputs, and CEC Control
User Manual
BZBGEAR BG-8K-AE PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-8K-AE PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 8
Connection Diagram 10
Troubleshooting 10
Tech Support 12
Limited Product Warranty Terms 12
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-8K-AE PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-8K-AE PRODUCT MANUAL
Introduction
The BG-8K-AE is a high-performance 48Gbps eARC audio adapter designed to extract
audio from an HDMI source or a TV with ARC/eARC and route it to an AV receiver,
soundbar, or stereo system. Supporting HDMI audio de-embedding to HDMI, digital S/PDIF,
or analog L/R outputs, it ensures seamless audio distribution across modern AV setups.
Fully compliant with HDMI 2.1 and HDCP 2.3, it handles resolutions up to 8K@60Hz (4:2:0
12-bit) and 4K@120Hz (4:4:4 12-bit), with pass-through for HDR10, HDR10+, Dolby Vision,
and HLG, plus support for VRR, ALLM, QMS, QFT, and SBTM.
Designed for flexible integration, the BG-8K-AE includes advanced EDID management,
cable equalization, and CEC control, enabling volume and source adjustments directly from
the TV. Whether delivering Dolby Atmos or DTS:X audio to a SONOS ARC, Beam, or other
eARC-enabled systems, or outputting stereo to a 2.0/5.1-channel amplifier, this adapter
provides a reliable and adaptable solution for both home theaters and professional AV
installations.
Features
● HDR Pass-Through: Compatible with HDR, HDR10, HDR10+, Dolby Vision, and
Hybrid Log-Gamma (HLG) formats.
● High-Definition Audio: Supports audio pass-through for LPCM 7.1-channel, Dolby
TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X formats.
● Audio De-Embedding: Extracts audio from HDMI sources and TV eARC/ARC to
S/PDIF, stereo L/R analog, and HDMI audio outputs.
● eARC/ARC to Soundbar: De-embeds audio from HDMI sources to eARC/ARC
soundbars, including SONOS ARC and Beam, supporting full Dolby Atmos/DTS:X
audio.
● CEC Control Support: Enables CEC control from the TV to HDMI source devices.
● CEC Volume Control: Allows CEC-based volume control from the TV to any
connected eARC audio system.
● HDCP Compliance: Fully compliant with HDCP 2.3 for secure content transmission.
● EDID Management: Features advanced EDID configuration for optimized
compatibility and performance.
● High Bandwidth Support: Supports up to 48Gbps video bandwidth and resolutions
up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit), following HDMI 2.1
specifications.
Packing List
● 1 × 48Gbps eARC Audio Adapter
● 1 × 5V/2A Multinational Power Supply
● 1 × User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-8K-AE PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
Video Bandwidth
48Gbps FRL and 18Gbps TMDS
Video Resolution
Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Color Depth
8/10/12bit
Color Space
RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats
HDMI input/output:LPCM, Dolby Digital/Plus/EX, Dolby True HD,
Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res,
DTS-HD Master Audio, DTS:X
eARC AUDIO OUT:LPCM, Dolby Digital/Plus/EX, Dolby True HD,
Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res,
DTS-HD Master Audio, DTS:X
Amp AUDIO OUT:LPCM, Dolby Digital/Plus/EX, Dolby True HD,
Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res,
DTS-HD Master Audio, DTS:X
Audio de-embedding output:Optical: PCM 2.0CH / Dolby / DTS
5.1CHL/R: PCM 2.0CH
ESD Protection
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact
discharge)
Connection
Input
1 × Source IN [HDMI Type A, 19-pin female]
Output
1 × TV(eARC) OUT [HDMI Type A, 19-pin female]
1 × Soundbar eARC OUT [HDMI Type A, 19-pin female]
1 × Amp AUDIO OUT [HDMI Type A, 19-pin female]
1 × OPTICAL [S/PDIF]
1 × L/R [3.5mm Stereo Mini-jack]
Control
1 × SERVICE [USB Type C, Update port]
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-8K-AE PRODUCT MANUAL
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions (WxDxH)
5.7in × 2.7in × 0.71in / 145mm × 68mm × 18mm
Weight
0.58 lbs [262g]
Power Supply
Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU
standards, CE/FCC/UL certified)
Power Consumption
5.2W (Max)
Operation
Temperature
32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature
-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity
20~90% RH (non-condensing)
Recommended HDMI Cable
Video Resolution
8K 4K60 4K24 1080P
HDMI Cable Length
(HDMI IN / OUT)
3m / 10ft 8m / 26ft 12m / 39ft 15m / 49ft
(Ultra HDMI 2.1)
The use of “Premium High Speed HDMI” cable is highly recommended.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-8K-AE PRODUCT MANUAL

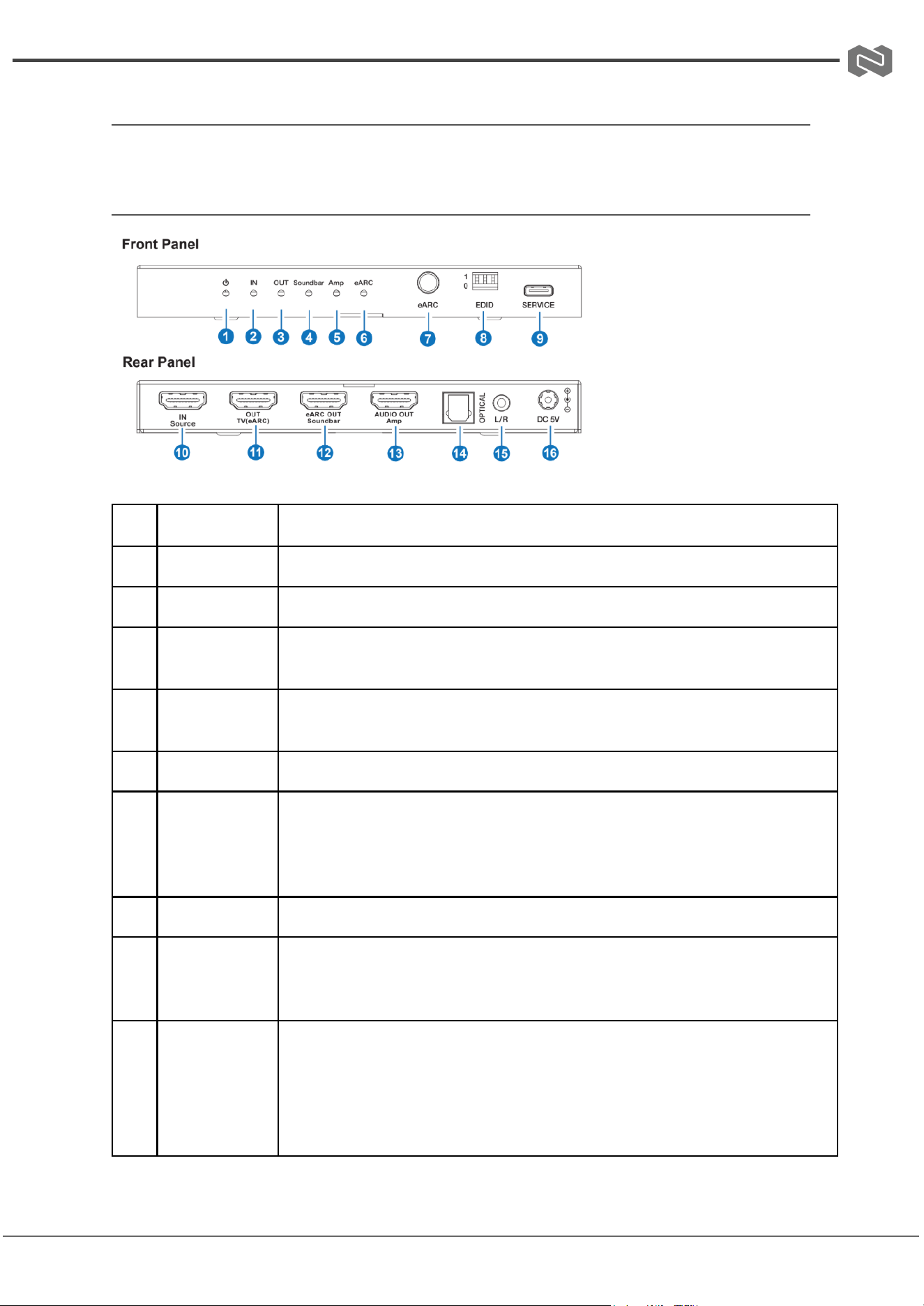

Operation Controls and Functions
Front and Rear Panel
No.
Name
Function Description
1
Power LED
The red LED is on when the device is working.
2
IN LED
The green LED will be on when the input source signal is detected.
3
OUT LED
The green LED will be on when the HDMI OUT port connects a display device
and outputs signal.
4
Soundbar LED
The green LED will be on when a soundbar is connected properly.
5
Amp LED
The green LED will be on when an amplifier is connected properly.
6
eARC LED
On: The eARC/ARC mode is enabled. CEC communication and eARC is
working properly.Flashing: The eARC/ARC mode is enabled. CEC
communication and eARC is not working properly.Off: The eARC mode is
disabled.
7
eARC button
Press this button to enable or disable the eARC/ARC mode.
Use the DIP switch to set EDID.[DIP]=111: Copy OUT port sink EDID (as
factory default)[DIP]=110: Copy video EDID of sink and audio EDID of
Soundbar
8
EDID DIP
switch
[DIP]=101: FRL12G_8K_HDR, 2.0CH
[DIP]=100: FRL12G_8K_HDR, 5.1CH
[DIP]=011: FRL12G_8K_HDR, 7.1CH
[DIP]=010: FRL10G_8K_HDR, 2.0CH
[DIP]=001: FRL10G_8K_HDR, 5.1CH
[DIP]=000: FRL10G_8K_HDR, 7.1CH
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-8K-AE PRODUCT MANUAL
9
SERVICE
Used for firmware update and serial commands control.
10
Source IN
HDMI signal input port, connected to HDMI source device such as 8K PC,
DVD or PS5 with an HDMI cable.
11
TV(eARC) OUT
HDMI signal output port, connected to TV (eARC/ARC) with an HDMI cable. It
can be used as an eARC/ARC audio channel when the eARC/ARC mode is
enabled.
12
Soundbar
eARC OUT
HDMI audio output port, connected to a soundbar (eARC/ARC).
13
Amp AUDIO
OUT
HDMI audio output port, connected to an amplifier.
14
OPTICAL
Optical fiber audio output port.
15
L/R
Analog audio output port.
16
DC 5V
DC 5V/2A Power input port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-8K-AE PRODUCT MANUAL

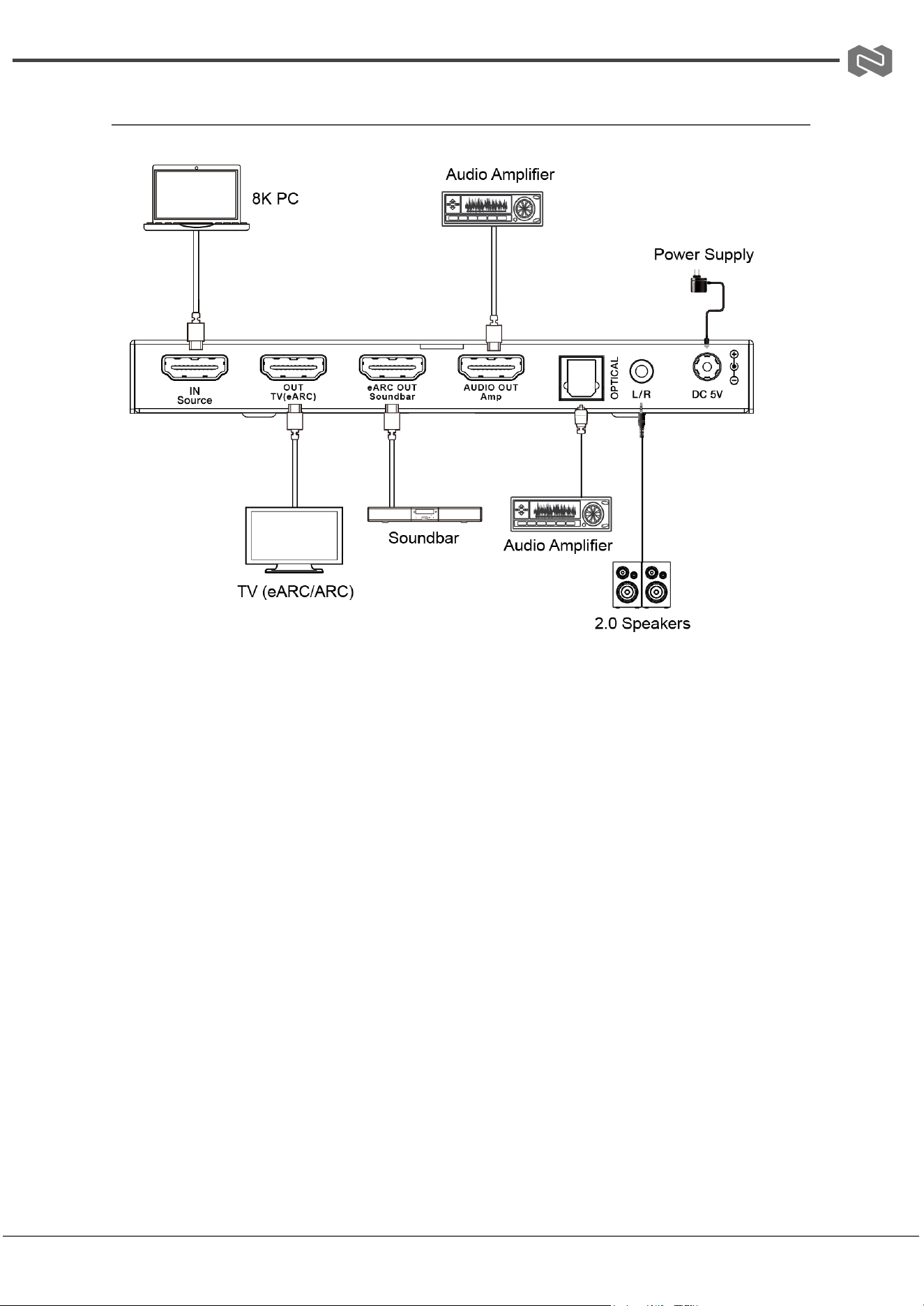

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-8K-AE PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-8K-AE PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
