BG-8K-DA12A-G2
1x2 8K HDMI 2.1 Splitter with Audio De-Embedding
User Manual
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
Auto Downscaling & Conversion 8
Connection Diagram 9
Troubleshooting 10
Tech Support 11
Limited Product Warranty Terms 11
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL
Introduction
The BG-8K-DA12A-G2 is a 1x2 HDMI 2.1 splitter that distributes one source to two
displays while preserving top-tier video and audio quality. It supports up to
8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) with 48 Gbps FRL bandwidth
and HDCP 2.3 compliance for secure, uninterrupted transmission.
With HDR, HDR10+, Dolby Vision, and HLG pass-through, along with VRR, FVA,
and ALLM, it enhances visual performance and gaming responsiveness. The built-in
audio de-embedding extracts audio via optical (S/PDIF) and 3.5mm analog outputs.
Advanced EDID management, auto downscaling, and HDR-to-SDR conversion
ensure seamless compatibility.
Connectivity includes 1 HDMI input, 2 HDMI outputs, optical and analog audio
outputs, and a USB-C port for firmware updates. It supports premium audio formats
like LPCM 7.1CH, Dolby Atmos, and DTS-HD Master Audio, with optical/analog
outputs handling LPCM 2CH and Dolby/DTS 5.1CH.
Features
● HDCP 2.3 Compliant for seamless content protection.
● Supports 48 Gbps FRL and 18 Gbps TMDS video bandwidth for high-speed data
transmission.
● Supports resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit), as
specified in HDMI 2.1.
● Compatible with advanced gaming features, including VRR (Variable Refresh Rate),
FVA (Fast VActive), and ALLM (Auto Low Latency Mode).
● Full HDR compatibility, supporting HDR, HDR10, HDR10+, Dolby Vision, and HLG
pass-through.
● Supports high-definition HDMI audio formats, including LPCM 7.1CH, Dolby
TrueHD, Dolby Atmos, and DTS-HD Master Audio.
● Integrated audio de-embedding with optical and analog output options.
● Automatic resolution downscaling on each output for optimal display compatibility.
● Auto HDR-to-SDR conversion on each output for enhanced flexibility.
● Advanced EDID management for seamless device communication and compatibility.
Packing List
● 1 × 8K HDMI 1x2 Splitter
● 1 × 5V/2A Multinational Power Supply
● 1 × User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL
Specifications
Technical Specifications
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3, HDCP 1.4
Video Bandwidth
48Gbps FRL and 18Gbps TMDS
Video Resolution
Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Color Depth
8/10/12bit
Color Space
RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats
HDMI input/output:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Technical
Audio de-embedding output:
Optical: LPCM/Dolby/DTS 5.1CH
Analog: LPCM 2CH
ESD Protection
IEC 61000-4-2:
±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input
1 × HDMI IN [Type A, 19-pin female]
Output
2 × HDMI OUT [Type A, 19-pin female]
1 × OPTICAL [S/PDIF]
1 × L/R [3.5mm Stereo Mini-jack]
Control
1 × SERVICE [USB Type C, Update port]
Mechanical
Housing
Metal Enclosure
Dimensions (W × D × H)
5.7in x 2.7in x 0.67in / 145mm × 68mm × 17mm
Weight
0.57 lbs [260g]
Power Supply
Input: AC 100-240V 50/60Hz, Output: DC 5V/2A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
4.5W (Max)
Operation Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
Recommended HDMI Cable
Video
Resolution
8K
4K60
4K24
1080P
HDMI Cable
Length
(HDMI IN /
OUT)
3m/10ft
(Ultra
HDMI 2.1)
8m/26ft
12m/39ft
15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL
Operation Controls and Functions

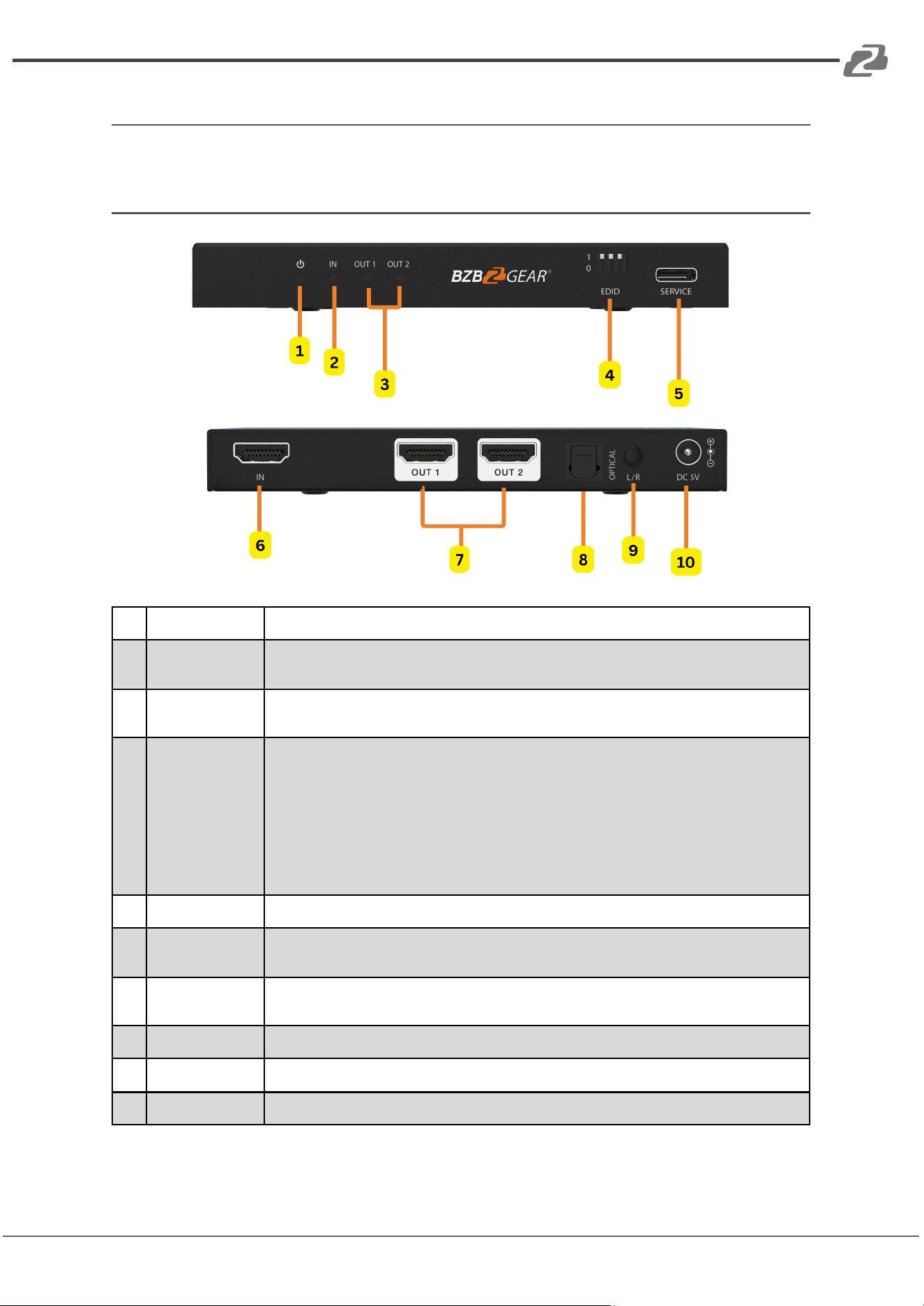

Front and Rear Panel
1
Power LED
The power LED lights in red when the device is working
2
IN LED
When the HDMI IN port connects to an active source device, the
green LED will be on.
3
OUT LED (1~2)
When the HDMI OUT 1/2 port connects to a display device and
outputs signal, the corresponding green LED will be on.
4
EDID DIP Switch
Use the DIP switch to set EDID.
[DIP]=111: Copy OUT port sink EDID (as factory default)
[DIP]=110: 4K60(4:4:4), 2.0CH
[DIP]=101: FRL12G_8K_HDR, 2.0CH
[DIP]=100: FRL12G_8K_HDR, 5.1CH
[DIP]=011: FRL12G_8K_HDR, 7.1CH
[DIP]=010: FRL10G_8K_HDR, 2.0CH
[DIP]=001: FRL10G_8K_HDR, 5.1CH
[DIP]=000: FRL10G_8K_HDR, 7.1CH
5
Service
Firmware update port.
6
IN Port
HDMI signal input port, connecting to HDMI source device such as
DVD or PS5 with an HDMI cable.
7
OUT Port (1~2)
HDMI signal output port, connecting to HDMI display device such
as TV or Monitor with an HDMI cable.
8
Optical
Optical fiber audio output port.
9
L/R
Analog audio output port.
10
DC 5V
DC 5V/2A power input port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL

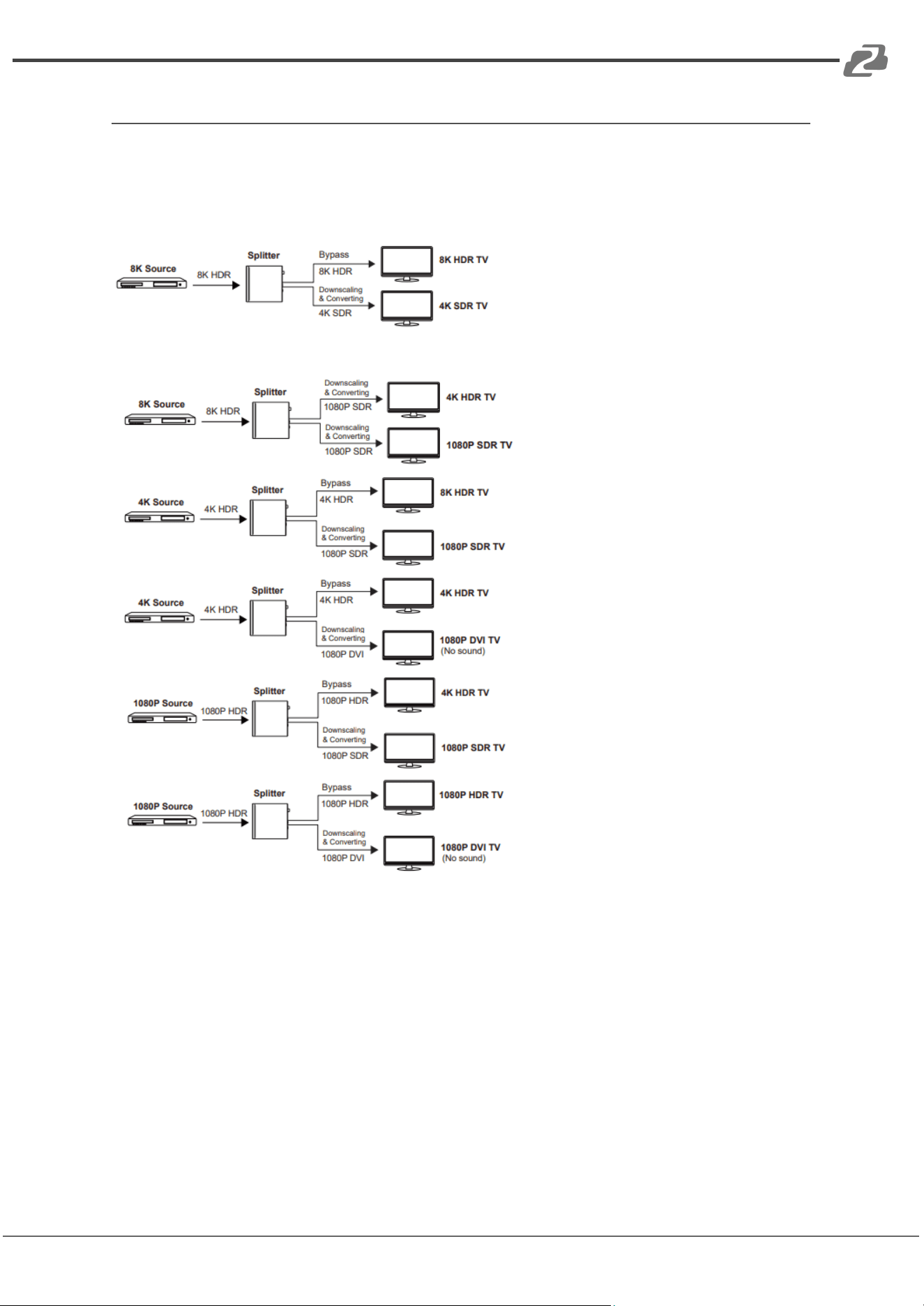

Auto Downscaling & Conversion
This 1x2 splitter features automatic downscaling and format conversion on all outputs.
Before downscaling, it analyzes the EDID data from all connected display devices and
selects the lowest supported resolution to ensure optimal compatibility. For example:
Note: If the source resolution is downscaled and converted to 1080P DVI according to the
EDID of display devices, it will be output without sound on the TV.
Downscaling will not work in the following conditions:
1. The input source is 8K DSC format.
2. The resolution of the input source is not supported by the splitter.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL

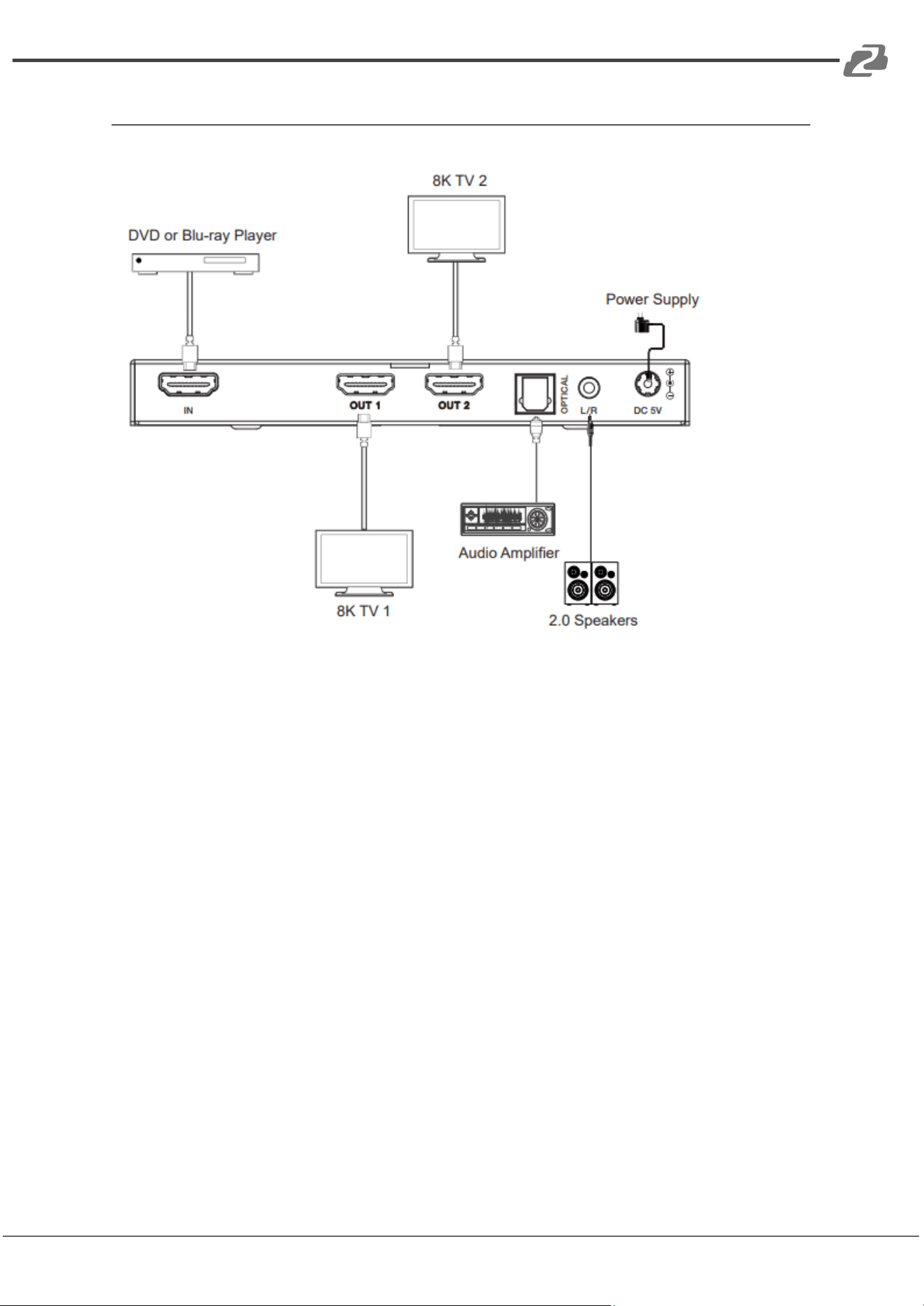

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-8K-DA12A-G2 PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
