BG-EXHOC
4K UHD 18Gbps HDMI Extender Over Single Coax Cable with
2-Way IR up to 363ft
User Manual
BZBGEAR BG-EXHOC PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXHOC PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 8
Application Diagram 9
HDMI Pin Definition 10
Tech Support 11
Limited Product Warranty Terms 11
Mission Statement 11
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXHOC PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXHOC PRODUCT MANUAL
Introduction
The BG-EXHOC HDMI 2.0 Extender over Single Coax with bi-directional IR boosts your
HDMI transmission range up to 110m (363ft) in Ultra HD 4K2K format over a single coaxial
cable. BG-EXHOC is easy to install and works perfectly with Belden 1694A coaxial cables.
This device is also equipped with bi-directional IR pass-through. This feature allows users
to rely on the same coax cable to carry IR control data for devices like displays and media
players.
The BG-EXHOC is composed of two units: transmitter (BG-EXHOC[TX]) and receiver
(BG-EXHOC[RX]). The transmission range between the sending and receiving units can be
up to 110m (363ft) using Ultra HD (4K2K) with 2 channel audio.
Features
● HDMI 2.0 compliant
● 4K2K@60 4:4:4 8 bits*
● Extends the transmission range up to 110m (363ft) from the HDMI sources at
4K2K@60 4:4:4 8 bits
● HDCP input & output support
● Only needs a single coaxial cable
● Uncompressed HDMI over Coaxial cable transmission
● Audio sample rate supports 32KHz, 44.1KHz, 48KHz
● Auto signal equalization
● Supports full frequency IR signal from 20KHz to 60KHz
● Bi-directional IR path
● Wall mounting housing design for easy and robust installation
The range is dependent on the characteristics and quality of the coax cables. Higher
resolutions and longer transmission distances require low skew cables for best
performance. Solid and shielded coax cable, such as Belden 1694A, with metal 75ΩBNC
connectors is recommended.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXHOC PRODUCT MANUAL
Supported Resolutions
Supported Resolution
480i 60Hz
1080P 29.97(30)Hz
4K2K 50Hz 4:2:0
480P 60Hz
1080P 50Hz
4K2K 50Hz 4:2:0 10/12bit**
576i 50Hz
1080P 59.94(60)Hz
4K2K 50Hz 4:2:2
576P 50Hz
1080P 59.94(60)Hz 10/12bit**
4K2K 50Hz 4:4:4
720P 50Hz
4K2K 24Hz 4:4:4
4K2K 60Hz 4:2:0
720P 59.94(60)Hz
4K2K 24Hz 4:4:4 10/12bit
4K2K 60Hz 4:2:0 10/12bit**
1080i 59.94(60)Hz
4K2K 25Hz 4:4:4
4K2K 60Hz 4:2:2
1080P 23.98(24)Hz
4K2K 30Hz 4:4:4
4K2K 60Hz 4:4:4
1080P 25Hz
4K2K 30Hz 4:4:4 10/12bit**
** Resolution supports 10/12 bit
Packing List
● 1x BG-EXHOC [TX & RX]
● 2x DC 5V wall wart
● 1x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXHOC PRODUCT MANUAL
Specifications
Technical
Role of usage
Transmitter (TX)
Receiver (RX)
HDMI compliance
HDMI 2.0a
HDCP compliance
Yes
Video bandwidth
Single-link 594MHz (18Gbps)
Video support
up to 4K2K@60 4:4:4 8 bits
Audio support
Stereo audio
HDMI over Coax
transmission range
Ultra HD (4K2K 24-bit color) - up to 110m (363ft)
HDMI Equalization
Auto
Input TMDS signal
1.2 Volts (peak-to-peak)
Input DDC signal
5 Volts (peak-to-peak, TTL)
ESD protection
Human body - ±15kV (air-gap discharge) & ±8kV (contact discharge)
PCB stack-up
4-layer board (impedance control - differential 100Ω; single 50Ω)
Input
1x HDMI/ 1x IR socket
1x BNC/ 1x IR socket
Output
1x BNC/ 1x IR socket
1x BNC/ 1x IR socket
IR remote control
Electro-optical characteristics: ᵗ= 25° / Carrier frequency: 20-60kHz
HDMI connector
Type A [19-pin female]
BNC connector
75Ω interlocking socket
3.5mm connector
3.5mm earphone jack for IR blaster to control HDMI source device
Mechanical
Housing
Metal enclosure
Dimensions
(L x W x H)
Model
3.5" x 3.7" x 1" [90 x 96 x 25mm]
3.5" x 3.7" x 1" [90 x 96 x 25mm]
Package
10.3" x 6.7" x 3.8" [263 x 170 x 97mm]
Carton
1'7" x 1.2' x 11.3" [512 x 364 x 288mm]
Weight
Model
4.5oz [127g]
4.5oz [127g]
Package
2.5lbs [1140 g]
Fixedness
Interlocking power supply
Power supply
5V DC
Power consumption
10 Watt (max)
6 Watt (max)
Operation temperature
32~104°F / 0~40°C
Storage temperature
-4~140°F / -20~60°C
Relative humidity
20~90% RH (no condensation)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXHOC PRODUCT MANUAL
Operation Controls and Functions

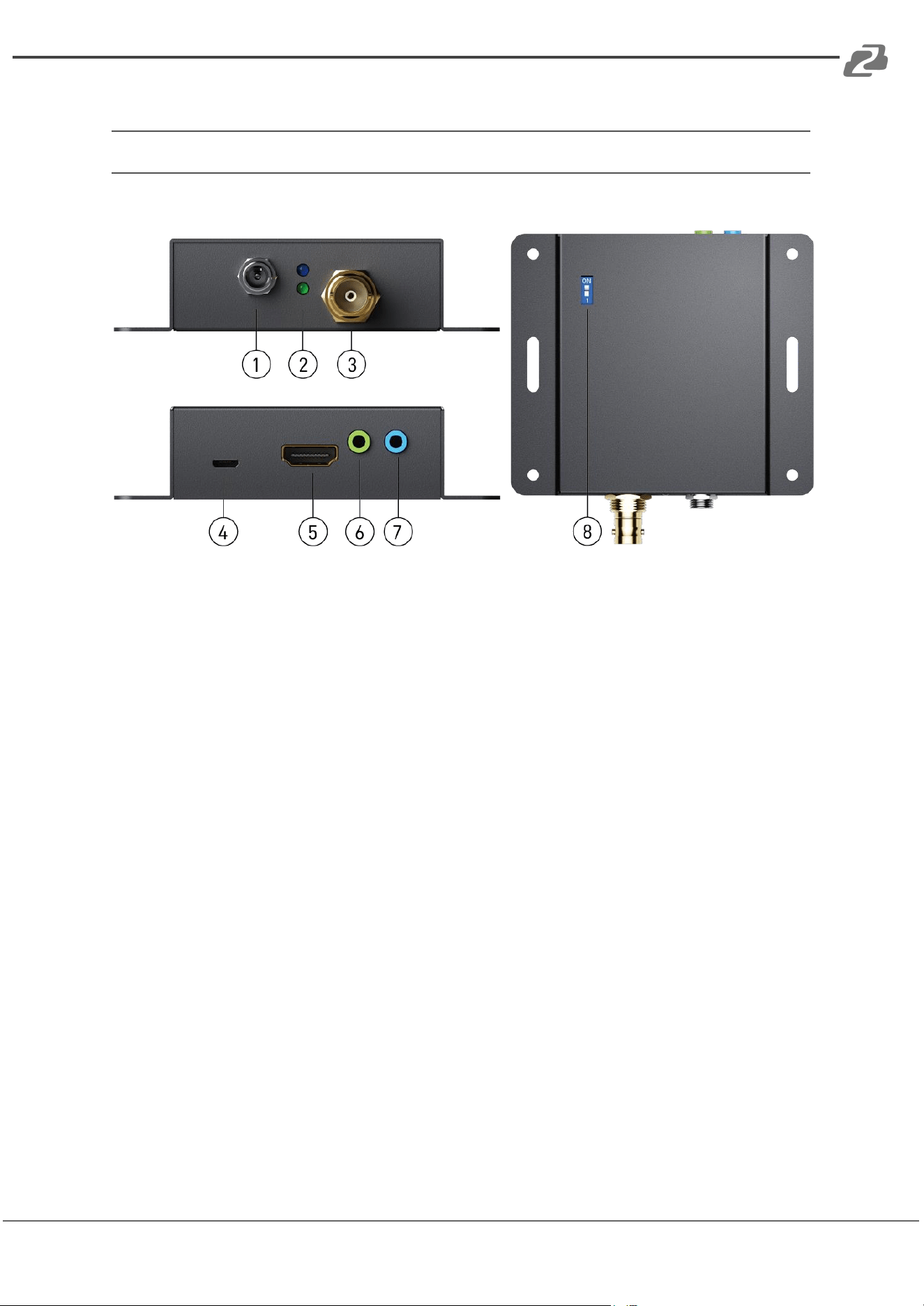

Transmitter Unit - BG-EXHOC-TX
1. +5V DC: Connects to 5V DC power supply
2. POWER/SIGNAL LED: Blue light - POWER; Green light - SIGNAL ACTIVE
3. COAX OUT: Connect to coaxial cable
4. Micro-USB: for F/W update
5. HDMI IN: Connect to HDMI source device
6. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of an IR
receiver
7. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of an IR
blaster
8. DIP Switch: [ON] FW update mode; [OFF] Normal mode
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-EXHOC PRODUCT MANUAL
Receiver Unit - BG-EXHOC-RX
1. +5V DC: Connects to 5V DC power supply
2. POWER/SIGNAL LED: Blue light - POWER; Green light - SIGNAL ACTIVE
3. COAX IN: Connect to coaxial cable
4. Micro-USB: for F/W update
5. HDMI OUT: Connect to HDMI display
6. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of an IR
receiver
7. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of an IR
blaster
Application Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-EXHOC PRODUCT MANUAL

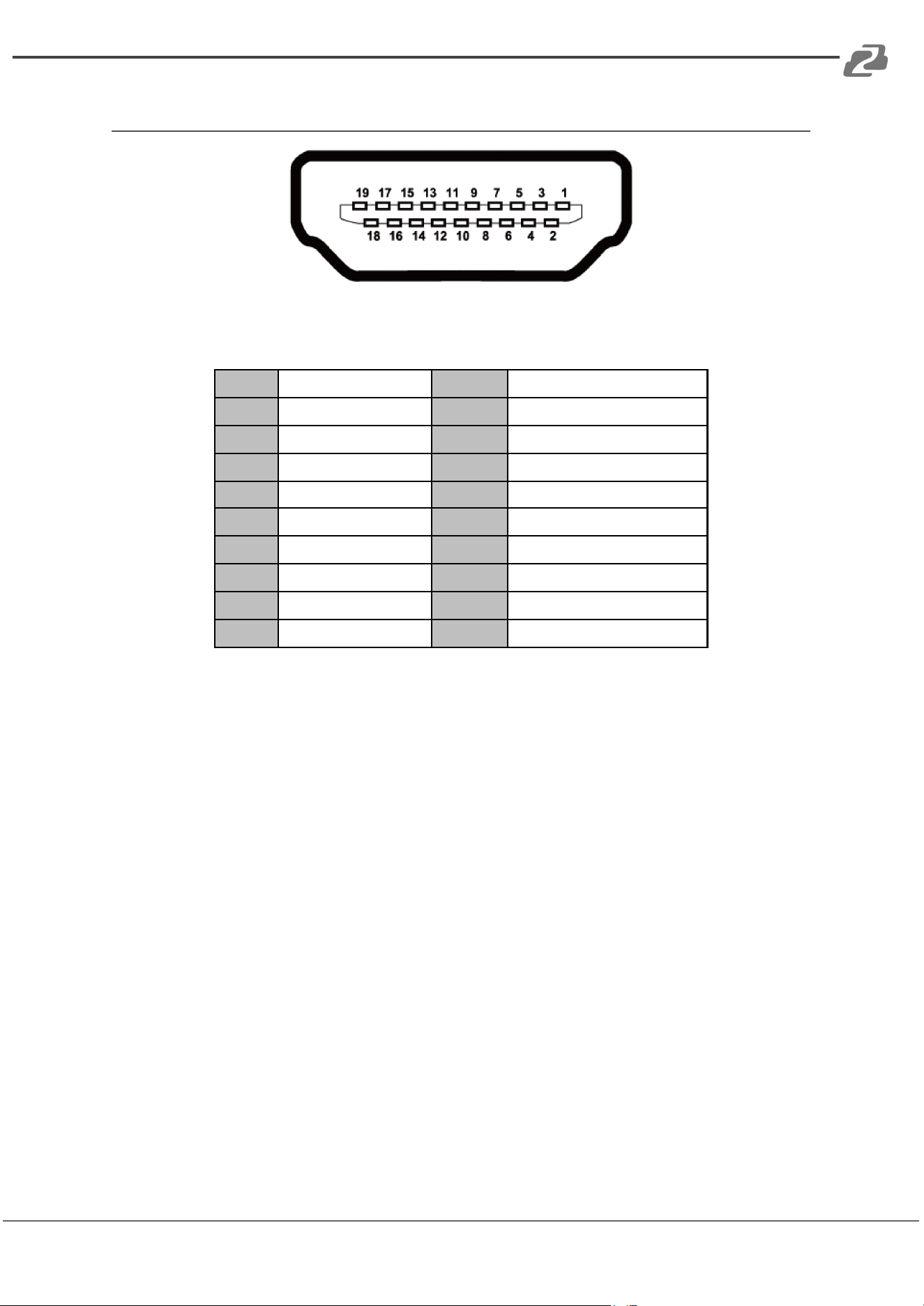

HDMI Pin Definition
Type A (Receptacle) HDMI
Pin 1
TMDS Data2+
Pin 11
TMDS Clock Shield
Pin 2
TMDS Data2 Shield
Pin 12
TMDS Clock–
Pin 3
TMDS Data2–
Pin 13
NC
Pin 4
TMDS Data1+
Pin 14
Reserved (N.C. on device)
Pin 5
TMDS Data1 Shield
Pin 15
SCL
Pin 6
TMDS Data1–
Pin 16
SDA
Pin 7
TMDS Data0+
Pin 17
DDC/CEC Ground
Pin 8
TMDS Data0 Shield
Pin 18
+5V Power
Pin 9
TMDS Data0–
Pin 19
Hot Plug Detect
Pin 10
TMDS Clock+
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXHOC PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-EXHOC PRODUCT MANUAL
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
