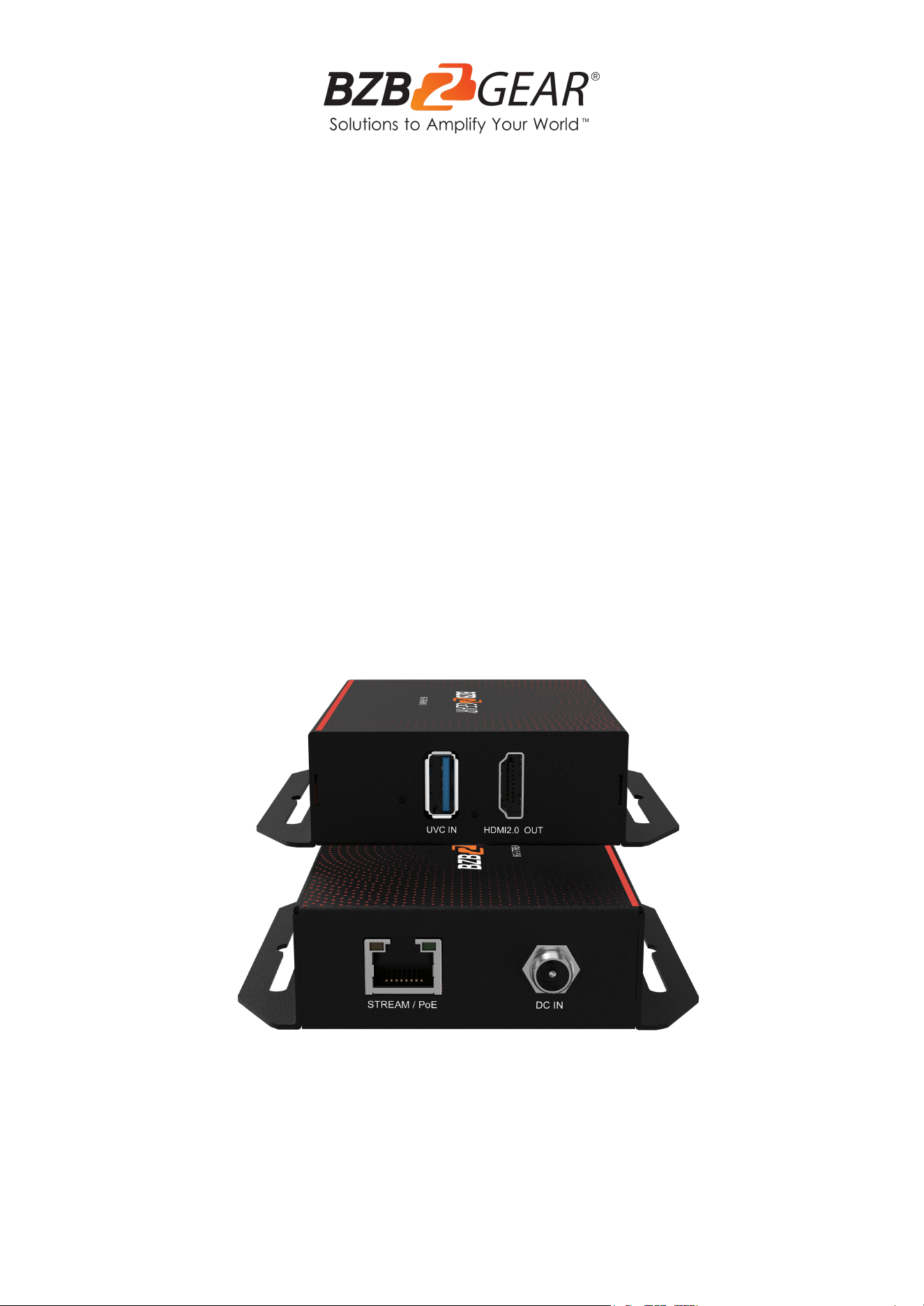

BG-STREAM-D
IP/UVC to HDMI 2.0 Stream Decoder
User Manual
BZBGEAR BG-STREAM-D PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-STREAM-D PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
Web UI 8
Connection Diagram 9
Troubleshooting 10
Tech Support 11
Limited Product Warranty Terms 11
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-STREAM-D PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-STREAM-D PRODUCT MANUAL
Introduction
The BG-STREAM-D IP/UVC to HDMI 2.0 is a cutting-edge video processing unit
that supports various video and audio formats, offering seamless connectivity via
RJ45 and USB 3.0 inputs and delivering output through HDMI 2.0. Capable of
handling high-resolution video up to 4096×2160p at 60/50fps, it is ideal for
professional AV setups, live streaming, and broadcasting. This device supports
various streaming protocols, including RTSP, RTMP, HLS, TS, SRT, NDI HX, and
Dante AV-H, ensuring compatibility with numerous streaming platforms. The
integrated web UI simplifies system configuration, while features like hardware
compression, real-time recording, and firmware upgradability cater to modern video
production needs. Its compact design (103.8mm x 71.2mm x 26mm) allows easy
integration into existing AV infrastructures.
Features
● Versatile Connection Options: Supports IP, USB-A 3.0, and HDMI 2.0 connections
● High-Quality Video Processing: Capable of resolutions up to 4K@60Hz with
downscaling ability
● Comprehensive Audio Support: Utilizes AAC-LC codec with a configurable bit rate
range from 32Kbps to 384Kbps
● Advanced Network Capabilities: Includes DHCP support and Power over Ethernet
(PoE) functionality
● Extensive Protocol Support: Covers RTSP over UDP/TCP/Multicast/HTTP, RTMP, TS
over IP, HLS, NDI, and Dante AV-H
● User-Friendly Interface: Features an accessible web UI for easy system configuration
● UVC Device Support: Ensures compatibility with a wide range of devices.
● Real-Time Mode Recording: Enables immediate recording functionality.
● Secure and Durable Design: Includes a secure locking DC jack power input.
● Efficient Hardware Compression: Supports H.265/H.264/AVC encoding.
● Firmware Upgradeable: Allows for easy updates to enhance functionality.
Packing List
● 1x BG-STREAM-D
● 1x 12V DC Adapter
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-STREAM-D PRODUCT MANUAL
Specifications
Technical Specifications
Max FPS
4096×2160p@60/50fps
Recording Modes
Hardware Compression, Real-Time Mode
Input Interfaces
Video
● 1×RJ45 ( RTSP/RTMP/HLS/TS/SRT/NDI HX/Dante AV-H
Support )
● 1×USB3.0 Type A (UVC) input
Output Interfaces
Video
● 1×HDMI2.0
Video Support
H.265/H.264/AVC, Baseline/Main/High Profile
Supported HDMI output Resolutions
● 4096×2160p@60/50fps
● 4096×2160p@30/25/24fps
● 3840×2160p@60/50fps
● 3840×2160p@30/25/24fps
● 1920×1080p@60/50fps
● 1920×1080p@30/25/24fps
● 1920×1080i@60/50fps
● 1280×720p@60/50fps
● 1280×1024p@60fps
● 1280×960p@60fps
● 1024×768p@60fps
● 800×600p@60fps
● 640×480p@60fps
● 720×480p@60fps
● 720×576p@50fps
Audio Support
● AAC-LC
● Configurable bit rate range from 32Kbps to 384Kbps
● Sample rate: 48KHz, 16bit
Network Features
● 1×RJ45 for 10/100/1000Mbps Ethernet
● DHCP Client
Streaming Protocols
● NDI Support ( Separate License with NDI Required )
● Dante AV-H ( Separate License with Dante AV-H Required )
● RTSP over UDP/TCP/Multicast/HTTP
● RTMP ( Publish )
● TS over IP
● HLS
Power Supply
● 12V DC input
● POE input
Unit Dimensions
● 103.8mm×71.2mm×26mm
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-STREAM-D PRODUCT MANUAL
Operation Controls and Functions
Front and Rear Panel
1. Factory Restore Button: Use a pin to press and hold for 3 seconds
2. UVC In: UVC source input
3. HDMI Out: HDMI 2.0 output for viewing or monitoring
4. Stream/PoE In: PoE enabled ethernet port
5. DC Power In: 12V DC power supply input
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-STREAM-D PRODUCT MANUAL

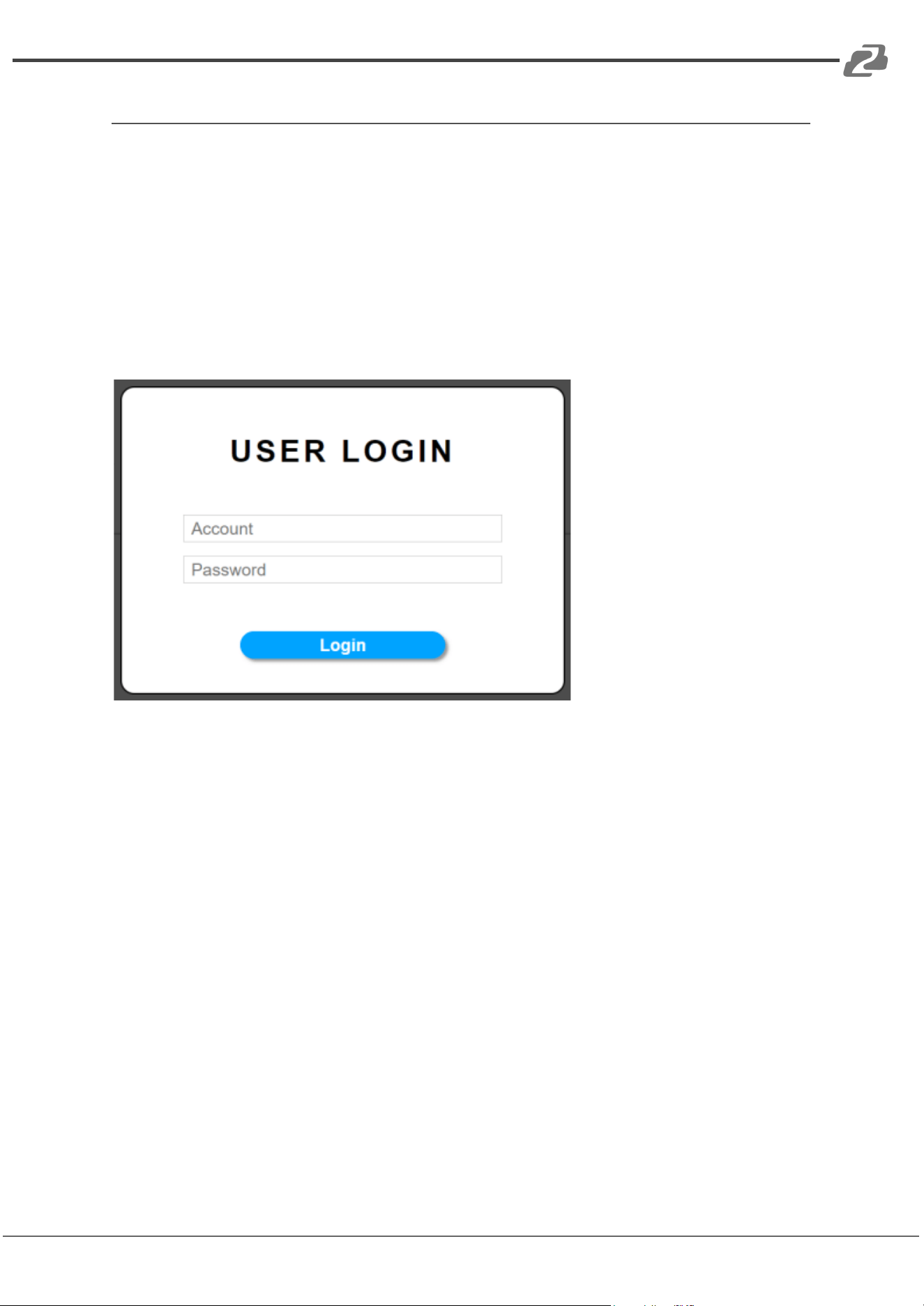

Web UI
To access the BG-STREAM-D Web UI, open an IP Finder tool and search for the
device's IP address. Identify the correct IP address by matching it with the device's
MAC address, then use it to open the control interface.
The Web UI is an intuitive interface that allows users to easily control the
BG-STREAM-D from a standard PC or portable devices (e.g., Android, iPhone, iPad,
etc.), providing a more convenient and flexible control experience.
Access and Login Instructions
Username: admin
Password: 0000
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-STREAM-D PRODUCT MANUAL

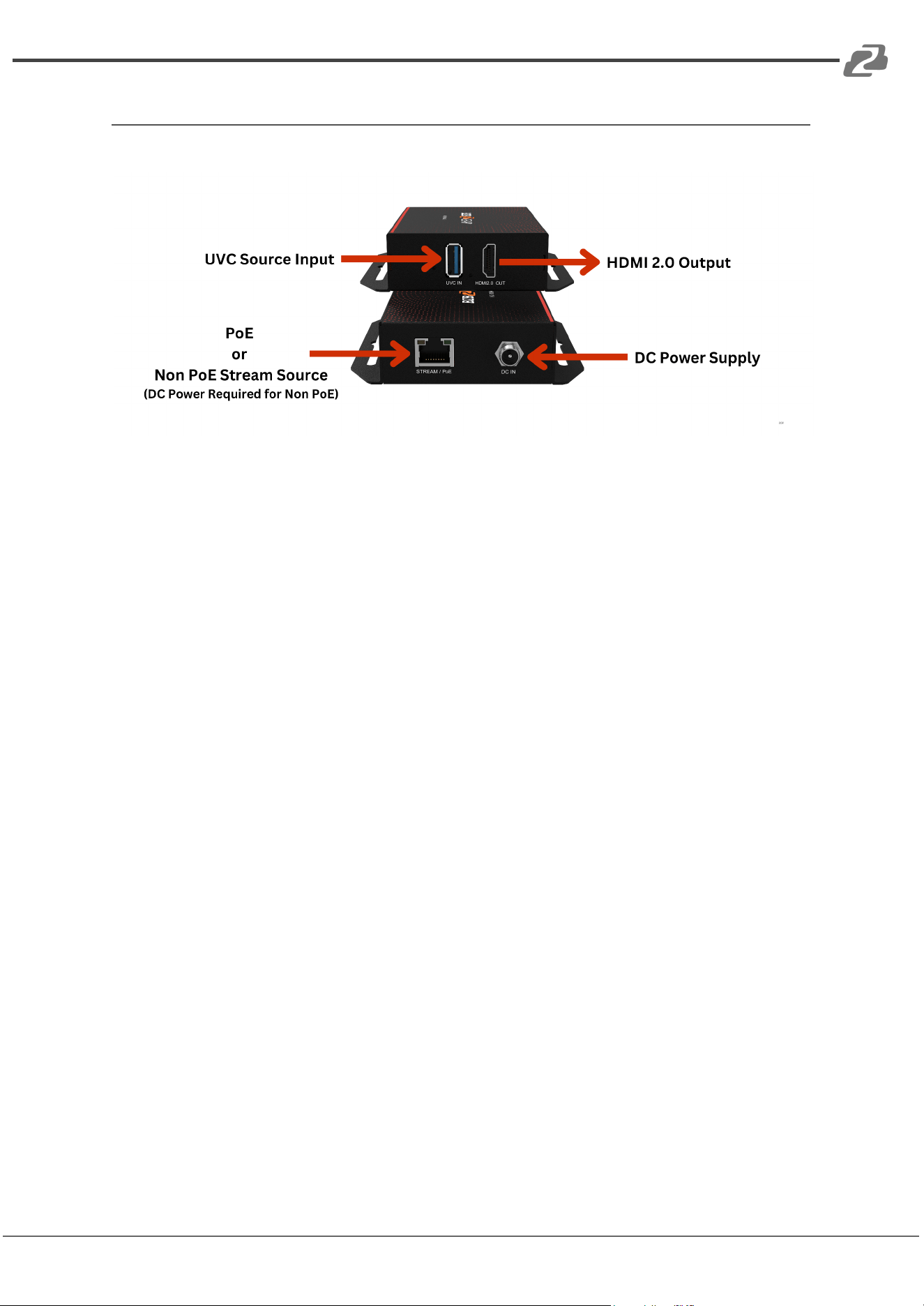

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-STREAM-D PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-STREAM-D PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
