BG-STREAM-E
HDMI to IP/UVC POE Encoder
User Manual
BZBGEAR BG-STREAM-E PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-STREAM-E PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
Web UI 8
Connection Diagram 9
Troubleshooting 10
Tech Support 11
Limited Product Warranty Terms 11
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-STREAM-E PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-STREAM-E PRODUCT MANUAL
Introduction
The BG-STREAM-E HDMI to IP/UVC converter is a versatile device designed for
high-quality video conversion from HDMI sources to IP streams or USB 3.0 UVC
outputs. It features a single HDMI input and multiple output options, including an
RJ45 port for IP streaming and a USB 3.0 Type-B port for UVC output, supporting
streaming protocols such as RTSP, RTMP, HLS, TS, SRT, NDI HX, and Dante AV-H.
With support for resolutions up to 1080p at 60/50fps and advanced
H.265/H.264/AVC encoding, it ensures efficient compression and excellent video
quality.
The device also supports AAC-LC audio with a configurable bit rate and a sample
rate of 48KHz. Additional features include DHCP client support, POE input, a
user-friendly web UI for system configuration, a compact size, and a secure locking
DC jack power input, making it ideal for professional AV setups.
Features
● HDMI to IP and USB 3.0 Type B (UVC) conversion
● Supports up to 1080p resolution at 60/50fps
● Hardware compression in real-time mode
● H.265/H.264/AVC codec support
● AAC-LC audio codec with 48KHz sample rate
● Multiple streaming protocols: RTSP, NDI-HX, Dante AV-H, HLS, RTMP, TS, SRT
● DHCP client and configurable network settings
● Web UI for easy configuration and management
● UVC over IP support
● System control options: restore to default, reboot
● Account and password management
● DC locking power and PoE support
● Compact size: 103.8mm x 71.2mm x 26mm
Packing List
● 1x BG-STREAM-E
● 1x DC Power Adapter
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-STREAM-E PRODUCT MANUAL
Specifications
Technical Specifications
Input Interface
Video
● 1×HDMI
Output Interface
Video
● 1×RJ45 ( RTSP/RTMP/HLS/TS/SRT/NDI HX/Dante AV-H Support )
● 1×USB3.0 Type B (UVC) output．
Video Support
H.265/H.264/AVC, Baseline/Main/High Profile
Supported HDMI output Resolutions
● 1920×1080p@60/50fps
● 1920×1080p@30/25/24fps
● 1920×1080i@60/50fps
● 1280×720p@60/50fps
● 1280×1024p@60fps
● 1280×960p@60fps
● 1024×768p@60fps
● 800×600p@60fps
● 640×480p@60fps
● 720×480p@60fps
● 720×576p@50fps
Audio Support
● AAC-LC
● Configurable bit rate range from 32Kbps to 384Kbps
● Sample rate: 48KHz, 16bit
Max. FPS
1920×1080p@60/50fps
Network / Ethernet
Support
● 1×RJ45 for 10/100/1000Mbps Ethernet
● DHCP Client
Streaming Protocol
Support
● NDI Support ( Separate License with NDI Required )
● Dante AV-H ( Separate License with Dante AV-H Required )
● RTSP over UDP/TCP/Multicast/HTTP
● RTMP ( Publish )
● TS over IP
● HLS
Additional Features
● UVC Device Supported
● Web UI for System Configuration
● Firmware Upgradable
Power Supply
● DC Input
● PoE Support
Unit Dimensions
103.8mm x 71.2mm x 26mm
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-STREAM-E PRODUCT MANUAL
Operation Controls and Functions

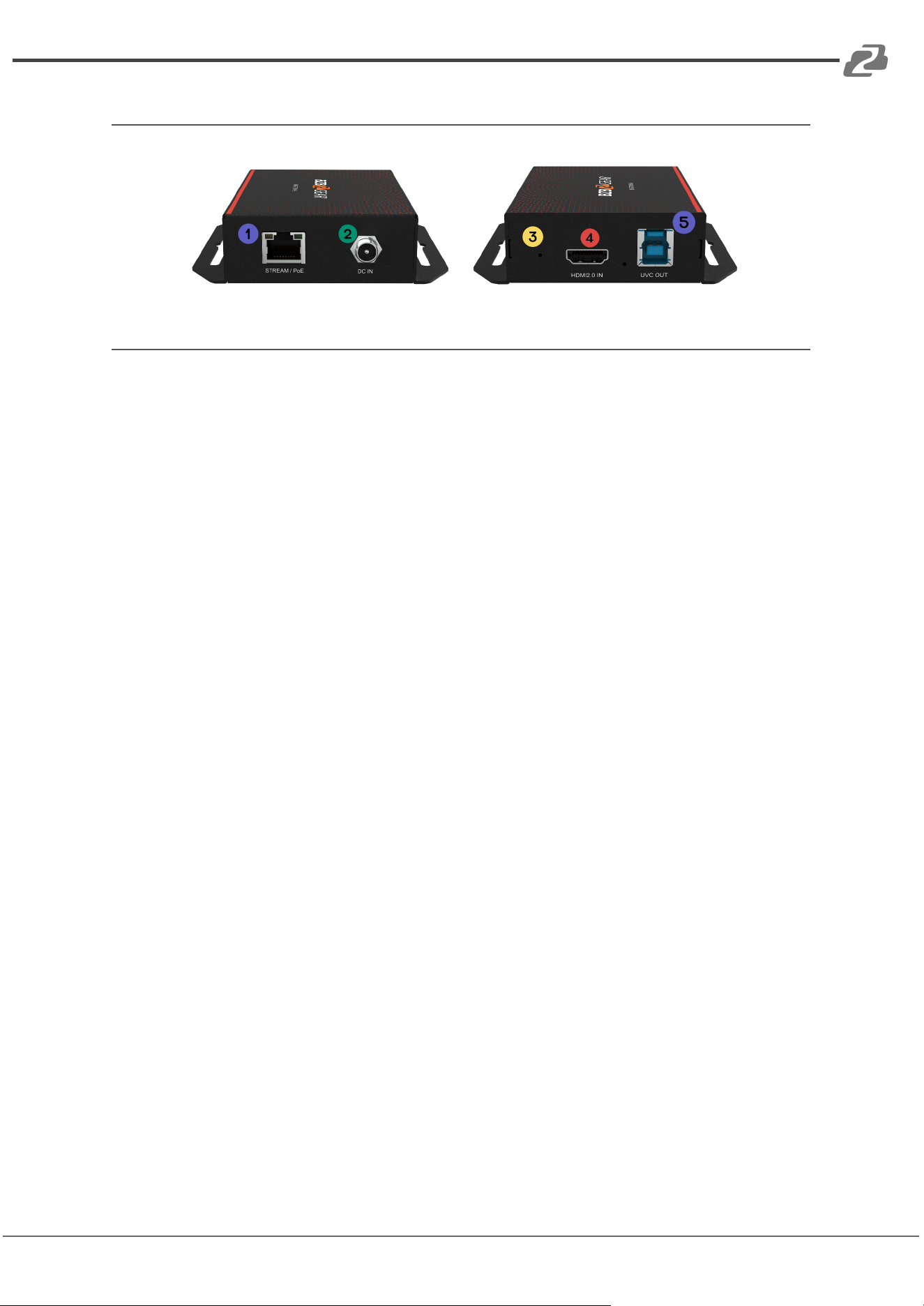

Front and Rear Panel
1. RJ45 Out / PoE In: Connect to a network or directly to a PC. (Note: A PoE-enabled
network device is required for PoE functionality.)
2. Locking DC Power Adapter: Securely connect the power supply
3. Factory Reset: Use a pin to press and hold for a complete factory reset
4. HDMI In: Connect any compatible HDMI video source
5. UVC Out: Transmit video and audio via USB
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-STREAM-E PRODUCT MANUAL
Web UI
To access the BG-STREAM-E Web UI, open an IP Finder tool and search for the
device's IP address. Identify the correct IP address by matching it with the device's
MAC address, then use it to open the control interface.
The Web UI is an intuitive interface that allows users to easily control the
BG-STREAM-E from a standard PC or portable devices (e.g., Android, iPhone, iPad,
etc.), providing a more convenient and flexible control experience.

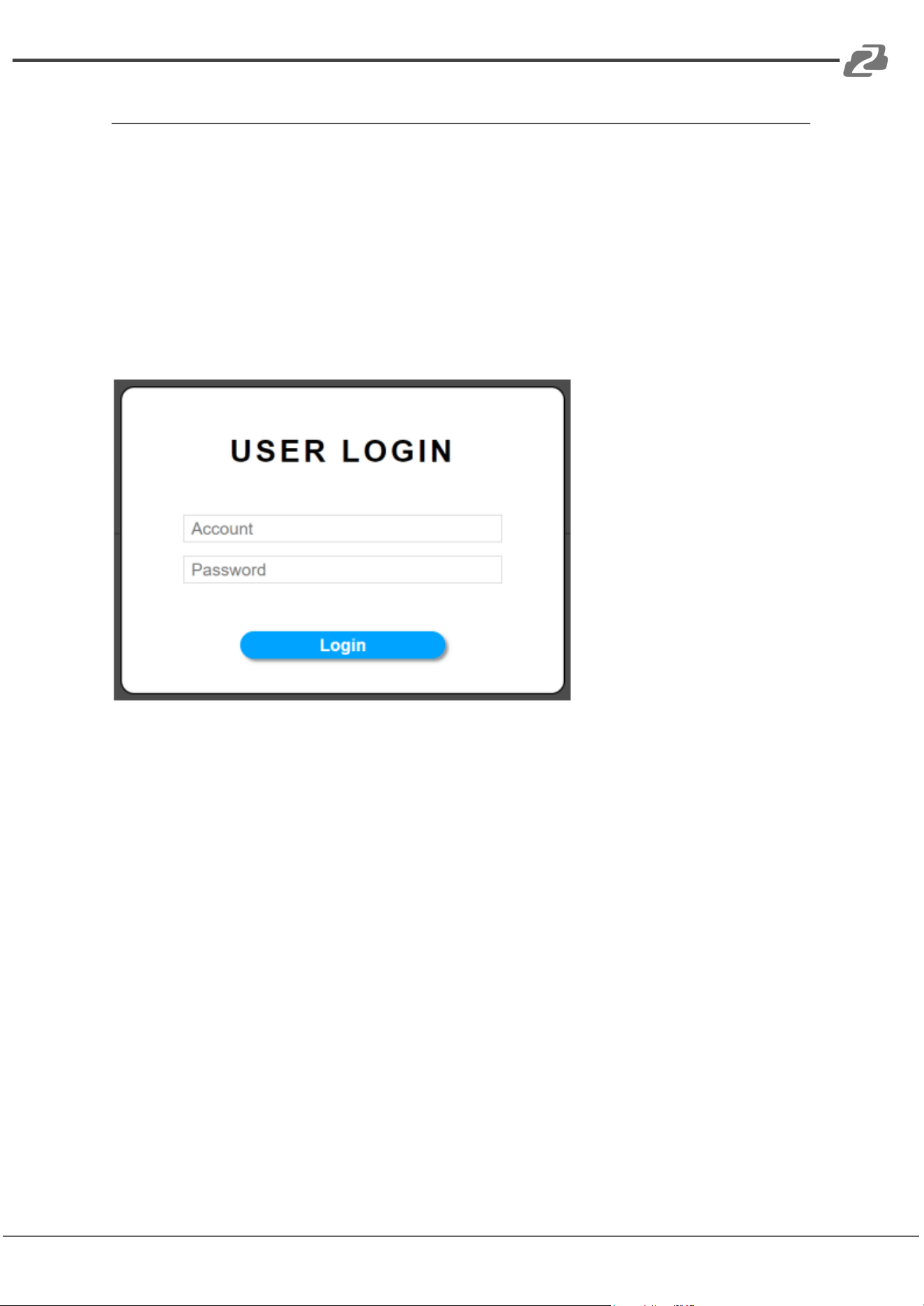

Access and Login Instructions
Username: admin
Password: 0000
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-STREAM-E PRODUCT MANUAL

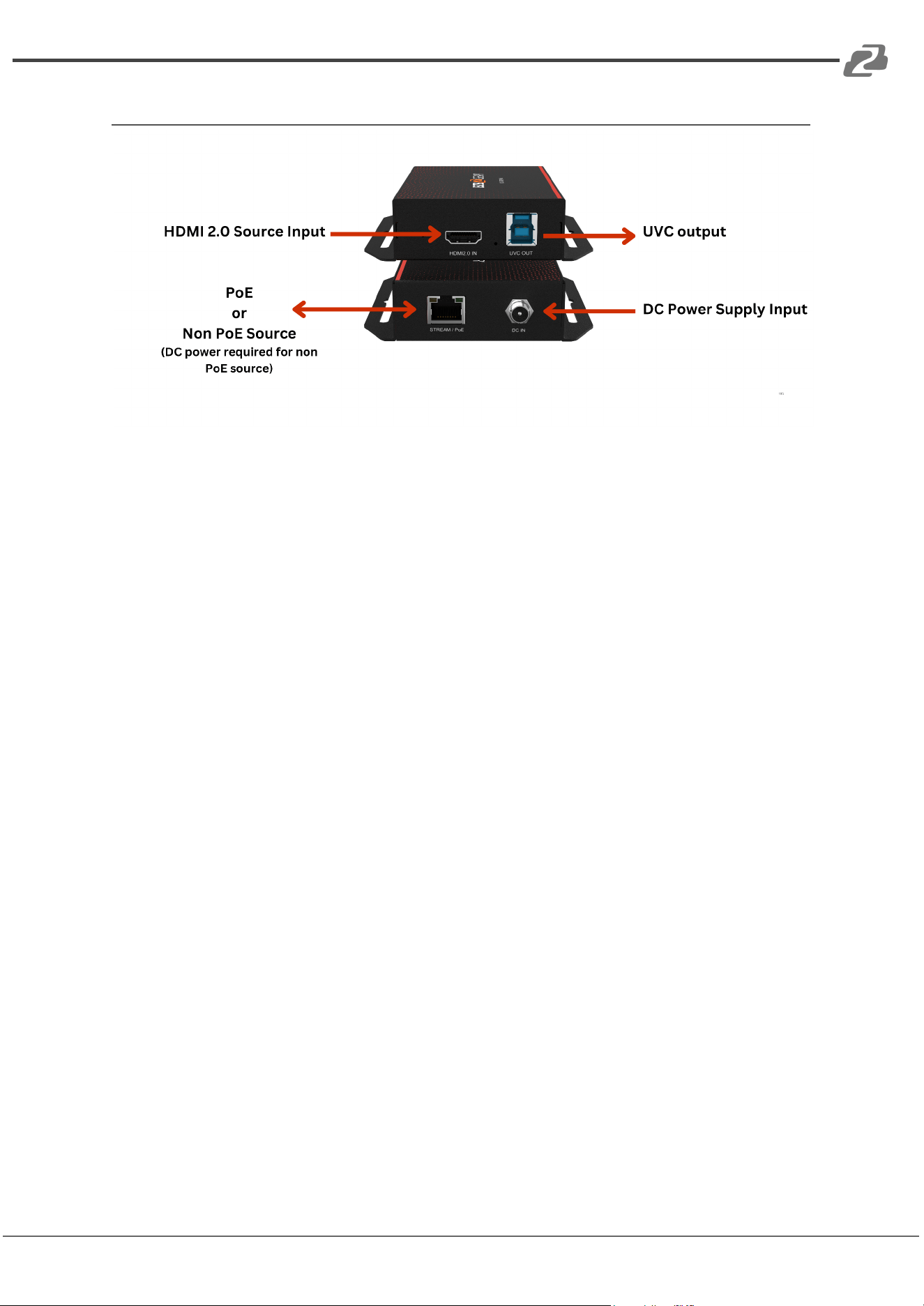

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-STREAM-E PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-STREAM-E PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
