BG-EXH-50C
4K UHD HDMI & IR Extender via CAT 5e/6/7 up to 164ft
User Manual
BZBGEAR BG-EXH-50C PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXH-50C PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 7
IR Cable Pin Assignment 9
Application Example 10
Tech Support 11
Limited Product Warranty Terms 11
Mission Statement 11
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXH-50C PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● Unplug this device during lightning storms
● Clean only with a soft dry microfiber cloth.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacture
● Product specifications may be subject to technical upgrades without further notice
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXH-50C PRODUCT MANUAL
Introduction
The BZB-EXH-50C can extend high definition AV signals and one-way IR up to 164 ft (50 m)
between transmitter and receiver over a single Cat5e/6/7 cable. It supports resolutions up
to 4K2K@60Hz 4:4:4 at 18Gbps and it is also HDCP 2.2 compliant. In addition, the
extenders are equipped with one-way IR pass-through. This allows for a source to be
controlled on the transmitter end. The transmitter also has one HDMI loop output to view
source content locally.
The package includes two units: a transmitter (Tx) and a receiver (Rx). The transmitter is
responsible for sending the HDMI signal via one cost effective CAT 5e/6/7 cable, and
emitting IR control signals to source devices. The receiver unit is responsible for receiving
the HDMI signal for use on displays and transmitting an IR control signal to the transmitter
to control source devices. The Tx and Rx units are also PoC capable meaning only one
device needs a power source for both to function.
The BZB-EXH-50C HDMI extender offers the most convenient solution for HDMI extension
over a single Cat5e/6/7 with long distance capability, and is the perfect solution for many
applications.
Features
● HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
● 18 Gbps bandwidth
● Input and output video resolutions up to 4k2k@60Hz 4:4:4 at a distance of up to
164ft / 50 meters
● One HDMI loop output on transmitter
● One-way IR pass-through from receiver to transmitter
● HDR functionality
● Power over CAT (PoC) 5e/6/7 functionality. Only one unit, either the transmitter or
the receiver, is required to be powered by the supplied 12V/1A power adapter.
● Automatic copy EDID functionality
● Compact design for easy and flexible installation
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXH-50C PRODUCT MANUAL
Packing List
●1x HDMI 18Gbps Extender (Transmitter)
●1x HDMI 18Gbps Extender (Receiver)
●1x IR Blaster cable (1.5 meters)
●1x 20~60KHz IR Receiver cable (1.5 meters)
●1x 12V/1A Locking Power adapter
●1x User Manual
●1х Quick Start Guide
Technical Specifications
Technical
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2 / HDCP 1.4
Video Bandwidth
18 Gbps
Video Resolution
Up to 4K@60Hz 4:4:4
Color Space
RGB / YCbCr 4:4:4,
YCbCr 4:2:2/4:2:0,
YUV 4:4:4
Color Depth
8/10/12-bit (1080P@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0)
8-bit (4K@60Hz 4:4:4 )
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD
Master, DTS HD-HRA, DTS-X
ESD Protection
Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)
Connections
Transmitter
Inputs:
1x HDMI Type A [19-pin female]
1x SERVICE [Micro USB, Update port]
Outputs:
1x HDMI Type A [19-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]
1x CAT OUT [RJ45, 8-pin female]
Receiver
Inputs:
1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
1x SERVICE [Micro USB, Update port]
Outputs:
1x HDMI Type A [19-pin female]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter / Receiver: 2.4" (W) x 3.5" (D) x 0.7” (H)
[61mm (W) x 88mm (D) x 18mm (H)]
Weight
Transmitter: 0.35lbs [160g],
Receiver: 0.34lbs [155g]
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 12V/1A
Power Consumption
3.84 W
Operating Temperature
32 - 104°F / 0 - 40°C
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXH-50C PRODUCT MANUAL
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
Resolution / Distance
4K@60 - Feet / Meters
4K@30 / 1080P - Feet / Meters
CAT5e
164ft / 50M
164ft / 50M
CAT6/6a/7
197ft / 60M
230ft / 70M
HDMI IN/OUT
10ft / 3M
30ft / 10M
The use of “Premium High Speed HDMI” cables is highly recommended.
Operation Controls and Functions

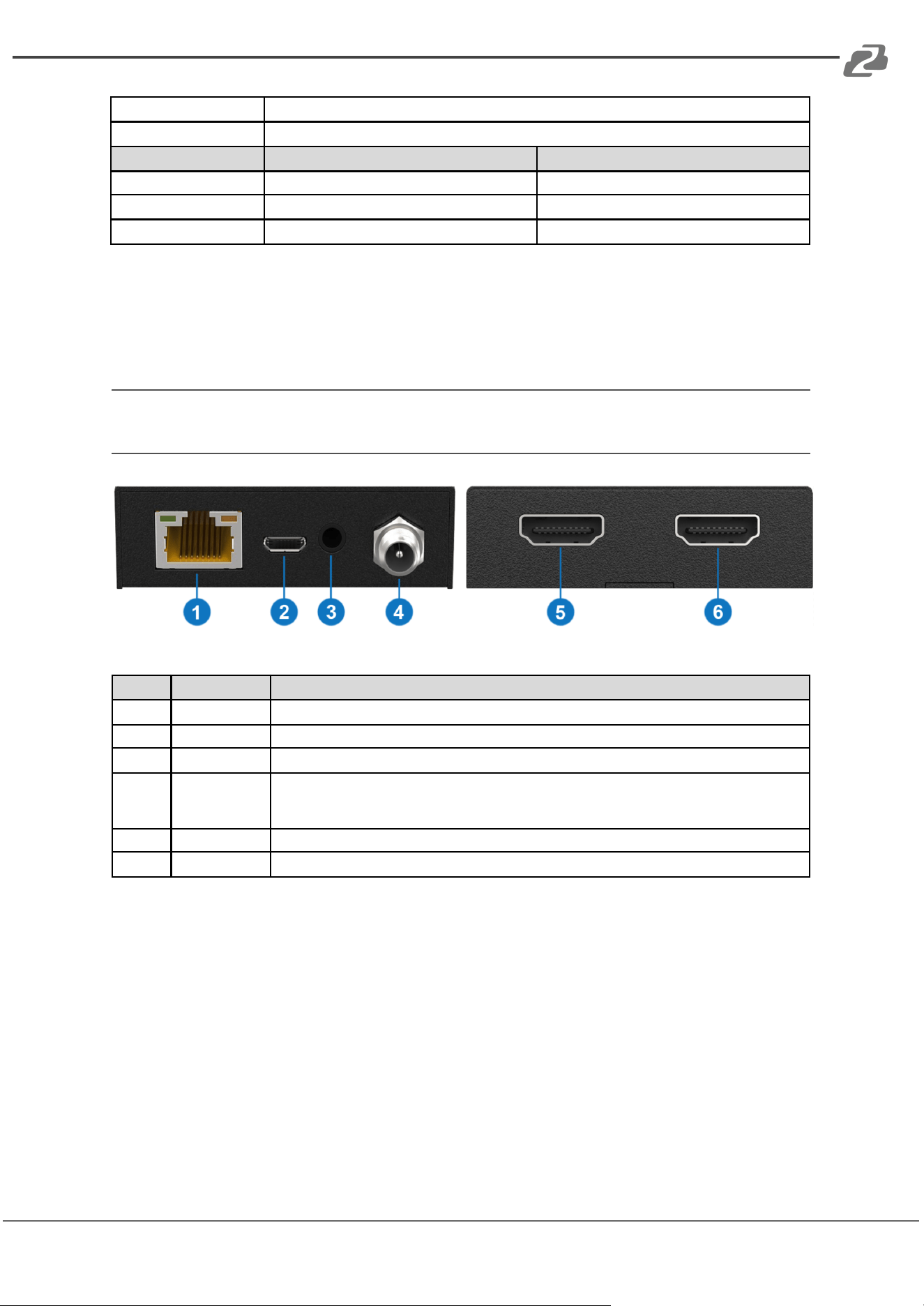

Transmitter Panel
Number
Name
Function description
1
CAT OUT
Connect to the CAT IN port on the receiving unit with a CAT 5e/6/7 cable.
2
SERVICE port
Micro USB for firmware update use.
3
IR OUT
Connect to wideband IR Blaster cable. The IR signal is from the IR IN port of the receiver.
4
DC 12V
Plug DC 12V/1A power supply into the unit and connect the adapter to an AC outlet.
(Note: The extender supports power over cat5e/6/7 functionality, transmitter or receiver is
powered by 12V/1A power adapter; the other doesn’t need a power supply.)
5
HDMI OUT
HDMI loop output port, connect to an HDMI display device such as TV with an HDMI cable.
6
HDMI IN
HDMI input port, connect to HDMI source device such as a media player with an HDMI cable.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXH-50C PRODUCT MANUAL

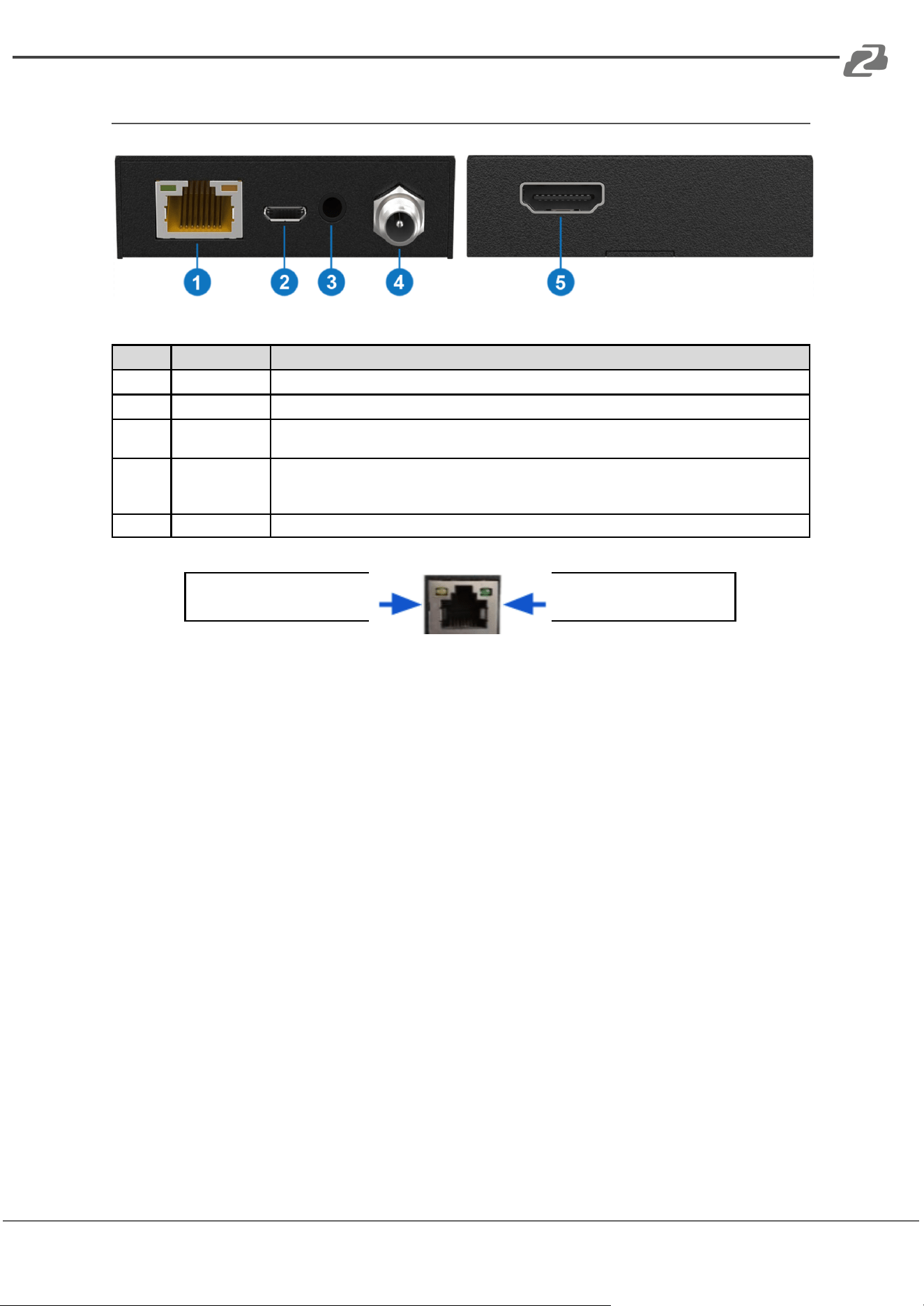

Receiver Panel
Number
Name
Function description
1
CAT IN
Connect to the CAT OUT port on the transmitting unit with a CAT 5e/6/7 cable.
2
SERVICE port
Micro USB for firmware update use.
3
IR IN
Connect to the wideband IR Receiver cable. The IR signal will be sent to the IR OUT port of the
transmitter.
4
DC 12V
Plug DC 12V/1A power supply into the unit and connect the adapter to an AC outlet.
(Note: The extender supports power over cat5e/6/7 functionality, transmitter or receiver is
powered by 12V/1A power adapter; the other doesn’t need a power supply.)
5
HDMI OUT
HDMI output port, connect to an HDMI display device such as TV with an HDMI cable.
Data Signal (Yellow)
Indicator Lamp
Connection Signal (Green)
Indicator Lamp
● Solid: HDMI signal with HDCP.
● Flashing: HDMI signal without HDCP.
● Dark: No HDMI signal.
● Solid: Devices are in good connection status.
● Flashing: Devices are in poor connection status.
● Dark: Devices are not connected.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-EXH-50C PRODUCT MANUAL

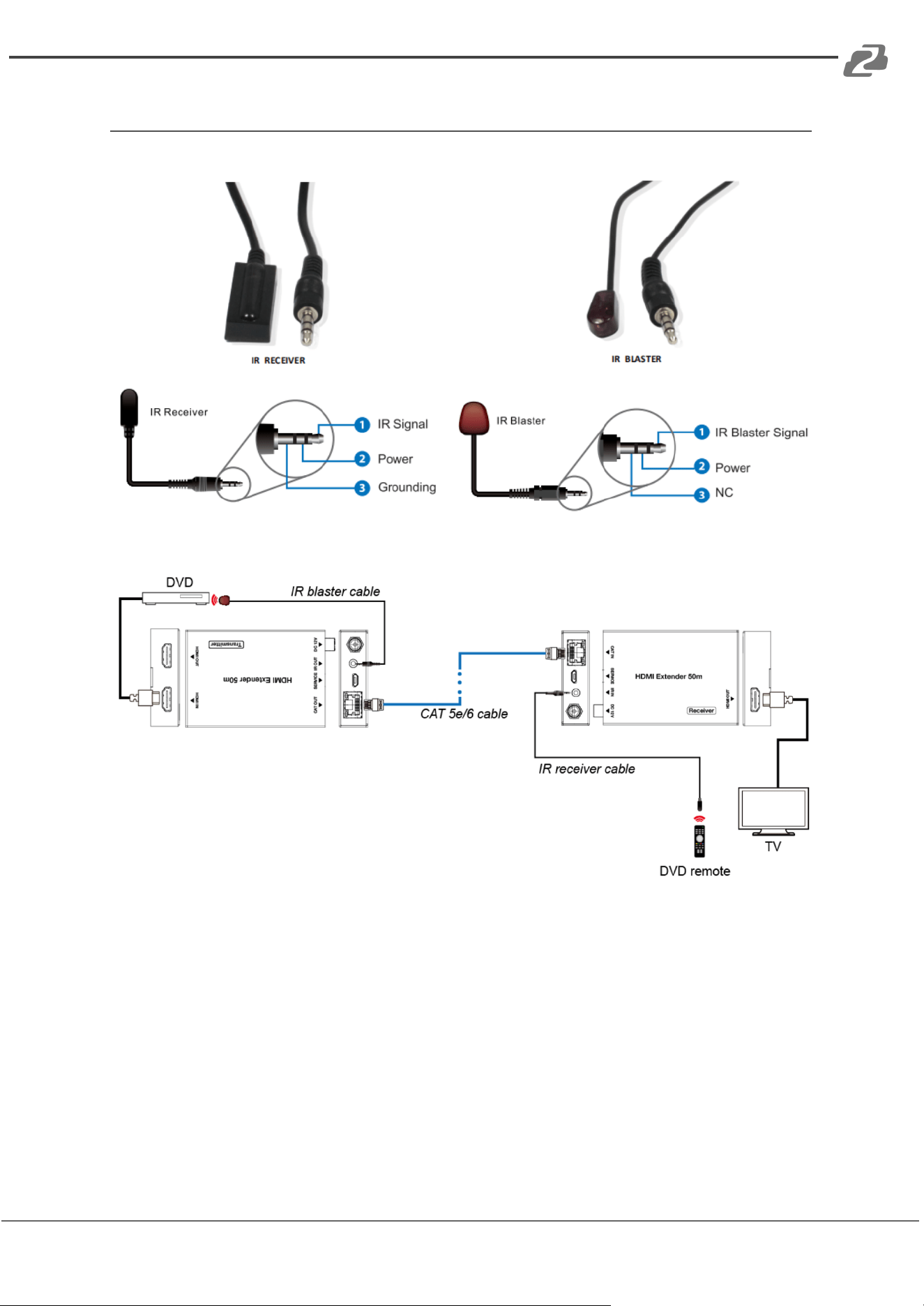

IR Cable Pin Assignments
IR Receiver and Blaster pin’s descriptions:
IR system diagram:
Note: The IR remote can send signals up to a distance of 5~8 meters at an angle of
plus-minus 45 degrees.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-EXH-50C PRODUCT MANUAL

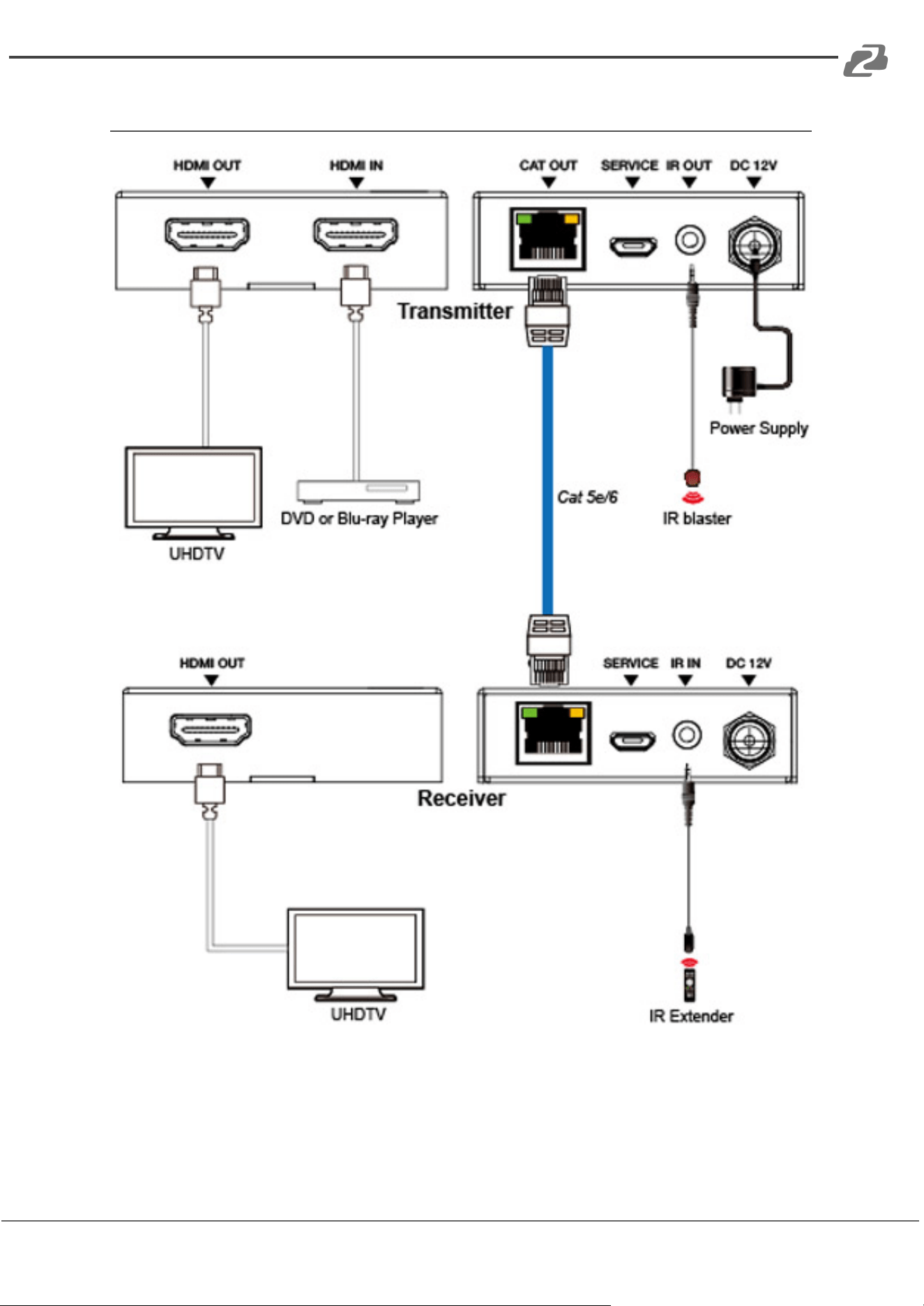

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXH-50C PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
