BG-EXH-150C
4K 18Gbps UHD HDMI HDBaseT Extender Over Category 5e/6/7
Cable up to 495ft with 2-Way IR/CEC/PoC/RS-232
User Manual
BZBGEAR BG-EXH-150C PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXH-150C PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 7
IR Cable Pin Assignment 8
Application Example 9
Tech Support 10
Limited Product Warranty Terms 10
Mission Statement 10
Copyright 10
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXH-150C PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● Unplug this device during lightning storms
● Clean only with a soft dry microfiber cloth.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacture
● Product specifications may be subject to technical upgrades without further notice
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXH-150C PRODUCT MANUAL
Introduction
The BG-EXH-150C is an 18Gbps HDMI extender that can extend high definition video,
audio, RS-232, bi-directional IR, up to 492ft / 150 meters between transmitter and receiver
via a single CAT cable. The BG-EXH-150C also features power over cable (PoC) capabilities
meaning only one of the units, transmitter or receiver, needs to be plugged into power.
The system supports resolutions up to 4K2K@60Hz 4:4:4 at 18Gbps and it is also HDCP 2.2
compliant. One HDMI loop output is integrated into the transmitter to view content locally. It
also features audio extraction via the L/R audio output. In addition, the extender is
equipped with two way IR pass-through which allows for source and display control. This
set of robust features makes the BG-EXH-150C a convenient solution for HDMI extension
via a single Cat5e/6 with long distance capabilities.
Features
● HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
● 18Gbps video bandwidth
● The maximum extended transmission distance via a single Cat5e/6 cable:
○ 394ft / 120 meters for 4K2K signal;
○ 492ft / 150 meters for 1080P signal
● HDMI loop output on transmitter unit
● Extract audio to analog stereo on receiving unit
● Bi-directional IR, RS-232 and CEC pass-through
● HDR, HDR10+, Dolby Vision, and HLG function supported
● PoC (Power over Cable) functionality
● Compact design for easy and flexible installations
Packing List
● 1 x 18Gbps HDMI over HDBaseT
Extender (Transmitter)
● 1 x 18Gbps HDMI over HDBaseT
Extender (Receiver)
● 1 x IR Blaster cable (1.5 meters)
● 1 x 20~60KHz IR Receiver cable (1.5
meters)
● 4 x Mounting Ear
● 2 x 3-pin Phoenix connector
● 1 x 24V/1A Locking Power adapter
● 1x User Manual
● 1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXH-150C PRODUCT MANUAL
Technical Specifications
Technical
HDCP Compliance
HDCP 2.2 / HDCP 1.4
Video Bandwidth
18Gbps
Video Resolution
4K2K@50/60Hz 4:4:4
4K2K@50/60Hz 4:2:2
4K2K@50/60Hz 4:2:0
4K2K@30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All HDMI 3D TV formats
All PC resolutions including 1920 x 1200
Color Space
RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12-bit (1080p@60Hz, 4K@30Hz, 4K@60Hz YCbCr 4:2:2/4:2:0)
8-bit (4K@60Hz 4:4:4)
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES,
DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats
PCM 2.0
ESD Protection
Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Transmitter
Inputs: 1x HDMI Type A [19-pin female]
Outputs: 1x HDMI Type A [19-pin female]
1x HDBT OUT [RJ45, 8-pin female]
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]
Receiver
Inputs: 1x HDBT IN [RJ45, 8-pin female]
Outputs: 1x HDMI Type A [19-pin female]
1x AUDIO OUT [3.5mm Stereo Mini-jack]
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter / Receiver:
5.5" (W) x 2.5" (D) x 0.7" (H)
[140mm (W) x 65mm (D) x 18mm (H)]
Weight
Transmitter: 0.35lbs [160g],
Receiver: 0.34lbs [155g]
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 24V/1A (Locking connector)
Power Consumption
9.36 W
Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
Resolution / Distance
4K2K
394ft / 120M
1080P
492ft / 150M
Resolution / Cable Length
4K@60 - Feet / Meters
4K@30 - Feet / Meters
1080P@60 - Feet / Meters
HDMI IN / OUT
16ft / 5M
32ft / 10M
50ft / 15M
The use of “Premium High Speed HDMI” cable is highly recommended.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXH-150C PRODUCT MANUAL
Operation Controls and Functions

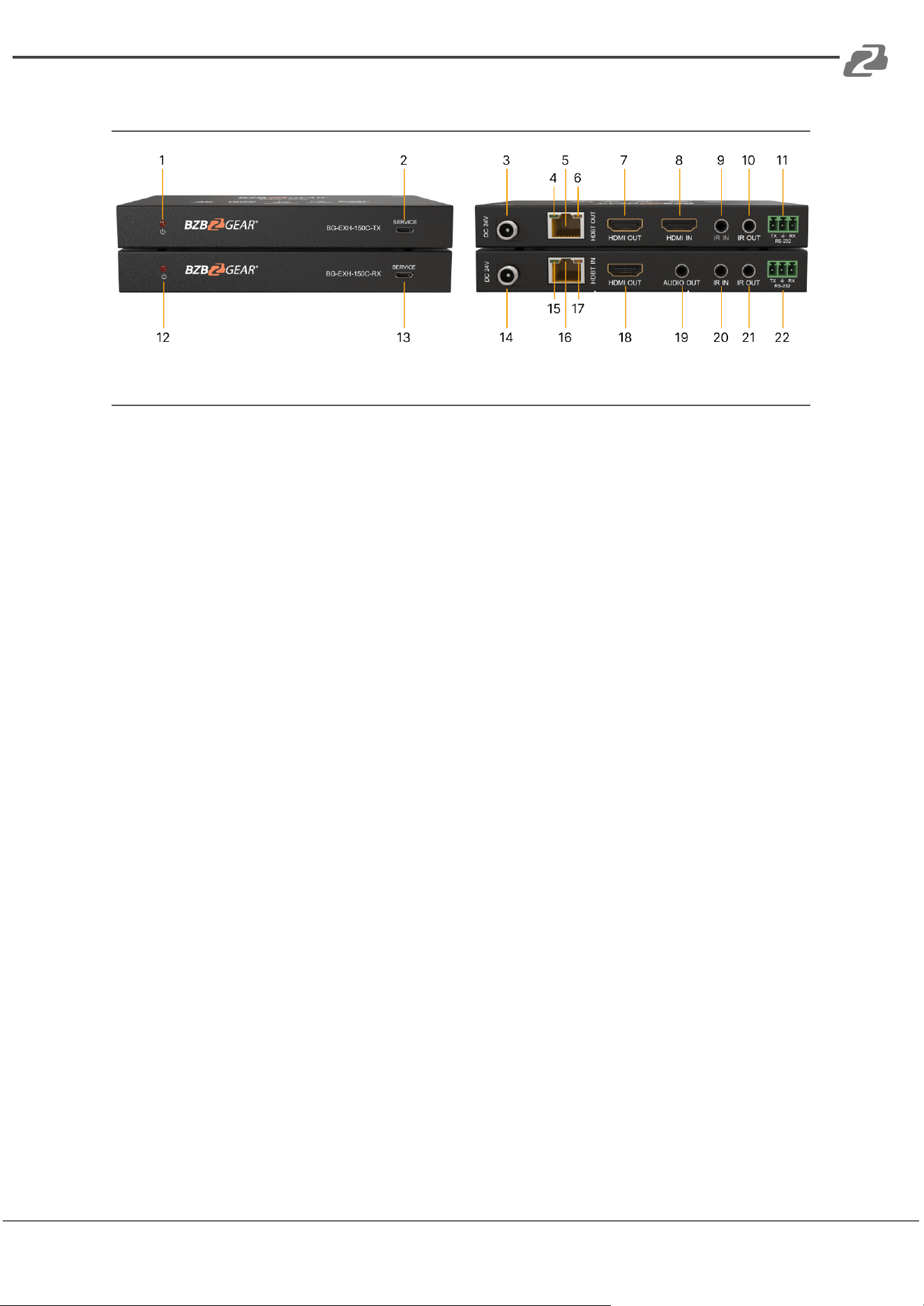

Transmitter Panel
1. Power LED: Red LED indicates that the transmitter is powered on.
2. SERVICE port: Micro USB firmware update port.
3. DC 24V: DC 24V/1A power supply input port.
4. Connection Indicator lamp:
➢ Solid: Transmitter and Receiver are in good connection status.
➢ Flashing: Transmitter and Receiver are in poor connection status.
➢ Dark: Transmitter and Receiver are not connected.
5. HDBT OUT: RJ45 connector for connecting the HDBT IN port of the receiver with a
CAT 5e/6 cable.
6. Data Indicator lamp:
➢ Solid: HDMI signal with HDCP.
➢ Flashing: HDMI signal without HDCP.
➢ Dark: No HDMI signal.
7. HDMI OUT: HDMI loop output.
8. HDMI IN: HDMI source input.
9. IR IN: IR input port for receiving the signal of IR remote.
10. IR OUT: IR output port for control of source device. This IR output signal is from the
IR IN port of the receiver.
11. RS-232: 3-pin Phoenix connector for RS-232 command transmission. The RS-232
command will pass-through from transmitter to receiver or from receiver to
transmitter.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXH-150C PRODUCT MANUAL
Receiver Panel
12. Power LED: Red LED indicates that the receiver is powered on.
13. SERVICE port: Micro USB firmware update port.
14. DC 24V: DC 24V/1A power supply input port.
15. Connection Indicator lamp:
➢ Solid: Transmitter and Receiver are in good connection status.
➢ Flashing: Transmitter and Receiver are in poor connection status.
➢ Dark: Transmitter and Receiver are not connected.
16. HDBT IN: RJ45 connector for connecting the HDBT OUT port of transmitter with a
CAT 5e/6 cable.
17. Data Indicator:
➢ Solid: HDMI signal with HDCP.
➢ Flashing: HDMI signal without HDCP.
➢ Dark: No HDMI signal.
18. HDMI OUT: HDMI output for display.
19. AUDIO OUT: 3.5mm stereo connector for analog audio output.
20. IR IN: IR input port for receiving the signal of IR remote.
21. IR OUT: IR output port for control of display device. The IR output signal is from the
IR IN port of the transmitter.
22. RS-232: 3-pin Phoenix connector for RS-232 command transmission. The RS-232
command will pass-through from transmitter to receiver or from receiver to
transmitter.

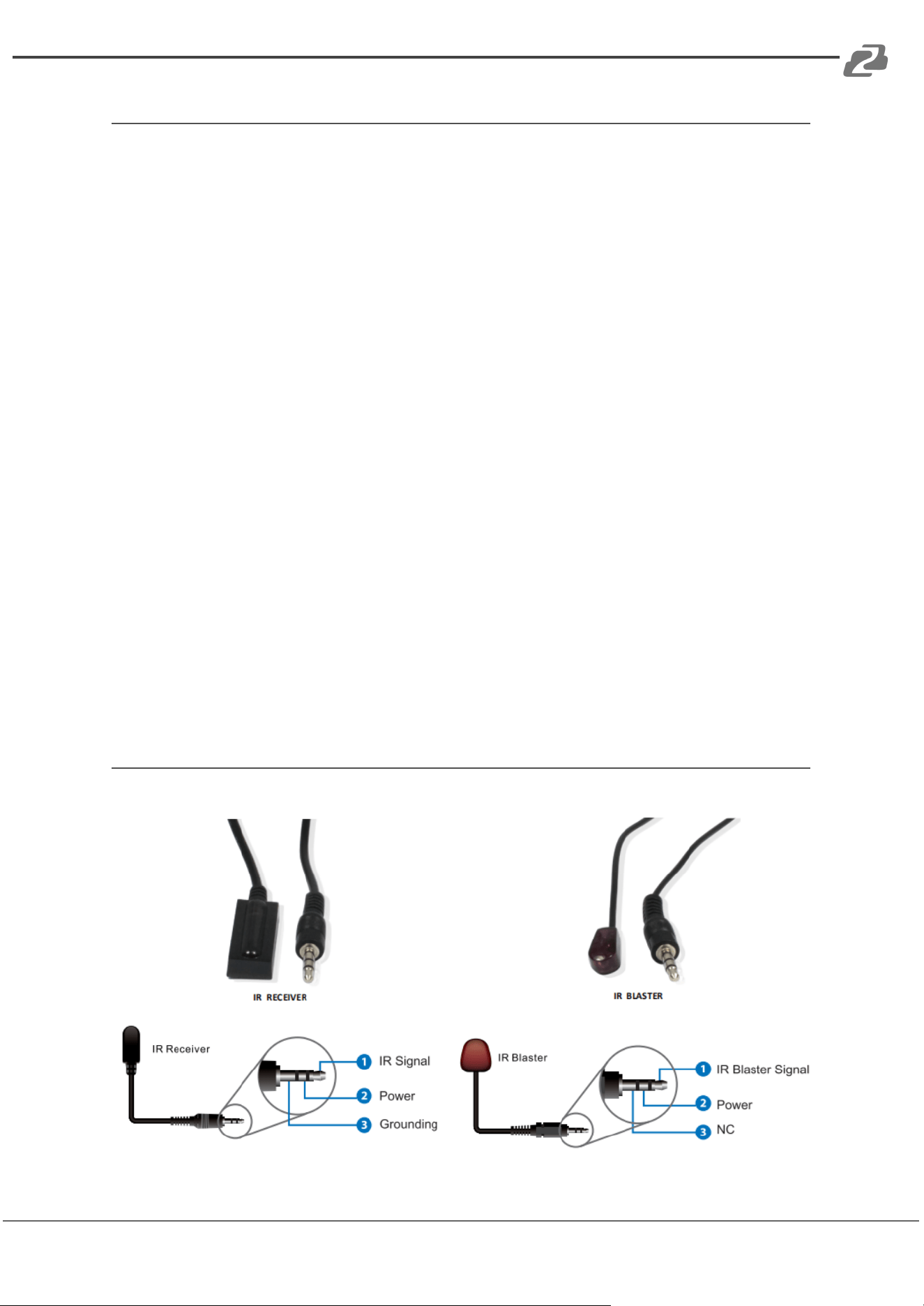

IR Cable Pin Assignment
IR Receiver and Blaster pin’s definition as below:
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-EXH-150C PRODUCT MANUAL

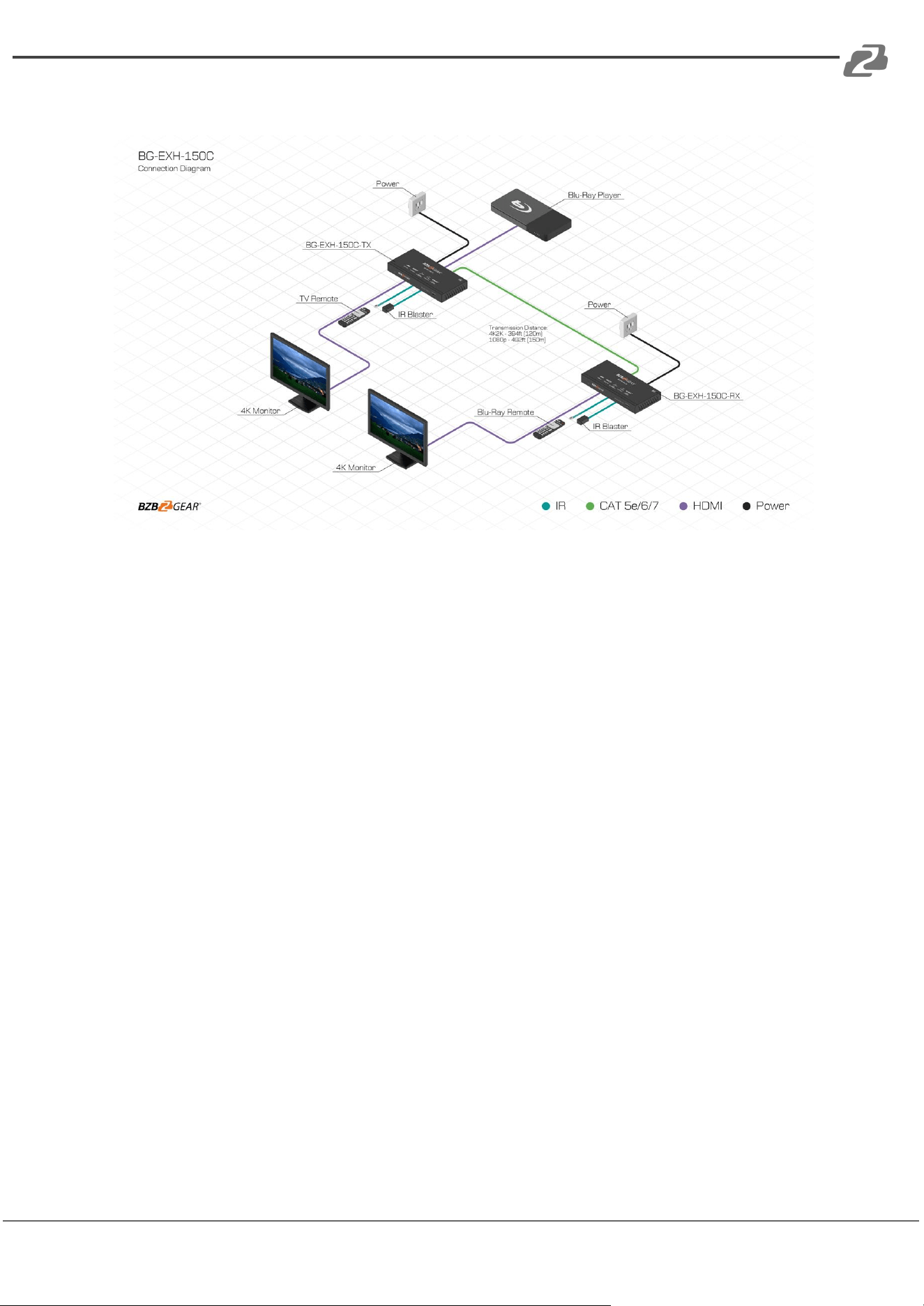

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-EXH-150C PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
