BG-PSC7X2
7X2 4K UHD HDMI/Component/VGA/Composite Video & Audio
Presentation Switcher/Scaler
User Manual
BZBGEAR BG-PSC7X2 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-PSC7X2 PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 7
Menu Introduction 9
Remote Control Description 10
RS-232 Pin Assignment 11
RS232 and Telnet Commands 12

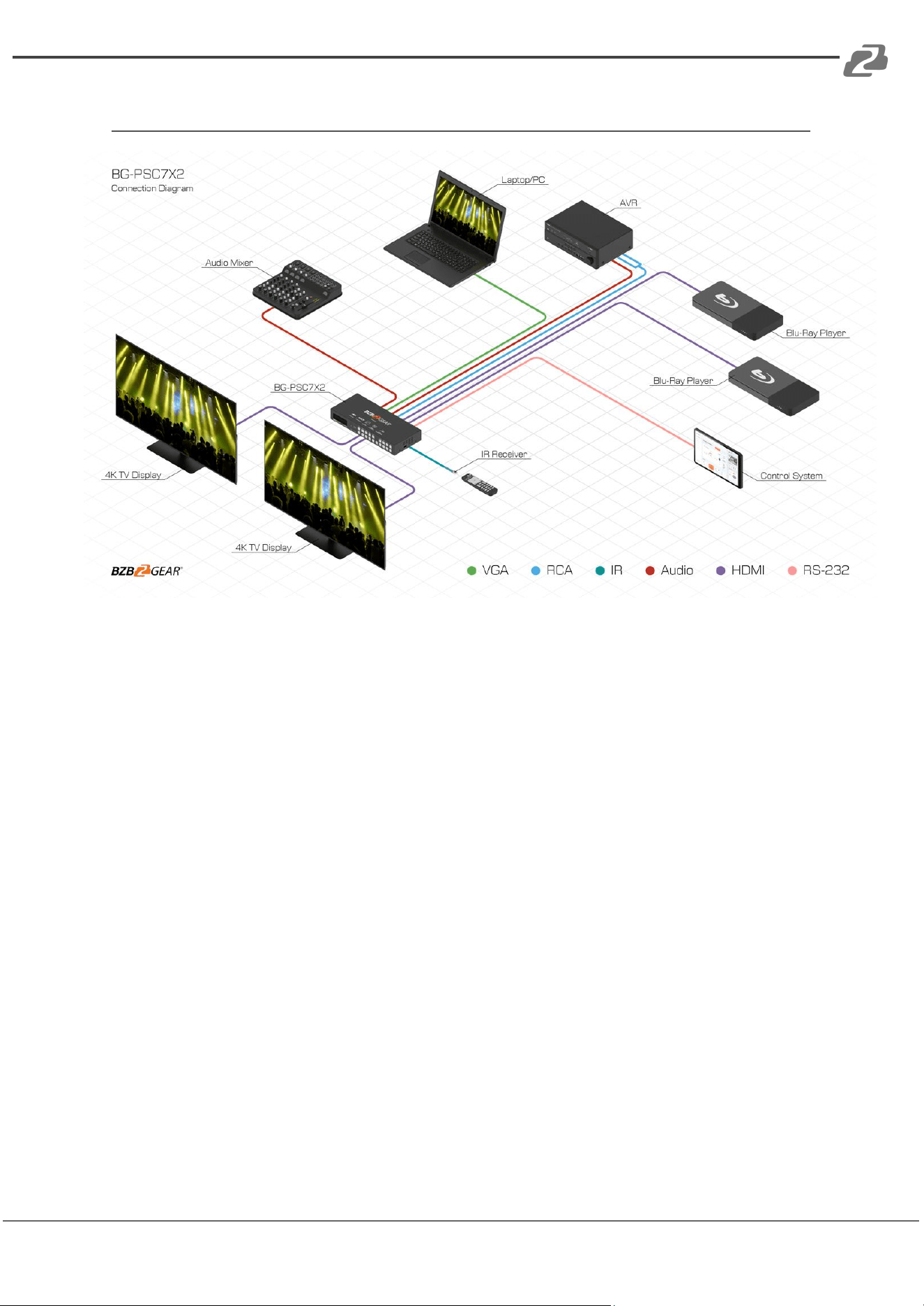

Application Example 13
Tech Support 14
Limited Product Warranty Terms 14
Mission Statement 14
Copyright 14
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-PSC7X2 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
● Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to
persons.
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● Do not dismantle the housing or modify the module.
● Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
● Do not put any heavy items on the extension cable in case of extrusion.
● Install the device in a place with fine ventilation to avoid damage caused by overheat.
● Do not twist or pull by force ends of the optical cable. It can cause malfunction.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Unplug this device during lightning storms.
● Do not use liquid or aerosol cleaners to clean this unit. Clean only with a soft dry
microfiber cloth.
● Always unplug the power to the device before cleaning.
● If an object or liquid falls or spills on to the housing, unplug the module immediately.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Product specifications may be subject to technical upgrades without further notice.
● Unplug the power cord when left unused for a long period of time.
● Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-PSC7X2 PRODUCT MANUAL
Introduction
The BG-PSC7X2 multi-function presentation switcher provides users with a variety of
inputs, allowing numerous devices to be displayed on a single HDMI display. Supporting
input signals up to 4K@30Hz, this unit is also equipped with an integrated scaler which
allows resolutions as low as 640 x 480 to be scaled up to 1920x1080@60Hz.
The powerful dual-switcher mode allows the BG-PSC7X2 to simultaneously function as a
4x1 4K HDMI switcher and a 7x1 1080P multi-format switcher. Featuring audio embedding,
de-embedding, and supporting a variety of input connections, this unit is an effective
solution for use in auditoriums, classrooms, and conference rooms.
Features
● 4K@30Hz 4:4:4, full 3D
● Switch & Scale 7 sources to 2 display
● 1x VGA,4x HDMI, 1xYPbPr, 1x AV for input, and 2x HDMI for output
● Splitter and Dual Switcher modes selectable
● Bypass and scaled formatted output selectable
● Audio embedding and de-embedding
● Scaling from 640x480 to 1920x1080@60Hz
● Front-panel LCD display for status feedback
● Multiple switching mode, push-in button, IR remote control, RS-232 control, and
TCP/IP control
● Easy installation with rack-mounting ears
● HDCP 1.4 compliant
Packing List
● 1x BG-PSC7X2
● 1x 5V/2A power supply
● 1x Remote control
● 1x IR Receiver
● 1x Mounting kit
● 1x User Manual
● 1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-PSC7X2 PRODUCT MANUAL
Technical Specifications
General
Bandwidth:
10.2Gbps
Video Input Connectors:
4x HDMI Type A, 1x VGA, 1xYPbPr, 1x AV
Video Output Connectors:
2x HDMI Type A
Audio Input Connectors:
2x 3.5mm stereo jack, 4x RCA (2 x L/R)
Audio Output Connectors:
1x 3.5mm stereo jack, 1x RCA (SPDIF)
RS-232 serial port:
1x DB 9 connector
IR Input ports:
1x 3.5mm stereo jack
Dimensions (W x H x D):
12.7" x 5.3" x 1.7" [323mm x 135mm x 44mm]
Shipping Weight:
2.65lbs [1.2Kg]
Operating Temperature:
32°F to 104°F / 0°C to 40°C
Storage Temperature :
-4°F to 140°F / -20°C to 60°C
Power Supply:
DC 5V/2A
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-PSC7X2 PRODUCT MANUAL
Operation Controls and Functions

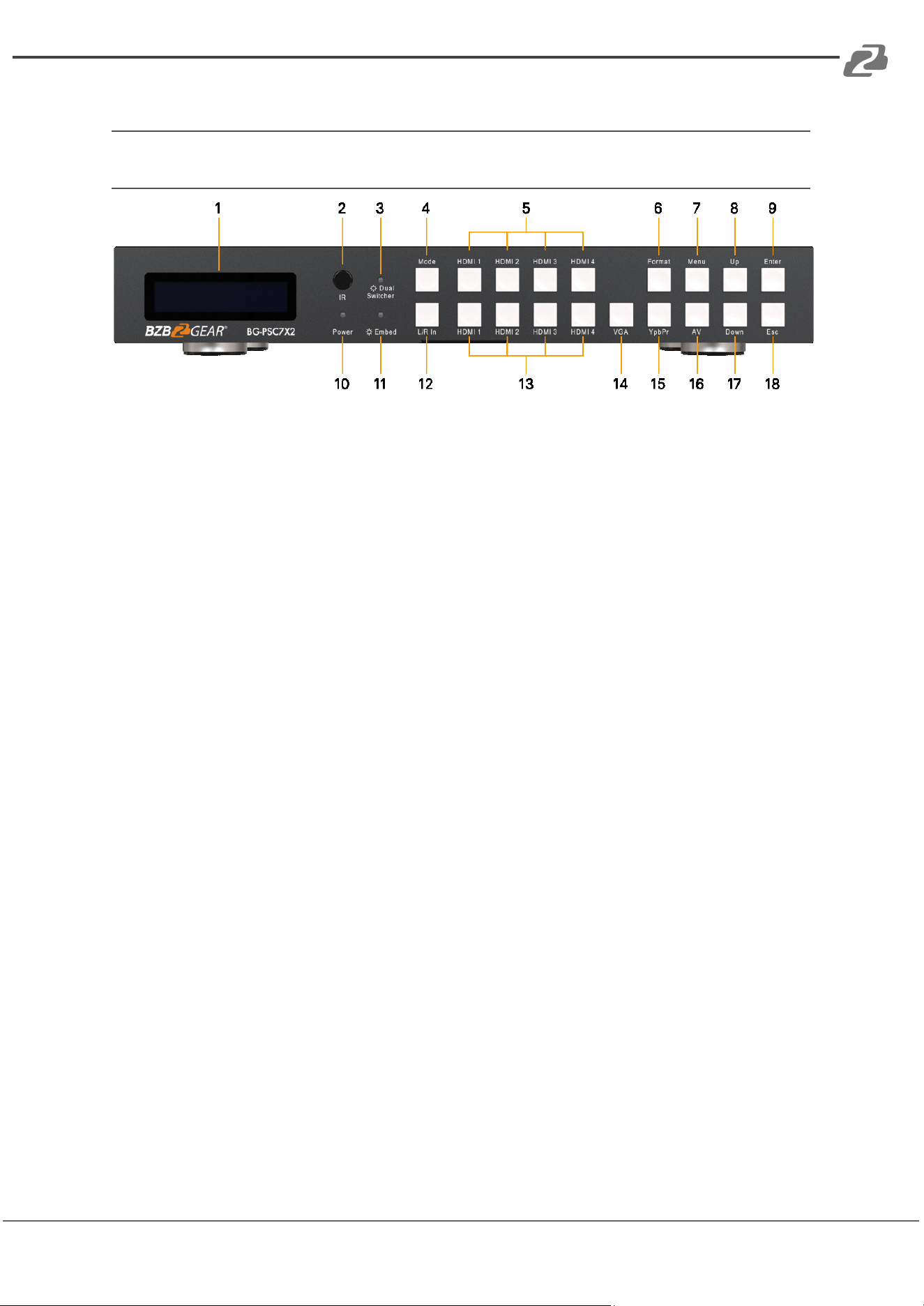

Front Panel
1. LCD display: It shows the status of input-to-output selection, EDID info, and other
information.
2. IR receiver window: Receive the IR from the remote control.
3. Dual switcher LED indicator: When the LED is lit, dual switcher mode is on.
4. Mode button: Press to set Dual Switcher mode ON/OFF.
5. HDMI input 1-4 selection buttons: Press to select the input 1 to 4 working as a 4K
4x1 switcher.
6. Format set button: Press to set the resolution for the output.
7. Menu button: Press to enter EDID set, volume setting or F/W information.
8. Up selection button: Press to change the segment's value.
9. Enter button: Press to confirm the settings.
10. Power LED indicator: Indicate the status of power.
11. Embed LED indicator: When the LED is lit, embed mode is on. When the embed
mode is on, the L/R In will be embedded into the HDMI outputs.
12. L/R in selection button: Press to embed L/R audio to the HDMI output.
13. HDMI input selection button 1-4: Press to select the input from 1 to 4.
14. VGA input selection button: Press to select VGA input.
15. YPbPr input selection button: Press to select YPbPr input.
16. AV input selection button: Press to select AV input.
17. Down selection button: Press to change the segment's value.
18. ESC: Press to quit EDID set mode.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-PSC7X2 PRODUCT MANUAL

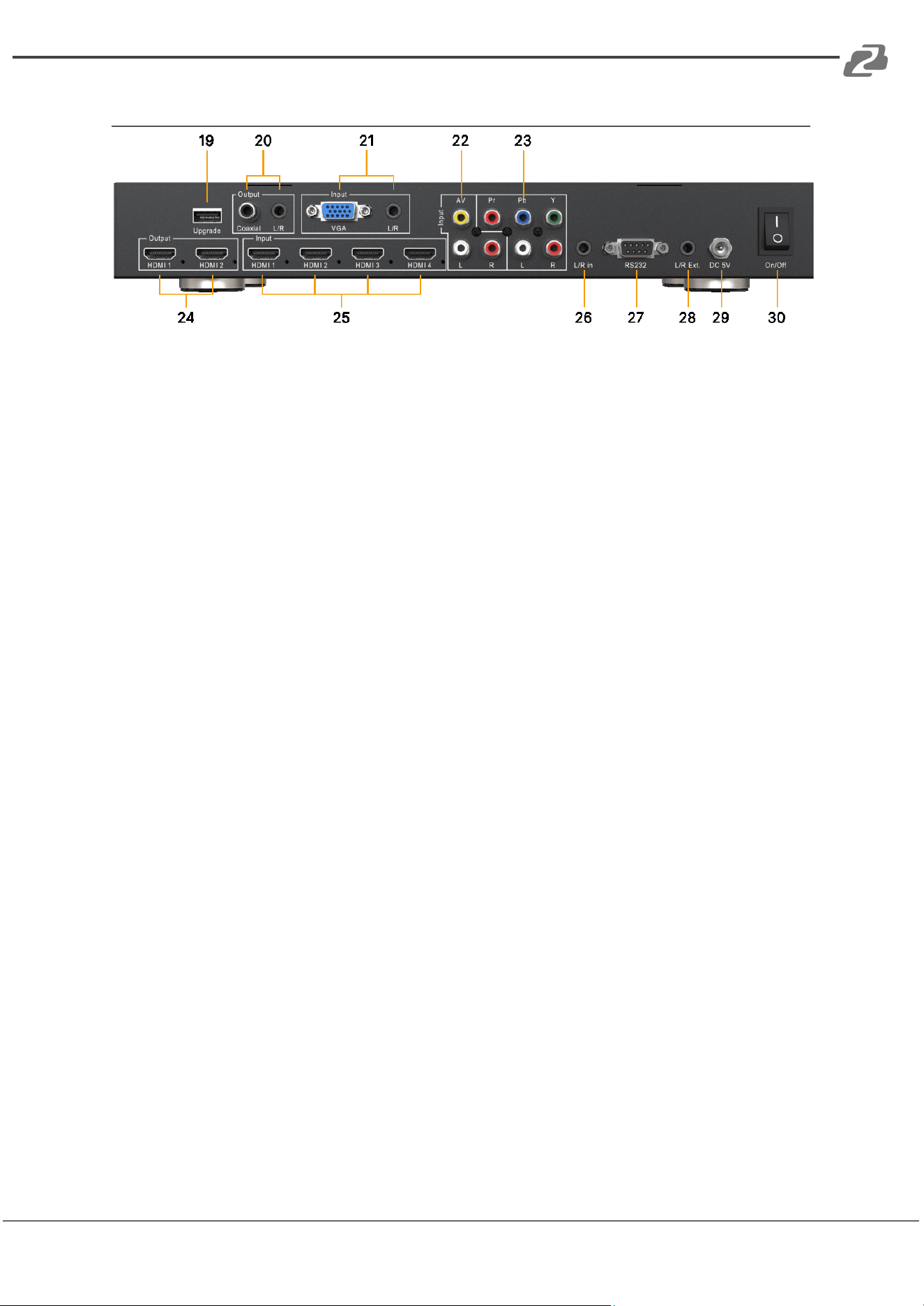

Rear Panel
19. USB Upgrade port: Used to upgrade the Scaler built-in BG-PSC7X2.
20. Audio output: It has coaxial and L/R outputs, the audio outputs will always follow
HDMI output 2.
21. VGA input: VGA input with L/R audio input.
22. AV input: AV input with L/R audio input.
23. YPbPr input: YPbPr input with L/R audio input.
24. HDMI outputs: 2x HDMI output.
25. HDMI input 1-4: Connect to HDMI sources.
26. L/R In: Connect to additional audio input to embed to HDMI output.
27. RS232 port: DB9 connector.
28. IR Ext.: Connect to the IR receiver cable.
29. DC 5V: Connect to 5V/2A power supply.
30. Power switch: Power on/off the unit.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-PSC7X2 PRODUCT MANUAL
Menu Introduction
Three EDID segments will display on the LCD panel formatted as: INPUT VIDEO AUDIO, for
example:
IN1 1080P 2.0CH, means to set 1080P 2.0CH EDID to INPUT1. The blinking segment is the
one that can be changed currently, pressing the “Menu” button will change the segment.
Segment content items as below:
INPUT
VIDEO
AUDIO
Note
IN1
1080I
2.0CH.
IN2
1080P
5.1CH
IN3
3D
7.1CH
IN4
4K2K
NONE
IN5
D1024
D1024=DVI 1024 x 768
IN6
D1080
D1080=DVI 1920 x 1080
IN7
D1200
D1200=DVI 1920 x 1200
IN8
OUT1
OUT1=Copy OUTPUT1 EDID to INPUTx
ALL
OUT2
ALL=Set EDID to ALL INPUTs
OUT2=Copy OUTPUT2 EDID to INPUTx
OUT3
OUT3=Copy OUTPUT3 EDID to INPUTx
OUT4
OUT4=Copy OUTPUT4 EDID to INPUTx
OUT5
OUT5=Copy OUTPUT5 EDID to INPUTx
OUT6
OUT6=Copy OUTPUT6 EDID to INPUTx
OUT7
OUT7=Copy OUTPUT7 EDID to INPUTx
OUT8
OUT8=Copy OUTPUT8 EDID to INPUTx
Note: Volume can be changed by pressing the UP and Down buttons. During F/W mode,
pressing the Enter button will show the current F/W information.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-PSC7X2 PRODUCT MANUAL

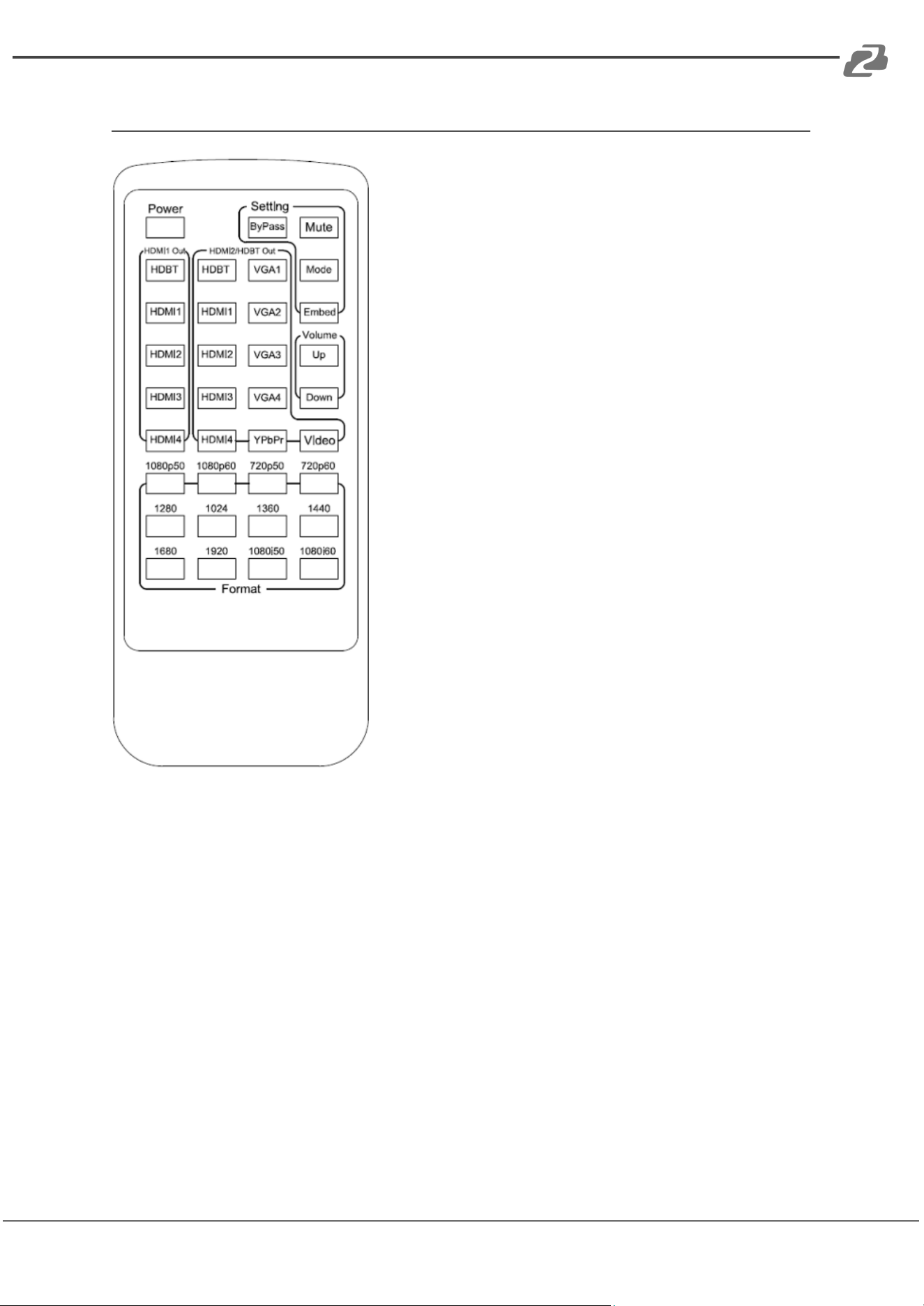

Remote Control Description
HDMI1 Out: Source selection for HDMI output 1 when
in Matrix Switcher mode.
HDMI2/HDBT Out: Source selection for HDMI output 2
when in Matrix Switcher mode or when in Splitter mode
Format: Video output resolution selection.
The BG-PSC7X2 includes a built-in video scaler. Press
the required resolution button on the remote control to
change the HDMI output video resolution.
Setting:
● Bypass: Audio on HDMI outputs is from HDMI
input selected.
● Mute: Mutes the audio on all outputs (HDMI,
Coaxial digital and Analogue audio)
● Mode: Switches between Matrix Switcher mode
and Splitter mode
● Embed: Audio on HDMI outputs is from L/R
Analogue audio input (3.5mm Jack)
Volume: Adjust the audio Volume on all outputs (HDMI,
Coaxial digital and Analogue audio)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-PSC7X2 PRODUCT MANUAL

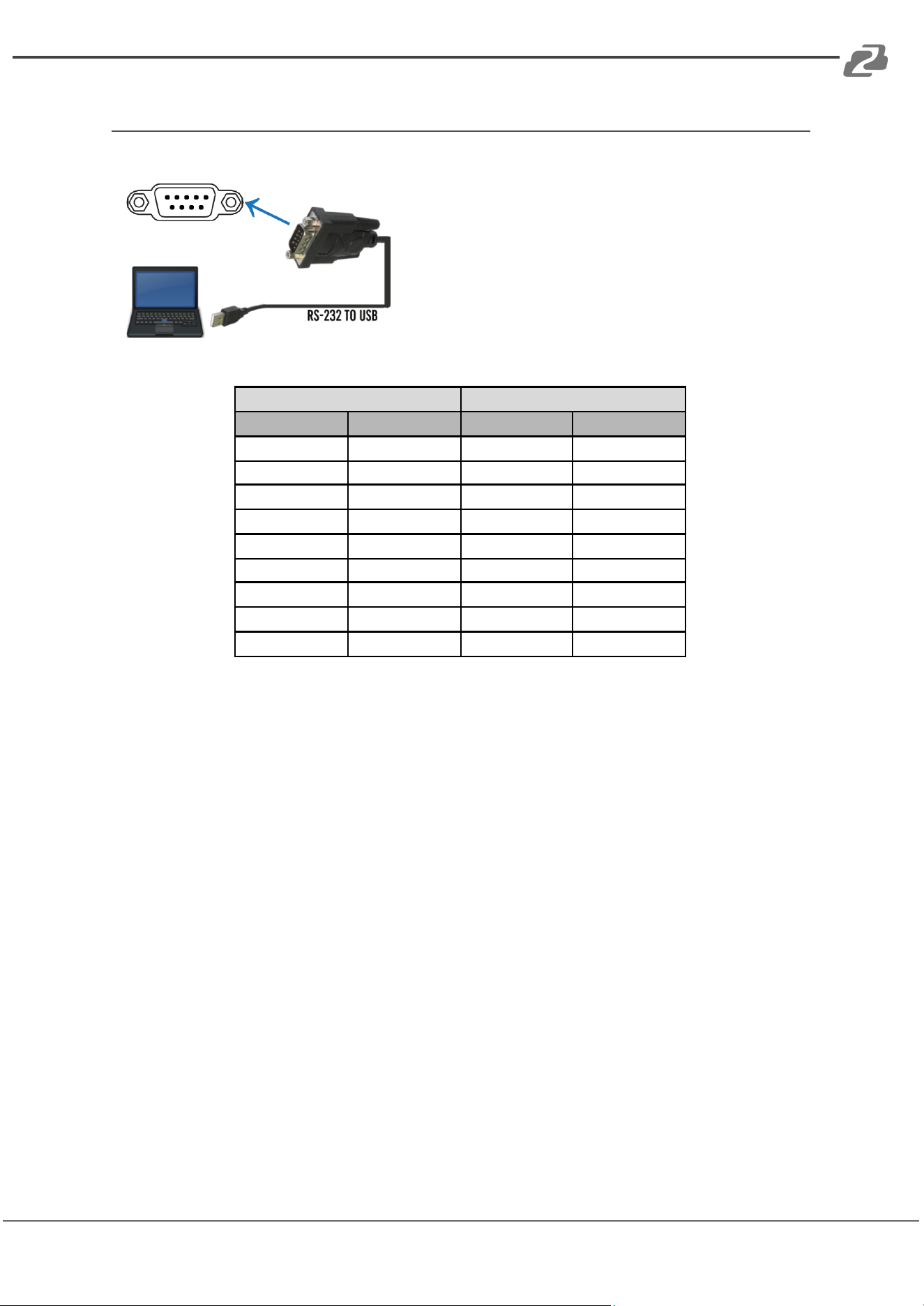

RS-232 Pin Assignment
The connection method is as follows:
Baud Rate: 57600 bps Data Bit: 8-bit
Parity: None Stop Bit: 1-bit
Flow Control: None
BG-PSC7X2
Remote Control Console
PIN
Assignment
PIN
Assignment
1
NC
1
NC
2
Tx
2
Rx
3
Rx
3
Tx
4
NC
4
NC
5
GND
5
GND
6
NC
6
NC
7
NC
7
NC
8
NC
8
NC
9
NC
9
NC
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-PSC7X2 PRODUCT MANUAL
RS232 and Telnet Commands
Command
Action
?
Print Help Information
HELP
Print Help Information
STATUS
Print System Status And Port Status
PON
Power On, System Run On Normal State
POFF
Power Off, System Run On Power Save State
IR ON/OFF
Set System IR Control On Or Off
KEY ON/OFF
Set System KEY Control On Or Off
DBG ON/OFF
Set Debug Mode On Or Off
BEEP ON/OFF
Set Onboard Beep On Or Off
RESET
Reset System To Default Setting
(Should Type "Yes" To Confirm, "No" To Discard)
OUT xx FR yy
Set OUTPUT:xx From INPUT:yy
xx=00: Select All OUTPUT Port
xx=[01...02]: Select One OUTPUT Port
yy=[01...04]: HDMI Input 01 ~ 04
yy=AV: AV Input( Output 02 Only )
yy=COMP: Component Input( Output 02 Only )
yy=VGA: VGA Input( Output 02 Only )
OUT SP/MX
Set OUTPUT To Splitter or Matrix Mode
OUT RES rr
Set Scaler Output Resolution
rr=01: 1080P@50Hz
rr=02: 1080P@60Hz
rr=03: 720P@60Hz
rr=04: 720P@50Hz
rr=05: 1280x1024@60Hz
rr=06: 1024x768@60Hz
rr=07: 1360x768@60Hz
rr=08: 1440x900@60Hz
rr=09: 1680x1050@60Hz
EDID xx CP yy
Set Input:xx EDID Copy From Output:yy yy=[00]:
yy=[01...08]
EDID xx DF zz
Set Input:xx EDID To Default EDID:zz
xx=00: Select All INPUT Port
xx=[01...04]: Select One INPUT Port
yy=[01...02]: Select One OUTPUT Port
zz=00: HDMI 1080p@60Hz, Audio 2CH PCM
zz=01: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
zz=02: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
zz=03: HDMI 1080i@60Hz, Audio 2CH PCM
zz=04: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
zz=05: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
zz=06: HDMI 1080p@60Hz/3D, Audio 2CH PCM
zz=07: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY
zz=08: HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD
zz=09: HDMI 4K2K, Audio 2CH PCM
zz=10: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBY
zz=11: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HD
zz=12: DVI 1280x1024@60Hz, Audio None
zz=13: DVI 1920x1080@60Hz, Audio None
zz=14: DVI 1920x1200@60Hz, Audio None
AUD SCA ORG
Scaler Audio Input Follow Port Selection
AUD SCA ANA
Scaler Audio Input From Analog L/R Signal
AUD xx
Set Scaler Audio Volume
xx=[00...30]: Volume Value
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-PSC7X2 PRODUCT MANUAL
Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-PSC7X2 PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
