BG-PSC11X2-HDBT
11X2 4K 18Gbps UHD HDMI/IP/YPbPr/VGA/CV/Audio/HDBaseT
Input & Output Presentation Scaler/Switcher
User Manual
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 6
Menu Introduction 8
Remote Control Description 9
RS232 and Telnet Commands 10

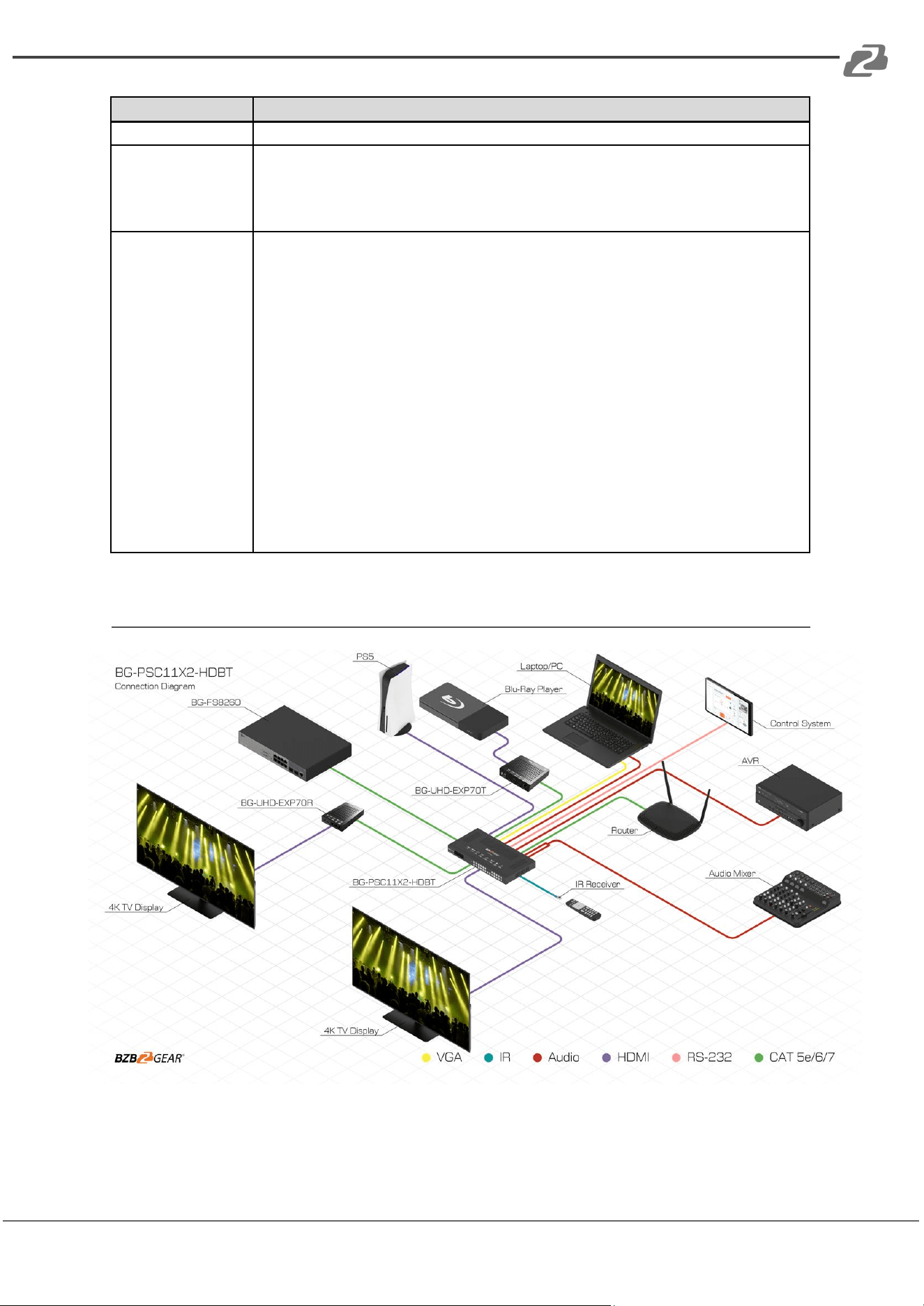

Application Example 11
Tech Support 12
Limited Product Warranty Terms 12
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
● Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to
persons.
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● Do not dismantle the housing or modify the module.
● Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
● Do not put any heavy items on the extension cable in case of extrusion.
● Install the device in a place with fine ventilation to avoid damage caused by overheat.
● Do not twist or pull by force ends of the optical cable. It can cause malfunction.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Unplug this device during lightning storms.
● Do not use liquid or aerosol cleaners to clean this unit. Clean only with a soft dry
microfiber cloth.
● Always unplug the power to the device before cleaning.
● If an object or liquid falls or spills on to the housing, unplug the module immediately.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Product specifications may be subject to technical upgrades without further notice.
● Unplug the power cord when left unused for a long period of time.
● Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL
Introduction
The BG-PSC11X2-HDBT is a multi-format video presentation scaler switch with audio. It
features 11 inputs of various video formats including HDMI, VGA, Component, Composite,
and HDBaseT with HDMI and HDBaseT outputs. Video can be scaled to various aspect
ratios and resolutions from 640x480 up to 1920x1080 @ 60Hz.
Embedded splitter and dual switcher modes can work as an 11:1x2 multiple splitter and
5x1 & 11x1 dual switcher. It also features a switchable digital bypass output allowing any
HDMI input to be directly bypassed via that HDMI output to cater for the 4K source. With
advanced audio embedding and de-embedding, it can provide flexible audio signal
integration. Each source can be switched to the HDMI output using the front-panel, IR
remote control or RS-232 interface.
Features
● Switch & Scale 11-inputs to 2 HD/UHD displays.
● 4x HDMI, 4x VGA, 1x YPbPr, 1x Composite, 1xHDBaseT Inputs.
● 2 simultaneous outputs (1x HDMI, 1x HDBaseT), bypass and scaled formatted
output selectable.
● Dual mode selectable (1x2 Splitter Mode and 5x1 &11x1 Dual Switcher Mode).
● Scaling from 640x480 to 1920x1080 @ 60Hz.
● HDTV formats up to 4K@30Hz.
● HDBaseT PoE Transmitter & Receiver supports distances of up to 330ft /100m.
● Built-in Ethernet Hub.
● HDCP 1.4 compliant.
● Audio embedder and audio extractor.
● OSD menu for volume control and resolution selection.
● Controllable via front panel, IR remote, TCP/IP or RS232.
● Front-panel LCD display for status feedback.
● Easy installation with rack-mounting ears.
Packing List
● 1x BG-PSC11X2-HDBT
● 1x 12V/5A power supply
● 1x Remote control
● 3x IR Emitter
● 4x IR Receiver
● 1x Rack-mounting ears
● 1x User Manual
● 1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL
Technical Specifications
General
Bandwidth:
10.2Gbps
Video Input Connectors:
4x HDMI Type A, 4x VGA, 1x RJ45, 1xYPbPr, 1x AV
Video Output Connectors:
1x HDMI Type A, 1x RJ45
Audio Input Connectors:
11x 3.5mm stereo jack
Audio Output Connectors:
1x 3.5mm stereo jack, 1x RCA (SPDIF)
RS-232 serial port:
1x DB 9 connector, 1x 3 phoenix terminal
TCP/IP:
1x RJ45
IR Input ports:
2x 3.5mm stereo jack
IR Output ports:
1x 3.5mm mono jack
Dimensions (W x H x D):
17.2” x 8.86" x 1.73” [438mm x 225mm x 44mm]
Shipping Weight:
2.65lbs [1.2Kg]
Operating Temperature:
32°F to 104°F / 0°C to 40°C
Storage Temperature :
-4°F to 140°F / -20°C to 60°C
Power Supply:
DC 12V/5A
Operation Controls and Functions

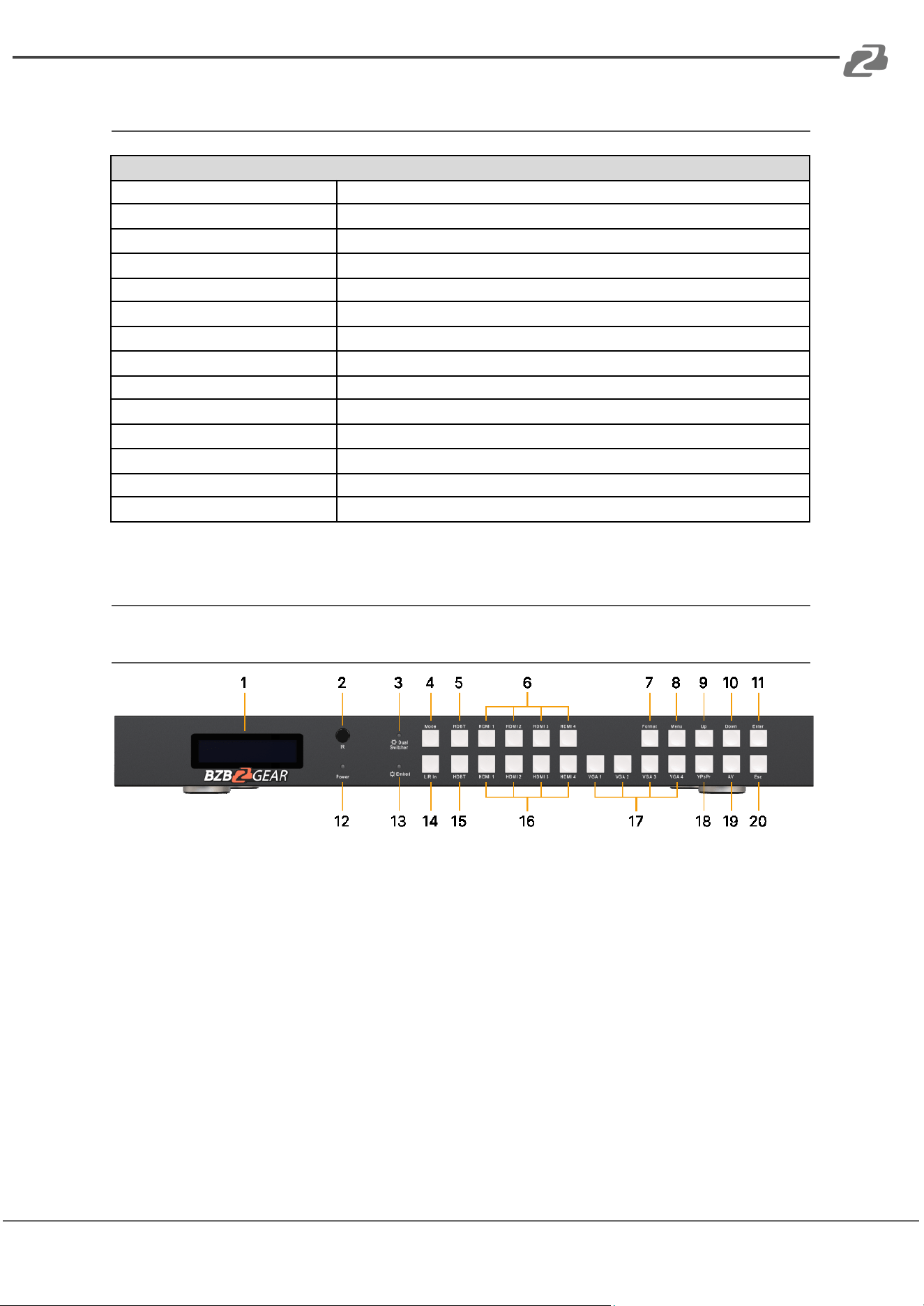

Front Panel
1. LCD display: It shows the status of input-to-output selection, EDID info, and the
other information.
2. IR receiver window: Receive the IR from the remote control.
3. Dual switcher LED indicator: When the LED is lit, dual switcher mode is on.
4. Mode button: Press to set Dual Switcher mode ON/OFF.
5. HDBT input selection button: Press to select the output 1 from the HDBT input
working as a 4k 5x1 switcher.
6. HDMI input 1-4 selection buttons: Press to select the output 1 from 1 to 4 working
as a 4k 5x1 switcher.
7. Format set button: Press to set the resolution for the output.
8. Menu button: Press to enter EDID settings, volume settings, or F/W information.
9. Up selection button: Press to change the segment's value.
10. Down selection button: Press to change the segment's value.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL
11. Enter button: Press to confirm the settings.
12. Power LED indicator: Indicates power status.
13. Embed LED indicator: When the LED is lit, embed mode is on. When the embed
mode is on, the L/R In will be embedded into the HDMI outputs.
14. L/R In selection button: Press to embed L/R audio to the HDMI output.
15. HDBT input selection button: Press to select HDBT input.
16. HDMI input selection button 1-4: Press to select the input from 1 to 4.
17. VGA input selection button: Press to select VGA input.
18. YPbPr input selection button: Press to select YPbPr input.
19. AV input selection button: Press to select AV input.
20. ESC: Press to quit EDID set mode.

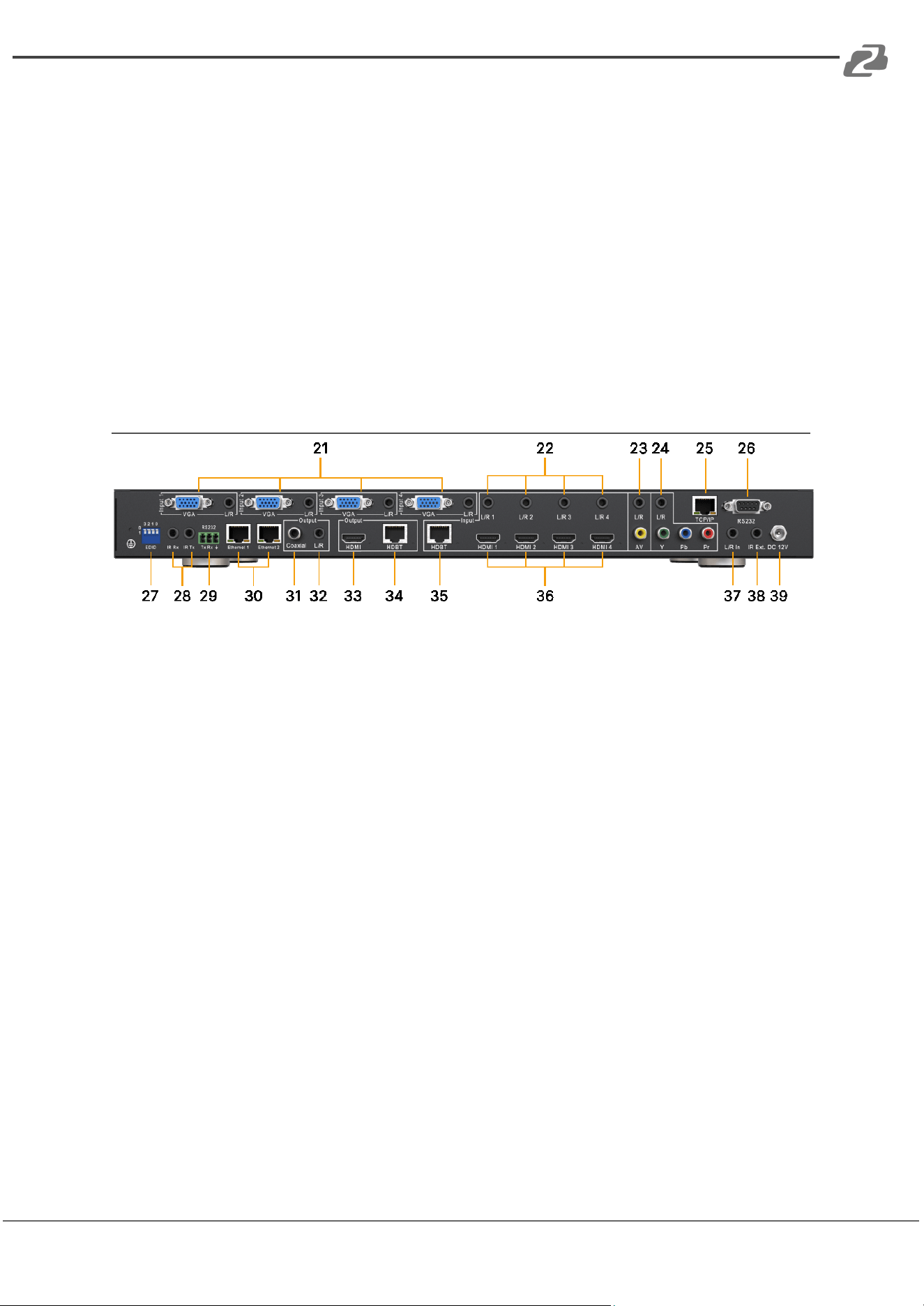

Rear Panel
21. VGA input 1 to 4: VGA input 1 to 4 with L/R audio input.
22. L/R In 1 to 4: Connect to additional audio input to embed to HDMI output 1 to 4.
23. AV input: AV input with L/R audio input.
24. YPbPr input: YPbPr input with L/R audio input.
25. TCP/IP: Connect to Ethernet for control.
26. RS232 port: DB9 connector for local control only.
27. DIP switcher: EDID settings.
[DIP]=0000: HDMI 1080p@60Hz, Audio 2CH PCM
[DIP]=1111: Copy EDID from HDMI output, i.e., EDID pass through
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0011: HDMI 1080i@60Hz, Audio 2CH PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0110: HDMI 1080p@60Hz/3D, Audio 2CH PCM
[DIP]=0111: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1000: HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K2K, Audio 2CH PCM
[DIP]=1010: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1011: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1100: DVI 1280x1024@60Hz, Audio None
[DIP]=1101: DVI 1920x1080@60Hz, Audio None
[DIP]=1110: DVI 1920x1200@60Hz, Audio None
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL
28. IR RX and IR TX: IR RX: Connect to the IR receiver cable.
IR TX: Connect to IR emitter cable.
29. Phoenix terminal: Work with HDBT Transmitter / Receiver for RS232 pass through.
30. Ethernet ports: Connect to Ethernet. (Embedded Ethernet hub).
31. Coaxial audio output: It will always follow HDMI output 2.
32. L/R audio output: It will always follow HDMI output 2.
33. HDMI output: Connect to HDTV.
34. HDBT output: Connect to HDBT class A receiver.
35. HDBT input: Connect to HDBT class A transmitter.
36. HDMI input 1-4: Connect to HDMI sources.
37. L/R In: Connect to Global Audio Input to embed to both HDMI outputs.
38. IR Ext.: Connect to the IR receiver cable.
39. DC 12V: Connect to 12V/5A power supply.
Menu Introduction
Three EDID segments will display on the LCD panel formatted as: INPUT VIDEO AUDIO, for
example:
IN1 1080P 2.0CH, means to set 1080P 2.0CH EDID to INPUT1. The blinking segment is the
one that can be changed currently, pressing the “Menu” button will change the segment.
Segment content items as below:
INPUT
VIDEO
AUDIO
Note
IN1
1080I
2.0CH.
IN2
1080P
5.1CH
IN3
3D
7.1CH
IN4
4K2K
NONE
IN5
D1024
D1024=DVI 1024 x 768
IN6
D1080
D1080=DVI 1920 x 1080
IN7
D1200
D1200=DVI 1920 x 1200
IN8
OUT1
OUT1=Copy OUTPUT1 EDID to INPUTx
IN9
OUT2
OUT2=Copy OUTPUT2 EDID to INPUTx
IN10
IN11
ALL
ALL=Set EDID to ALL INPUTs
Note: Volume can be changed by pressing the UP and Down buttons. During F/W mode,
press Enter button will show the current F/W information.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL

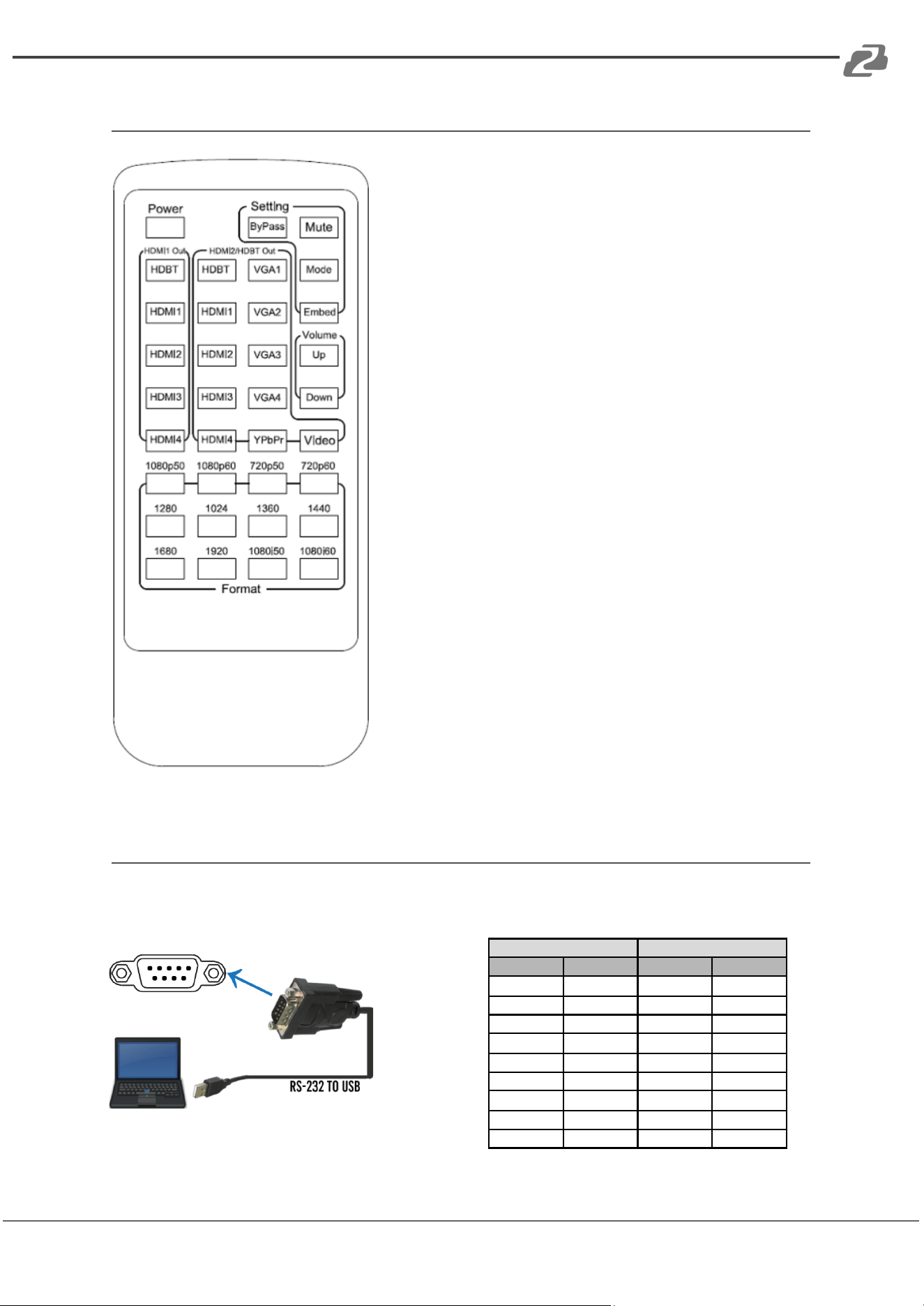

Remote Control Description
HDMI1 Out: Source selection for HDMI output 1 when
in Matrix Switcher mode.
HDMI2/HDBT Out: Source selection for HDMI output 2
when in Matrix Switcher mode or when in Splitter mode
Format: Video output resolution selection.
The BG-PSC11X2-HDBT includes a built-in video
scaler. Press the required resolution button on the
remote control to change the HDMI output video
resolution.
Setting:
● Bypass: Audio on HDMI outputs is from HDMI
input selected.
● Mute: Mutes the audio on all outputs (HDMI,
Coaxial digital and Analogue audio)
● Mode: Switches between Matrix Switcher mode
and Splitter mode
● Embed: Audio on HDMI outputs is from L/R
Analogue audio input (3.5mm Jack)
Volume: Adjust the audio Volume on all outputs (HDMI,
Coaxial digital and Analogue audio)
RS-232 Pin Assignment
Baud Rate: 57600 bps, Data Bit: 8-bit, Parity: None, Stop Bit: 1-bit, Flow Control: None
The connection method is as follows:
BG-PSC7X2
Remote Control Console
PIN
Assignment
PIN
Assignment
1
NC
1
NC
2
Tx
2
Rx
3
Rx
3
Tx
4
NC
4
NC
5
GND
5
GND
6
NC
6
NC
7
NC
7
NC
8
NC
8
NC
9
NC
9
NC
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL
RS232 and Telnet Commands
Command
Action
?
Print Help Information
HELP
Print Help Information
STATUS
Print System Status And Port Status
PON
Power On, System Run On Normal State
POFF
Power Off, System Run On Power Save State
IR ON/OFF
Set System IR Control On Or Off
KEY ON/OFF
Set System KEY Control On Or Off
DBG ON/OFF
Set Debug Mode On Or Off
BEEP ON/OFF
Set Onboard Beep On Or Off
LCD ON/OFF
Set LCD Always On Or Auto Turn Off In Power On State
RESET
Reset System To Default Setting (Should Type "Yes" To Confirm, "No" To Discard)
IR232 vv
Set IR And RS232 Connect To Remote Valens RX/TX
vv=OFF: Disconnect With Valens
vv=RRX: Remote Valens RX
vv=RTX: Remote Valens TX
vv=BOTH: Remote Valens RX and TX
OUT xx FR yy
Set OUTPUT:xx From INPUT:yy
xx=00: Select All OUTPUT Port
xx=[01...02]: Select One OUTPUT Port
yy=[01...04]: HDMI Input 01 ~ 04
yy=HDBT: HDBT/Valens Input
yy=AV: AV Input( Output 02 Only )
yy=YPBPR: Component Input( Output 02 Only )
yy=VGA1...VGA4: VGA Input( Output 02 Only )
OUT BYP ON/OFF
Set HDMI Input Signal Through Scaler or Bypass
OUT SP/MX
Set OUTPUT To Splitter or Matrix Mode
OUT RES rr
Set Scaler Output Resolution (Change Output Resolution Will Effect EDID Setting)
rr=01: 1080P@50Hz
rr=02: 1080P@60Hz
rr=03: 720P@50Hz
rr=04: 720P@60Hz
rr=05: 1280x1024@60Hz
rr=06: 1024x768@60Hz
rr=07: 1360x768@60Hz
rr=08: 1440x900@60Hz
rr=09: 1680x1050@60Hz
OUT FREQ mm
Set Output Frequency Mode (When Output Resolution is 1080P or 720P)
mm=AUTO: Set Output Freq Auto Change To Input Freq
mm=FORCE: Set Output Freq By CMD:OUT RES rr Select
AUD SCA ORG
Scaler Audio Input Follow Port Selection
AUD SCA ANA
Scaler Audio Input From Analog L/R Signal
AUD HDMI yy ORG
HDMI Input:yy Use Original HDMI/DVI
Signal Signal yy=[01...04]: HDMI Input 01 ~ 04
AUD HDMI yy ANA
HDMI Input:yy Embedded Analog L/R
Signal yy=[01...04]: HDMI Input 01 ~ 04
AUD HDMI yy AUTO
HDMI Input:yy Embedded Analog L/R When Input is DVI signal
Signal yy=[01...04]: HDMI Input 01 ~ 04
VOL xx
Set Scaler Audio Volume
xx=[00...30]: Volume Value
xx=+: Volume Increase
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL
Command
Action
xx=-: Volume Decrease
EDID xx CP yy
Set Input:xx EDID Copy From Output:yy
xx=00: Select All INPUT Port
xx=01: Select HDBT INPUT Port
xx=[02...05]: Select HDMI INPUT:01~04 Port
yy=[01...02]: Select One OUTPUT Port
EDID xx DF zz
Set Input:xx EDID To Default EDID:zz
(cmd: OUT RES rr Will Effect EDID Setting)
xx=00: Select All INPUT Port
xx=01: Select HDBT INPUT Port
xx=[02...05]: Select HDMI INPUT:01~04 Port
zz=00: PC 1080p, HDMI 1080p, 2CH PCM
zz=01: PC 1080p, HDMI 1080p, 5.1CH PCM/DTS/DB
zz=02: PC 1080p, HDMI 1080p, 7.1CH PCM/DTS/DB/HD
zz=03: PC 1080i, HDMI 1080i, 2CH PCM
zz=04: PC 1080i, HDMI 1080i, 5.1CH PCM/DTS/DB
zz=05: PC 1080i, HDMI 1080i, 7.1CH PCM/DTS/DB/HD
zz=06: PC 1080p, HDMI 3D, 2CH PCM
zz=07: PC 1080p, HDMI 3D, 5.1CH PCM/DTS/DB
zz=08: PC 1080p, HDMI 3D, 7.1CH PCM/DTS/DB/HD
zz=09: PC 4K2K, HDMI 4K2K, 2CH PCM
zz=10: PC 4K2K, HDMI 4K2K, 5.1CH PCM/DTS/DB
zz=11: PC 4K2K, HDMI 4K2K, 7.1CH PCM/DTS/DB/HD
zz=12: DVI 1280x1024@60Hz, Audio None
zz=13: DVI 1920x1080@60Hz, Audio None
zz=14: DVI 1920x1200@60Hz, Audio None
Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
