BZB-SW-41A
4X1 4K 18Gbps UHD HDMI 2.0 Switcher with IR Remote Control
User Manual
BZBGEAR BZB-SW-41A PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BZB-SW-41A PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 7
Application Example 9
Tech Support 10
Limited Product Warranty Terms 10
Mission Statement 10
Copyright 10
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BZB-SW-41A PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
● Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to
persons.
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● Do not dismantle the housing or modify the module.
● Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
● Do not put any heavy items on the extension cable in case of extrusion.
● Install the device in a place with fine ventilation to avoid damage caused by overheat.
● Do not twist or pull by force ends of the optical cable. It can cause malfunction.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Unplug this device during lightning storms.
● Do not use liquid or aerosol cleaners to clean this unit. Clean only with a soft dry
microfiber cloth.
● Always unplug the power to the device before cleaning.
● If an object or liquid falls or spills on to the housing, unplug the module immediately.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Product specifications may be subject to technical upgrades without further notice.
● Unplug the power cord when left unused for a long period of time.
● Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BZB-SW-41A PRODUCT MANUAL
Introduction
The BZB-SW-41A HDMI 18Gbps 4x1 switcher can switch any of the 4 connected HDMI 2.0
sources to an HDMI 2.0 display. It supports 10 bit HDR (High Dynamic Range) pass through
and HDMI high resolution digital audio bypass as well as HDCP and CEC bypass. It can
also extract HDMI audio to L/R analog output (LPCM only).
Features
● HDMI 2.0b (18Gbps), HDCP 2.2, and DVI compliant
● Video resolutions up to 4K2K@50/60Hz (YUV444)
● 4x HDMI inputs and 1x HDMI output
● Built-in retiming and cable driver
● Extracts HDMI audio to L/R analog output (LPCM only)
● HDMI High Bit Rate(HBR) audio pass through
● Audio sample rates up to 192kHz
● 10 bits HDR (High Dynamic Range) pass through
● HDCP, 3D, and CEC bypass
● Automatic switching when a source is connected or disconnected
Packing List
● 1x HDMI 4X1 Switcher unit
● 1x 5V/1A Power Adaptor
● 1x Remote Control unit
● 1x User Manual
● 1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BZB-SW-41A PRODUCT MANUAL
Technical Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18 Gbps
Video Resolutions
up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB,
YCbCr 4:4:4,
YCbCr 4:2:2
Color Depth
10-bit,
12-bit
HDMI Audio Formats
(Pass-through)
LPCM 2/5.1/7.1CH, Dolby Digital,
DTS 5.1,
Dolby Digital+,
Dolby TrueHD,
DTS-HD Master Audio,
Dolby Atmos,
DTS:X
L/R Audio Formats
Analog Stereo 2CH
ESD Protection
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs
4x HDMI Type A [19-pin female]
Outputs
1x HDMI Type A [19-pin female]
1x L/R Audio Out [3.5mm Stereo Mini-jack]
Mechanical
Housing
Plastic Enclosure
Color
Gray
Dimensions
4.76" (W) x 3.12" (D) x 0.63" (H) [120.97mm (W) x 79.17mm (D) x 16mm (H)]
Weight
0.43 lbs [195g]
Power Supply
Input: AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
1W (Max)
Operation Temperature
32 - 104°F / 0 - 40°C
Storage temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BZB-SW-41A PRODUCT MANUAL
Operation Controls and Functions
Front Panel

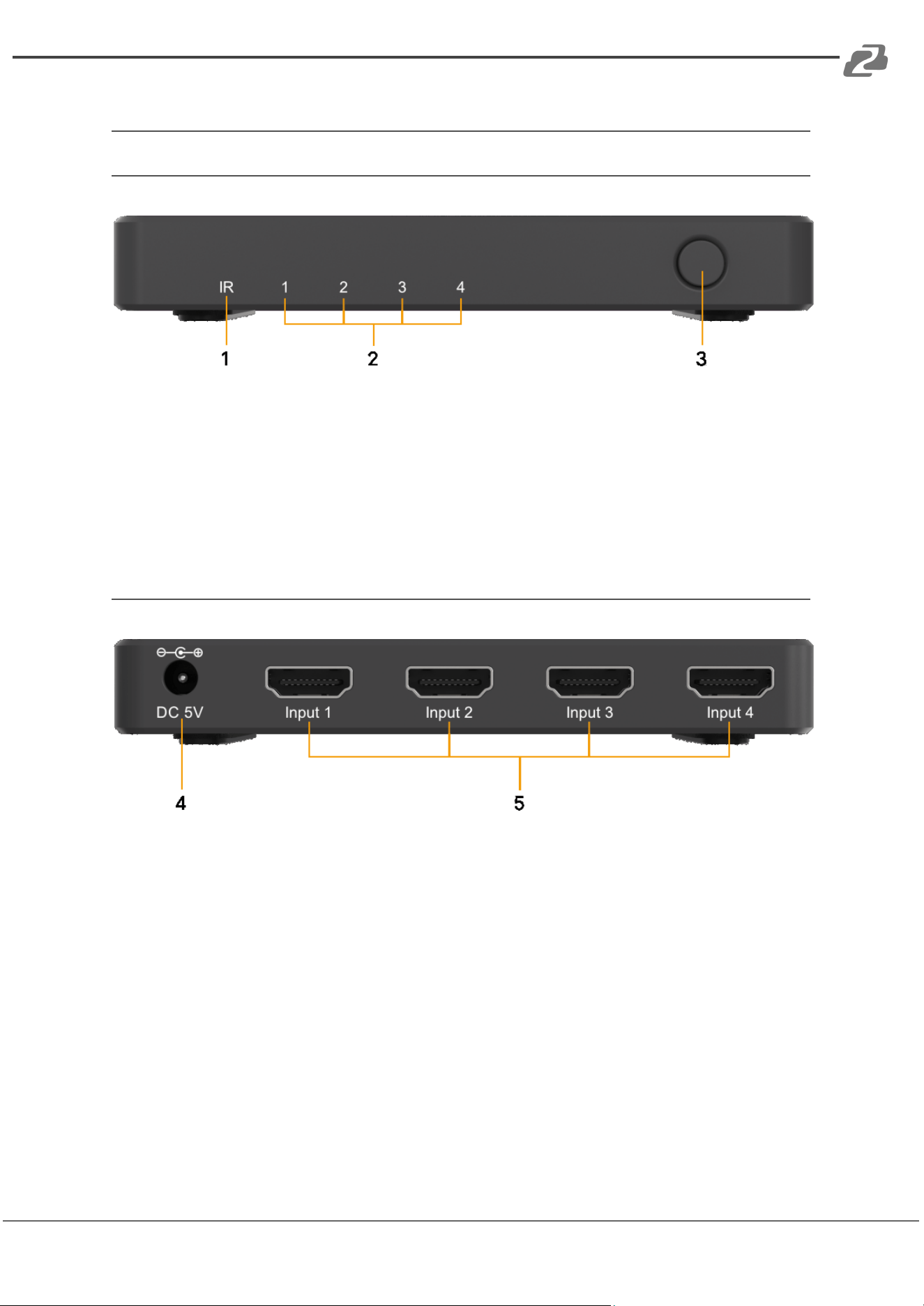

1. IR: Remote control receiver window.
2. HDMI Input LEDs 1-4: The LED will illuminate when the corresponding HDMI input
is selected.
3. Select Button: Press this to switch between HDMI input sources.
Rear Panel
4. DC 5V: Connect 5V/1A adapter to AC wall outlet for power supply.
5. HDMI Inputs 1-4: Connect to HDMI source devices.
a. The BG-SW-41A will automatically switch to a new source when it is
connected, or to the last connected source when a source is
disconnected/turned off.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BZB-SW-41A PRODUCT MANUAL
Side Panel

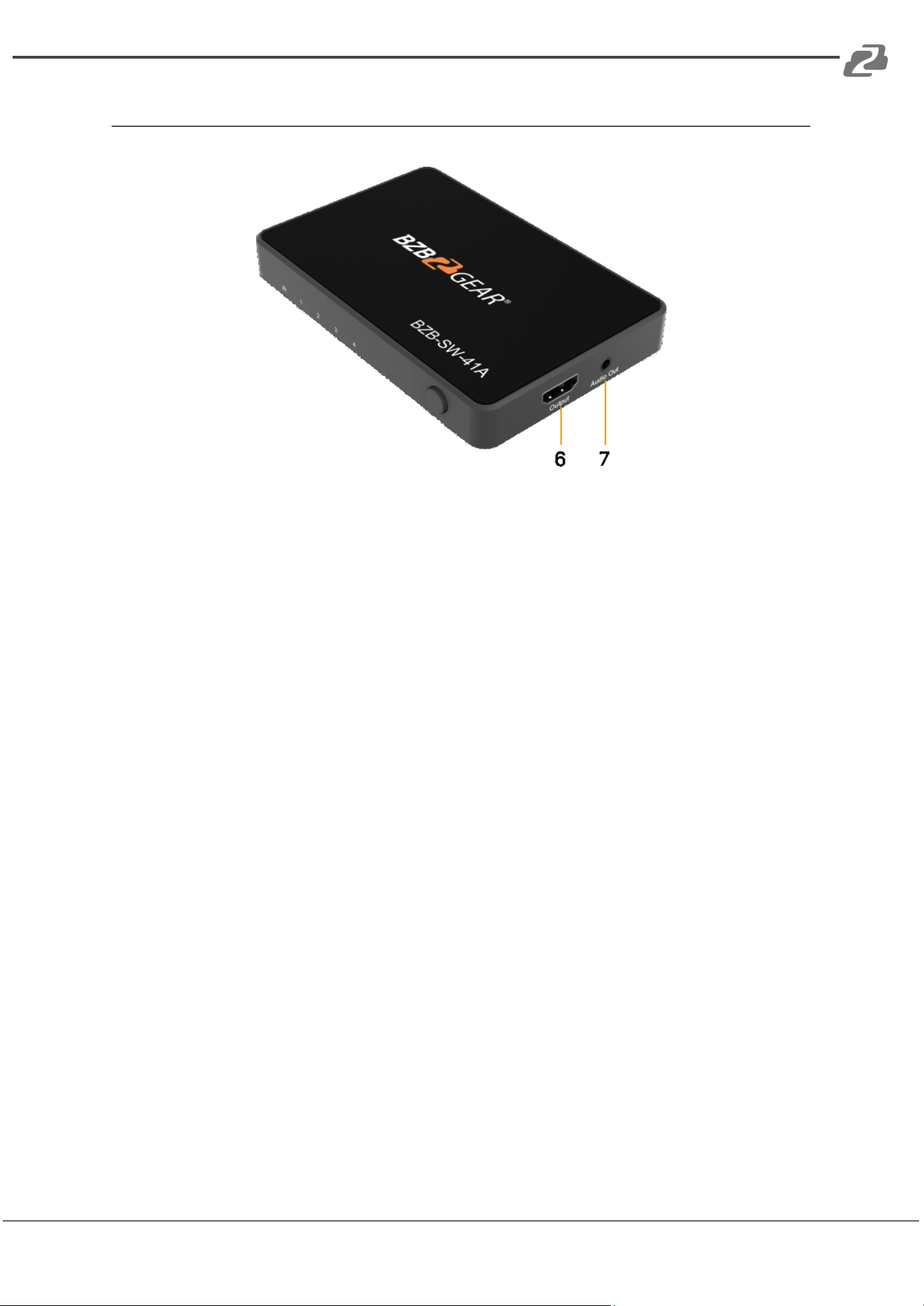

6. HDMI Output: Connect to an HDMI display to view the input signal sources.
7. Audio Out: Connect to an external audio amplifier or TV L/R audio input port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BZB-SW-41A PRODUCT MANUAL

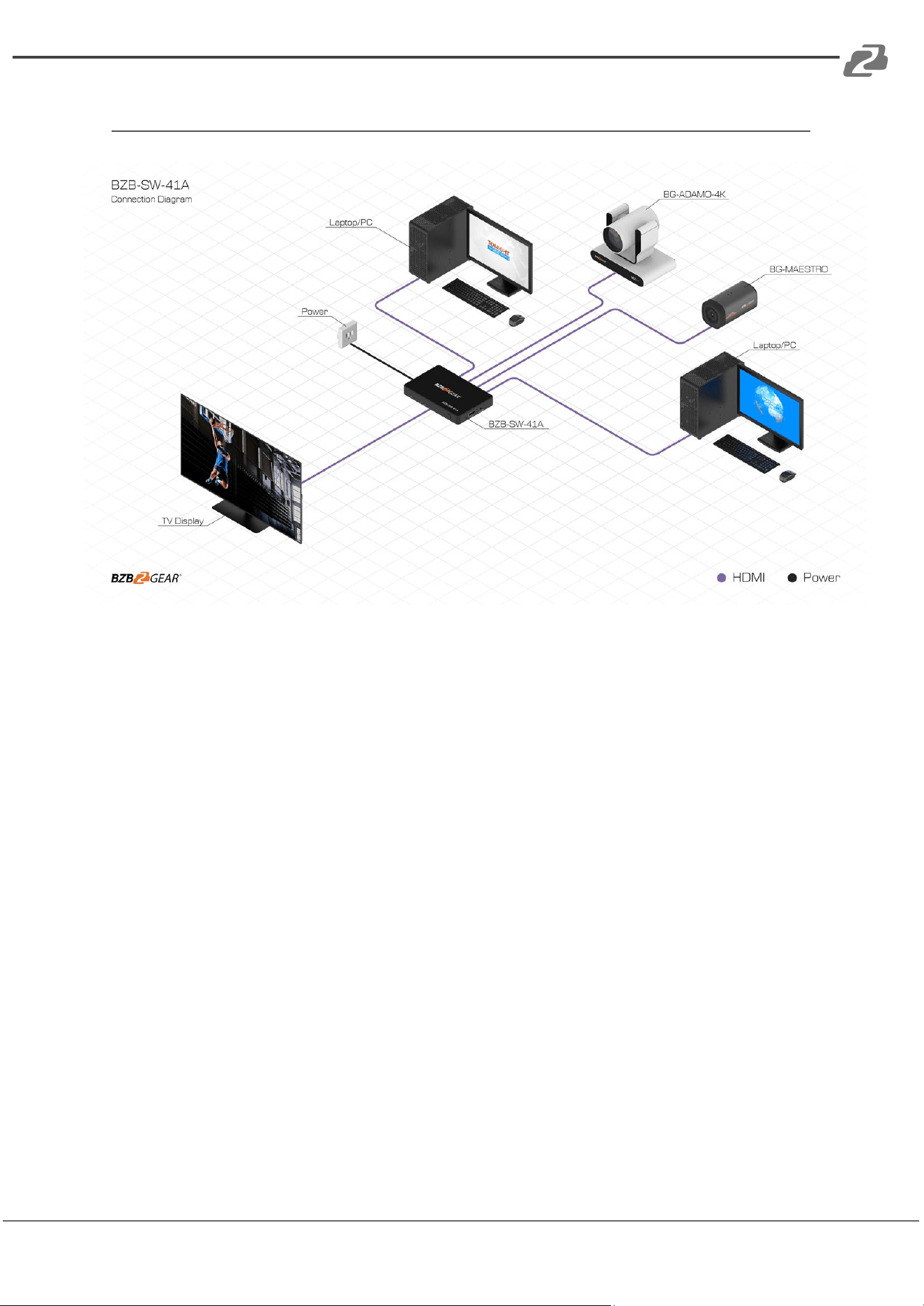

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BZB-SW-41A PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
