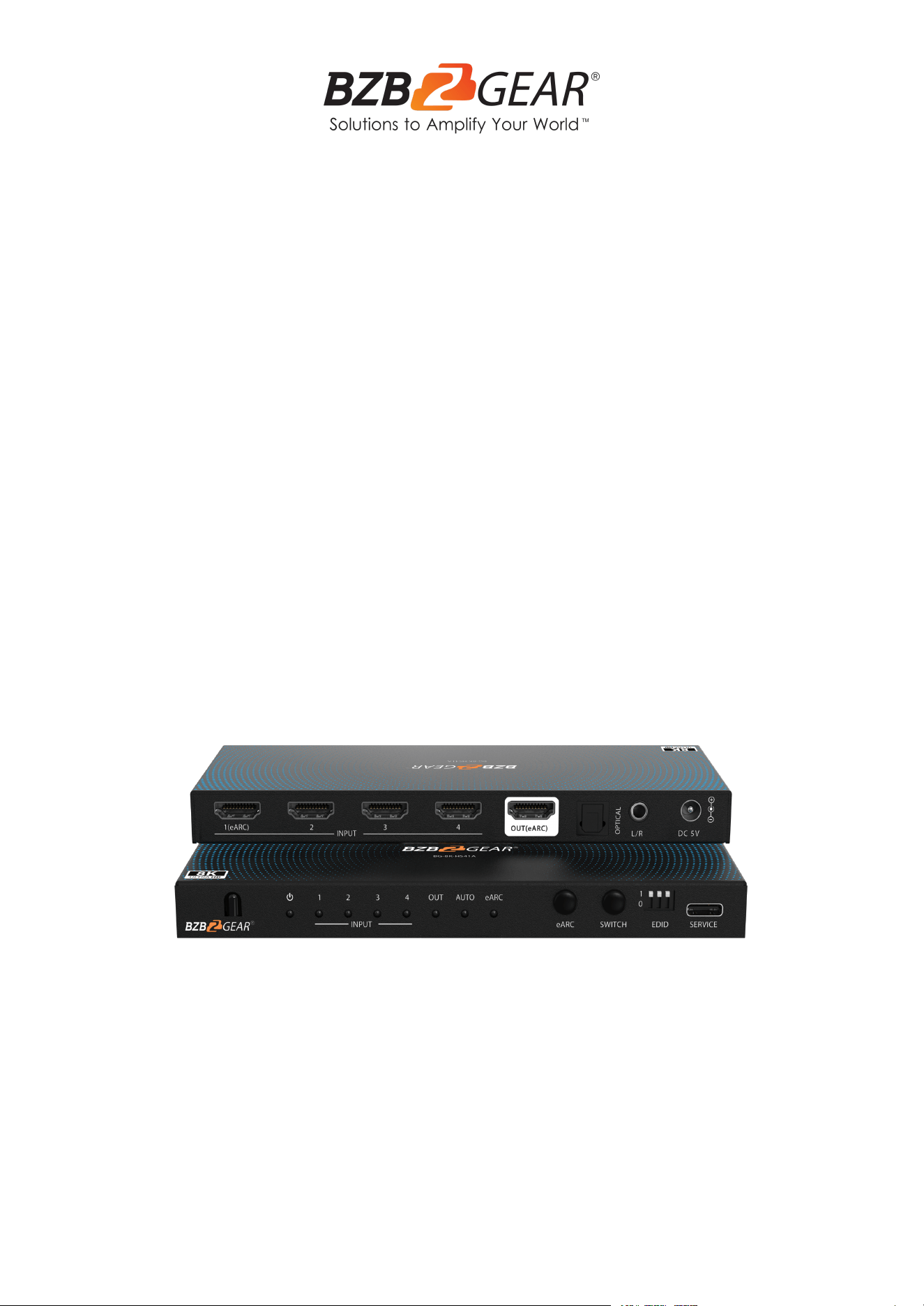

BG-8K-HS41A
48Gbps 4x1 Switcher with ARC/eARC Function
User Manual
BZBGEAR BG-8K-HS41A PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-8K-HS41A PRODUCT MANUAL
Statement 4
Safety Precaution 4
Surge protection device recommended 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 8
Rear Panel 9
IR Remote 10
Connection Diagram (Example 1) 11
Connection Diagram (Example 2) 12
Connection Diagram (Example 3) 13
Troubleshooting 14
Tech Support 15
Warranty 15
Mission Statement 16
Copyright 16
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-8K-HS41A PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Surge protection device recommended
This product contains sensitive electrical components that electrical spikes, surges, electric
shocks, lightning strikes, etc may damage. Use of surge protection systems is highly
recommended to protect and extend the life of your equipment.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-8K-HS41A PRODUCT MANUAL
Introduction
The BG-8K-HS41A 48Gbps 4x1 Switcher allows you to switch between four HDMI
source signals on a single HDMI display, supporting video resolutions up to
8K@60Hz 4:2:0. It features advanced EDID management, CEC control, ARC/eARC,
and audio de-embedding with output options through optical and analog audio
ports. Additionally, firmware upgrades are possible via the USB Type-C port.
This versatile product is ideal for use in demonstrations, video conferences,
multimedia teaching, and other scenarios that require large-screen presentations.
Features
● HDCP 2.3 compliant
● Support 48Gbps FRL and 18Gbps TMDS video bandwidth
● Video resolution is up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz
4:4:4 12bit, as specified in HDMI 2.1
● HDMI 2.1 protocol: VRR, ALLM, QMS, QFT, and SBTM are supported
● Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
● Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos and
DTS-HD Master, DTS:X Audio pass-through
● Features 4 x HDMI inputs routed to 1 x HDMI output
● Support HDMI input and TV eARC audio de-embedded to SPDIF and L/R
audio output
● Support HDMI input and TV eARC audio to output to SONOS ARC & Beam or any
eARC soundbar
● Support CEC control from the TV at the output to the source at the input
● Support CEC volume control from TV to any eARC sound system
● Support advanced EDID management
Packing List
● 1 × 48Gbps 4x1 Switcher
● 1 × 5V/1A Multinational Power Supply
● 1 × IR Remote
● 1 × User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-8K-HS41A PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
Video Bandwidth
48Gbps FRL and 18Gbps TMDS
Audio Latency
No Latency
Video Latency
No Latency
Video Resolution
Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit,
4K@120Hz 4:4:4 12bit
Color Depth
8/10/12bit
Color Space
RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Audio Formats
HDMI Input/Output:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby
Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res,
DTS-HD Master Audio, DTS:X, DSD
eARC Audio Out:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby
Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res,
DTS-HD Master Audio, DTS:X, DSD
Audio De-embedded Output:
Optical: LPCM 2.0CH/Dolby/DTS
5.1CH Analog: LPCM 2.0CH
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
ESD Protection
IEC 61000-4-2:
±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input
4 × HDMI IN [Type A, 19-pin female]
Output
1 × HDMI OUT [Type A, 19-pin female]
1 × OPTICAL [S/PDIF]
1 × L/R [3.5mm Stereo Mini-jack]
Control
1 × SERVICE [USB Type C, Update port]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions (WxDxH)
6.9in x 2.7in x 0.71in [176mm x 68mm x 18mm]
Weight
0.69 lbs [315g]
Power Supply
Input: AC100-240V 50/60Hz, Output: DC 5V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
2.5W (Max)
Operation Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-8K-HS41A PRODUCT MANUAL
Recommended HDMI Cable
Video
Resolution
8K
4K60
4K24
1080P
HDMI Cabe
Length
(HDMI in /
out)
2m/6.6ft
(Ultra HDMI
2.1)
8m/26f
12m/39ft
15m/49ft
The use of “Premium High Speed HDMI” cables is highly recommended.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-8K-HS41A PRODUCT MANUAL

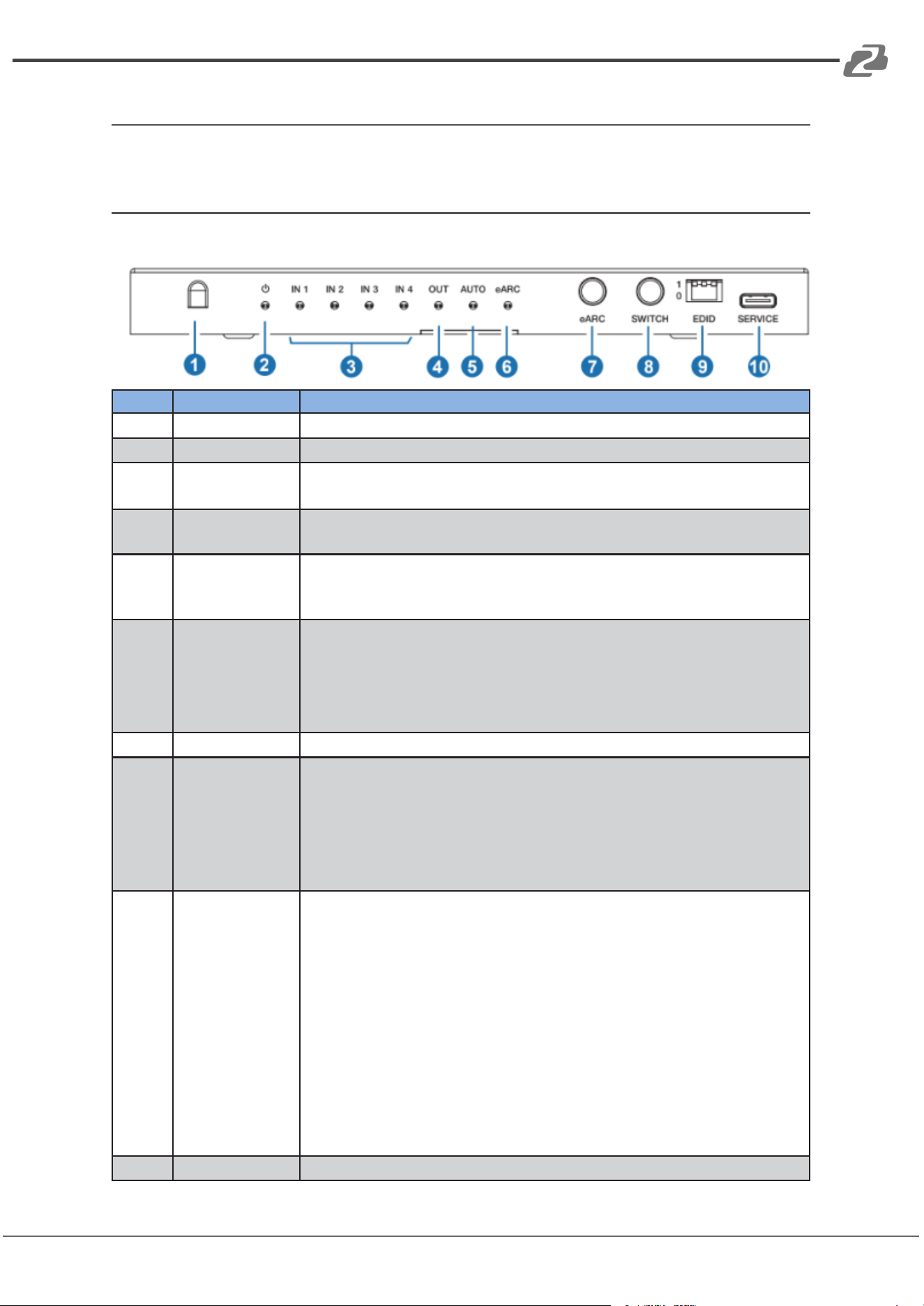

Operation Controls and Functions
Front Panel
No.
Name
Function Description
1
IR Window
IR input signal receiving window.
2
Power LED
The red LED is on when the device is powered on.
3
IN LED
(1~4)
When the HDMI IN 1/2/3/4 port is selected as the signal
source input channel, the corresponding green LED will be on.
4
OUT LED
When the HDMI OUT port connects to a display device, the
green LED will be on.
5
AUTO LED
When the auto-switching function (switch to the corresponding
signal input channel when the signal source is connected.) is
turned on, the green AUTO LED will be on.
6
eARC LED
▪ On: The ARC/eARC function is turned on. CEC communication
and ARC/eARC are working properly.
▪Flashing: The ARC/eARC function is turned on.
CEC communication and ARC/eARC are not working properly.
▪Off: The ARC/eARC function is turned off.
7
eARC switch
Press the button to turn on/off ARC/eARC function.
8
SWITCH
button
Used to select a signal source for the OUT port.
▪Short press this button to circularly switch the HDMI input signal
to
the OUT port.
▪Long press for 3 seconds to turn on/off the auto-switching
function.
9
EDID DIP
switch
Use the DIP switch to set EDID.
111 - Copy OUT port sink EDID (as default)
110- Video EDID copy sink EDID, Audio EDID Copy soundbar
EDID
101- FRL 12G_8K_HDR, Audio 2ch PCM
100- FRL 12G_8K_HDR, Audio 5.1ch PCM/DTS/DOLBY
011- FRL 12G_8K_HDR, Audio 7.1ch PCM/DTS/DOLBY/HD
010- FRL 10G_8K_HDR, Audio 2ch PCM
001- FRL 10G_8K_HDR, Audio 5.1ch PCM/DTS/DOLBY
000- FRL 10G_8K_HDR, Audio 7.1ch PCM/DTS/DOLBY/HD
10
SERVICE
Firmware update and debug port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-8K-HS41A PRODUCT MANUAL

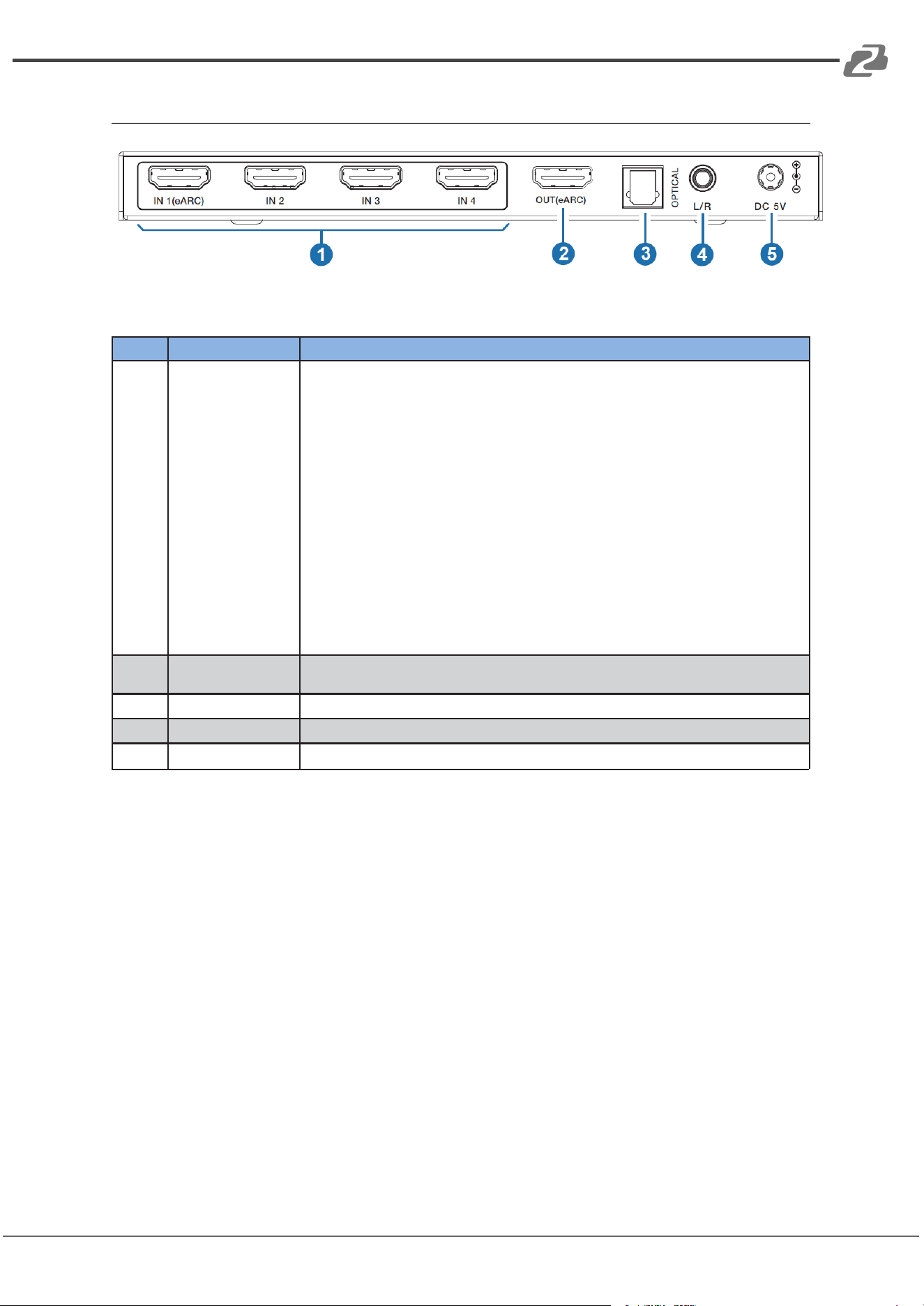

Rear Panel
No.
Name
Function Description
1
IN 1/2/3/4
HDMI input ports, connected to HDMI source devices such as
DVD, PS4, or Set-top Box with HDMI cable.
Note: When the ARC/eARC function is turned off, connect the
“IN 1(eARC)” port to the HDMI source device to work as a signal
input port; When the ARC/eARC function is turned on, connect
the“IN 1(eARC)” port to a Soundbar or amplifier with ARC/eARC
function to output the audio signal from other HDMI source, or
the audio returned from the TV connected to the “OUT(eARC)”
port.
Please refer to “7. Application Example” for details.
2
OUT (eARC)
HDMI output port, connect to HDMI display device such as HDTV
or Projector with HDMI cable.
3
OPTICAL
Optical fiber audio output port.
4
L/R
Analog audio output port.
5
DC 5V
DC 5V/1A power input port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-8K-HS41A PRODUCT MANUAL

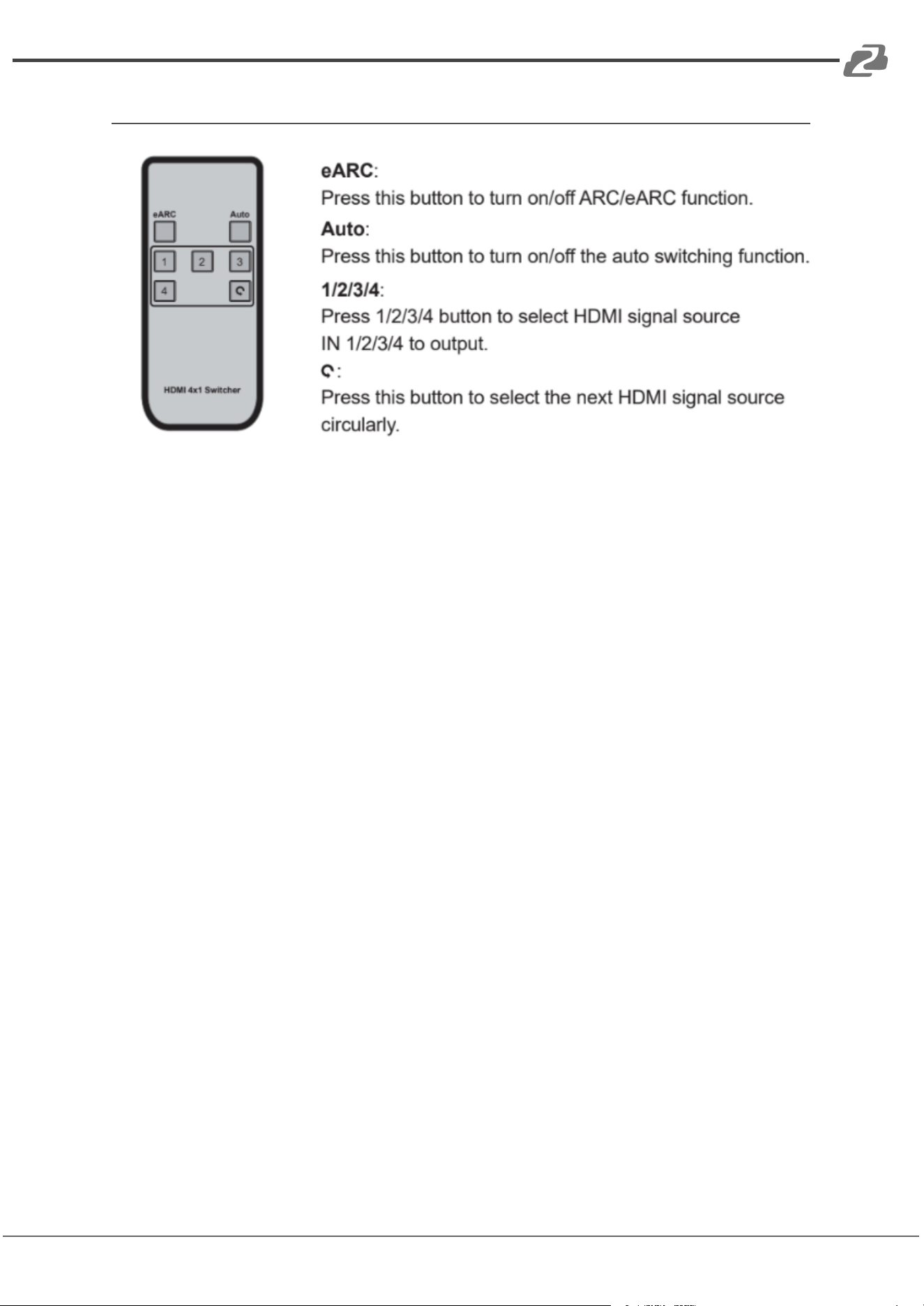

IR Remote
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-8K-HS41A PRODUCT MANUAL

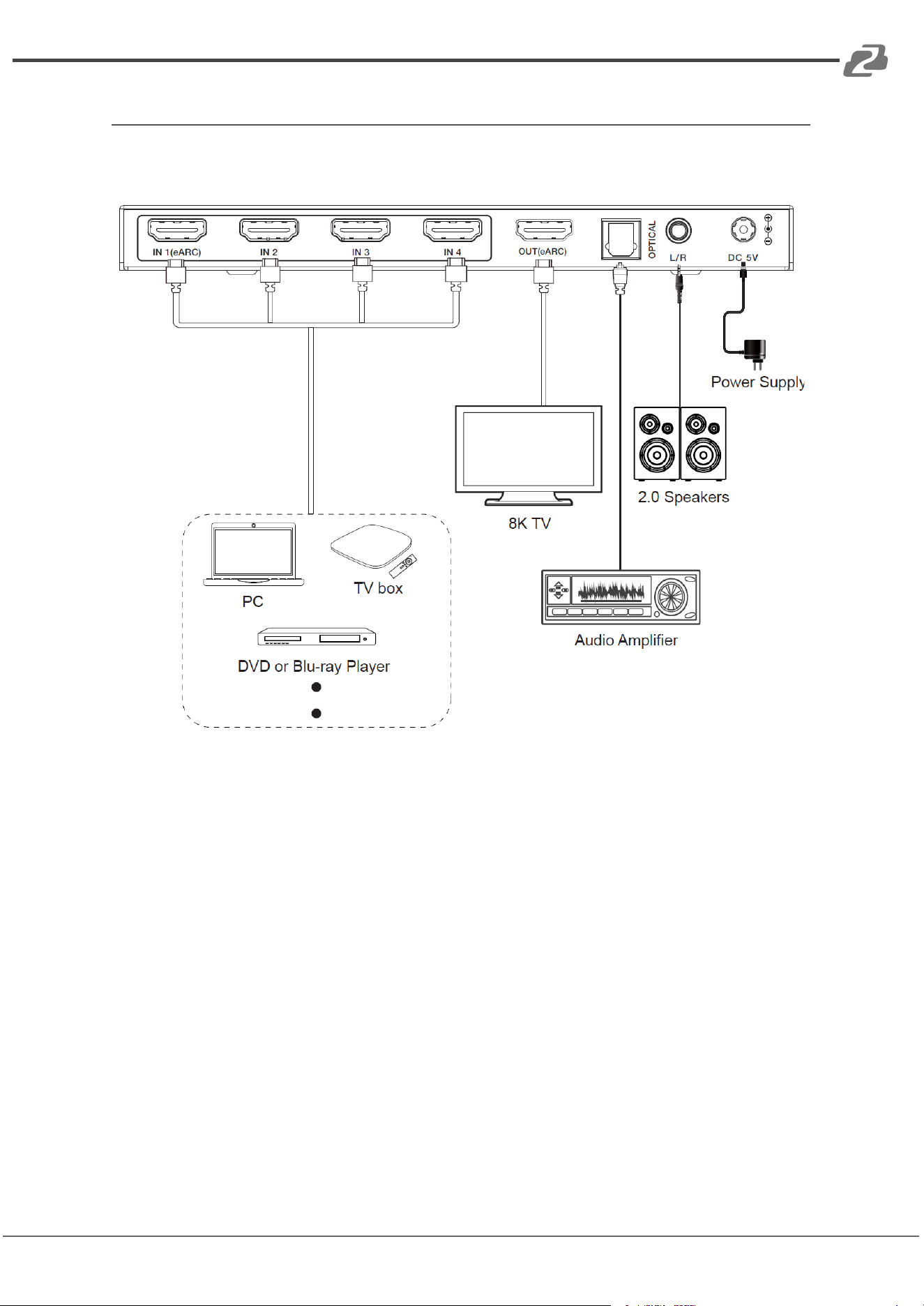

Connection Diagram (Example 1)
When the ARC/eARC function is turned off, the connection diagram is as follows. In this
situation, the optical audio or L/R audio is from the selected input channel.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-8K-HS41A PRODUCT MANUAL

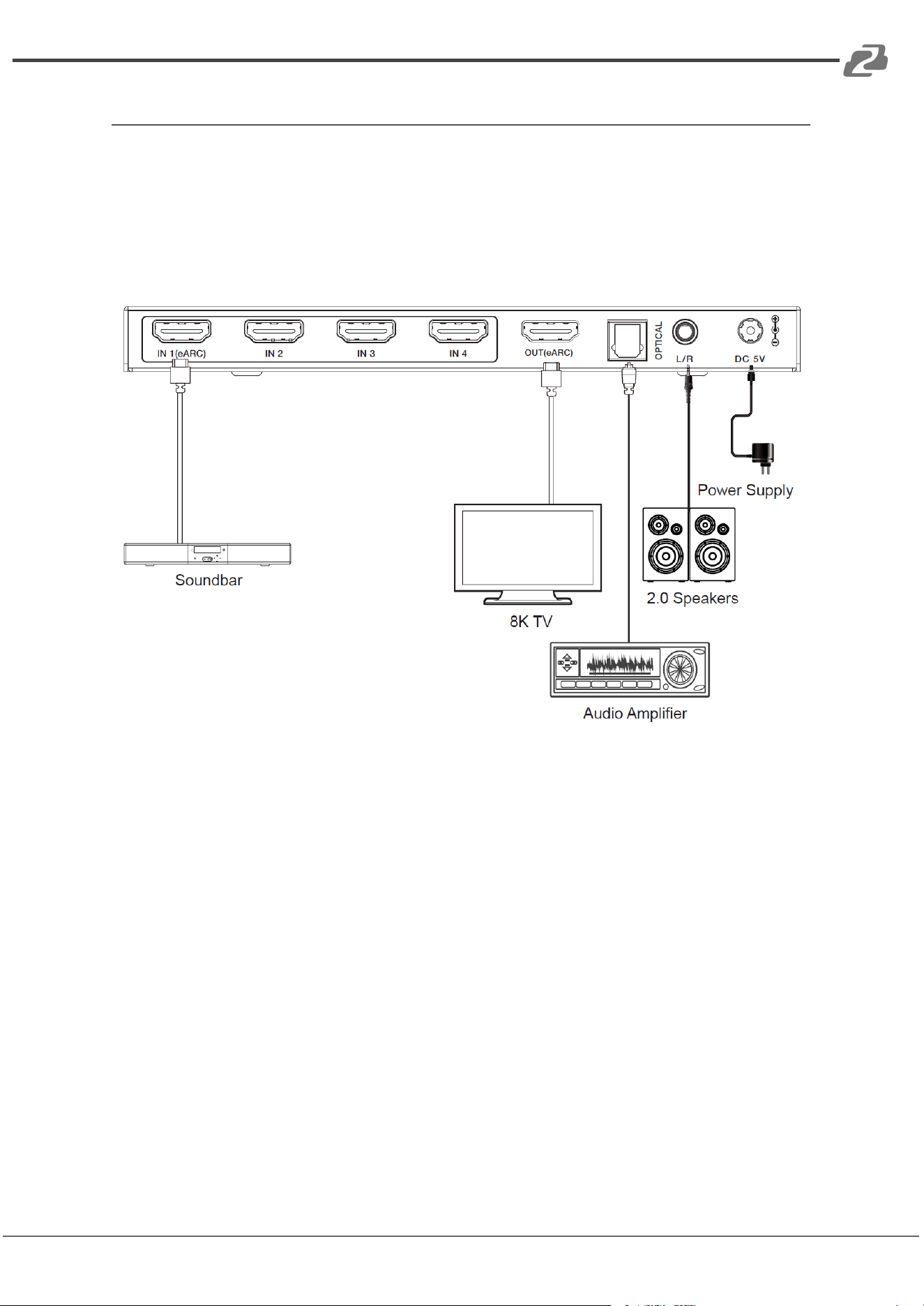

Connection Diagram (Example 2)
When the ARC/eARC function is enabled, select input port 1 by pressing the "SWITCH"
button on the front panel or the "1" button on the IR remote. Then, connect the "IN 1
(eARC)" port to a soundbar to output the audio signal returned from the "OUT (eARC)" port,
as shown in the figure below. For example, when the user watches a TV app, the switcher
will pass through the TV eARC/ARC audio to the soundbar. At this point, the optical audio
or L/R audio comes from the returned audio of the 8K TV connected to the OUT (eARC)
port.
Note:
If the 8K TV supports the ARC/eARC function, the Soundbar will receive the audio signal
from the TV and emit the sound. If the TV does not support ARC/eARC, the Soundbar will
not emit sound.
When the IN 1 channel is selected as the input source, it will be locked. This means that
other input channels will not be automatically identified, even if Auto Switching is enabled.
For example, if a source device is connected to the IN 3 channel, it will not be automatically
used as the signal source because the IN 1 channel is locked.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-8K-HS41A PRODUCT MANUAL

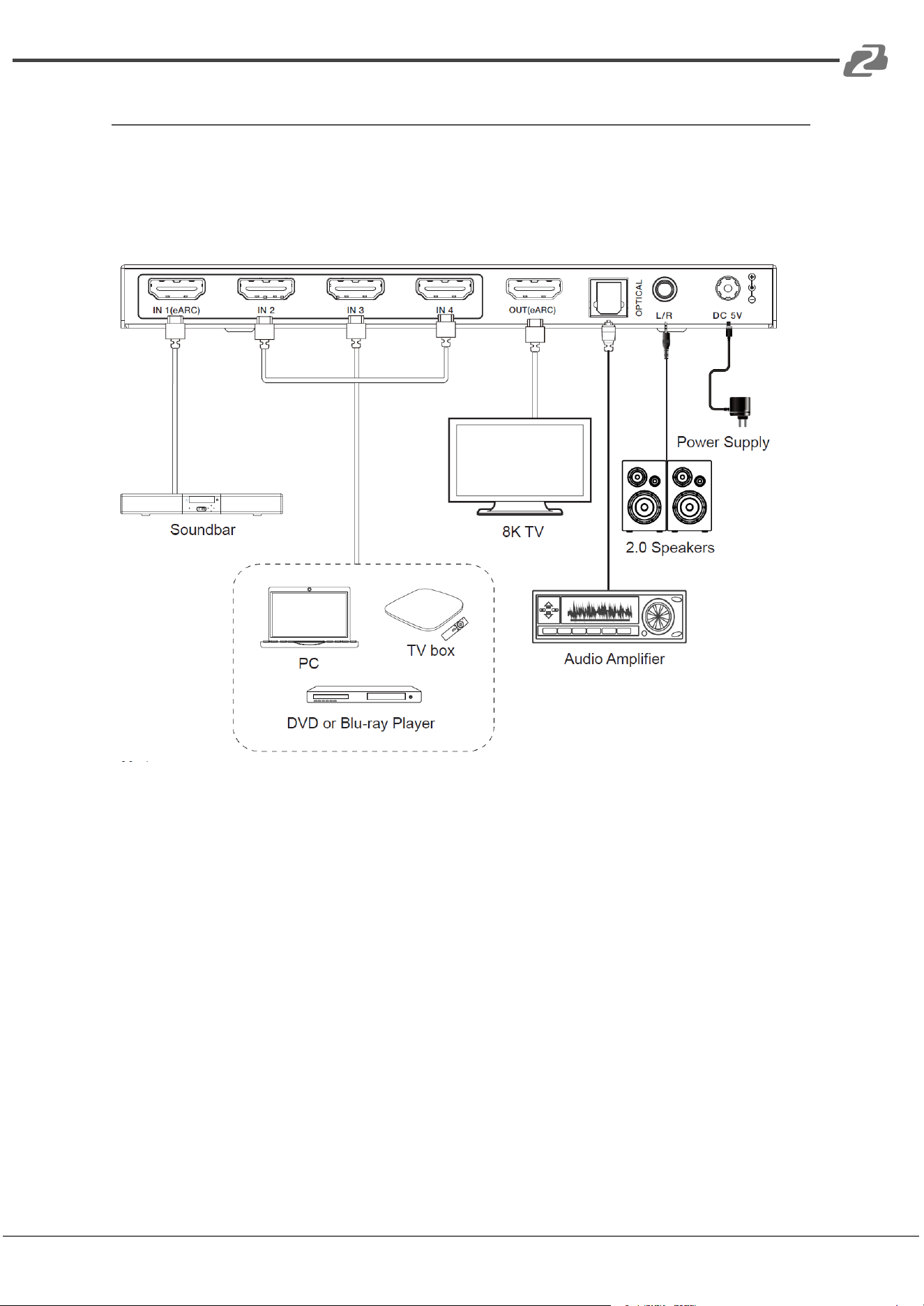

Connection Diagram (Example 3)
When the ARC/eARC function is enabled, select input port 2, 3, or 4 by pressing the
“SWITCH” button on the front panel or using the buttons on the IR remote. If you connect
the “IN 1(eARC)” port to a soundbar, it will output the audio signal from the selected input
channel. At this time, the optical audio or L/R audio will also come from the selected input
channel.
Note: In this situation, the soundbar will not output audio from the 8K TV connected to
the OUT port, regardless of whether the 8K TV supports ARC/eARC.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-8K-HS41A PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-8K-HS41A PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended
two-year warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-8K-HS41A PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specifications and information in this manual are for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgment.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
