BG-8K-HS41
4x1 8K UHD Ultra Slim HDMI 2.1 Switcher
User Manual
BZBGEAR BG-8K-HS41 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-8K-HS41 PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
IR Remote 8
Application Diagram 9
Tech Support 10
Limited Product Warranty Terms 10
Mission Statement 11
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-8K-HS41 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-8K-HS41 PRODUCT MANUAL
Introduction
The BG-8K-HS41 is an 8K HDMI 4x1 switcher that can switch any of the 4 connected HDMI
sources to 1 HDMI display. It supports video resolutions up to 8K@60Hz 4:4:4 with up to
48Gbps of video bandwidth. It is suitable for outdoor displays, video conferencing, security
monitoring, home theater, and other applications.
The BG-8K-HS41 also works well with XBOX series X and PS5 gaming consoles to achieve
a resolution of 4K@120hz on compatible TVs and monitors. Users can switch between two
sources by pressing the button on the top panel of the switcher.
Features
● HDMI 2.1 and HDCP 2.3 compliant
● 8Gbps video bandwidth
● 8K@60Hz 4:4:4 8/10/12-bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit,
4K@120Hz 4:4:4 10-bit video support
● HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
● VRR, FVA, ALLM
● HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
● 4x1 manual switch output and auto switch capabilities
● Built-in Equalizer and Driver
● Auto EDID management
● Compact design for easy and flexible installation
Packing List
● 1x 8K HDMI 4x1 switcher
● 1x IR Remote
● 1x 5V/1A Power Supply
● 1x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-8K-HS41 PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
Video Bandwidth
48 Gbps
Video Resolution
Up to 8K@60Hz 4:4:4 8/10/12-bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit,
4K@120Hz 4:4:4 10-bit
Color Depth
8-bit,10-bit,12-bit
Color Space
RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High
Res, DTS-HD Master Audio, DSD
Connection
Input
4× HDMI INPUT [Type A, 19-pin female]
Output
1× HDMI OUTPUT [Type A, 19-pin female]
Mechanical
Housing
Plastic Enclosure
Silk Screen Color
Black
Dimensions
4.8” (W) x 2.6" (D) x 0.75” (H) [122mm (W) x 65mm (D) x 19mm (H)]
Weight
0.19lbs [88g]
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A
(US/EU standards, CE/FCC/UL certified)
Power
Consumption
3.4W (Max)
Operation Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-8K-HS41 PRODUCT MANUAL

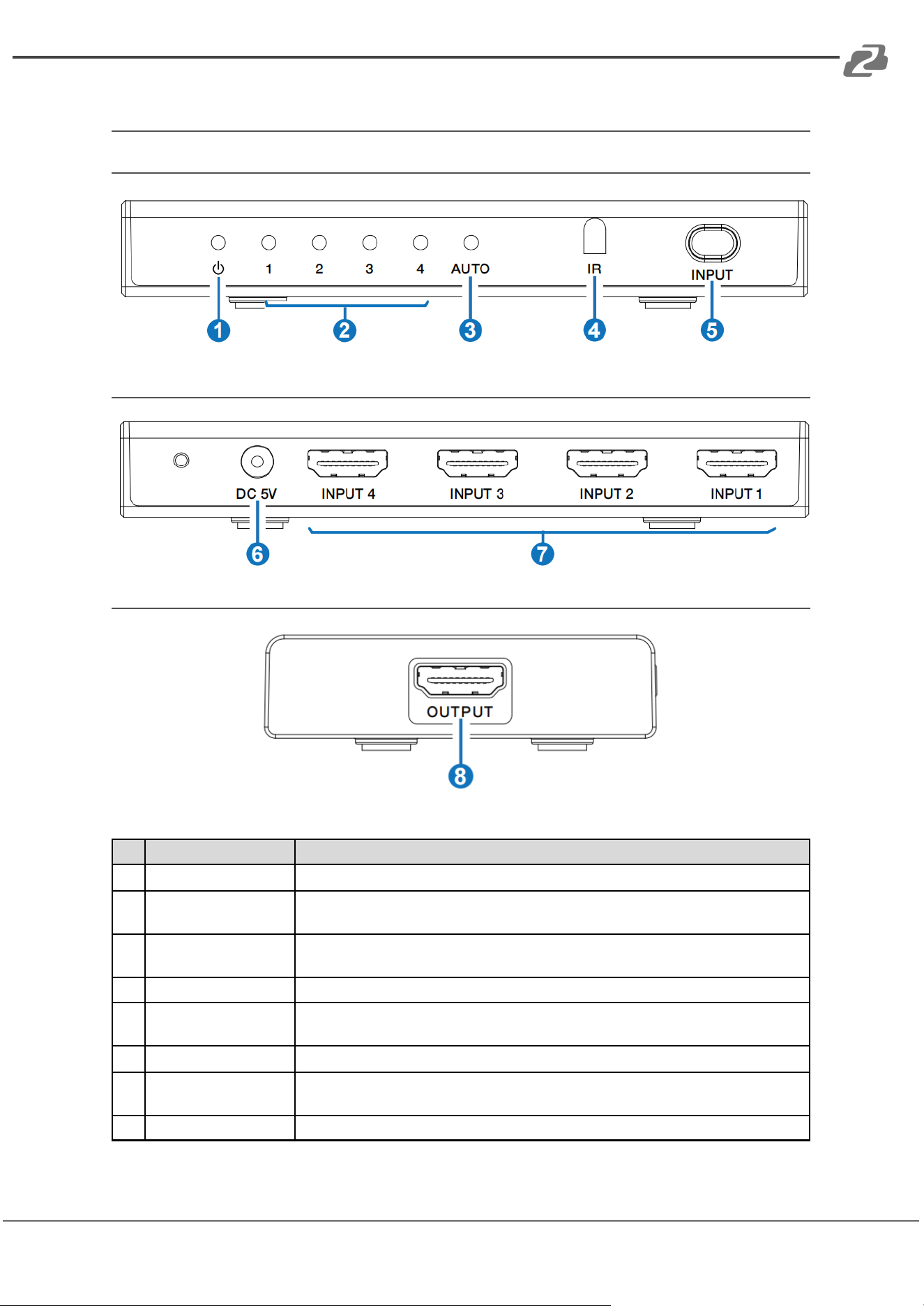

Operation Controls and Functions
Front Panel
Rear Panel
Side Panel
No.
Name
Function Description
1
POWER LED
When the device is powered on the white power LED will illuminate.
2
INPUT LED (1~4)
When INPUT 1/2/3/4 port is selected as the signal source the corresponding white
LED will illuminate.
3
AUTO LED
When the auto switching mode is enabled the corresponding white LED will
illuminate.
4
IR Window
IR input signal receiving window.
5
INPUT button
▪ Short press the button to switch between signal sources.
▪ Long press this button for 3 seconds to enable the auto switching mode.
6
DC 5V
DC 5V/1A Power input port.
7
INPUT port (1~4)
Connect to HDMI source devices such as Bluray players or gaming consoles with
HDMI cables.
8
OUTPUT port
Connect to an HDMI display device such as a TV or Monitor with an HDMI cable.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-8K-HS41 PRODUCT MANUAL
Notes:
1. If you need to use the switcher to output resolutions of 4K@120Hz or 8K@ 60Hz, please
ensure that your HDMI cables, from the HDMI source and to the HDMI display, all
support desired resolution.
2. The length of the HDMI cables connected to both ends of the switcher should not be
too long or it can cause the screen to flicker.
The following HDMI cable lengths are suggested:
8K@60, 8K@30, 4K@120: Ultra HDMI 2.1 cable, IN/OUT 2 meters.
4K@60 4:4:4: HDMI 2.0 cable, IN/OUT 3 meters.
4K@60 4:2:0, 4K@30, 1080P: HDMI cable, IN/OUT 5 meters.

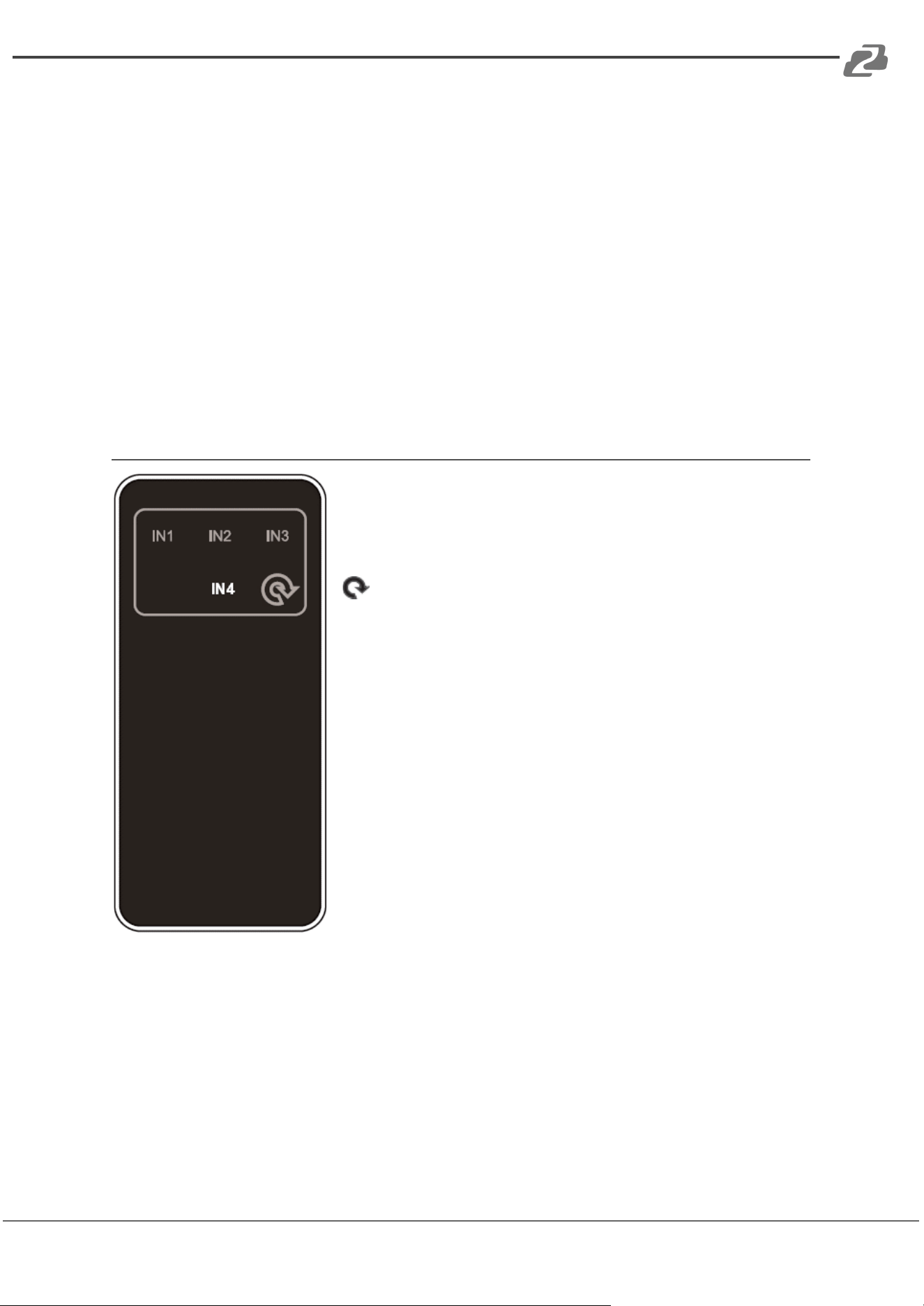

IR Remote
IN1/2/3/4 : Press the IN1/2/3/4 button to select the desired
HDMI signal source for the OUTPUT port.
: Press this button to cyclically switch HDMI signal
sources from INPUT 1/2/3/4 to the OUTPUT port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-8K-HS41 PRODUCT MANUAL

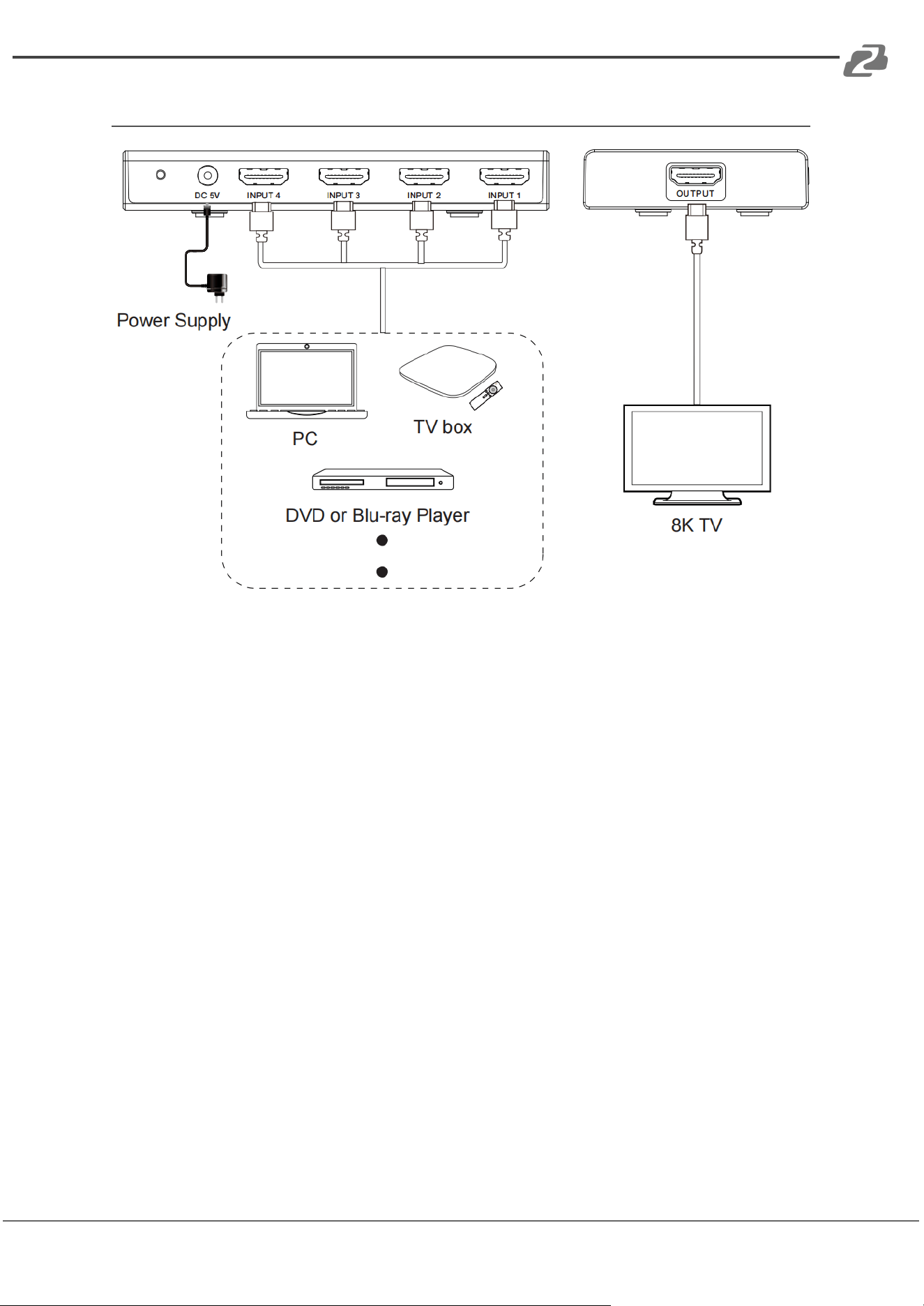

Application Diagram
