Introduction
The BG-8K-HCS41 is an ultra-thin 4×1 switcher designed for high-performance AV
applications. It features three HDMI 2.1 inputs, one USB-C input, and one HDMI
output, supporting resolutions up to 8K@60Hz 4:2:0 12-bit (HDMI) and 8K@30Hz
4:2:2 10-bit (USB-C). This switcher is fully compliant with DP 1.4 and HDCP 2.3,
and supports advanced video technologies including HDR10, HDR10+, Dolby
Vision, and HLG pass-through. With support for HDMI 2.1 features such as VRR,
ALLM, QMS, QFT, and SBTM, along with multichannel audio pass-through for Dolby
Atmos, DTS:X, and LPCM 7.1CH, it delivers an immersive audio-visual experience.
The BG-8K-HCS41 offers easy control via front-panel buttons, IR remote, and
supports both manual and auto-switching between active inputs. Built-in EDID
management can be configured using a 3-pin DIP switch on the front panel, with
EDID status displayed on the connected monitor. Additional features include CEC
control for simplified TV-to-source communication and firmware updates through
the service port, making this switcher a versatile solution for home theater, gaming,
and professional AV installations.
Features
● UHD USB-C Quality: Supports resolutions up to 8K@30Hz (4:2:2, 10-bit) and
4K@120Hz (4:2:2, 10-bit) via USB-C
● UHD HDMI Quality: Supports resolutions up to 8K@60Hz (4:2:0, 12-bit), 8K@30Hz
(4:4:4, 12-bit), and 4K@120Hz (4:4:4, 12-bit)
● Input Switching Options: Supports automatic and manual input switching,
controllable via front panel buttons and IR remote
● CEC Control Functionality: Enables CEC pass-through control from the display
(output) to the source device (input)
● Audio Pass-Through: Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD
Master Audio, and DTS:X audio formats
● HDR Pass-Through: Passes through HDR formats, including HDR, HDR10,
HDR10+, Dolby Vision, and HLG
● Advanced HDMI 2.1 Features: Supports VRR (Variable Refresh Rate), ALLM (Auto
Low Latency Mode), QMS (Quick Media Switching), QFT (Quick Frame Transport),
and SBTM (Source-Based Tone Mapping)
● Flexible Input & Output Configuration: Features 3 × HDMI inputs and 1 × USB-C
input, routed to a single HDMI output
● Advanced EDID Management: Includes customizable EDID settings for flexible
compatibility with various displays and sources
● Industry Compliance: Compliant with DisplayPort 1.4 and HDCP 2.3 standards
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-8K-HCS41 PRODUCT MANUAL
Packing List
● 1× BG-8K-HCS41 Switcher
● 1× IR Remote
● 1× 5V/1A Power Supply
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-8K-HCS41 PRODUCT MANUAL
Specifications
Technical Specifications
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
DP Compliance
DP 1.4
Video Bandwidth
HDMI: Up to 48Gbps FRL and 18Gbps TMDS
USB-C: Up to 32Gbps
Video Resolution
HDMI: Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit
USB-C: Up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit
Color Depth
8-bit, 10-bit, 12-bit
Color Space
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS,
DTS-EX, DTS 96/24, DTS High-Res, DTS-HD Master Audio, DSD
ESD Protection
IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Input Ports
3 × HDMI Type A (19-pin female)1 × USB Type-C (24-pin female)
Output Ports
1 × HDMI Type A (19-pin female)
Control Ports
1 × USB Type-C (Service/update port)1 × IR Receiver window
Mechanical Specifications
Housing
Metal
Color
Black
Dimensions
5.7in × 2.7in × 0.71in / 145mm (W) × 68mm (D) × 18mm (H)
Weight
0.57 lbs [258g]
Power Supply
Input: AC 100~240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
2.25W (Max)
Operating
Temperature
32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature
-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity
20% ~ 90% RH (non-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-8K-HCS41 PRODUCT MANUAL
Recommended HDMI
Cable
The use of a “Premium High Speed HDMI” cable is highly
recommended.
HDMI Cable Length
● 8K: 2m / 6.6ft (Ultra HDMI 2.1)
● 4K60: 8m / 26ft
● 4K24: 12m / 39ft
● 1080P: 15m / 49ft
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-8K-HCS41 PRODUCT MANUAL
Operation Controls and Functions

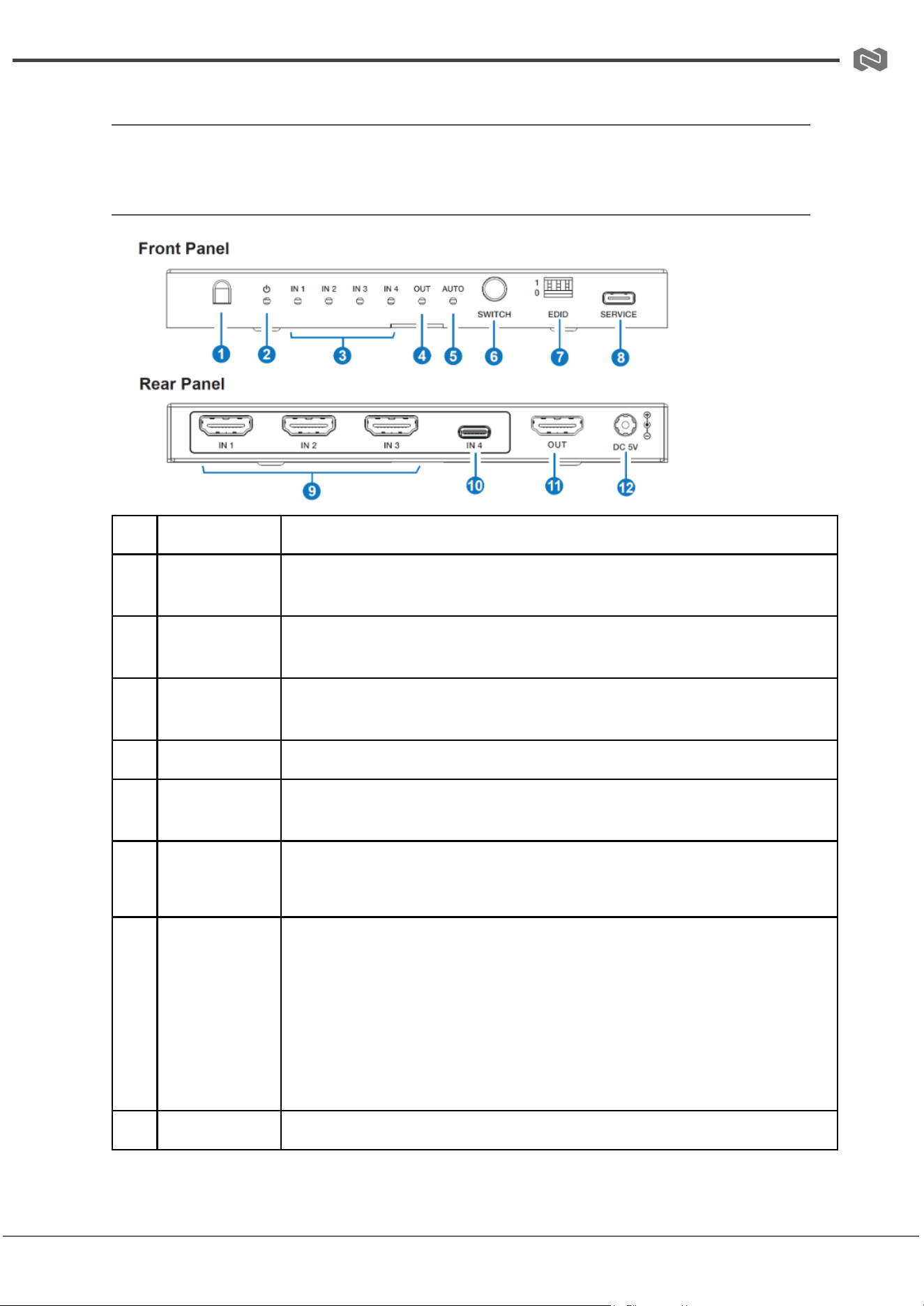

Front and Rear Panel
No.
Name
Function Description
1
IR Window
Receives IR signals from the remote control.
2
Power LED
Illuminates red when the device is powered on.
3
IN 1/2/3/4 LED
The corresponding green LED lights up when IN 1/2/3/4 is selected as the
active input source.
4
OUT LED
Lights up green when a TV or display is connected to the OUT port.
5
AUTO LED
Lights up green when auto-switching mode is enabled.
6
SWITCH
Button
Used to switch input signals.
• Short press: Switch to the next input port.
• Long press (3 seconds): Disable auto-switching mode.
7
EDID DIP
Switch
Used to configure EDID settings:
• 111 – Copy EDID from the OUT port (factory default)
• 110 – 4K@60Hz 4:4:4, Audio: 2ch PCM
• 101 – FRL 12G 8K HDR, Audio: 2ch PCM
• 100 – FRL 12G 8K HDR, Audio: 5.1ch PCM/DTS/Dolby
• 011 – FRL 12G 8K HDR, Audio: 7.1ch PCM/DTS/Dolby/HD
• 010 – FRL 10G 8K HDR, Audio: 2ch PCM
• 001 – FRL 10G 8K HDR, Audio: 5.1ch PCM/DTS/Dolby
• 000 – FRL 10G 8K HDR, Audio: 7.1ch PCM/DTS/Dolby/HD
8
SERVICE
Used to update the MCU firmware.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-8K-HCS41 PRODUCT MANUAL
9
IN 1/2/3
HDMI signal input ports. Connect HDMI source devices such as a DVD player
or PS5 using HDMI cables.
10
IN 4
USB-C signal input port. Connect a USB-C source device.
11
OUT Port
HDMI signal output port. Connect to an HDMI display device such as a TV or
monitor using an HDMI cable.
12
DC 5V
DC 5V/1A power input port.

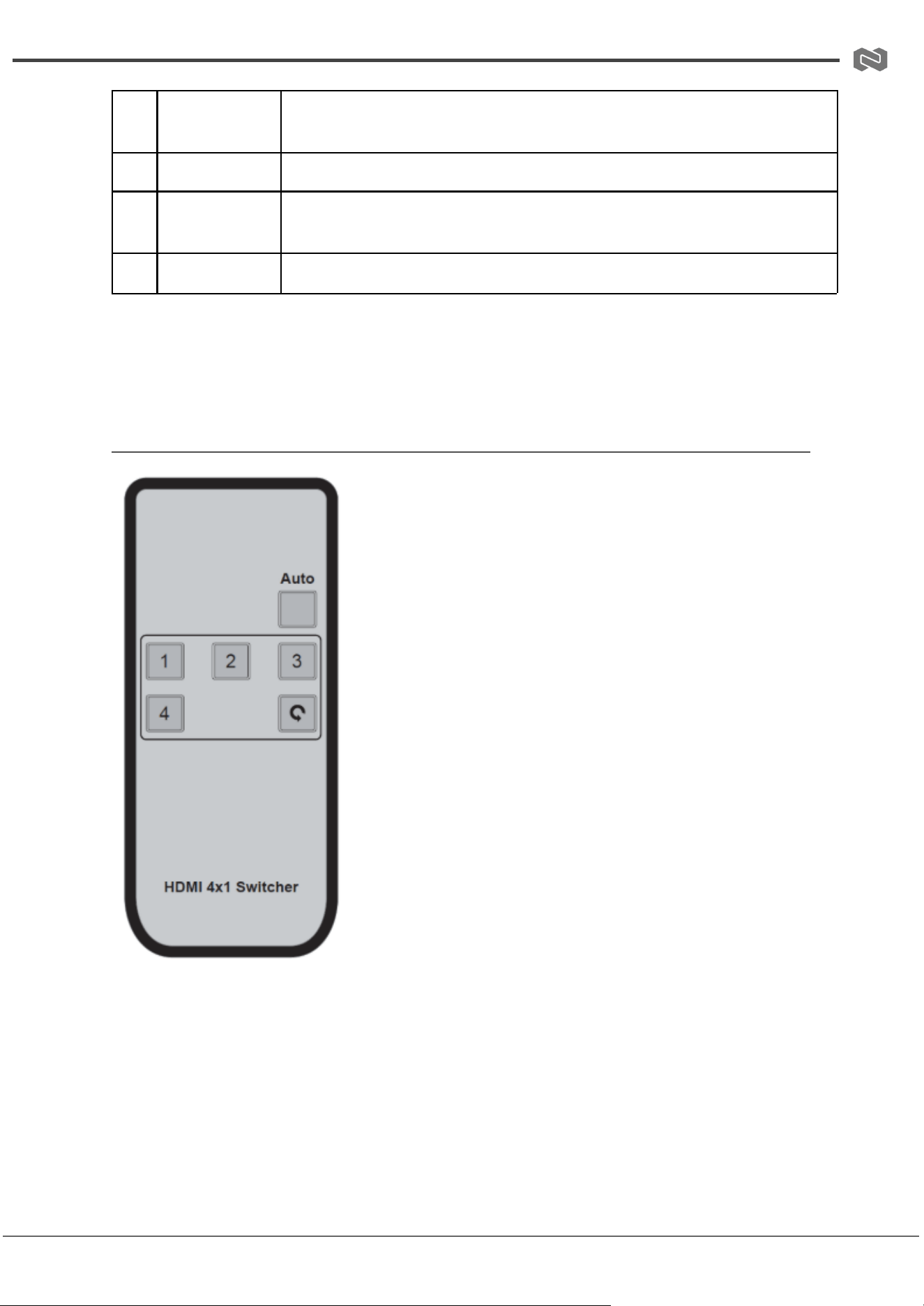

IR REMOTE
AUTO:
Press to enable or disable auto-switching between input
signal sources.
1 / 2 / 3 / 4:
Press the corresponding button to manually select the
desired input channel.
⟳ (Switch):
Press to cycle through the HDMI input sources and
output the selected signal to the OUT port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-8K-HCS41 PRODUCT MANUAL

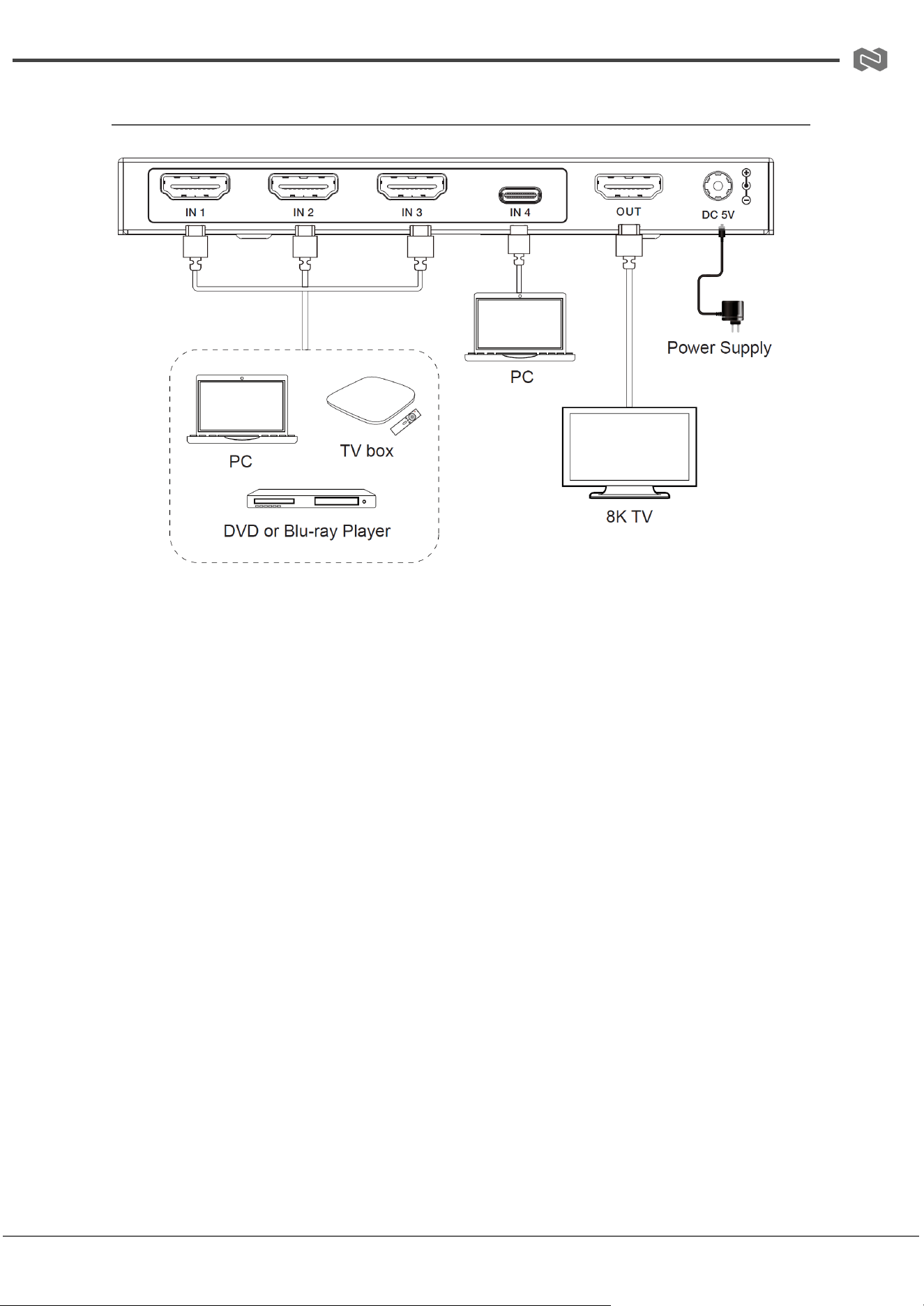

Connection Diagram
