BG-UM44-100M-KIT
4X4 4K 18Gbps UHD HDMI/HDBaseT/Audio Matrix Switcher with
2-Way IR/ARC/Ethernet/IP and RS-232 Control
User Manual
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
TABLE OF CONTENTS
Statement 2
Safety Precaution 2
Introduction 3
Features 4
Packing List 4
Specifications 4
Operation Controls and Functions 6
IR Remote 8
IR Control System 9
IR Cables 11
EDID Management 11
Matrix Audio and RS-232 Introduction 13
Web GUI User Guide 14
RS-232 Control Command 25
Application Example 31
Tech Support 31
Limited Product Warranty Terms 32
Mission Statement 32
Copyright 32
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● Unplug this device during lightning storms
● Clean only with a soft dry microfiber cloth.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacture
● Product specifications may be subject to technical upgrades without further notice
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Introduction
The BG-UM44-100M-KIT is a 4K UHD 4X4 HDMI HDBaseT matrix switch that can connect
four HDMI sources to eight displays. This device features four HDMI outputs mirrored to four
simultaneous HDBaseT outputs. The HDBaseT outputs can extend a 4K@60Hz 4:4:4 video
signal at distances up to 328 feet (100 meters) over a single Cat5e/6/7 cable.
This product is equipped with many advanced features including a 4K to 1080P
down-scaler as well as smart EDID management for easy integration. This unit also offers
audio de-embedding from any of the HDMI sources via analog audio and digital coaxial
audio outputs.
Each extender features bi-directional IR, RS-232, and 2 LAN ports for IP control. The base
unit can be operated using the front panel controls and OLED screen as well as IR, RS-232,
IP control, and web interface.
Features
● HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
● 4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
● HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
● 18Gbps lossless compressed HDBaseT signal transmission
● 4K->1080P Down Scaler
● Dolby Vision, HDR10+, HLG
● HDBaseT output can extend video transmission distance up to 328ft / 100 meters via
a single cat5e/6/7 cable.
● HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
Master Audio)
● ARC function on local HDMI and HDBaseT output ports
● IR matrix and Audio matrix
● Smart EDID management
● 24V POC on all HDBaseT ports
● Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Packing List
● 1x 4x4 HDMI and HDBaseT Matrix
Switch
● 4x HDBaseT Receiver
● 1x Matrix IR Remote
● 1x 100~240V AC 50/60Hz Power cable
● 1x RS-232 serial cable (1.5 meters,
male to female head)
● 8x 3-pin Phoenix Connector
● 5x IR Blaster cable (1.5 meters)
● 6x 20~60KHz IR Receiver cable (1.5
meters)
● 10x Mounting Ear (Matrix and Receiver)
● 1x User Manual
Specifications
Technical
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18Gbps
Video Resolution
Up to 4K2K@50/60Hz (4:4:4)
Color Space
RGB, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth
12-bit (4K), 16-bit (1080P)
HDMI Audio Formats
(Pass-through)
PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High
Res, DTS-HD Master Audio, DSD
Coax Audio Formats
PCM 2.0, Dolby Digital / Plus, DTS,
L/R Audio Formats
PCM2.0
HDR formats
4:4:4, 4:2:2, 4:2:0 (10,12bit deep color)
HDR10, HDR10+, Dolby Vision, HLG
Infrared
20KHz ~ 60KHz
ESD Protection
Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connection
Input Ports
4×INPUT [HDMI Type A, 19-pin female]
6×IR INPUT [3.5mm Stereo Mini-jack]
2×Stereo Audio [3.5mm Stereo Mini-jack B]
1×SPDIF(OPTICAL)
1×SPDIF(COAX)
Output Ports
4×HDMI OUTPUT [HDMI Type A, 19-pin female]
4×HDBaseT port [RJ45]
5×IR OUTPUT [3.5mm Stereo Mini-jack]
4×RS-232 [3-pin Phoenix connector] 4×SPDIF(COAX)
4×Stereo Audio [3.5mm Stereo Mini-jack]
1×LAN [RJ45]
Control Ports
1×TCP/IP [RJ45]
1×RS-232 [D-Sub 9]
HDBaseT Receiver
Input Ports
1×HDBaseT IN [ RJ45]
1×IR IN [3.5mm Stereo Mini-jack]
Output Ports
1×HDMI OUT [HDMI Type A, 19-pin female]
1×IR OUT [3.5mm Stereo Mini-jack]
Control Ports
1×SERVICE [Micro USB, Update port]
1×RS-232 [Phoenix jack]
2×LAN [RJ45]
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
TX: 440mm (W)×274mm (D)×45mm (H)
RX: 163mm (W)×90.3mm (D)×18mm (H)
Weight
TX: 3977g, RX: 392g
Power Supply
AC 100 - 240V 50/60Hz
Power Consumption
70W (Max)
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
Resolution / Distance
4K60 - Feet / Meters
CAT5e/6/7
328ft / 100M
Resolution / Cable length
4K60 - Feet / Meters
4K30 - Feet / Meters
1080P60 - Feet / Meters
HDMI IN / OUT
16ft / 5M
32ft / 10M
50ft / 15M
The use of “Premium High-Speed HDMI” cable is highly recommended.
Operation Controls and Functions

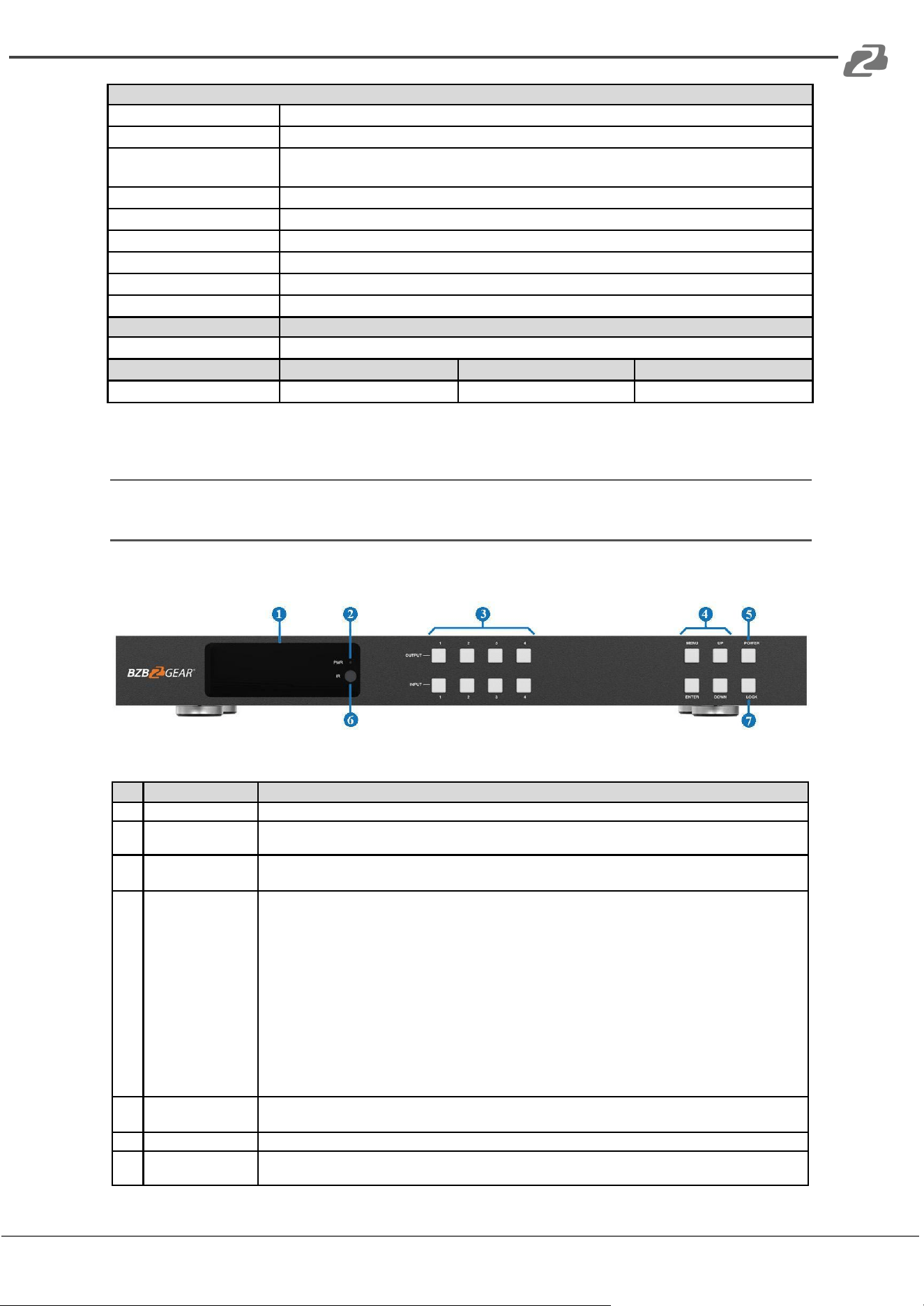

Matrix Panel
Front Panel
NO.
Name
Function Description
1
LED screen
Display matrix switching status, input / output port, EDID, Baud rate, IP Address.
2
Power LED
The LED will illuminate in green when the product is connected to power supply, and red when the
product is on standby.
3
OUTPUT / INPUT
buttons
You need to press an output button (1~4) firstly and then press an input button (1~4) to select the
corresponding input source for the output port.
4
MENU / ENTER /
UP / DOWN
①EDID Check: On the initial OLED display screen, press “MENU” button to enter the Matrix
switching state interface, then press “UP/DOWN” button to check the current EDID information of
each HDMI input port.
②EDID setting: On the initial OLED display screen, press “MENU” button to enter the EDID setting
interface, press “UP/DOWN” button to select the required EDID and press the “ENTER” button. A
prompt “copy to input :” will appear. Then press “UP/DOWN” button to select the input port you
need to set, and press “ENTER” button again to confirm.
③Baud rate setting: On the initial OLED display screen, press “MENU” button to enter the Baud
rate interface, and press “UP/DOWN” button to select the required Baud rate, finally press the
“ENTER” button to confirm the setting.

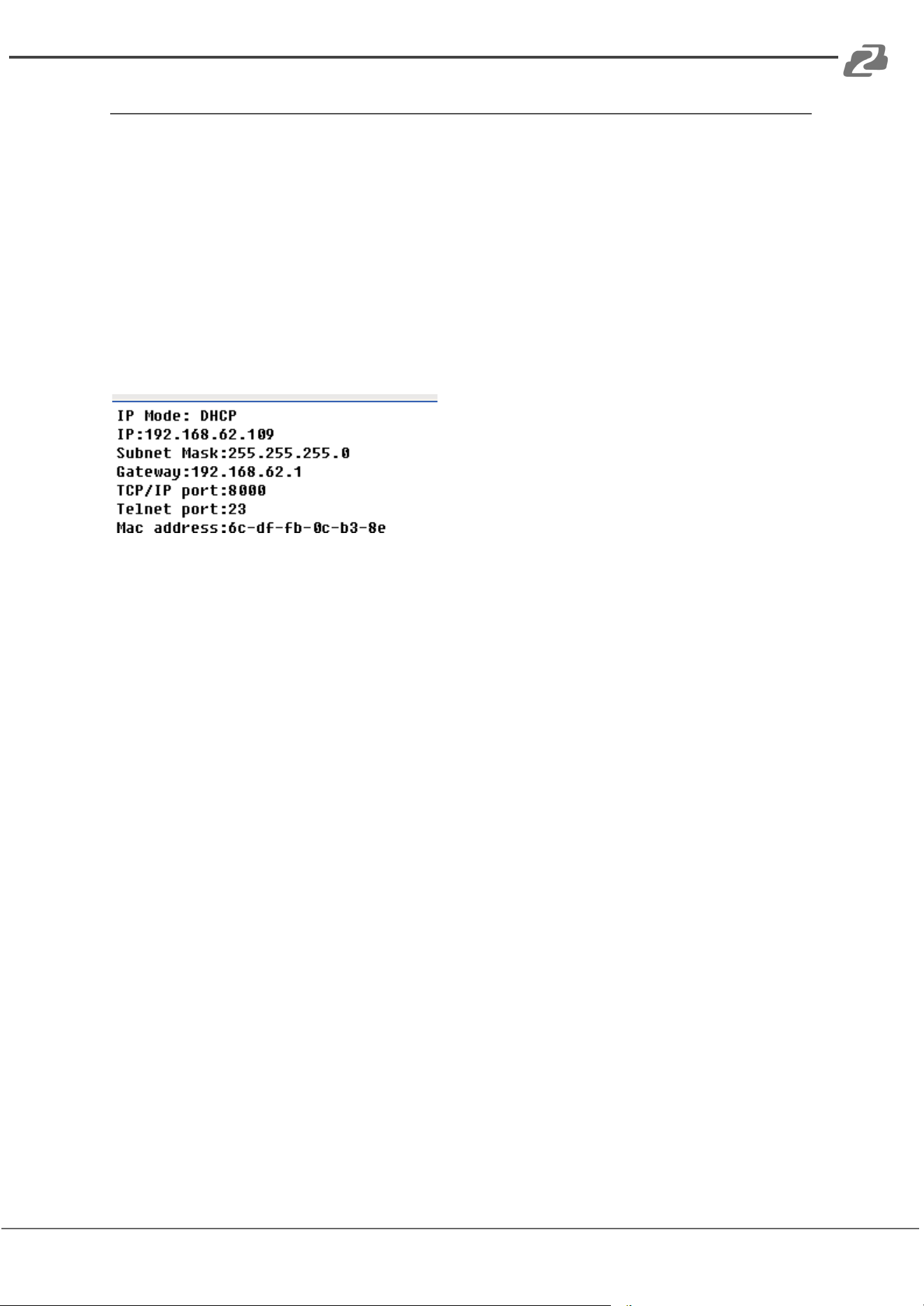

④IP Address Check: On the initial OLED display screen, press “MENU” button to enter the IP
interface, then press “UP/DOWN” button to check the current IP address.
Pressing the “MENU” button again will return to the initial OLED display status.
5
POWER button
Press and hold the POWER button for 3 seconds to enter the standby mode, then press the button
again to wake up the device.
6
IR Window
IR receiver window, it only receives the IR remote signal from this product.
7
LOCK button
Press the LOCK button to lock front panel buttons (Except the power button); Press the button
again to unlock.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL

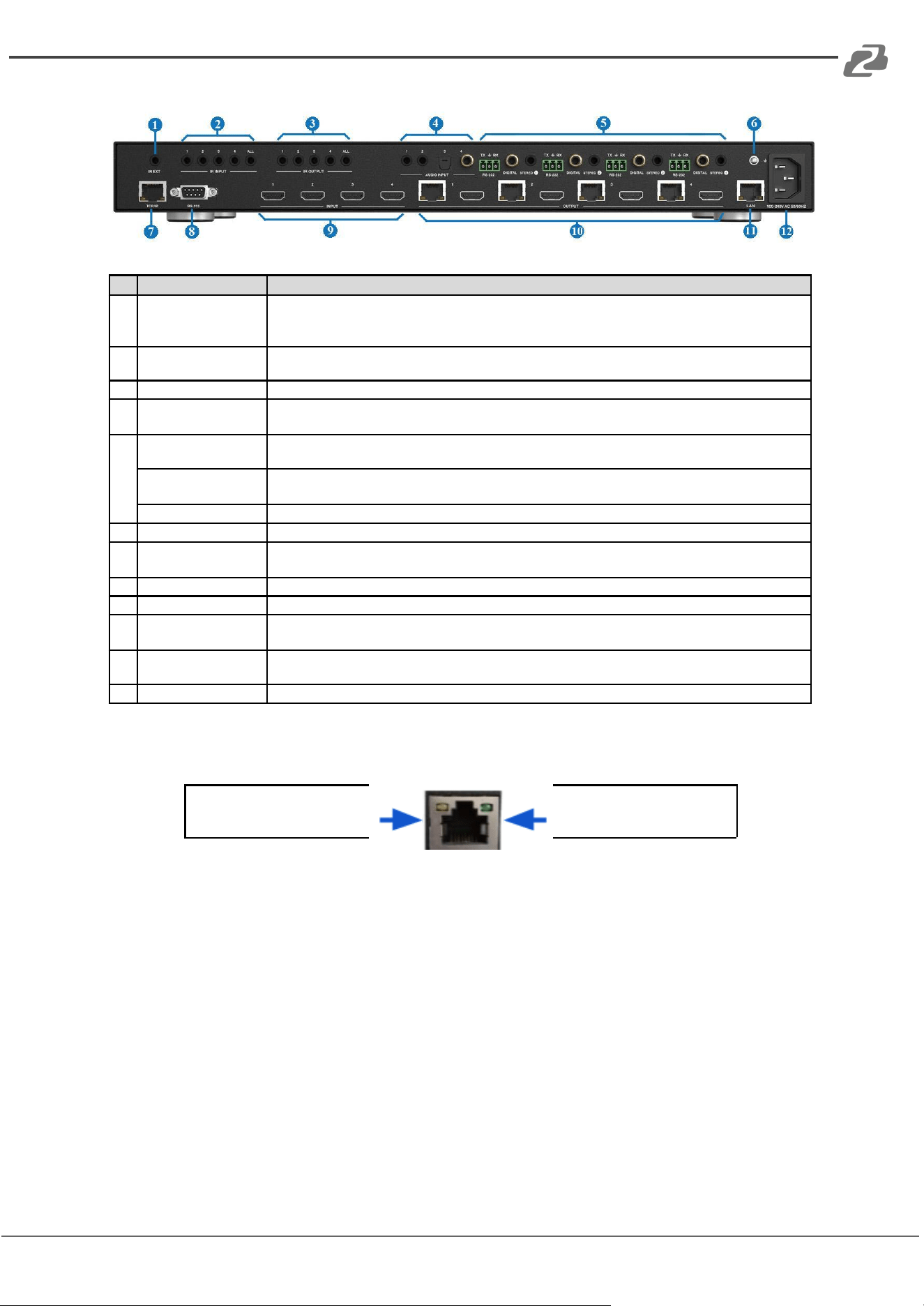

Rear Panel
No.
Name
Function Description
1
IR EXT

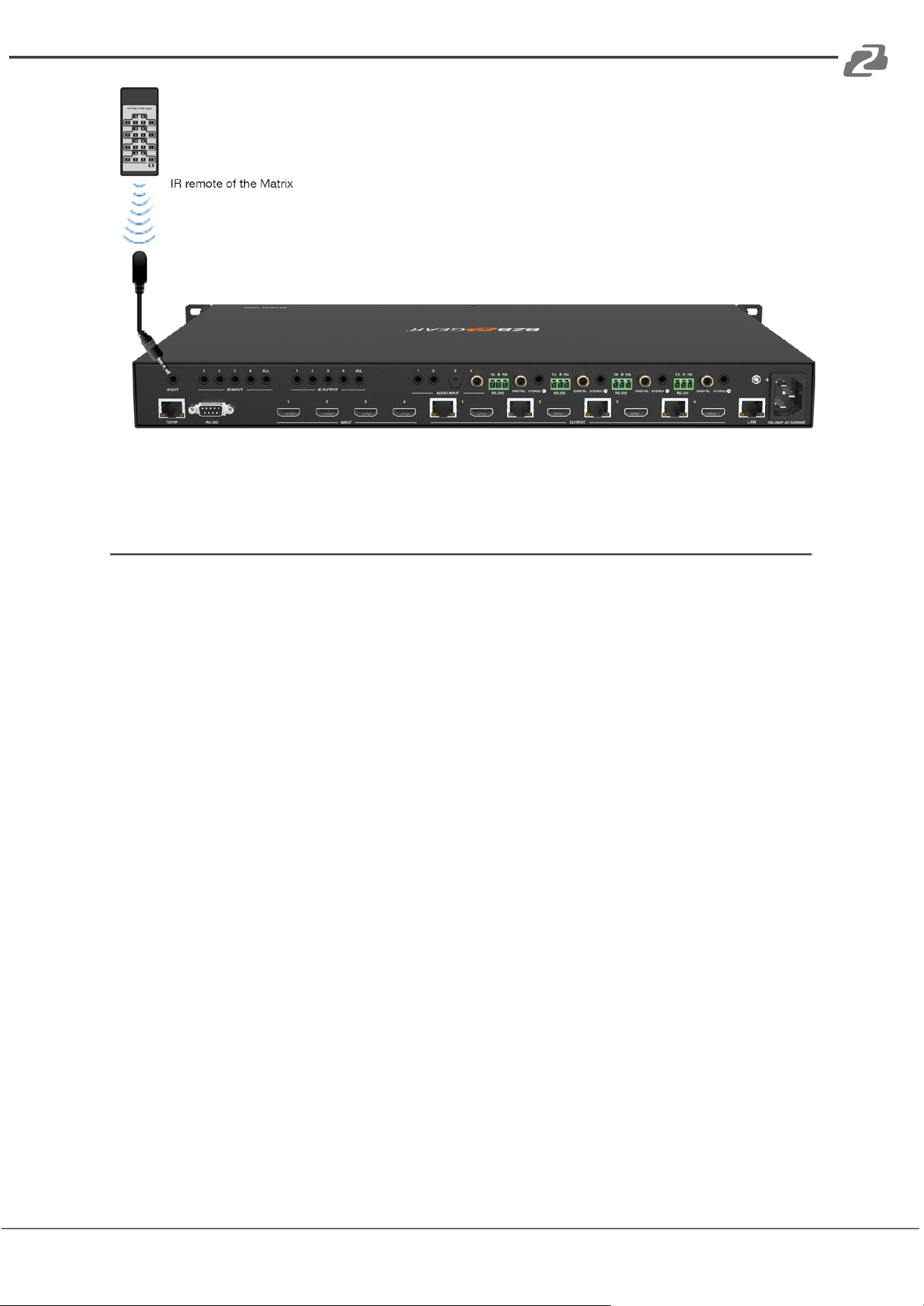

If the IR receiver window of the unit is blocked or the unit is installed in a closed area out of
infrared line of sight, the IR receiver cable can be inserted to the “IR EXT” port to receive the IR
remote signal.
2
IR INPUT ports
Connect to IR receiver cable, the IR receive signal will emit to “IR OUT” port of the HDBaseT
Receiver.
3
IR OUTPUT ports
Connect to IR blaster cable, the IR emit signal is from “IR IN” port of the HDBaseT Receiver.
4
AUDIO IN ports
L/R, optical and coaxial audio input ports, connect to external audio source device such as PC or
DVD.
5
RS-232 port
Connect to a PC or control system by 3-pin phoenix connector serial cable to transmit command
between the Matrix and HDBaseT Receiver.
DIGITAL port
Coaxial audio output port, connect to audio output device such as audio amplifier via a coaxial
cable.
STEREO port
Stereo audio output port, connect to an amplifier or speaker via a 3.5mm audio cable.
6
GND
The housing is connected to the ground.
7
TCP/IP port
This port is the link port for TCP/IP control and connect to an active Ethernet link by an RJ45
cable.
8
RS-232 port
Connect to a PC or control system by D-Sub 9-pin cable to control the Matrix.
9
INPUT ports (1-4)
HDMI input ports, connect to HDMI source device such as DVD or PS4 with an HDMI cable.
10
OUTPUT ports (1-4)
HDBaseT ports, connect to HDBaseT Receiver via CAT cable.
HDMI output ports, connect to HDMI display device such as TV or monitor with an HDMI cable.
11
LAN
This port is connected to a router and the LAN port of the HDBaseT Receiver can connect Internet
device such as PC or laptop.
12
POWER input
Connect to 100~240V AC 50/60Hz power cable.
Data Signal
Indicator Lamp
Connection Signal
Indicator Lamp
● Illuminating: HDMI signal with HDCP.
● Flashing: HDMI signal without HDCP.
● Dark: No HDMI signal.
● Video (OUT)
● Illuminating: Matrix and HDBaseT
Receiver are in good connection
status.
● Flashing: Matrix and HDBaseT
Receiver are in poor connection status.
● Dark: Matrix and HDBaseT Receiver
are not connected.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL

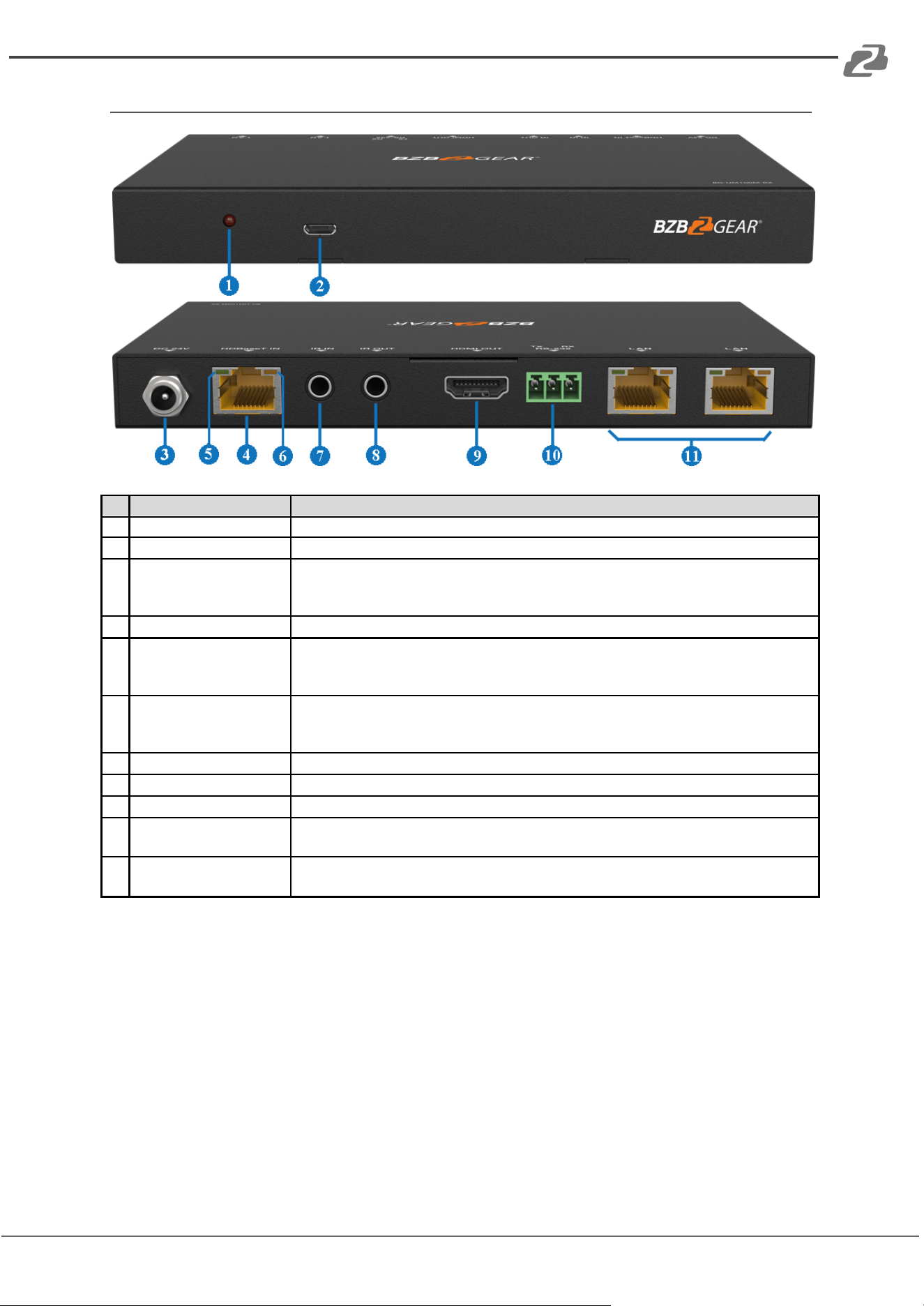

HDBaseT Receiver Panel
No.
Name
Function Description
1
POWER LED
Power LED indicator, LED will illuminate when the device is connected to a power supply.
2
SERVICE port
Firmware update port
3
DC 24V
P. lug the DC 24V/1A power cord into this port and connect the adapter to AC wall outlet.
Note: The Matrix supports POC function, so the Receiver doesn’t need a power supply when
HDBaseT IN port is connected to HDBaseT port of the Matrix.
4
HDBaseT IN port
Connect to HDBaseT output port of the Matrix with CAT cable.
5
Connection Signal Indicator
Lamp (Green)
● Illuminating: Matrix and Receiver are in good connection status.
● Flashing: Matrix and Receiver are in poor connection status.
● Dark: Matrix and Receiver are not connected.
6
Data Signal Indicator Lamp
(Orange)
● Illuminating: HDMI signal with HDCP.
● Flashing: HDMI signal without HDCP.
● Dark: No HDMI signal.
7
IR IN
Connect to IR receiver cable, the IR signal will emit to IR OUT port of the Matrix.
8
IR OUT
Connect to IR blaster cable, the IR emit signal is from IR IN port of the Matrix.
9
HDMI OUT port
HDMI output port, connect to HDMI display device such as TV or monitor with HDMI cable.
10
RS-232 port
Connect to a PC or control system by 3-pin phoenix connector cable to transmit command
between the Matrix and HDBaseT Receiver.
11
LAN ports
Connect Ethernet cables to these ports to provide a wired Ethernet connection to local
devices.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
IR Remote

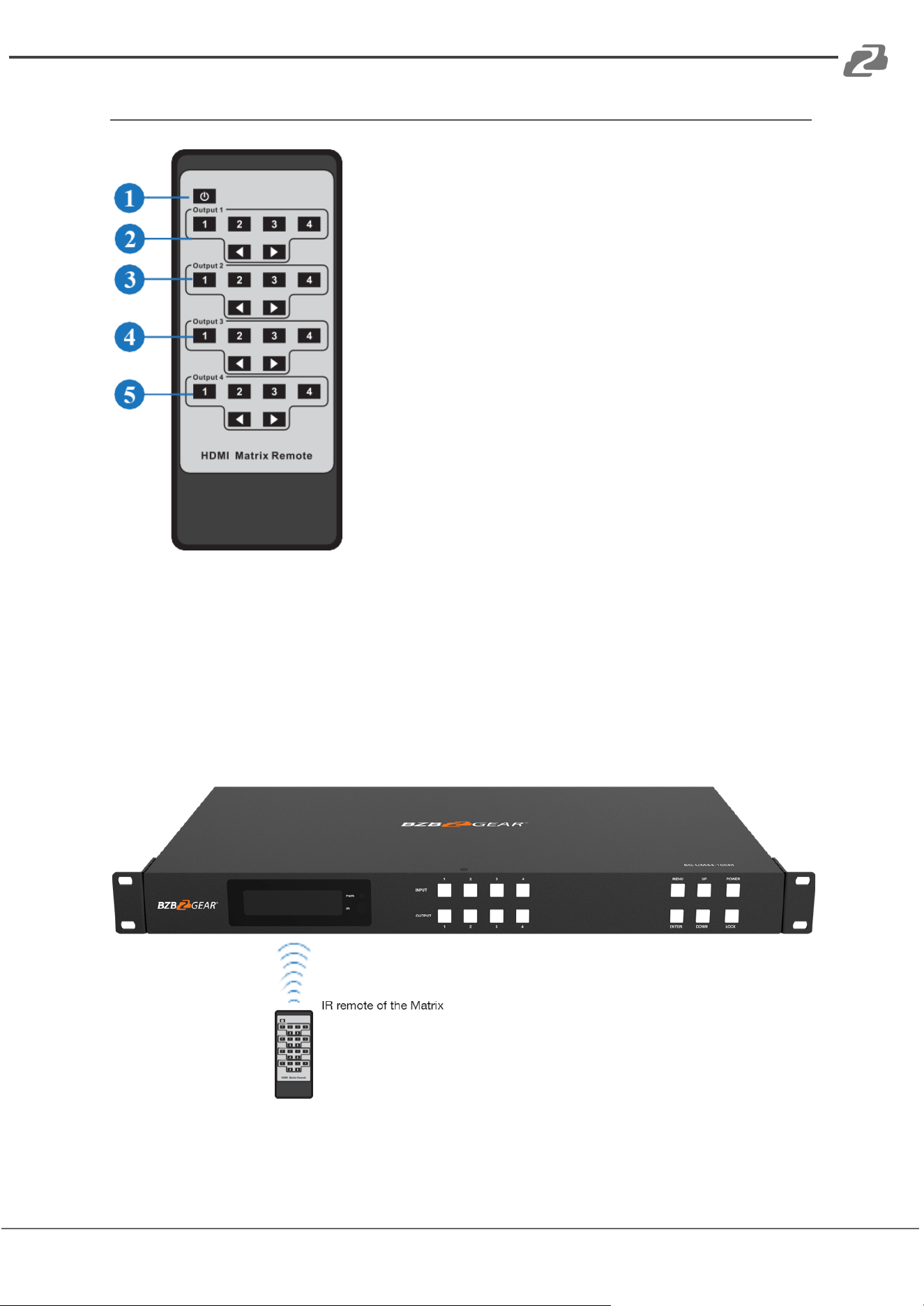

1. Power on or Standby: Power on the Matrix or set it to
standby mode.
2. Output 1: Press 1\2\3\4 button to select input source to
HDMI OUTPUT 1.
3. Output 2: Press 1\2\3\4 button to select input source to
HDMI OUTPUT 2.
4. Output 3: Press 1\2\3\4 button to select input source to
HDMI OUTPUT 3.
5. Output 4: Press 1\2\3\4 button to select input source to
HDMI OUTPUT 4.
Select the last ◀ or next ▶ input source button.
The Matrix input and output sources can be selected by using the IR remote. There
are two ways to receive the IR remote signal.
Method 1: The IR window accepts the IR remote signal. When using the IR remote, the
furthest distance is 7 meters and the angle is ± 45°. The diagram is shown as below:
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
IR Control System
The BG-UM44-100M-KIT is not only a matrix switch but also an extender that supports
bi-directional IR control. When the matrix is connected to a HDBaseT receiver through a Cat
5e/6/7 cable, you can control the remote display device (HDBaseT) or input source device
(matrix) through an IR signal transmission. NOTE: The IR signal transmission method is
different from matrix (local) to HDBaseT receiver (remote) and from HDBaseT receiver
(remote) to matrix (local).
At the matrix (local end): the IR signal is a one-to-one transmission. For example, the IR IN
1 port signal of the matrix will emit to the IR OUT port of the HDBaseT Receiver 1, and the
IR IN 3 port of the matrix will emit a signal to the IR OUT port of the HDBaseT Receiver 3.
The IR path from the base unit to the receiver is bonded to the corresponding HDMI port.
The IR IN ALL port of the matrix will emit to all IR OUT ports of HDBaseT receivers

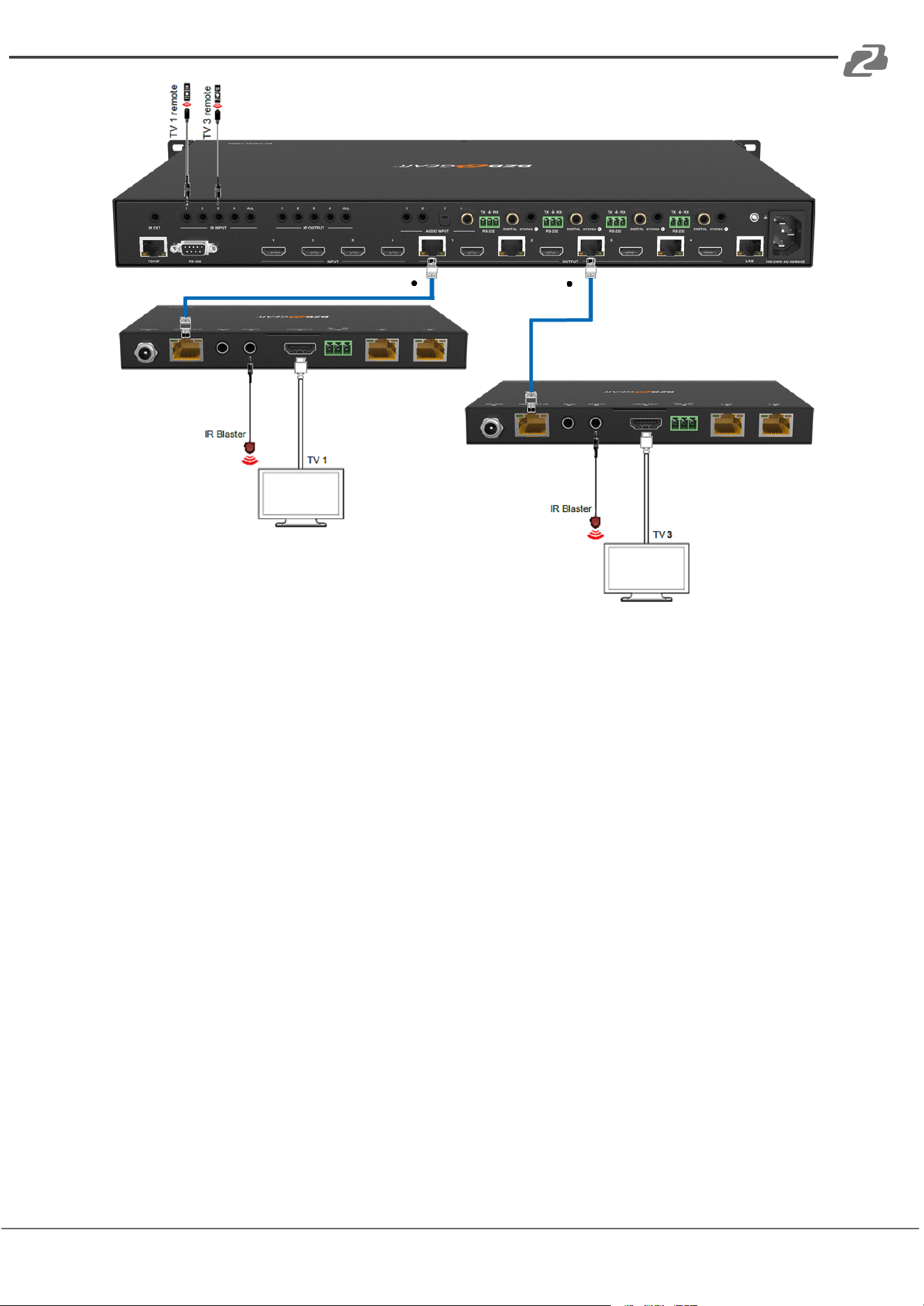

simultaneously. Please see the following connection diagram.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Figure 1: IR connection diagram (Matrix end)
At HDBaseT Receiver (Remote end): IR signal follows video switch/change. For
example, the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2
port, so the IR input signal of the HDBaseT Receiver 1 will emit to IR OUT 2 of the matrix.
If the HDMI output signal on the HDBaseT Receiver 3 is from the HDMI INPUT 4 port.
Then, the IR input signal of the HDBaseT Receiver 3 will emit to IR OUT 4 of the matrix
etc. Any HDBaseT receiver’s IR IN signal can output from the IR OUT ALL port of the
matrix and the IR OUT ALL signal of the matrix depends on your IR remote source device.
Please see the following connection diagram.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL

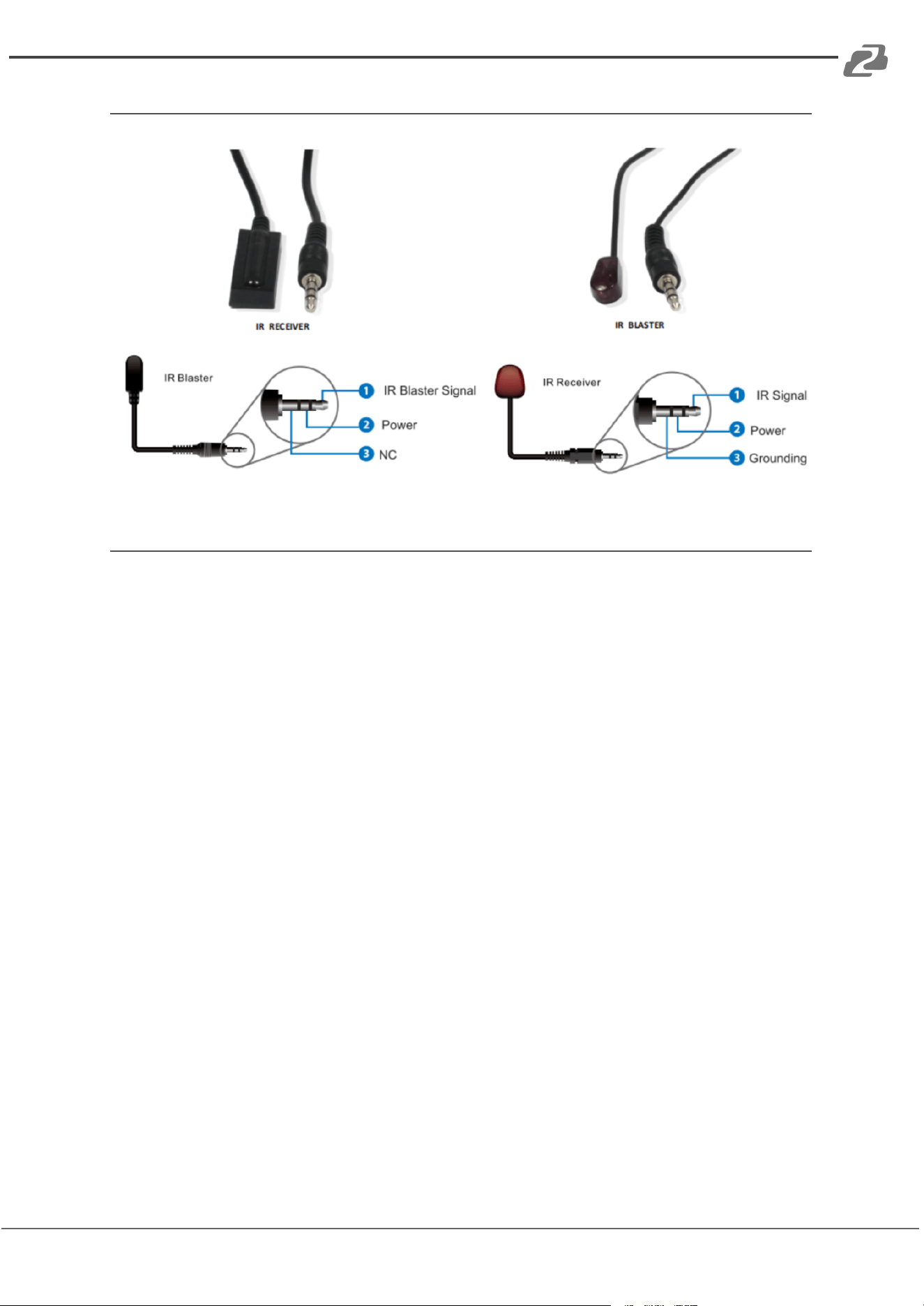

IR Cables
EDID Management
The BG-UM44-100M-KIT has 21 factory defined EDID settings, 2 user-defined EDID modes
and 8 copy EDID modes. You can select “Defined EDID” or “Copy EDID” modes to input
ports through the front panel buttons, ASCII control, or Web GUI.
Front panel button operation: On the initial OLED display screen press the “MENU” button
to enter the EDID setting interface and then press “UP/DOWN” button to select the required
EDID. Press the “ENTER” button and a prompt “copy to input :” will appear. Press the
“UP/DOWN” buttons to select the input port you need to set and press the “ENTER” button
again to confirm this operation.

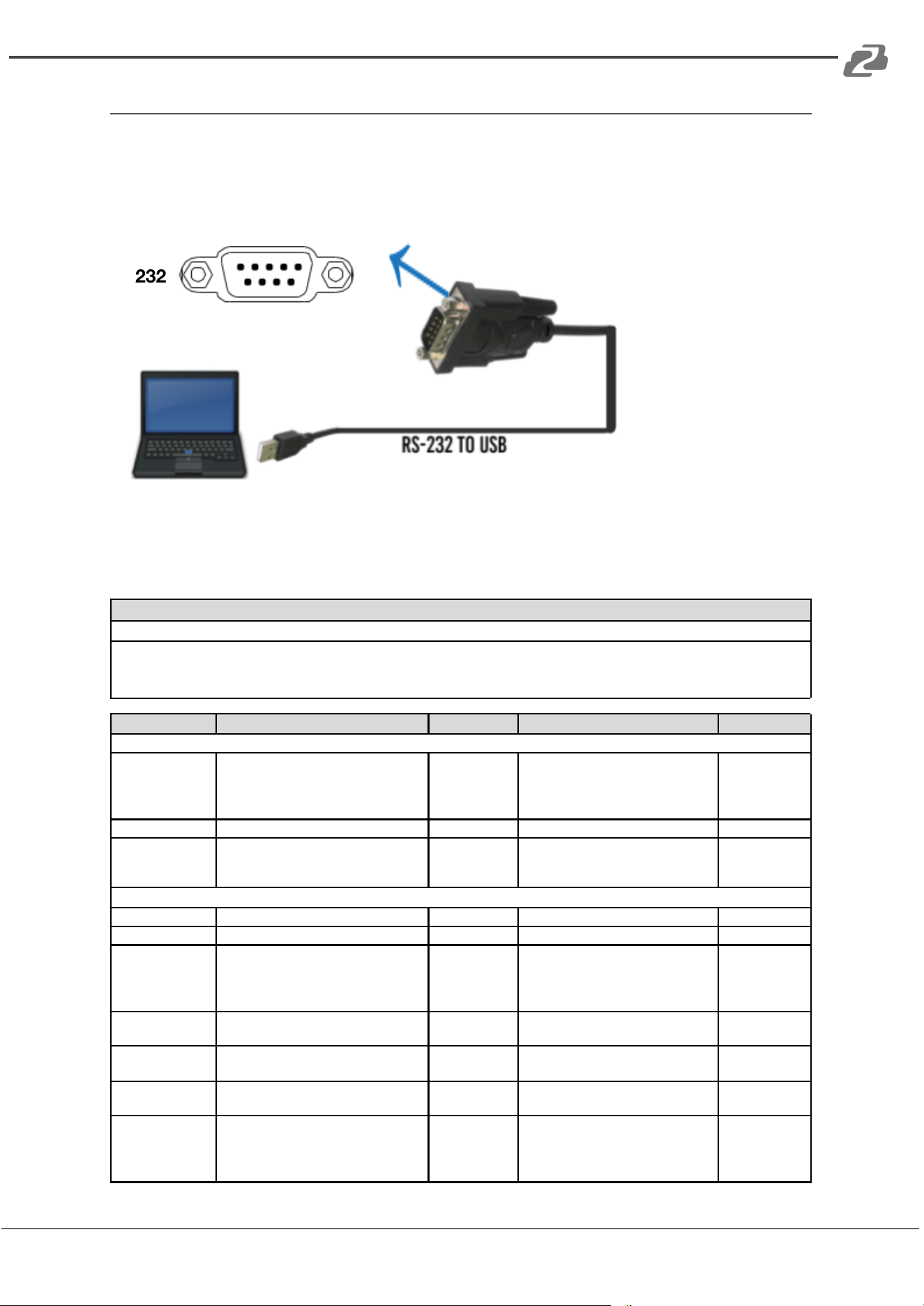

RS-232 control operation:Connect the Matrix to a PC via serial cable and then open a
Serial Command tool such as Dock Lite or Access Port on the PC to send the ASCII
command “s edid in x from z!” to set EDID. For details, please refer to “EDID Setting” in the
ASCII command list section of this manual.
Web Interface: Please check the EDID management sub section under the Web GUI User
Guide section of this manual.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
The defined EDID setting list of the product is shown as below:
EDID Mode
EDID Description
1
1080p, Stereo Audio 2.0
2
1080p, Dolby/DTS 5.1
3
1080p, HD Audio 7.1
4
1080i, Stereo Audio 2.0
5
1080i, Dolby/DTS 5.1
6
1080i, HD Audio 7.1
7
3D, Stereo Audio 2.0
8
3D, Dolby/DTS 5.1
9
3D, HD Audio 7.1
10
4K2K30_444, Stereo Audio 2.0
11
4K2K30_444, Dolby/DTS 5.1
12
4K2K30_444, HD Audio 7.1
13
4K2K60_420, Stereo Audio 2.0
14
4K2K60_420, Dolby/DTS 5.1
15
4K2K60_420, HD Audio 7.1
16
4K2K60_444, Stereo Audio 2.0
17
4K2K60_444, Dolby/DTS 5.1
18
4K2K60_444, HD Audio 7.1
19
4K2K60, Stereo Audio 2.0 HDR
20
4K2K60, Dolby/DTS 5.1 HDR
21
4K2K60, HD Audio 7.1HDR
22
User define1
23
User define2
24~27
Copy from HDMI OUTPUT 1~4
28~31
Copy from HDBT OUTPUT 1~4
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Matrix Audio and RS-232 Introduction
The matrix supports coaxial and analog audio output. The audio signal follows HDBaseT
and HDMI output port. It supports one-to-one transmission. For example, the OUTPUT 1
port audio signal follows HDBaseT and HDMI 1 port, the OUTPUT 2 port audio signal
follows HDBaseT and HDMI 2 port etc.
If the HDMI ARC switch and HDBaseT ARC switch are turned on by ASCII command, the
coaxial and analog audio output can be the returned HDMI or HDBaseT display device’s
audio, the external audio source, or the extracted HDMI source device audio.
Note: multi-channel audio, 3.5 audio has no audio output.
The RS-232 channels are also one-to-one transmission. For example, the RS-232 port of
OUTPUT 1 at the matrix end will transmit to the RS-232 port of HDBaseT Receiver 1, the
RS-232 port of OUTPUT 3 at the matrix end will transmit to the RS-232 port of HDBaseT
Receiver 3 etc. Please see the following connection diagram for reference:
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Web GUI User Guide
The matrix can be controlled through a web interface and operation is shown below.
Step 1: Get the current IP Address.
The default IP address is 192.168.1.100. You can get the current matrix IP address in two
ways:
1. You can get the IP address using the front panel buttons. On the initial OLED
display, press the “MENU” button three times to enter the IP interface and check
the current IP address.
2. You can get the IP address via RS-232 control. Send the ASCII command “ r
ipconfig!” through a Serial Command too which will return the following information:
IP: 192.168.62.109 in the above figure is the IP Address of the Matrix (the IP address is
variable, depending on what the specific machine returns).
For the details of RS-232 control, please refer to “12. RS-232 Control Command”.
Step 2: Connect the TCP/IP port of the matrix to a PC with an ethernet cable (as shown in
the following figure) and set the IP address of the PC to be in the same network as the
matrix.
The computer must be on the same subnet as the matrix to connect successfully. The
device will not be accessible otherwise. The units default IP address is 192.168.1.100,
therefore the computer must be connected to the 192.168.1.x subnet.
To connect to the matrix, open the “Local Area Connection Properties” on the computer.
For Windows users right-click on the internet connection in the lower right corner of the
desktop.
Select “Open Network & Internet Settings”.
Select “Change Adapter Options”.
Right-click on your connection (Wi-Fi or Ethernet) and select “Properties”.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL

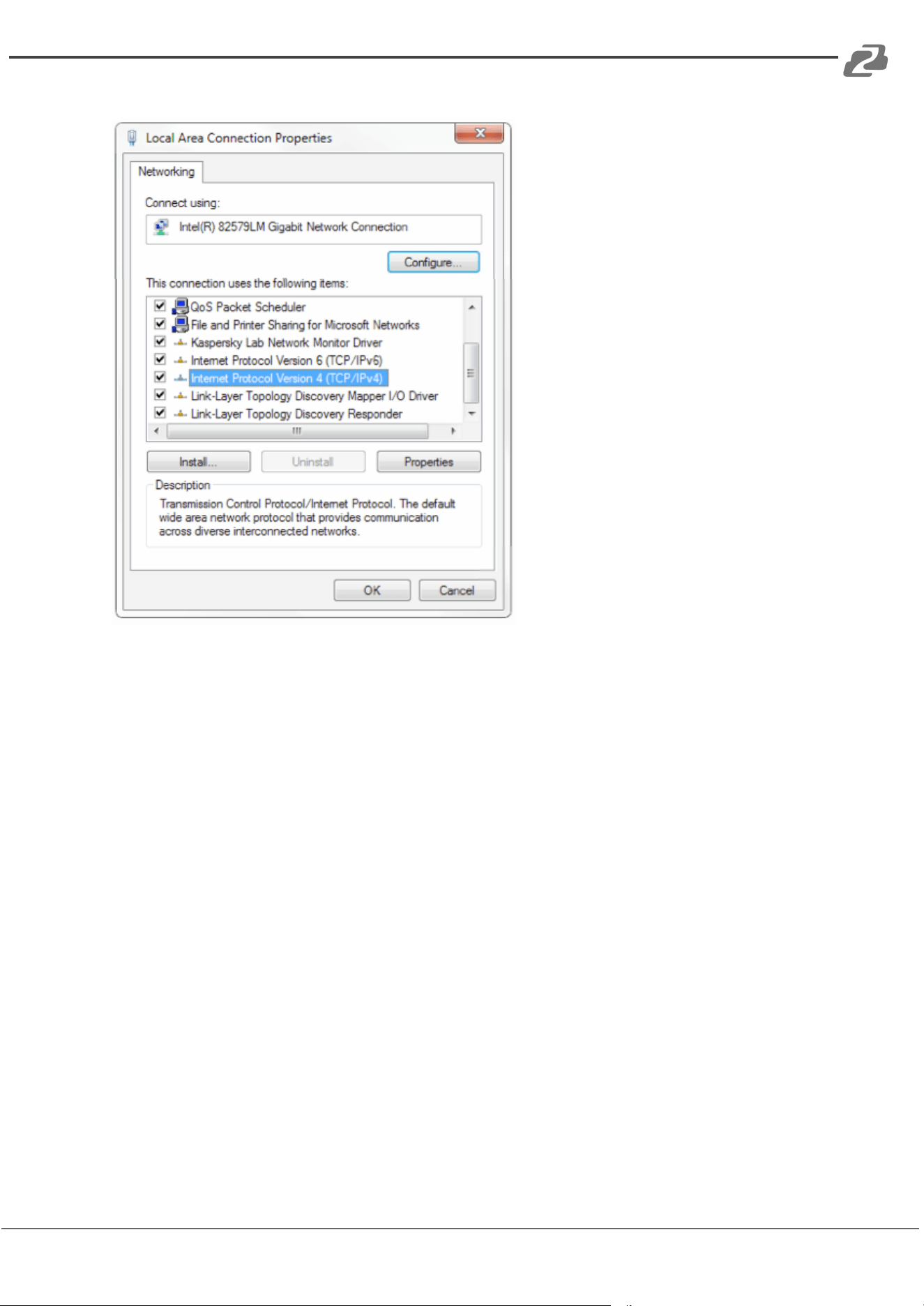

Select “Internet protocol version 4 (TCP/IPv4)” as shown below and click “Properties”.
Click on the bubble for “Use the following IP address”
In the IP address field enter a non-conflicting IP address on the same subnet as the
camera. If there is another device with the same IP address you will not be able to connect.
In the Subnet mask field enter 255.255.255.0
In the Default gateway field type 192.168.1.1
You can leave the DNS fields blank.
Click OK to apply your settings.
Step 3: Input the IP address into your browser on the PC to enter the Web GUI page.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL

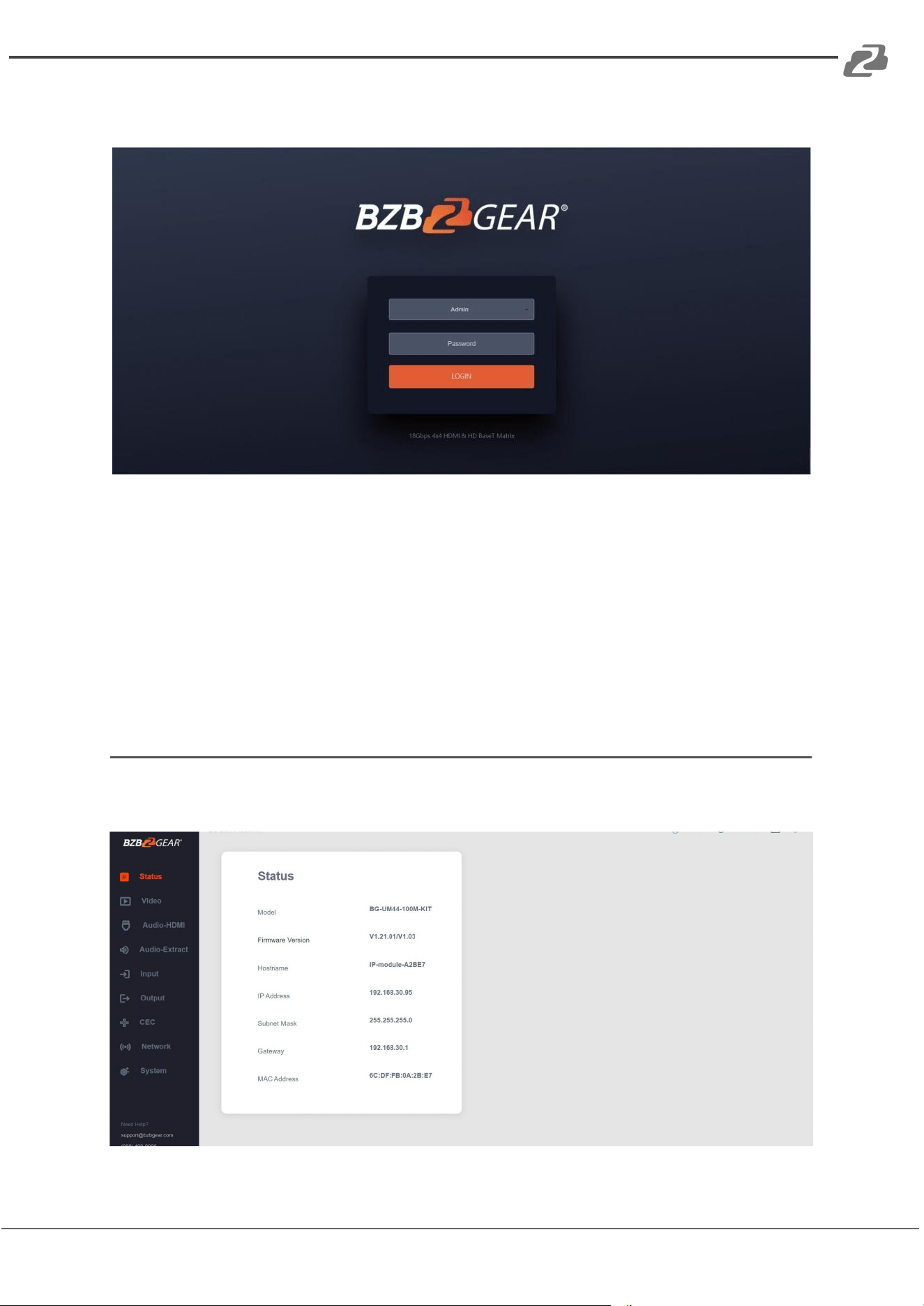

After entering the IP address of the unit in the browser the Login page will appear as shown
below:
Select the Username from the list and enter the password. The default passwords are:
Username User Admin
Password user admin
After entering the password, click the “LOGIN” button and the following Status page will
appear.
Status Page
The “Status” page provides basic information about the product such as model, installed
firmware version, and the network information of the device.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 17
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL

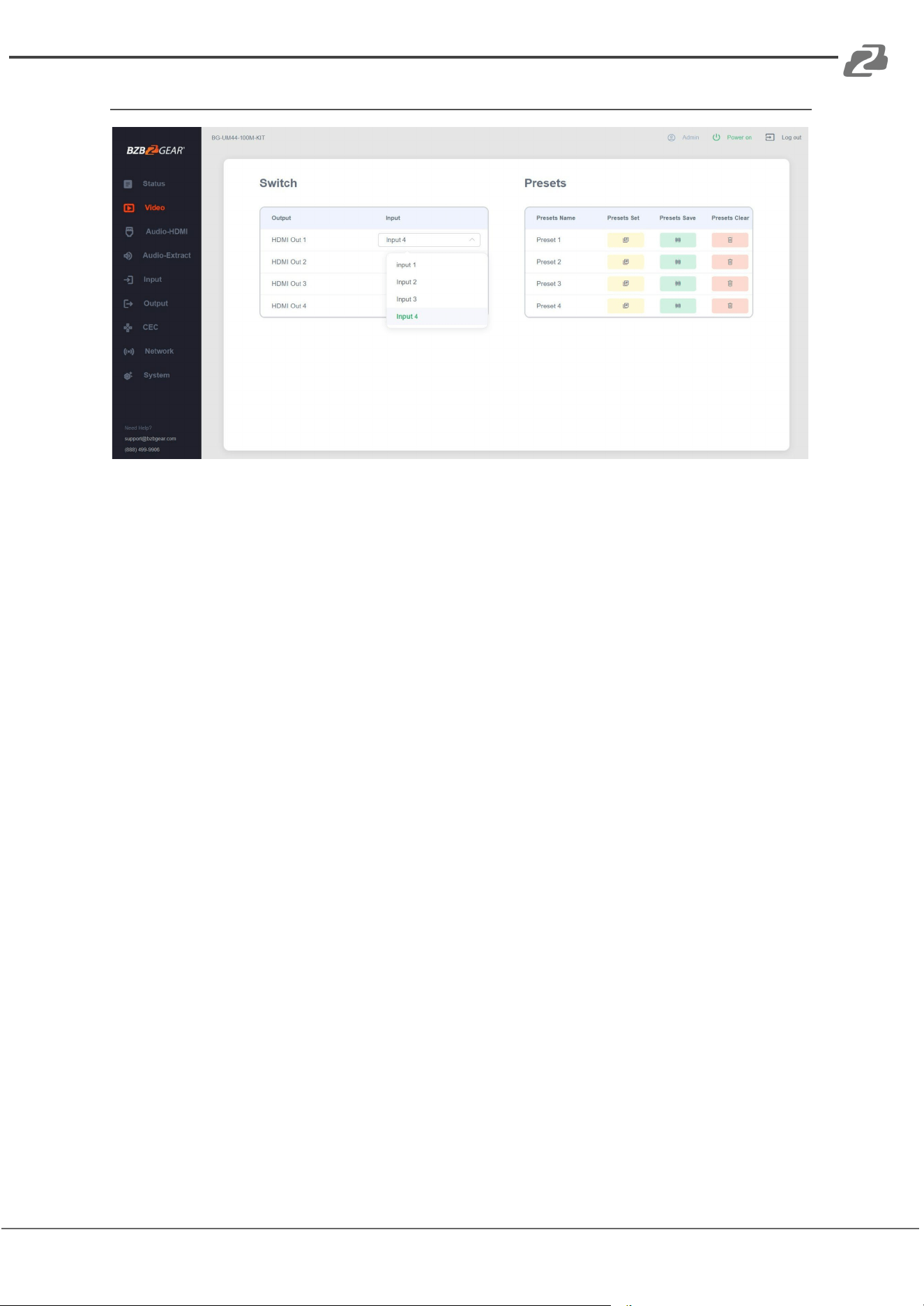

Video Page
1. Output: The current device’s OUTPUT port.
2. Input: Click the drop-down menu to select a signal source for the corresponding
OUTPUT port .
3. Presets Name: Edit the preset name up to a maximum length of 12 characters.
4. Presets Set: Restore the last saved audio-video matrix settings.
5. Presets Save: Save the current audio-video matrix switch settings to the selected
preset.
6. Presets Clear: Clear the saved audio-video matrix switch settings for the selected
preset.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 18
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL

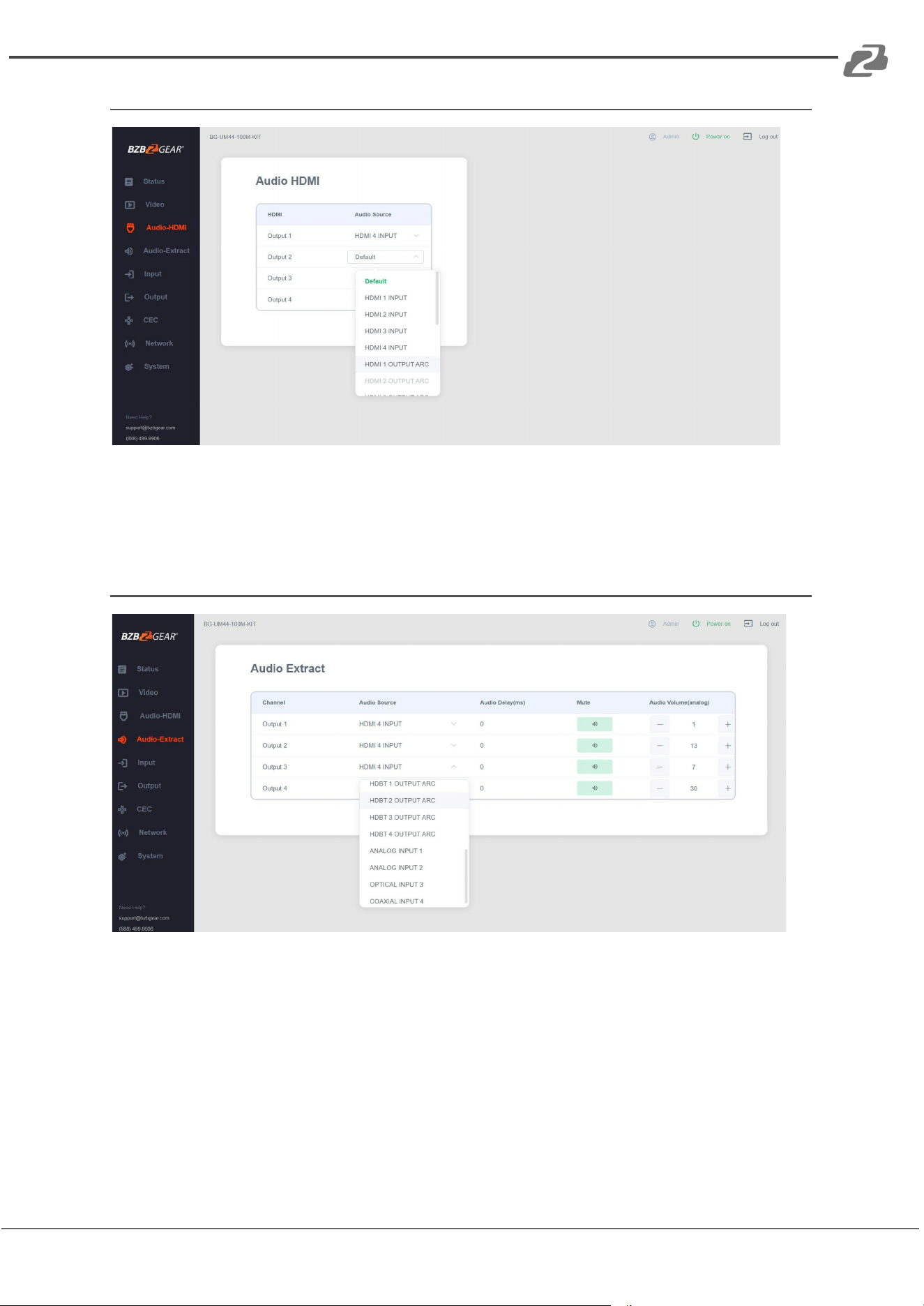

Audio-HDMI Page
1. HDMI: Audio channel of the current Output.
2. Audio Source: The input source of the current audio channel. You can switch the
input source by clicking the corresponding drop-down box to select the desired
input source.
Audio-Extract Page
1. Channel: Audio output channel for coaxial audio or analog audio.
2. Audio Source: The input source of the current audio channel. You can switch the
input source by clicking the corresponding drop-down box to select the desired
input source.
3. Audio Delay: Set the output delay. You can modify it by entering the corresponding
value (range: 0 ~ 300) in the input box.
4. Mute: You can mute or unmute the audio output channel by clicking the green
button.
5. Audio Volume(Analog): You can set the volume value (range: 0~30) for the analog
output channel by clicking “-”/“+”or entering the value in the input box.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 19
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL

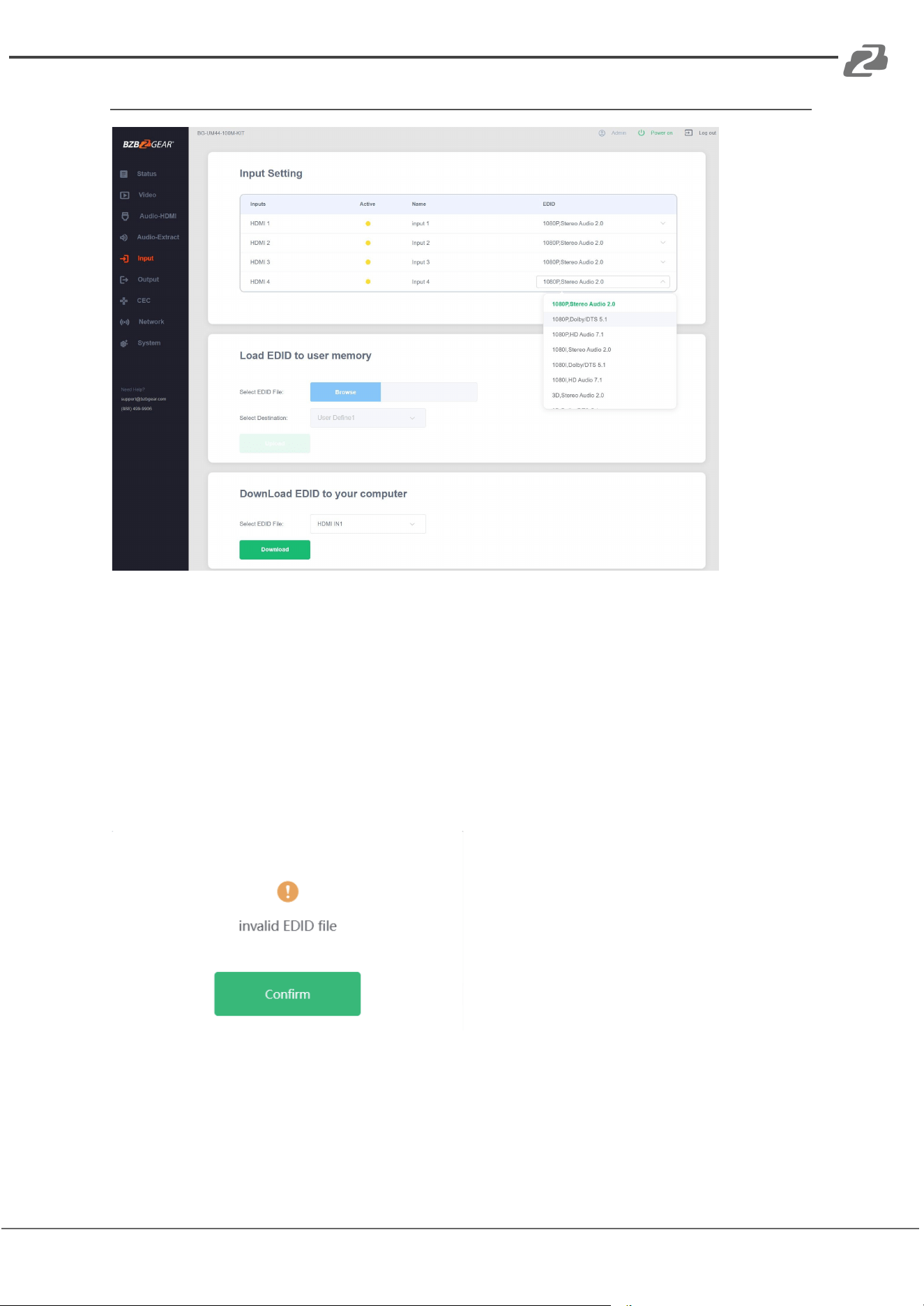

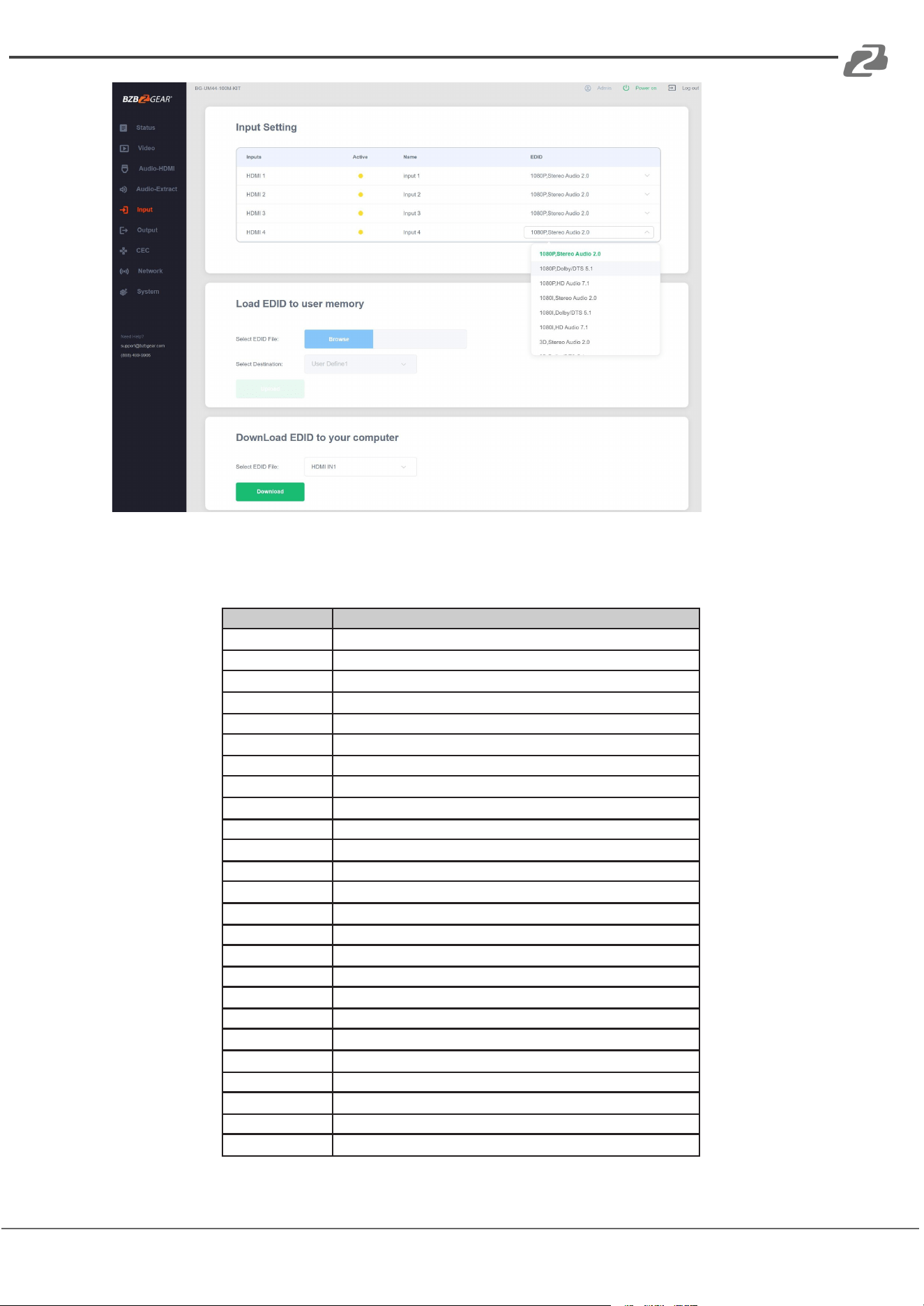

Input Page
1. Inputs: Input channel of the device.
2. Active: It indicates whether the channel is connected to a signal source.
3. Name: The input channel’s name. You can modify it by entering the corresponding
name (max length: 12 characters) in the input box (Chinese name is unsupported).
4. EDID: You can set the current channel’s EDID.
The specific operation is as follows:
Set EDID for the User
Click the “Browse” button, then select the bin file. If you select the wrong EDID file, there will
be a prompt, as shown in the following figure:
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 20
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Make sure to select the correct file, then you can check the name of the selected file. Select
“User 1” or “User 2”, then click “Upload”. After successful setting, it will prompt as follows:
Download the EDID File for the Corresponding Input Channel
Click the drop-down box of “Select EDID File” to select the corresponding input channel.
Then click “Download” to download the corresponding EDID file.
Output Page
1. Outputs: Output channel of the device.
2. Name: The current output channel’s name. You can modify it by entering the
corresponding name (max length: 12 characters) in the input box (Chinese name is
unsupported).
3. Type: The current output channel’s type (HDMI or HDBT).
4. Cable: It indicates the connection status of output ports. When the output port is
connected to the display, it shows green, otherwise, it shows gray.

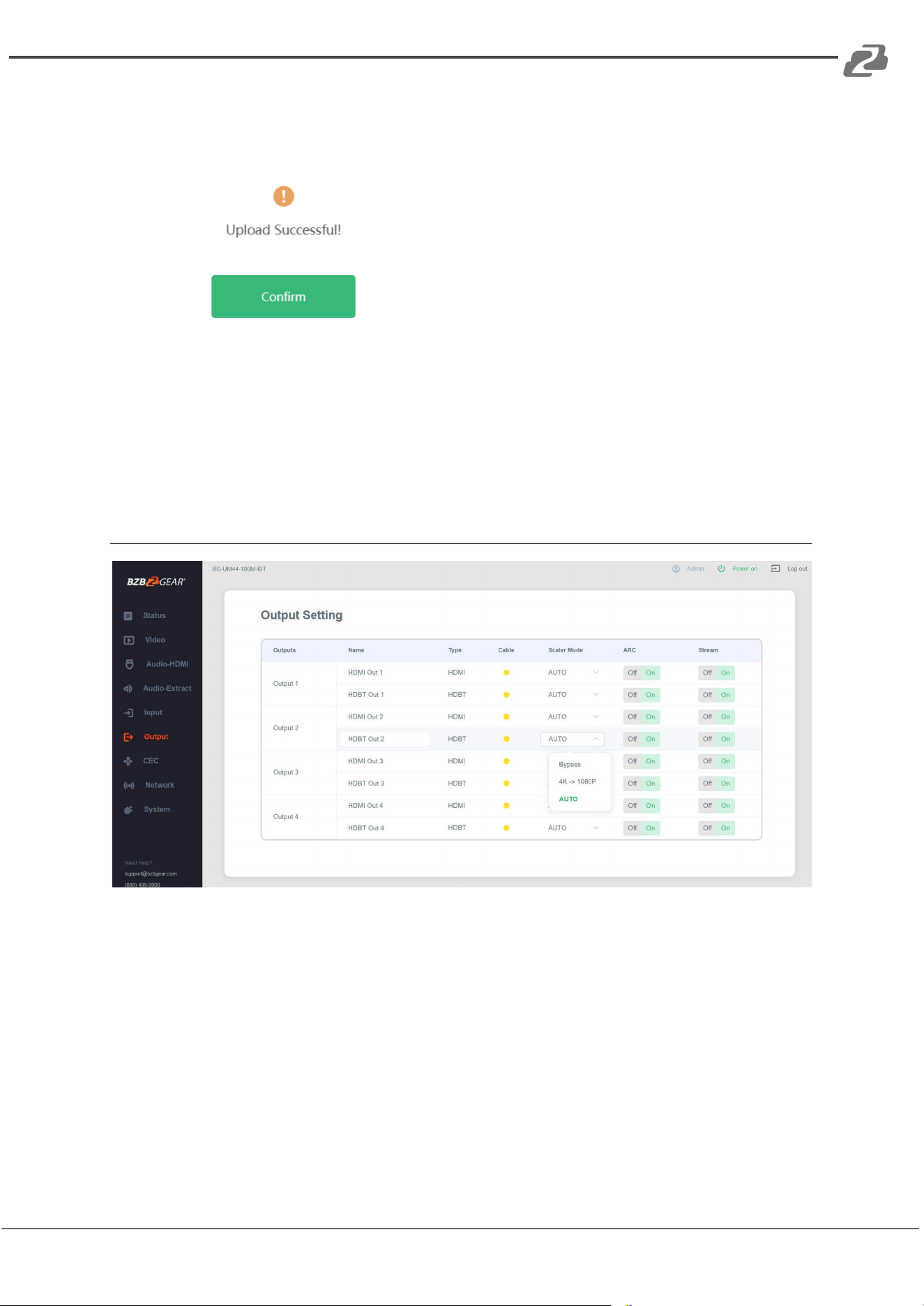

5. Scalar Mode: Set the current output resolution mode.
6. ARC: Turn on/off the ARC function.
7. Stream: Turn on/off the output stream.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 21
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL

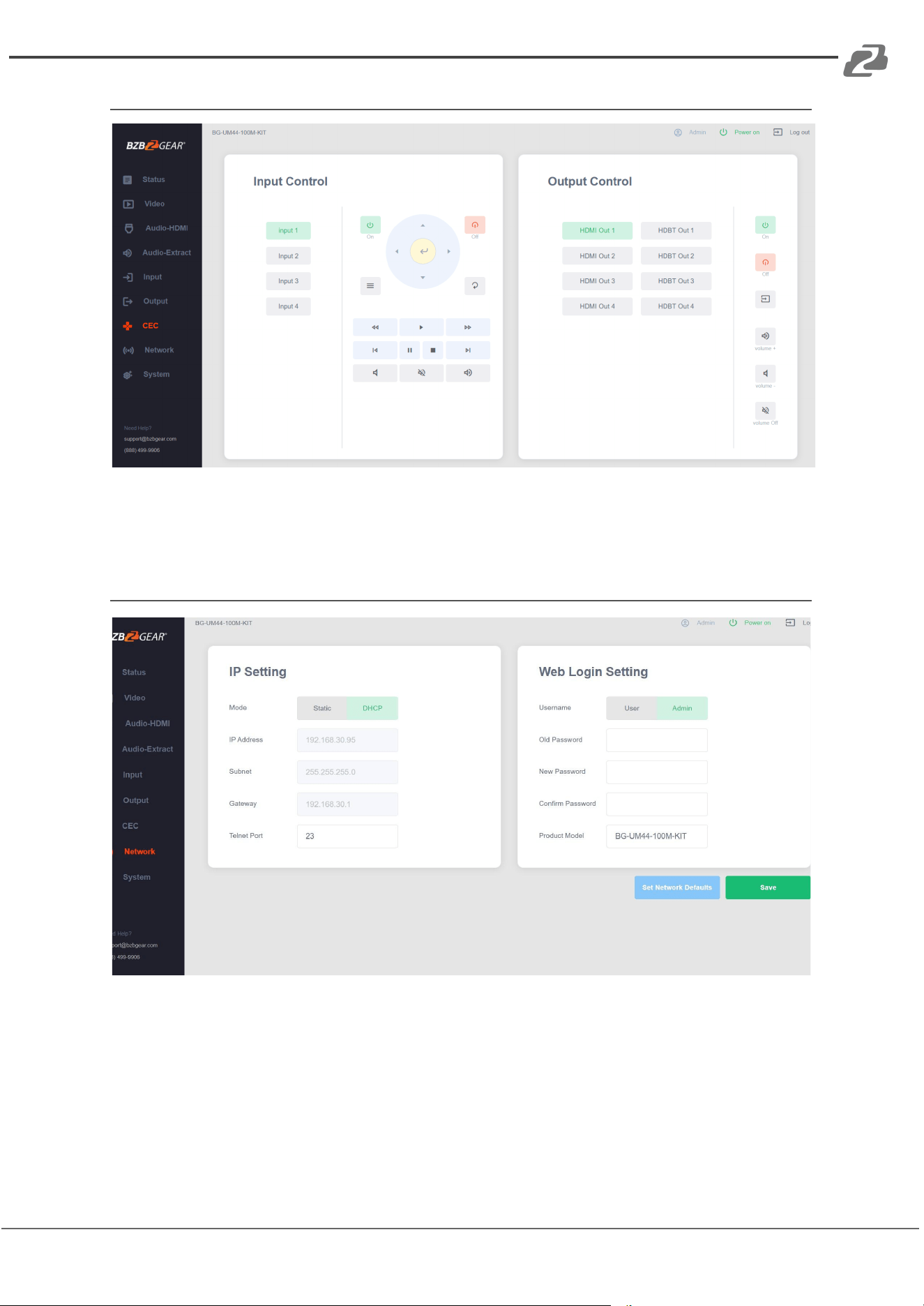

CEC Page
1. Input Control: You can control the operation of each input source by pressing the
icons on the page.
2. Output Control: You can control the operation of each display, such as power
on/off, volume +/-, active source switching.
Network Page
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 22
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Set the Default Network

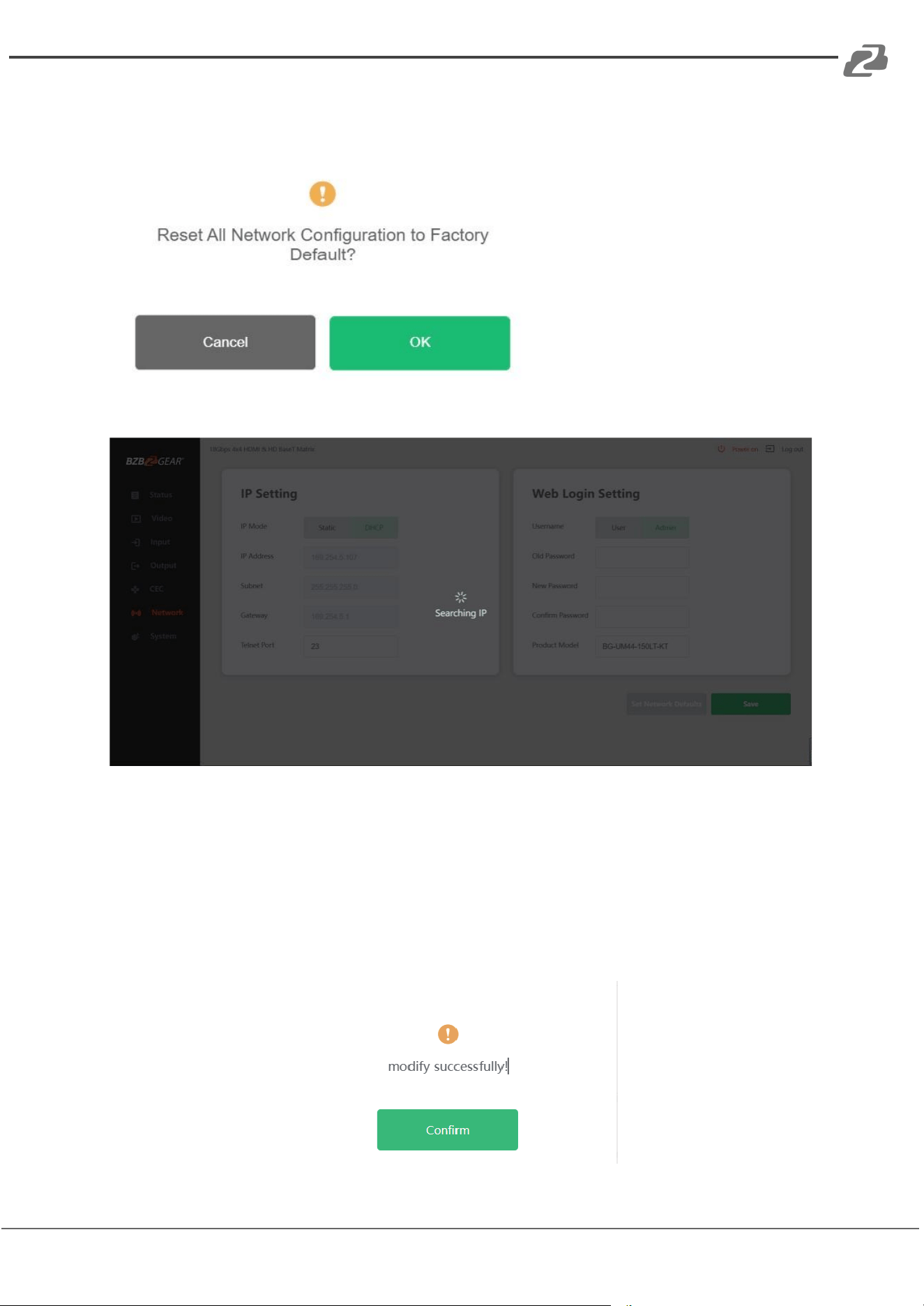

Click “Set Network Defaults” button, there will be a prompt, as shown in the following figure:
Click “OK” to search the IP Address again, as shown in the following figure:
After searching is completed, it will switch to the login page, the default network setting is
completed.
Modify User Password
Click the “User” button, enter the correct Old Password, New Password, and Confirm
Password, then click “Save”. After successful modification, there will be a prompt, as shown
in the following figure:
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 23
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Note: Input rules for changing passwords:
1. The password can’t be empty.
2. The new password can’t be the same as the old password.
3. The new password and confirm password must be the same.
Modify Network Setting

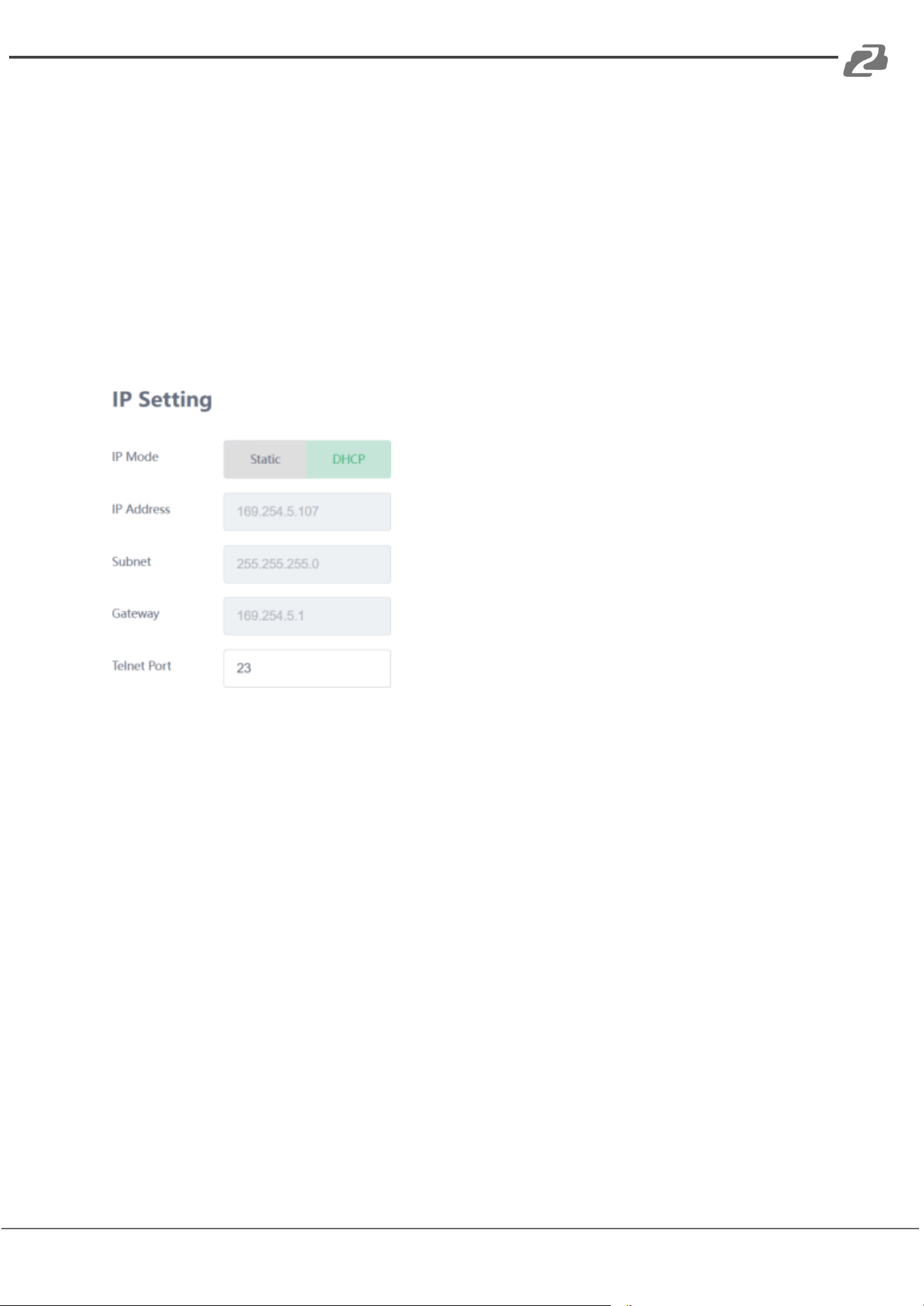

Modify the Mode/IP Address/Gateway/Subnet Mask/Telnet Port as required, click “Save” to
save the settings, then it will come into effect.
After modification, if the Mode is “Static”, it will switch to the corresponding IP Address;
if the Mode is “DHCP”, it will automatically search and switch to the IP Address assigned by
the router.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 24
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
System Page

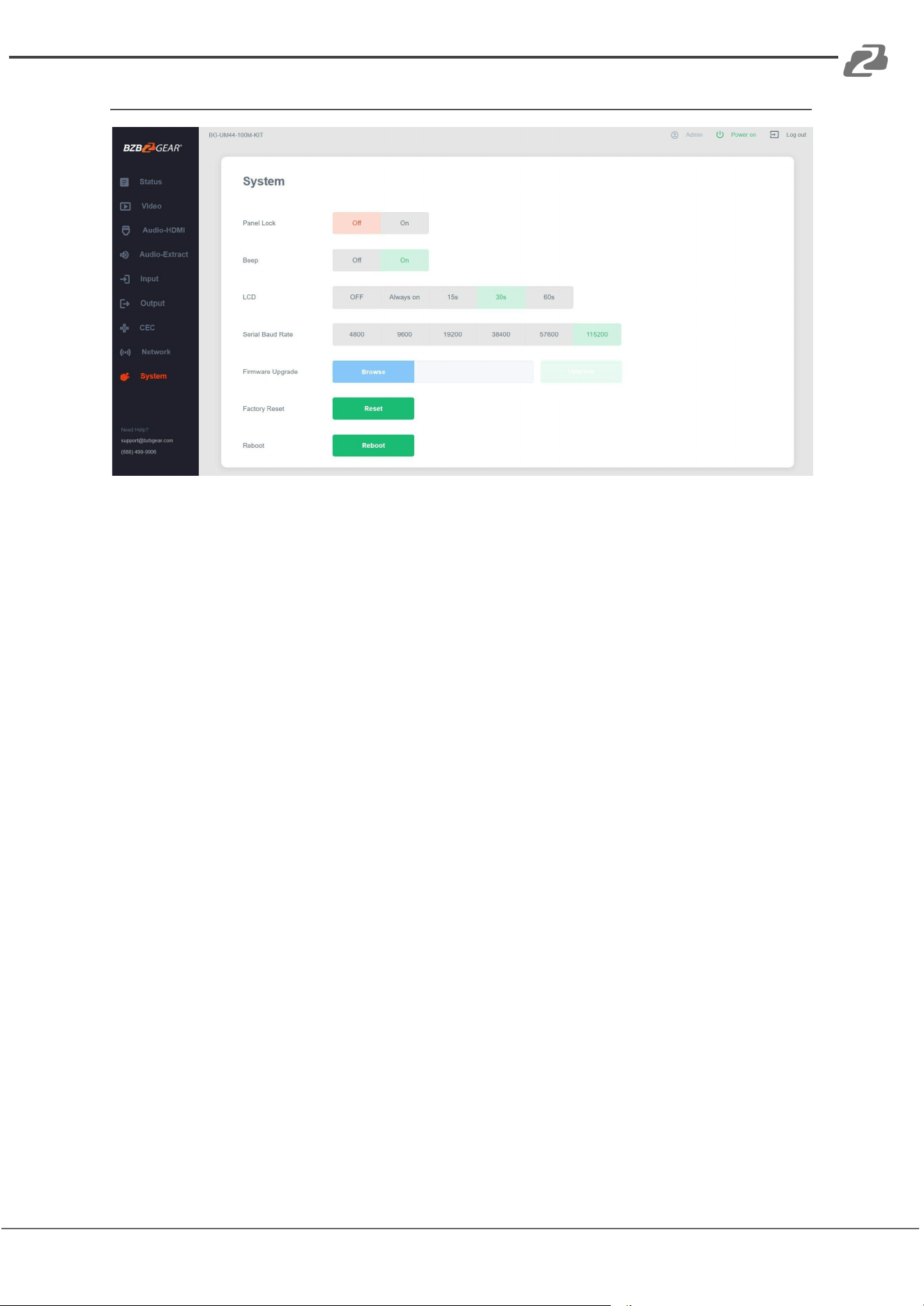

1. Panel Lock: Click “Panel Lock” to lock/unlock panel buttons. “On” indicates that
panel buttons are unavailable; “Off” indicates panel buttons are available.
2. Beep: Click “Beep” to turn on/off the beep.
3. LCD: You can turn on/off the LCD and set the turn-on time (15s/30s/60s).
4. Serial Baud Rate: Click the value to set the Serial Baud Rate.
5. Firmware Update: Click “Browse” to select the update file, then click “Update” to
complete firmware update.
6. Factor y Reset: You can reset the machine to factory defaults by clicking “Reset”.
7. Reboot: You can reboot the machine by clicking “Reboot”.
Note: After reset/reboot, it will switch to the login page.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 25
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
RS-232 Control Command
The product also supports RS-232 control. You need a serial cable with RS-232 male head
and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the
RS-232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable

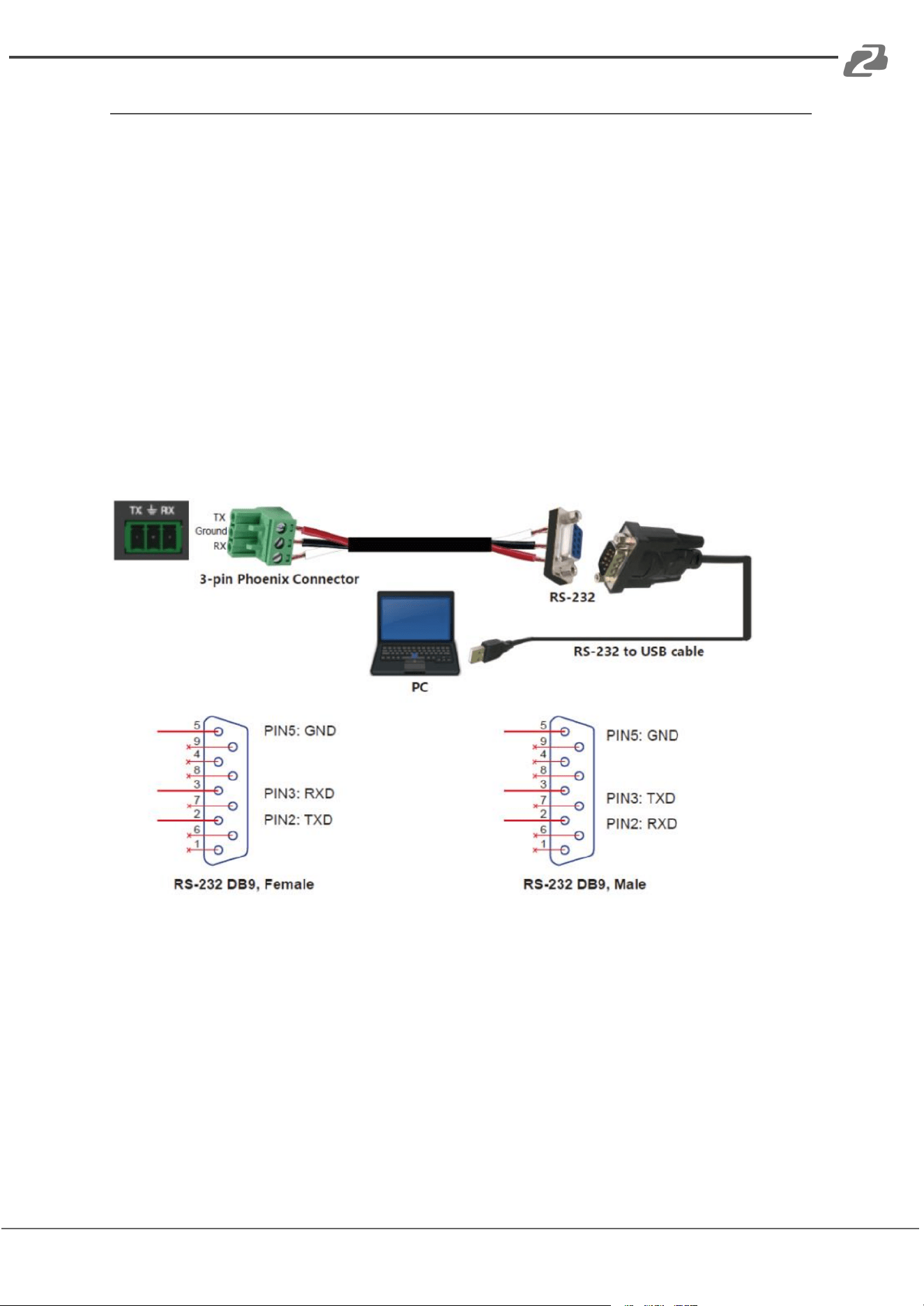

is connected to a PC. The connection method is as follows:
RS232
Then, open a Serial Command tool on PC to send ASCII command to control the Matrix.
The ASCII command list about the product is shown as below.
ASCII Command
Serial port protocol. Baud rate: 115200, Data bits: 8bit, Stop bits:1, Check bit: 0
x - Parameter 1
y - Parameter 2
! - Delimiter
ASCII Command
Function Description
Example
Feedback
Default Setting
Power
s power z!
Power on/off the device,z=0~1 (z=0
power off, z=1 power on)
s power 1!
Power on
System Initializing... Initialization
Finished! power off
POWER 0
power on
r power!
Get current power state
r power!
power on/power off
s reboot!
Reboot the device
s reboot!
Reboot...
System Initializing... Initialization
Finished! FW version 1.00.01
System Setup
help!
List all commands
help!
r type!
Get device model
r type!
HDM-B44H100P
r status!
Get device current status
r status!
Get the unit all status: power, beep,
lock, in/ out connection, video/
audio crosspoint, edid,
scaler,hdcp, network status
r fw version!
Get Firmware version
r fw version!
MCU BOOT: V1.00.02 MCU APP:
V1.00.01 WEB GUI: V1.01
r link in x!
Get the connection status of the x
input port，x=0~4(0=all)
r link in 1!
hdmi input 1: connect
r link out y!
Get the connection status of the y
output port，y=0~40=all)
r link out 1!
hdmi output 1: connect hdbt output
1: connect
s reset!
Reset to factory defaults
s reset!
Reset to factory defaults System
Initializing...
Initialization Finished! FW version
1.00.01
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 26
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
ASCII Command
Function Description
Example
Feedback
Default Setting
s beep z!
Enable/Disable buzzer function,
z=0~1(z=0 beep off, z=1 beep on)
s beep 1!
beep on
beep off
beep on
r beep!
Get buzzer state
r beep!
beep on / beep off
s lock z!
Lock/Unlock front panel button,
z=0~1 (z=0 lock off,z=1 lock on)
s lock 1!
panel button lock on panel button
lock off
panel button
lock off
r lock!
Get panel button lock state
r lock!
panel button lock on/off
s lcd on time z!
Set LCD screen remain on time,
z=0~4 (0:off, 1:always on, 2:15s,
3:30s, 4:60s)
s lcd on time 1!
lcd on always
lcd on 30
seconds
r lcd mode!
Get the backlight status of lcd screen
r lcd mode!
lcd on always
s save preset z!
Save switch state between all output
port and the input port to preset z,
z=1~4
s save preset 1!
save to preset 1
s recall preset z!
Call saved preset z scenarios, z=1~4
s recall preset
1!
recall from preset 1
s clear preset z!
Clear stored preset z scenarios,
z=1~4
s clear preset
1!
clear preset 1
r preset z!
Get preset z information, z=1~4
r preset 1!
video/audio crosspoint
s ptp!
s ptp!
ptp
ptp
Output Setting
s in x av out y!
Set input x to output y， x=1~4，
y=0~4(0=all)
s in 1 av out 2!
input 1 -> output 2
input 1 ->
output 1
input 2 ->
output 2
input 3 ->
output 3
input 4 ->
output 4
r av out y!
Get output y signal status
y=0~4(0=all)
r av out 0!
input 1 -> output 1
input 2 -> output 2
input 3 -> output 3
input 4 -> output 4
s hdmi y stream z!
Set hdmi output y stream on/off,
y=0~4(0=all)
z=0~1(0:disable,1:enable)
s hdmi 1
stream 1!
s hdmi 0
stream 1!
Enable hdmi output 1
stream
Disable hdmi output 1 stream
Enable hdmi all outputs stream
Disable hdmi all outputs
stream
Enable hdmi all
outputs stream
r hdmi y stream!
Get hdmi output y stream status,
y=0~4(0=all)
r hdmi 1
stream!
Enable hdmi output 1 stream
Disable hdmi output 1
stream
s hdbt y stream z!
Set hdbt output y stream on/off,
y=0~4(0=all)
z=0~1(0:disable,1:enable)
s hdbt 1 stream
1!
s hdbt 0 stream
1!
Enable hdbt output 1 stream
Disable hdbt output 1 stream
Enable hdbt all outputs stream
Disable hdbt all outputs
stream
Enable hdbt all
outputs stream
r hdbt y stream!
Get hdbt output y stream status,
y=0~4(0=all)
r hdbt 1
stream!
Enable hdbt output 1 stream
Disable hdbt output 1
stream
s hdmi y scaler z!
Set hdmi output y port output scaler
mode，y=0~4(0=all),
z=1~3(1=bypass,2=4k->1080p,
3=Auto)
s hdmi 1 scaler
1!
s hdmi 0 scaler
1!
hdmi output 1 set to bypass mode
hdmi all outputs set to bypass
mode
hdmi all outputs
set to bypass
r hdmi y scaler!
Get hdmi output y port output mode
y=0~4(0=all)
r hdmi 1 scaler!
hdmi output 1 set to bypass mode
s hdbt y scaler z!
Set hdbt output x port output scaler
mode，y=0~4(0=all),
z=1~3(1=bypass,2=4k->1080p,
3=Auto)
s hdbt 1 scaler
2!
s hdbt 0 scaler
2!
hdbt output 1 set to 4k->1080p
mode
hdbt all outputs set to 4k->1080p
mode
hdbt all outputs
set to bypass
r hdbt y scaler !
Get hdbt output y port output scaler
mode y=0~4(0=all)
r hdbt 1 scaler !
hdbt output 1 set to 4k->1080p
mode
EDID Setting
s edid in x from z!
Set input x EDID from default EDID z,
x=0~4(0=all),z=1~31
1=1080p,Stereo Audio 2.0
s edid in 1 from
1!
IN 1 EDID:1080p,
Stereo Audio 2.0
IIN1: 1080p,
Stereo Audio
2.0 IN2: 1080p,
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 27
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
ASCII Command
Function Description
Example
Feedback
Default Setting
2=1080p,Dolby/DTS 5.1
3=1080p,HD Audio 7.1
4=1080i,Stereo Audio 2.0
5=1080i,Dolby/DTS 5.1
6=1080i,HD Audio 7.1
7=3D,Stereo Audio 2.0
8=3D,Dolby/DTS 5.1
9=3D,HD Audio 7.1
10=4K2K30_444,Stereo Audio 2.0
11=4K2K30_444,Dolby/DTS 5.1
12=4K2K30_444,HD Audio 7.1
13=4K2K60_420,Stereo Audio 2.0
14=4K2K60_420,Dolby/DTS 5.1
15=4K2K60_420,HD Audio 7.1
16=4K2K60_444,Stereo Audio 2.0
17=4K2K60_444,Dolby/DTS 5.1
18=4K2K60_444,HD Audio 7.1
19=4K2K60_444,Stereo Audio 2.0
HDR
20=4K2K60_444,Dolby/DTS 5.1 HDR
21=4K2K60_444,HD Audio 7.1 HDR
22=User1 23=User2
24~27=copy from hdmi output 1~4
28~31=copy from hdbt output 1~4
Stereo Audio
2.0 IN3: 1080p,
Stereo Audio
2.0 IN4: 1080p,
Stereo Audio
2.0
r edid in x!
Get EDID status of the input x，
x=0~4(0=all input)
r edid in 0!
IN1 EDID: 4K2K60_
444,Stereo Audio 2.0 IN2 EDID:
4K2K60_
444,Stereo Audio 2.0 IN3 EDID:
4K2K60_
444,Stereo Audio 2.0 IN4 EDID:
4K2K60_
444,Stereo Audio 2.0
r edid data hdmi
y!
Get the EDID data of the hdmi output
y port，y=1~4
r edid data
hdmi 1!
EDID: 00 FF FF FF FF
FF FF 00 ………
r edid data hdbt y!
Get the EDID data of the hdbt output
y port，y=1~4
r edid data
hdbt 1!
EDID: 00 FF FF FF FF FF FF 00
………
r internal edid!
Get all built-in EDID information for
unit support
r internal edid!
1,1080p,Stereo Audio 2.0
2,1080p,Dolby/DTS 5.1
3,1080p,HD Audio 7.1
4,1080i,Stereo Audio 2.0 …….
20,4K2K60,Dolby/ DTS 5.1 HDR
21,4K2K60,HD
Audio 7.1 HDR
Audio Setting
s hdmi y arc z!
Turn on/off ARC of HDMI output y,
y=0~4(0=all)
z=0~1(z=0,off,z=1 on)
s hdmi 1 arc 1!
s hdmi 0 arc 1!
hdmi output 1 arc on hdmi output 1
arc off
hdmi all outputs arc on hdmi all
outputs arc off
hdmi all outputs
arc off
r hdmi y arc!
Get the ARC state of HDMI output y，
y=0~4(0=all)
r hdmi 1 arc!
hdmi output 1 arc on
s hdbt y arc z!
Turn on/off ARC of HDBT output y,
y=0~4(0=all)
z=0~1(z=0,off,z=1 on)
s hdbt 1 arc 1!
s hdbt 0 arc 1!
hdbt output 1 arc on hdbt output 1
arc off
hdbt all outputs arc on hdbt all
outputs arc off
hdbt all outputs
arc off
r hdbt y arc!
Get the ARC state of HDMI output y，
y=0~4(0=all)
r hdbt 1 arc!
hdbt output 1 arc on
s out y audio from
z!
Set HDMI/HDBT output audio
y=0~4(0=all),z=0~16
z=0, Default
z=1~4 from HDMI input 1~4 z=5~8
from HDMI out 1~4 ARC z=9~12 from
HDBT out 1~4 ARC z=13~16 from
embed audio 1~4 Attention: when
z=0,HDMI/HDBT audio can't set
audio delay.
s out 1 audio
from 1!
s out 0 audio
from 1!
HDMI/HDBT output 1 audio: from
HDMI input 1
HDMI/HDBT all outputs audio: from
HDMI
input 1
HDMI/HDBT all
outputs from
default
r out y audio!
Get HDMI/HDBT output audio status
y=0~4(0=all)
r out 1 audio!
HDMI/HDBT output 1 from HDMI
input 1
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 28
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
ASCII Command
Function Description
Example
Feedback
Default Setting
s coax_analog
out y audio from
z!
Set coaxial output audio y=0~4
(0=all),z=1~1
z=1~4 from HDMI input 1~4 z=5~8
from HDMI out 1~4 ARC z=9~12 from
HDBT out 1~4 ARC z=13~16 from
embed audio 1~4
s coax_analog
out 1 audio
from 1!
s coax_analog
out 0 audio
from 1!
Coaxial_Analog output 1 audio:
from HDMI input 1
Coaxial_Analog all outputs audio:
from HDMI input 1
Coaxial_Analog
all outputs
audio: from
HDMI input 1
s coax_analog out
y audio delay z!
Set coax_analog output audio delay
y=0~4(0=all), z=0~300ms
s coax_analog
out 1 audio
delay 100!
s coax_analog
out 0 audio
delay 100!
Coaxial_Analog output
1 audio delay 100ms
Coaxial_Analog all outputs audio
delay 100ms
Coaxial_Analog
all outputs
audio delay
100ms
s coax_analog out
y audio mute z!
Mute on/off coax_analog output
audio y=0~4(0=all), z=0~1(z=0 off,z=1
on)
s coax_analog
out 1 audio
mute 1!
Mute coax_analog output 1 audio
Mute off all
coax_ analog
out audio
s coax_analog out
y audio vol z!
Set analog output audio volume
y=0~4(0=all), z=0~30,+,-;
s analog out 1
audio vol 30! s
analog out 1
audio vol +!
s analog out 0
audio vol 30! s
analog out 0
audio vol +!
Analog output 1 audio volume 30
Analog all outputs audio volume 30
all Analog
output audio
volume 20
r coax_analog out
y audio!
Get coax_analog output audio status
y=0~4(0=all)
r coax_analog
out 1 audio!
Coaxial_Analog output 1 audio
from HDMI input 1 Coaxial_Analog
output 1 audio delay 0ms Analog
output 1 audio volume 20 Mute off
coax_analog output 1 audio
CEC Setting
s cec in x on!
set input x power on by CEC,
x=0~4(0=all input)
s cec in 1 on!
input 1 power on
s cec in x off!
set input x power off by CEC,
x=0~4(0=all input)
s cec in 1 off!
input 1 power off
s cec in x menu!
set input x open menu by CEC,
x=0~4(0=all input)
s cec in 1
menu!
input 1 open menu
s cec in x back!
set input x back operation by CEC,
x=0~4(0=all input)
s cec in 1 back!
input 1 back operation
s cec in x up!
set input x menu up operation by
CEC, x=0~4(0=all input)
s cec in 1 up!
input 1 menu up operation
s cec in x down!
set input x menu down operation by
CEC, x=0~4(0=all input)
s cec in 1
down!
input 1 menu down operation
s cec in x left!
set input x menu left operation by
CEC, x=0~4(0=all input)
s cec in 1 left!
input 1 menu left operation
s cec in x right!
set input x menu right operation by
CEC, x=0~4(0=all input)
s cec in 1 right!
input 1 menu right operation
s cec in x enter!
set input x menu enter by CEC,
x=0~4(0=all input)
s cec in 1
enter!
iInput 1 menu enter operation
s cec in x play!
set input x play by CEC, x=0~4(0=all
input)
s cec in 1 play!
input 1 play operation
s cec in x pause!
set input x pause by CEC,
x=0~4(0=all input)
s cec in 1
pause!
iInput 1 pause operation
s cec in x stop!
set input x stop by CEC, x=0~4(0=all
input)
s cec in 1 stop!
input 1 stop operation
s cec in x rew!
set input x rewind by CEC,
x=0~4(0=all input)
s cec in 1 rew!
input 1 rewind operation
s cec in x mute!
set input x volume mute by CEC,
x=0~4(0=all input)
s cec in 1
mute!
input 1 volume mute
s cec in x vol-!
set input x volume down by CEC,
x=0~4(0=all input)
s cec in 1 vol-!
input 1 volume down
s cec in x vol+!
set input x volume up by CEC,
x=0~4(0=all input)
s cec in 1 vol+!
input 1 volume up
s cec in x ff!
set input x fast forward by CEC,
x=0~4(0=all input)
s cec in 1 ff!
input 1 fast forward operation
s cec in x
previous!
set input x previous by CEC,
x=0~4(0=all input)
s cec in 1
previous!
input 1 previous operation
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 29
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
ASCII Command
Function Description
Example
Feedback
Default Setting
s cec in x next!
set input x next by CEC, x=0~4(0=all
input)
s cec in 1 next!
input 1 next operation
s cec hdmi out y
on!
set hdmi output y power on by CEC,
y=0~4(0=all hdmi output)
s cec hdmi out
1 on!
hdmi output 1 power on
s cec hdbt out y
on!
set hdbt output y power on by CEC,
y=0~4(0=all hdbt output)
s cec hdbt out
1 on!
hdbt output 1 power on
s cec hdmi out y
off!
set hdmi output y power off by CEC,
y=0~4(0=all hdmi output)
s cec hdmi out
1 off!
hdmi output 1 power off
s cec hdbt out y
off!
set hdbt output y power off by CEC,
y=0~4(0=all hdbt output)
s cec hdbt out
1 off!
hdbt output 1 power off
s cec hdmi out y
mute!
set hdmi output y volume mute by
CEC, y=0~4(0=all hdmi output)
s cec hdmi out
1 mute!
hdmi output 1 volume mute
s cec hdbt out y
mute!
set hdbt output y volume mute by
CEC, y=0~4(0=all hdbt output)
s cec hdbt out
1 mute!
hdbt output 1 volume mute
s cec hdmi out y
vol-!
set hdmi output y volume down by
CEC, y=0~4(0=all hdmi output)
s cec hdmi out
1 vol-!
hdmi output 1 volume down
s cec hdbt out y
vol-!
set hdbt output y volume down by
CEC, y=0~4(0=all hdbt output)
s cec hdbt out
1 vol-!
hdbt output 1 volume down
s cec hdmi out y
vol+!
set hdmi output y volume up by CEC,
y=0~4(0=all hdmi output)
s cec hdmi out
1 vol+!
hdmi output 1 volume up
s cec hdbt out y
vol+!
set hdbt output y volume up by CEC,
y=0~4(0=all hdbt output)
s cec hdbt out
1 vol+!
hdbt output 1 volume up
s cec hdmi out y
active!
set hdmi output y active source by
CEC, y=0~4(0=all hdmi output)
s cec hdmi out
1 active!
hdmi output 1 active source
s cec hdbt out y
active!
set hdbt output y active source by
CEC, y=0~4(0=all hdbt output)
s cec hdbt out
1 active!
hdbt output 1 active source
Network Setting
r ipconfig!
Get the Current IP Configuration
r ipconfig!
IP Mode: DHCP
IP:192.168.62.106
Subnet Mask: 255.255.255.0
Gateway:192.168.62.1
TCP/IP port:8000
Telnet port:23
Mac address: 6C:DF:FB:0C:B3:8E
r mac addr!
Get network MAC address
r mac addr!
Mac address: 6C:DF:FB:0C:B3:8E
s ip mode z!
Set network IP mode to static IP or
DHCP, z=0~1 (z=0 Static, z=1 DHCP )
s ip mode 0!
Set IP mode:Static (Please use "s
net reboot!" command or repower
device to apply new config!)
DHCP ON
r ip mode!
Get network IP mode
r ip mode!
IP Mode: DHCP
s ip addr
xxx.xxx.xxx.xxx!
Set network IP address
s ip addr
192.168.1.100!
Set IP address: 192.168.1.100
(Please use "s net reboot!"
command or repower device to
apply new config!)
DHCP on, Device can't config
static address, set DHCP off first.
r ip addr!
Get network IP address
r ip addr!
IP:192.168.62.106
s subnet
xxx.xxx.xxx.xxx!
Set network subnet mask
s subnet
255.255.255.0!
Set subnet Mask
address:255.255.255.0 (Please use
"s net reboot!" command or
repower device to apply new
config!)
DHCP on, Device can't config
subnet mask, set DHCP off first.
r subnet!
Get network subnet mask
r subnet!
Subnet Mask: 255.255.255.0
s gateway
xxx.xxx.xxx.xxx!
Set network gateway
s gateway
192.168.1.1!
Set gateway: 192.168.1.1
Please use "s net reboot!"
command or repower device to
apply new config!
DHCP on, Device can't config
gateway, set DHCP off first.
r gateway!
Get network gateway
r gateway!
Gateway:192.168.1.1
s tcp/ip port x!
Set network TCP/IP port (x=1~65535)
s tcp/ip port
8000!
Set TCP/IP port:8000
Set tcp/ip
port:8000
r tcp/ip port!
Get network TCP/IP port
r tcp/ip port!
TCP/IP port:8000
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 30
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
ASCII Command
Function Description
Example
Feedback
Default Setting
s telnet port x!
Set network telnet port (x=1~65535)
s telnet port 23!
Set Telnet port:23
Set telnet
port:23
r telnet port!
Get network telnet port
r telnet port!
Telnet port:23
s net reboot!
Reboot network modules
s net reboot!
Search for IP,Please wait ...!
IP Mode: DHCP IP:192.168.62.111
Subnet Mask: 255.255.255.0
Gateway:192.168.62.1 TCP/IP
port:8000 Telnet port:23
Mac address:
6C:DF:FB:0C:B3:8E
s uart x mode y!
Set the mode of x local and hdbt uart
, x=0-4 ,y=0-1, 0:bypass mode,
1:user control mode
s uart 1 mode
1!
Local And Far Uart1 Control Mode
s uart x datalen y!
Set the data length of x local and
hdbt uart , x=0-8,
y=1-2, 1:8bit 2:7bit
s uart 1 datalen
1!
LocalUart1 DataLen is 8bit
s uart x baudrate
y!
Set the baudrate of x local and hdbt
uart , x=0-8(0=all,1~4=local
uart,5~8=hdbt uart), y=1-8,
1: 115200(Default) 2: 57600
3: 56000 4:38400 5:19200
6:14400 7:9600 8:4800
s uart 1
baudrate 1!
LocalUart%d Baudrate is 115200
s uart x parity y!
Set the Parity of x local and hdbt uart,
x=0-8, y=1-3, 1:none 2:odd 3:even
s uart x parity
1!
LocalUart1 Parity is None
s uart x type z
senddata y end!
Send data y from x local and hdbt
uart, z=0 ascii, z=1 hex ,x=0-4
s uart 1 type 0
senddata
abcdefg end!
LocalUart1 data: abcdefg
r uart status x!
Get the Status of x local and hdbt
uart , x=0-4
r uart status 1!

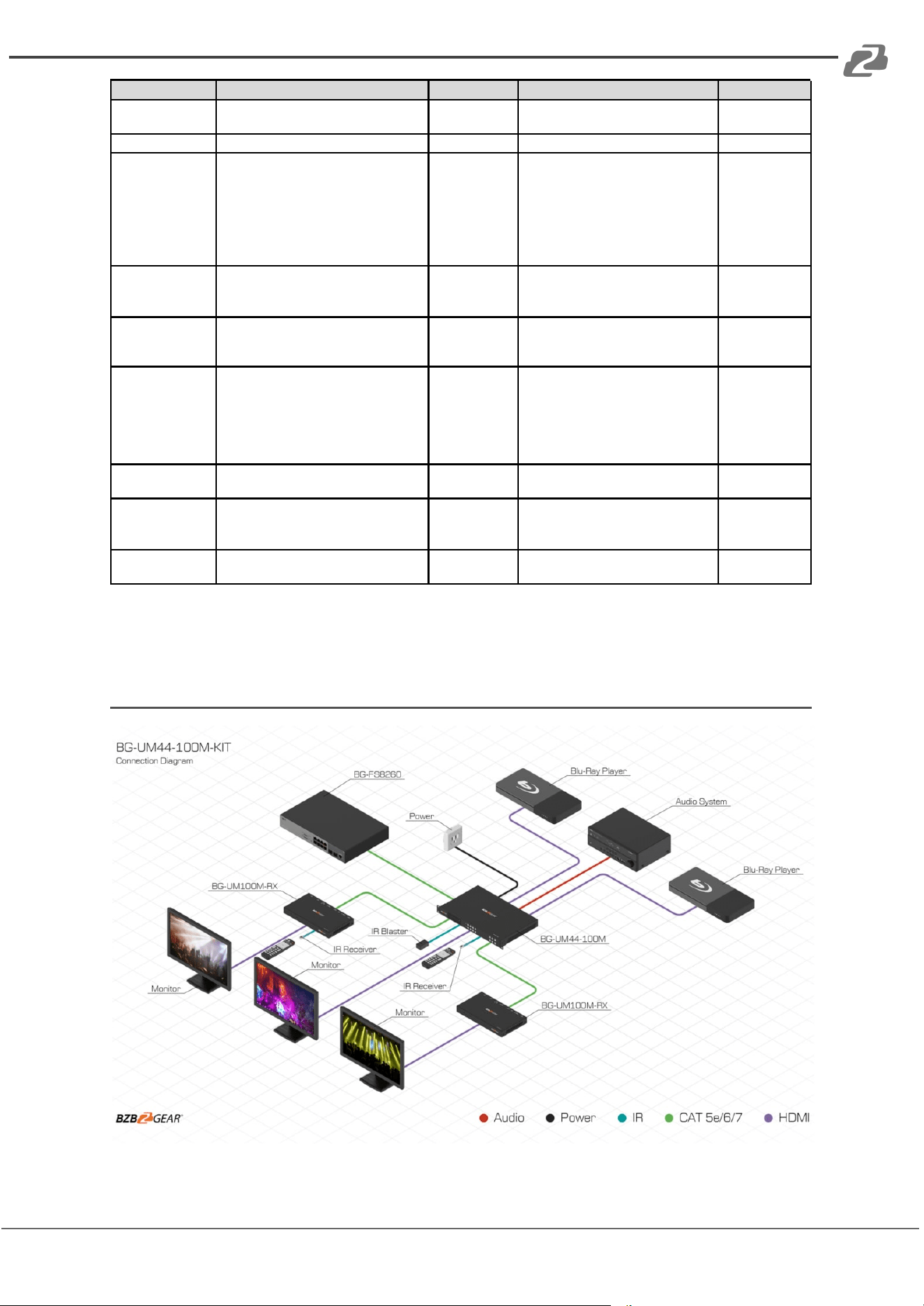

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 31
BZBGEAR BG-UM44-100M-KIT PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming
solutions. We pride ourselves on unparalleled customer support and services. Our team
offers system design consultation, and highly reviewed technical support for all the products
in our catalog. BZBGEAR delivers quality products designed with users in mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 32
