BG-MVS4X4-CV
4x4 4K HDMI Seamless Matrix Switcher/Video Wall Processor with
Scaler, IR, Audio, and RS-232 Control
User Manual
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 8
IR Remote 10
Video Wall Mode 11
RS-232 Control Commands 12
Serial Port Protocol 12

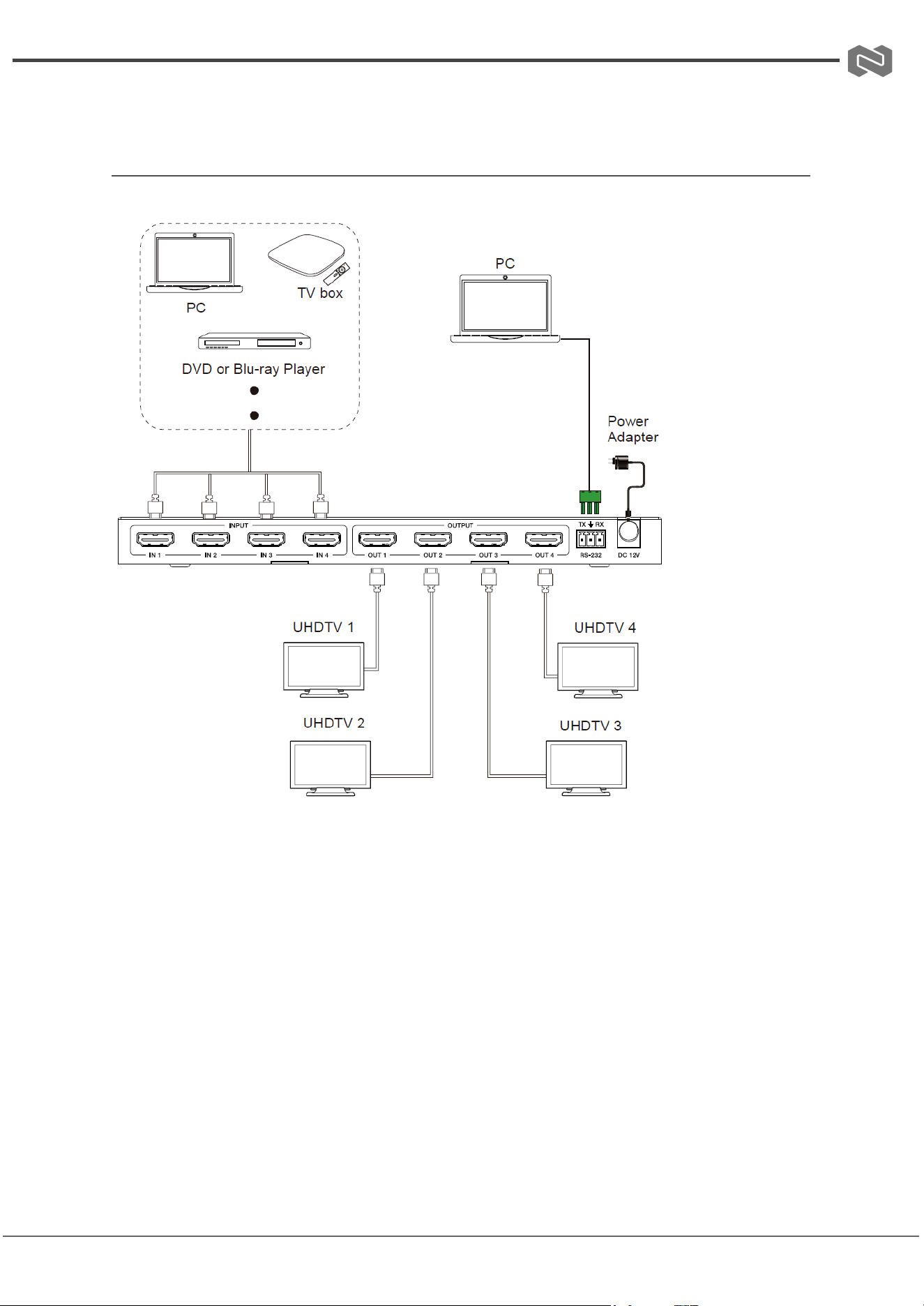

Connection Diagram 18
Troubleshooting 19
Tech Support 20
Limited Product Warranty Terms 20
Mission Statement 20
Copyright 20
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
Introduction
The BG-MVS4X4-CV is a 4x4 seamless HDMI matrix switcher and video wall
processor that supports input resolutions up to 4K@30Hz. It enables instant routing
of any input to any output and can split a single source across 2 to 4 displays in
configurations like 2×2, 4×1, or 1×4. With seamless switching, up/downscaling to
720p, 1080p, 1920×1200, or 4K@30Hz, and support for audio formats including
LPCM, Dolby Digital, and DTS, it ensures smooth integration across AV systems.
Control options include front panel, IR, and RS-232, while HDCP 1.4 compliance
and a compact design make it ideal for signage, classrooms, control rooms, and
more.
Features
● Flexible Output Scaling: Output resolutions can be upscaled or downscaled to
1080p, 720p, 1920×1200, or 4K@30Hz
● 4x4 Matrix Mode: Seamless switching of any input to any output
● Video Wall Mode: Supports configurations such as 2×2, 4×1, 1×4, and more
● Seamless Switching: Instant transitions with no delay or image loss
● Audio Format Support: Compatible with LPCM, Dolby Digital (DD), Dolby Digital
Plus (DD+), and DTS
● Versatile Control Options: Manage via front panel buttons, IR remote, or RS-232
commands
● HDCP Compliance: Fully compliant with HDCP 1.4 for secure content transmission
● High Bandwidth Support: Handles video bandwidth up to 10.2Gbps
● Advanced Video Wall Features: Includes image mirroring for flexible display setups
● Input Resolution: Supports HDMI input resolutions up to 4K@30Hz
● Compact Form Factor: Space-saving design for easy integration into any AV
environment
Packing List
● 1 × 4K 4x4 HDMI Seamless Matrix Switcher &
Video Wall Processor
● 1 × IR Remote Control for Matrix Switching
● 1 × 3-Pin 3.5mm Phoenix Connector (Male)
● 2 × Mounting Ears
● 4 × KM3×4 Machine Screws
● 1 × 12V/1A Locking Power Adapter
● 1 × User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 1.4b
HDCP Compliance
HDCP 1.4
Video Bandwidth
10.2Gbps
Input Video Resolution
Up to 4K2K@30Hz
Output Video
Resolution
4096x2160p30Hz, 3840x2160p30Hz, 1920x1200p60Hz,
1920x1080p60Hz, 1920x1080p50Hz, 1600x1200p60Hz,
1600x900p60Hz, 1440x900p60Hz, 1360x768p60Hz,
1280x1024p60Hz, 1280x720p60Hz, 1280x720p50Hz,
1024x768p60Hz
Color Space
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12-bit
IR Level
5Vp-p
IR Frequency
Fixed frequency 38KHz
HDMI Audio Formats
LPCM 2.0, LPCM 5.1, Dolby 2.0, Dolby 5.1, Dolby Digital Plus,
DTS 2.0, DTS 5.1
Transmission Distance
4K30: 5m / 16ft (HDMI cable);
1080p 4:4:4: 10m / 33ft (HDMI cable)
ESD Protection
IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact
discharge)
Connection
Input
4x HDMI (Type A, 19-pin female)
Output
4x HDMI (Type A, 19-pin female)
Control
1x RS-232 (3-pin 3.5mm Phoenix connector), 1x SERVICE (USB
Type-C, 24-pin female)
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions (W×D×H)
8.7in × 4.1in × 0.75in / 220mm × 105mm × 19mm
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
Weight
1.1 lbs [508g]
Power Supply
Input: AC 100–240V 50/60Hz;
Output: DC 12V/1A (US/EU, CE/FCC/UL certified)
Power Consumption
3.6W (Max)
Operating Temperature
32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature
-4°F ~ 140°F / -20°C ~ 60°C
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
Operation Controls and Functions

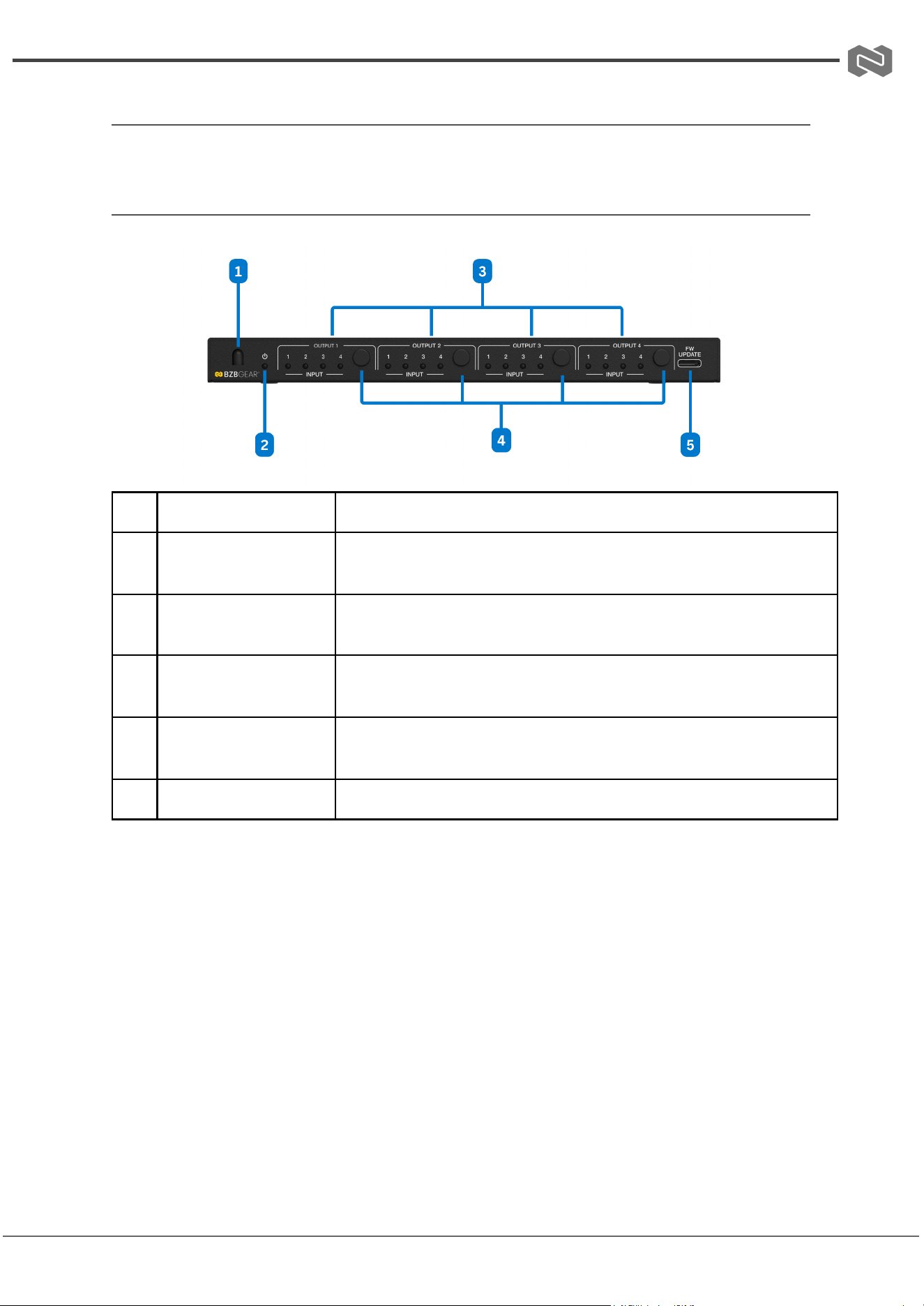

Front Panel
No.
Name
Function Description
1
IR Window
IR signal receiving window; only receives IR remote signals
from this product.
2
Power LED
Lights green when the unit is operating; lights red when in
standby mode.
3
Signal Source LEDs
Indicators for the OUT 1–4 ports. When IN 1/2/3/4 is selected
as the input, the corresponding LED lights green.
4
Input Source
Switching Buttons
Buttons for selecting the input source for OUT 1–4. Press to
cycle through available input channels.
5
SERVICE Port
Port used for firmware upgrades.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL

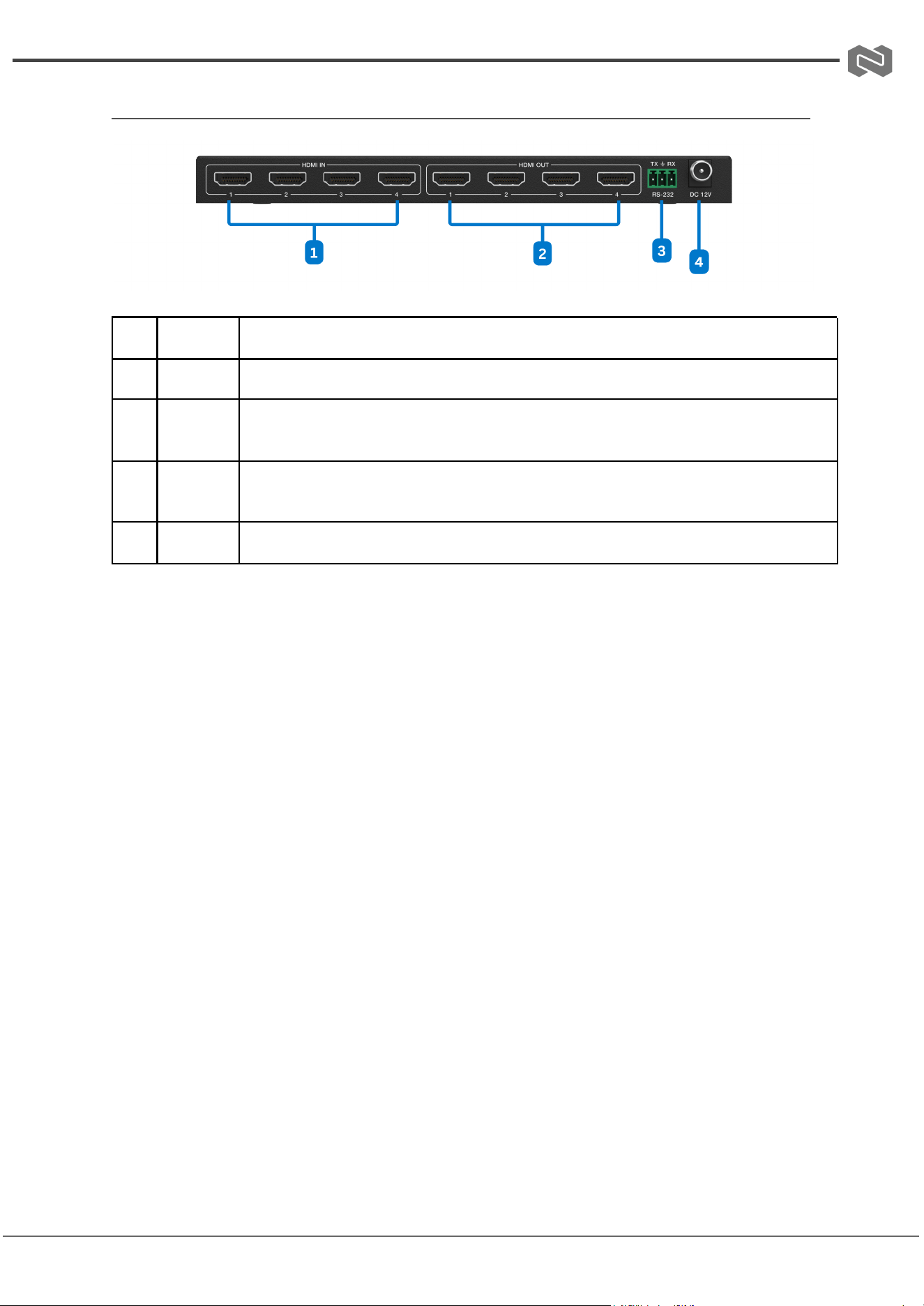

Rear Panel
No.
Name
Function Description
1
IN 1–4
HDMI signal input ports; connect to HDMI source devices.
2
OUT
1–4
HDMI signal output ports; connect to HDMI display devices.
3
RS-232
RS-232 serial port; connects to a PC or control system for firmware
upgrades or command control.
4
DC 12V
DC 12V/1A power input port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL

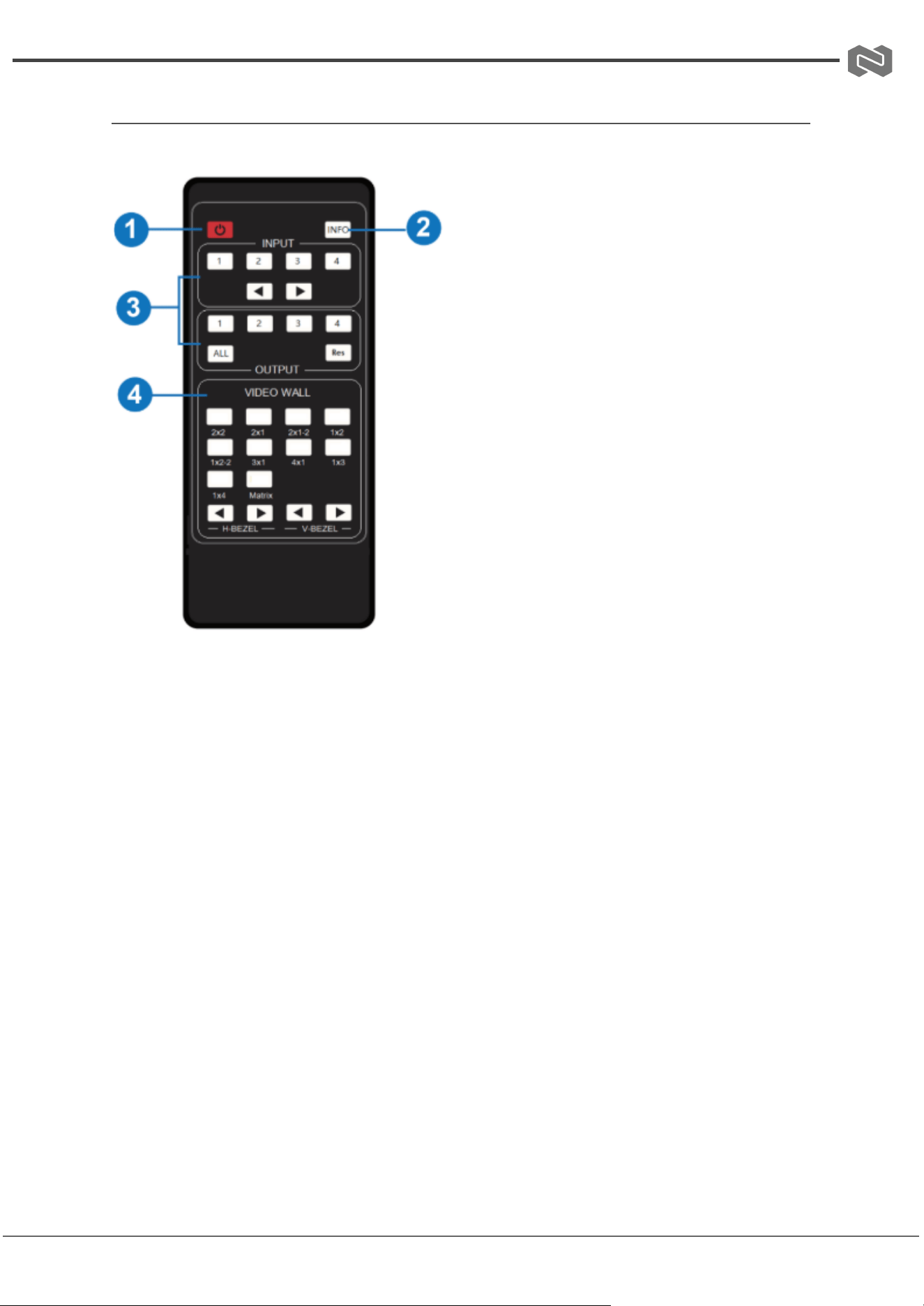

IR Remote
1. Power On / Standby
Toggle the matrix switcher between
powered-on and standby mode.
2. INFO
Displays the current serial port baud rate in
the upper-right corner of the screen.
Note: The information will disappear after 5
seconds.
3. INPUT / OUTPUT Controls
● INPUT 1 / 2 / 3 / 4: Select a specific
HDMI input channel.
● ◀ / ▶: Navigate to the previous or
next input channel.
● OUTPUT 1 / 2 / 3 / 4: Select a
specific HDMI output channel.
● ALL: Select all output channels
simultaneously.
○ Example: Press “ALL,” then
press “INPUT 1” to send the INPUT 1 signal
to all outputs.
Resolution Switching (Matrix Mode Only)
● Res: Used to cycle through available output resolutions.
○ How to use: Press an OUTPUT (1–4 or ALL), then press Res to change the
resolution of the selected output(s).
Basic Input/Output Operation
● First press the desired OUTPUT button (1–4 or ALL).
● Then press the desired INPUT button (1–4) to assign the input source to the selected
output(s).
○ Example: Press OUTPUT 2 → then press INPUT 3 to route Input 3 to Output
2.
4. VIDEO WALL Controls
● Video Wall Mode Selection: Press a preset video wall mode button to activate the
corresponding layout.
● Source Selection for Video Wall Group:
○ Press OUTPUT 1 / 2 / 3 / 4 to select a video wall group.
○ Then press INPUT 1 / 2 / 3 / 4, or use ◀ / ▶ to select the desired input source.
Bezel Adjustment
● Use the arrow buttons for H-BEZEL and V-BEZEL to fine-tune horizontal and vertical
bezel compensation.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL

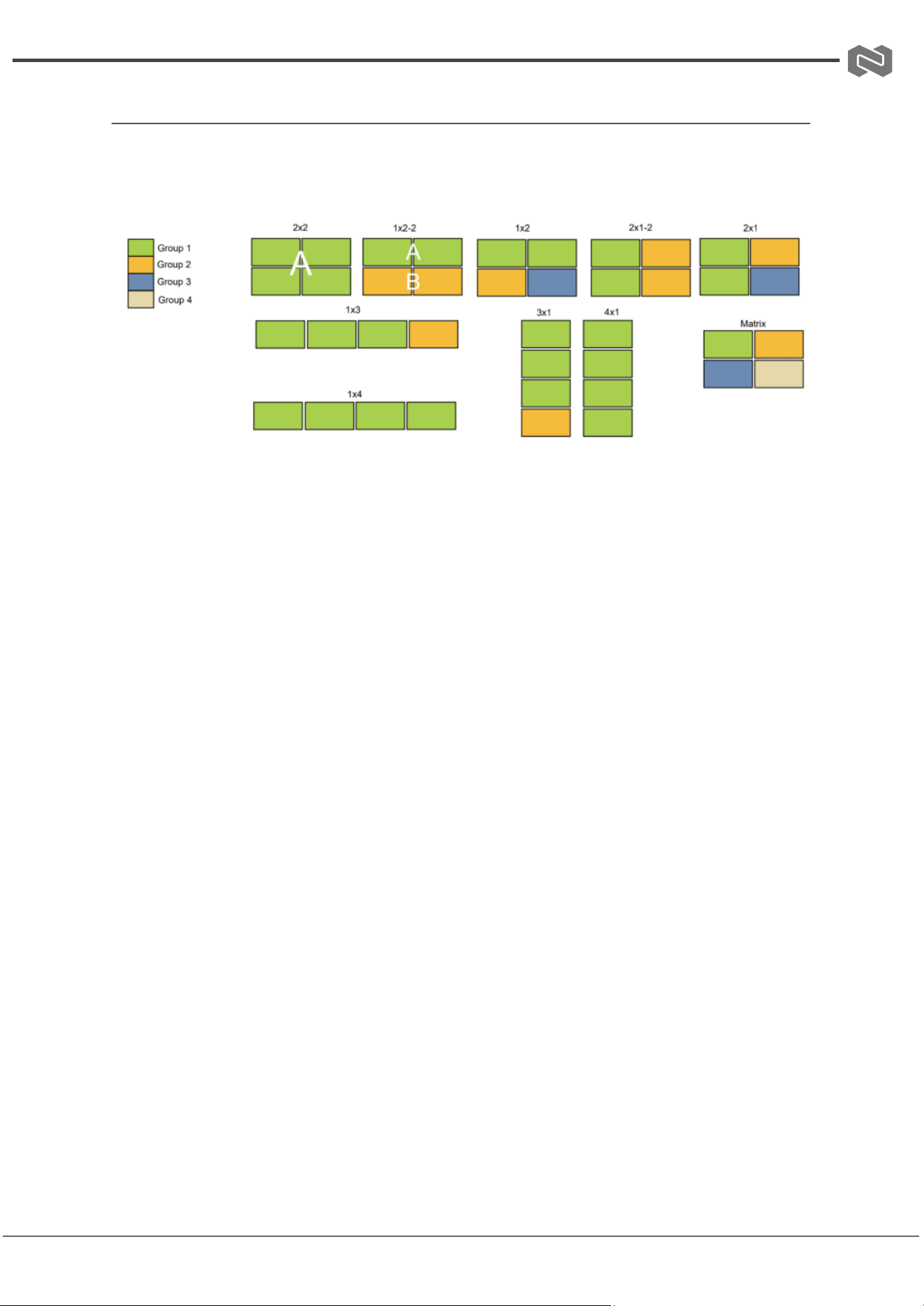

Video Wall Mode
The device supports 10 distinct display modes, which can be selected using the IR remote
control or via RS-232 commands.
Notes:
1. In video wall mode, displays assigned to the video wall will output at a fixed
resolution of 1080p. Other outputs will operate in pass-through (transparent) mode.
Example: In 1x2 video wall mode, Outputs 1 and 2 will display at 1080p. Outputs 3
and 4 will pass the original signal format—e.g., if the source is 4K30, the output will
also be 4K30.
2. The output image mirror function is only available when the system is operating in
video wall mode.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
RS-232 Control Commands

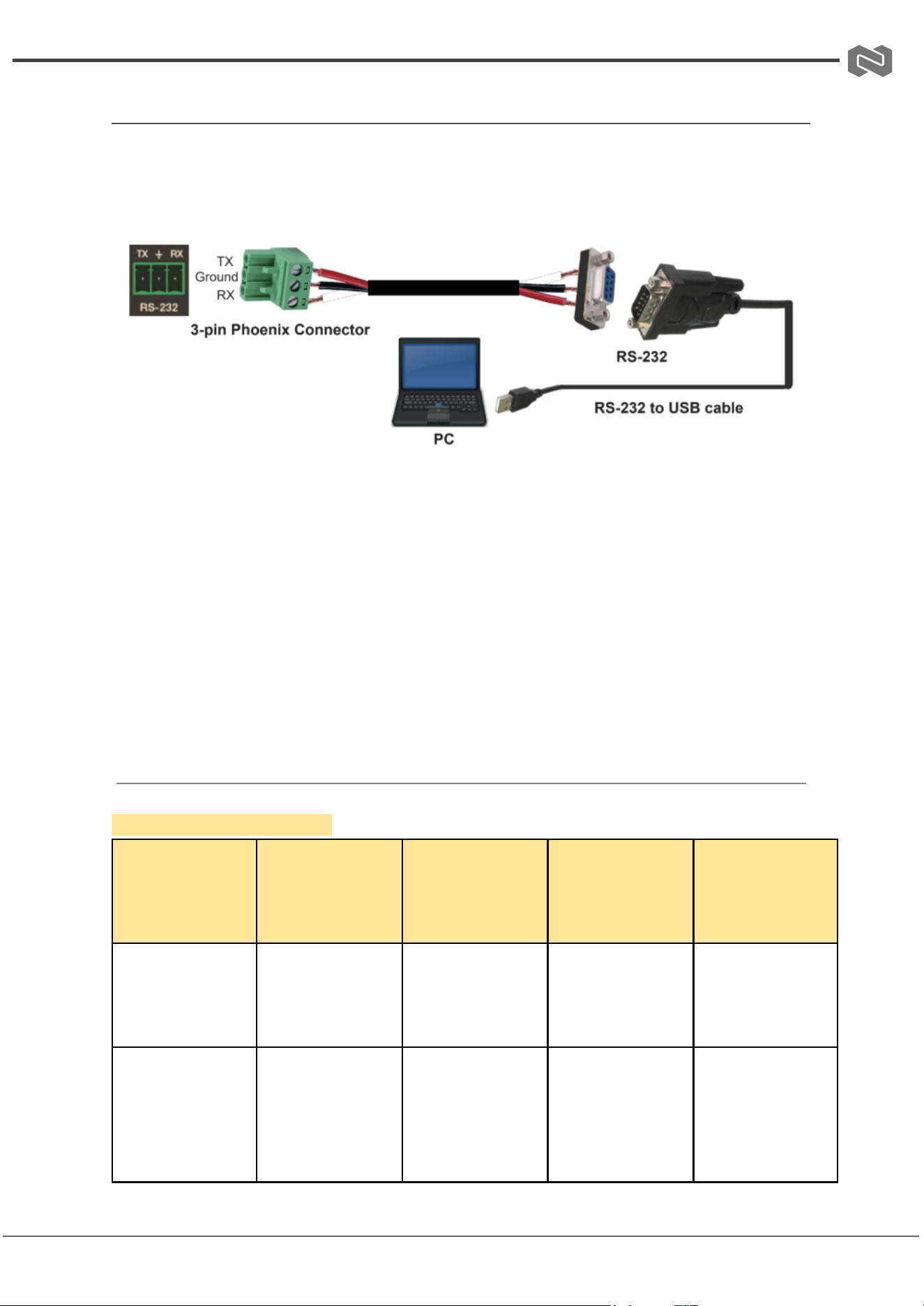

The product also supports RS-232 command control. To enable this feature, connect the
RS-232 port to a PC using a 3-pin Phoenix connector cable along with an RS-232 to USB
adapter. Refer to the following connection method for proper setup.
Next, launch a serial command tool on the PC to send ASCII commands for controlling the
device. The list of supported ASCII commands is provided below.
Serial Port Protocol
● Baud Rate: 115200 (default)
● Data Bits: 8
● Stop Bits: 1
● Check Bit: 0
Legend:
x = Parameter 1, y = Parameter 2, z = Parameter 3, ! = Delimiter
System Setting Commands
Command
Code
Function
Description
Example
Feedback
Default Setting
help!
Lists all
commands
help!
(Lists all
commands)
r status!
Get device
current status
r status!
Get the unit all
status: power,
beep, lock,
in/out
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
connection,
video/audio
crosspoint, edid,
scaler, network
status
r type!
Get device
model
r type!
4x4 HDMI
seamless matrix
r fw version!
Get firmware
version
r fw version!
MCU FW
version x.xx.xx
s power z!
Power on/off the
device, z=0~1
(0=off, 1=on)
s power 1!
power on
system
initializing...
initialization
finished! MCU
FW version
x.xx.xx
r power!
Get current
power state
r power!
power on /
power off
s beep z!
Enable/disable
buzzer function,
z=0~1 (0=off,
1=on)
s beep 1!
beep on / beep
off
r beep!
Get buzzer state
r beep!
beep on / beep
off
s lock z!
Lock/unlock
front panel
button, z=0~1
s lock 1!
panel button
lock on / panel
button lock off
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
(0=unlock,
1=lock)
r lock!
Get panel button
lock state
r lock!
panel button
lock on/off
s reboot!
Reboot the
device
s reboot!
reboot... system
initializing...
initialization
finished! MCU
FW version
x.xx.xx
s reset!
Reset to factory
defaults
s reset!
reset to factory
defaults system
initializing...
initialization
finished! MCU
FW version
x.xx.xx
Output Setting Commands
Command
Code
Function Description
Example
Feedback
Default
Setting
s in x av out y!
Set input x to output y
(x=14, y=04, 0=all)
s in 1 av out
2!
input 1 -> output 2
r av out y!
Get output y signal
status (y=0~4, 0=all)
r av out 0!
input 1 -> output 1 ...
input 4 -> output 4
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
s output y x!
Set output y resolution
(y=04, x=113)
s output 1 2!
output 1 resolution:
3840x2160p30
r output y res!
Get output y resolution
(y=0~4)
r output 1
res!
output 1 resolution:
3840x2160p30
s output y csc
x!
Set output y color
space (y=04, x=13)
s output 1
csc 1!
output 1 csc: rgb444
r output y csc!
Get output y color
space status (y=0~4)
r output 1
csc!
output 1 csc: rgb444
s output y
mirror x!
Set output y mirror
(y=04, x=03)
s output 1
mirror 0!
output 1 mirror off
r output y
mirror!
Get output y mirror
status (y=0~4)
r output 1
mirror!
output 1 mirror off
s output y
stream x!
Enable/disable output y
stream (y=04, x=01)
s output 1
stream 1!
output 1 stream:
enable
r output y
stream!
Get output y stream
status (y=0~4)
r output 1
stream!
output 1 stream:
enable
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
EDID Setting Commands
Command
Code
Function Description
Example
Feedback
Default
Setting
s edid in x
from z!
Set input x EDID from
default EDID z (x=04,
z=111)
s edid in 1
from 1!
input 1 EDID: 4k30,
2.0ch
r edid in x!
Get input x EDID mode
(x=0~4)
r edid in 0!
input 1 EDID:
4K2K30_444, stereo
audio 2.0 ...
Video Wall Setting Commands
Command
Code
Function Description
Example
Feedback
Default
Setting
s tw mode x!
Set TV wall display mode
(x=1~10)
s tw mode 1!
TV wall mode: 2x2
r tw mode!
Get TV wall display mode
r tw mode!
TV wall mode: 2x2
s tw h bezel x!
Set TV wall horizontal
bezel (x=0~10, +, -)
s tw h bezel
0!
TV wall horizontal
bezel: 0
r tw h bezel!
Get TV wall horizontal
bezel
r tw h bezel!
TV wall horizontal
bezel: 0
s tw v bezel x!
Set TV wall vertical bezel
(x=0~10, +, -)
s tw v bezel
0!
TV wall vertical
bezel: 0
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
r tw v bezel!
Get TV wall vertical bezel
r tw v bezel!
TV wall vertical
bezel: 0
s tw group y
input x!
Set TV wall group y display
which source input (y=04,
x=14)
s tw group 1
input 1!
TV wall group 1
input: HDMI input
1
r tw group y
source!
Get TV wall group y display
which source input (y=0~4)
r tw group 0
source!
TV wall group 1
input: HDMI input
1 ...
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 17
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 18
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 19
BZBGEAR BG-MVS4X4-CV PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 20
