BG-UHD-MVS41A
4K60 4x1 Multiviewer Seamless UHD Video Switcher
User Manual
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
IR Remote 9
EDID Settings 10
Video & Audio 10
Multiview 11
OSD Menu Navigation 11
RS-232 Command 13
Multiview Control Software - General Settings 17
Multiview Control Software - Output Settings 18
Multiview Control Software - General Settings 20
Application Diagram 21
Tech Support 22
Limited Product Warranty Terms 22
Mission Statement 22
Copyright 22
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Introduction
The BG-UHD-MVS41A is a 4K60 4x1 Multiviewer and seamless UHD video switcher which
was developed for the purpose of supporting higher output resolutions such as 4K@60 for
multiple sources on a single screen. It can combine up to four video signals onto a single
UHD or HD display. This device supports a full range of input video resolutions up to 4K@60
as well as audio extraction via RCA or S/PDIF optical d for external audio distribution
systems.
This device can be controlled via front panel buttons, IR remote, RS-232 commands. Users
can easily manage each input via control software and create various layouts and positions
for any of the four inputs on a single monitor.
Features
● HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
● 18Gbps video bandwidth
● Input and output resolutions up to 4K@60Hz
● LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
● Seamless switching between input channels and combine multiple images on a
single UHD monitor
● Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1),
Quad (2)
● Seamless switching on single screen display mode
● Fast switching on multiview display mode
● Audio de-embedding via analog and optical fiber audio ports
● Volume control and independent audio selection
● OSD navigation for advanced settings
● EDID management
● Control via front panel buttons, IR remote, RS-232 commands
● Compact design for easy and flexible installation
Packing List
● 1x 4K60 4x1 UHD Video Switcher
● 1x IR Remote
● 1x 3 pin-3.81mm Phoenix Connector (male)
● 1x 38KHz IR Receiver Cable (1.5m)
● 4 x Rubber Feet
● 2x Mounting Ears
● 1x 12V/1A Power Adapter
● 4x Machine Screws (KM3*4)
● 1x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 / 1.x
Video Bandwidth
18Gbps
Video Resolution
Up to 4K@60Hz
IR Level
5Vp-p
IR Frequency
38KHz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8bit
Audio Formats
HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
Analog audio [3.5mm L/R]: PCM2.0;
SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0.
Note: It does not support HBR audio.
ESD Protection
Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connection
Input ports
4 x HDMI IN [Type A, 19-pin female]
Output ports
1 x HDMI OUT [Type A, 19-pin female]
1 x L/R OUTPUT [RCA]
1 x OPTICAL OUTPUT [S/PDIF]
Control ports
1 x RS-232 [3 pin-3.81mm phoenix connector]
1 x IR EXT [3.5mm Stereo Mini-jack]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
220mm [W] x 100mm [D] x 30mm [H]
Weight
620g
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption
10W (Max)
Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Operation Controls and Functions

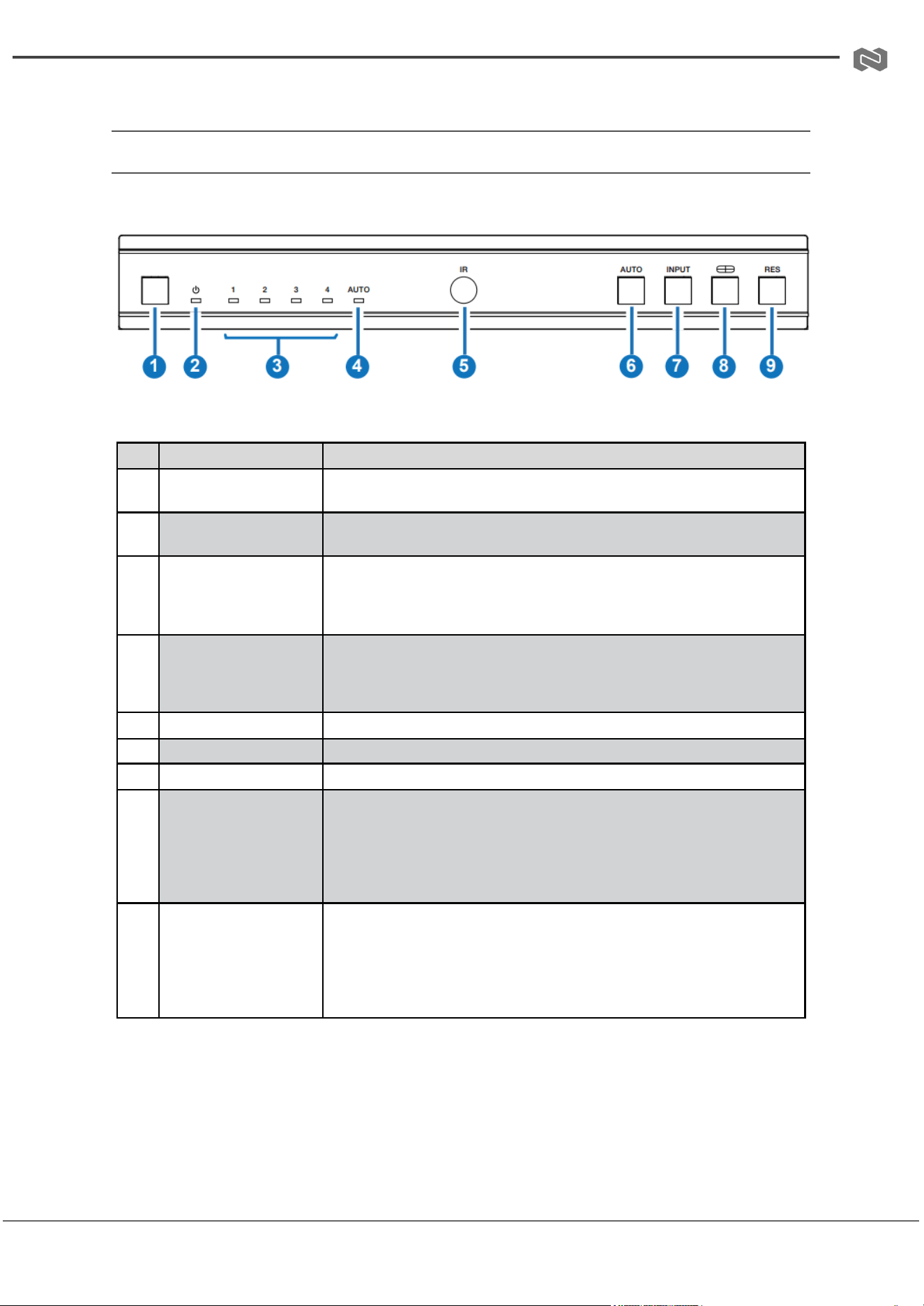

Front Panel
No.
Name
Function Description
1
Power button
▪ Short press this button to power on the device.
▪ Long press this button for 1 second to enter standby mode.
2
Power LED
The Power LED will illuminate green when the product is powered
on, and red when the product is on standby.
3
Input 1-4 LEDs
Input signal indicator lights. When the HD 1/2/3/4 port connects to an active
source device, the corresponding green LED will illuminate.
Note: Only the LED of the selected input channel will illuminate green during
single screen display mode; all LEDs will illuminate green in multiview mode.
4
AUTO LED
When the device is set to AUTO mode, the AUTO LED will illuminate green,
and the HDMI will be automatically identified, that is, when the currently
displayed source signal is disconnected, the switcher will automatically
identify the next connected HDMI input port.
5
IR Window
IR signal receiving window.
6
AUTO button
Automatic switching button, only available on single screen display mode.
7
INPUT button
Input source switching button, only available on single screen display mode.
8
Multiview button
Multiview display mode switching button.
▪ Short press this button to cycle select: SINGLE - PIP - PBP (1) - PBP (2) -
Triple (1) - Triple (2) - Quad (1) - Quad (2).
▪ Long press this button for 3 seconds to select the aspect ratio for PBP
(1) / PBP (2) / Triple (1) / Triple (2) / Quad (1) /
Quad (2).
9
RES button
Output resolution switching button.
▪ Short press the RES button to cycle switch the output resolution of the
HDMI OUTPUT port (Please refer to the output resolution list in the
“Video & Audio” section of this manual).
▪ Long press the RES button for 3 seconds to switch the output resolution
to 720P60.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL

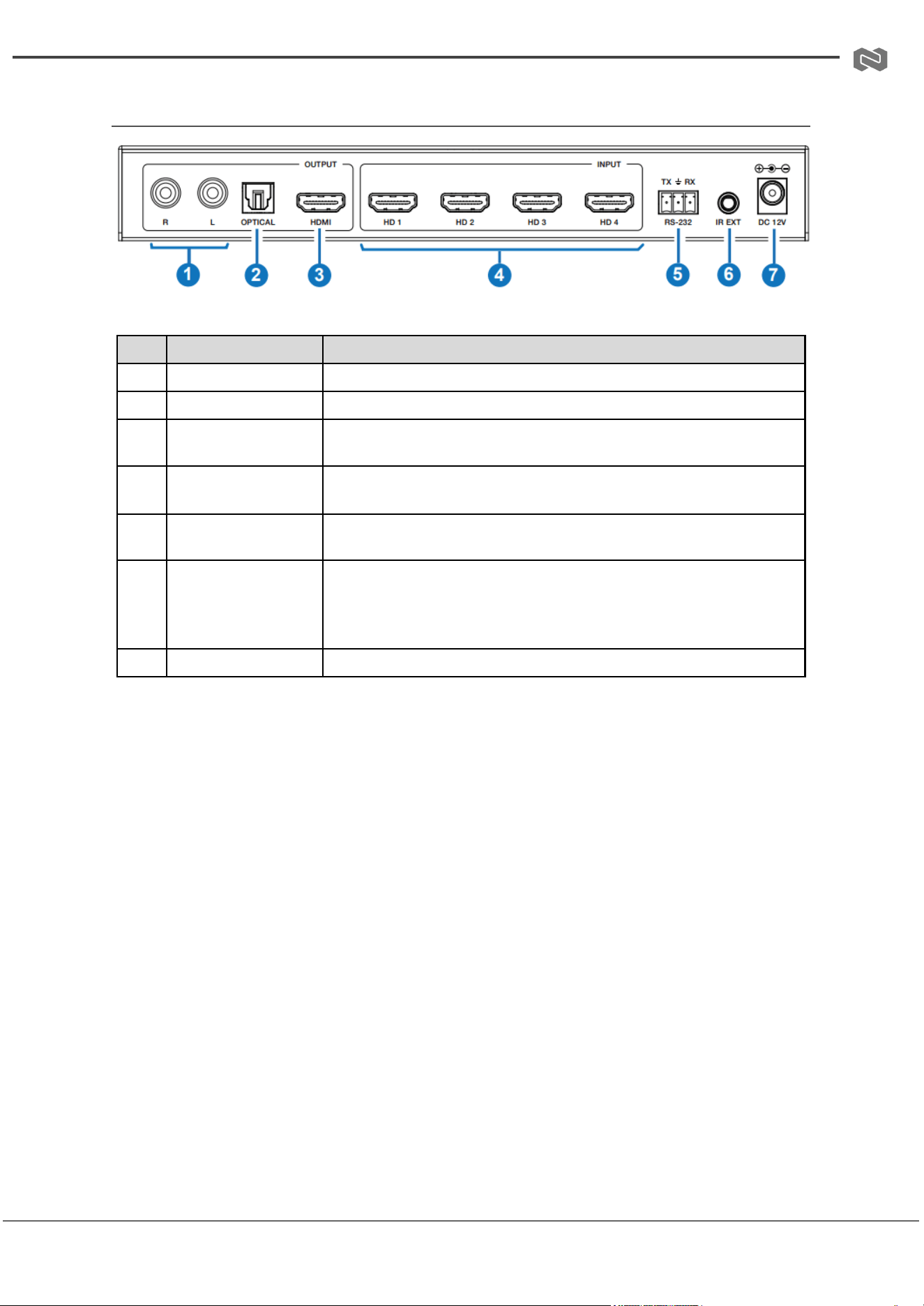

Rear Panel
No.
Name
Function Description
1
L/R port
PCM 2.0 Analog audio output port.
2
OPTICAL port
Optical fiber digital audio output port.
3
HDMI OUTPUT port
Connect to an HDMI display device such as a TV or Monitor with
an HDMI cable.
4
HD 1-4 INPUT ports
Connect to HDMI source devicse such as Game Consoles or
Set-top boxes with HDMI cables.
5
RS-232 port
3-pin phoenix connector, connected to a PC or control system for
serial port upgrade or RS-232 command control.
6
IR EXT port
If the IR signal receiving window of the unit is blocked or the unit is
installed in a closed area out of infrared line of sight, the IR receiver
cable can be inserted to the “IR EXT” port to receive the IR remote
signal.
7
DC 12V
DC 12V/1A power input port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
IR Remote

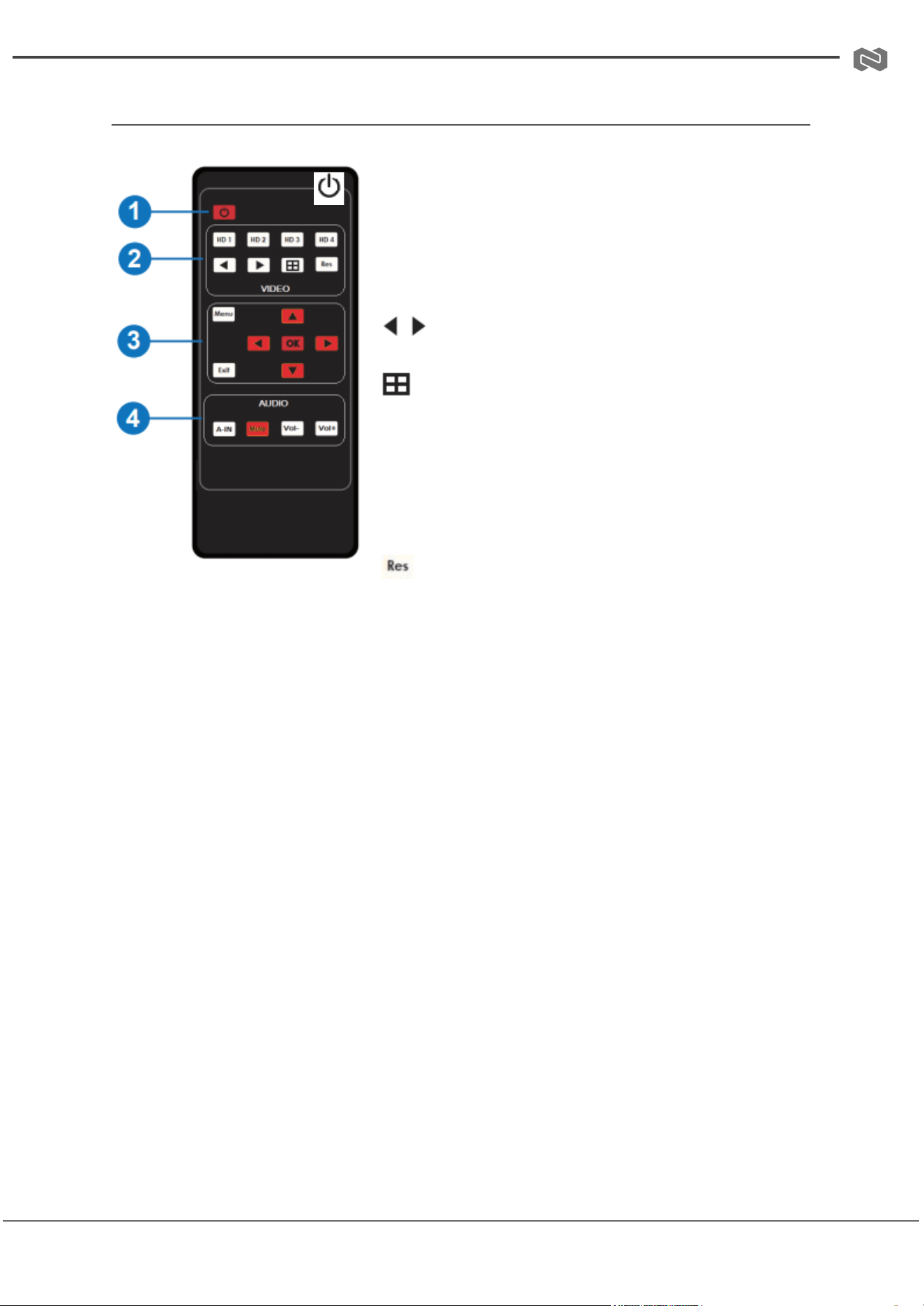

1. Power on or Standby: Press this button to power on
the switcher or set it to standby mode.
2. HD 1/2/3/4: Press these buttons to select the input
source on single screen display modes and the
corresponding input LED on the front panel will
illuminate green.
: Press these buttons to cycle select the last or
next input source on single screen display mode.
: Multiview display mode switching button.
▪ Short press this button to cycle select: SINGLE - PIP -
PBP (1) - PBP (2) - Triple (1) - Triple (2) - Quad (1) - Quad
(2).
▪ Long press this button for 3 seconds to select the
aspect ratio for PBP (1) / PBP (2) / Triple (1) / Triple (2) /
Quad (1) / Quad (2).
: Output resolution switching button.
▪ Short press the RES button to cycle switch the output resolution of the HDMI
OUTPUT port (Please refer to the output resolution list in the “Video & Audio” section).
▪ Long press the RES button for 3 seconds to switch the output resolution to 720P60.
3. MENU, EXIT, LEFT, RIGHT, UP, DOWN, OK: OSD Menu navigation buttons.
4. A-IN: Press this button to pop up the audio channel selection OSD, then press the UP /
DOWN button to select the audio output channel. (The output audio follows the video
source by default.)
Mute: Press this button to mute / unmute the audio.
VOL-, VOL+: Press these buttons to increase / decrease the audio output volume.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
EDID Settings
User can select the following EDID modes via RS-232 command or OSD menu navigation.
No.
EDID Mode
No.
EDID Mode
1
4K60-2.0CH
10
1920x1200-2.0CH
2
4K60-5.1CH
11
1680x1050-2.0CH
3
4K60-7.1CH
12
1600x1200-2.0CH
4
4K30-2.0CH
13
1440x900-2.0CH
5
4K30-5.1CH
14
1360x768-2.0CH
6
4K30-7.1CH
15
1280x1024-2.0CH
7
1080P-2.0CH
16
1024x768-2.0CH
8
1080P-5.1CH
17
720P-2.0CH
9
1080P-7.1CH
18
AUTO
Video & Audio
The switcher supports multiple resolutions up to 3840x2160@60 and supports multiple
audio formats such as LPCM, AC3, DD+, DTS, DTSHD, up to 7.1 channel pass through
functionality via HDMI cables.
User can control the volume of audio in LPCM format.
The switcher supports following video output resolutions via a powerful scaling engine.
No.
Output Resolution
No.
Output Resolution
1
4096x2160p 60Hz
8
1920x1080p 60Hz
2
4096x2160p 50Hz
9
1920x1080p 50Hz
3
3840x2160p 60Hz
10
1360x768p 60Hz
4
3840x2160p 50Hz
11
1280x800p 60Hz
5
3840x2160p 30Hz
12
1280x720p 60Hz
6
3840x2160p 25Hz
13
1280x720p 50Hz
7
1920x1200p 60Hz RB
14
1024x768 60Hz
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Multiview

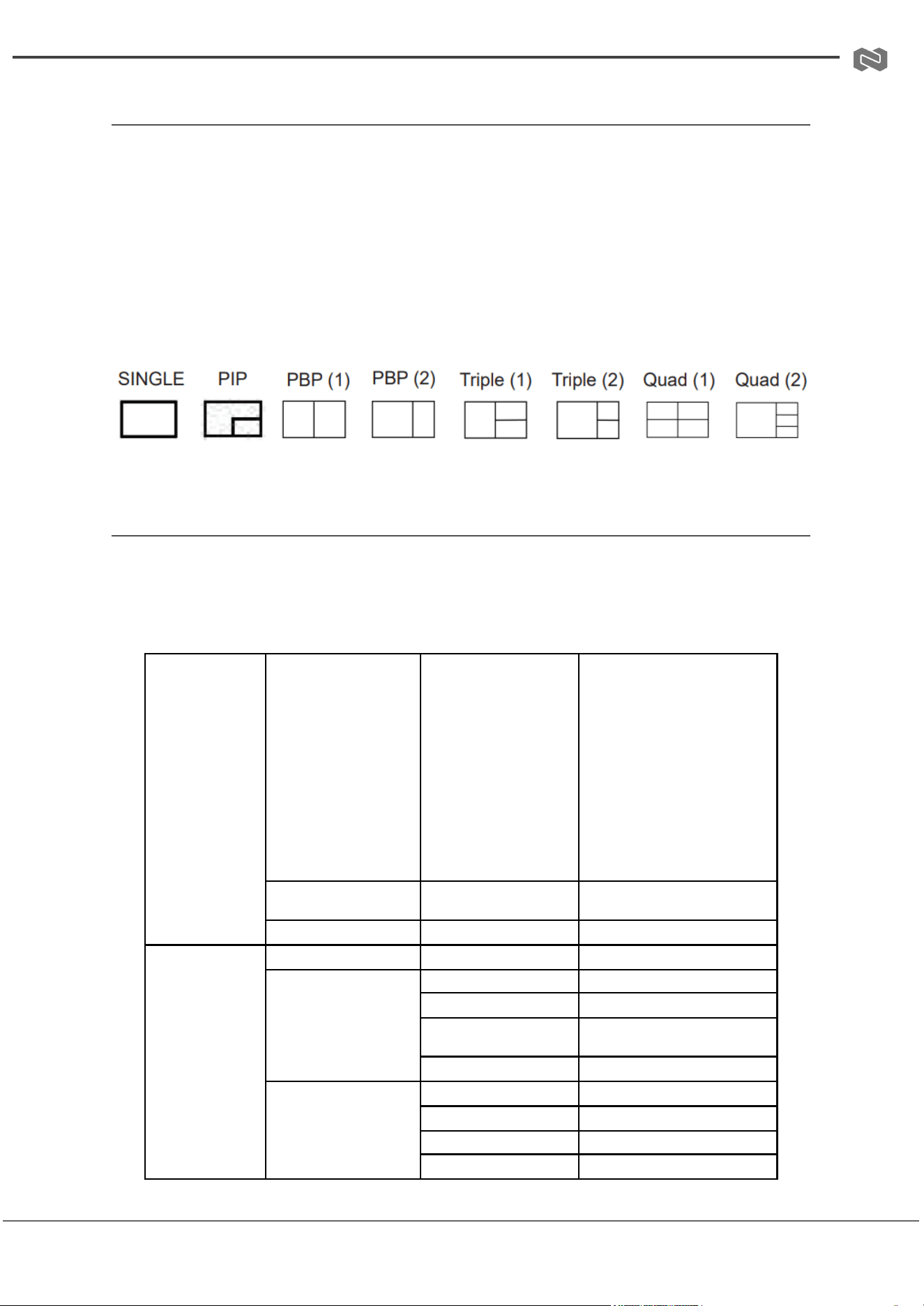

The switcher supports 8 different multiview display modes: SINGLE, PIP, PBP (1), PBP
(2), Triple (1), Triple (2), Quad (1), Quad (2)
Users can select different operations for different Multiview modes as follows:
SINGLE: Inputs selection
PIP: Inputs selection, Sub window size and position selection
PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2): Inputs selection, Display mode
selection, Display aspect selection
Multiview window modes are as follows:
User can select Multiview modes via RS-232 commands or OSD menu navigation.
OSD Menu Navigation
1. A total of seven buttons on the IR Remote are used for OSD menu navigation, including
MENU, EXIT, UP, DOWN, LEFT, RIGHT, OK.
Menu contents are as follows:
Output
Resolution
3840x2160p60
4096x2160p 60Hz/
4096x2160p 50Hz/
3840x2160p 60Hz/
3840x2160p 50Hz/
3840x2160p 30Hz/
3840x2160p 25Hz/
1920x1200p60Hz RB/
1920x1080p 60Hz/
1920x1080p 50Hz/
1360x768p 60Hz/
1280x800p 60Hz/
1280x720p 60Hz/
1280x720p 50Hz/
1024x768 60Hz
VKA
BLACKSCREEN
BLACKSCREEN,
BLUESCREEN
ITC
OFF
ON,OFF
Multiview
Single
Input select
HDMI1,HDMI2,HDMI3,HDMI4
PIP
Win1 Select
HDMI1,HDMI2,HDMI3,HDMI4
Win2 Select
HDMI1,HDMI2,HDMI3,HDMI4
PIP Position
Right Bottom,Right Top, Left
Bottom,Left Top
PIP Size
Small,Middle,Large
PBP
Win1 Select
HDMI1,HDMI2,HDMI3,HDMI4
Win2 Select
HDMI1,HDMI2,HDMI3,HDMI4
MODE
1, 2
Aspect
Full, 16:9
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Multiview
3xWIN
Win1 Select
HDMI1,HDMI2,HDMI3,HDMI4
Win2 Select
HDMI1,HDMI2,HDMI3,HDMI4
Win3 Select
HDMI1,HDMI2,HDMI3,HDMI4
MODE
1, 2
Aspect
Full, 16:9
4xWIN
Win1 Select
HDMI1,HDMI2,HDMI3,HDMI4
Win2 Select
HDMI1,HDMI2,HDMI3,HDMI4
Win3 Select
HDMI1,HDMI2,HDMI3,HDMI4
Win4 Select
HDMI1,HDMI2,HDMI3,HDMI4
MODE
1, 2
Aspect
Full,16:9
AUDIO
Audio Select
WIN1
WIN1,HDMI1,HDMI2,HDMI3, HDMI4
Volume
100
0..100
AUDIO-MUTE
OFF
ON, OFF
System
Language/语言
中文
English, 中文
EDID
4K60-2.0
4K60-2.0,4K60-5.1CH,
4K60-7.1CH,4K30-2.0CH,
4K30-5.1CH,4K30-7.1CH,
1080P-2.0CH,1080P-5.1CH,
1080P-7.1CH,1920x1200-
2.0CH,1680x1050-2.0CH,
1600x1200-2.0CH,1440x900
-2.0CH, 1360x768-2.0CH,
1280x1024-2.0CH, 1024x
768-2.0CH,720P-2.0CH, AUTO
Baud rate
115200
115200,57600,38400,
19200,9600
Reset
Reset
Reset
FW Version
Read only
2. A total of four buttons on the IR Remote are used for audio settings on OSD menu
navigation, including A-IN, Mute, VOL-, VOL+.
Menu contents are as follows:
A-IN
Audio Input
WIN1
WIN1,HDMI1,HDMI2,HDMI3, HDMI4
Mute
Audio Mute
OFF
ON, OFF
VOL-/VOL+
Audio Volume
100
0..100
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
RS-232 Command
The BG-UHD-MVS41A supports RS-232 command control. Connect the RS-232 port of the
product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool
on PC to send ASCII commands to control the product. The ASCII command list is shown
below.
ASCII Commands
Serial port protocol. Baud rate: 115200 (default), 57600, 38400, 19200, 9600; Data bits: 8bit; Stop bits:1; Check bit: 0
x - Parameter 1; y - Parameter 2; ! - Delimiter
Command Code
Function Description
Example
Feedback
System Setting
help!
List all commands
help!
r type!
Get device model
r type!
4x1 HDMI Multiviewer
r fw version!
Get Firmware version
r fw version!
MCU FW version x.xx.xx SCALER
FW version x.xx.xx
power z!
Power on/off the device,z=0~1 (z=0
power off, z=1 power on)
power 1!
Power on
System Initializing...
Initialization Finished! MCU FW
version x.xx.xx
SCALER FW version x.xx.xx
r power!
Get current power state
r power!
power on/power off
reboot!
Reboot the device
reboot!
Reboot…
System Initializing...
Initialization Finished! MCU FW
version x.xx.xx
SCALER FW version x.xx.xx
reset!
Reset to factory defaults
reset!
Reset to factory defaults
System Initializing... Initialization
Finished! MCU FW version
x.xx.xx
SCALER FW version x.xx.xx
Output Setting
s output res x!
Set Output Resolution (x=1~14)
1. 4096x2160p60,
2. 4096x2160p50,
3. 3840x2160p60,
4. 3840x2160p50,
5. 3840x2160p30,
6. 3840x2160p25,
7. 1920x1200p60RB,
8. 1920x1080p60,
9. 1920x1080p50,
10.1360x768p60,
11.1280x800p60,
12.1280x720p60,
13.1280x720p50,
14. 1024x768p60,
s output res 3!
out resolution: 3840x2160p60
r output res!
Get output resolution
r output res!
out resolution: 3840x2160p60
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Command Code
Function Description
Example
Feedback
s output hdcp x!
set output hdcp (x=1~3)
1. HDCP 1.4
2. HDCP 2.2
3. HDCP OFF
s output hdcp 2!
output HDCP: HDCP 1.4
r output hdcp!
Get output hdcp status.
r output hdcp!
output HDCP: HDCP 1.4
s output vka x!
Set output video keep active
pattern. (x=1~2)
1. black screen
2. blue screen
s output vka 1!
output VKA pattern: black screen
r output vka!
Get output video keep active
pattern.
r output vka!
output VKA pattern: black screen
s output itc x!
Set output video mode (x=1~2) 1:
video mode
2: pc mode
s output itc 1!
output ITC: video mode
r output itc!
Get output video mode
r output itc!
output ITC: video mode
EDID Setting
s input EDID x!
Set HDMI input EDID mode
(x=18)
1. 4K2K60_444,Stereo Audio 2.0
2. 4K2K60_444,Dolby/DTS 5.1 3.
4K2K60_444,HD Audio 7.1
4. 4K2K30_444,Stereo Audio 2.0
5. 4K2K30_444,Dolby/DTS 5.1 6.
4K2K30_444,HD Audio 7.1
7. 1080P,Stereo Audio 2.0
8. 1080P,Dolby/DTS 5.1
9. 1080P,HD Audio 7.1
10.1920x1200,Stereo Audio 2.0
11.1680x1050,Stereo Audio 2.0
12.1600x1200,Stereo Audio 2.0
13.1440x900,Stereo Audio 2.0
14.1360x768, Stereo Audio 2.0
15.1280x1024,Stereo Audio 2.0
16.1024x768, Stereo Audio 2.0
17.720p,Stereo Audio 2.0 18.copy
from HDMI out
s input EDID 1!
input EDID:4K2K60_444, Stereo Audio
2.0
r input EDID!
Get input EDID mode
r input EDID!
input EDID:4K2K60_444, Stereo Audio
2.0
Audio Setting
s output audio x!
Set output audio source (x=0~4)
0. follow window 1 selected
source
1. HDMI 1 input audio
2. HDMI 2 input audio
3. HDMI 3 input audio
4. HDMI 4 input audio
s output audio 0!
output audio: follow window 1
selected source
r output audio!
Get output audio source
r output audio!
output audio: follow window 1 video
s output audio vol+!
Increase output audio volume
s output audio
vol+!
output audio volume: 50
s output audio vol-!
Decrease output audio volume
s output audio
vol-!
output audio volume: 50
s output audio vol x!
Set output audio volume value
(x=0~100)
s output audio vol
30!
output audio volume: 30
r output audio vol!
Get output audio volume
r output audio vol!
output audio volume: 30
s output audio mute x!
Set output audio mute on/off
(x=0~1)
0. mute off
1. mute on
s output audio mute
0!
output audio mute: off
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Command Code
Function Description
Example
Feedback
r output audio
mute!
Get output audio mute on/off
r output audio
mute!
output audio mute: off
Single Screen Mode Setting
s auto switch x!
Enable/disable auto switch
feature(x=0~1)
0. Disable auto switch
1. Enable auto switch
s auto switch 0!
auto switch off
r auto switch!
Get auto switch feature
r auto switch!
auto switch off
s in source x!
Route input source to output (1~4)
1. HDMI 1
2. HDMI 2
3. HDMI 3
4. HDMI 4
s in source 1!
HDMI 1
r in source!
Get output selected input source
r in source!
HDMI 1
Multi-viewer Mode Setting
s multiview x!
Set multi-viewer display mode
(x=1~5)
1. single screen
2. PIP
3. PBP
4. triple screen
5. quad screen
s multiview 1!
single screen
r multiview!
Get multi-viewer display mode
r multiview!
single screen
s window x in y!
Select one input for one display
window for the current Multiview
mode.
(x=1~4)
1. window 1
2. window 2
3. window 3
4. window 4 (y=1~4)
1. HDMI 1
2. HDMI 2
3. HDMI 3
4. HDMI 4
s window 1 in 1!
window 1 select HDMI 1
r window x in!
Get windows selected input source
(x=0~4)
0. ALL
1. window 1
2. window 2
3. window 3
4. window 4
r window 1 in!
window 1 select HDMI 1
s PIP position x!
Set PIP window position (x=1~4)
1. Left Top
2. Left Bottom
3. Right Top
4. Right Bottom
s PIP position 3!
PIP on right top
r PIP position!
Get PIP window position
r PIP position!
PIP on right top
s PIP size x!
Get PIP window size (x=1~3)
1. small
2. middle
3. large
s PIP size 3!
PIP size: large
r PIP size!
Get PIP window size
r PIP size!
PIP size: large
s PBP mode x!
Set PBP windows display mode
(x=1~2)
1. PBP mode 1
2. PBP mode 2
s PBP mode 1!
PBP mode 1
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Command Code
Function Description
Example
Feedback
r PBP mode!
Get PBP windows display mode
r PBP mode!
PBP mode 1
s PBP aspect x!
Set PBP windows display aspect ratio
(x=1~2)
1. Full screen 2. 16:9
s PBP aspect 1!
PBP aspect: full screen
r PBP aspect!
Get PBP windows display
aspect ratio
r PBP aspect!
PBP aspect: full screen
s triple mode x!
Set triple windows display mode
(x=1~2)
1. triple mode 1
2. triple mode 2
s triple mode 1!
triple mode 1
r triple mode!
Get triple windows display mode
r triple mode!
triple mode 1
s triple aspect x!
Set triple windows display aspect
ratio (x=1~2)
1. Full screen
2. 16:9
s triple aspect 1!
triple aspect: full screen
r triple aspect!
Get triple windows display aspect
ratio
r triple aspect!
triple aspect: full screen
s quad mode x!
Set quad windows display mode
(x=1~2)
1. quad mode 1
2. quad mode 2
s quad mode 1!
quad mode 1
r quad mode!
Get quad windows display mode
r quad mode!
quad mode 1
s quad aspect x!
Set quad windows display aspect
ratio (x=1~2)
1. Full screen
2. 16:9
s quad aspect 1!
quad aspect: full screen
r quad aspect!
Get quad windows display aspect
ratio
r quad aspect!
quad aspect: full screen
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL

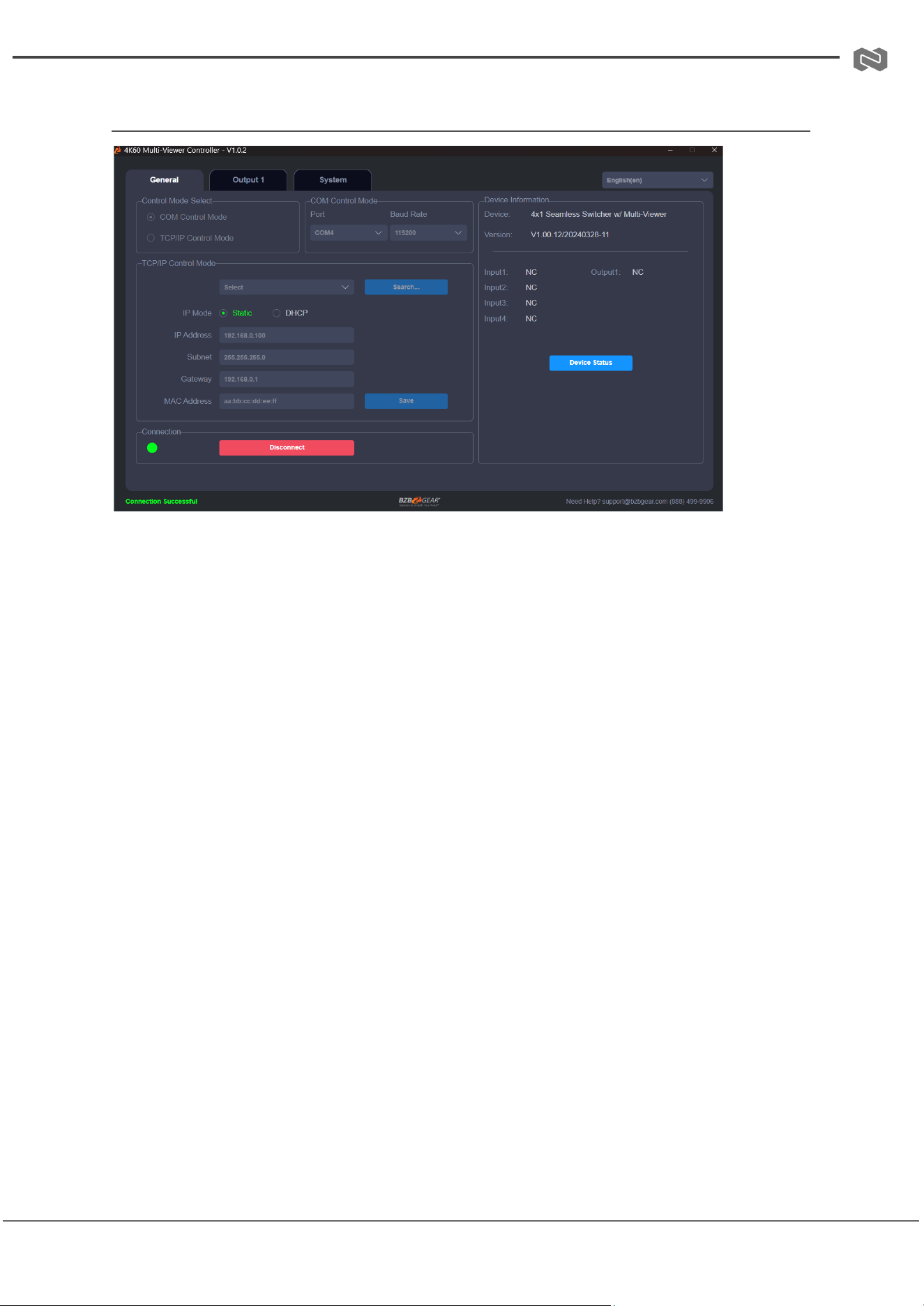

Multiview Control Software - General Settings
General Interface Operations
You can perform the following operations from the General interface:
1. Control Mode Selection
Choose COM Control Mode as the control protocol.
- Note: TCP/IP Control Mode is currently unavailable and therefore disabled.
2. COM Control Settings
Select the appropriate Port Number and Baud Rate for your device.
3. Device Information
View the device name, firmware version, and input/output connection status.
Click Device Status to refresh and update the displayed information.
4. Connection Setup
Click the Connection button to establish or configure the communication link.
5. Connection Status
The Connected indicator shows the current connection state.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 17
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL

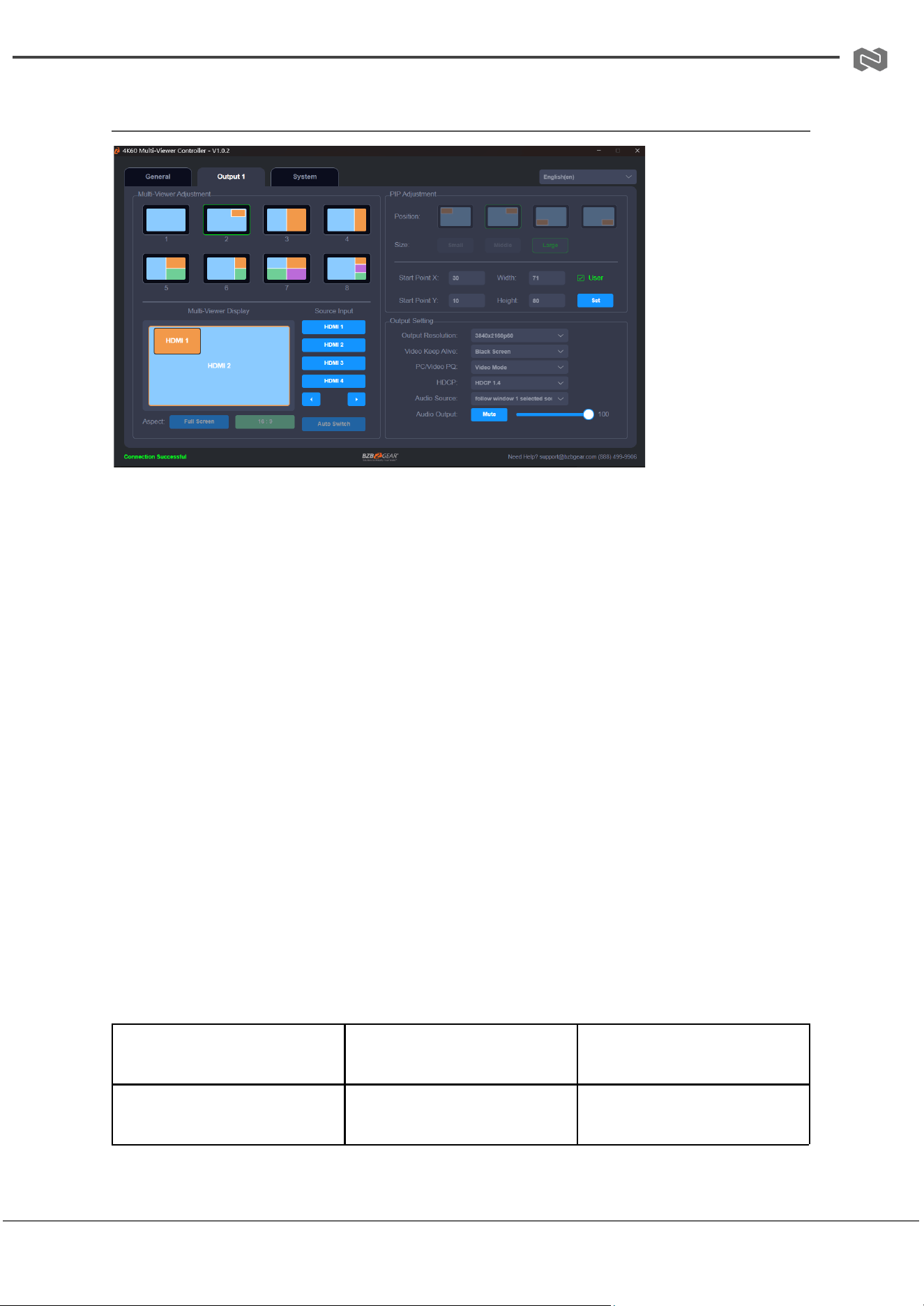

Multiview Control Software - Output Settings
Output Interface Operations
You can perform the following actions from the Output interface:
1. Multi-View Adjustment
Select your preferred screen layout from the available multi-view modes.
The following eight display modes are supported:
○ Single
○ PIP (Picture-in-Picture)
○ PBP(1) (Picture-by-Picture)
○ PBP(2)
○ Triple(1)
○ Triple(2)
○ Quad(1)
○ Quad(2)
2. PIP Adjustment
When using PIP mode, you can:
○ Change the position and size of the PIP window
○ Apply a custom user-defined PIP layout
Refer to the table below for specific customization options.
Size
Relative Position
(Starting Position)
Height and Width of the
Inner Frame
Small
Start Point X: 71
Start Point Y: 71
Width: 30
Height: 30
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 18
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Middle
Start Point X: 61
Start Point Y: 61
Width: 40
Height: 40
Large
Start Point X: 51
Start Point Y: 51
Width: 50
Height: 50
User
Start Point X: 1-100
Start Point Y: 1-100
Width: 1-100
Height: 1-100
3. Multi-Viewer Display:
View both input and output sources on the screen.
4. Source Input:
Choose the input signal source. First, select a window in the Multi-Viewer Display section.
Then, choose the desired input by clicking HDMI 1/2/3/4 in the Source Input section, or
use the ◀ / ▶ buttons to cycle through the previous/next input sources.
5. Aspect Ratio:
Click Full Screen or 16:9 to adjust the display aspect ratio. Available display modes
include:
● PBP(1)
● PBP(2)
● Triple(1)
● Triple(2)
● Quad(2)
6. Auto Switch:
Enable or disable automatic input switching. This feature is available only in Single mode.
7. Output Settings:
Configure output options such as resolution, video keep-alive, PC/Video picture quality
(PQ), HDCP, audio source, and audio output.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 19
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Multiview Control Software - General Settings

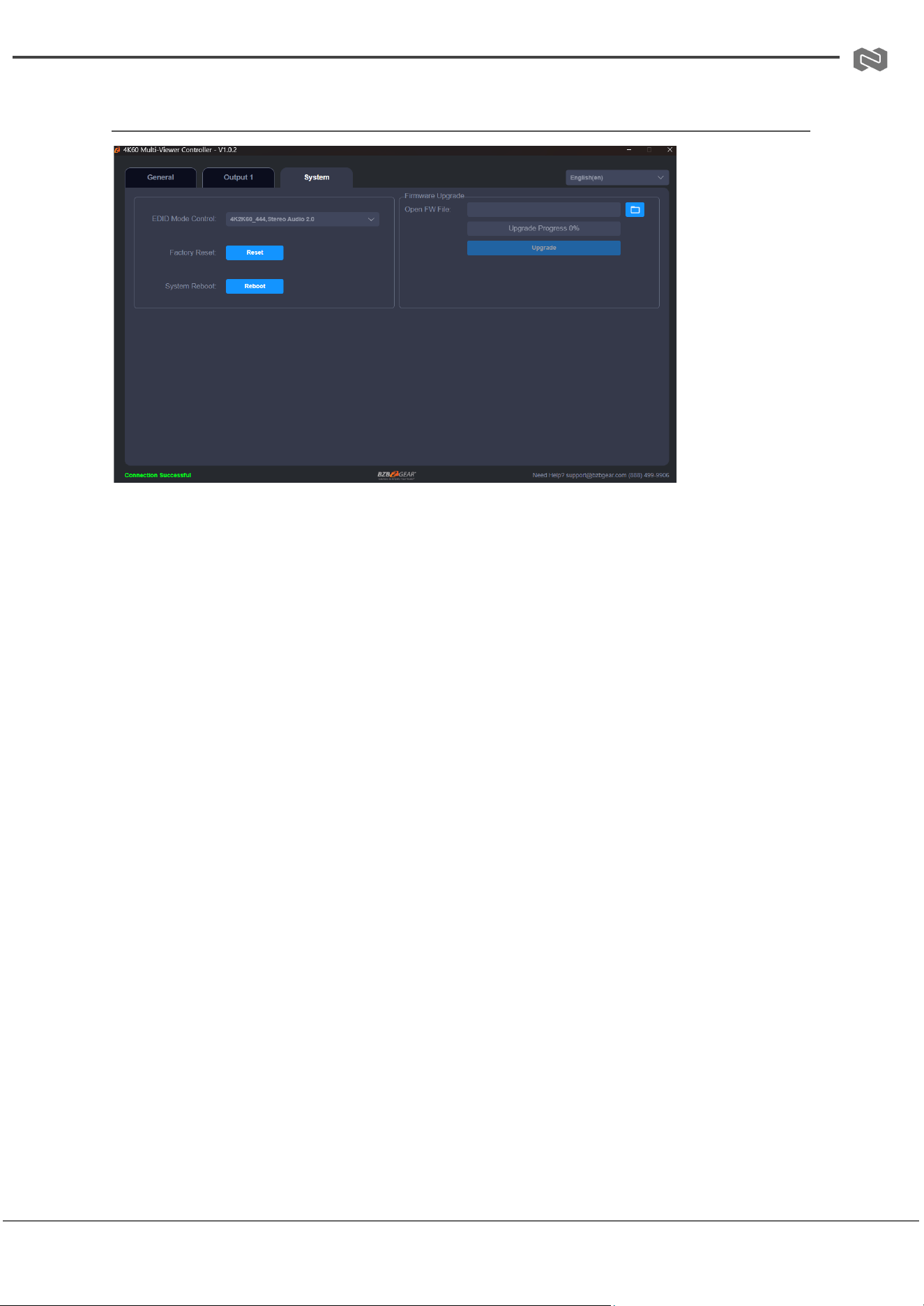

System Interface Operations
1. EDID Mode Control: Click the drop-down menu on the right to select the desired
EDID mode.
2. Firmware Upgrade: Click the folder icon on the right to import the firmware
upgrade file. Then, click "Upgrade" to begin the process. A progress bar will appear
to indicate the upgrade status. Once the progress bar reaches 100%, the upgrade is
complete, and the device will automatically restart.
3. Factory Reset: Click "Reset" to restore the device to its factory default settings.
4. System Reboot: Click "Reboot" to restart the device.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 20
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL

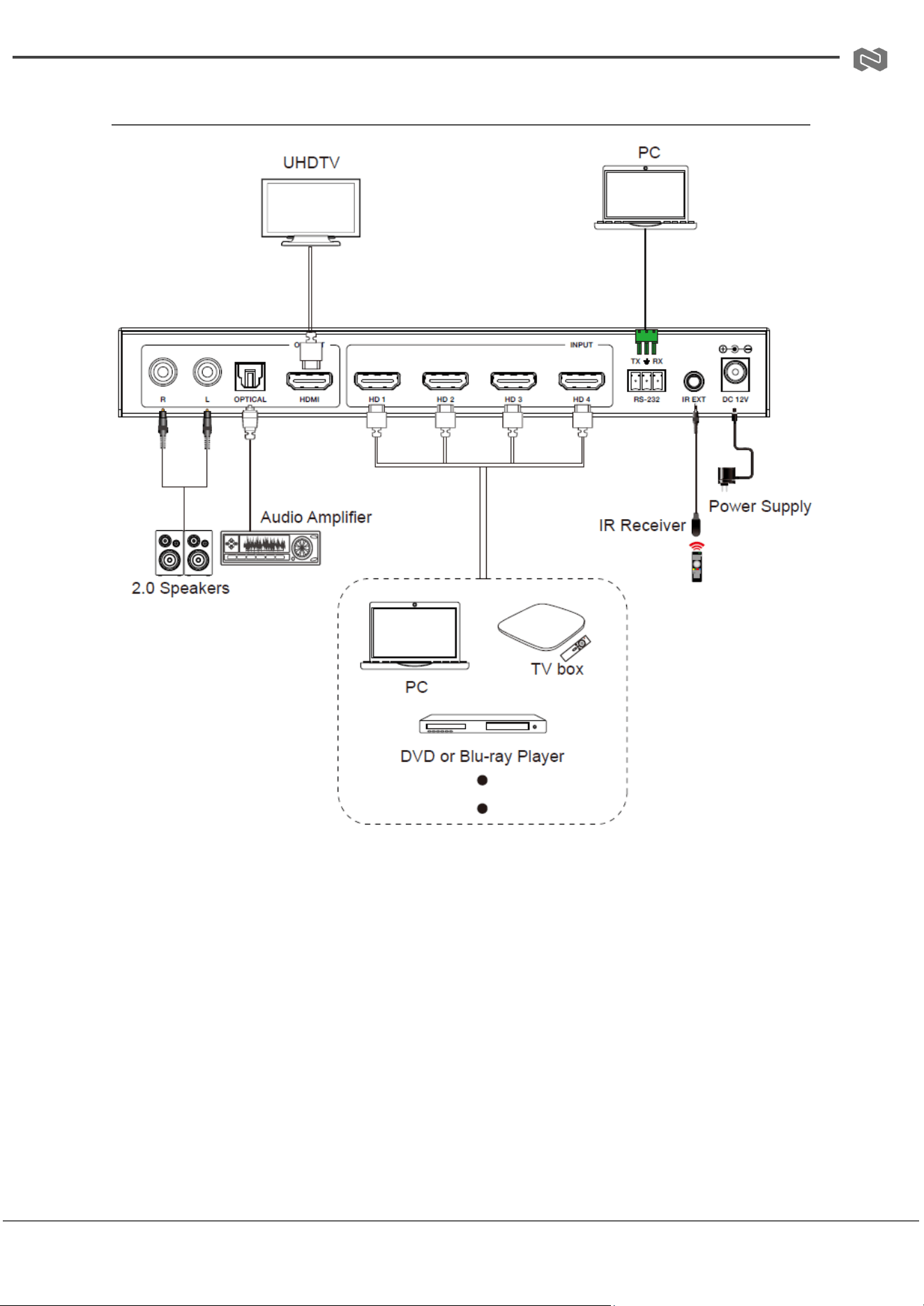

Application Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 21
BZBGEAR BG-UHD-MVS41A PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 22
