Product Overview
Elevate your smart home with the Smart Bridge MZ1. Designed to bridge
Zigbee devices to the Matter protocol, it offers effortless integration with
leading smart home platforms. The 3R-Installer App ensures a smooth
setup and easy device management. Whether you're at home or
on-the-go, you can control your devices remotely or with simple voice
commands. With its compact design, secure connection, and versatility,
the Smart Bridge MZ1 is the essential addition to your smart home eco-
system.
01
02
Zigbee Wi-Fi Power Input Reset PinholePower
LED Status
Device Status
Zigbee idle
Zigbee ready for pairing
Wi-Fi Idle/Ready for setup/Wi-Fi Matter reset
Wi-Fi connection 15 min timeout
Wi-Fi connected
Wi-Fi connection lost/resuming
Power on
Device OTA in progress
Device/Module self test fault
Factory reset
LED Status
Zigbee LED On
Zigbee LED slow blinking
Wi-Fi LED fast blinking
Wi-Fi LED Off
Wi-Fi LED On
Wi-Fi LED slow blinking
Power LED On
Power LED slow blinking
Power LED fast blinking
All 3 LED fast blinking
Long press the reset button with a pin through the pinhole until 3 LED
turn fast blinking.
This Matter certified device can be paired to any Matter certified ecosys-
tems.
Download and install the 3R-Installer App(iOS/Android) on your
phone.
1.
Turn on Bluetooth on your phone, and make sure your phone has a
stable internet access through IEEE 802.11 b/g/n 2.4GHz Wi-Fi net-
work.
2.
Power on the Matter Bridge with the power cable and adaptor, the
Wi-Fi LED indicator turns fast blinking, indicating it is ready for Wi-Fi
setup.
3.
Open the 3R-Installer App on your phone and tap + in the upper right
corner.
4.
Factory Reset
Setup with 3R-Installer
03

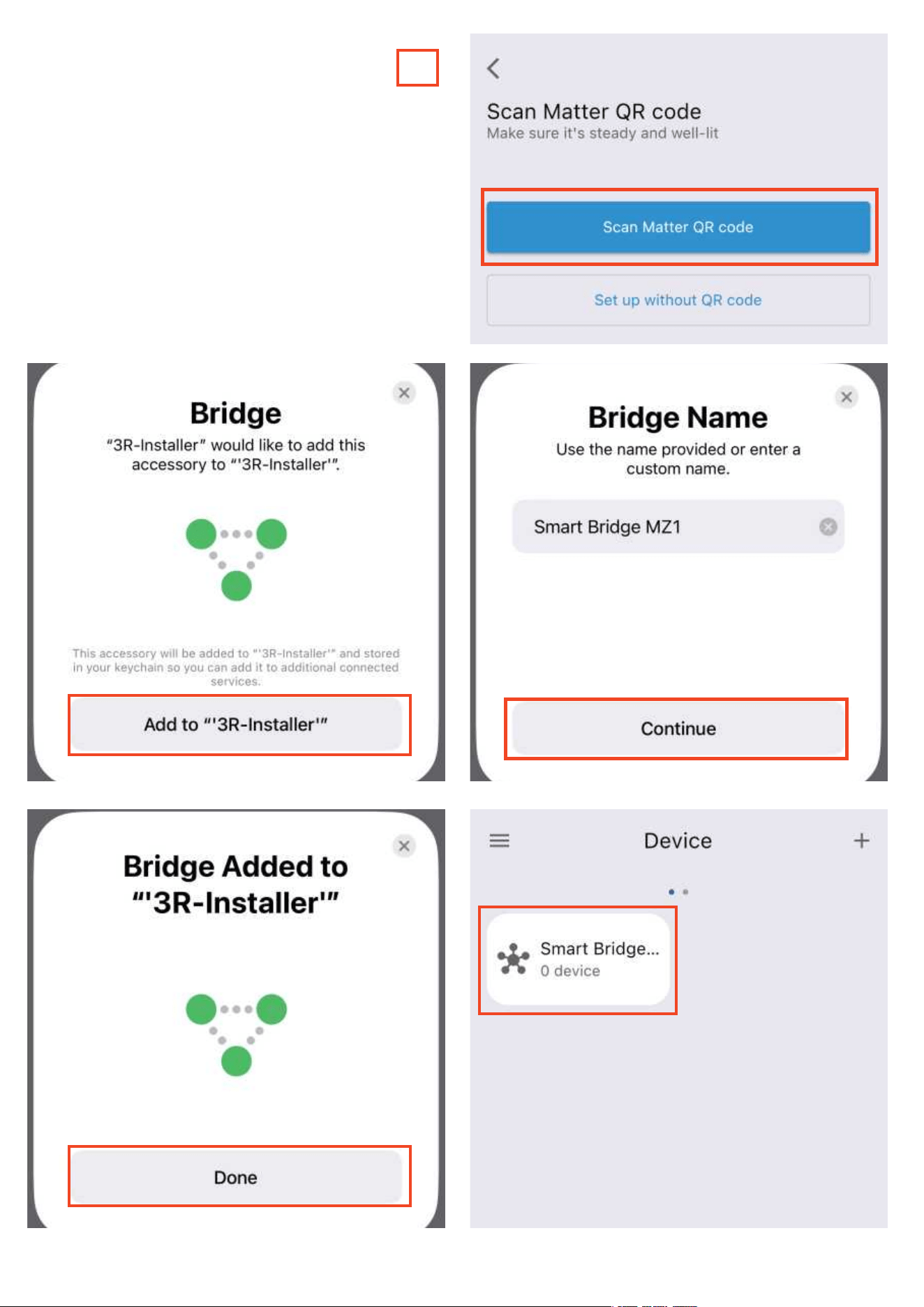

Scan the Matter QR Code and follow the on-screen instructions to
configure the Wi-Fi network.
5.
After the network configuration is completed, tab the bridge icon to
enter the device page, tab Check Updates for firmware updates.
6.
Tab Bridge Zigbee Devices and put the Zigbee devices into pairing
mode, pair the THIRDREALITY Zigbee end devices to this bridge.
After device configuration, you can find the Zigbee devices on the
Smart Bridge device page, tab the device icon to enter the device
page, you can Check Updates for firmware OTA.
7.
Tab Link With Matter Enabled Services, copy the Manual Setup Code
or Scan the QR Code within 3 min, then you can add the bridge to
other Matter supported ecosystems through multi-admin.
8.
Tab Bridge ZIGBEE Devices to pair more THIRDREALITY Zigbee devic-
es to the bridge.
9.
Tab Matter Reset It is highly recommended to download and install
3R-Installer app on your phone first, follow the instructions below to
setup the bridge in the 3R-Installer app, then get the setup code and
add the bridge to other Matter supported ecosystems through
multi-admin. to remove the bridge from your Wi-Fi router. Zigbee
devices connected to the bridge will remain connected. You can use
this code to set up the Wi-Fi for the bridge through 3R-Installer App
on your phone connected with another Wi-Fi router.
10.
04
05
06
Compatibility:
iOS system: Version 16.6 or later.
Matter-supported Controller: Home Pod, Home Pod mini, or Apple TV.
Note: It is highly recommended to download and install 3R-Installer
app on your phone first, follow the instructions below to setup the
bridge in the 3R-Installer app, then get the setup code and add the
bridge to your Apple Home through multi-admin. You can also Scan
the QR code to add the bridge to your Apple Home directly.

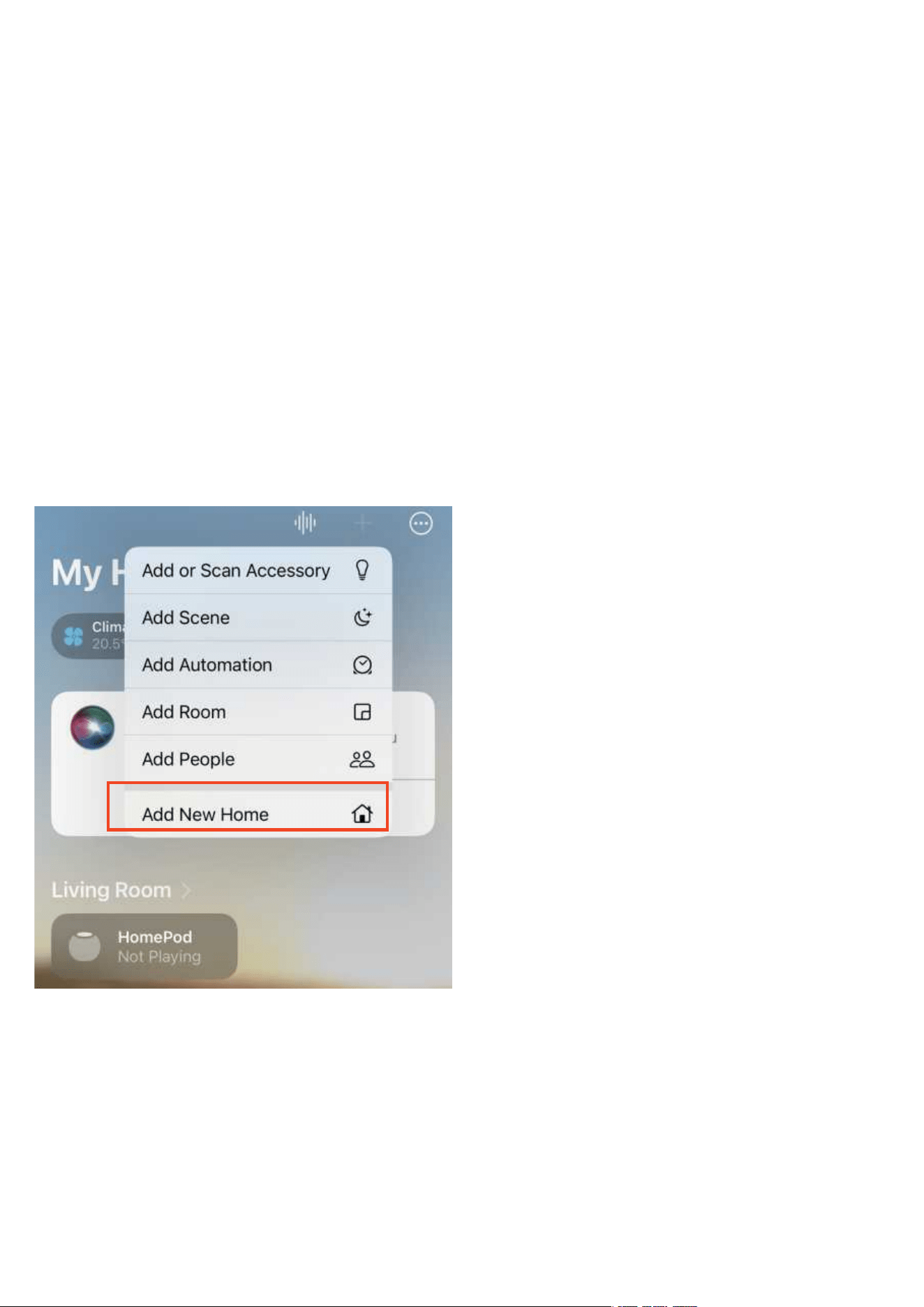

Make sure your Apple Home Controller is connected to the same
Wi-Fi network, launch your Home App. Tap + and then tap Add or
Scan Accessory to add a new device. Tab More Options, Select the
Smart Bridge MZ1 to Add device, paste the Setup Code copied from
3R-Installer App to Continue, set the location and name for the
bridge, the bridge will be added to My Home.
2.
1.
Pre-connected accessories attached to the Matter Bridge will be au-
tomatically updated.
Setup the Bridge with 3R-Installer App, copy the setup code of the
Matter bridge in 3R-Installer App.(Code effective duration: 3 min, see
Setup with 3R-Installer App)
3.
Setup with Apple Home
07
08
To connect the device to another Matter certified ecosystem app,
long press any attached accessories and tab Accessory Settings to
enter accessory page, tab Bridge to enter the Smart Bridge MZ1
device page, tab Turn On Pairing Mode to generate and copy a new
setup code. Launch the app of another Matter certified ecosystem,
follow the setup instruction to paste the setup code and follow the
app instructions to complete the setup.
5.
Set location and name for the accessories, then create automation
for the accessories.
4.
09
10
11
Compatibility
Google Home App version:
Android: 3.3.1.4 or later
IOS: 3.3.104 or later
Make sure your Google Home speaker is connected to the same Wi-Fi
network, launch your Google Home App. Tap + and then tap New
device. Choose a home and tab Next, choose the Matter bridge then
tab Next, Continue without scanning, paste the Setup Code to Con-
tinue, create a name for the bridge, the bridge will be added.
2.
Pre-connected devices attached to the Matter Bridge will be auto-
matically updated.
3.
Create names and add the devices to Google Home, then create au-
tomation for the devices.
4.
Setup with Google Home
12
Note: It is highly recommended to download and install 3R-Installer
app on your phone first, follow the instructions below to setup the
bridge in the 3R-Installer app, then get the setup code and add the
bridge to your Google Home through multi-admin. You can also Scan
the QR code to add the bridge to your Google Home directly.
1. Setup the Bridge with 3R-Installer App, copy the setup code of the
Matter bridge in 3R-Installer App.(Code effective duration: 3 min, see
Setup with 3R-Installer App)
13
14
15
Note: It is highly recommended to download and install 3R-Installer
app on your phone first, follow the instructions below to setup the
bridge in the 3R-Installer app, then get the setup code and add the
bridge to your Alexa through multi-admin. You can also Scan the QR
code to add the bridge to your Alexa directly.
16
Alexa App version:
Android: 2.2.521848.0 or later for build version, and 2023.15 or later for
APP version
IOS: 2.2.548660 or later for build version, and 2023.15 or later for APP
version
1. Setup the Bridge with 3R-Installer App, copy the setup code of the
Matter bridge in 3R-Installer App.(Code effective duration: 3 min, see
Setup with 3R-Installer App)
Make sure your Alexa speaker is connected to the same Wi-Fi net-
work, launch your Amazon Alexa App, tab + in the up right on the
device page to Add Device, scroll down the the list and tab Other,
choose matter, try MUMERIC CODE INSTEAD to ENTER CODE, and
follow the instructions to add the bridge and pre-connected devic-
es.
2.

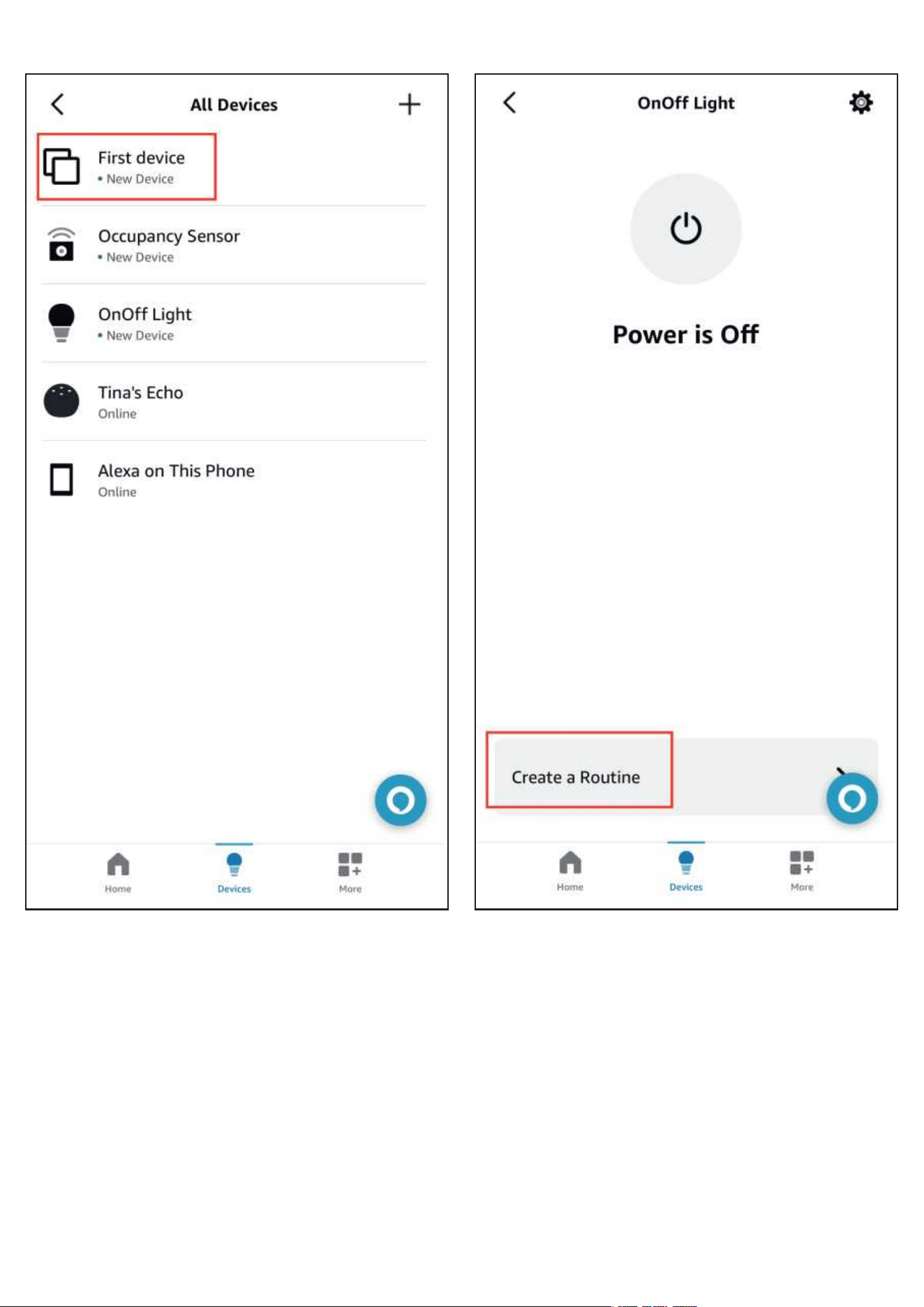

Create routines with the devices.3.
Setup with Alexa
17
4. To connect the device to another Matter certified ecosystem app, go
to the app of the first ecosystem to generate a new setup code. Go
to the Device Settings page, tap Other assistants and apps and Add
another, then copy the setup code. Launch the app of another
Matter certified ecosystem, follow the setup instruction to enter the
setup code and follow the app instructions to complete the setup.
18
19
20
Compatibility:
SmartThings App version 1.8.01.22 or higher. iOS SmartThings App ver-
sion 1.7.02.16
Matter-supported Controller: SmartThings Hub V2& V3, Aeotec Smart
Home Hub
Launch your SmartThings App. Tap + to Add device., Choose Matter.1.
Scan QR code on your device.2.

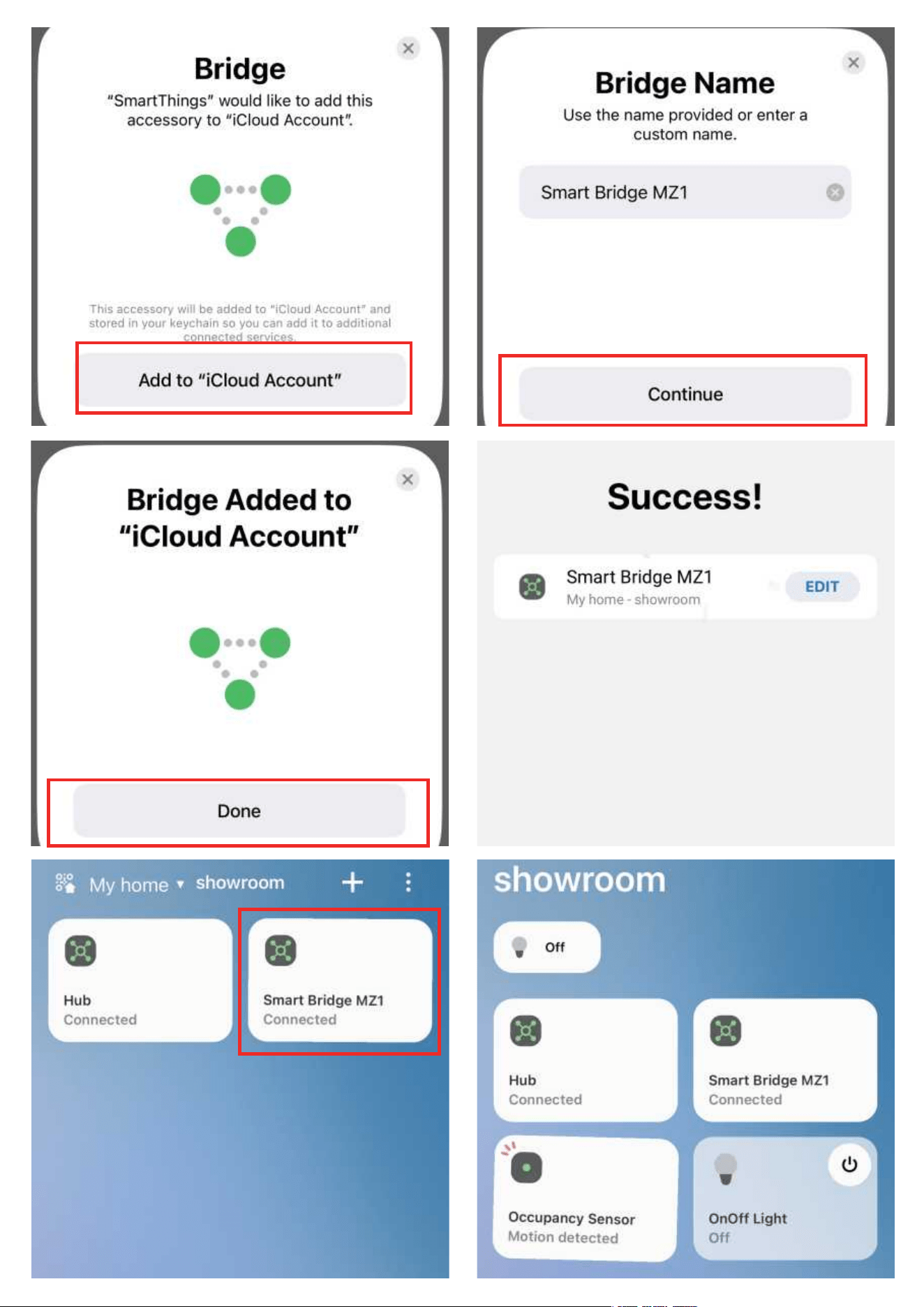

Select a hub to connect your device.(You need to Add to “iCloud Ac-
count” in IOS, then create Accessory Name, then Continue)
3.
Set a name to add the device.4.
Press the reset button through the pinhole with a pin to enable
Zigbee pairing, the Zigbee indicator of the Matter bridge truns into
blue blinking, put THIRDREALITY Zigbee devices into pairing mode
to add devices.
5.
Create routine with the Zigbee devices added through the Matter
bridge.
6.
To connect the device to another Matter certified ecosystem app, go
to the app of the first ecosystem to generate a new setup code. Go to
the Device Settings page, tab Share with other services then Share
device, there will be QR code and a numeric code. Launch the app of
another Matter certified ecosystem, follow the setup instruction to
enter the setup code and follow the app instructions to complete the
setup.
7.
Setup with SmartThings
21
22
23
24
25
FCC regulatory conformance
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user’s authority to operate the equip-
ment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
26
RF Exposure
Limited Warranty
‐Reorient or relocate the receiving antenna.
‐Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help im-
portant announcement.
NOTE: The manufacturer is not responsible for any radio or TV interfer-
ence caused by unauthorized modifications to this equipment. Such
modifications could void the user’s authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
For limited warranty, please visit www.3reality.com/devicesupport
For customer support, please contact us at info@3reality.com or visit
www.3reality.com
For help and troubleshooting related to Amazon Alexa, visit the Alexa
app.
