Multi-Function Night Light
Quick Start Guide
What's In The Box

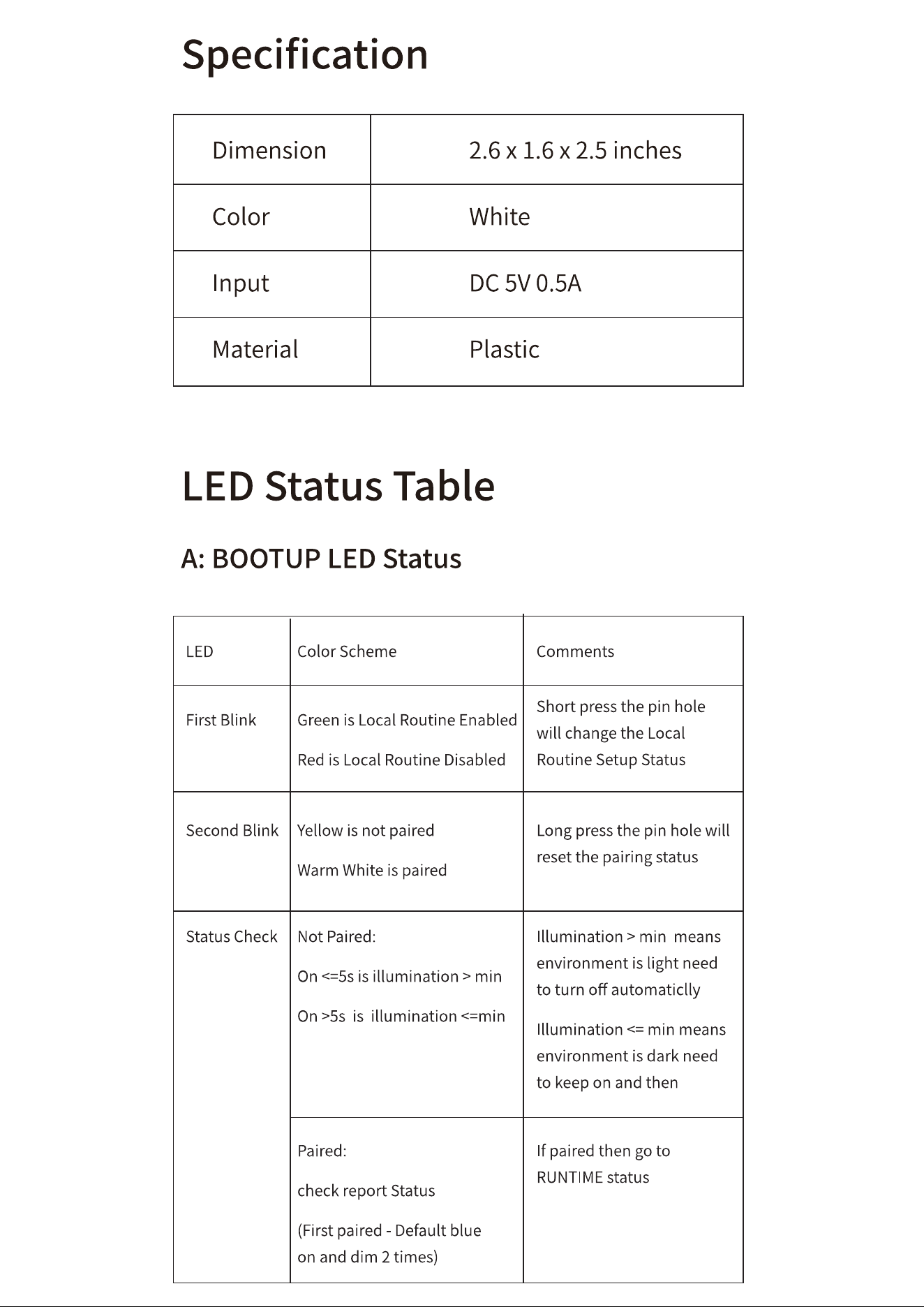

Specification
LED Status Table
A: BOOTUP LED Status

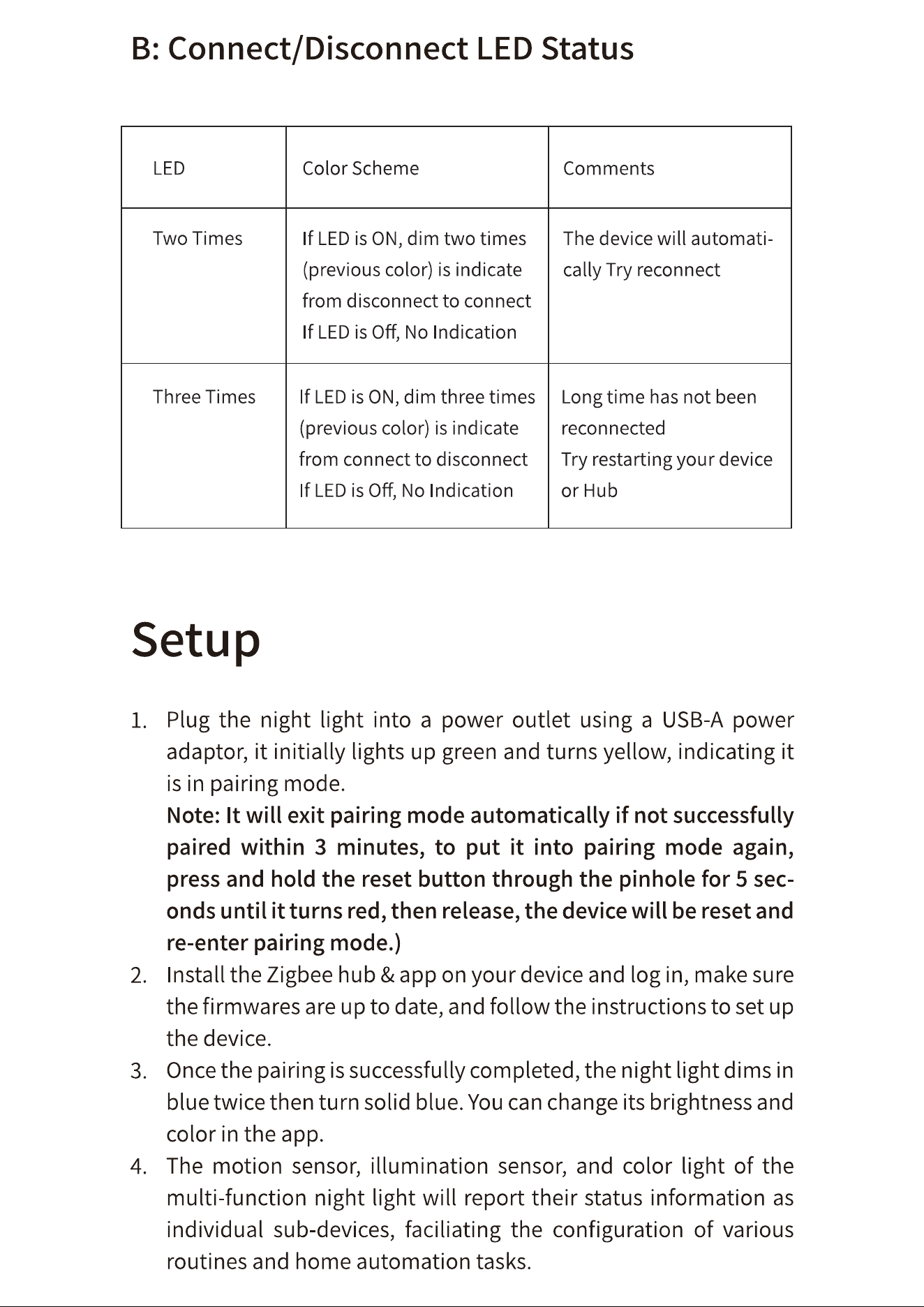

B: Connect/Disconnect LED Status

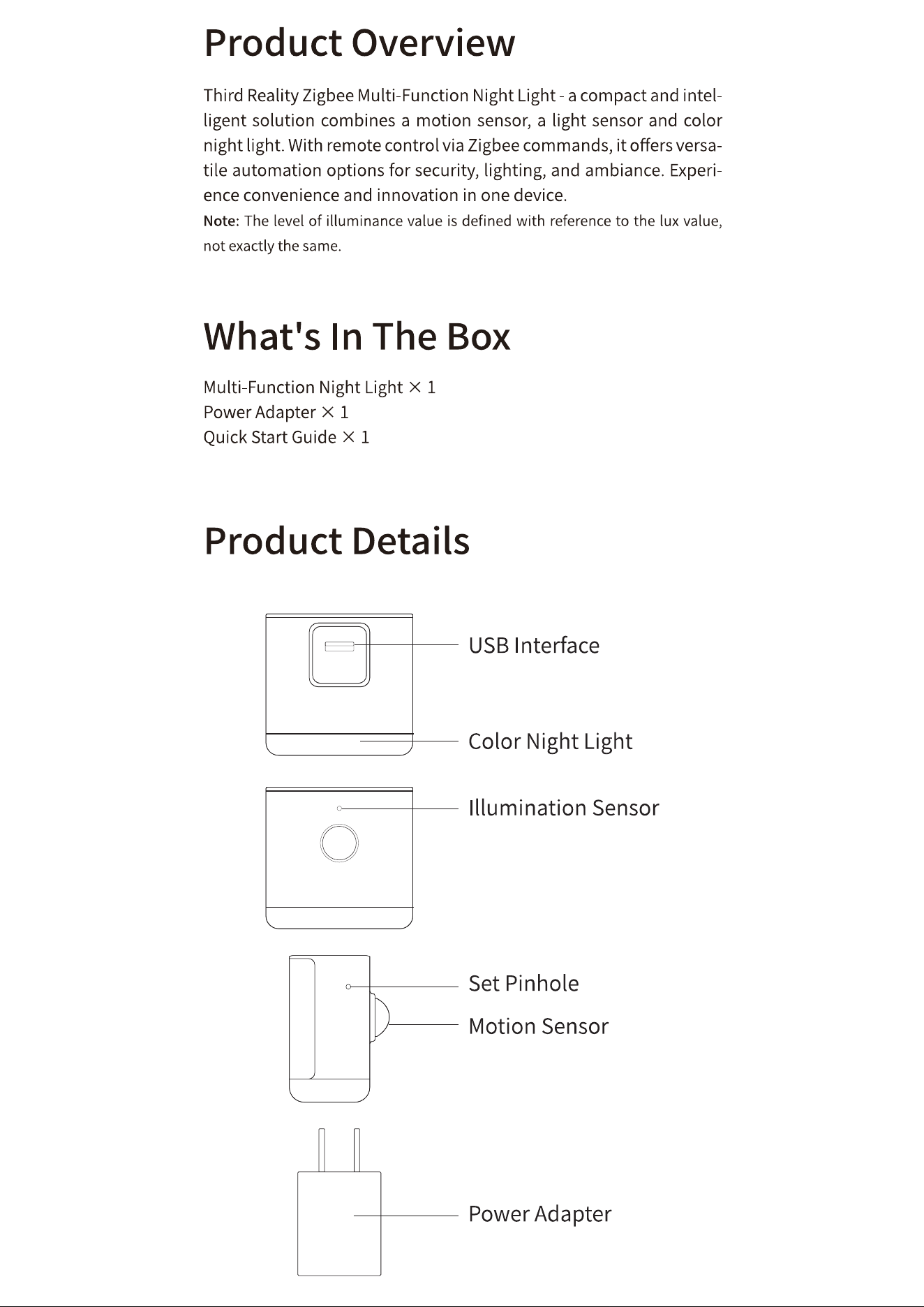

Product Overview
Multi-Function Night Light × 1
Power Adapter × 1
Quick Start Guide × 1
Dimension
Color
Input
Material
2.6 x 1.6 x 2.5 inches
White
DC 5V 0.5A
Plastic
Third Reality Zigbee Multi-Function Night Light - a compact and intel-
ligent solution combines a motion sensor, a light sensor and color
night light. With remote control via Zigbee commands, it offers versa-
tile automation options for security, lighting, and ambiance. Experi-
ence convenience and innovation in one device.
Note: The level of illuminance value is defined with reference to the lux value,
not exactly the same.
Product Details
Color Night Light
USB Interface
Motion Sensor
Set Pinhole
Power Adapter
Illumination Sensor
Setup
Plug the night light into a power outlet using a USB-A power
adaptor, it initially lights up green and turns yellow, indicating it
is in pairing mode.
Note: It will exit pairing mode automatically if not successfully
paired within 3 minutes, to put it into pairing mode again,
press and hold the reset button through the pinhole for 5 sec-
onds until it turns red, then release, the device will be reset and
re-enter pairing mode.)
Install the Zigbee hub & app on your device and log in, make sure
the firmwares are up to date, and follow the instructions to set up
the device.
Once the pairing is successfully completed, the night light dims in
blue twice then turn solid blue. You can change its brightness and
color in the app.
The motion sensor, illumination sensor, and color light of the
multi-function night light will report their status information as
individual sub-devices, faciliating the configuration of various
routines and home automation tasks.
1.
2.
3.
4.

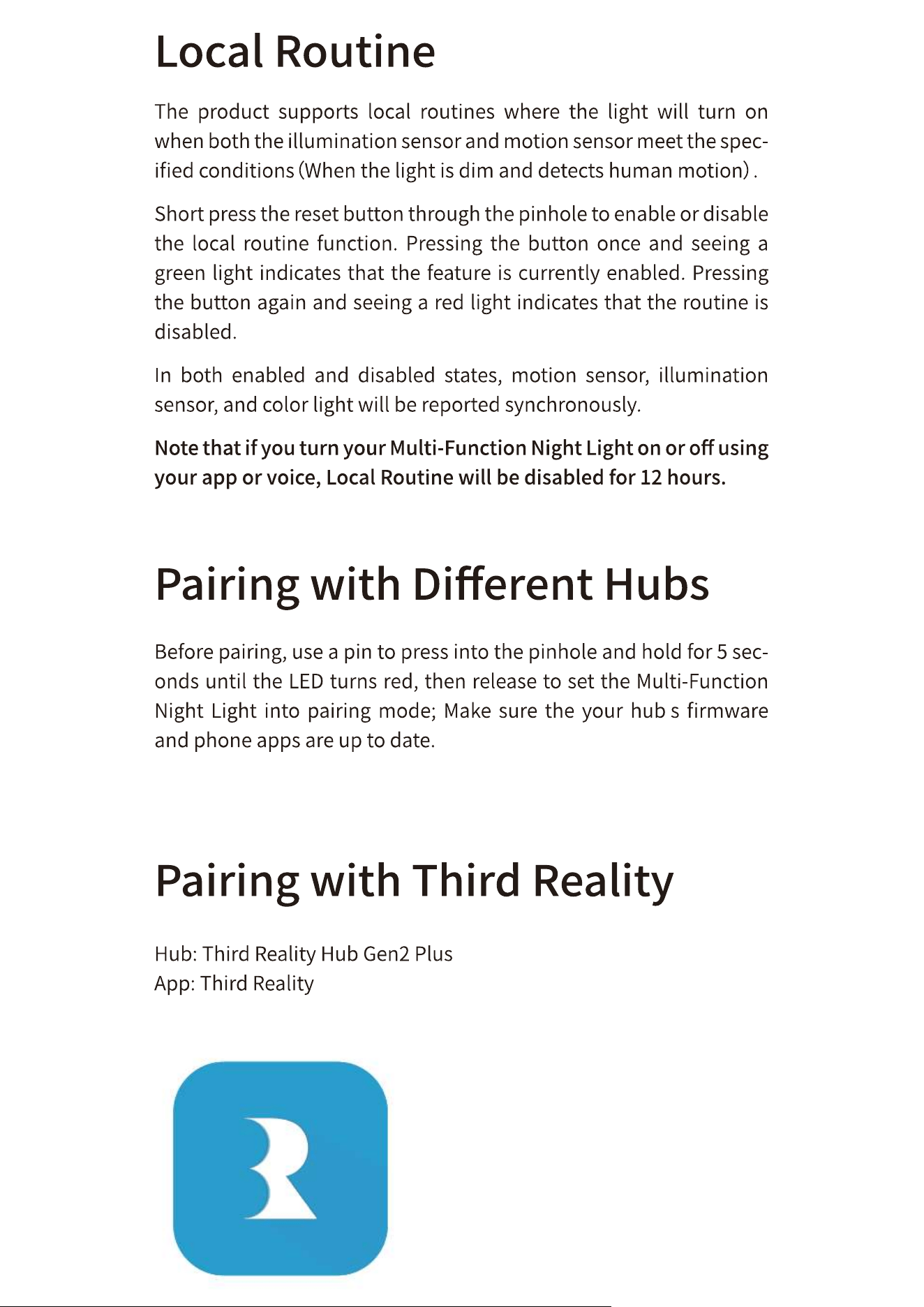

Local Routine
The product supports local routines where the light will turn on
when both the illumination sensor and motion sensor meet the spec-
ified conditions（When the light is dim and detects human motion）.
Short press the reset button through the pinhole to enable or disable
the local routine function. Pressing the button once and seeing a
green light indicates that the feature is currently enabled. Pressing
the button again and seeing a red light indicates that the routine is
disabled.
In both enabled and disabled states, motion sensor, illumination
sensor, and color light will be reported synchronously.
Note that if you turn your Multi-Function Night Light on or off using
your app or voice, Local Routine will be disabled for 12 hours.
Before pairing, use a pin to press into the pinhole and hold for 5 sec-
onds until the LED turns red, then release to set the Multi-Function
Night Light into pairing mode; Make sure the your hub’s firmware
and phone apps are up to date.
Hub: Third Reality Hub Gen2 Plus
App: Third Reality
Pairing with Different Hubs

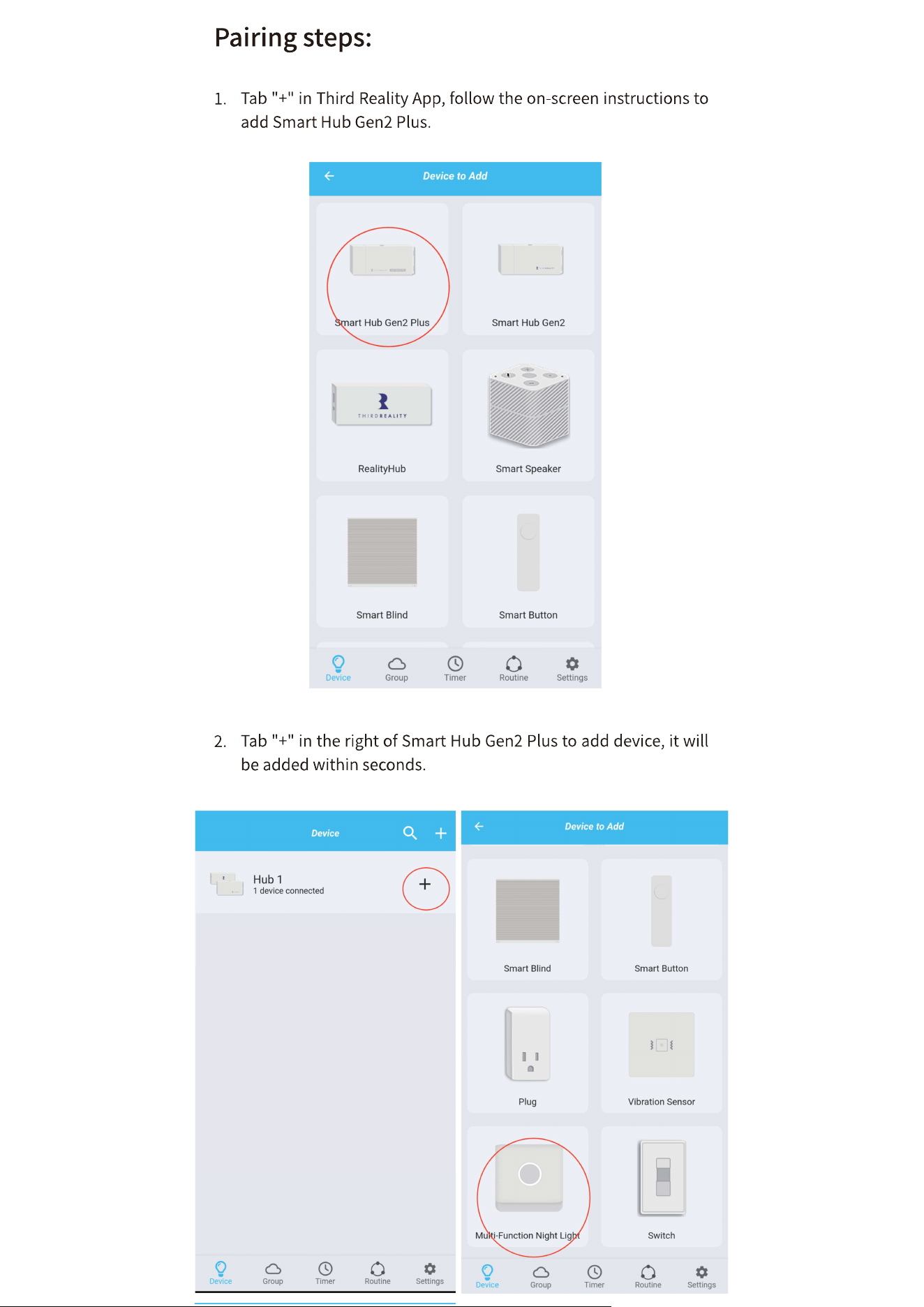

Pairing with Third Reality
Tab "+" in Third Reality App, follow the on-screen instructions to
add Smart Hub Gen2 Plus.
1.
Tab "+" in the right of Smart Hub Gen2 Plus to add device, it will
be added within seconds.
2.

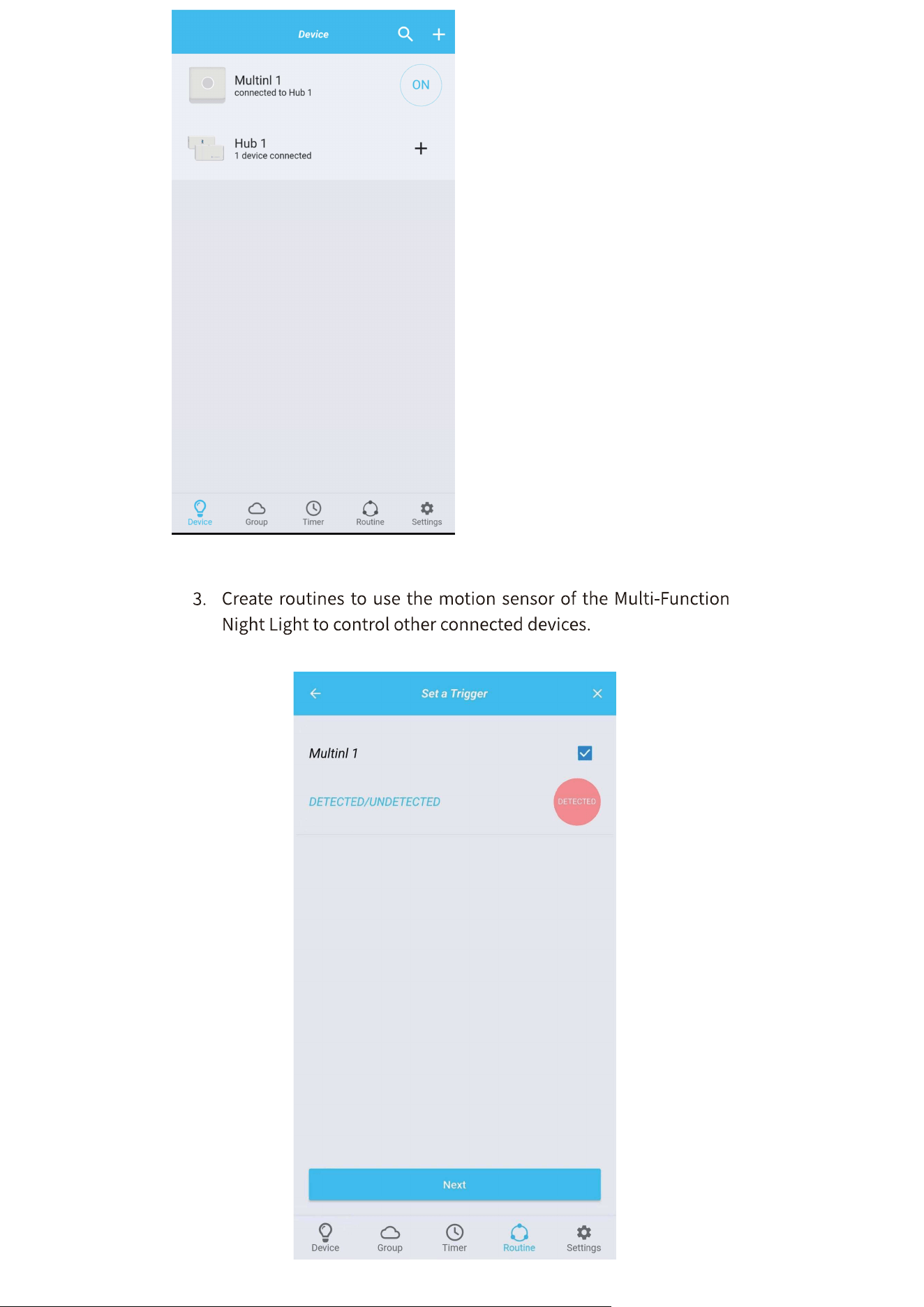

Create routines to use the motion sensor of the Multi-Function
Night Light to control other connected devices.
3.
Pairing steps:
LED
First Blink
Second Blink
Status Check
Color Scheme
Short press the pin hole
will change the Local
Routine Setup Status
Comments
Green is Local Routine Enabled
Red is Local Routine Disabled
Yellow is not paired
Warm White is paired
Not Paired:
On <=5s is illumination > min
On >5s is illumination <=min
Paired:
check report Status
(First paired - Default blue
on and dim 2 times)
Long press the pin hole will
reset the pairing status
Illumination > min means
environment is light need
to turn off automaticlly
Illumination <= min means
environment is dark need
to keep on and then
If paired then go to
RUNTIME status
LED
Two Times
Three Times
Color Scheme
The device will automati-
cally Try reconnect
Long time has not been
reconnected
Try restarting your device
or Hub
Comments
If LED is ON, dim two times
(previous color) is indicate
from disconnect to connect
If LED is Off, No Indication
If LED is ON, dim three times
(previous color) is indicate
from connect to disconnect
If LED is Off, No Indication
Hub: Echo speakers with built-in Zigbee hub, Echo 4th Gen, Echo Plus
1st & 2nd Gen, Echo Show 10 2nd & 3rd Gen, Echo Studio
App: Amazon Alexa

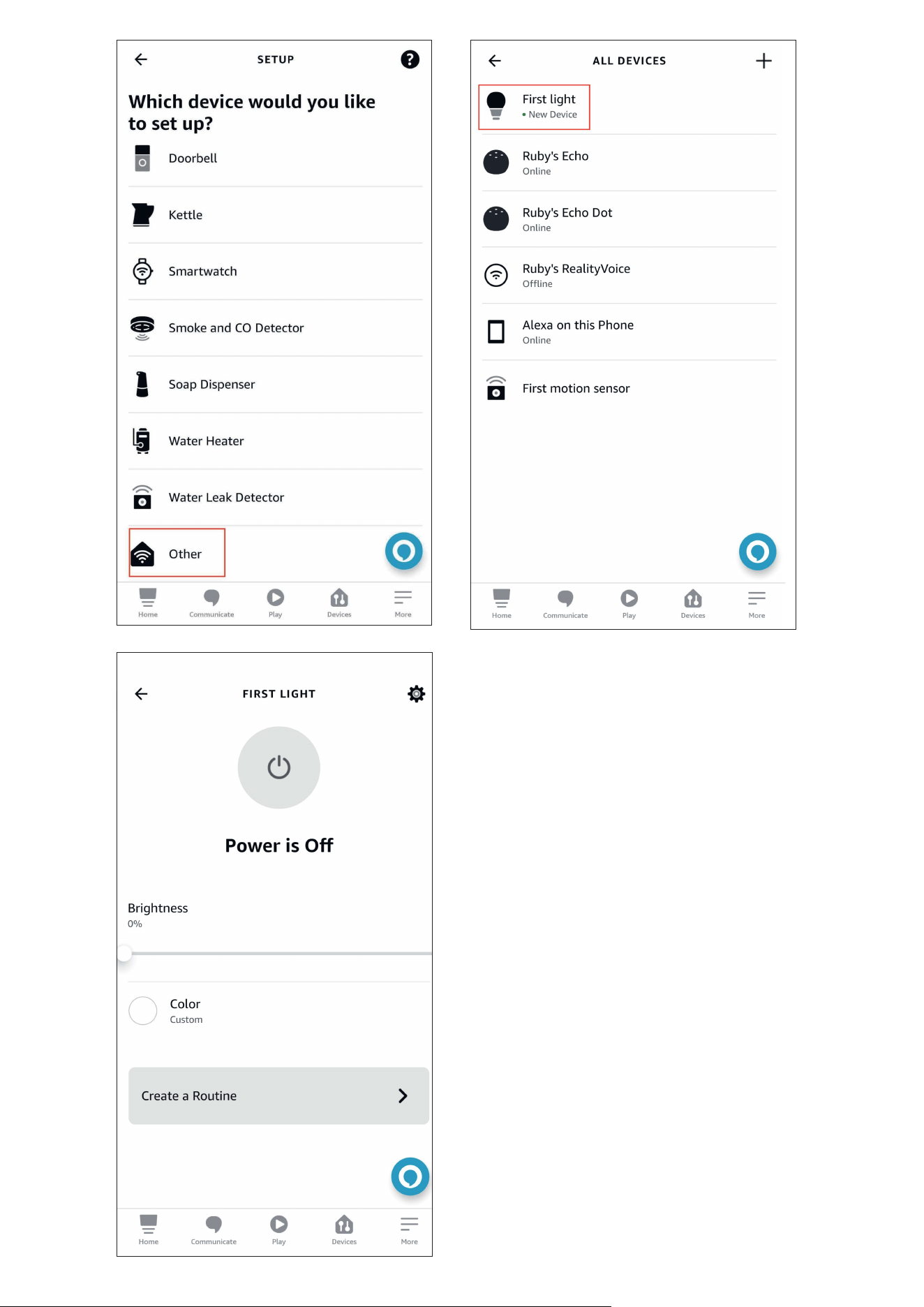

Tab "+" in the Alexa App, choose "Zigbee" and "others" to add
device, the Multi-Function Night Light will be added as the "First
Light".
You can create routines with the "First Light".
1.
2.
Pairing steps:

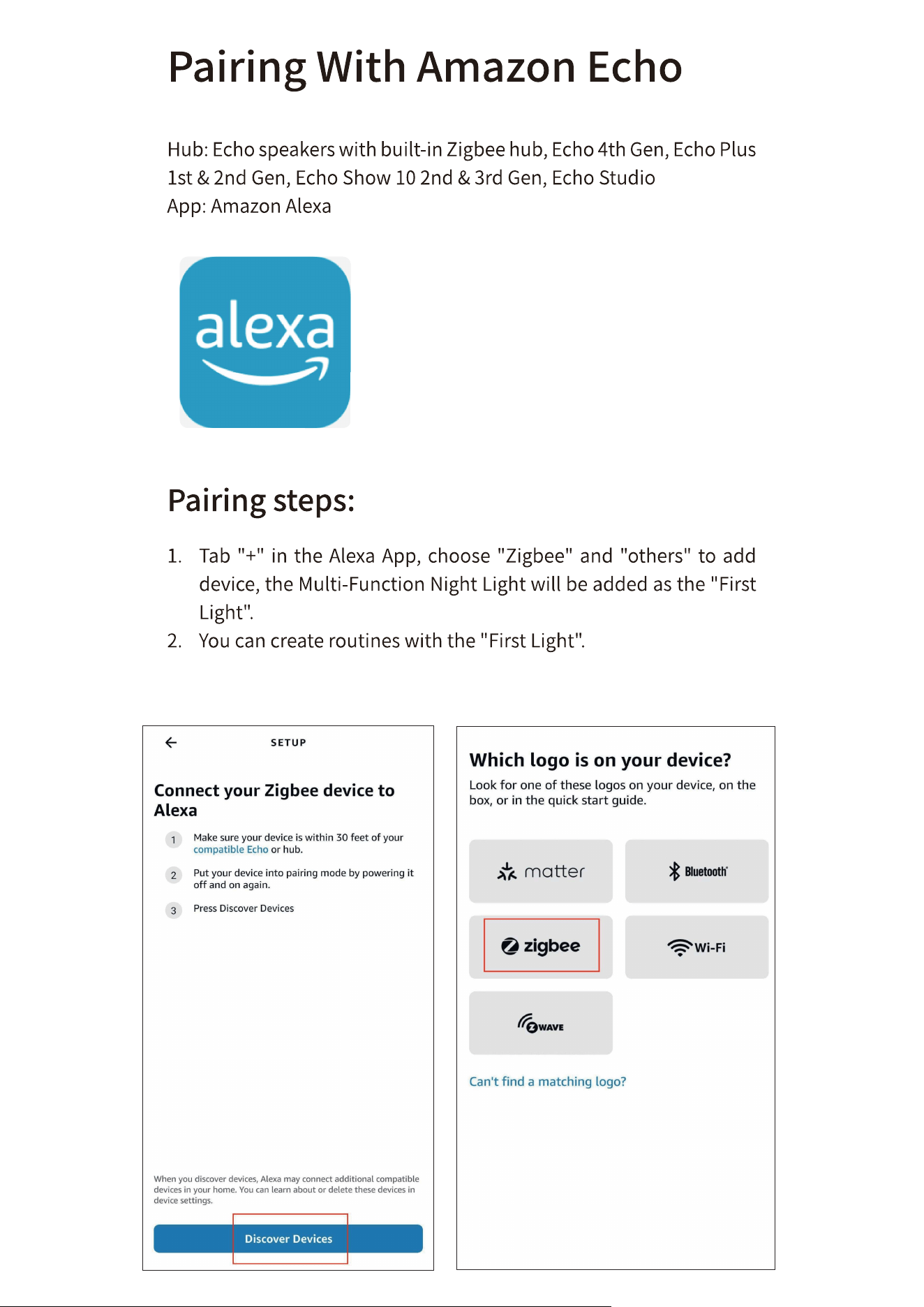

Pairing With Amazon Echo

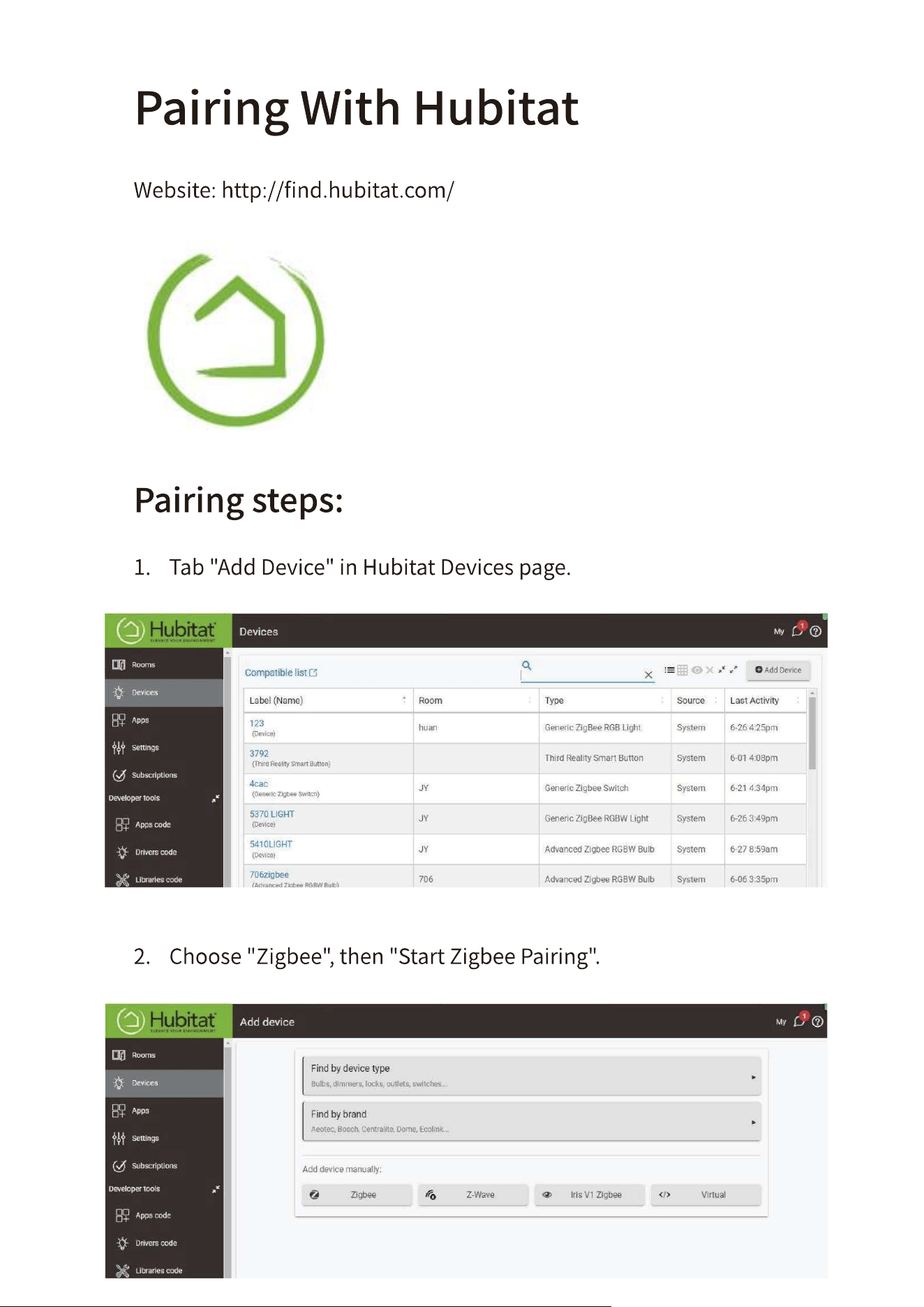

Tab "Add Device" in Hubitat Devices page.1.
Choose "Zigbee", then "Start Zigbee Pairing".2.

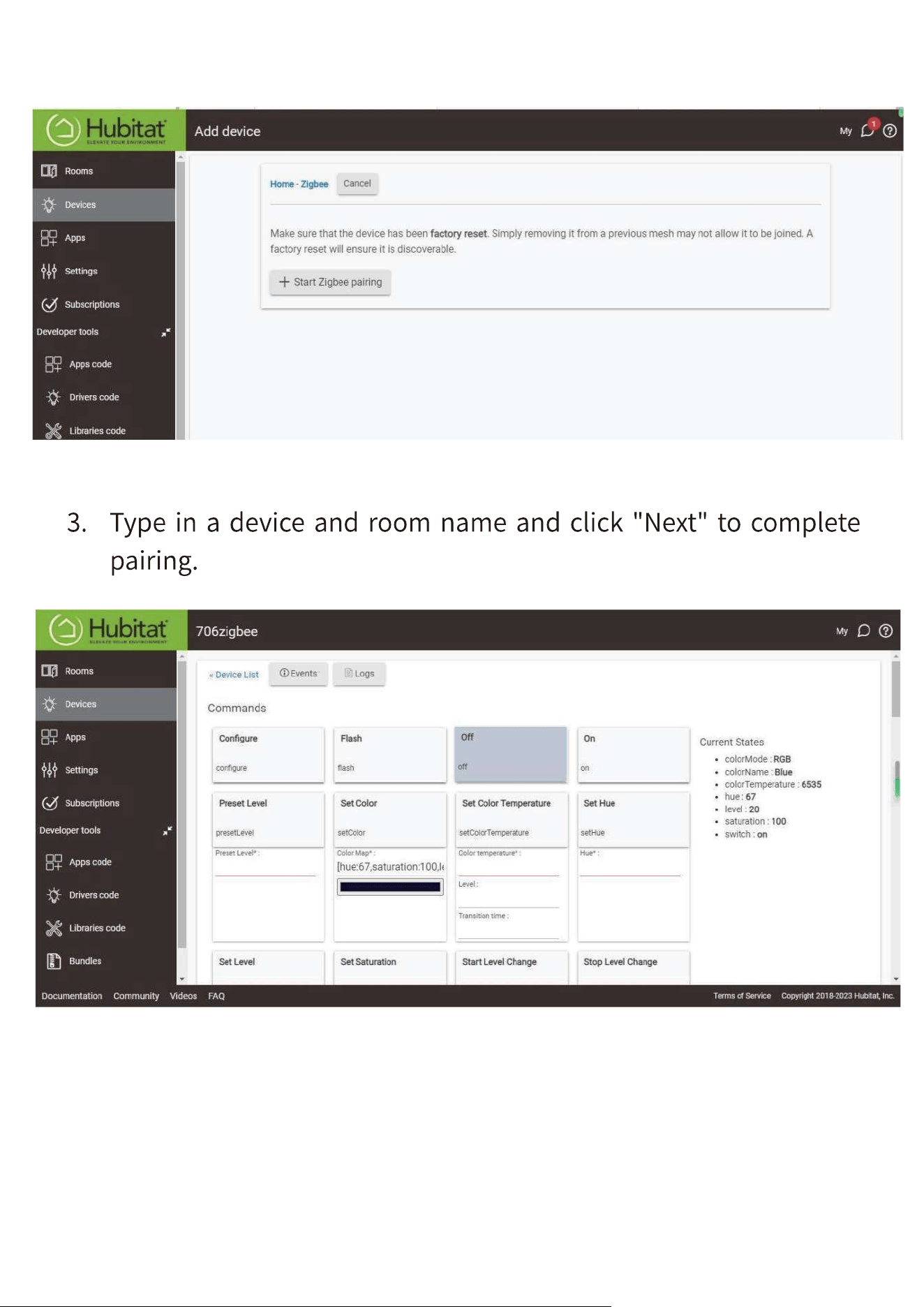

Type in a device and room name and click "Next" to complete
pairing.
3.
Pairing steps:
Website: http://find.hubitat.com/
Pairing With Hubitat
Pairing steps:

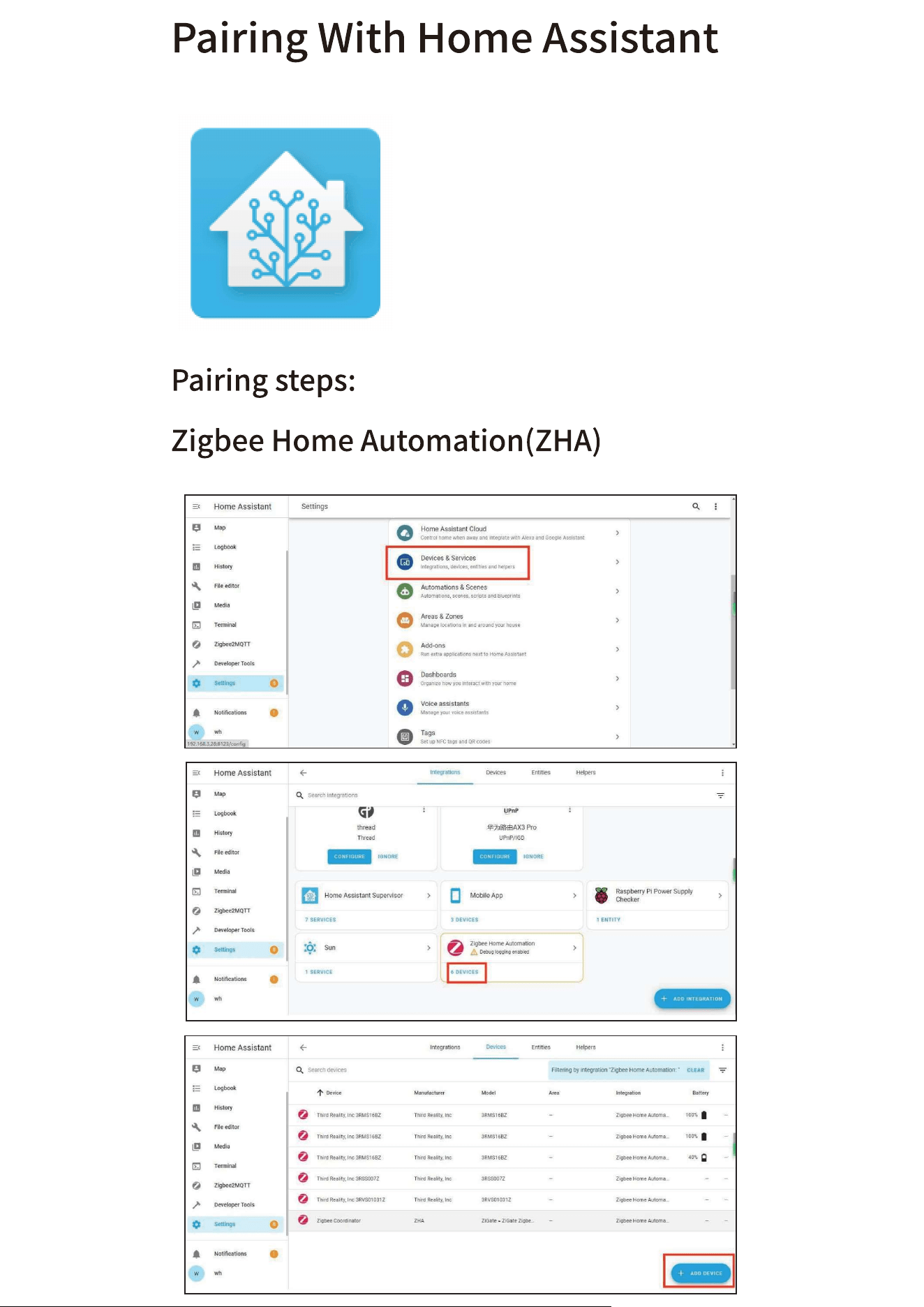

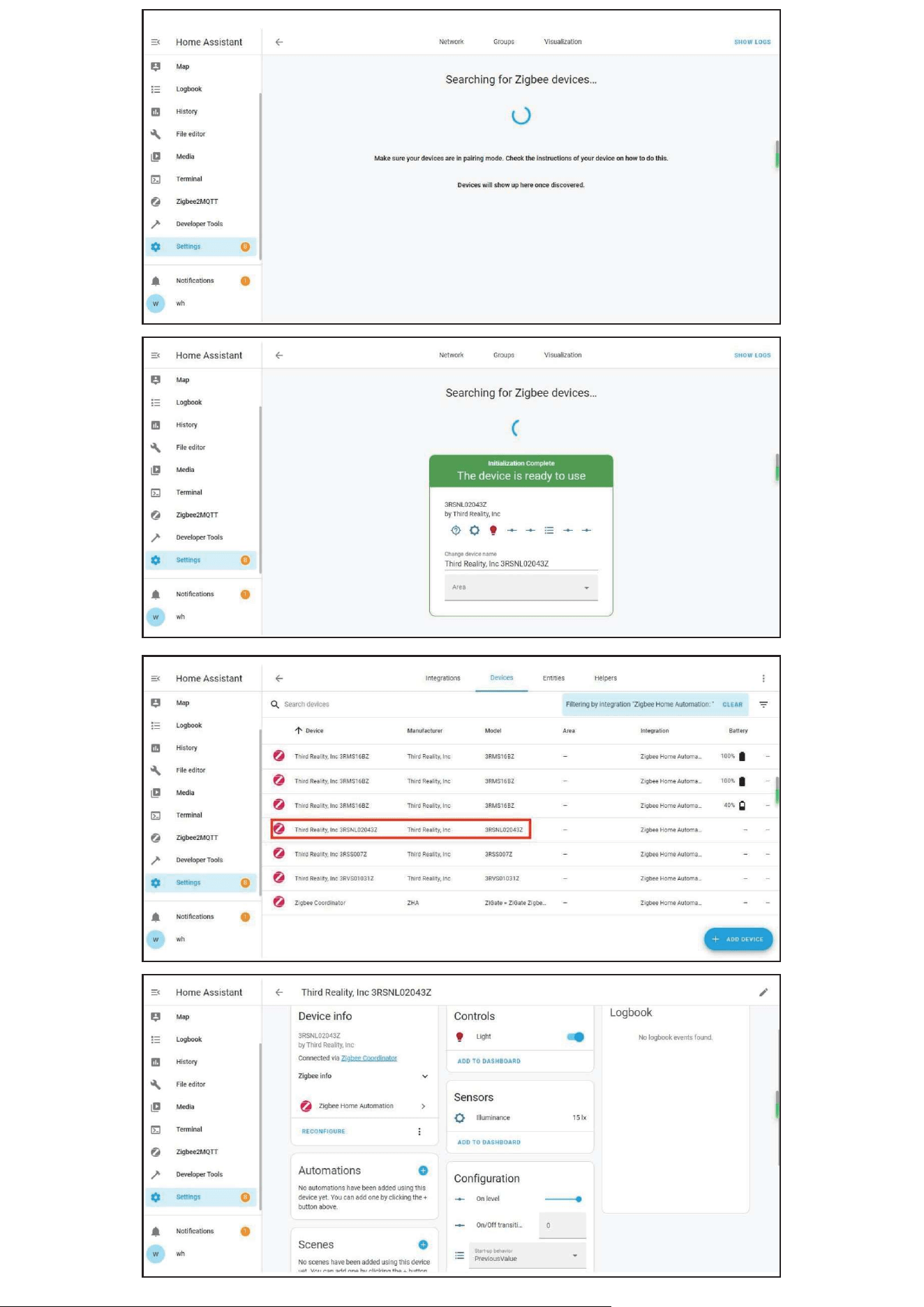

Pairing With Home Assistant
Zigbee Home Automation(ZHA)
